7/8 in(22.2mm)24V Electric Scooter Motorcycle Throttle Twist Handlebar Grips LED Digital Meter
$17.99
- Product Code: ED0016149
- Availability: In Stock
- Ex Tax: $17.99

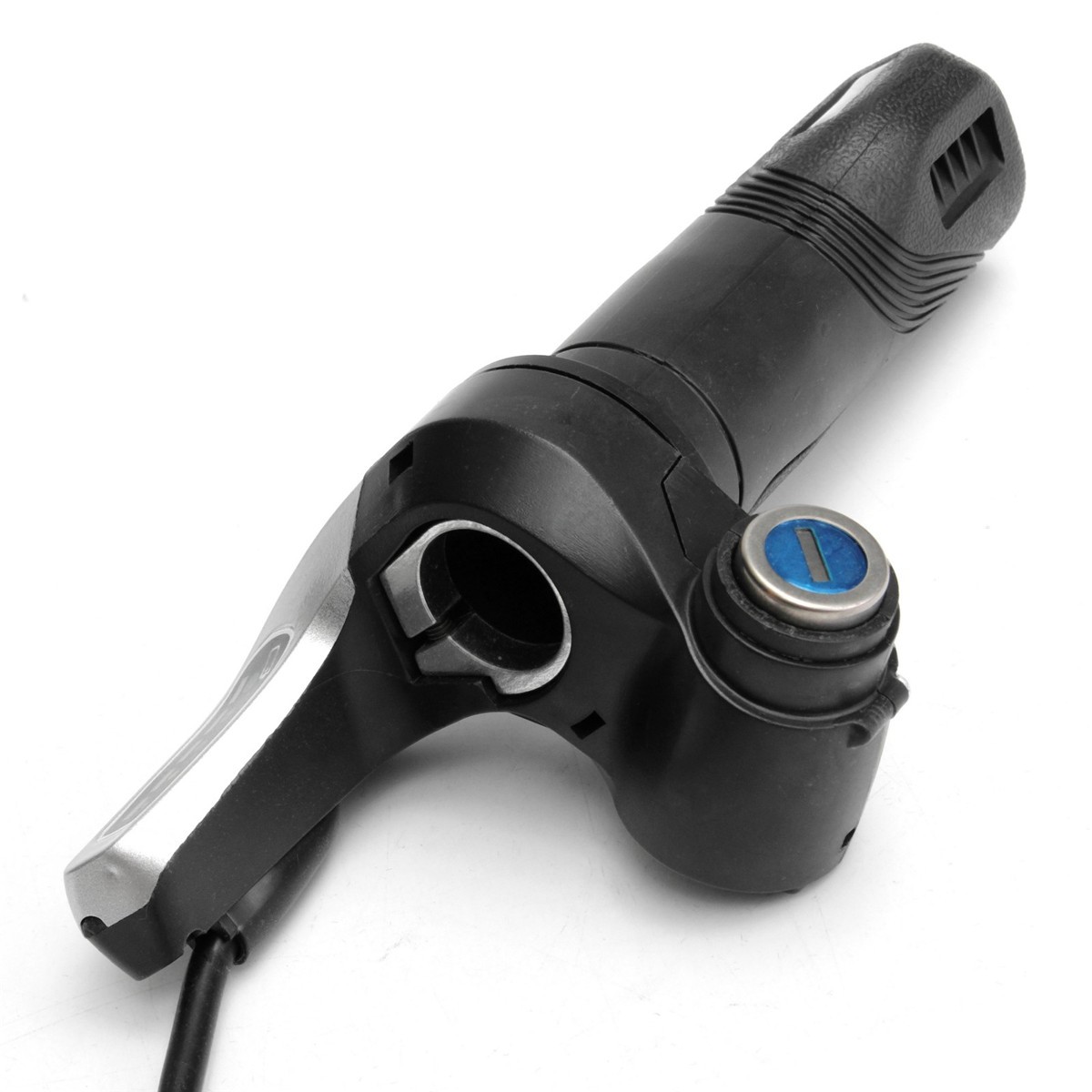

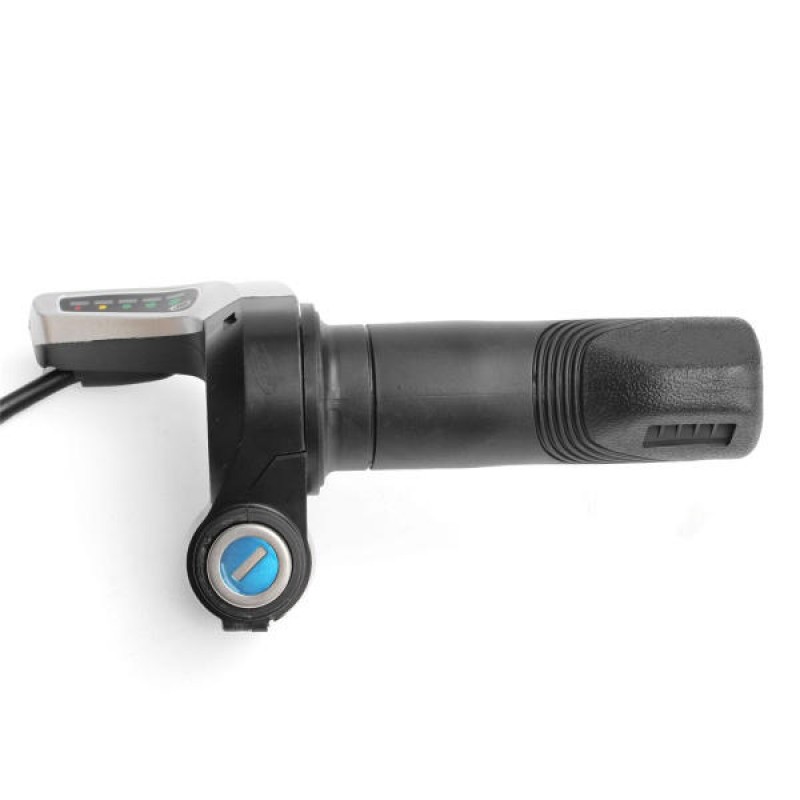

Electric bike scooter twist throttle accelerator with power display
Led battery indicator
Specification:
Size: (Length x Diameter)10cm x 2cm / 3.9" x 0.8"
Throttle Works Voltage: DC 5V
Speed Adjusting Signal:0.8V~4.3V
Power Display Voltage: DC 24V

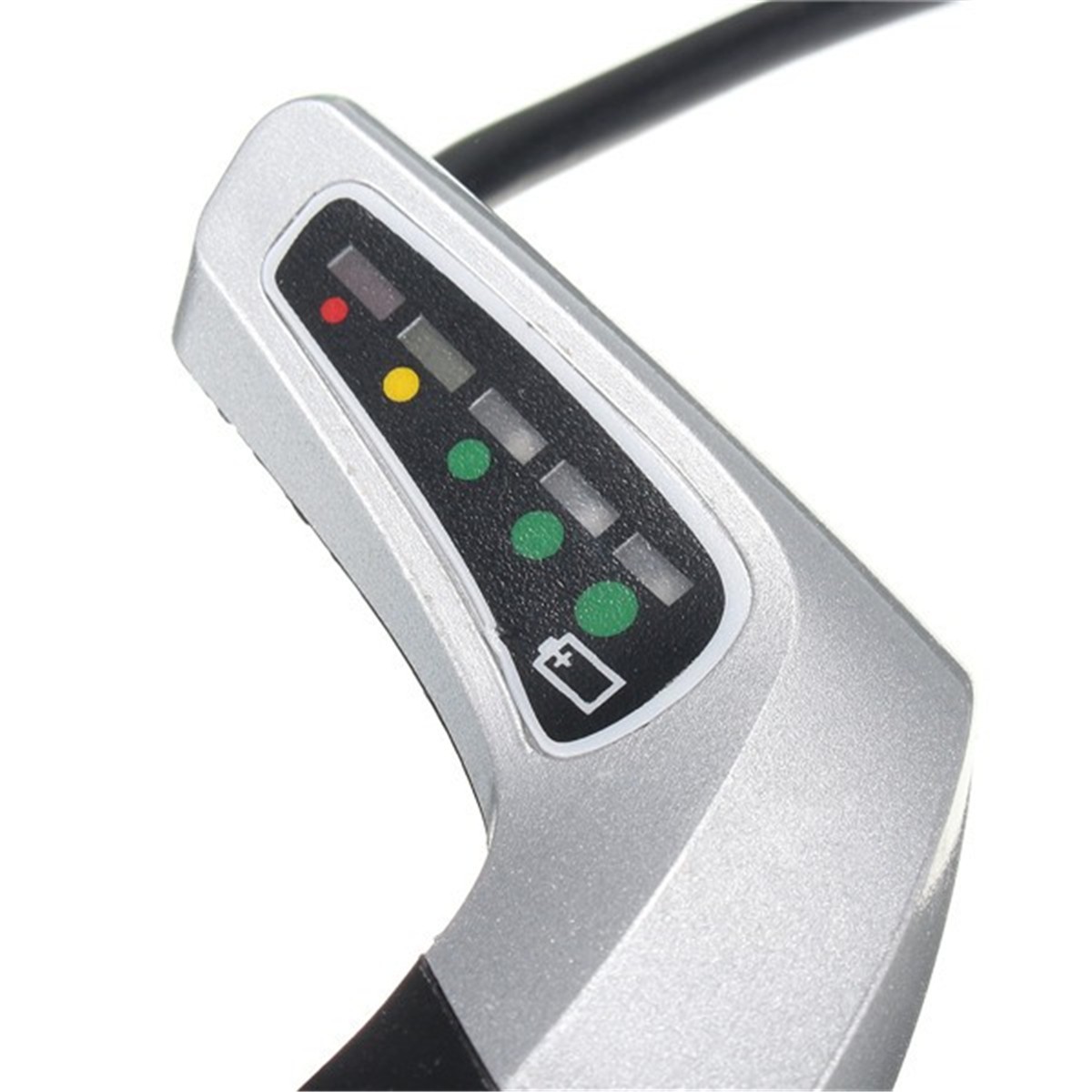

Power Display:
Normal: 23V above, 3 Led Green
Half: 23V ~ 20V, Led Yellow
Empty: 20V or less, Led Red
Rotation Angle: 0 °~ 70 °
Working temperature: -20 ℃~ +50 ℃
Cable Length: Approximately 59 inches (1.5m)

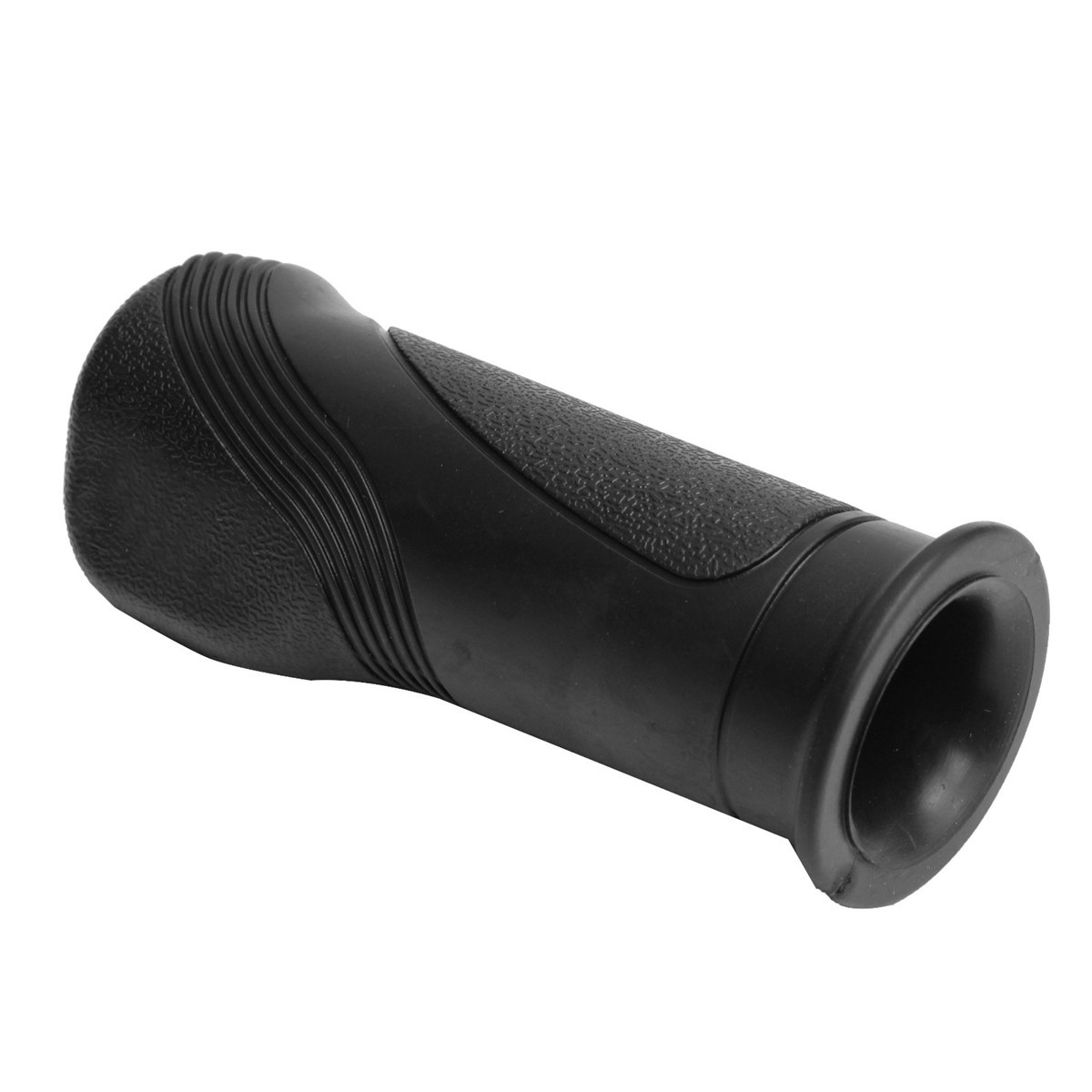

Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) )
Wiring Guidance:
Red: 5v handlebar positive
Green: handlebar signal output
Black: the negative E
Yellow : lock switch output
Blue: battery positive input
Fitment:
Fits standard 7/8 inches(22.2mm) handle bars

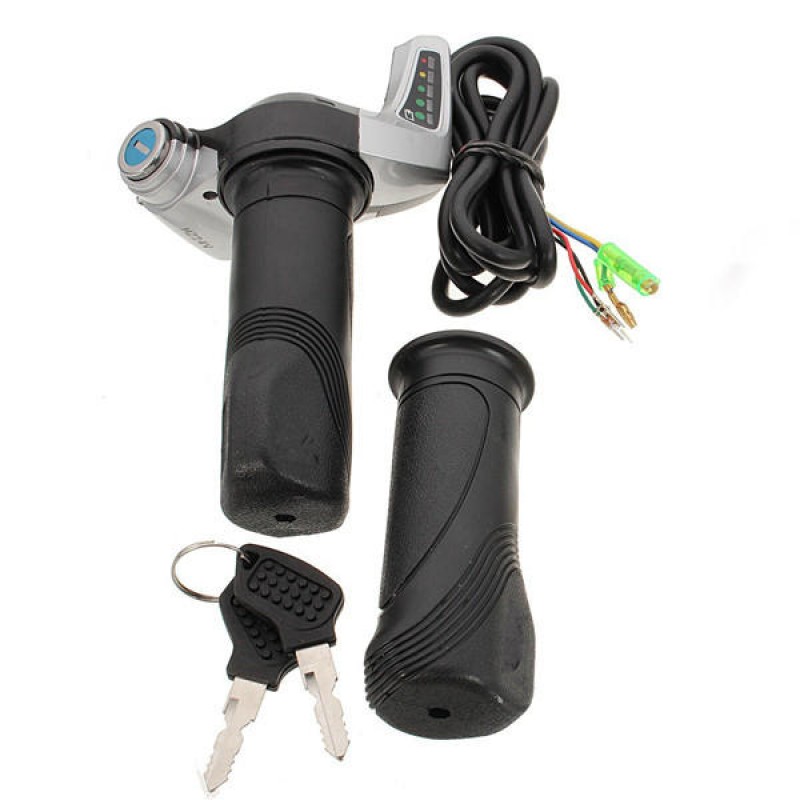

Package Included:
1 X Pair Throttle Grip (With One Normal Grip)
