Description:
1. Dry run,has self-priming function,products with low noise
2. Pressure switch power off protection and bypass switch backflow protection
3. Batch mode of operation
4. Strong power, adjustable spray head, comfortable to use
5. Anticorrosive paint coated motor
6. Used for cleaning fishing boats, fish boxes, beacon stations, anchor chains and small boats
Specification:
Max Recommended Temperature |
140°F (60°C) Max |
Priming Capabilities |
6 feet (1.8 m) suction lift |
Max Pressure |
70PSI (4.8bar) |
Inlet/Outlet Ports |
1/2" -14MNPT |
Duty Cycle |
Intermittent |
Voltage |
12V/24V |
Standard Pump Configurations:

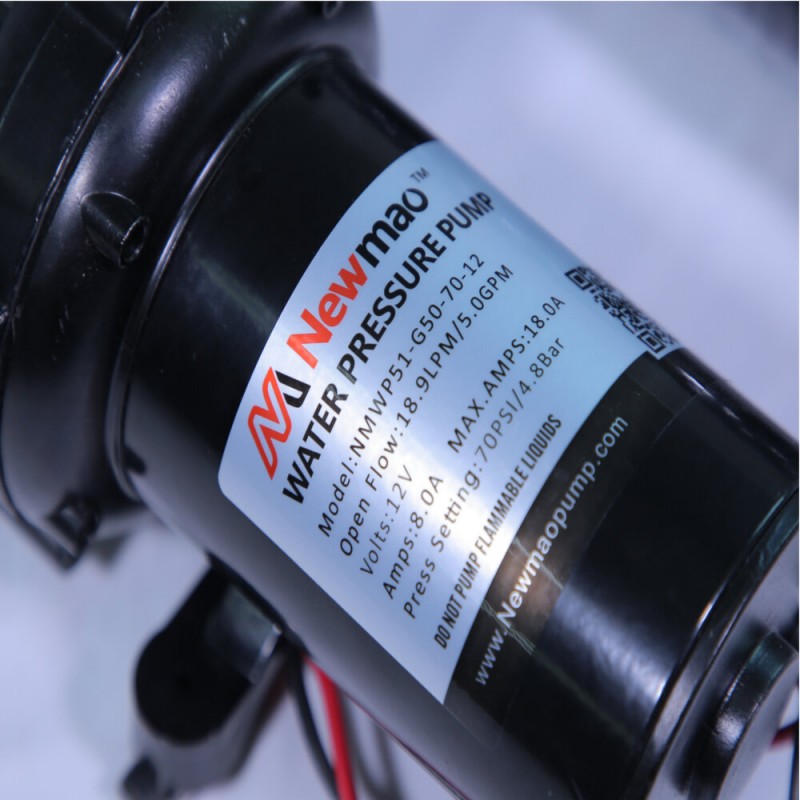

Model |
G50-70-12 |
G50-70-24 |
Voltage |
12 V |
24 V |
GPM/LPM |
5.0/18.9 |
5.0/18.9 |
Switch |
Pressure/Bypass Switch |
Pressure/Bypass Switch |
Amps |
18.0 A |
9.0 A |
PSI/BAR |
70/4.8 |
70/4.8 |
Valves |
EPDM |
EPDM |
Diaphragm |
Santoprene |
Santoprene |
Ports |
Fast connection |
Fast connection |
Wire Connections |
2 wire/European plug |
2 wire/European plug |

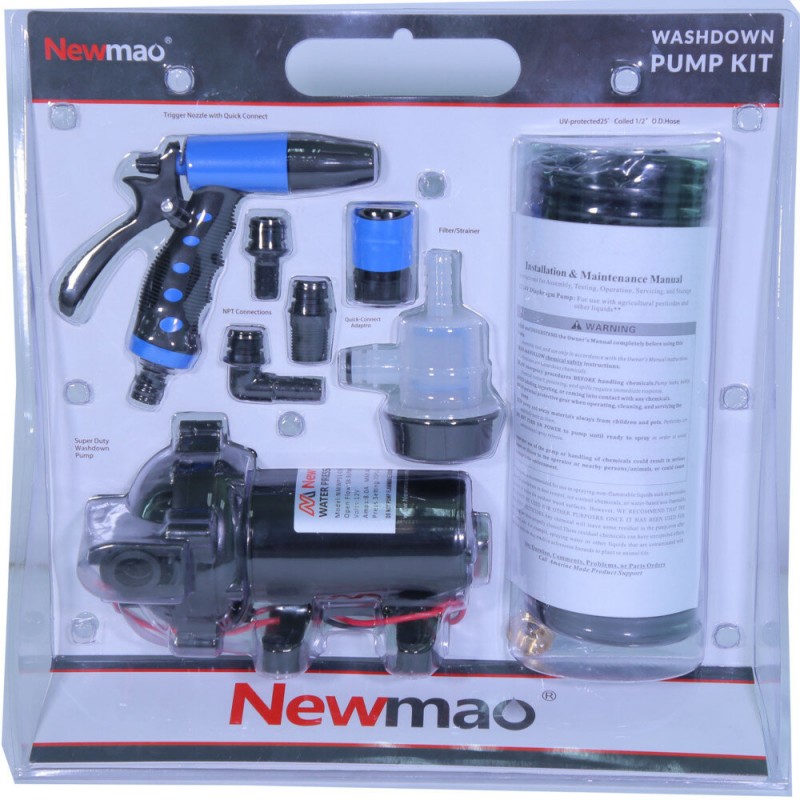

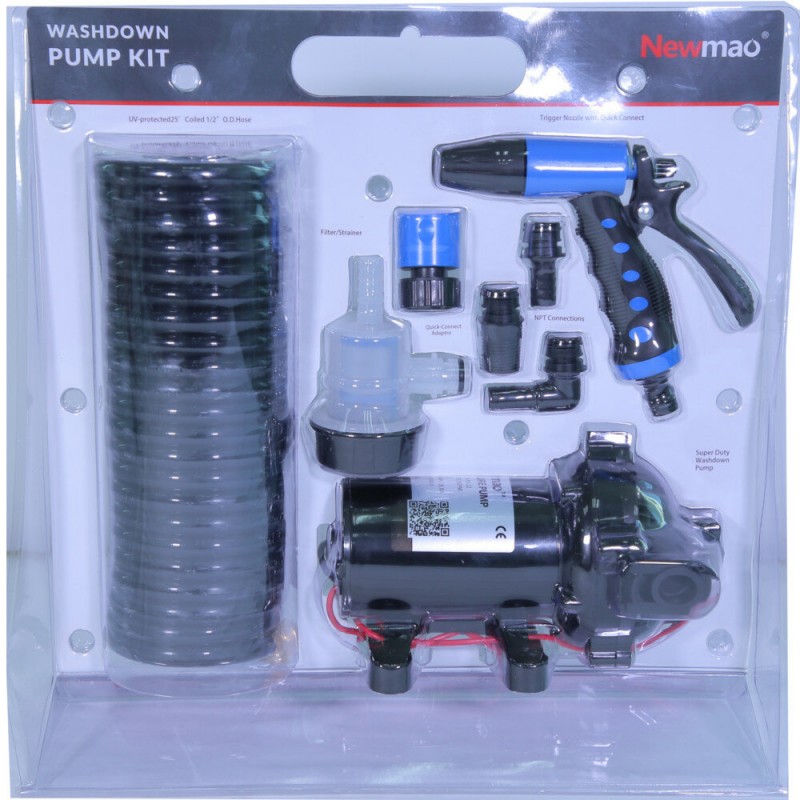

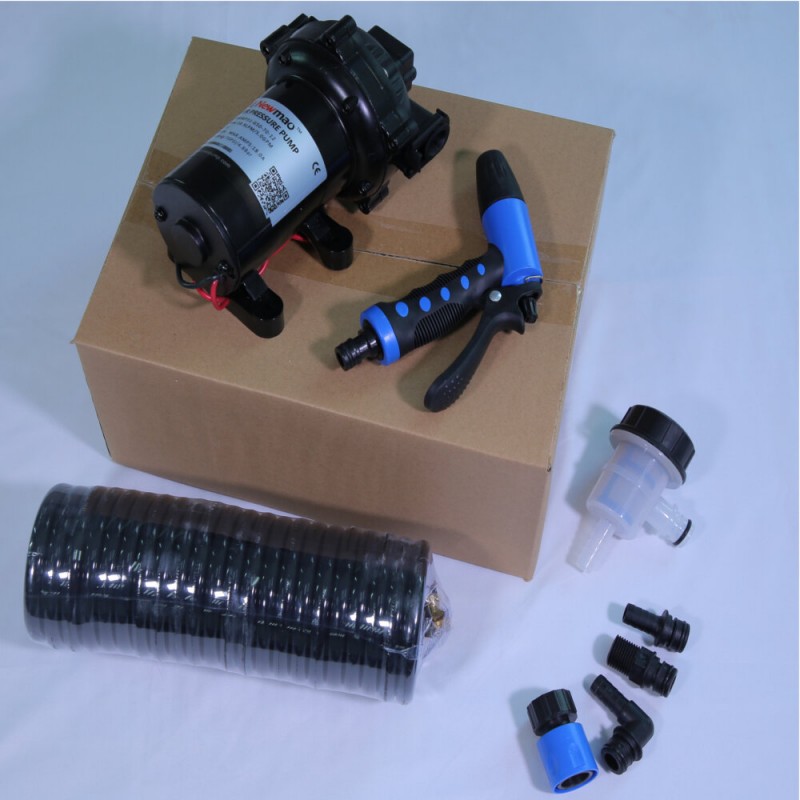

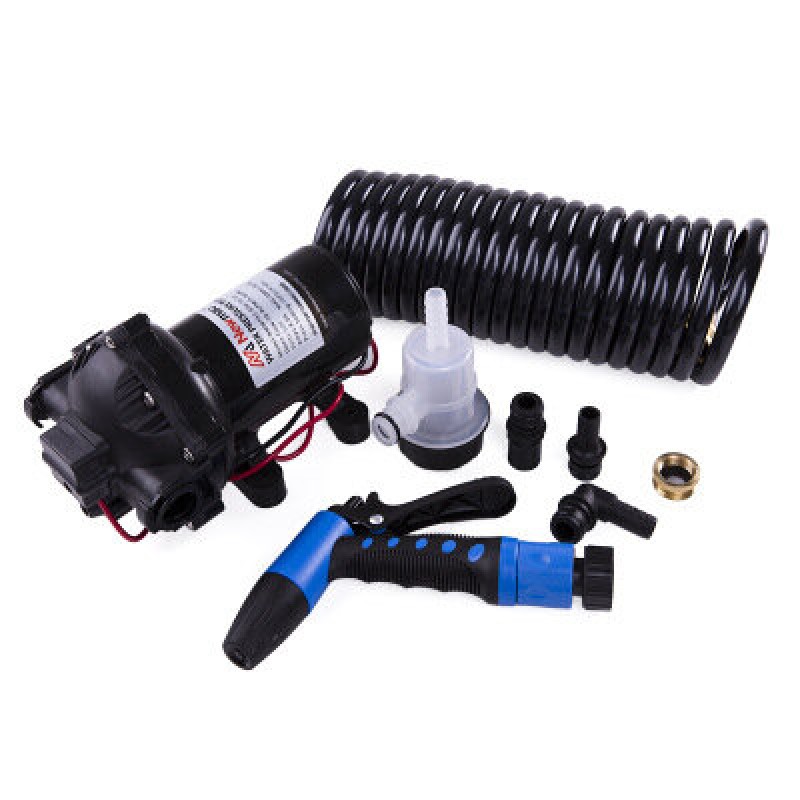

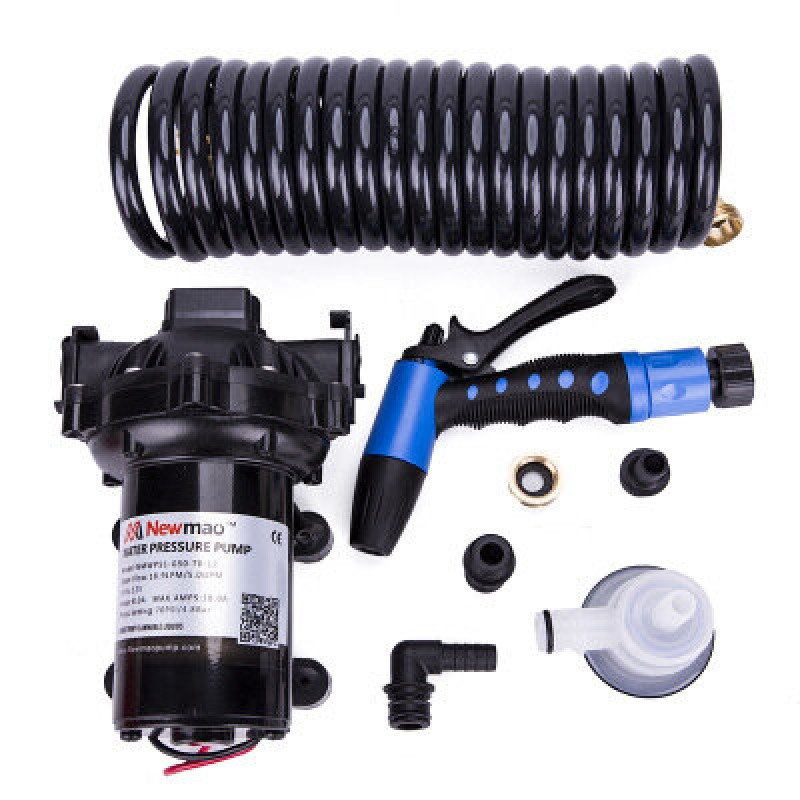

Package Included:
1 X |
A set of cleaning pumps |
