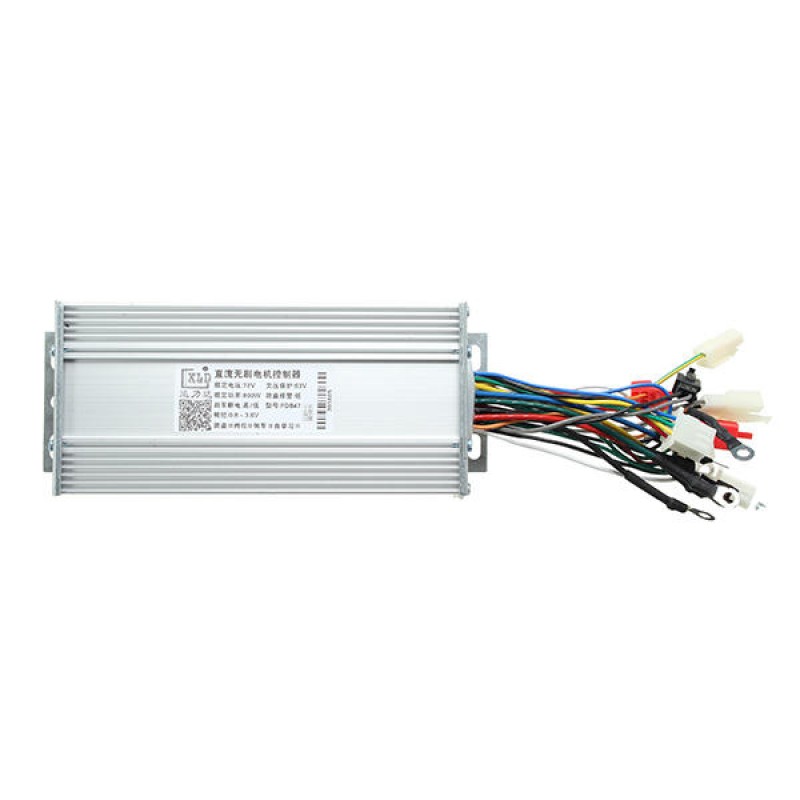

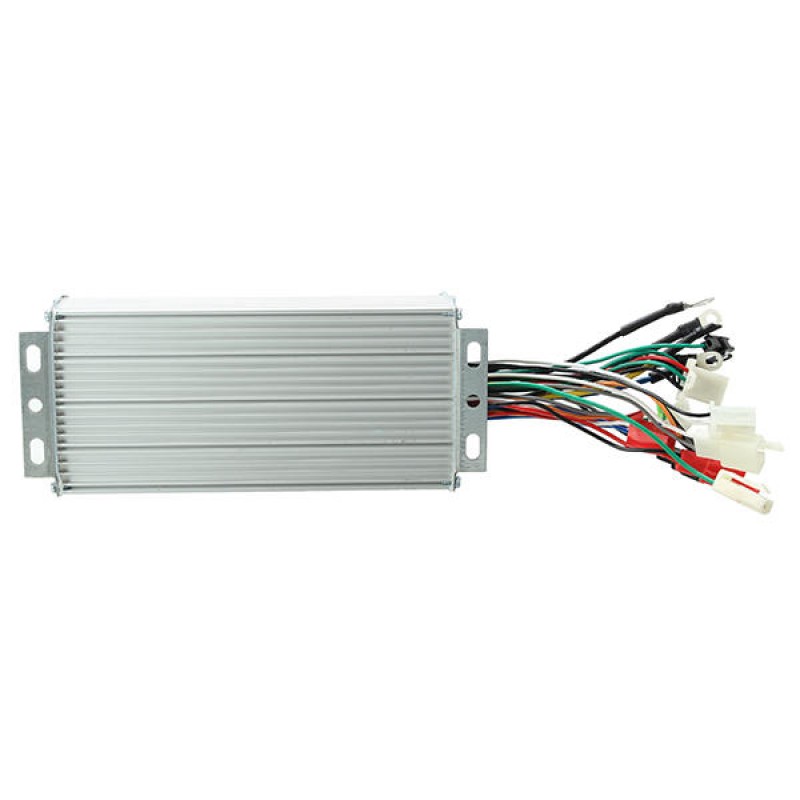

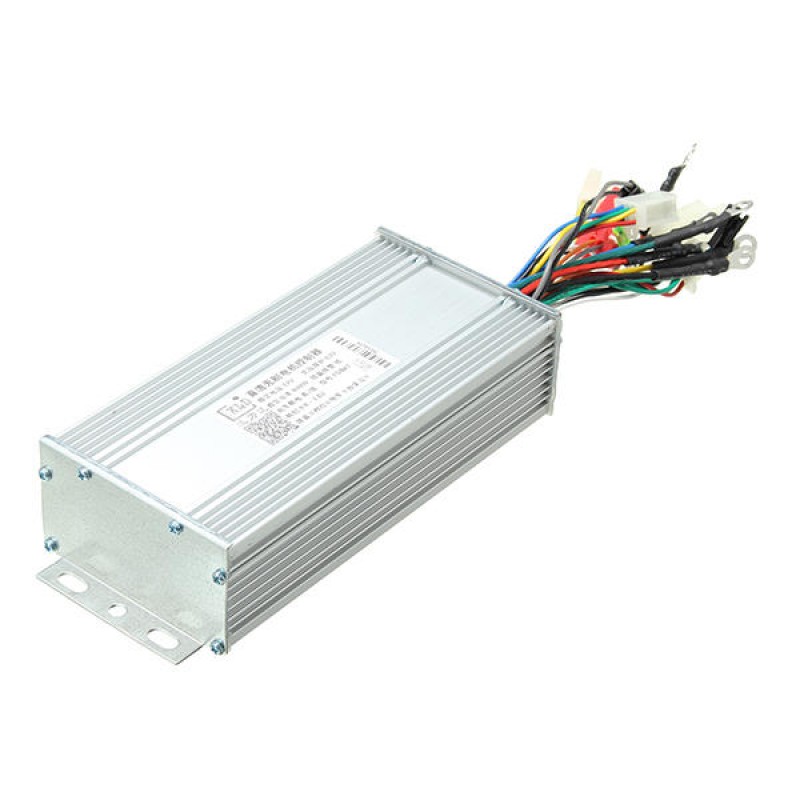

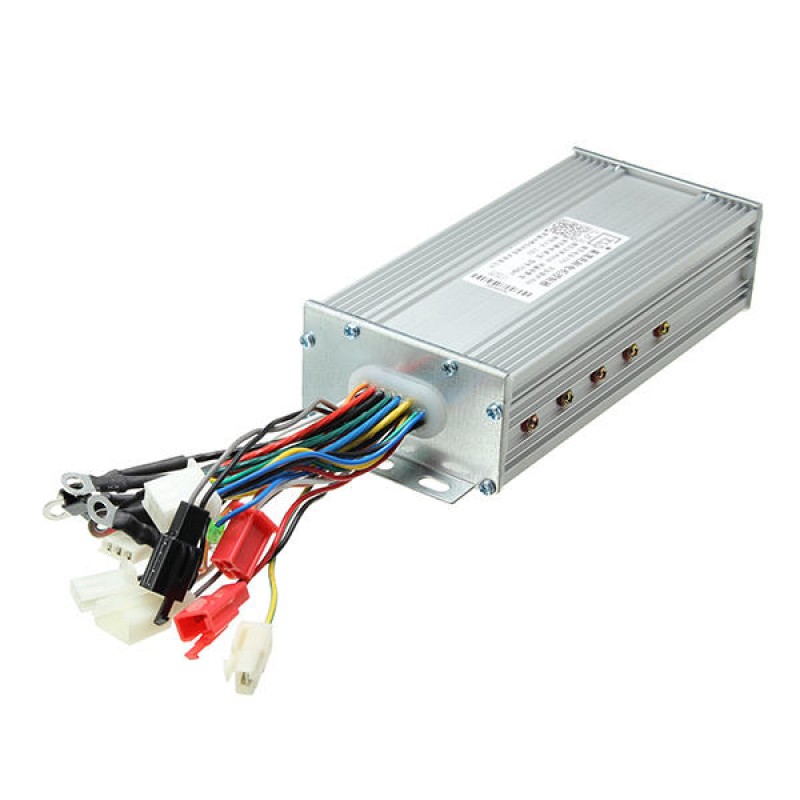

72V 800W/1000W Dual-mode Brushless Motor Controller for Electric Scooter Bike
$47.99
- Product Code: ED0021404
- Availability: In Stock
- Ex Tax: $47.99
Available Options
High voltage, there is strength
With voltage regulator, wide voltage range, more stable, good performance
Custom aluminum shell, good heat dissipation
automatically identify power voltage
automatically identify motor phase and angle
dual mode, sensor with or not, no noise
Specification:
Model: 15 dual-mode
Rated Working Voltage: 72V
Rated Power Optional: 800w / 1000w
Max current range : 35A / 36A
Battery undervoltage protection point: 63V
Motor phase angle: 60 degree / 120 degree
Range Of Application:
fit for 2,3,4,5 battery , such as lead acid, lithium ion battery, Iron phosphate-lithium power battery....
match with each kind of handlebar, brake, lock, speedometer,
Controller Function:
Rolling handlebar/throttle
Brake and cut off power
Speed Signal
1:1 PAS
Burglar alarming
Self learning
Stop backing
Note:
Please check again the power and voltage that you choosed
Instruction is not included
Package Included:
1 X Controller
