800W 36V-48V 36A Brushless Motor Speed Controller For E-bike Scooter Electric Bicycle
$39.99
- Product Code: ED0021452
- Availability: In Stock
- Ex Tax: $39.99
Description:
1.Fit for 120°or 60°brushless 3 phases motor.
2.Three-speed,anti-theft,cruise,Reverse function, Hall function and waterproof design.
3.Suitable for electric bicycle & scooter,Mechanical or electric forklift etc.
4.The anti-flying function solves the flying phenomenon caused by poor speed regulation or line fault.
Specification:
Brake level: High/Low
Rated Voltage: 36V~48V
Rated Power: 800 W
Throttle Voltage:1.1~4.2V
Phase Angle: 3 phase 60°or 120°
Operating Conditions: -40℃~80℃
Under Voltage Protection: 41V±0.5V
Limiting: 36A
Number of MOS Tubes:15
Size(L*W*H): 180 x 80 x 40 mm

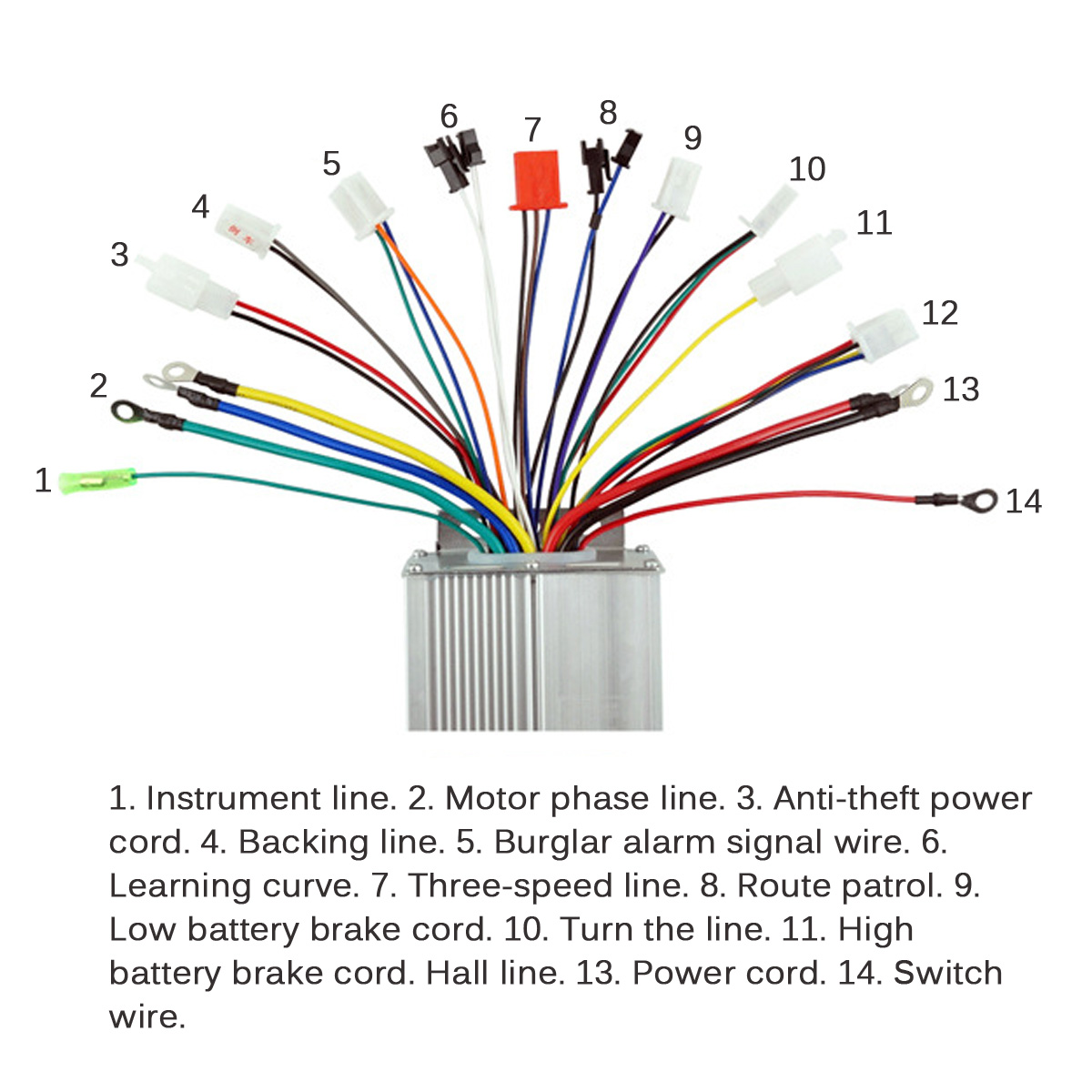

Installation:
Only have line description, It is recommended to modify with professional knowledge
Package Included:
1 X Brushless Motor Controller
