9x13cm Heater Pad Engine Block Hydraulic Tank Heating Plate O il Pan Sump & Plug
$10.49
- Product Code: ED0001330
- Availability: In Stock
- Ex Tax: $10.49
Available Options
Specification:

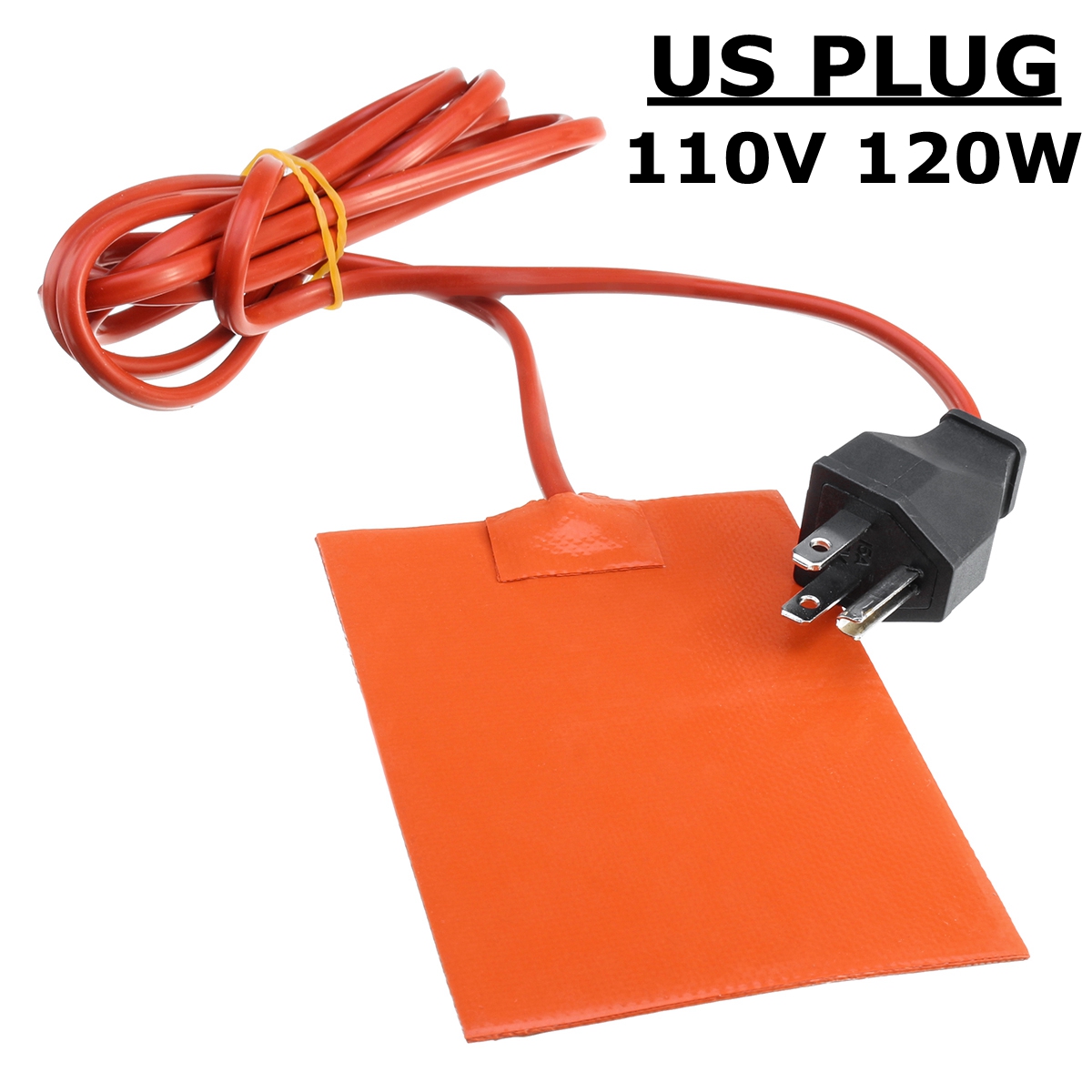

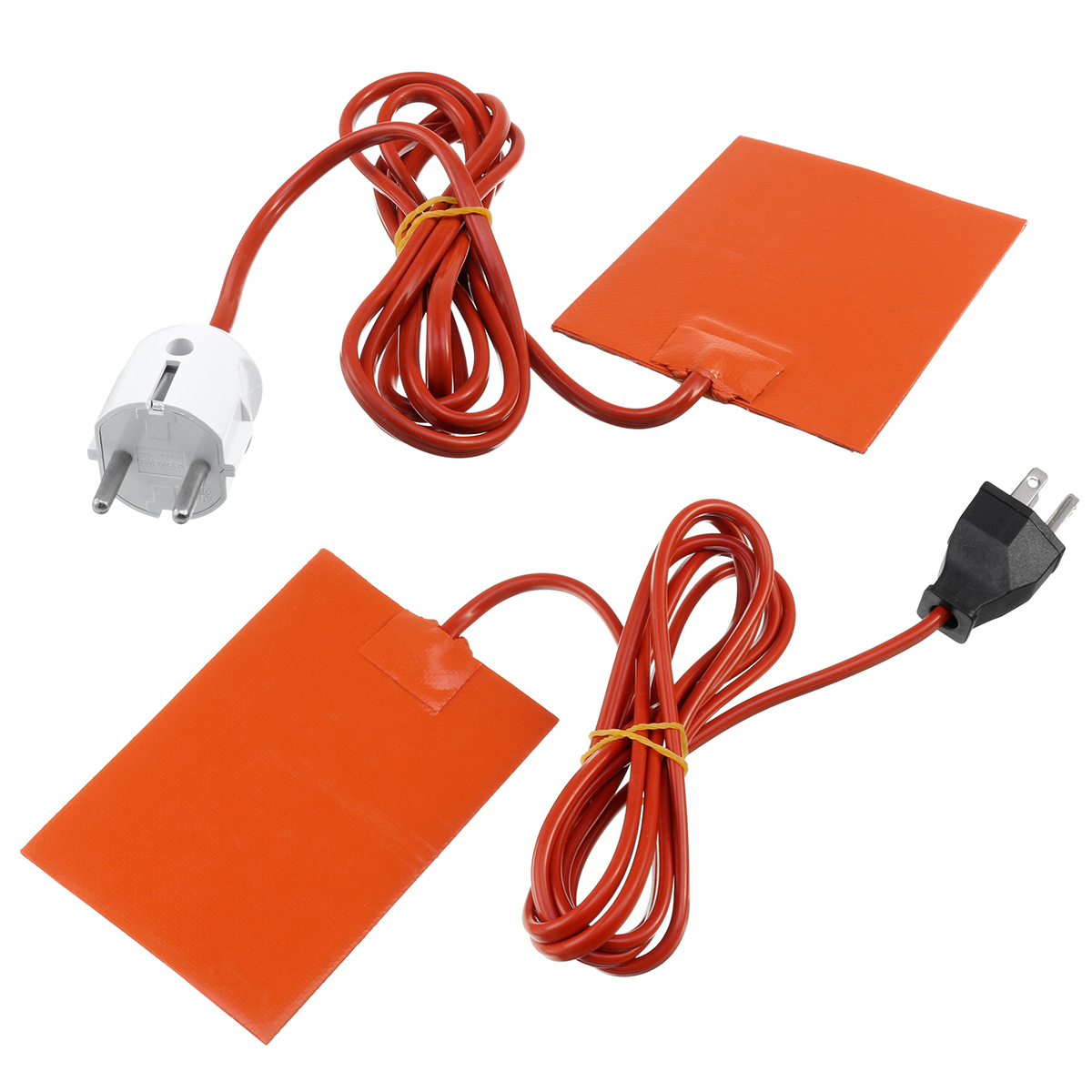

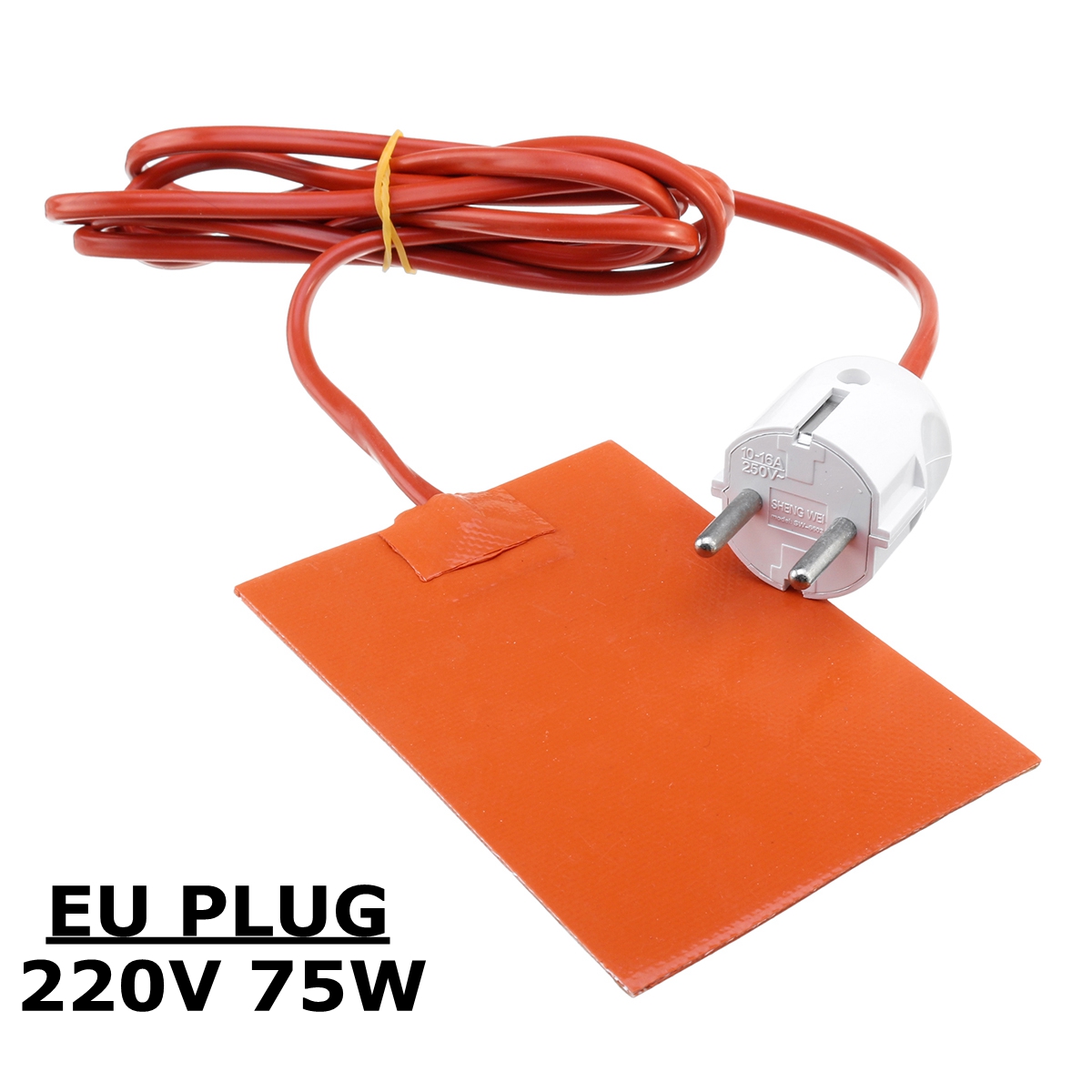

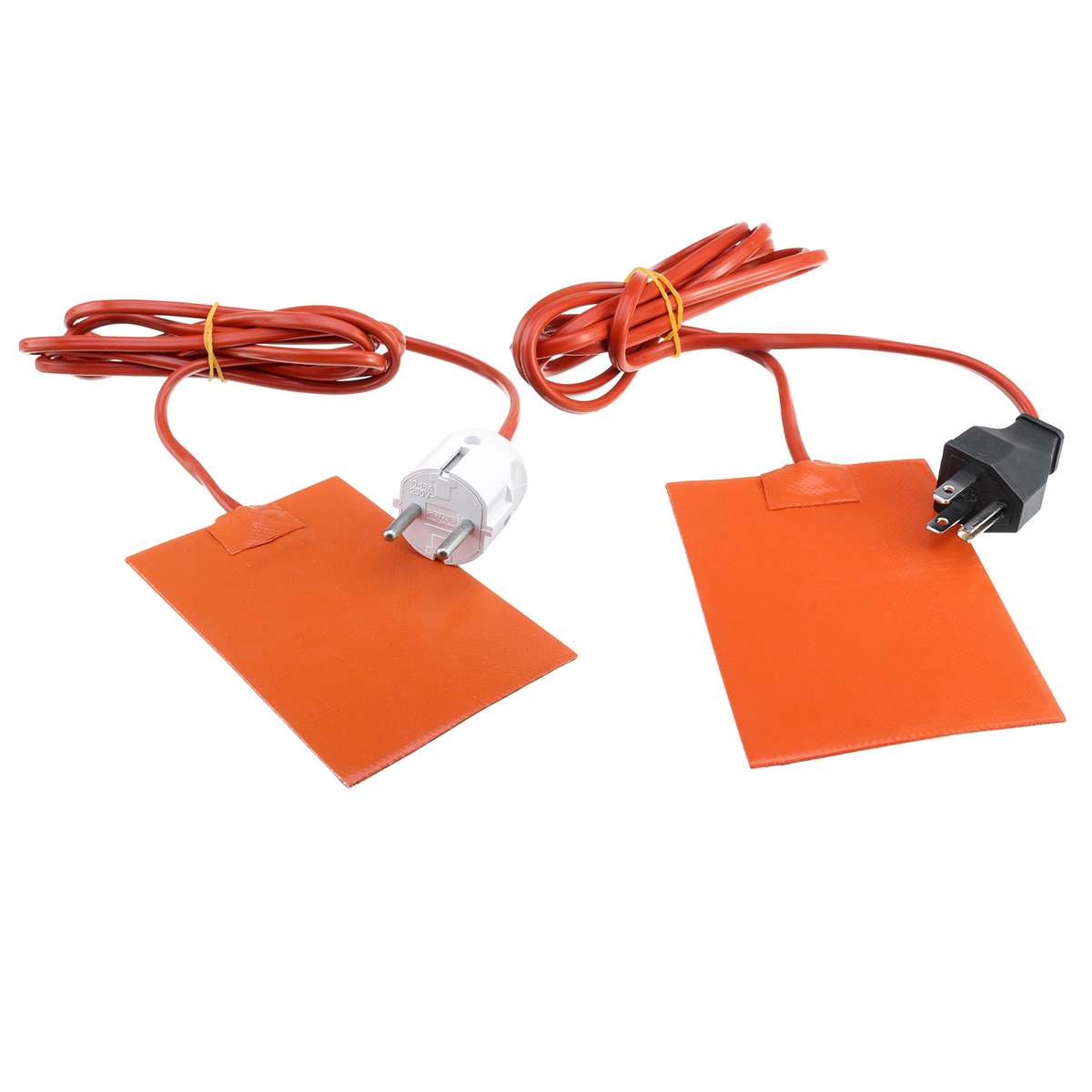

Type: US Type:110V 120W /EU Type:220V 75W
Material: Alloy wire,Silicone rubber
Color: Orange
The highest temperature of insulation material: 220 degrees
Power error: 8%
Insulation resistance:≥5 MΩ
Compressive strength: 1500v/5s
Resistance voltage: 6KV

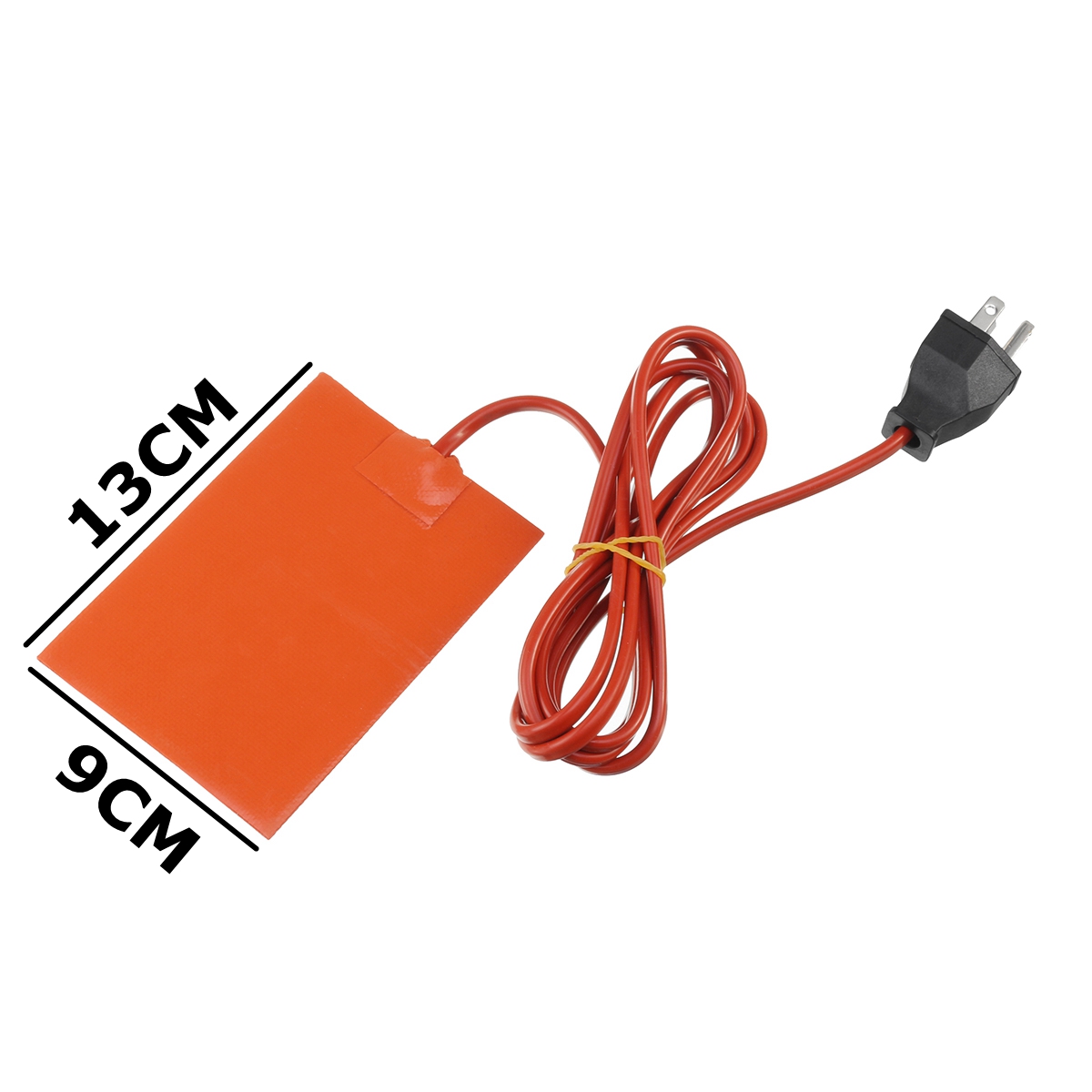

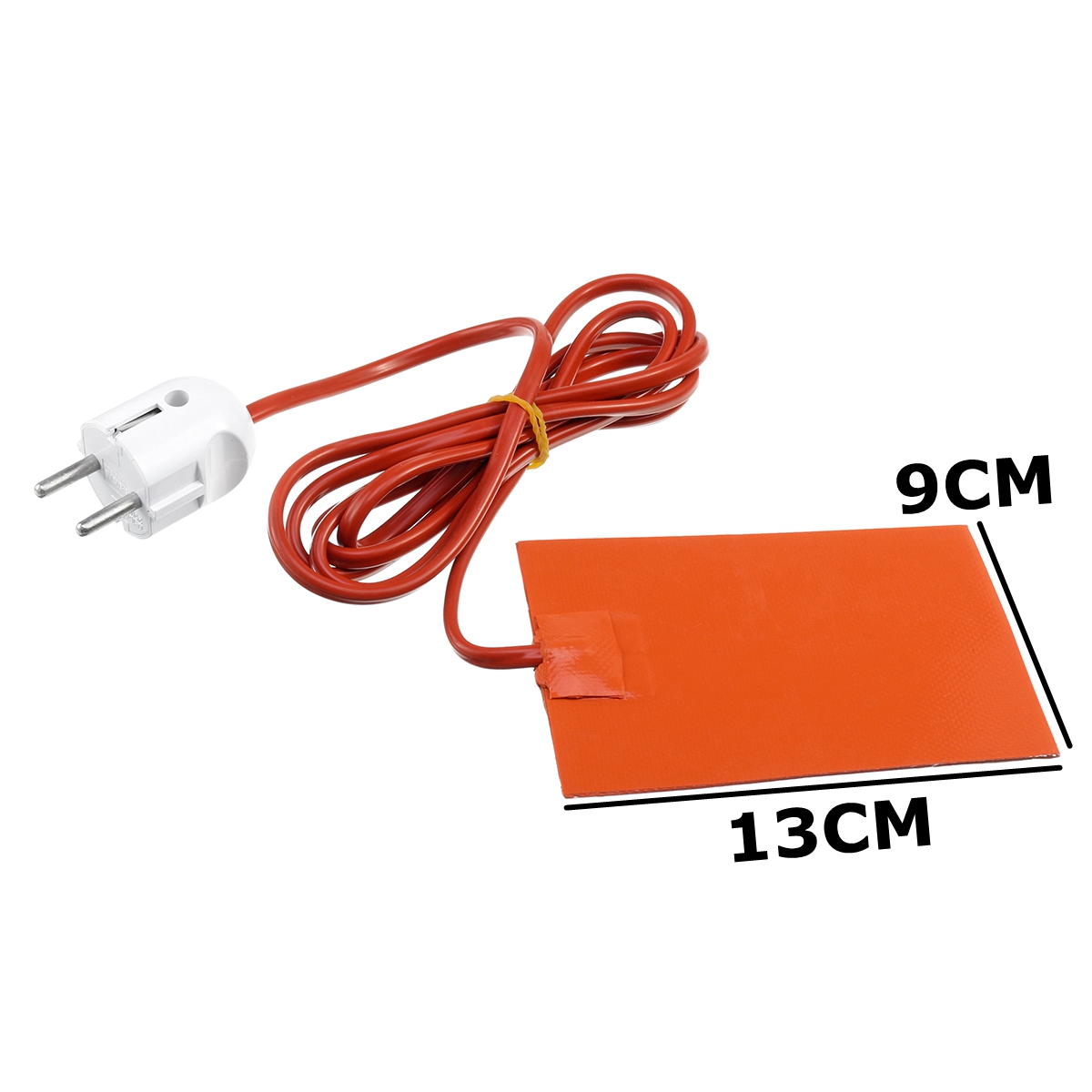

Heater size:9x13 cm
Wire length: 210cm
Using range: All kinds of automobile fuel tank, water tank, storage battery, anti-freezing heat insulation
Features:
-Additional safety. Fast heat, high thermal efficiency.Waterproof.
-The silicon rubber heater can be used in the wet, oil and acid resistant,
-Can be used as the auxiliary heating of the refrigeration and air conditioning compressor, motor and other equipment.
-Easy to use, safe service life for ten years, not easy aging.
-Built-in highest quality thermal overload protection switch for Power saving.
Installation:
-Use pressure-sensitive adhesive to stick it on the flat and smooth artifacts
-The maximum service temperature of pressure sensitive adhesive: 150℃ Continuous temperature, 220℃instantaneous temperature. Power density is less than 0.9 W/c ㎡
-Silicone rubber heater with pressure sensitive adhesive should be used in half a year after processing, otherwise it will influence on the performance of the glue using
Instructions:
-The electric heating device must pay attention to use, its working temperature should be less than 220 ℃, the continuous use instantaneous does not exceed 220 ℃.
-when the work temperature less than 220 ℃, the current density is up to 3 w/c ㎡
-Paste the type installation conditions, allowed working temperature less than 150 ℃
-Working voltage selection with high power high voltage, low power low voltage for the principle, special needs can be exceptions.
Package Included:
1 x Heater Pad
Note:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.
(other accessories shown in the pictures are NOT included,just for effect illustration.)
