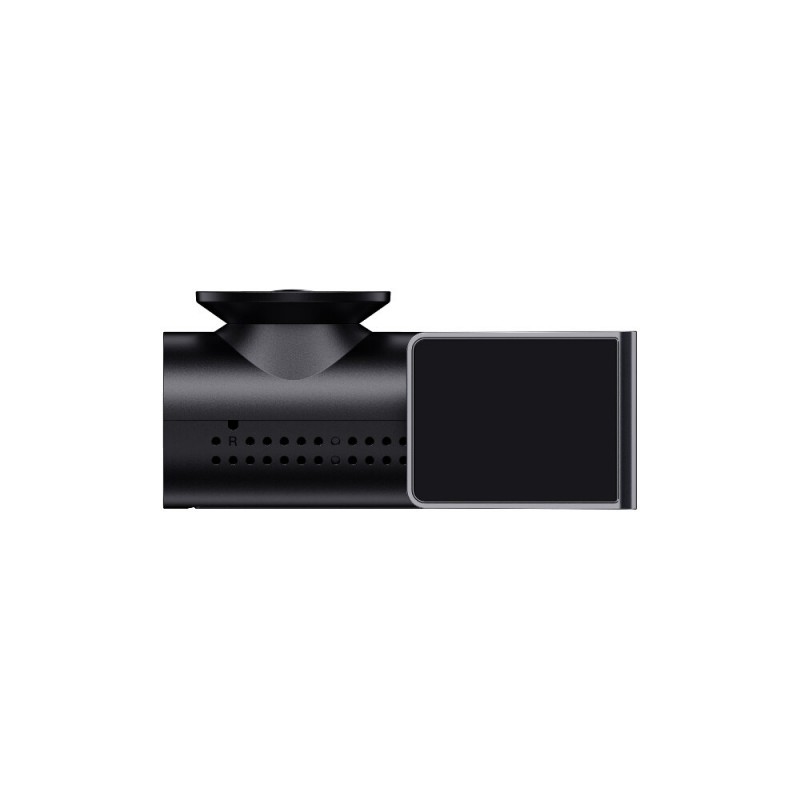

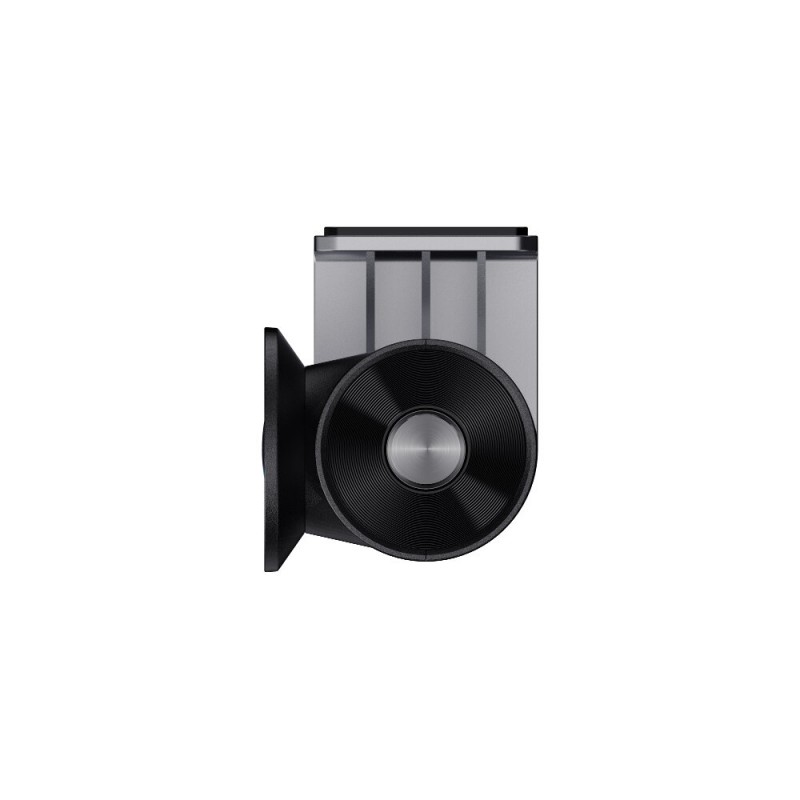

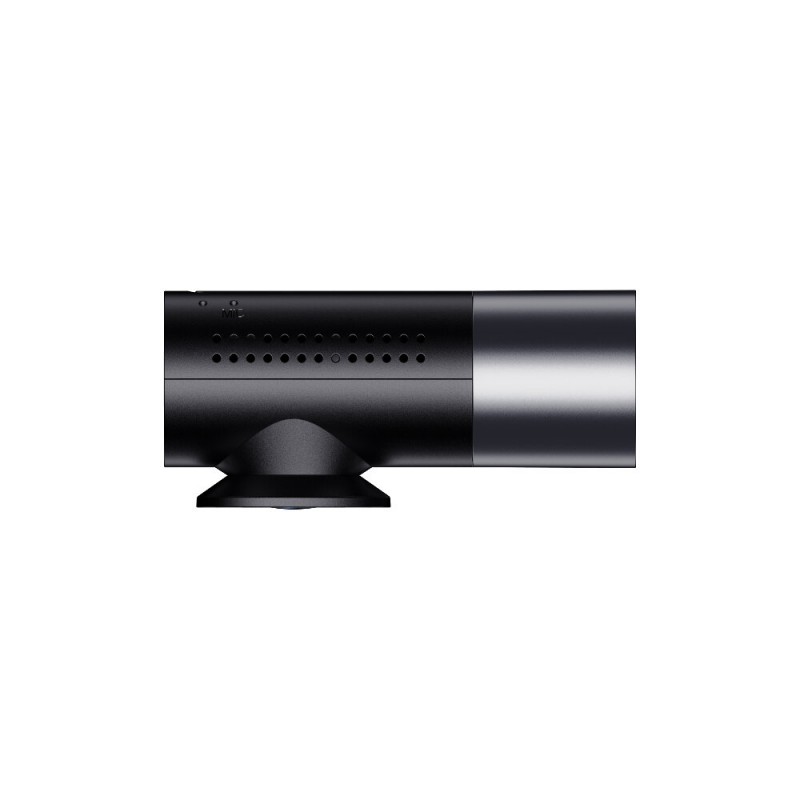

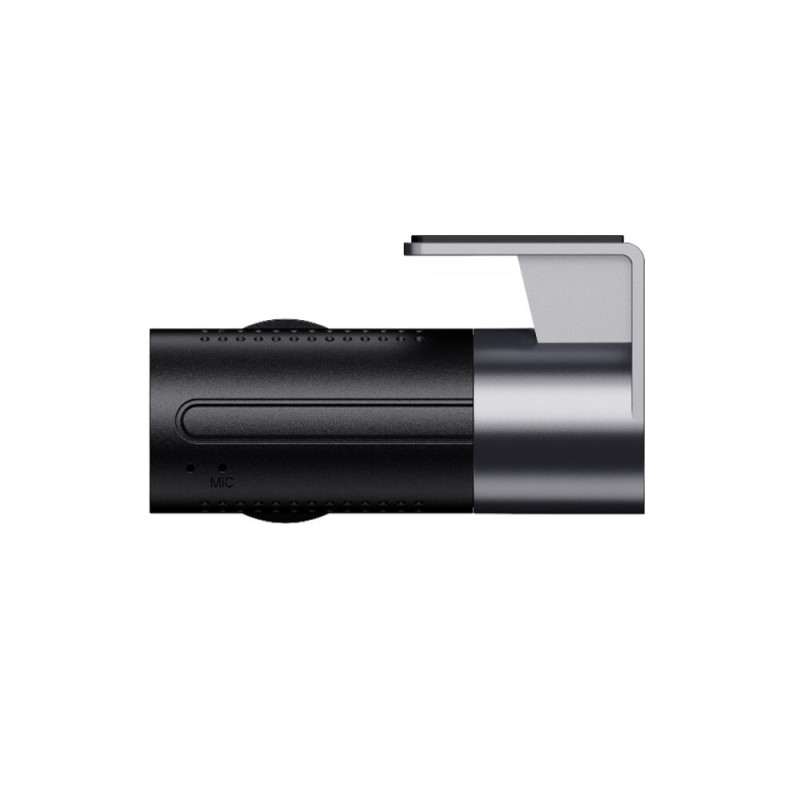

A209 1600P Ultra-clear Smart Wifi Car Camera DVR 360 Degree Rotation Record Inside Outside Recorder
$23.99
- Product Code: ED0003319
- Availability: In Stock
- Ex Tax: $23.99
Feature:
1. Collision sensing function
The machine has a built-in collision sensor (G-sensor). In the recording state, if the camera shakes or shakes slightly, the recorder will automatically lock and lock the recorded video. The locked image will be saved as a special file, which will not be overwritten by the loop.
2. Parking monitoring function
The machine has a built-in collision sensor (G-sensor). In the standby state of accessing ACC, set the parking monitoring to on. When the camera
vibrates or shakes slightly, the recorder will automatically turn on to record, and automatically turn off after 30 seconds of recording.
3. Time-lapse recording function
This machine supports time-lapse video recording. When the long-term battery is connected, set the time-lapse recording to on. After the vehicle is turned off, the recorder will enter the time-lapse recording state, recording 1 frame of video in 1 second, and suppressing the half-hour video to 1 minute, saving SD card space. Can make the recording time longer.
Specification:
| Type Details | Description | Remarks | |
| CPU model | Sigmastar SSC325 | ||
| Flash capacity | 8M | ||
| LCD | Screen size | No screen | |
| Display frame rate | / | ||
| Front CAM | Sensor | Starlight GC2053 1/2.9 inch 2Mega 6.2mm*4.2mm | |
| Sensor | Lens | HL8009A | Onboard |
| Lens | Interface Type | MIPI | |
| Interface Type | Recording format | H.264/H.265 1080P 30fps TS stream | |
| TF card socket | external storage | Store image files, system updates and upgrades | T card space is pre-allocated, and T card can be formatted |
| Power supply type | MINI USB 5PIN | DC 5V 1.5 A | Support D+, ACC, GND step-down box |
| Gyro | Built-in 6 axis | ||
| Microphone | sensitivity | Built-in -40dB±2dB | SMD |
| Horn | SL-A8 | 8Ω/0.5W speaker 15*11*3.3mm | After welding |
| Battery | Type | lithium battery | Equipped with step-down wire (connected to ACC) |
| Physical buttons | 2 | Power reset | |
| WIFI | USB transmission | Module SSDW101 | |
| Indicator light | 1 | red light | |
| Certification | EMI, FCC, 3C | ||
| Working environment | Working temperature | -20~70°C | |
| Storage temperature | -30~85°C | ||
| Current | Working voltage | DC 4.5V ~ 5.3V | |
| Rated current | ＜0.8A | ||
| Maximum current | ＜1.0A | ||
| Dark current | ＜2mA | ||
| Starting time | ＜8S | ||
| System configuration | Linux system | ||
| Start screen | non | ||
| Video | recording function, automatic recording when power on, | ||
| Take a picture | APP control | ||
| File playback | Play back on the APP side to view video files | ||
| Video locking | When an external force impacts, it can be automatically locked and saved. The current video segment will not be overwritten. | ||
| Parking monitoring | When the machine is turned off, the car will automatically turn on and record for 15 seconds when the car is shaken, and the recording file will be protected | ||
| Time-lapse recording | Turn on the time-lapse recording function, the recording time can be set, such as 12 or 24 hours, 1 second 1/2/3 frames | ||
| Loop recording | Loop recording to set the time period, such as 1min, 2min, 3min, etc. | ||
| Video recording audio | can be set on the APP side whether to record sound when recording | ||
| WIFI | connection APP preview and playback, video sharing | ||
Operation Guide:
Use automatic logging
Start the car engine, the recorder automatically starts and starts the recording function, the red light flashes. Turn off the car engine, the recorder automatically saves the recorded content and shuts down. The recorded images are saved in sections on the TF card. When the TF card is full, the recorder will overwrite the earlier recorded images. [Note] The default value of the time period of the recorder is 1 minute.
Use manual logging
In the standby state, short press the On, Off/Confirm key, the recorder will start recording.
Button Function Introduction:
Off button
In the standby state, short press to record; short press to stop recording during recording;
Camera button
Short press to capture the current photo, long press to restore factory settings, restore factory settings will reset the WIFI password.
Reset button
If the recorder crashes, short press the machine to restart.
Indicator light
In the standby mode, the red light is always on, and the red light in the video mode is flashing, and the frequency is flashing every second.
Speaker
Some models will have speaker function. If it has a speaker function, it will remind the user that the machine is turned on when it is turned on. If the machine is not inserted with a memory card or the memory card is damaged, the speaker will send out a voice prompt; if the machine is not in recording mode, the speaker will also play a voice prompt To remind the user that the current recorder has stopped recording.
Package Included:
1 X Car DVR Camera
