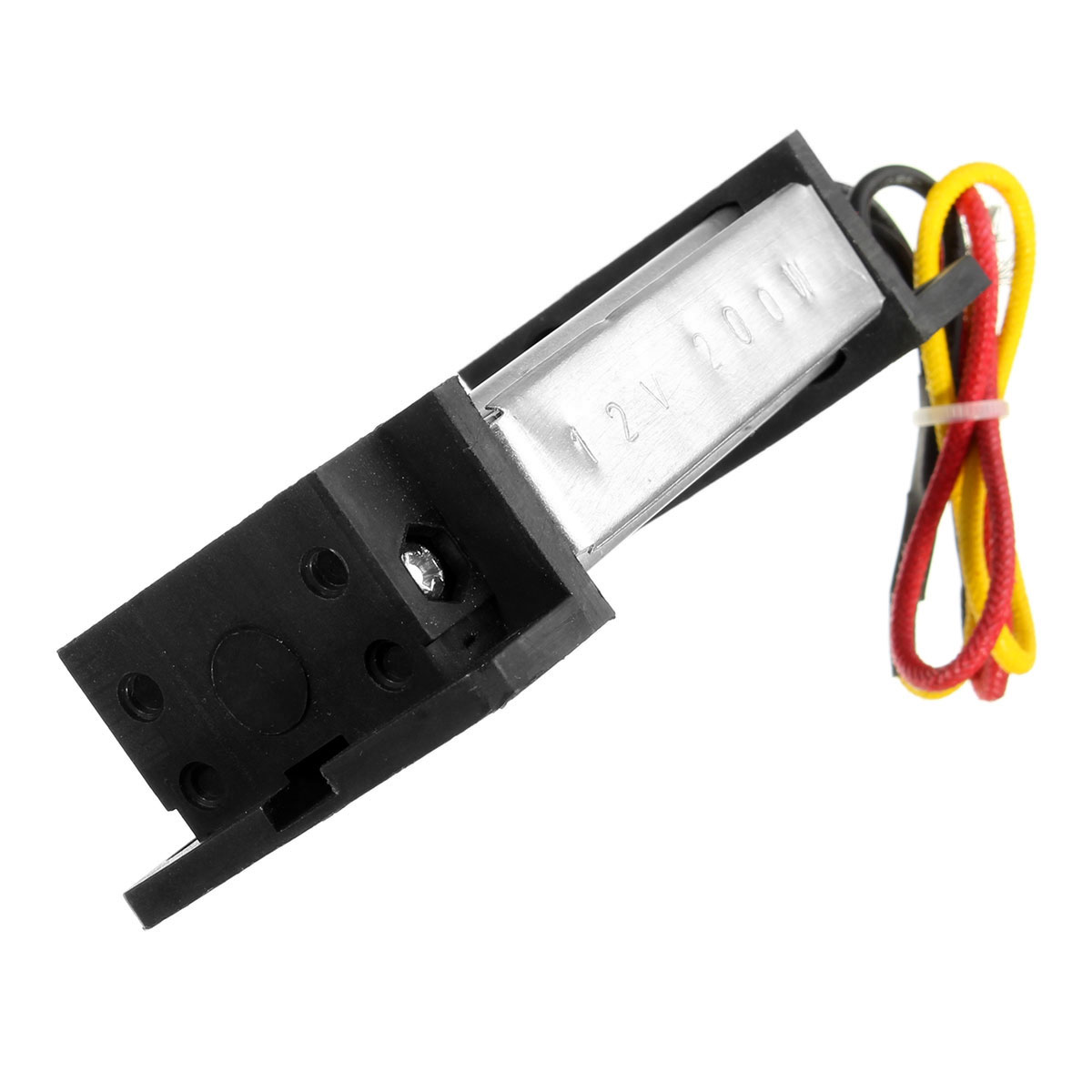

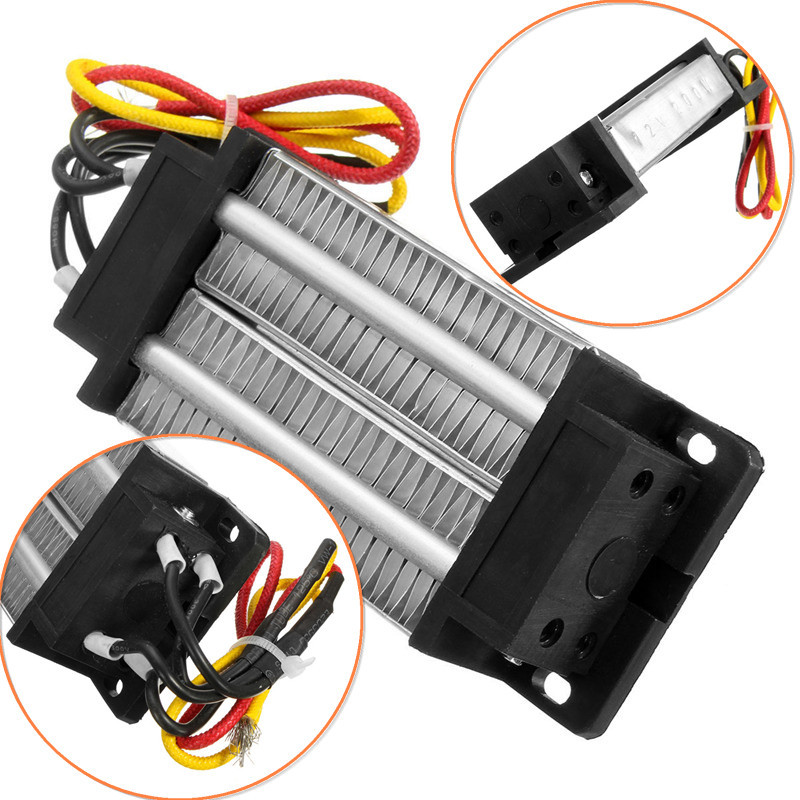

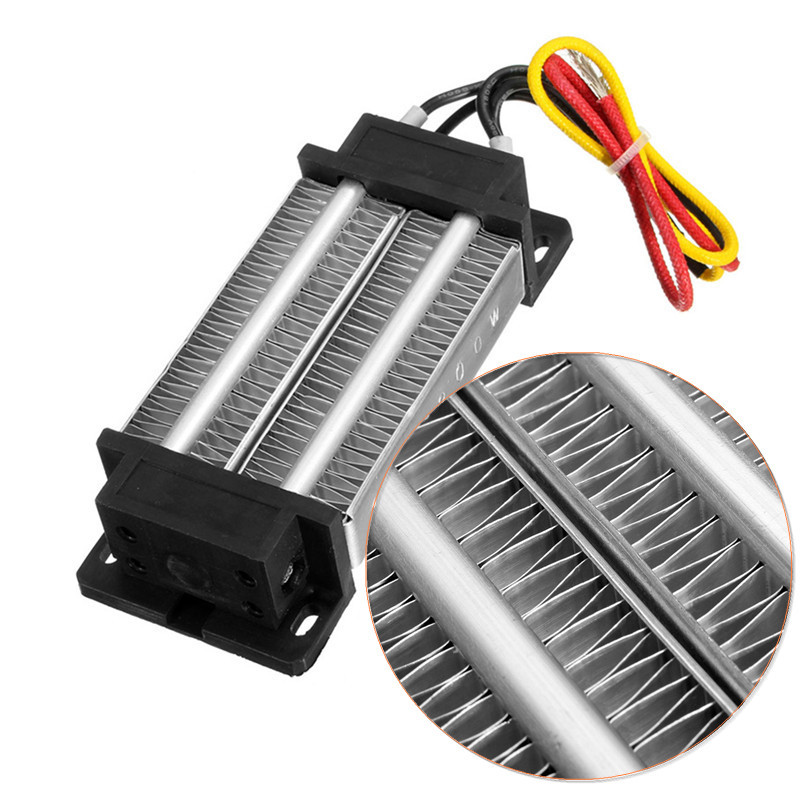

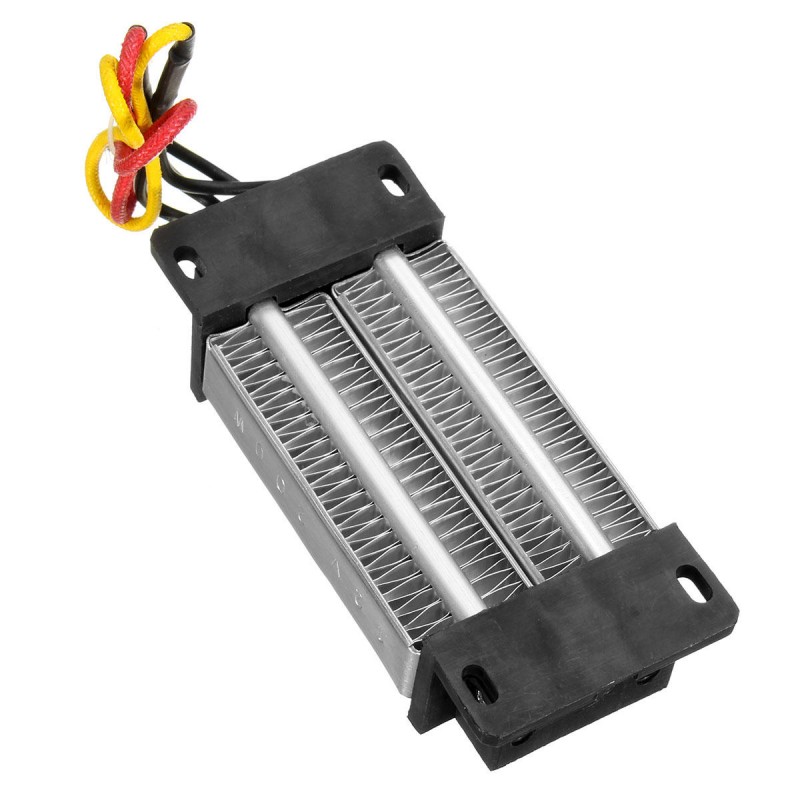

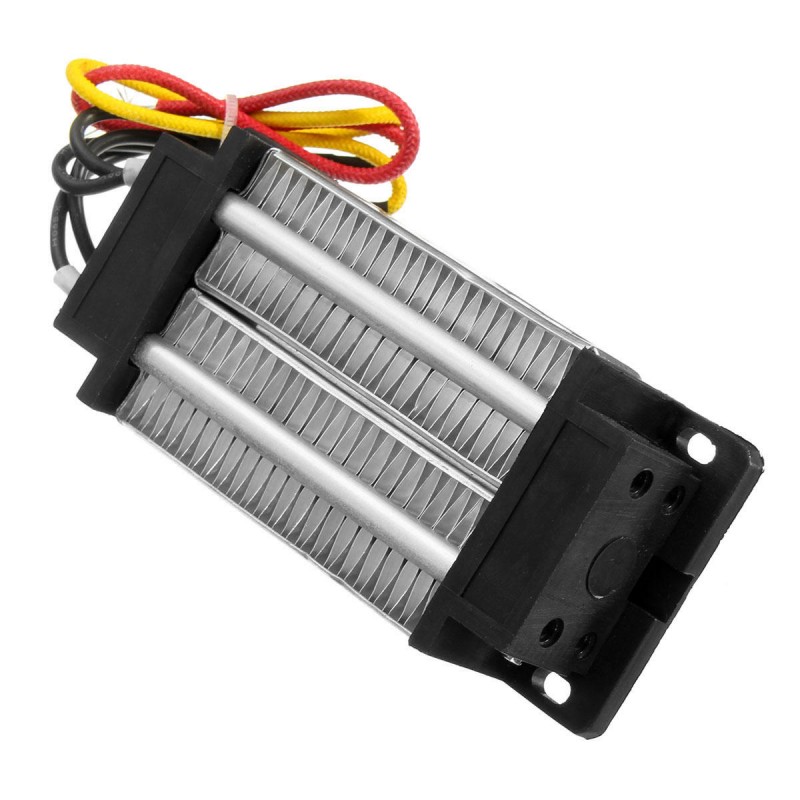

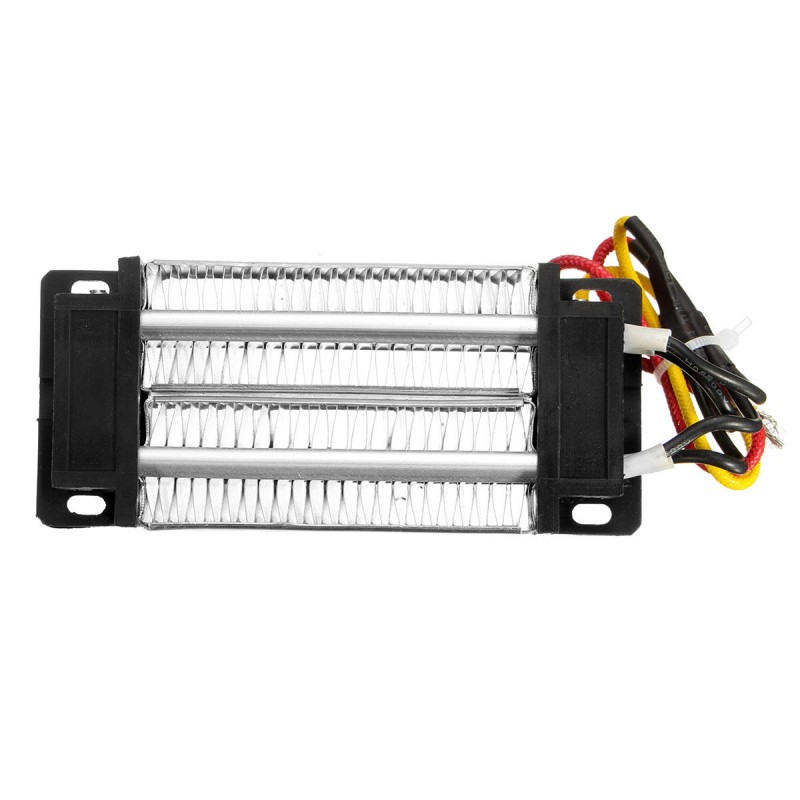

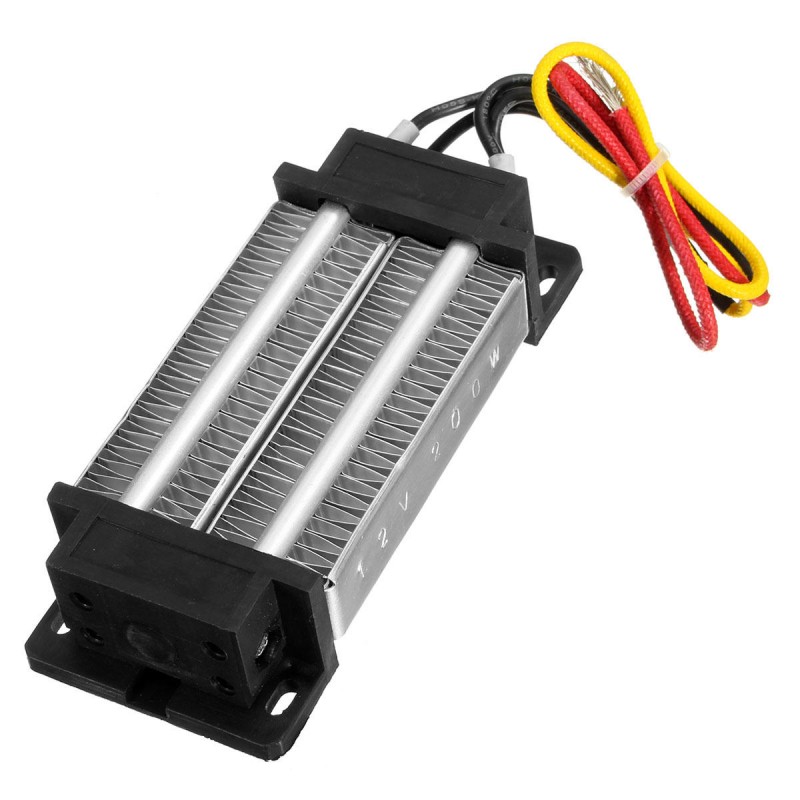

AC/DC 12V 200W Insulated PTC Ceramic Air Heater Constant Temperature Heating Element Incubator
$17.00
- Product Code: ED0001617
- Availability: In Stock
- Ex Tax: $17.00
Description:
1. Type: Air Heater
2. Power Source: Electric
3. Model Number: 12V 200W heater
4. Rated Power: 200 W (R = 24 degrees, 3.3 m / s)
5. Fever Material: Aluminum products
6. Rated Voltage: 12V AC/DC(Either AC or DC is available)
7. Heat material: PTC Thermistor
8. Heat methods: Heat radiation by air flow

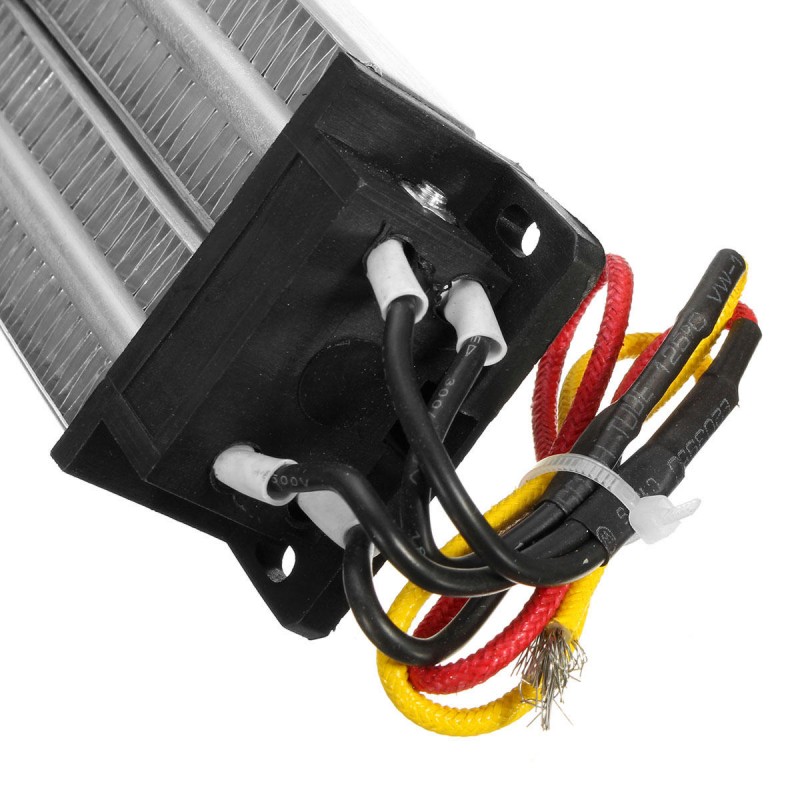

9. Lead wire: Silicone high temperature line

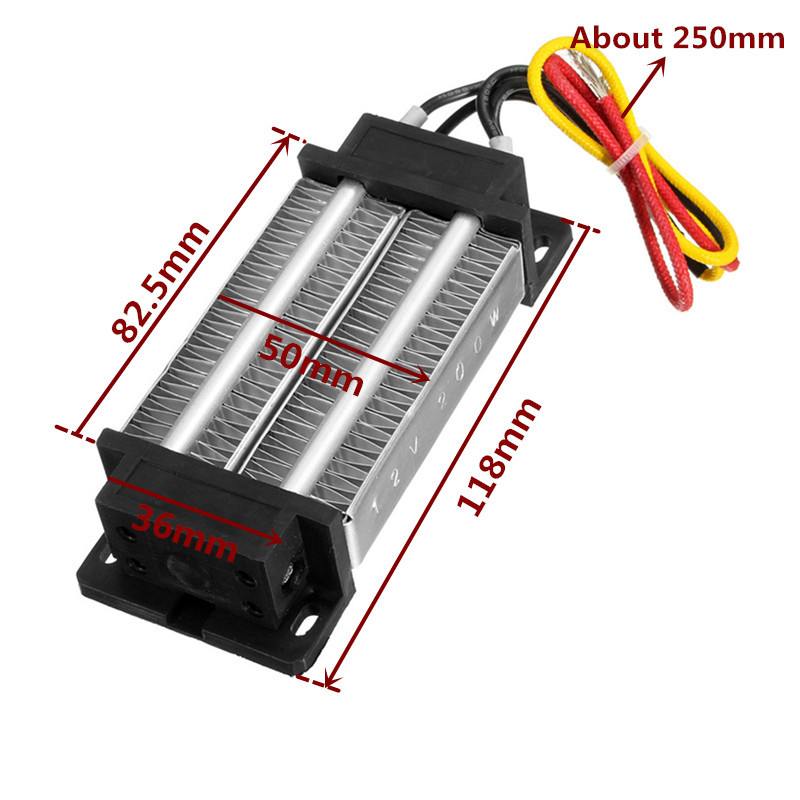

10. Length of lead wires: About 25 cm
11. Main purpose: Heater / Humidifier / Auto / Air Conditioning / Incubator / Subway
Instruction Manual:
1. The power line does not distinguish between positive and negative, you can freely link power 12V.
2. When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3. Can be placed under a wet environment, but can not be placed in water.
4. For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5. Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

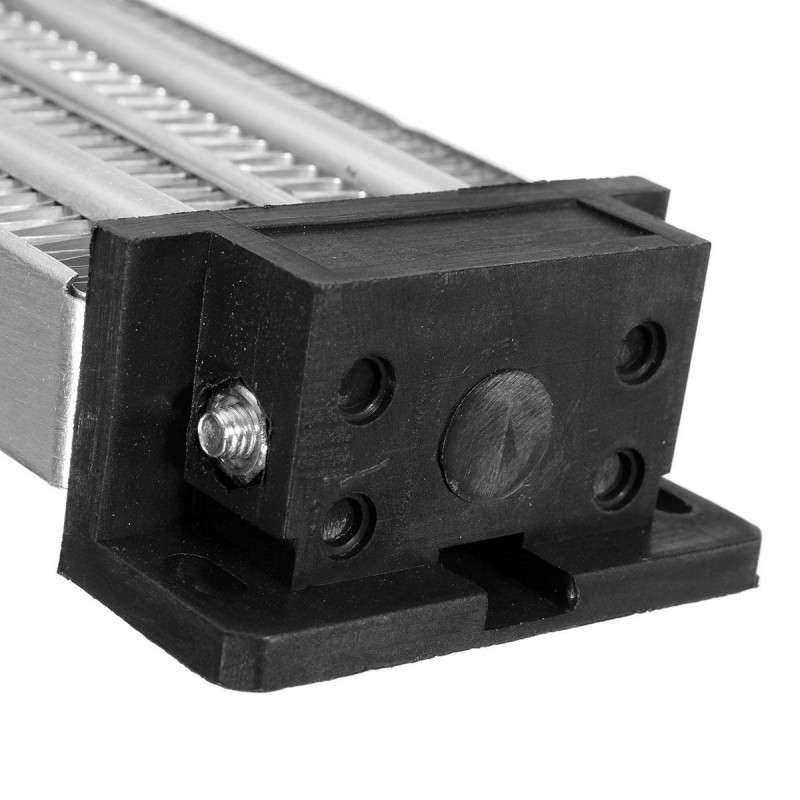

6. Both ends of the product wearing bracket (PA66 high temperature nylon).
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8. Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand.
Package Included:
1 X PTC Air Heater Insulation
Package Included:
1 X PTC Air Heater Insulation
