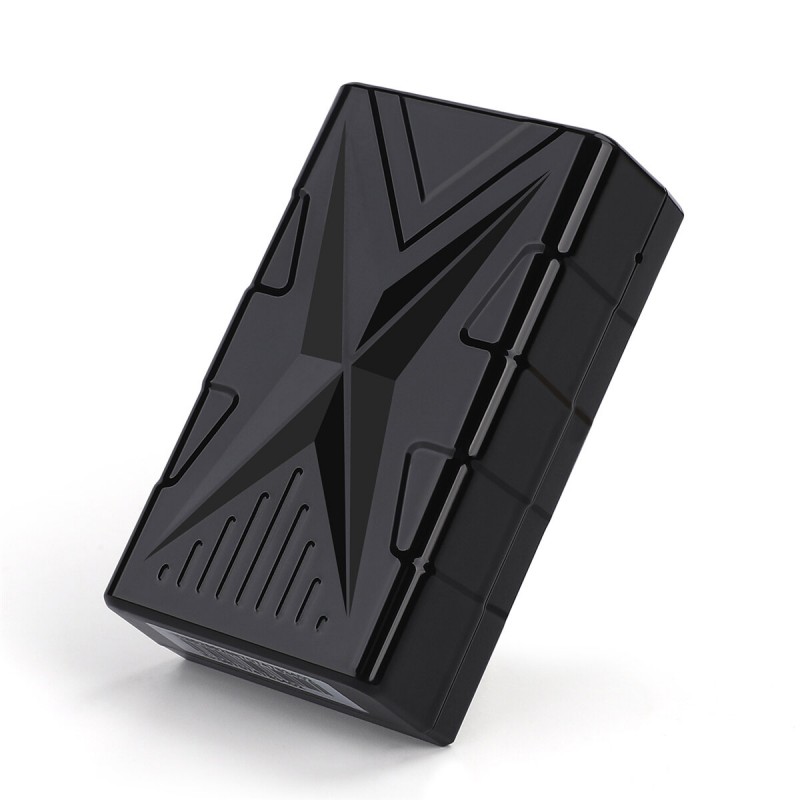

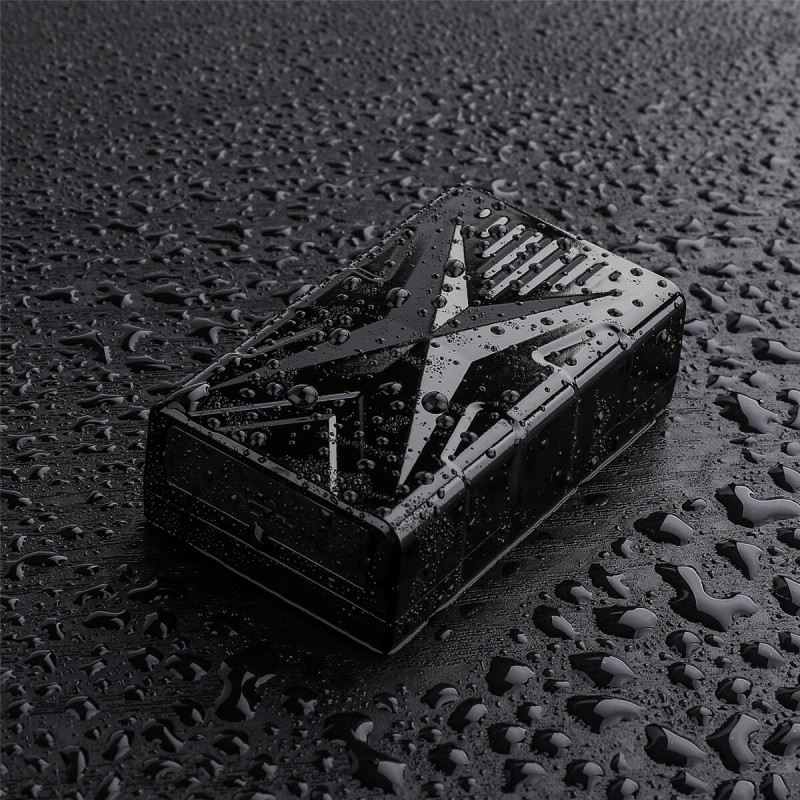

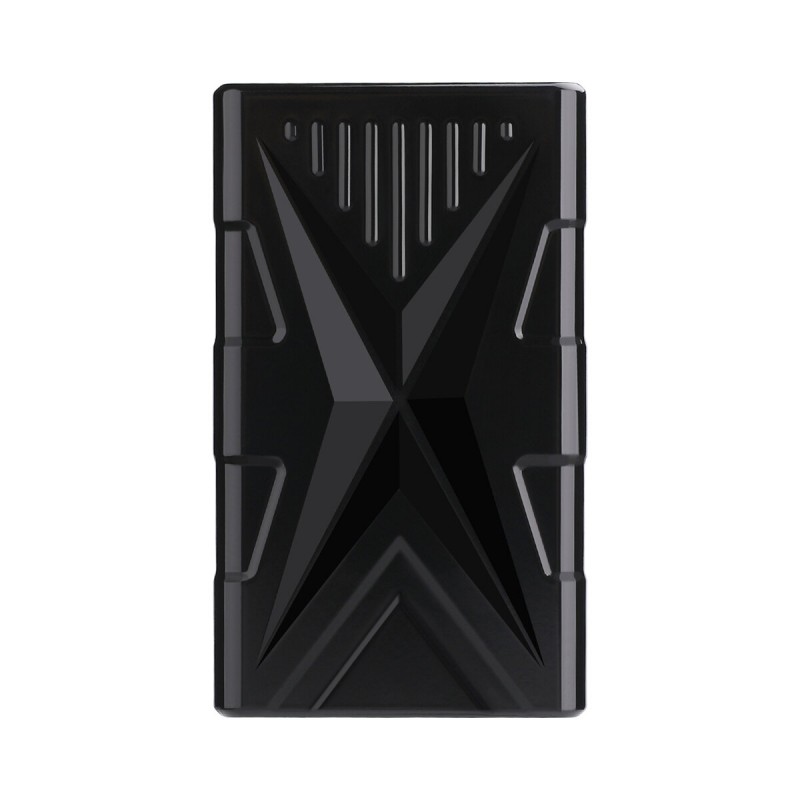

AL01 Waterproof Vehicle GPS Tracker Strong Magnetic GPS Car Tracking Locator Anti-loss System For Car Burglar Alarm Devices
Features:
1.Real-time tracking
2.Historical Track
3.Electronic fence
4.Set (multiple operating modes: safe mode, power saving mode, Super long standby)
5.Device message

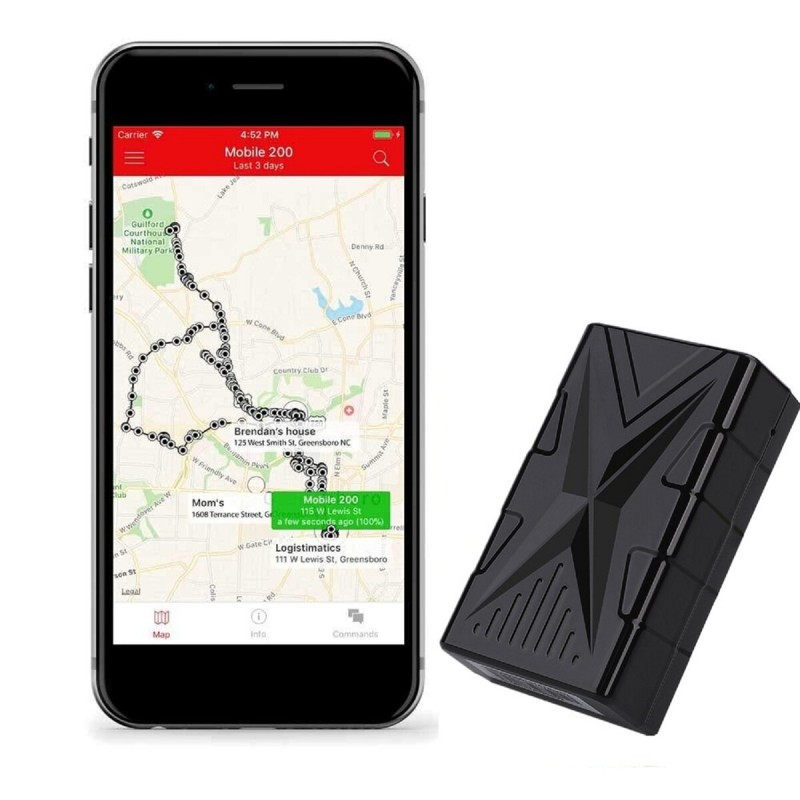

6.Multi platform monitoring: support for Android, for Apple’s mobile phone system, and network client computers

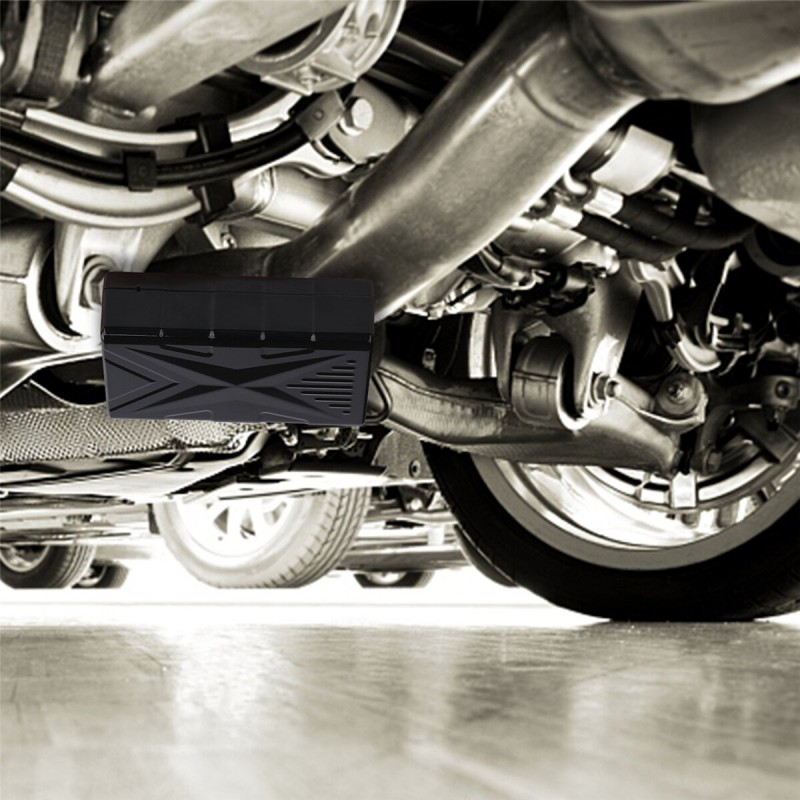

7.Built-in magnetic, free installation and easy to use
8.Alarm to remind
9. Automatic recording and display of recording time and place
10. Remotely start GPS
Lamp effect description:
Power: Card blue light indicates power on, GPS signals after lights out
Charge: charging indicator light flashing red light goes out after full
Positioning mode: GPS satellite positioning + LBS + AGPS assisted positioning base station location
Positioning accuracy: GPS positioning 5-15 m
Base station location: 100-1000 m
Item specification:
Brand: Elecdeer
Model Number: AL01
Material:magnet and plastic
Color:black

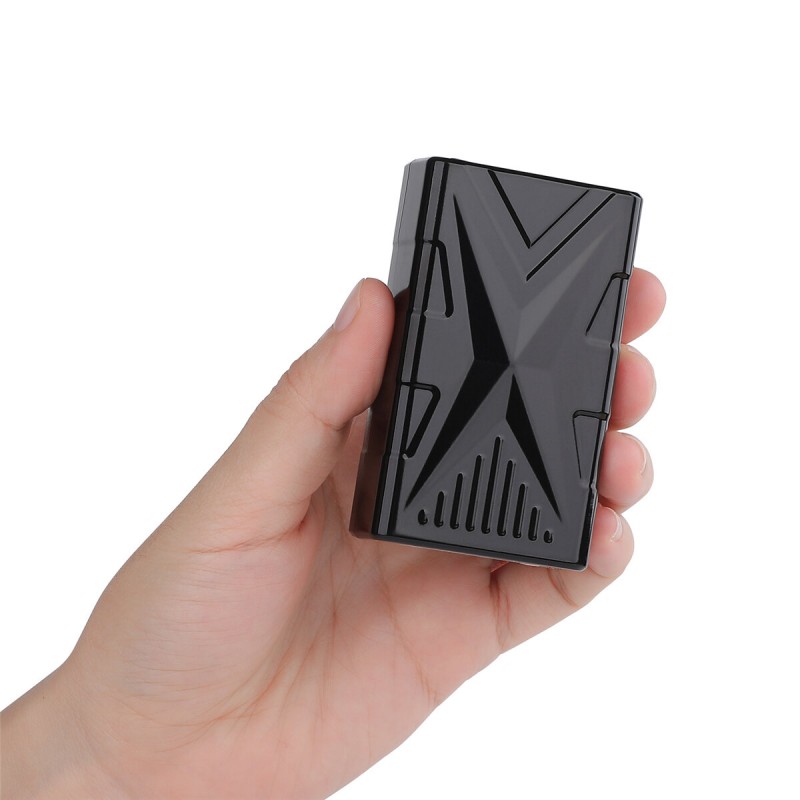

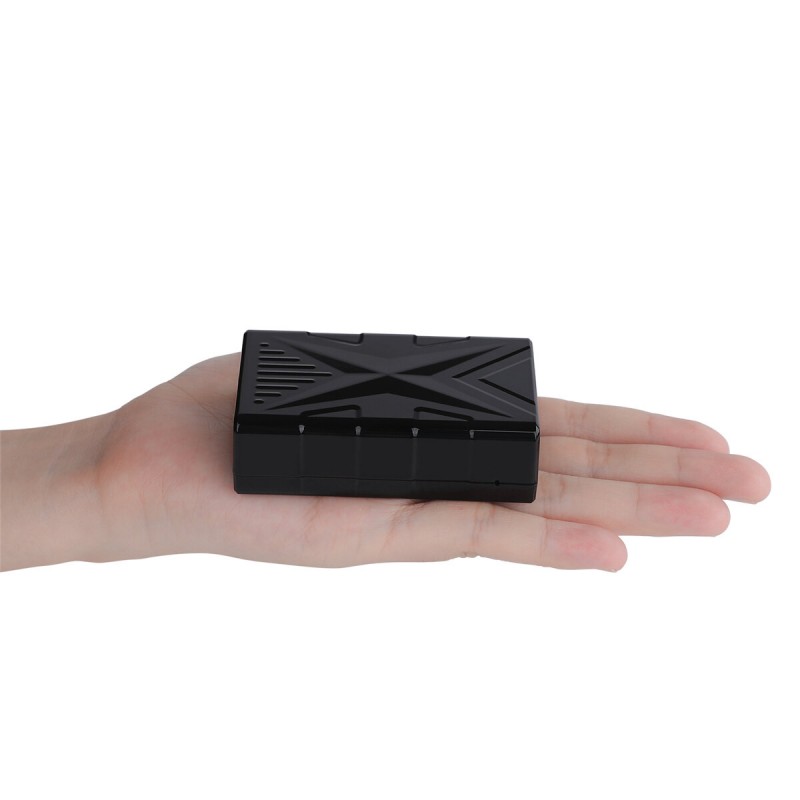

Product size:7.5*4.5*2.5cm
Package size:15.1*9*5.2cm
Battery life: -20 degrees -40 degrees, life 5 years
Charging voltage: DC 5V/1000mA (Micro USB)
Built-in battery: 3200 mAh (3.7V)
Volume: 76 mm × 45 mm × 22mm
Weight: 100g (including battery)
Operating temperature: -20° to 55° C
Working humidity: 5% to 95% Non-condensing
GSM module: Quad-band GSM 850/900/1800/1900Mhz
GPS sensitivity: –159Db
GPS frequency: L1, 1575.42 MHz
C/A code: 1.023 MHz chip rate
Channel: 56 channel all-in-view tracking
Positional accuracy: 5 meters, 2D RMS
Speed accuracy: 0.1 m/s
Time accuracy satellite time: 1 microsecond synchronization
Default data: WGS-84
Updated: by an average of 0.1 sec.
Hot start: Average 1 sec.
Warm start on: average 30 sec.
Cold start: average 32 sec.
Maximum height: 18,000 meters (60,000 feet) max.
Maximum speed: 515 meters/second (1000 knots) max.
Maximum acceleration: less than 4g
Instantaneous displacement: 20 m/sec
Standby time: 30 days
LED lights: 3 LED lights show charging, GPS, GSM status
Initial Password: 123456
Initial Password: 123456
Usage method:
1.Before use, please check the equipment model is correct, the accessories are complete.

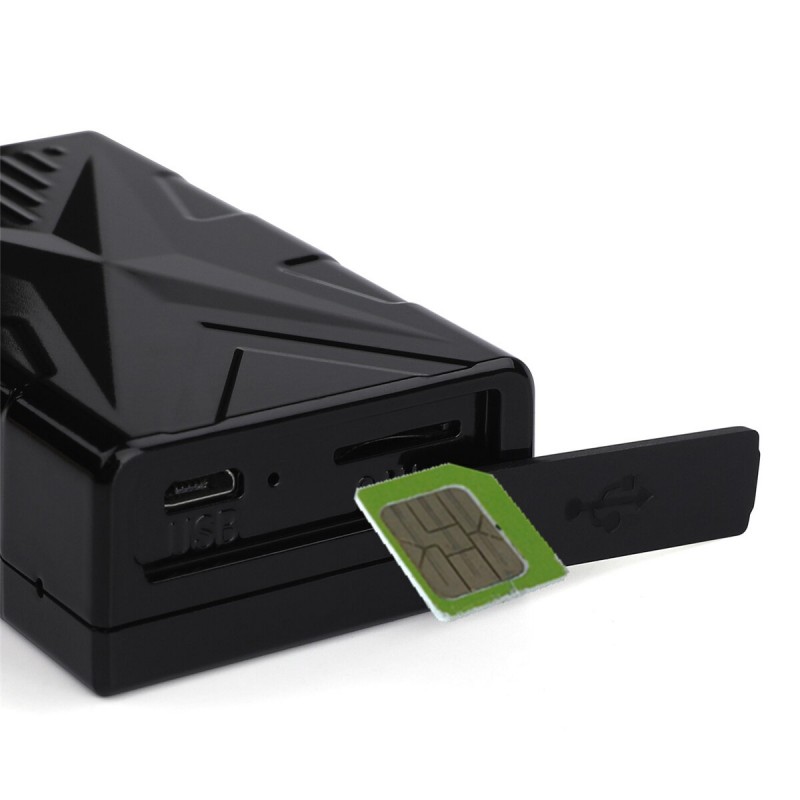

2.In the shutdown state in accordance with the installation method to support the SIM network GSM card
3.Charge: insert the USB charging line, the link to the output of the standard mobile phone 5V-1A
4.The charger from power to the full charging time is about 5 hours
5.Insert the card represent start, remove represent off

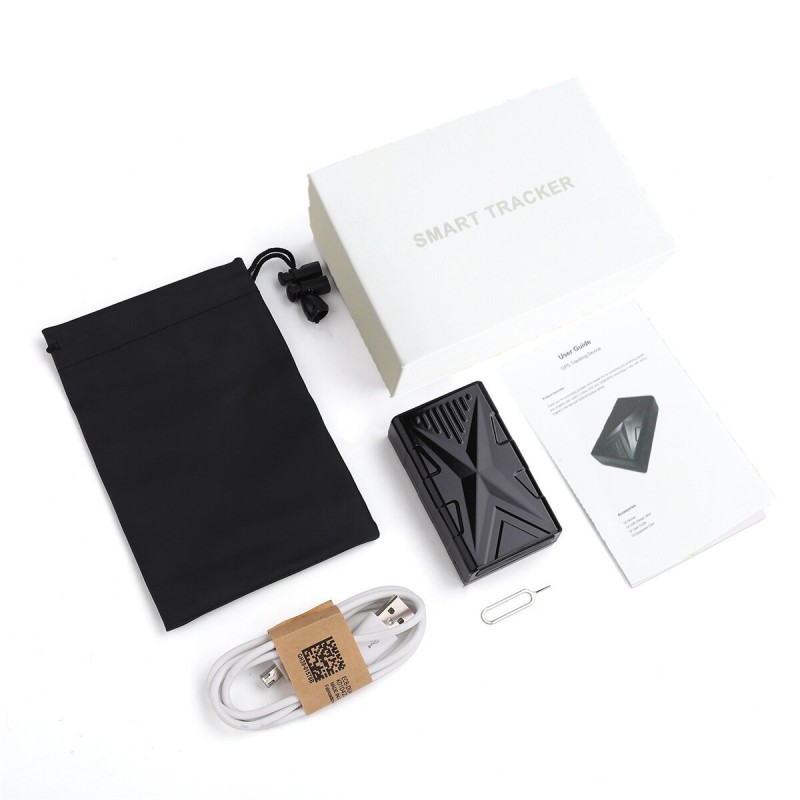

Package Included:
1 x GPS Tracker
1 x USB Cable
1 x User Manual(https://www.elecdeer.com/image/catalog/download/pdf/20200522042254AL01Instruction.pdf)
