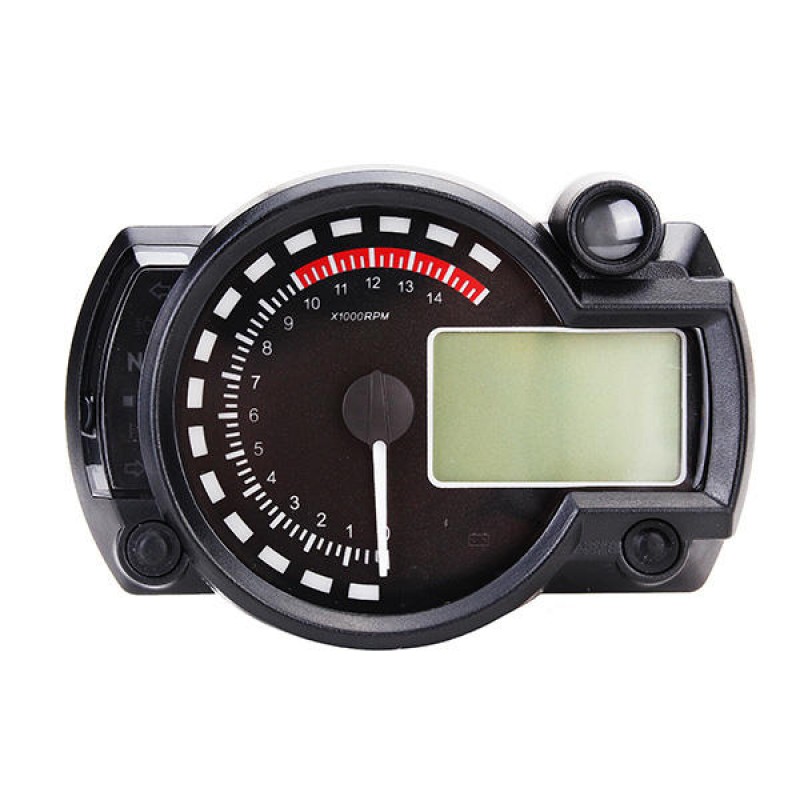

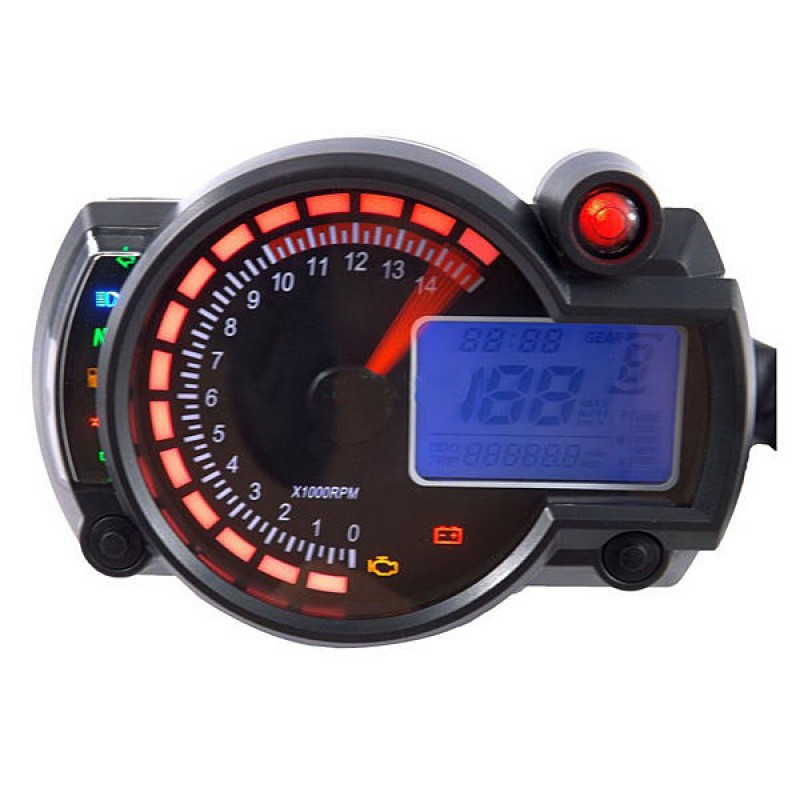

Adjustable Motorcycle Digital Speedometer LCD Digital Odometer
$48.99
- Product Code: ED0016768
- Availability: In Stock
- Ex Tax: $48.99
Description:
Stepper motor+pointer: Tacho

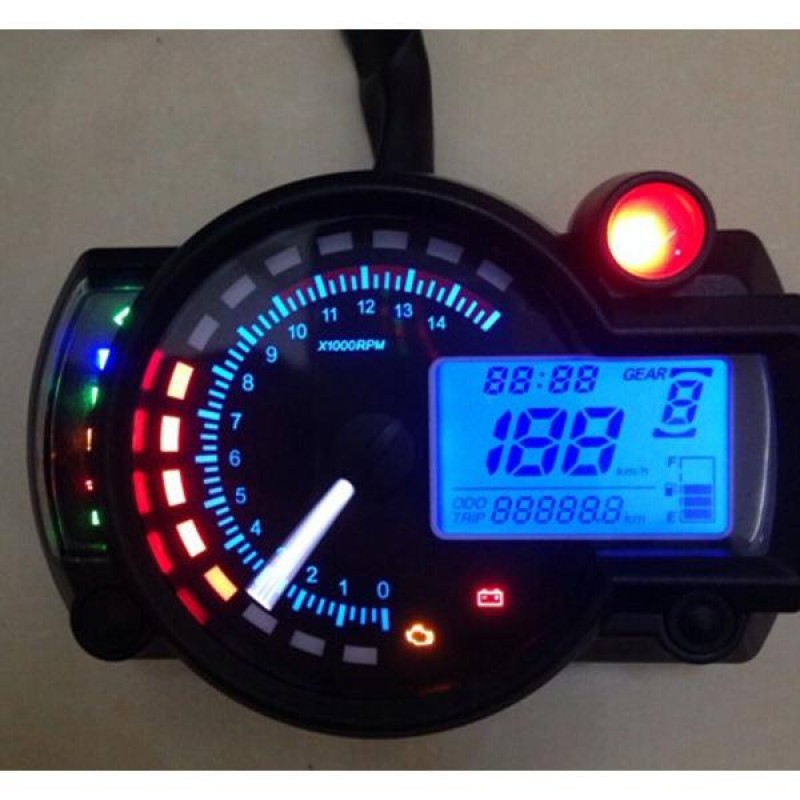

LCD display: Speed, Odometer, Trip, Meter ,Gear position, Fuel level and Real-time clock.
Button controlled shift between Odometer and Trip meter, Km/h and Mp/h, and Trip meter resetting is also available.
It can be apply to different vehicles with different diameter;
It can be apply to different displacement vehicles;
This speedometer send together with a speed sensor length about 950mm (Speedometer is hall effect, universal one)
Specification:
Back Light : Orange and Blue
Magnet Polarity: Hall sensor, South
Work voltage: DC 9-16V
Wheel diameter 1000-2999
Support MPH and KPH shift

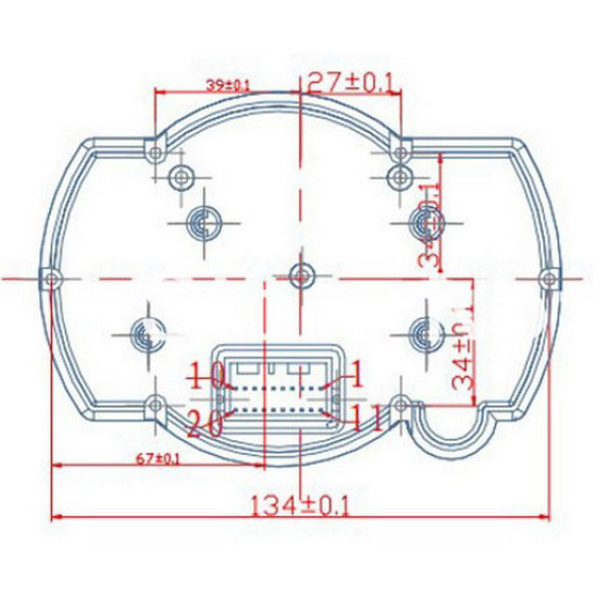

Meter Size: about 14*9.5*4cm
Display Size: about 5cm(L) X 3cm(W)
Working temperature: -30-85℃
Speed,max display 299km/h
Odometer distance, max display 99999.9
Trip distance, max display 999.9, trip distance clears
LCD display speed, trip ODO in miles and kilometers
LCD display gear position
LCD display fuel level, low fuel warning
Time, button adjustable
Revolutions Per Minute, max display 15000r/min, warning up to 10000r/min
Adjustable wheel perimeter
Adjustable Wheel diameter
Adjustable pulse

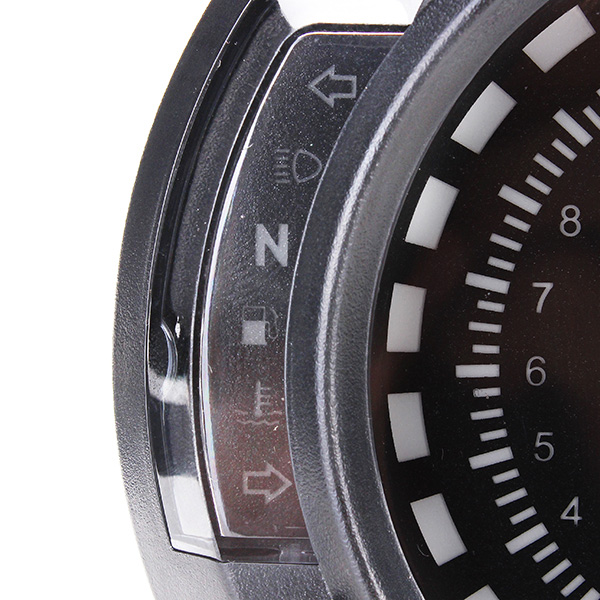

Left and right blinker, green
LCD screen back light blue, always on
Panel back light red, not always on
Note:
The rpm could not work if your motorcycle is "Kawasaki" and "Regal Raptor" with Electronic injection engine.

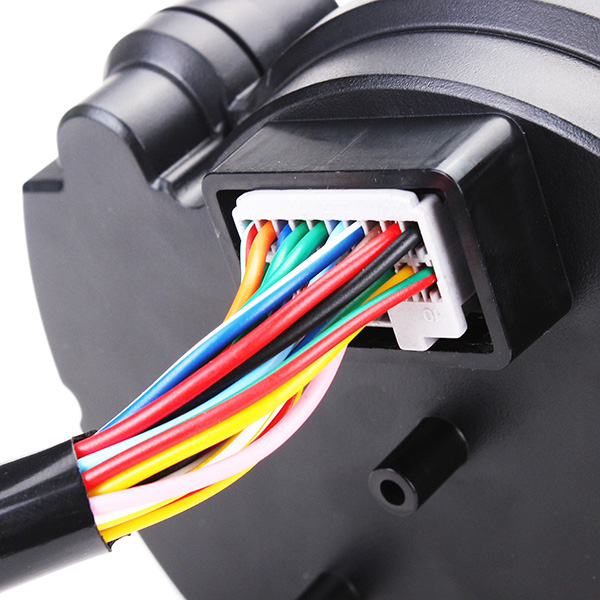

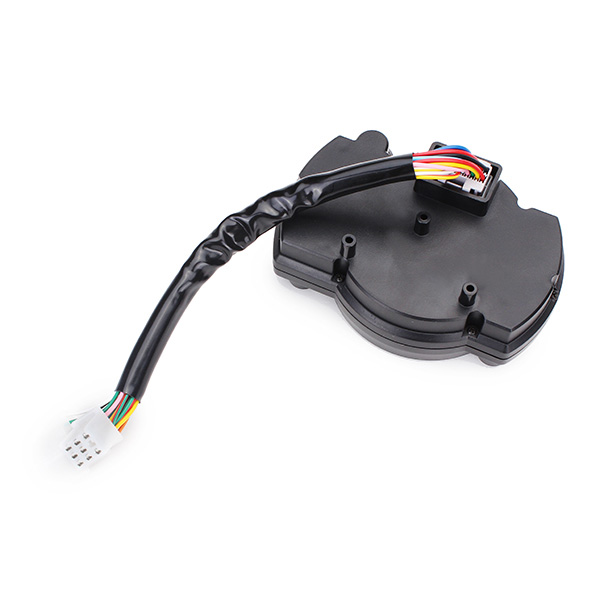

The blue white wire of this item is the rpm wire, it should be connected with the positive rigger line of the igniter.
Take the digital English Manual for reference, if you do not understand to install the Motorcycle Digital Speedometer LCD Digital Odometer.
We suggest you to find the professional people to help you to install.
If you want to download the English Manual, please click into here.

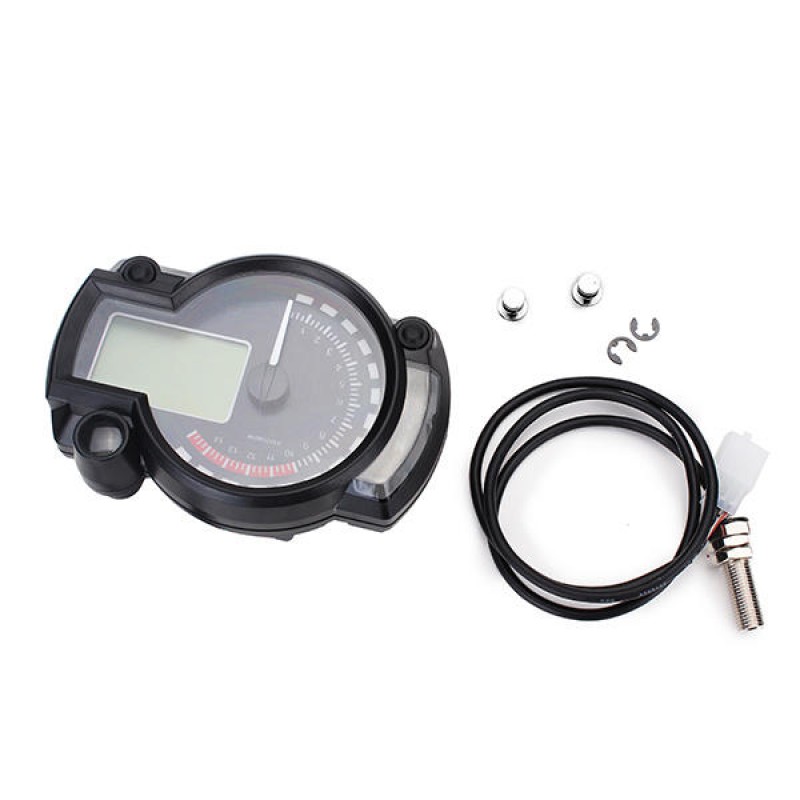

Package Included:
1 X Speedometer
1 X Speed Sensor
,
,
,
,
,
,
,
,
