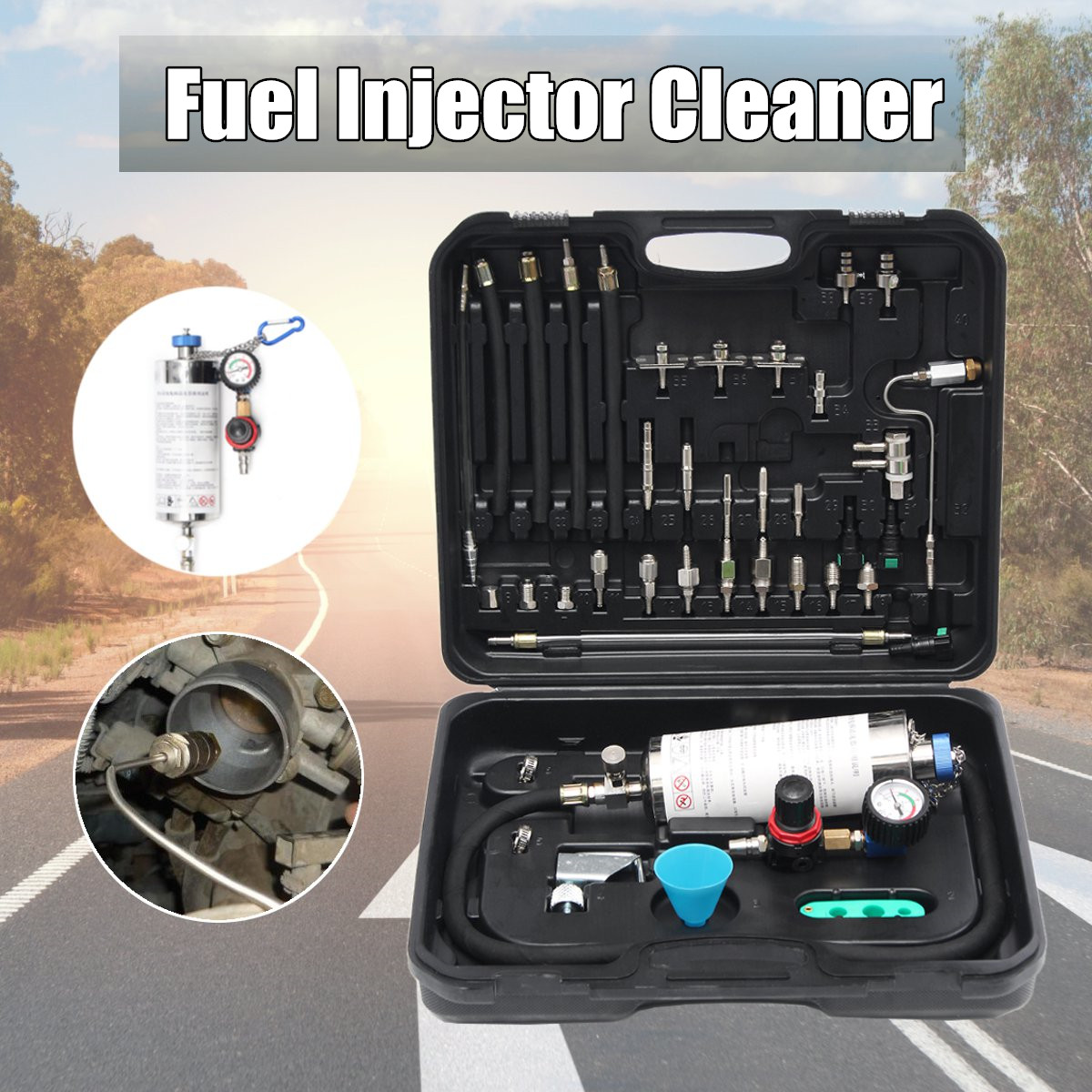

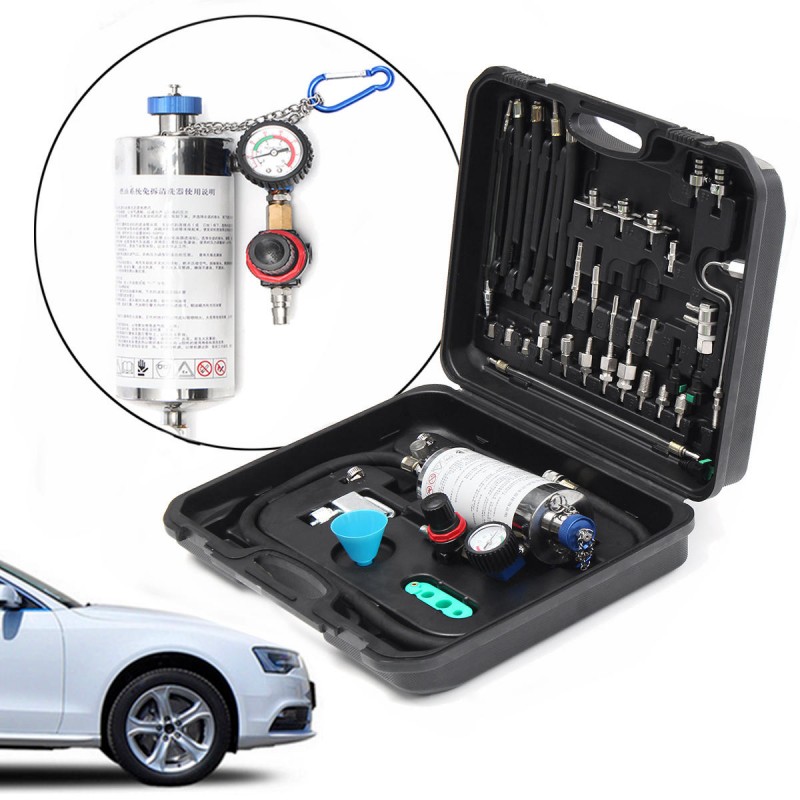

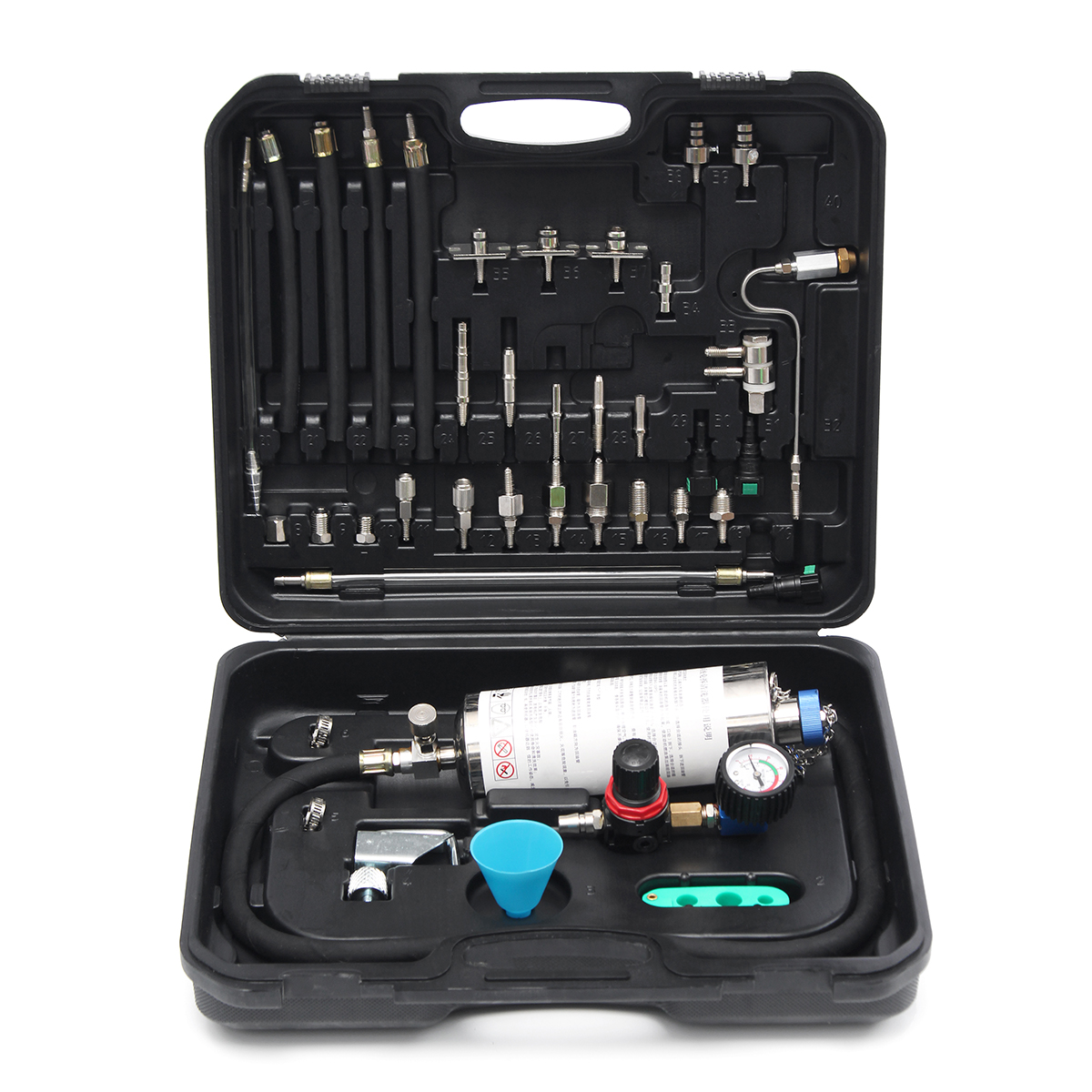

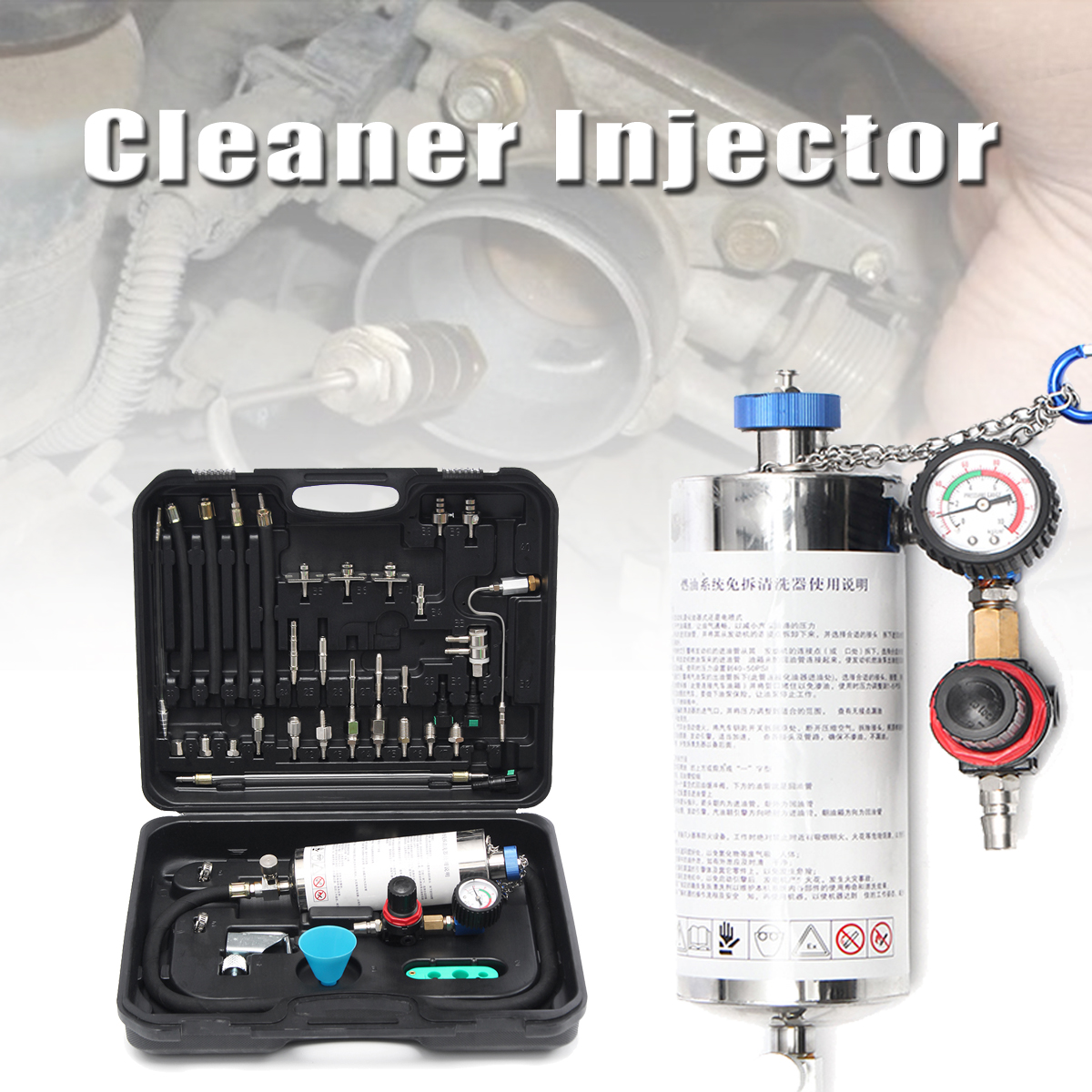

Auto Non-Dismantle Fuel System Cleaner Injector Tools Kit & Test For Petrol EFI Throttle
$101.10
- Product Code: ED0009045
- Availability: In Stock
- Ex Tax: $101.10
Specification:
Features:
Package Included:
Name: Auto Non-Dismantle Fuel Injector Cleaner and Tester Air Intake System
Tank: 600ml
Package Size: 40*12*36cm
-Find out the fuel return hose, disconnect it and plug it with suitable adaptor;
-Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;
-Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work;
-Charge the cleaning fluid into the tank of the cleaner;

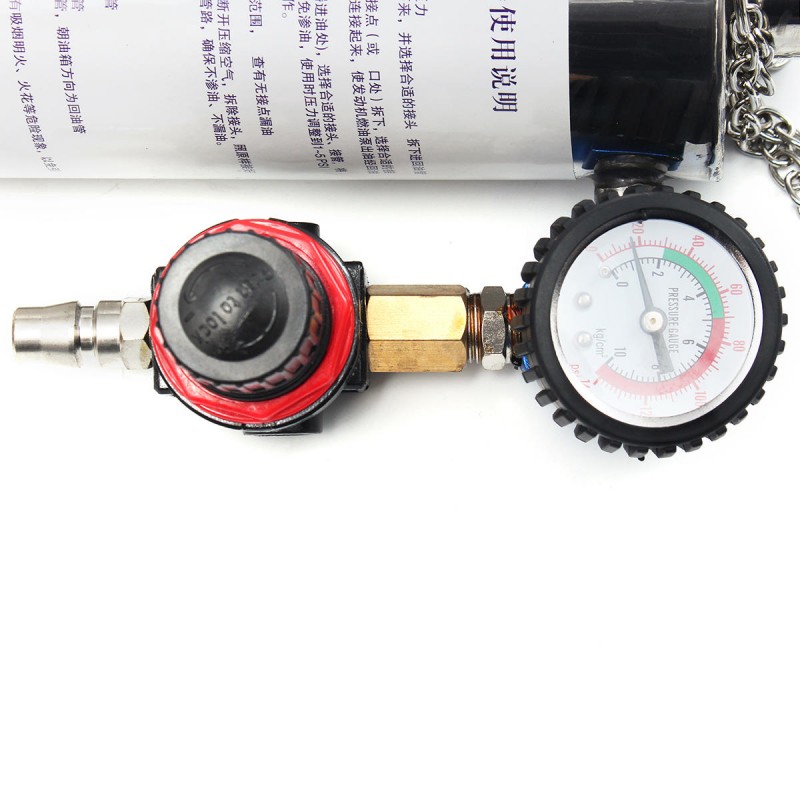

-Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;
-Check all connect point to make sure there is not leakage;
-Start the engine to clean the fuel system
Throttle Model:
The way of connection is the same, just adjust the pressure of the air source 1-5PSI.
The way to identify the inlet and return hose:
-Generally speaking, inlet hose is bigger, return hose is samaller;
-There is always a filter connected in the inlet hose side, and a buffer in the return side;
-There is arrow on the hose to show the fuel flow direction
NOTE:
To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI
Application:
Fit for USA EU Asia cars and light truck (petrol)

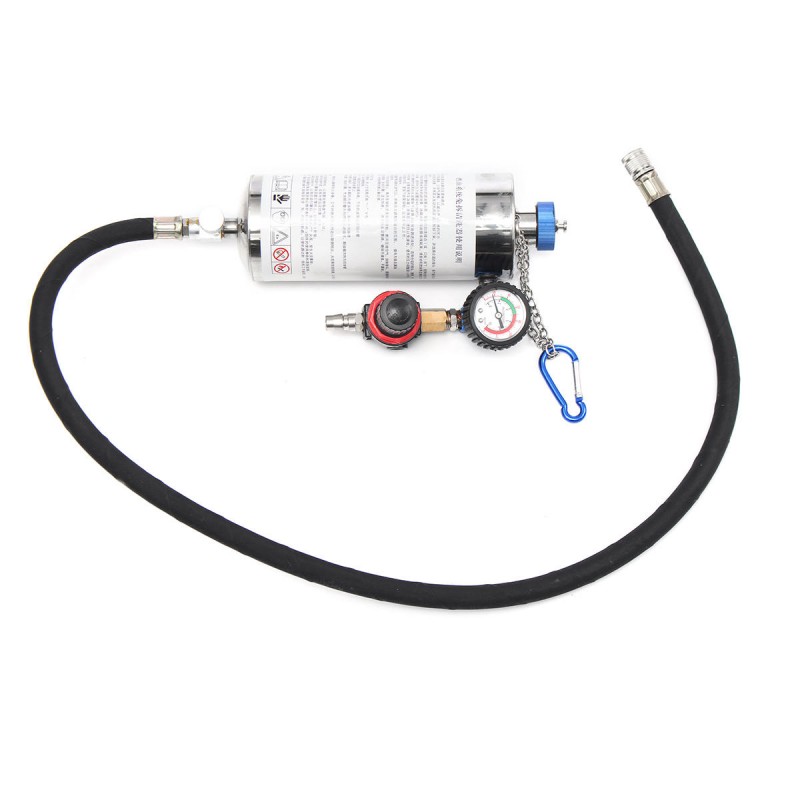

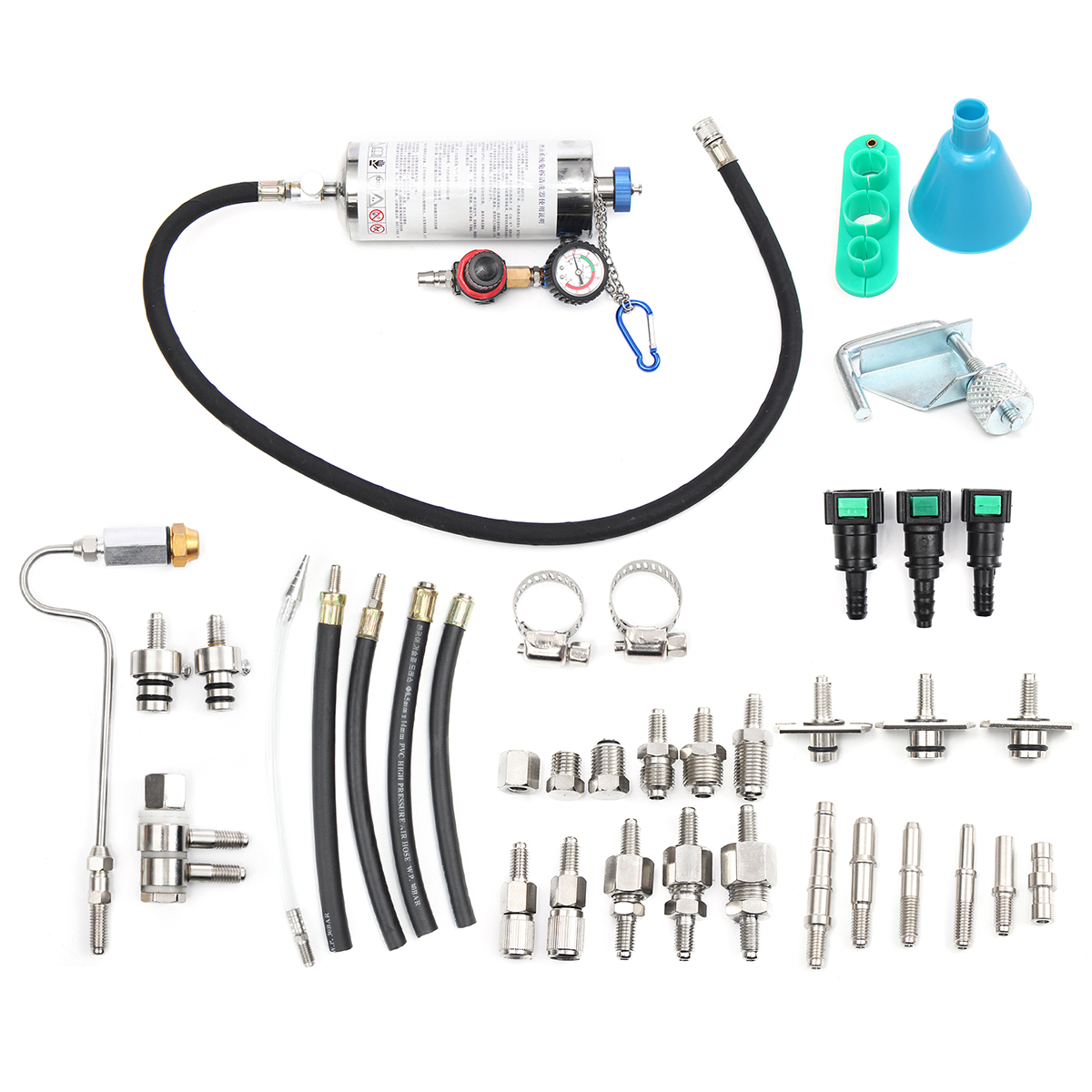

1 x Fuel Injector Cleaner

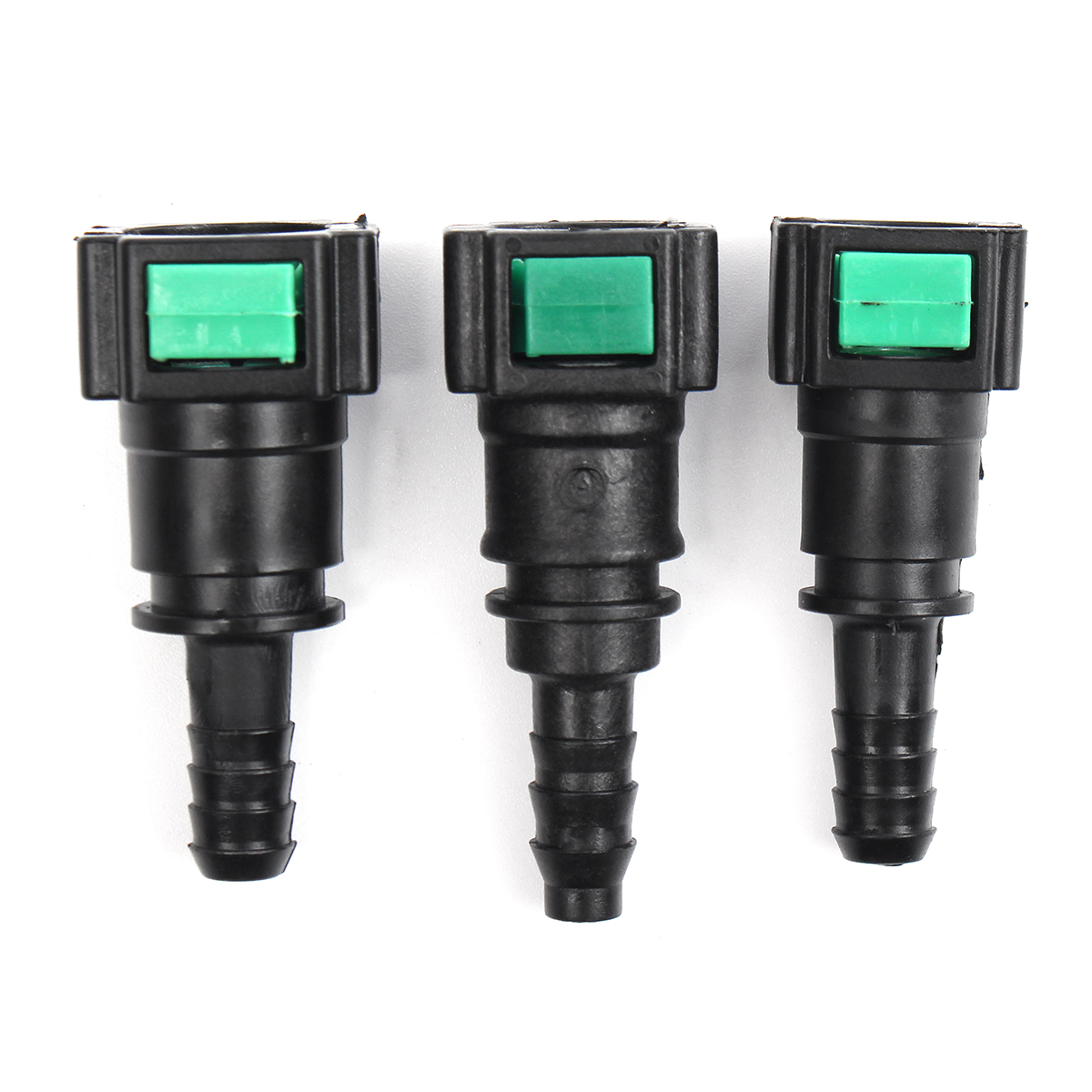

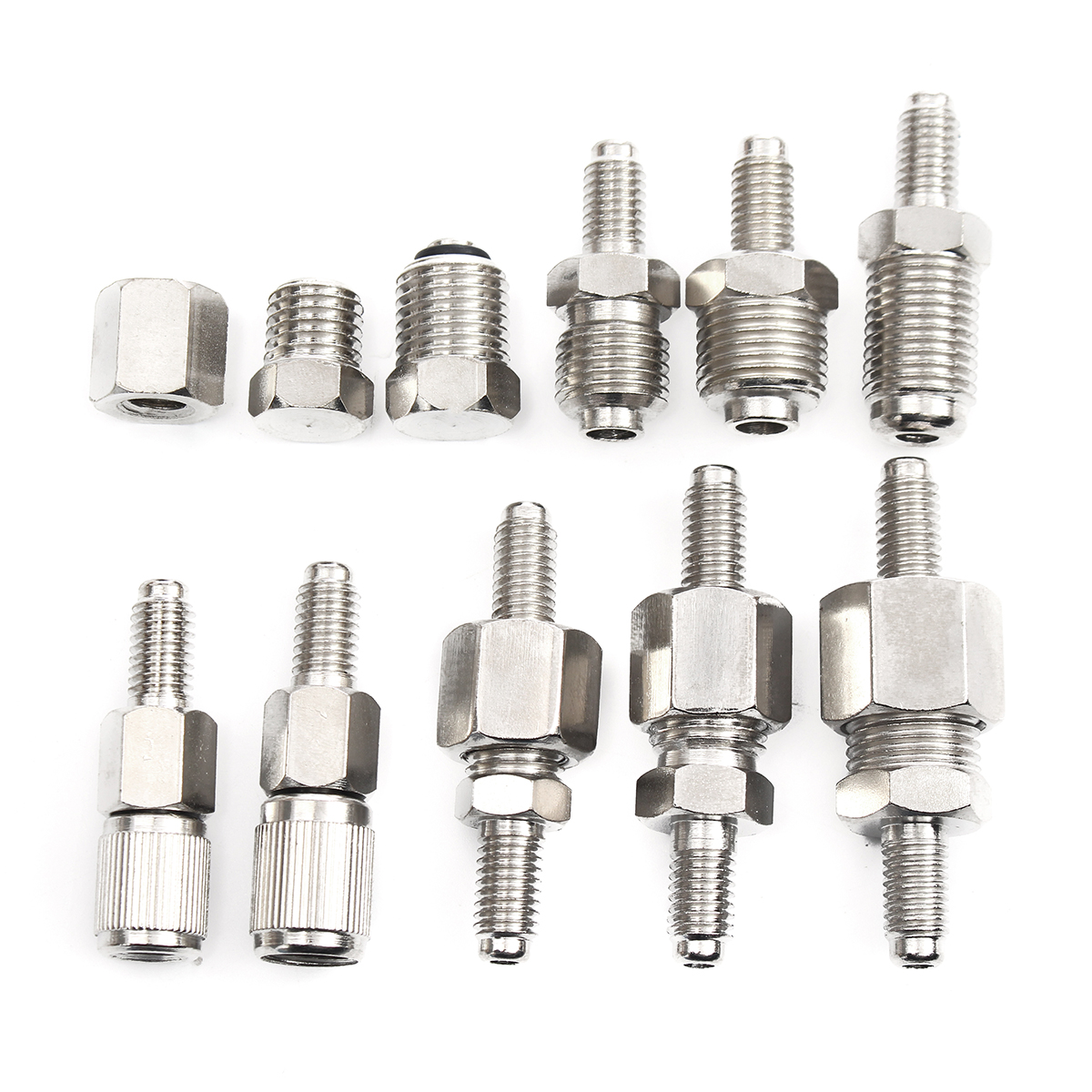

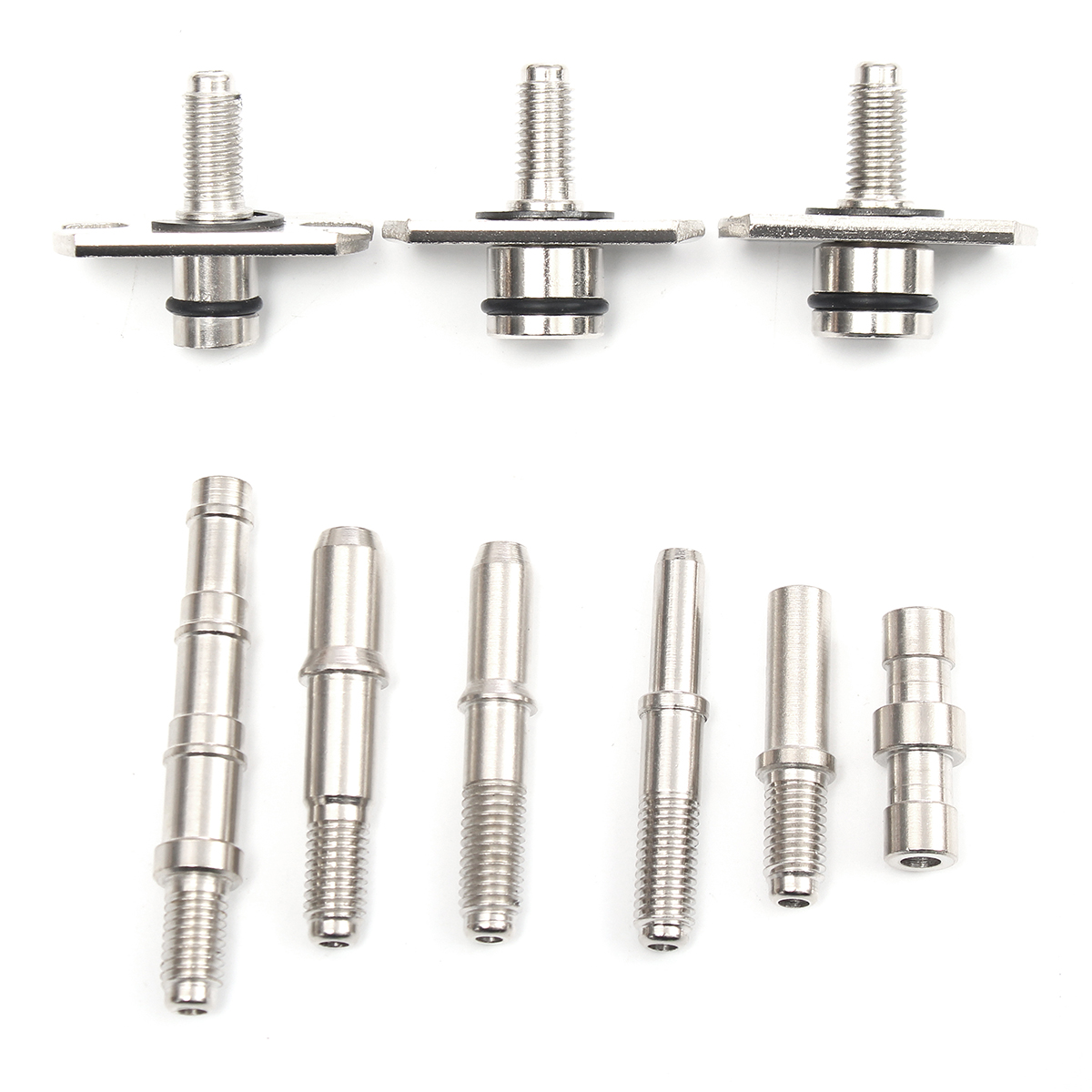

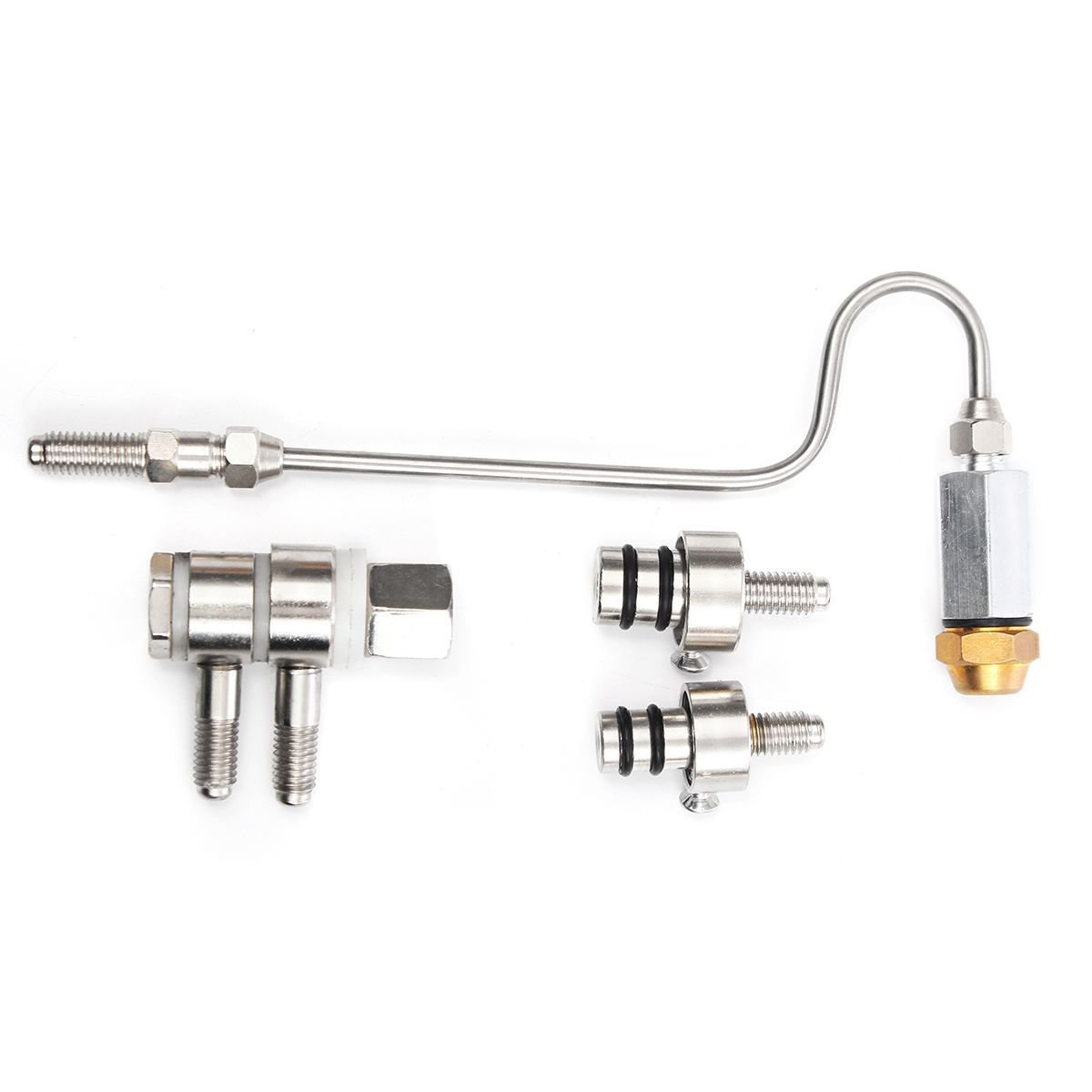

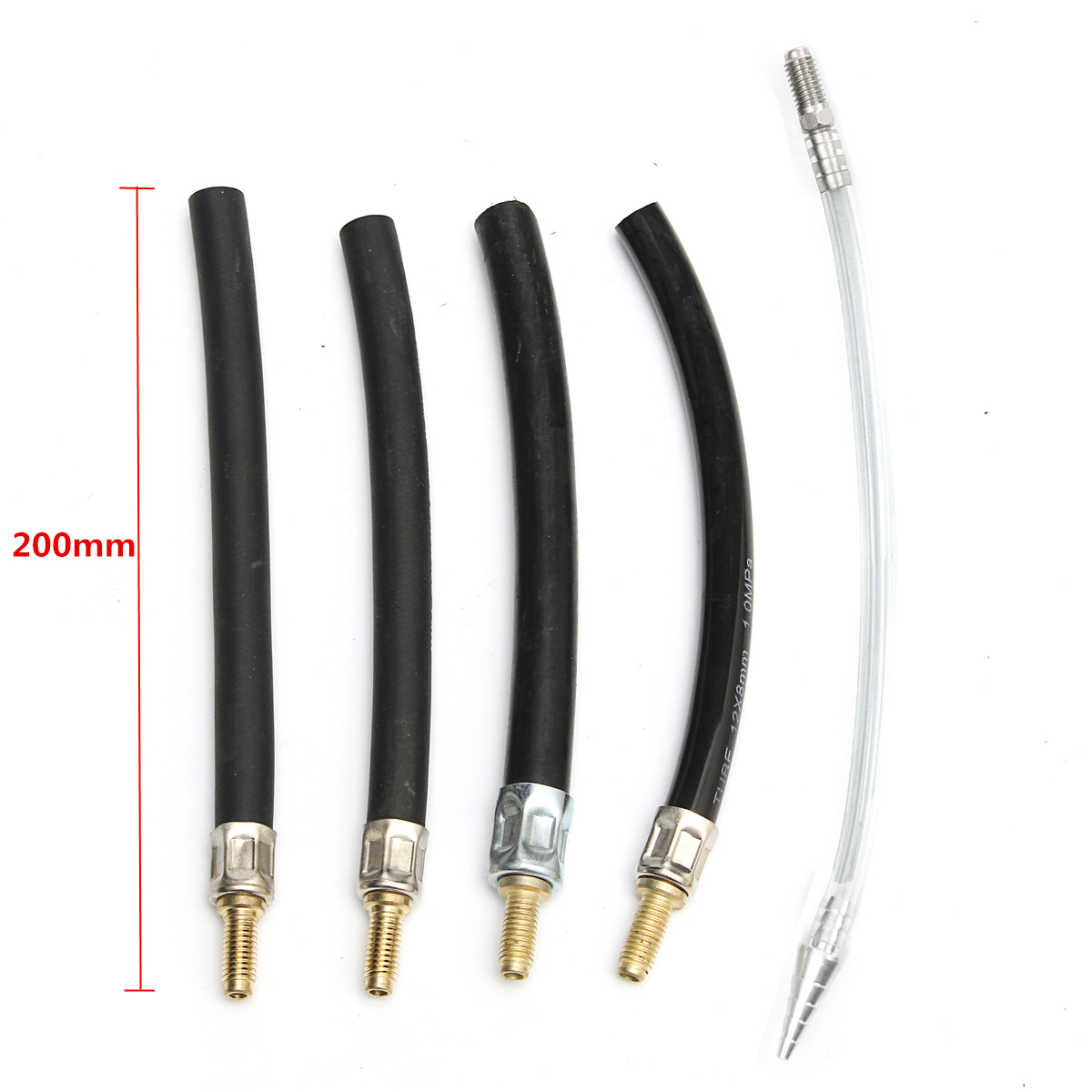

1 x Adapter Kits
1 x Suitcase
