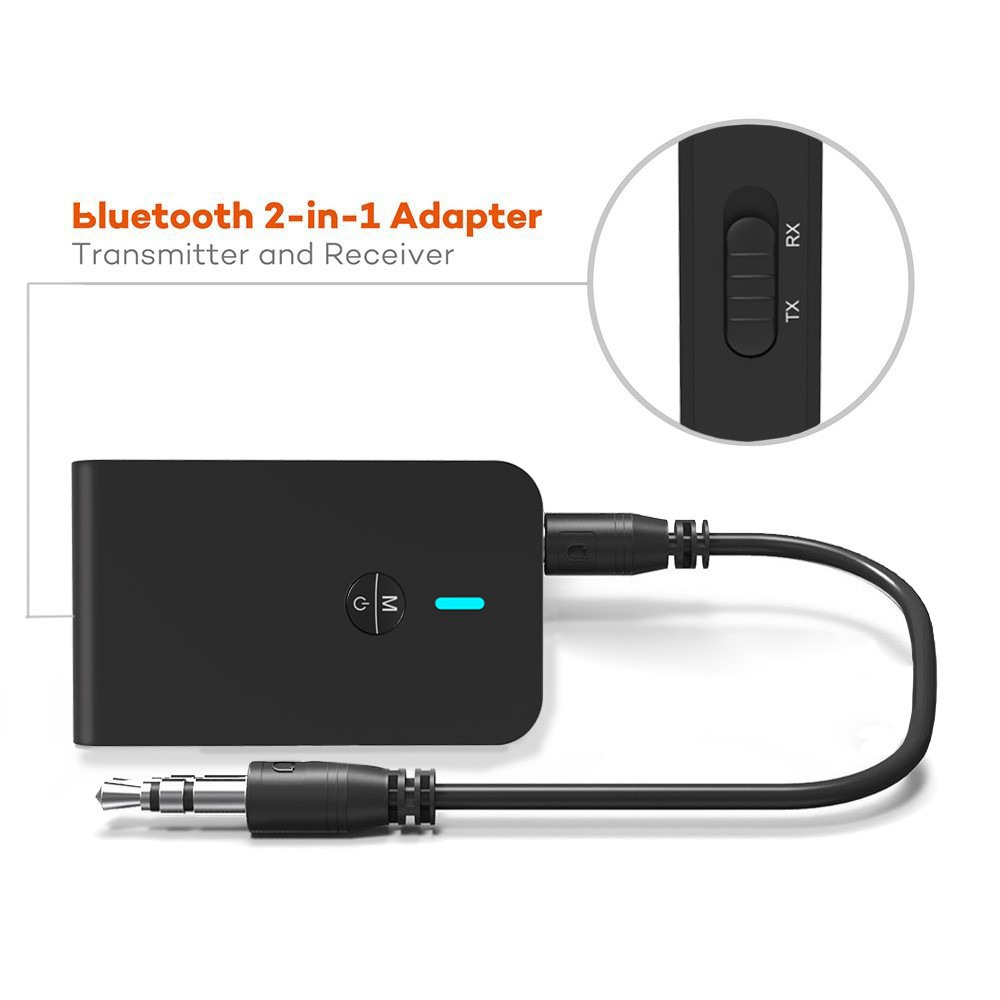

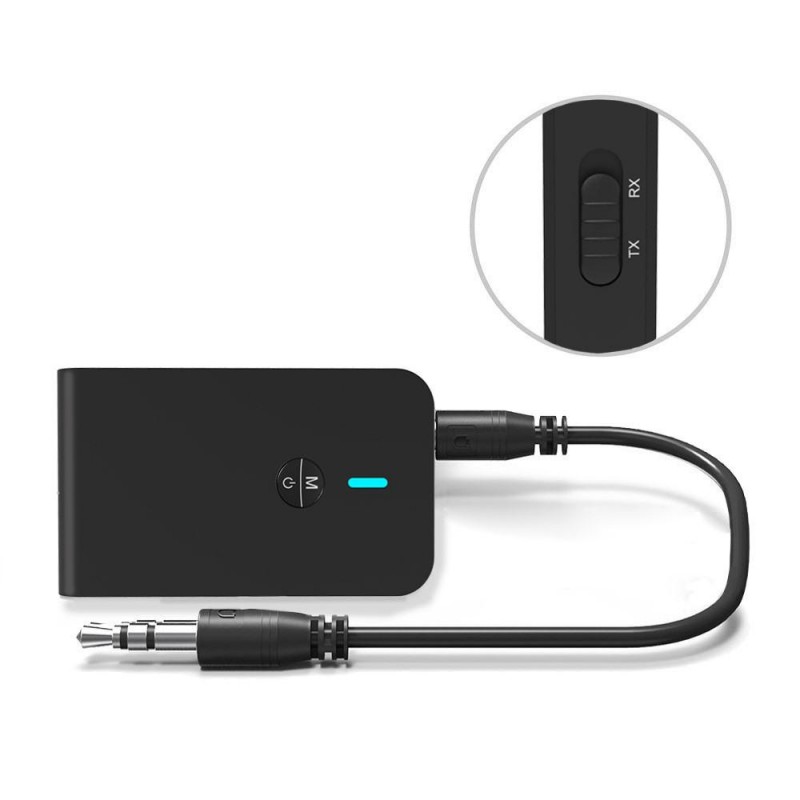

BT-6 bluetooth 5.0 Transmitter Receiver 2-IN-1 bluetooth Adapter With Micro Support Hands-free
Description:
Supporting protocols: A2DP, AVRCP, HFP, SPP HID
Receiving working current: ≤ 43MA
Transmit working current: ≤ 60MA
Standby current: <18MA
Built-in battery: polymer 260MAH
Charging current : 200MA
Item Size:8*4.6*1.3cm
Item Size:8*4.6*1.3cm
Life time: 5-8H
Bluetooth distance: >10M (empty place)
Charging method: Micro USB 5V/1A
Output connection mode: 3.5MM stereo interface
Input connection method: 3.5MM stereo interface
Compatible: Android, IOS system phone and PAD, and all Bluetooth audio devices, audio devices with audio input

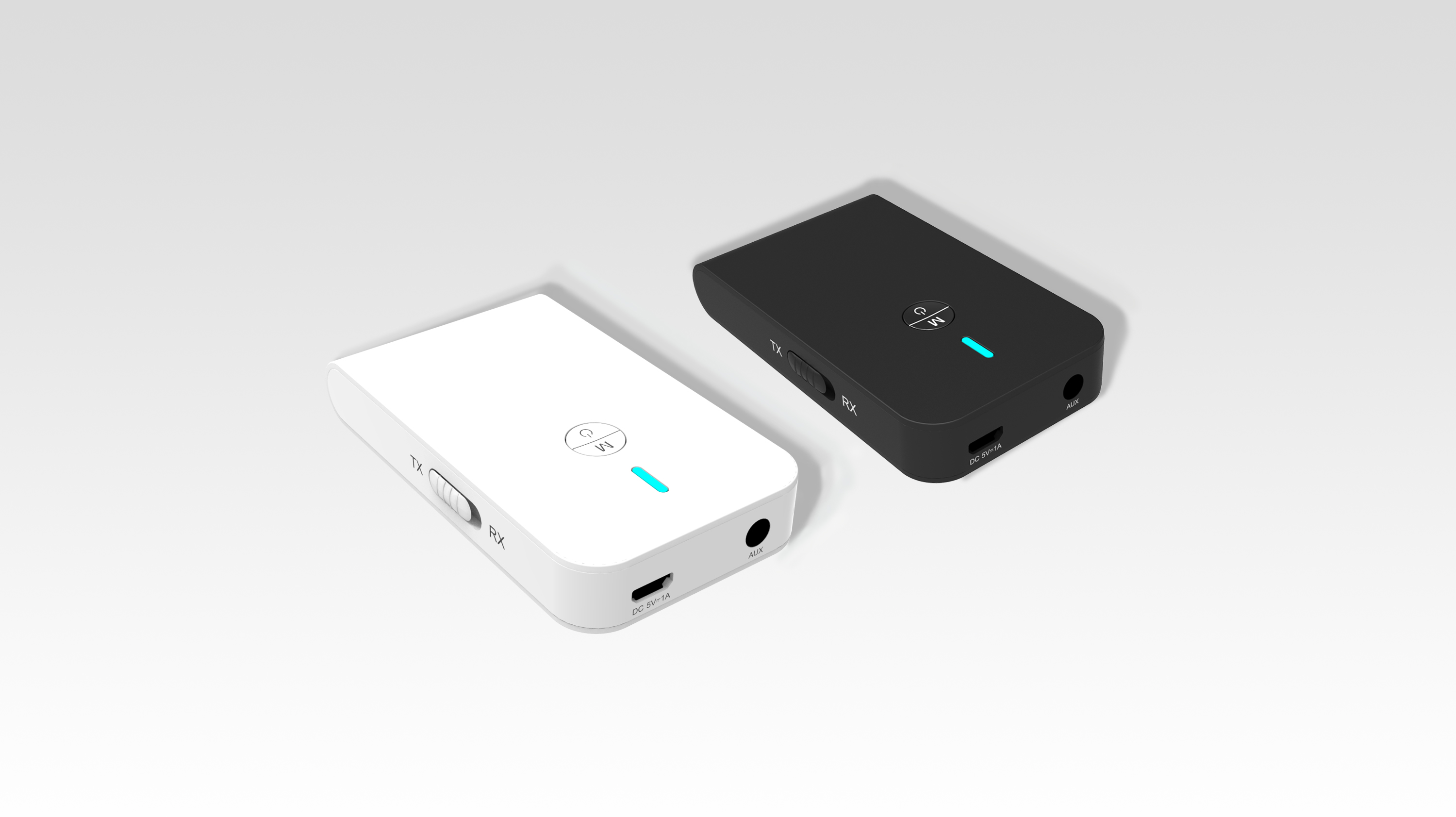

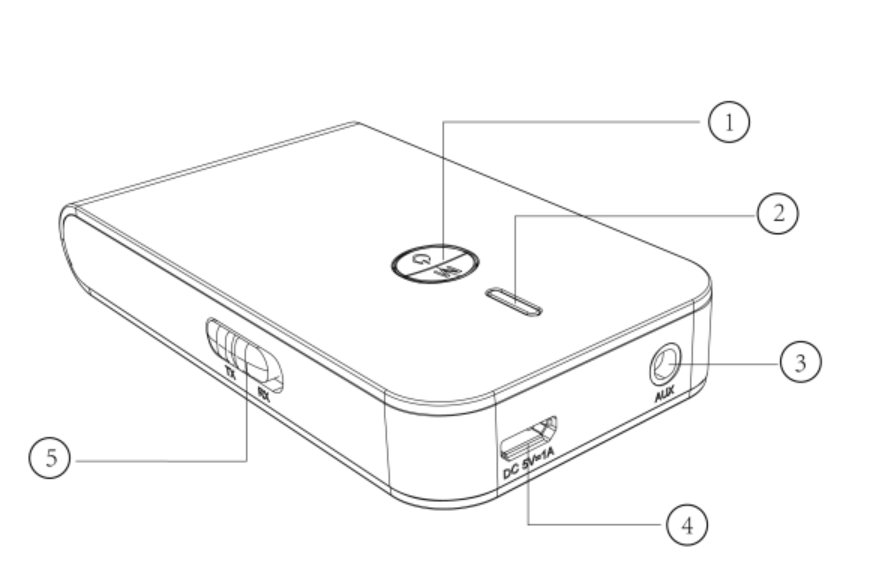

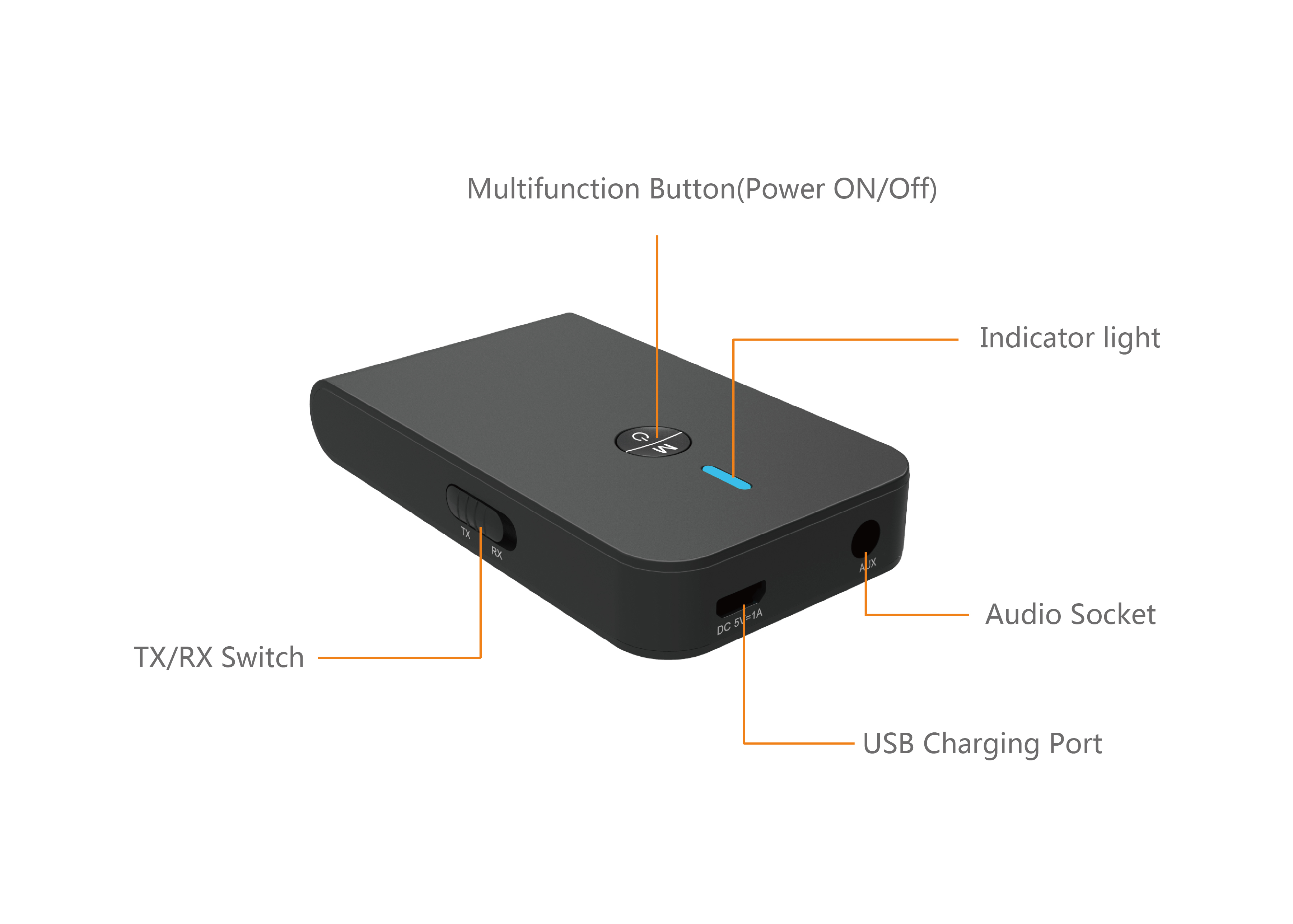

Product Diagram:
①Multifunction Button(Power/Pairing)
②Indicator Light
③Aux in/out
④Charge micro USB
⑤Transmitter/Receiver Switcher
Operation Instruction:
-Receiver ModelProduct Diagram:
①Multifunction Button(Power/Pairing)
②Indicator Light
③Aux in/out
④Charge micro USB
⑤Transmitter/Receiver Switcher
Operation Instruction:

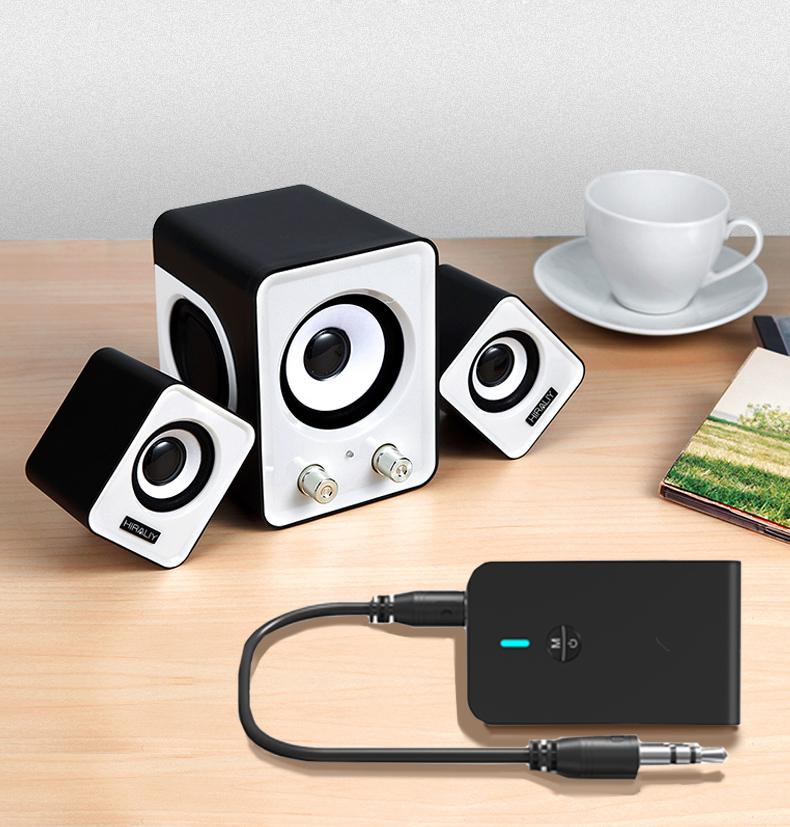

Especially designed for car stereos, speakers and most devices with 3.5mm aux in port, make ordinary
speakers instantly become“BT”stereo speakers, wirelessly stream music and calls from you smart-phone to
you car or home stereo.
-Using Receiver Mode
1.Power on: long press the Multifunctional button.
2.Power off: long press the Multifunctional button again.
3.Turn the Transmitter/Receiver Switcher to the“RX”position, the device will work in to Wireless Receiver mode.
-Pair to your smart-phone
1. For the first time to use the device as a receiver, you need to pair your mobile phone with this unit.
2. Connect the device to your headphone/home speakers or car stereo system with 3.5mm audio cable.
3. Long press the Multi-functional button, the device will power on, then blue light will flash quickly, it will be in
the pairing state.
4. Enable “BT” function one your smart-phone in the settings then search new device, When the mobile phone detects
this unit(named as“BT-6”)
5. When pairing is successful, the indicator will light blue constantly. Now you can play music wireless, press the Multifunctional
Button to pause and press it again to play.
6. In the music playing mode, when there is an incoming call, this unit will automatically switch to telephone mode.

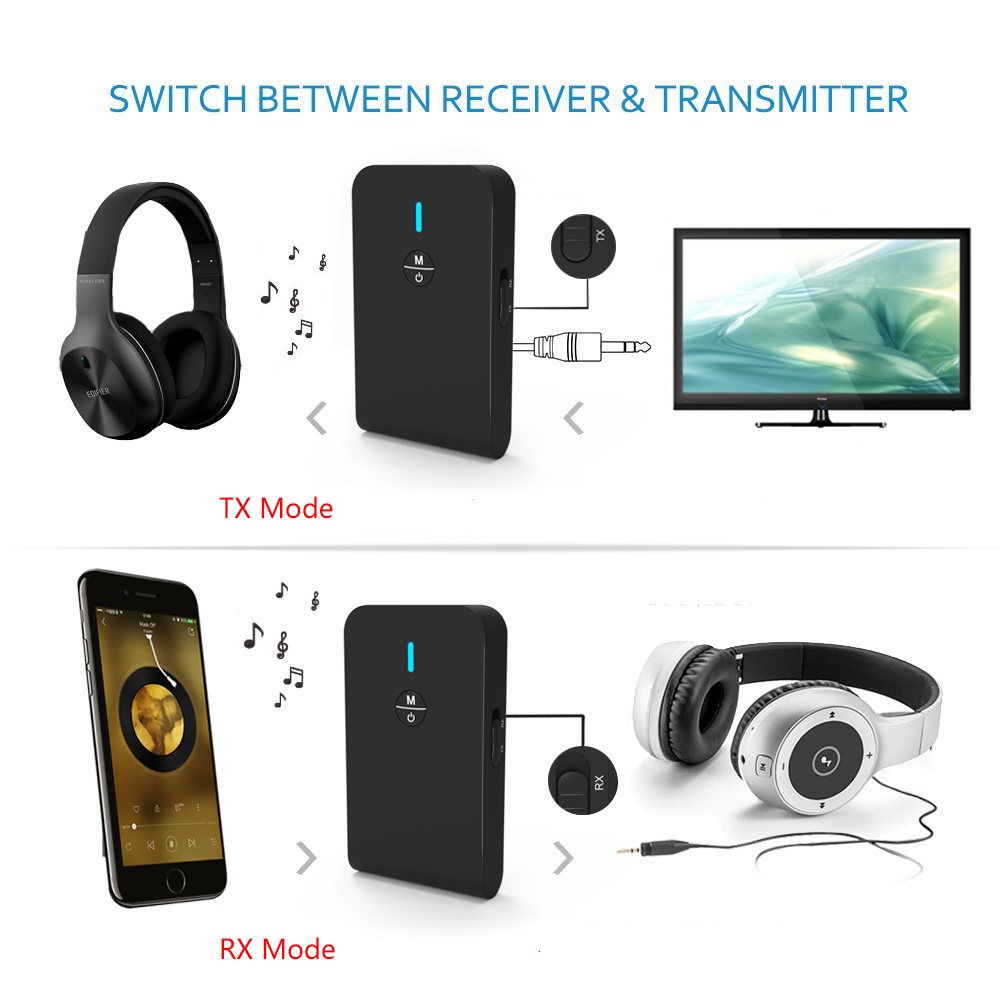

-Transmitter Mode:
“BT” broadcast transmitter for TV/computer/walk-man/DVD and other devices without “BT” function, stream your favorite
music or watch TV without wire restriction and without disturbing the others who are working/studying/sleeping. When
using as “BT” transmitter, a “BT” headphone/speaker/receiver is needed.
-Using Transmitter Mode
1.Connect “BT” transmitter with your TV/computer via 3.5mm audio cable.
2.Slide switch to “TX” position, the device will work into “BT” transmit mode and the indicator flashes means it’s ready to pair.
3.Power on your “BT” device such as “BT” headphone to start pairing, when successfully paired, the Bluetooth indicator
will illuminate blue, now you can enjoy your private music.
-Power on:
Long press the Multi-functional button.
-Power off:
Long press the Multi-functional button again to power off.
NOTE:
1. If you successful paired your “BT” receiver for the first time, when you power the device next time, it will
reconnect your receiver automatically.
2. You should power it off before you switch it to receiver mode.
3. When the device is out of the working range, it will disconnect, once the device back into the valid range, it
connect back automatically.
4. When the device is in low power state, the red indicator light will flash 3 times every two minutes.
5. Charging: connect with USB charging cable(5V/1A), the red indicator will light constantly, it will turn green when finished.
6.This device can transmitter music from your media devices (smart-phone/Mp3/TVs and more) to your two “BT”-enabled
equipment simultaneously.
Features:
• Embedded ARM926EJ-S core, 4KB lcache and 4kB Dcache
• Support stereo codec
• Support HFP, HSP, A2DP, AVRCP, and SPP profiles
• Noise reduction and echo cancellation
• Multi-band equalizer configuration
• Support packet loss hiding
• Multi-point HFP and A2DP
• Support voice prompts
• Integrated lithium mode battery charger supports 200 mA fast charge and overdischarge protection
Functions:
●Support audio equipment with audio input for wireless audio reception and transmission
● Support automatic search for connecting Bluetooth devices to achieve wireless audio transmission
● Built-in AEC cancellation and ANC noise cancellation circuit, gorgeous stereo, more pure sound quality
● Built-in enhanced signal transmission circuit, connecting faster and more stable
●Compatible with dual lossless audio format
●Support AUX OUT, Earphone
●Automatic memory connection function, easier to operate and more convenient to connect
● Built-in battery, long battery life
●Bluetooth 5.0, low power consumption
●Intelligent compatibility, Android, IOS system phone and PAD, and all Bluetooth audio devices
● Support for connecting 1 mobile phone
● The product connection is simple, without any cumbersome driving and downloading the APP;
Size and weight:
Packing size: 105X90X 35mm
Weight: 37g (bare metal) / 99g (machine)

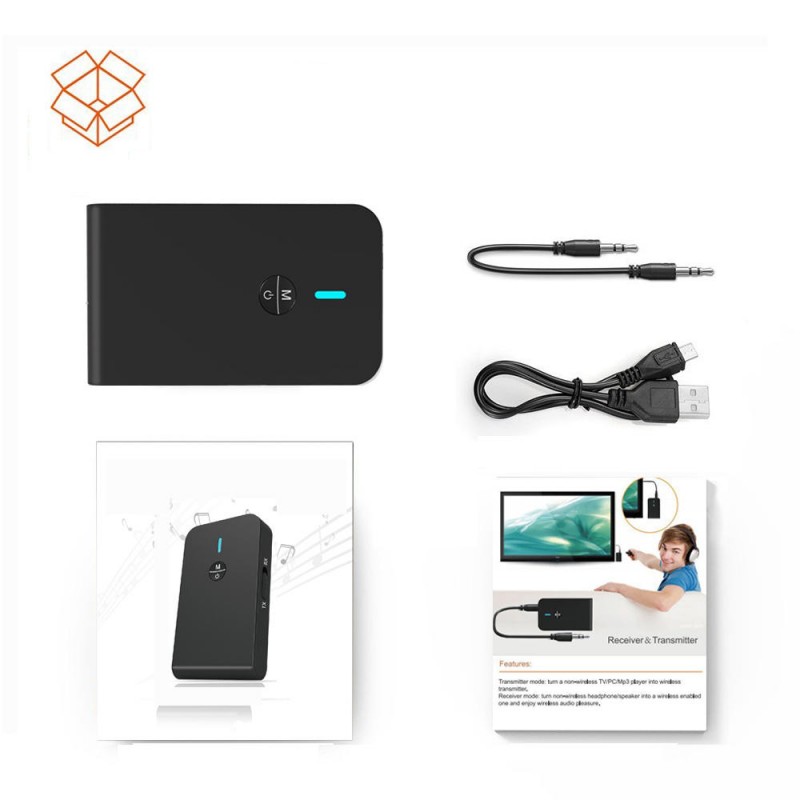

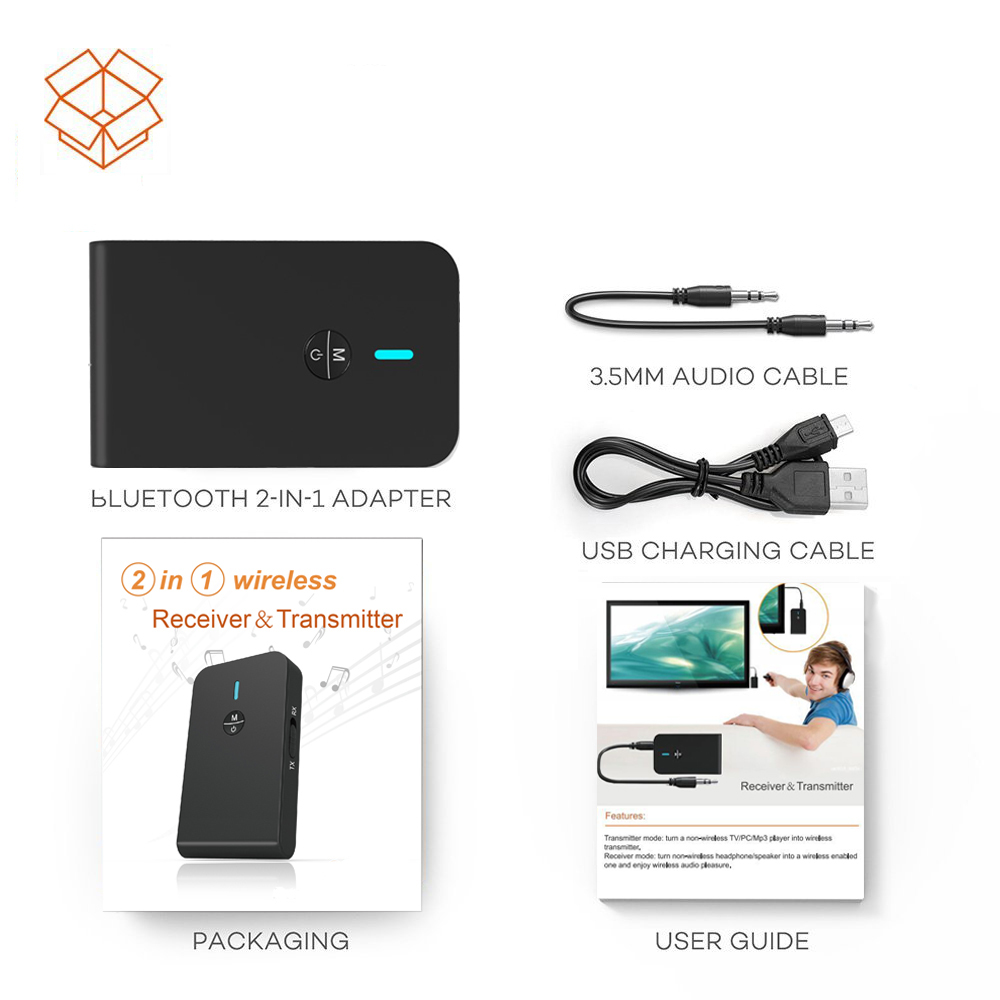

Package Included:
1x BT-6 Bluetooth transmitter receiver
1x audio lines
1x 3.5MM audio cable
1x Micro USB charging cable
1x operating instructions
1x neutral packaging
