BT200 Auto Battery Tester 12V BT-200 Car Battery Validity Detector Voltage CCA Analyzer with Multi Languages Car Battery Test
$31.99
- Product Code: ED0006892
- Availability: In Stock
- Ex Tax: $31.99

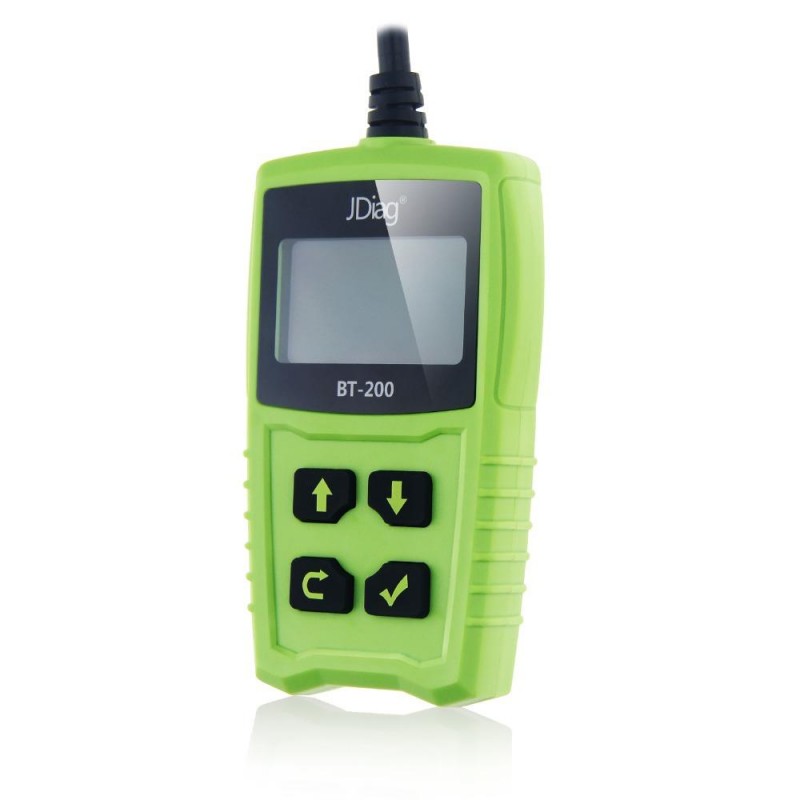

JDiag BT200 Auto Battery Tester 12V BT-200 Car Battery Validity Detector Voltage CCA Analyzer with Multi Languages Car Battery Test
--JDiag FasCheck BT-200 Car Battery Tester is an universal car battery Validity detected tool for most brand
car batteries. FasCheck BT-200 use world's most advanced conductance testing technology, convenient operation,
rugged shell, practical design, equipped with 10 different car battery types diagnostic modes which make technicians
use with ease and fast performance.
Specifications:
1. Operating voltage: 7-18 Volts
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -20 to 70°C (-4 to 158 F°)

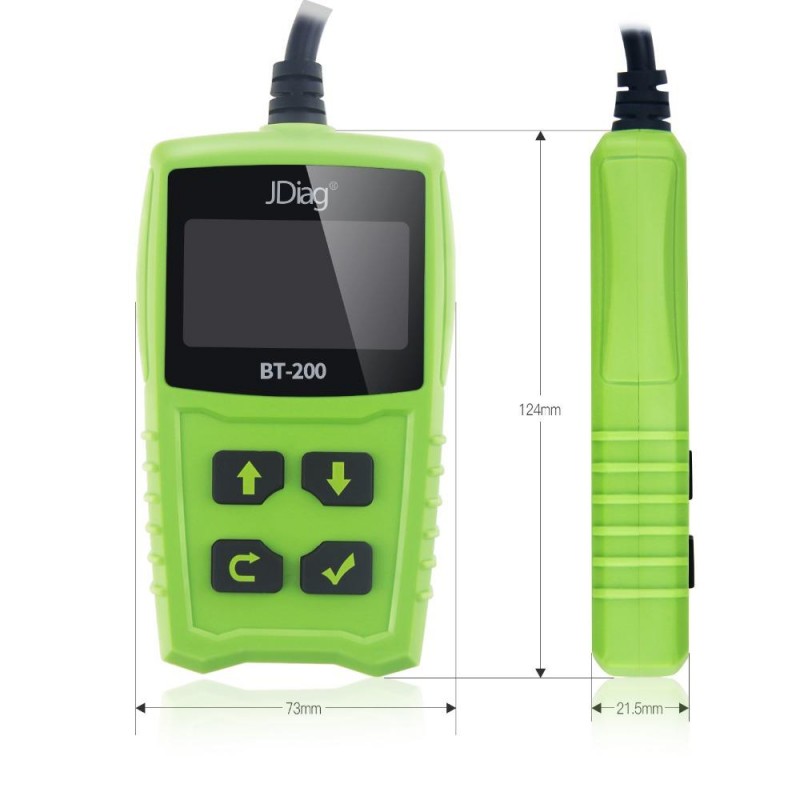

4. VCI Size: LengthWidthHeight: 124 mm (4.61”) 73 mm (2.83”)22 mm (0.71”)
5. Packing Size: 185 mm(L) x 182 mm(W) x 55 mm (H)
6. Weight: 0.35 KG

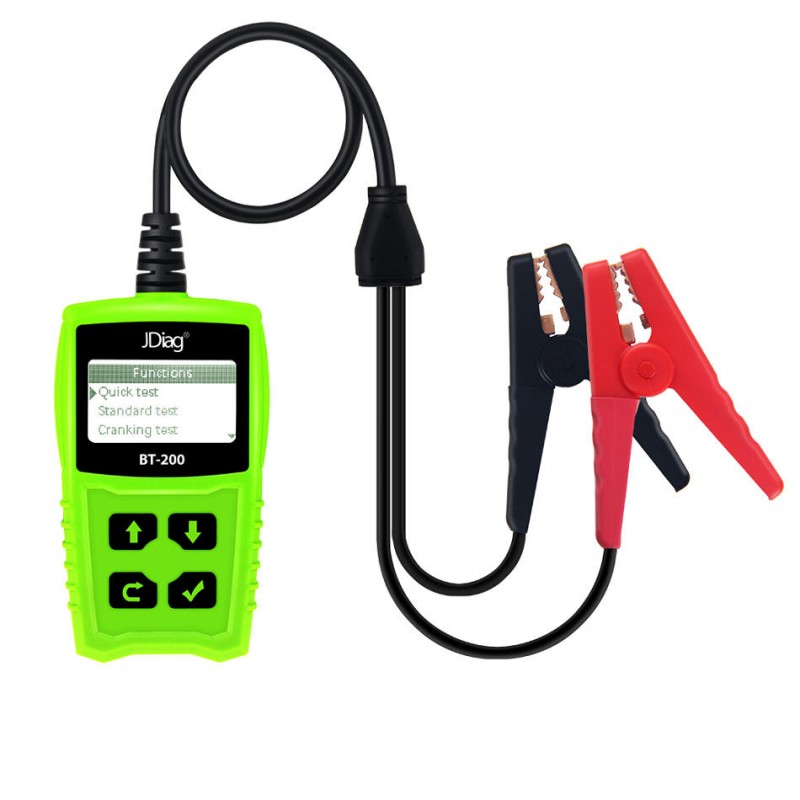

Test modes:
1. Quick test - System will detected car battery automatically;
2. Standard test - Car battery type is able to selected;
3. Cranking Test - Test car battery condition by detecting the start vehicle's lowest ignition voltage;
4. Charging Test - Detect car battery Validity by charging and discharging test time;
5. Review Data - Review the last piece data stored in system;
Supported Battery Types:
CCA: 100-2000
MCA: 100-2000
JIS: 26A17--245H52
DIN:100-1400
IEC:100-1400
EN:100-2000
SAE:100-2000
GB:100-1400
Other types
Advantages:
1. Positive and negative reverse protection function;
2. High accuracy test results;
3. Multi-type car batteries supported and multi-testing modes supported;
4. Industrial design, easy software design, simple and practical;
5. Language: English,German,French,Spanish,Russian,Polish,Italian
6. Upgrade supportable, able to add more features in future.
Attention:
It works with 12v cars only, do not work with 24v trucks

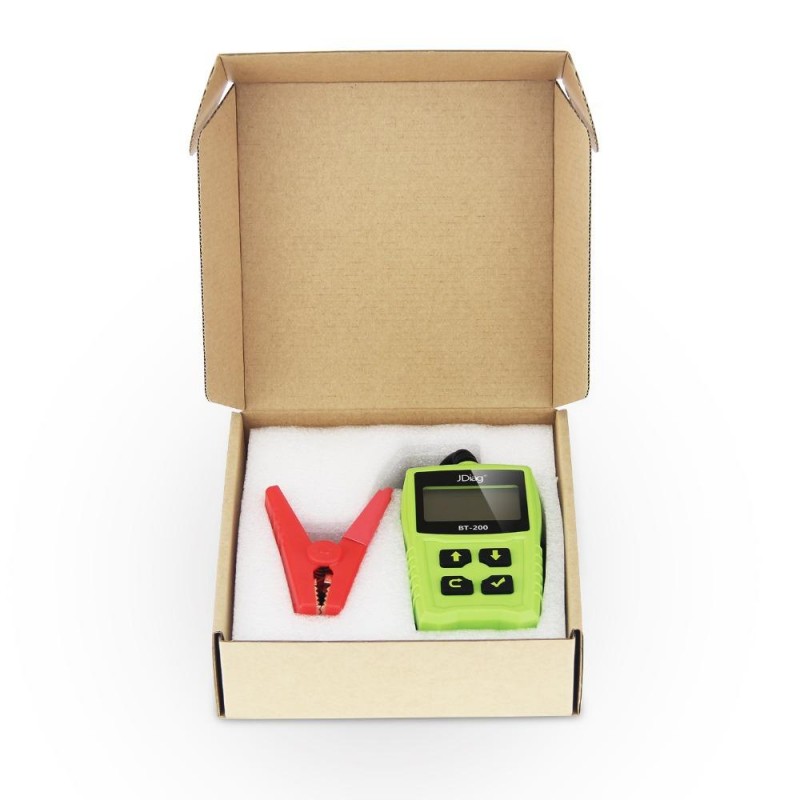

Package List:
1 x JDiag FasCheck BT-200
