Blue LED Rocker Switch On Off with Wiring Harness 40A Relay Fuse

$19.99

  • Product Code: ED0021084
  • Availability: In Stock
  • Ex Tax: $19.99
Description:
The wiring harness for LED off road lights is the perfect accessory for off road vehicles,
working vehicles, and any automobile that could use a relay to power specific equipment.
This wiring harness for LED off road lights simplifies the installation process of powering various equipment on all automobiles.

Specification:
Colour: Black

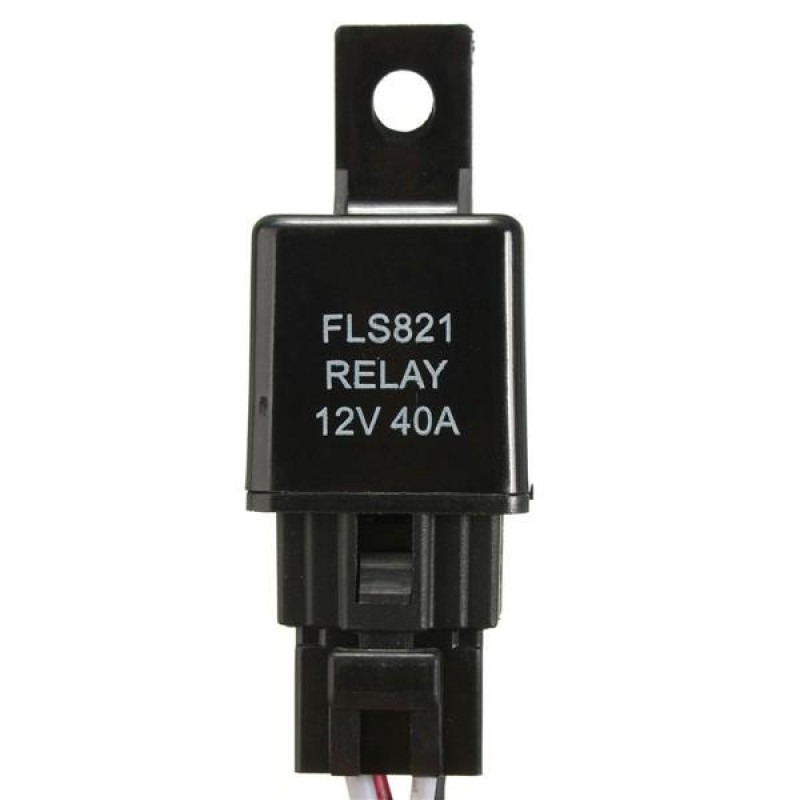

Relay: 12V 40A

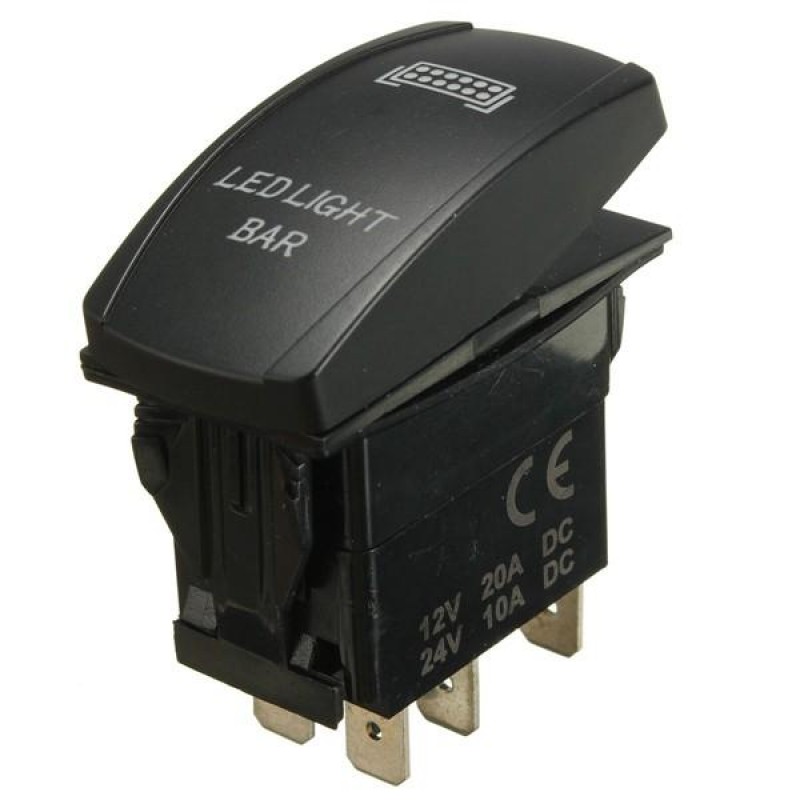

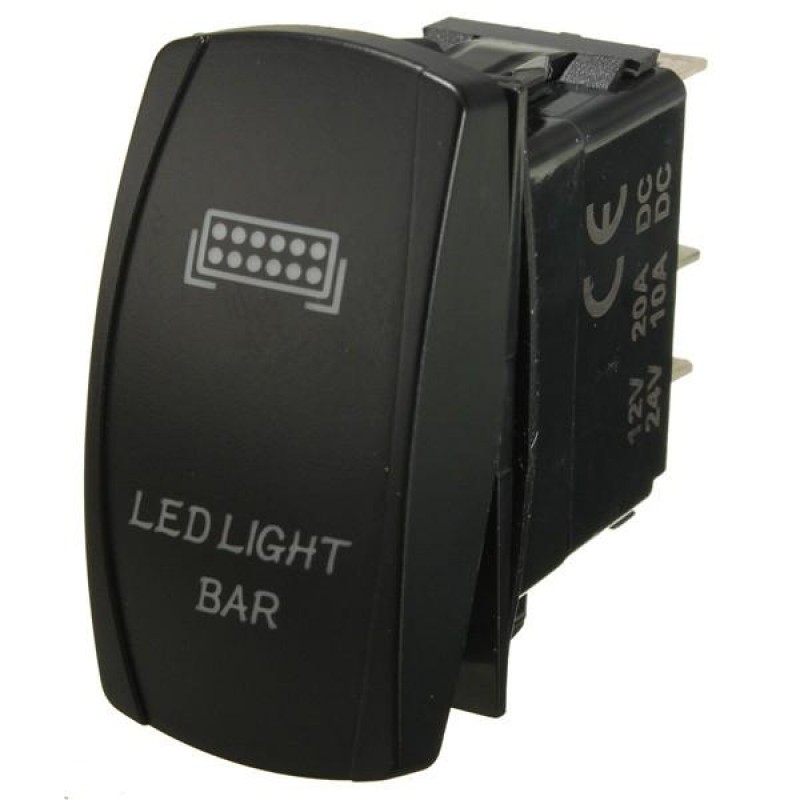

LED Switch: DC 12V 20A / DC 24V 10A (CE Approved)
Switch Light Colour: Red and Blue
Switch Pin Number: 5
Fuse: 30A

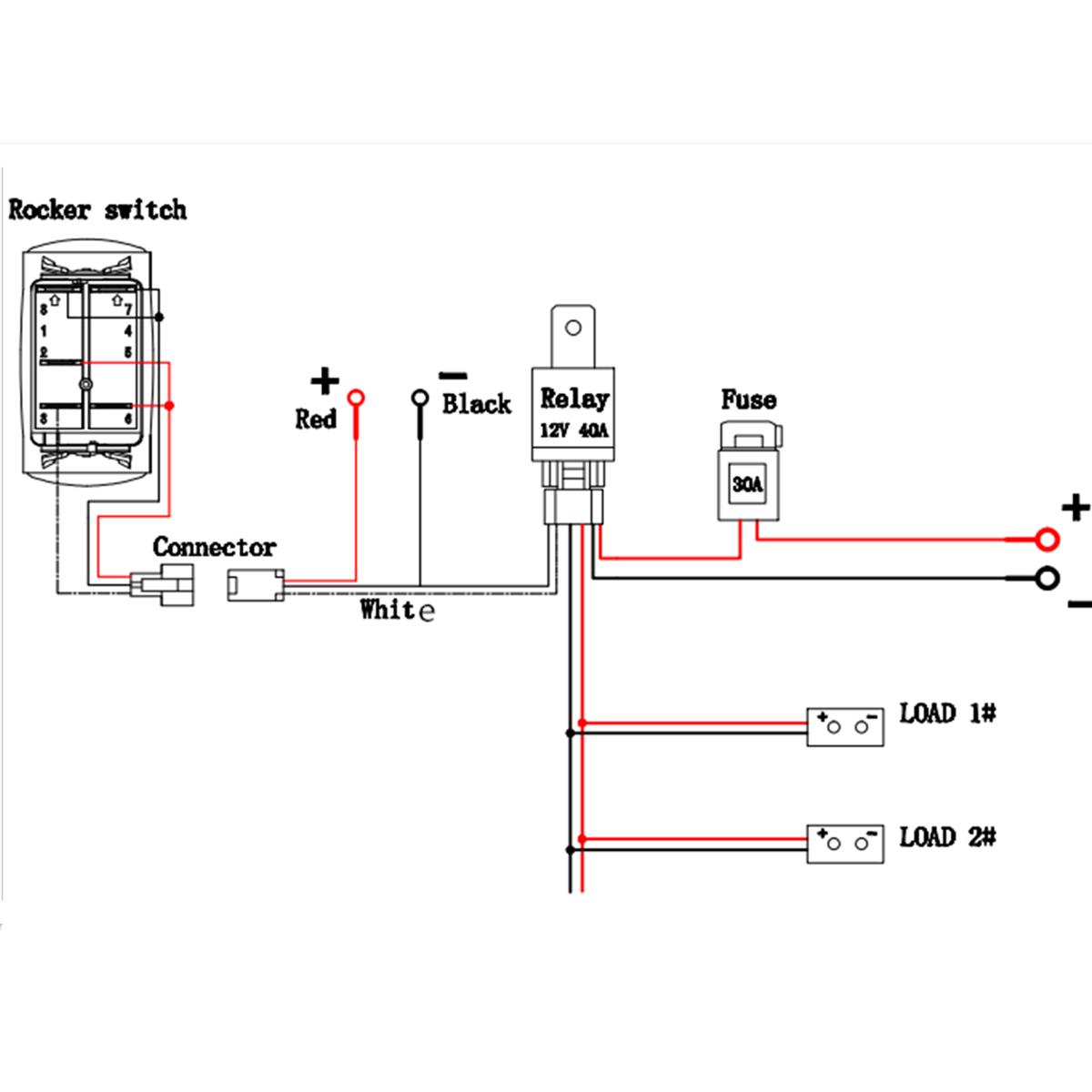

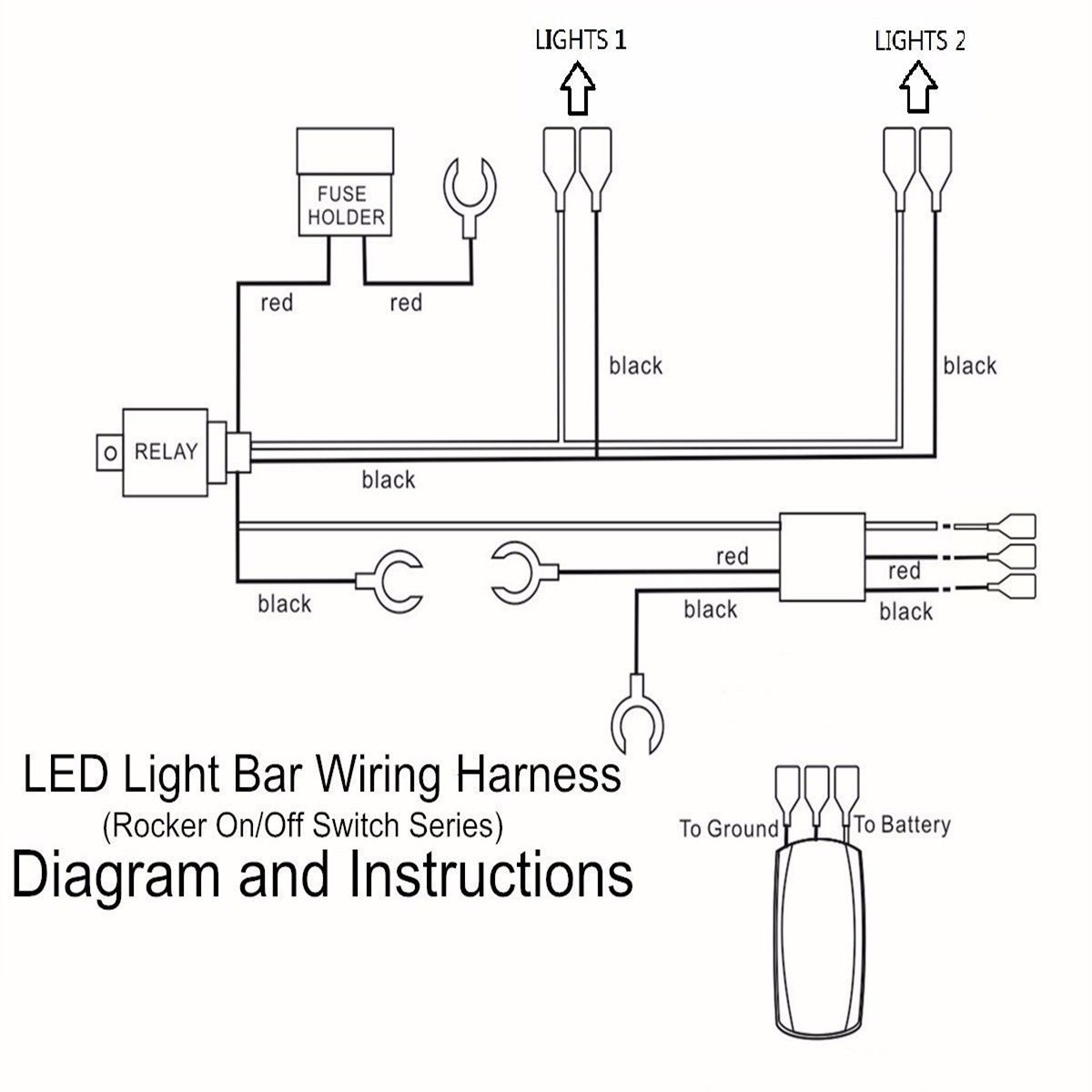

Installation: (Just for reference)
1. Connect the the red+ wire from the fuse to battery +; connect the black wire from the reply to the battery -;
2. Connect the wire for lights bar from the relay; (red/black correspond to the wire of lights bar)

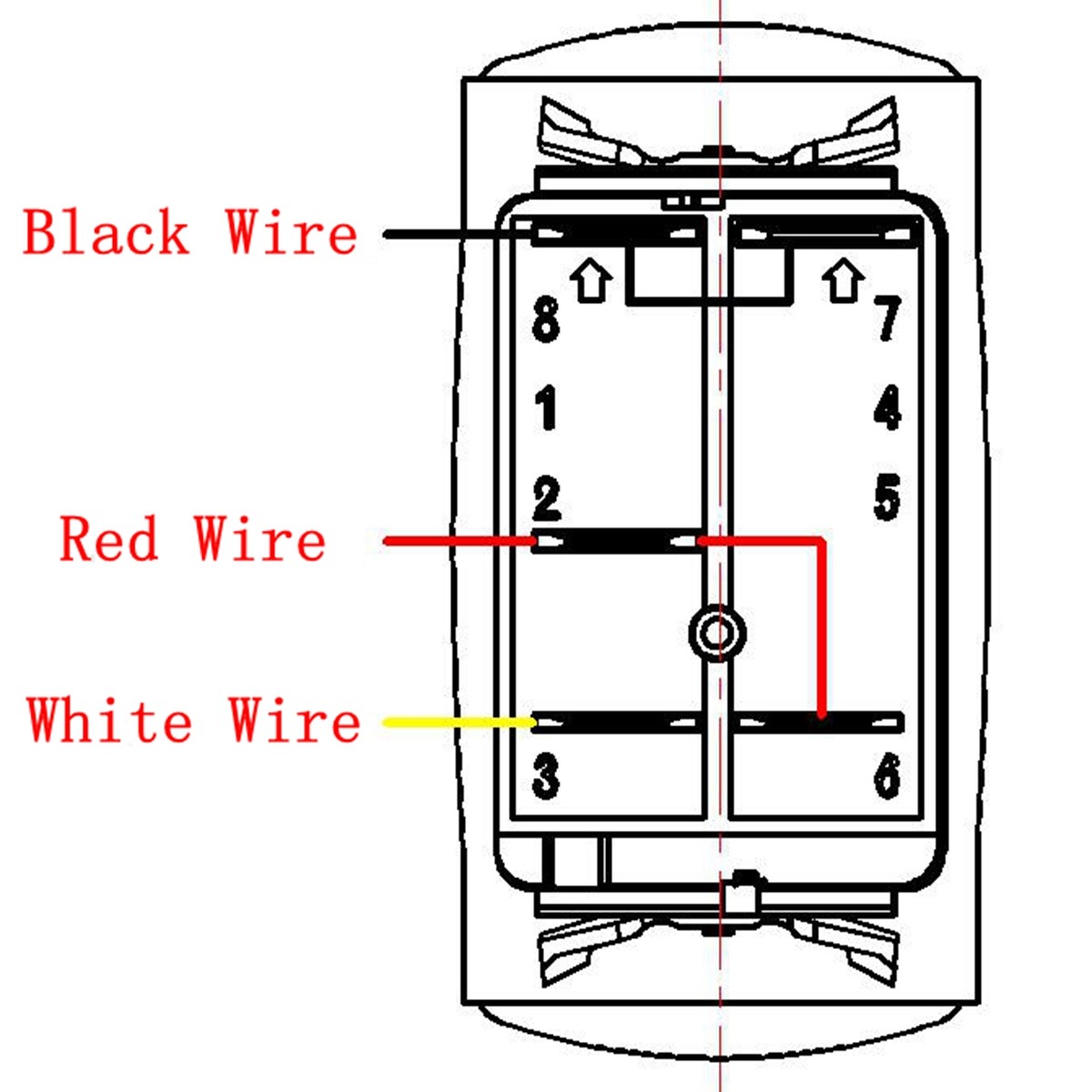

3. Connect the white +/black- wire of the switch to battery or any place of your car system to get power for the switch
4. Turn on on/off button of switch to test the lights bar

Note:

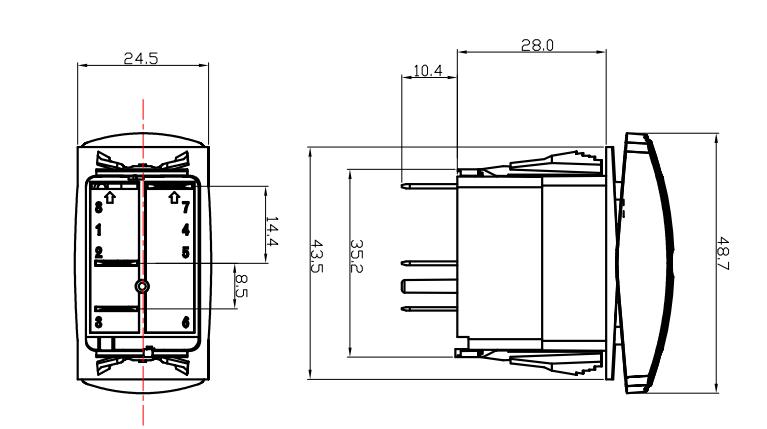

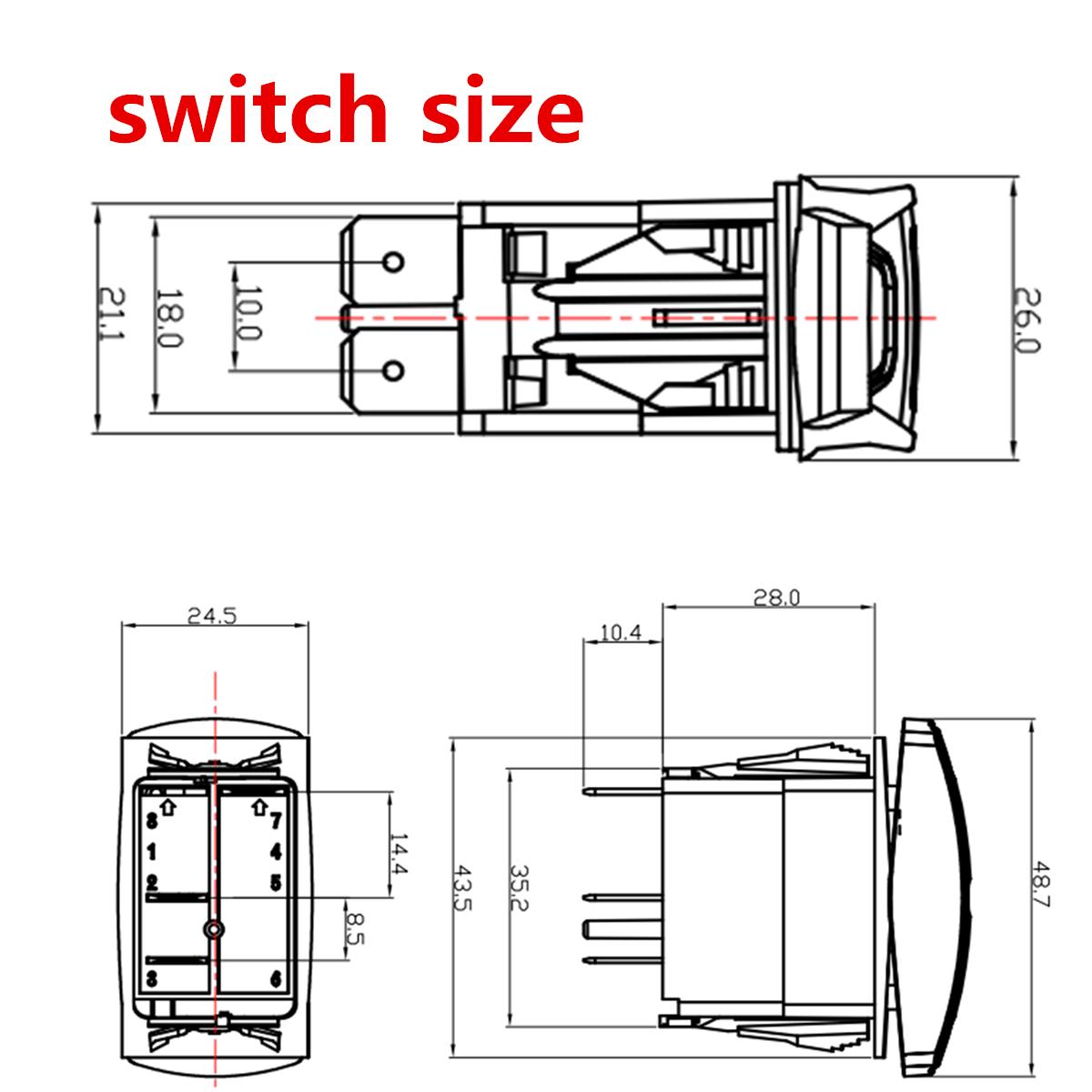

1. Please check the size measurement chart carefully before making payment.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images
due to different computer screen, thanks for your understanding.
4. Instruction is not included.

Package Included:

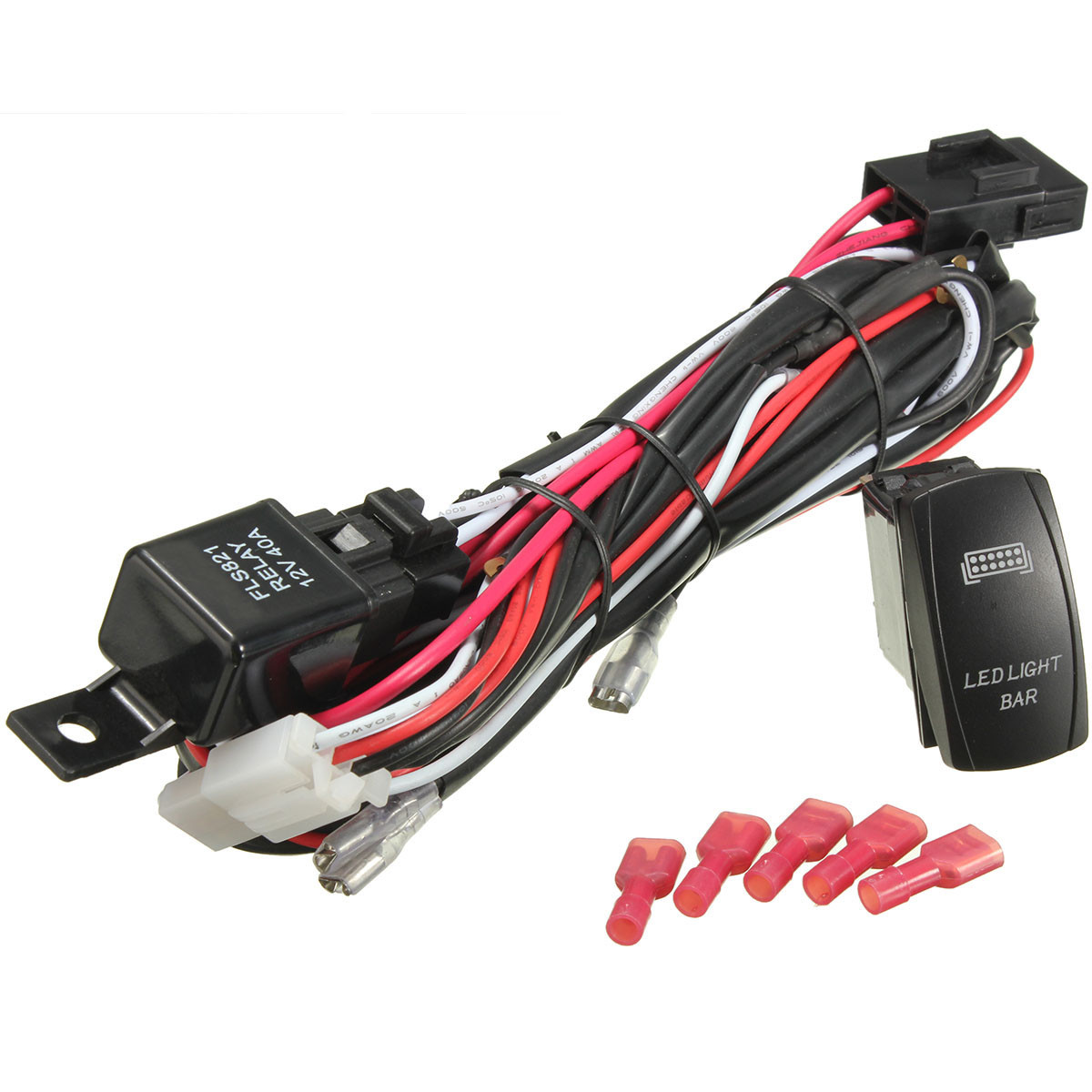

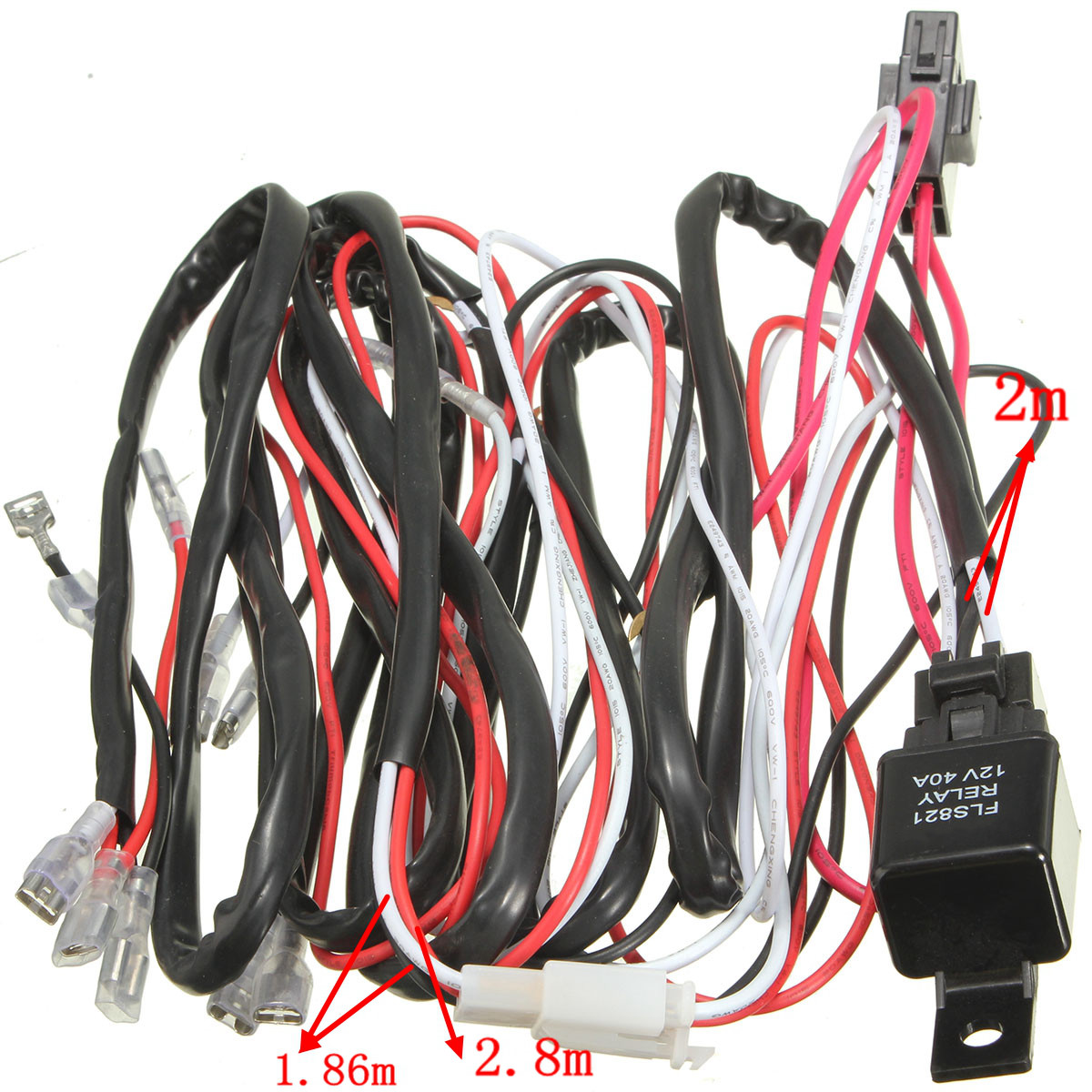

1 X Wiring Harness (Comes with a relay and a fuse)
1 X LED Switch
5 X Connectors
