Feature:
1.DC 9-90V Vehicle/scooter/ motorcycle/Car tracking
2.Real-time tracking by SMS/Platform/APP
3.Speeding/Geo-fence alarm/Vibration alarm
4.Support memory storage
5.Support angle change upload location
6.Disable fuel or electricity(optional)
Specification:
Dim. |
83(L)x24(W)x13(H), 50g |
GPRS Network |
GSM/GPRS, Class12, TCP/IP |
Frequency |
850/900/1800/1900 MHz |
GPS chipset |
MTK high sensitivity chip |
Tracking sensitivity |
-165dBm |
Location accuracy |
<10 meters CEP |
Time To First Fix(open sky) |
Cold status <35s Hot status <1s |
Working voltage |
9-90VDC |
Operating temp. |
-20°C to +65°C |
Standby & Working consumption |
5mA~50mA |
Insert Micro SIM card with 2G GPRS activated:
① Open the front case
② Open the SIM card by pushing “OPEN” direction, proper insert SIM card by pushing “LOCK” direction.
Power ON/OFF:
Make Sure the ON/OFF switch already pushed to “ON” place
Device light description:
LED indicator |
Signal |
Working status |
Not Working status |
Red light |
Power status |
Stable light on |
Flashing:check if connected power |
Green light |
GSM signal |
Stable light on |
Flashing:check if proper insert SIM |
Blue |
GPS signal |
Stable light on |
Flashing:check if working out |
Note: Device indicator will turn off after constant on 3 minutes, it will wake up if make a call to device number. Only indicator sleep not effect working.
Wires connection:
Line |
Color |
|
Description |
1 |
Red |
PW+ |
12V/24V car battery positive |
2 |
Black |
GND |
12V/24V car battery negative |
3 |
Green |
ACC |
ACC ignition |
4 |
Yellow |
Relay yellow wire |
Relay for cut fuel (optional) |
Start to Use:
Don’t input any extra space in command | |
Function |
SMS Command |
Step 1 Set APN |
APN, SimCardApn, ApnName, ApnPassword# |
Step 2 Set IP Port |
IP,www.gps228.com ,8989# |
SMS Google link |
WHERE# |
Check device parameters |
PARAM# |
Set Time Interval |
TIMER,60# |
Reset device |
RESET# |
Cut off fuel or power-Optional |
RELAY,1# |
Resume fuel or power-Optional |
RELAY,0# |
Initialize Factory Setting |
FACTORY# |
◆Web platform GPS tracking software:
Website:www.secumore1818.com
Default IMEI as user name, password 123456.
Download android & IOS APP: secumore1

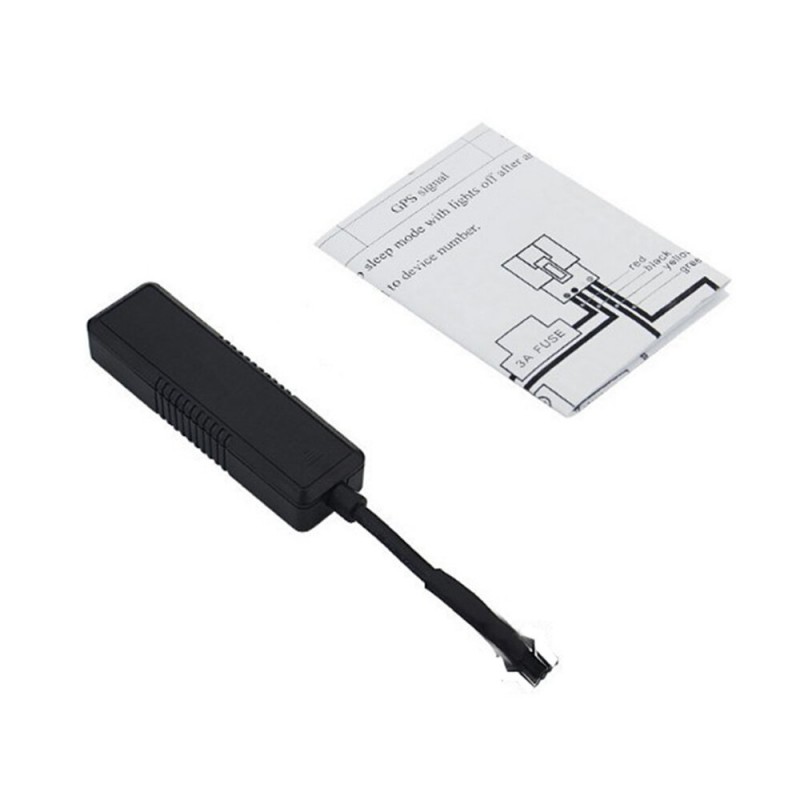

Package Included:
1 X |
GPS Tracker |
