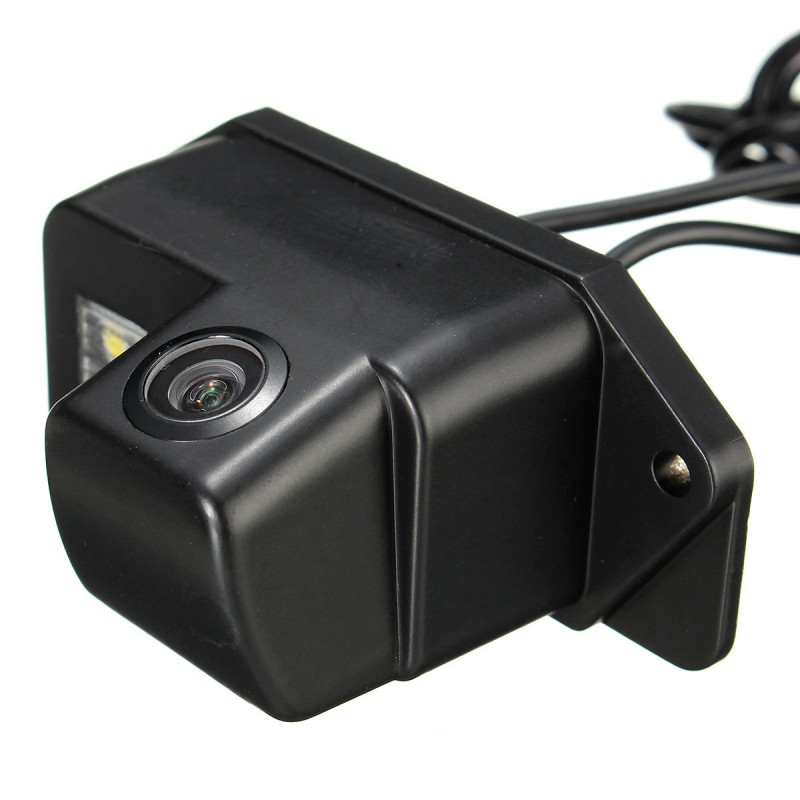

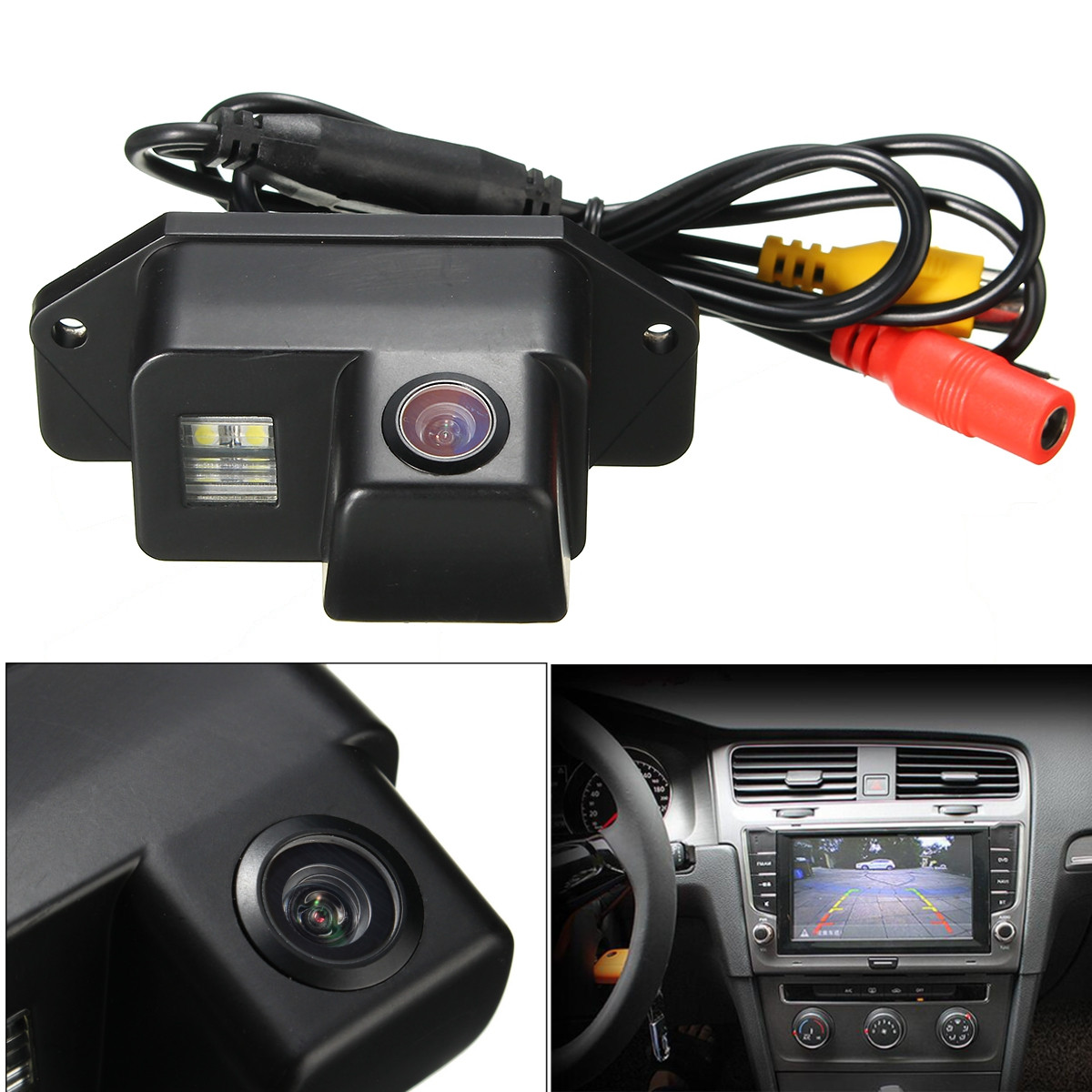

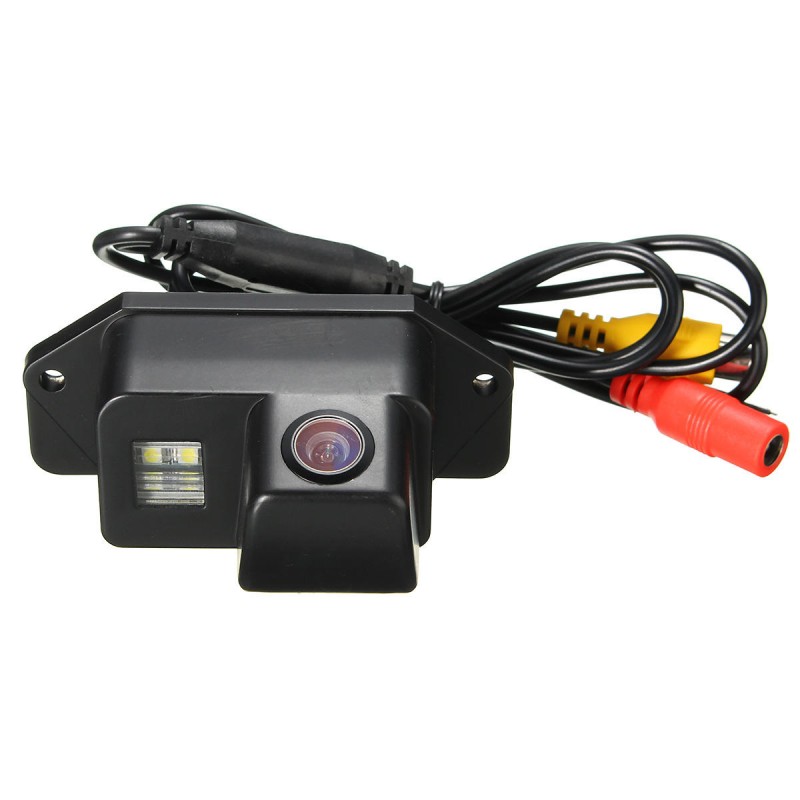

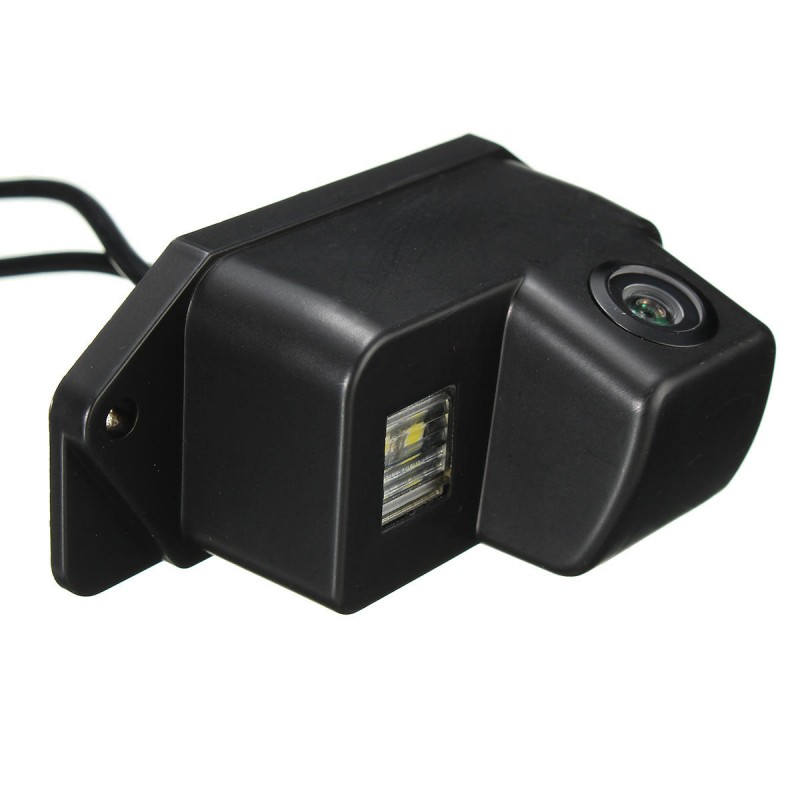

CCD 170 Degree Car Rear View Camera Reverse Back up for Mitsubishi Lancer Evolution
$16.55
- Product Code: ED0001117
- Availability: In Stock
- Ex Tax: $16.55
Feature:
With waterproof function, durable.
Easy install and simple operation.
High clear CCD camera read out, high-definition and wide viewing angles.
Ensure your safe driving, to avoid any vehicle accidents.
Specification:
Color: Black
Video Color: Colorful

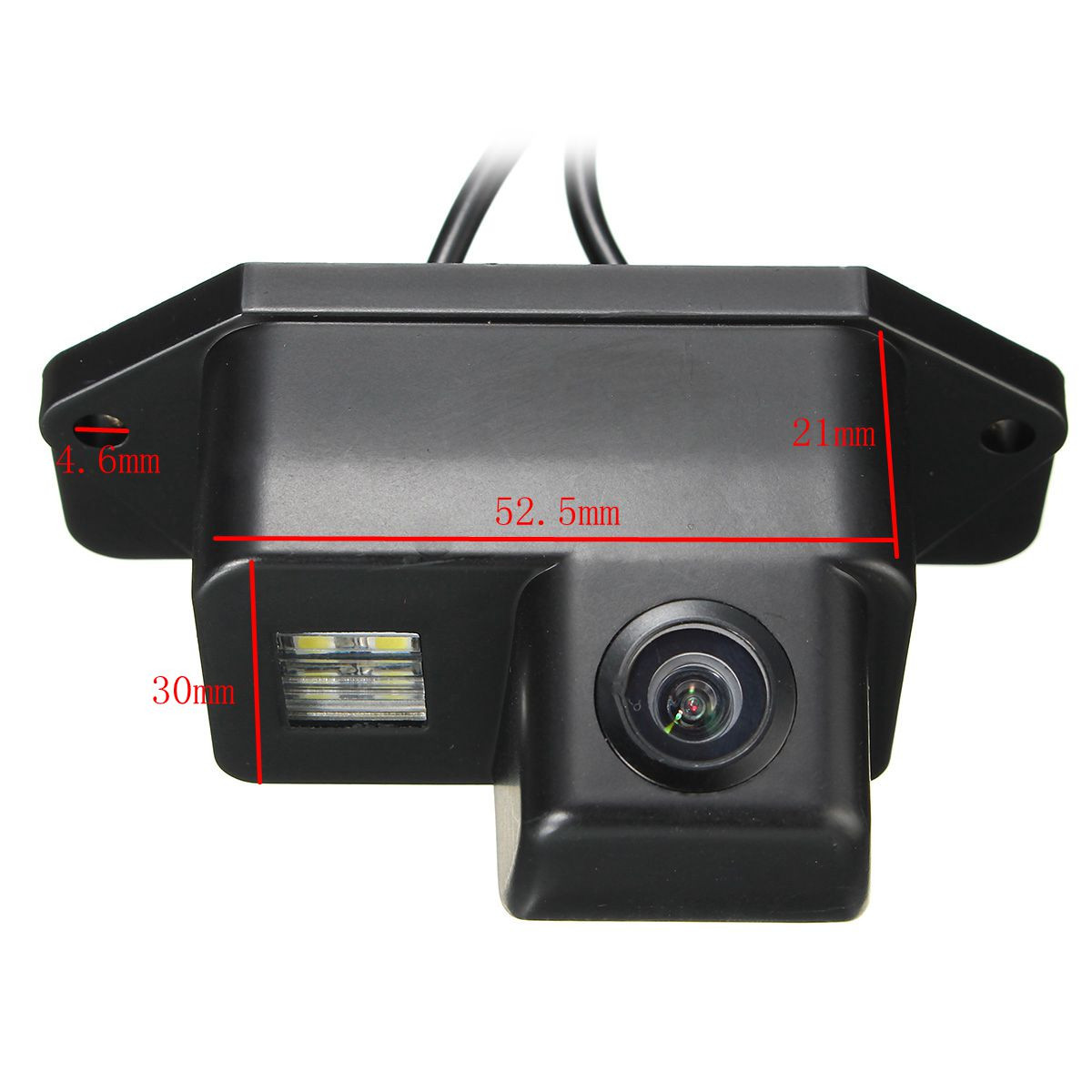

Camera Dimension: 52.5*30*21mm
Sensor: CCD
Effective Pixels: 720*540
Resolution: 520TV lines
Lens Angle: 170°
Working Power (DCV): 12V
Operation Temperature: -20°C+60°C RH95% Max
Storage Temperature: -30°C+60°C RH95% Max
Current Consumption: No more 300mA
TV System: NTSC 60HZ/PAL 50HZ
Waterproof: IP67-68
Fitment:
For Mitsubishi Lancer 2007-2014
For Mitsubishi Lancer Evolution 2007-2014
Installation Guide:
1. Take out your stock license plate light at the back of your car.

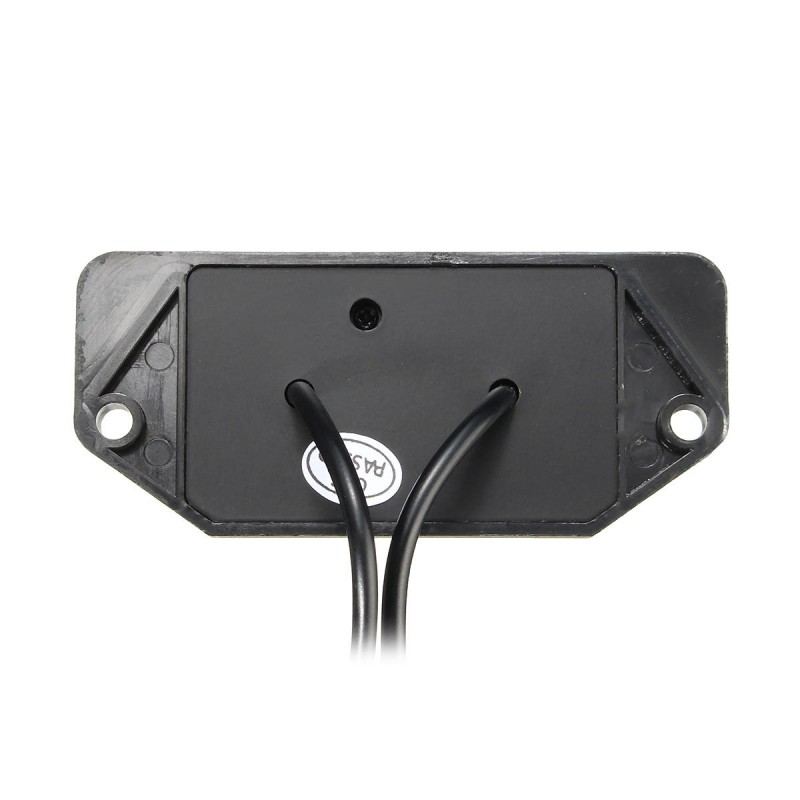

2. Fix the camera to where the stock license plate light was.
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.

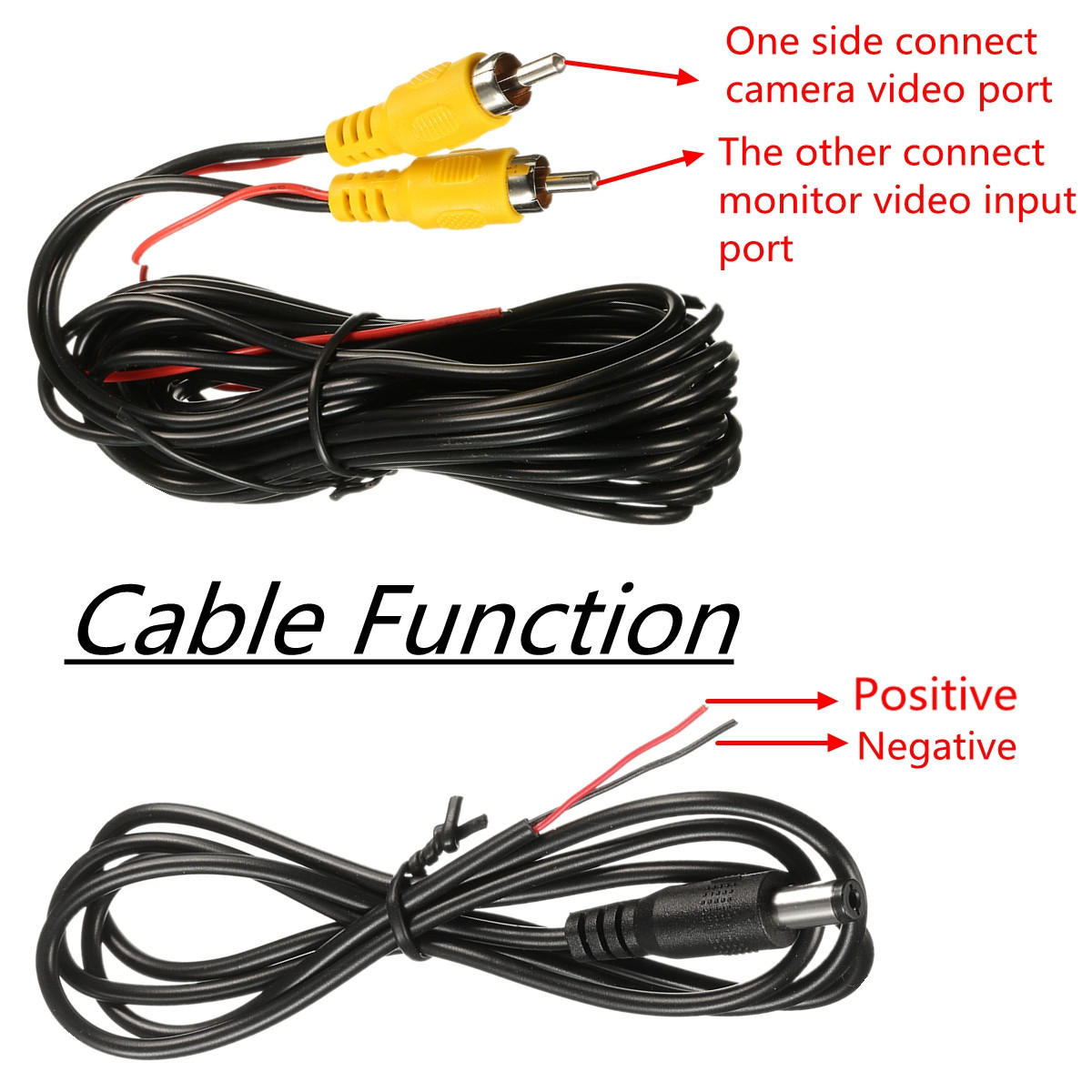

4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
5. Connect the video cable of the camera to the extension cord.
6. Connect the extension cord to your car monitor.

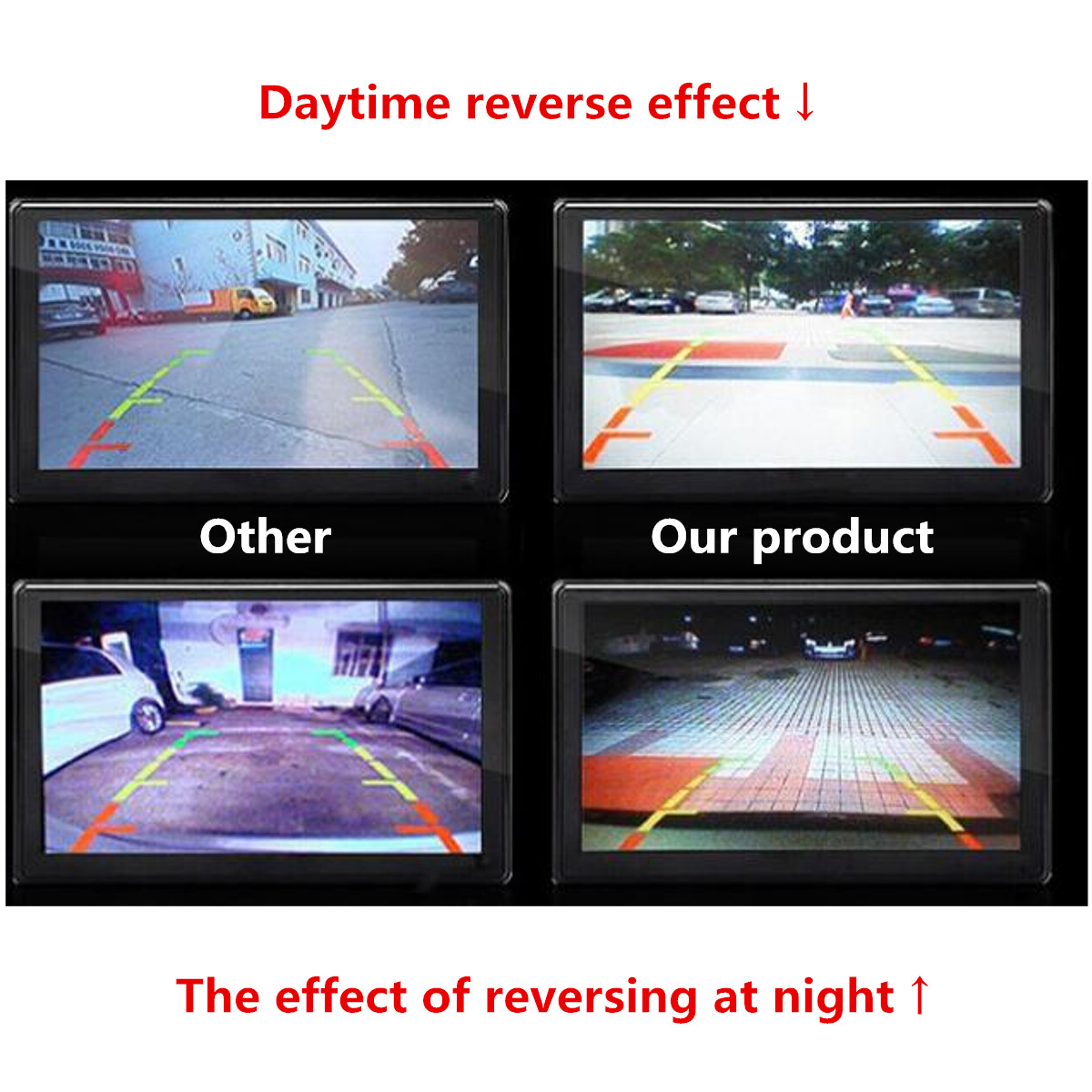

7. You will see the images when your car is in reverse shift.

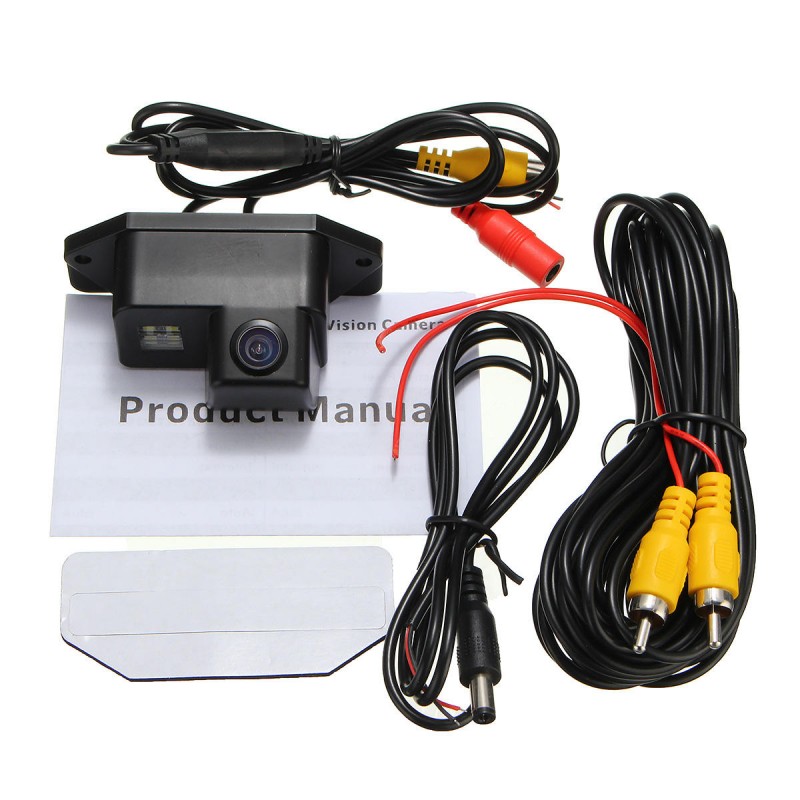

Package Included:
1 X CCD Car Rear View Camera
1 X Power Cable
1 X Extension Cable
1 X User Manual
