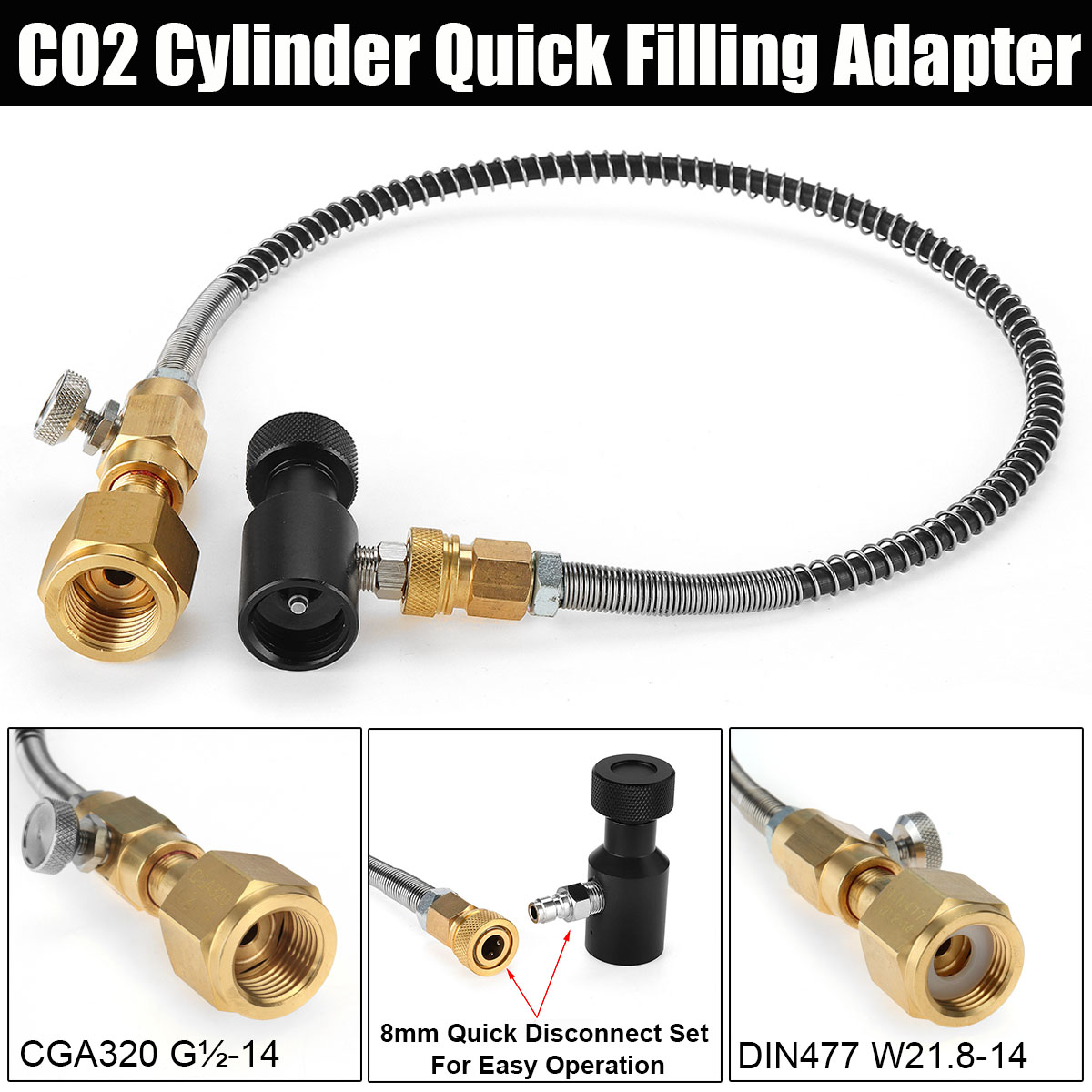

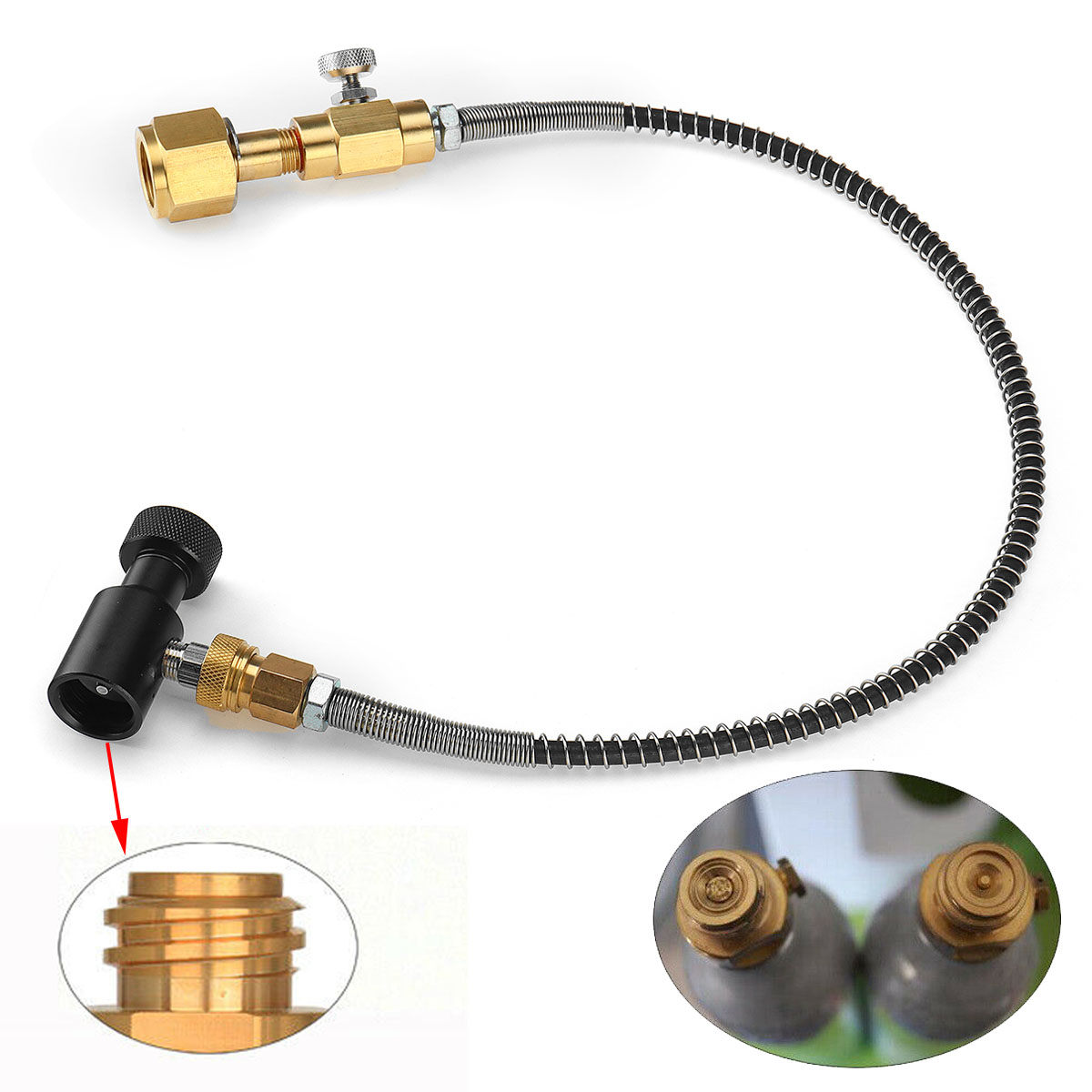

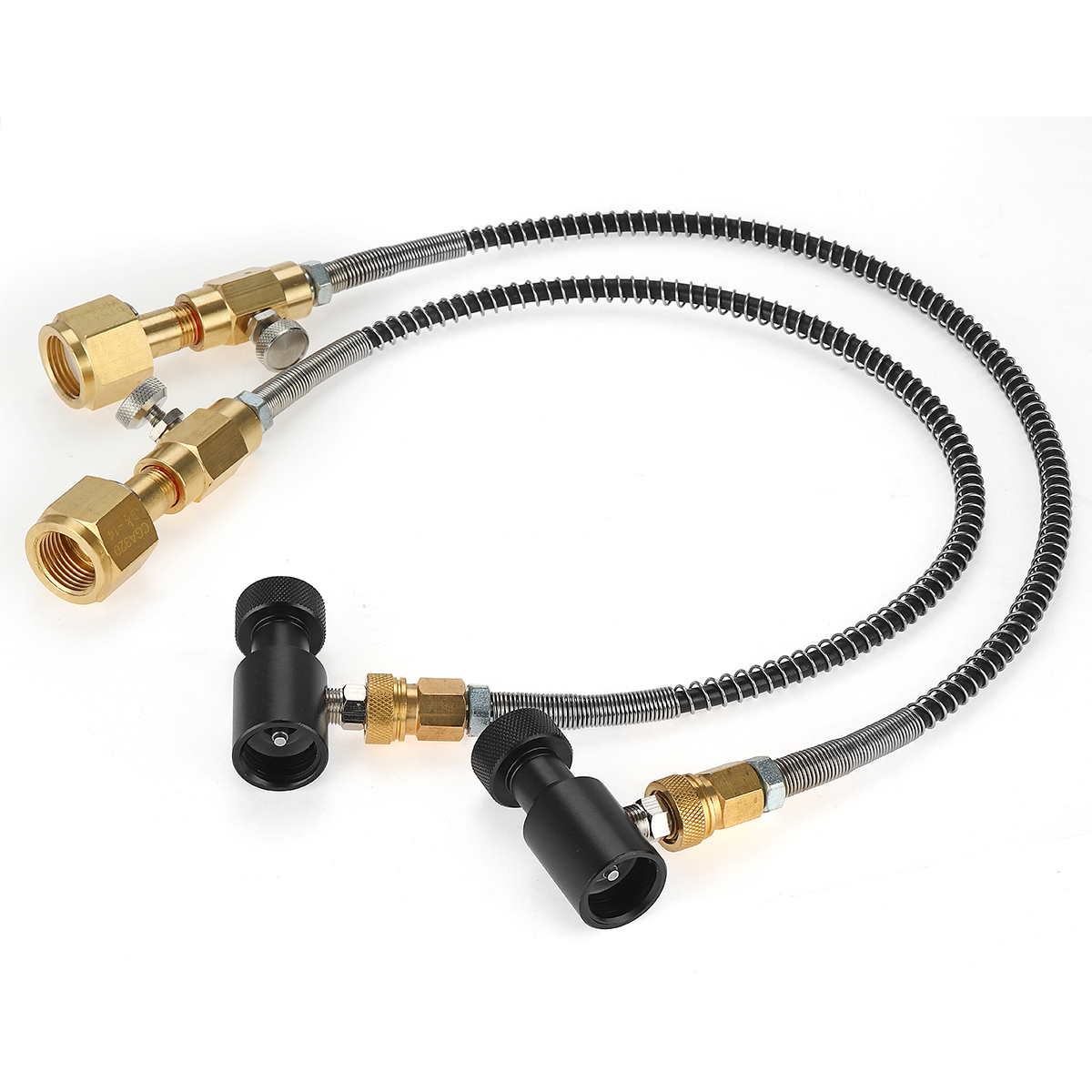

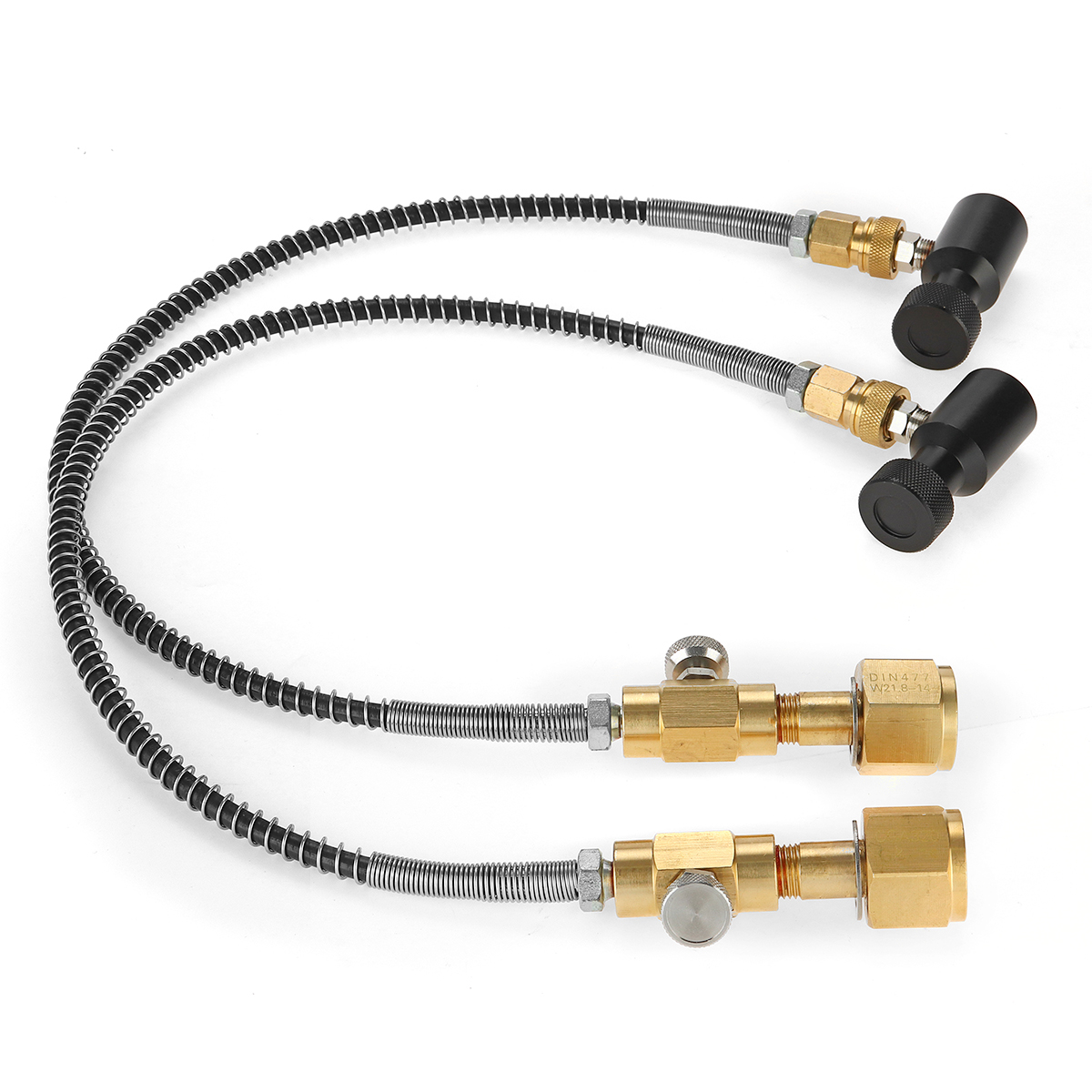

CO2 Cylinder Refill Adapter With Connection W21.8-14/CGA320 For Soda Club Stream
$32.99
- Product Code: ED0017617
- Availability: In Stock
- Ex Tax: $32.99
Available Options
Description:
1.Information of Filling the newer Co2 cylinder with filling protection valve(6mm wide valve pin).
2.Unlike the other cylinder valves, this valve must be filled with a slow increase in pressure.
3.The cylinder should be empty. drain off remining gas by tool.Pre Cooled cartridges will get quite full.
4.This easy to use Soda Club Stream Cylinder Filling Adaptor will enable you to fill your own CO2 from your larger bulk cylinder into smaller Soda Club Stream cylinders. An easy and inexpensive way to fill your own Soda Club Stream Cylinders at home at a fraction of the cost of getting the refills from your local store.
5.When refilling, it is important that the pressure in the first few seconds is very low, only the cylinder valve remains open. The handwheel is therefore open at the beginning only slightly and very slowly until some gas flows through (this can heard). Wait about 10 seconds and then turn the hand wheel slowly by hand half a turn further on. After another 10 seconds, the hand wheel can be turned all the way. Wait about 30 seconds until you hear no gas flows and turn the handwheel to back. After, filling is complete.
6.This valve has a second valve stage, if a pin lying behind pushes back too much pressure through the valve, it closes from the inside. A manual operation of the valve pin during the filling process does not bypass this function. This cylinder valve is possible only with slowly increasing pressure.
Specification:
Color |
As the pictures shown |

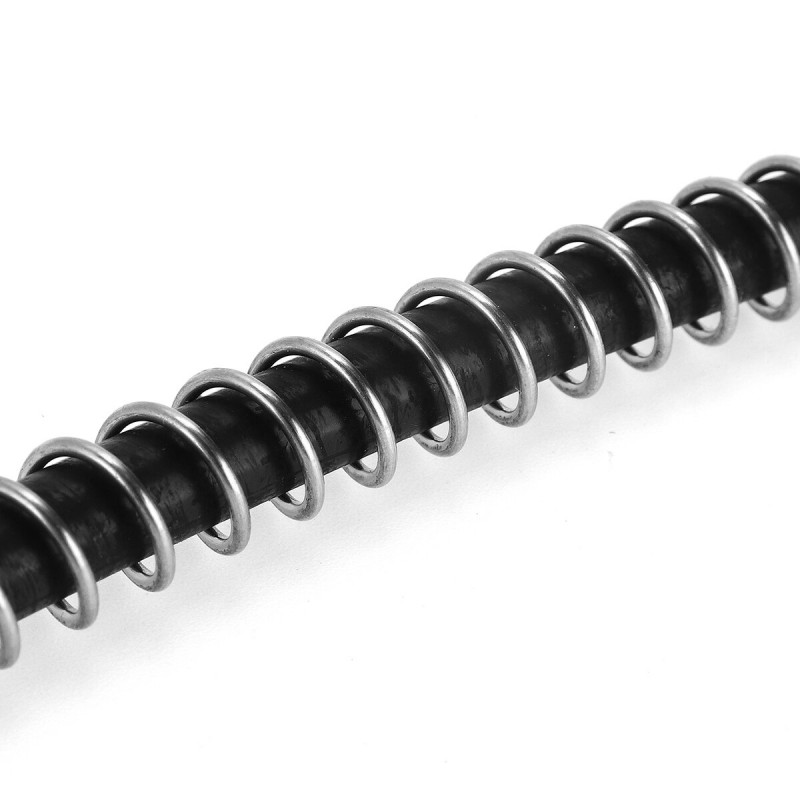

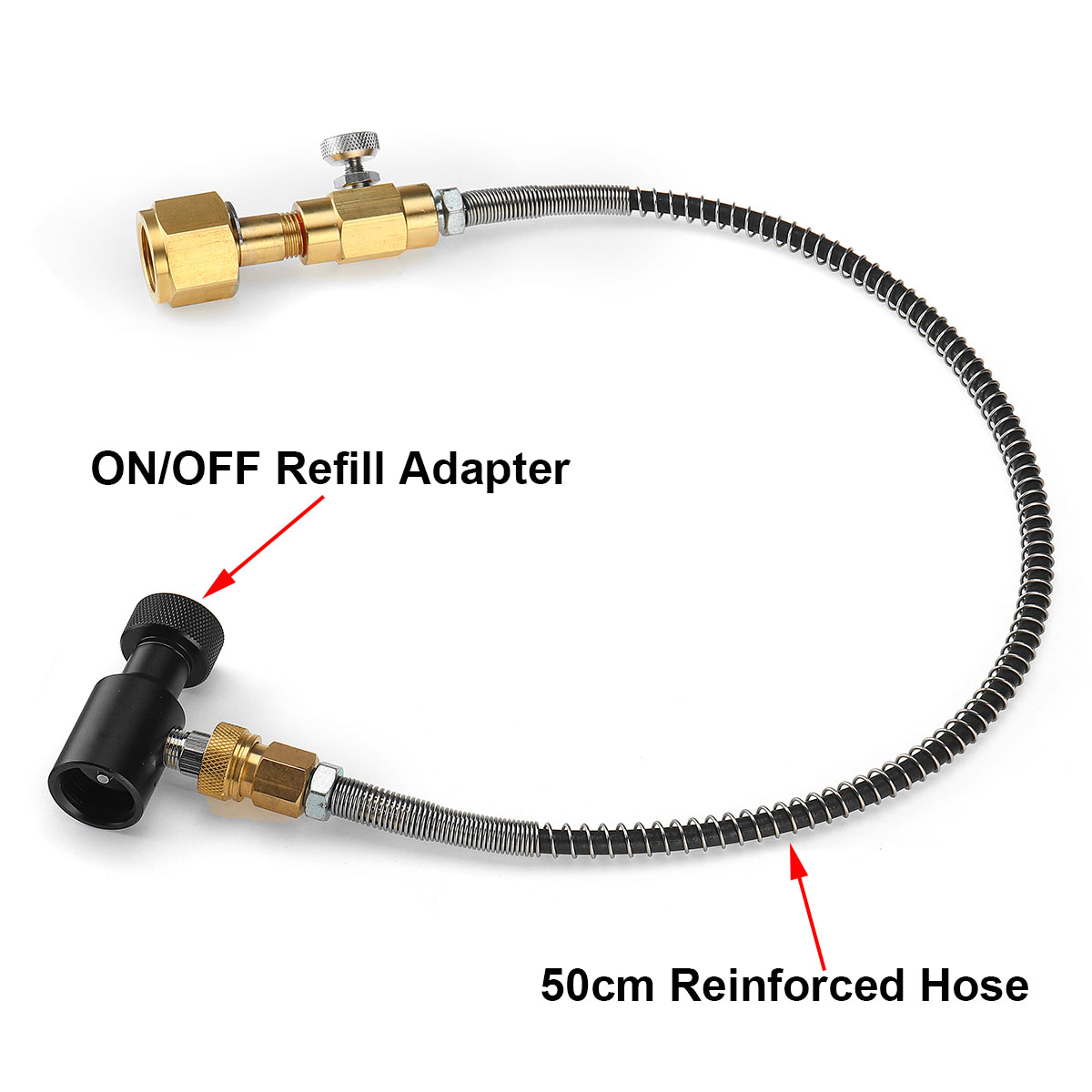

Hose Length |
50 cm |

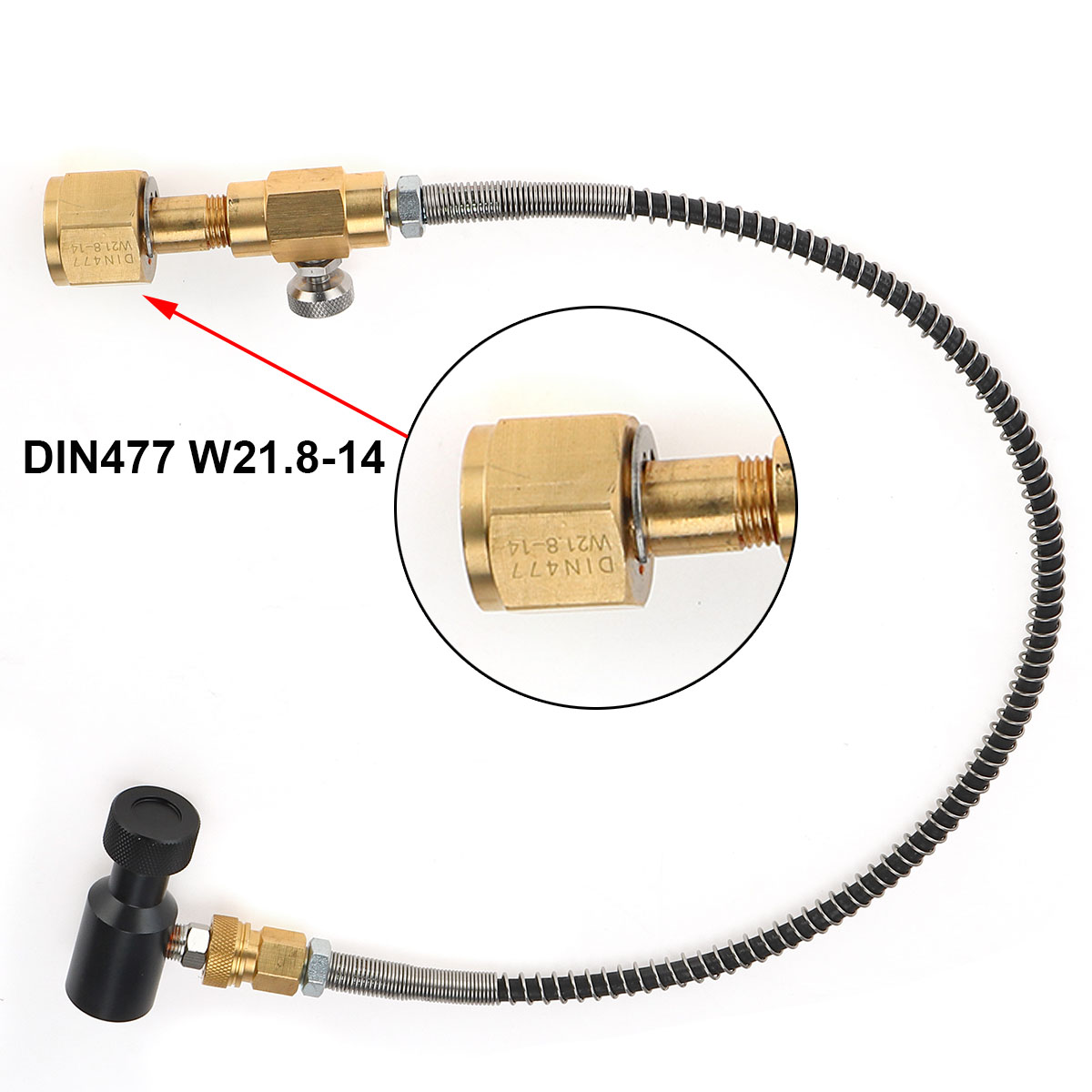

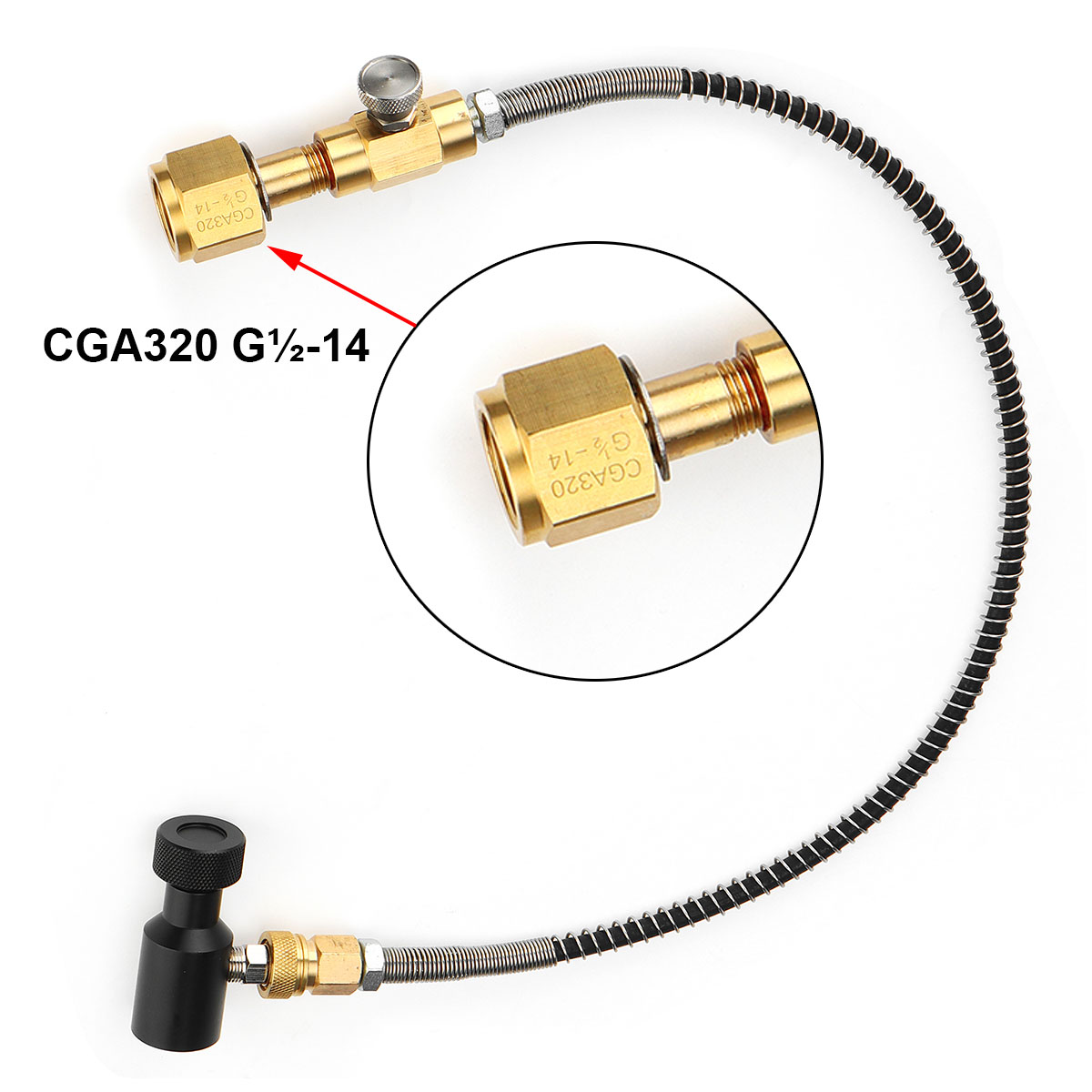

Optional Thread |

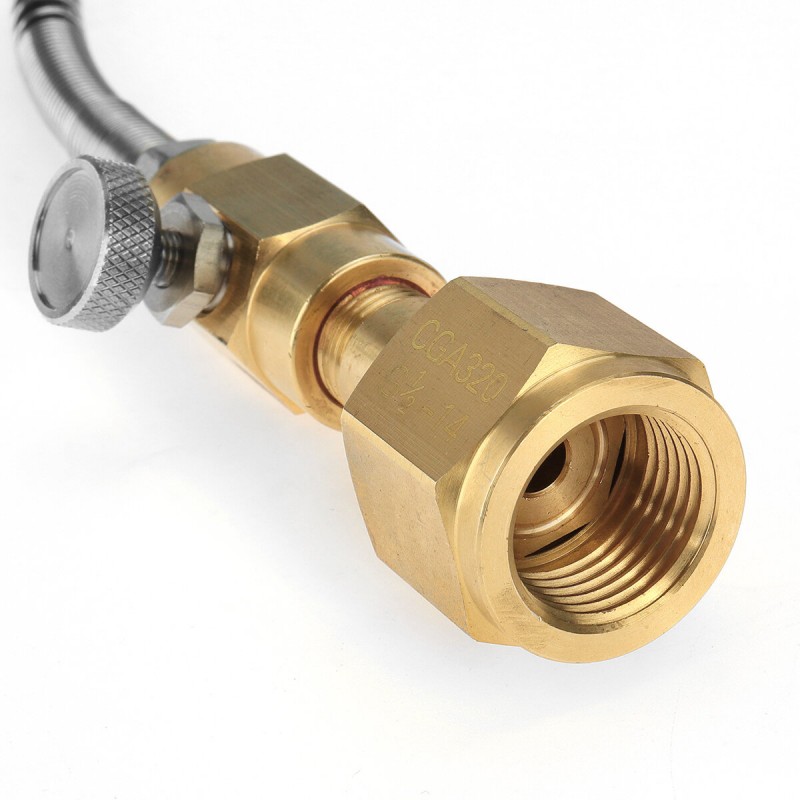

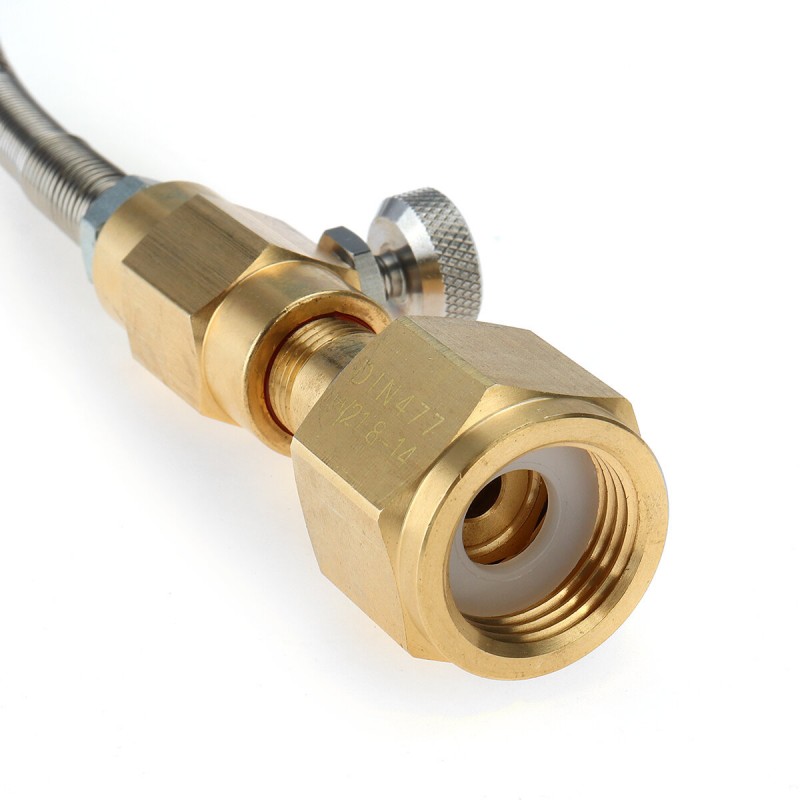

W21.8-14(EU KOR JP)/CGA320(US CA) |
How It Works:
1.Screw the adapter to a commercial CO2 gas cylinderScrew the adapter to a commercial CO2 gas cylinder.

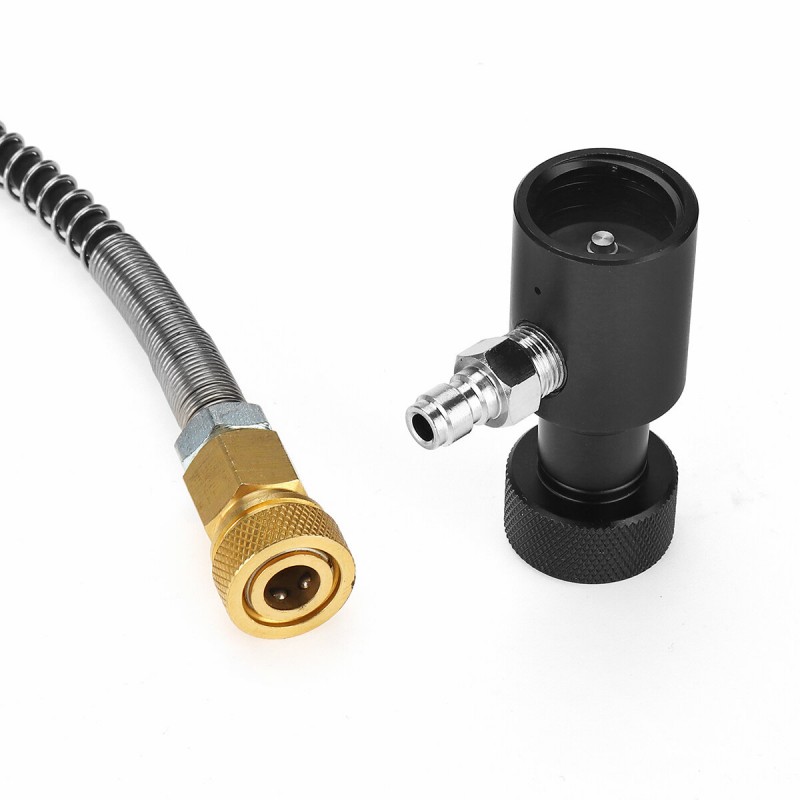

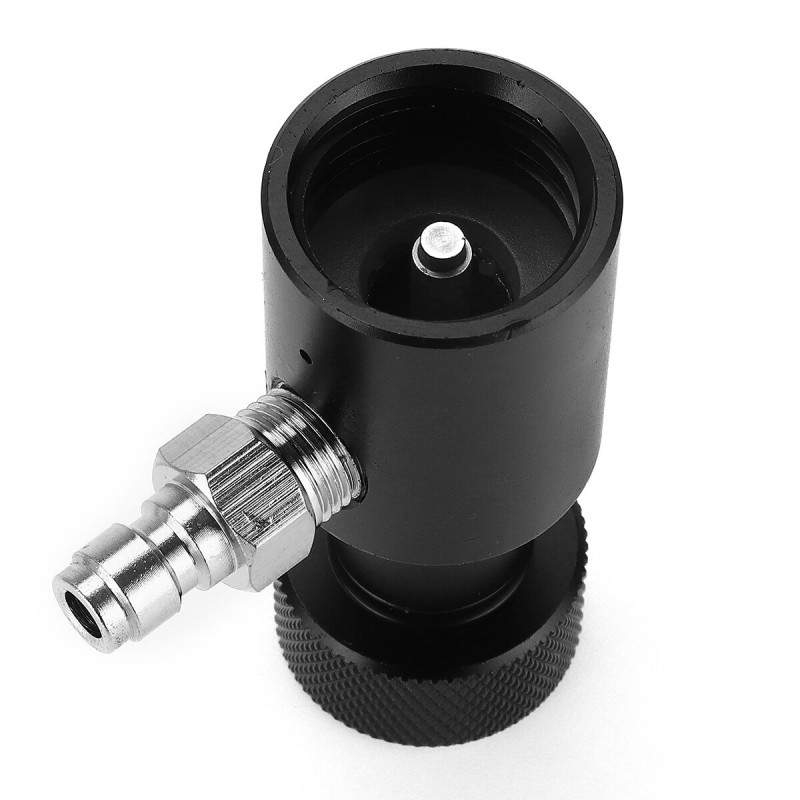

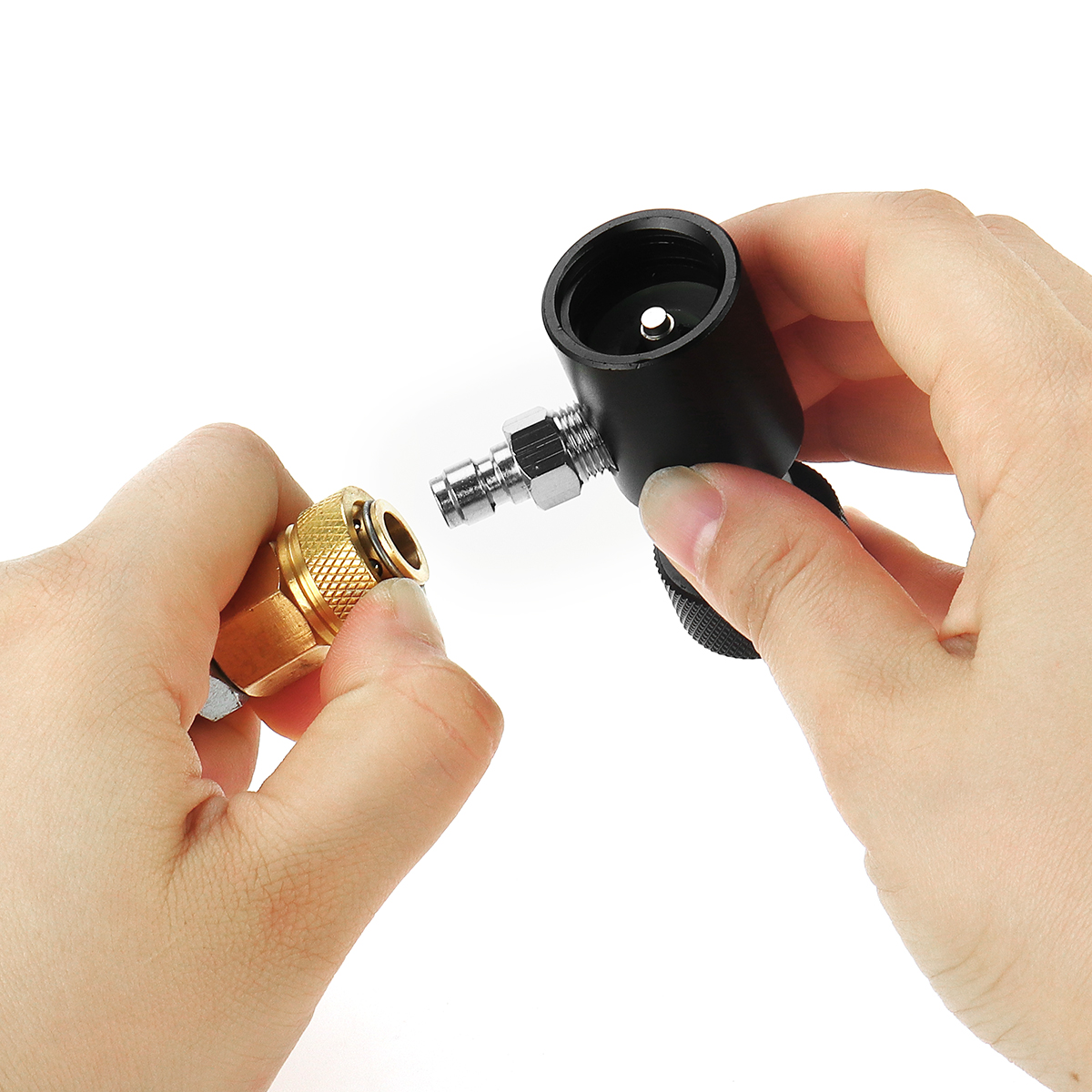

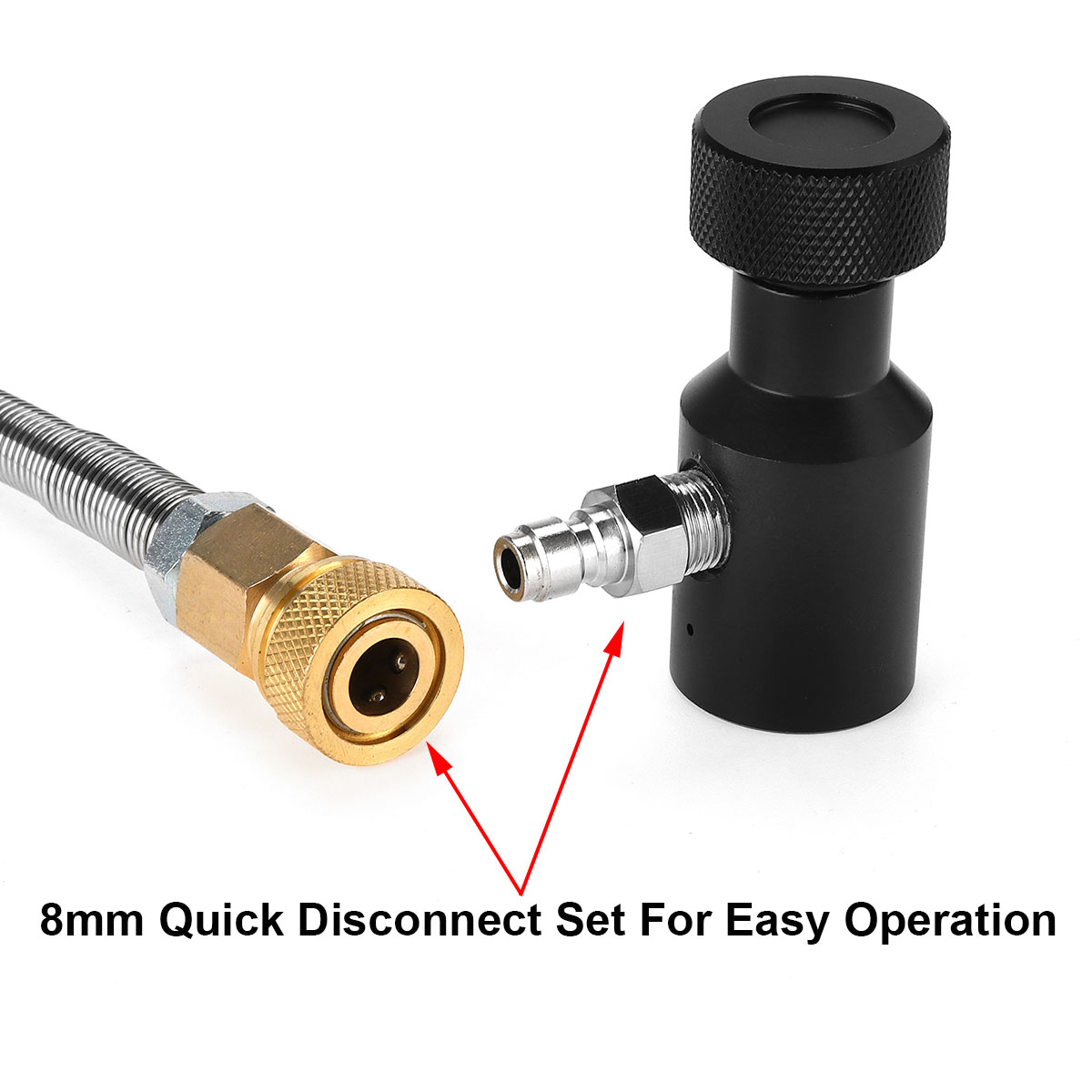

2.The empty CO2 cylinder is screwed into the on/off refill adapter.
3.Open the valve of the large gas bottle.
4.After about 15-20 sec., The cylinder is completely filled.
5.Close valve of the large gas bottle.

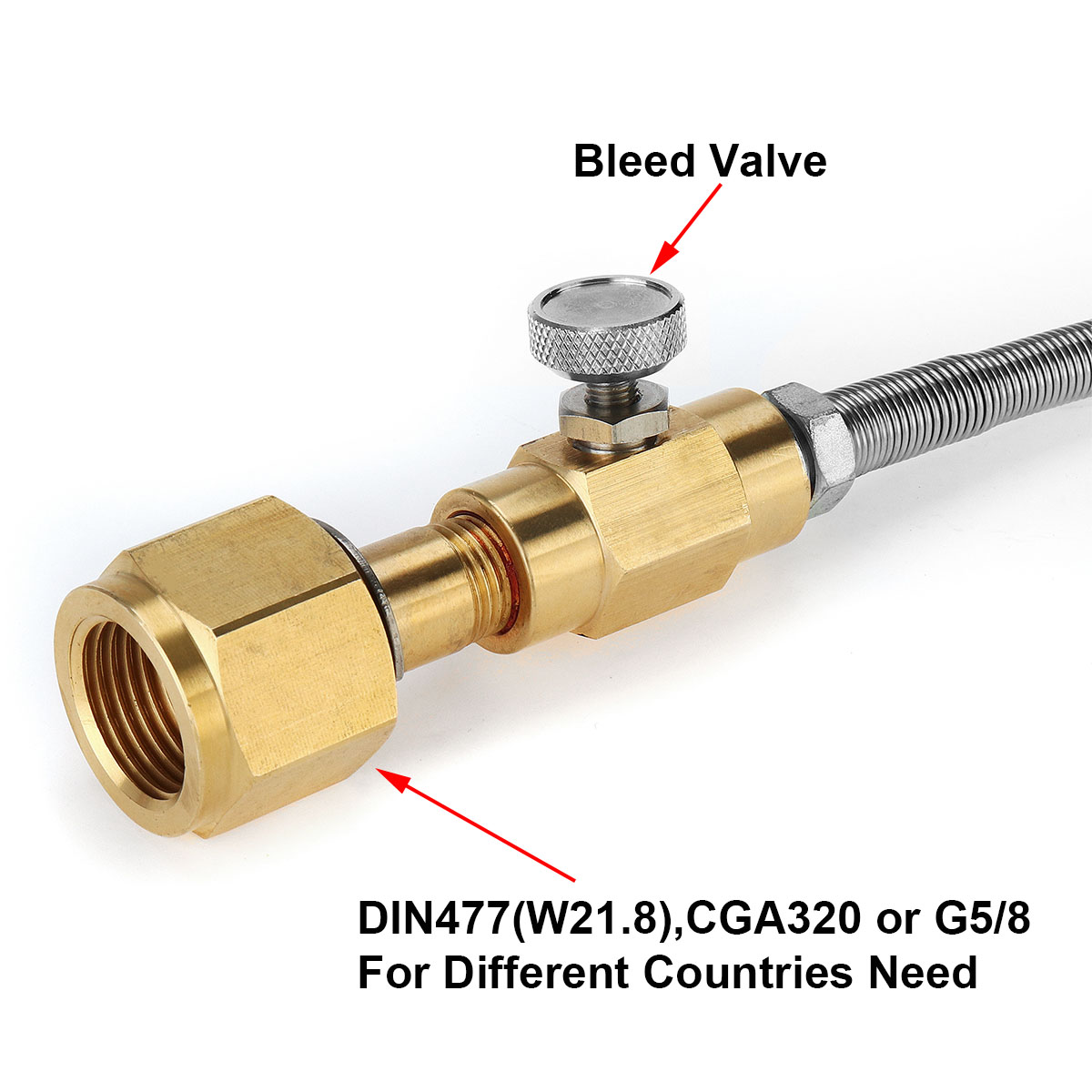

6.Opening the bleed valve screw to drain residue remaining gas.
7.Unscrew the CO2 cartridge – done.
Note:
1.Manual measuring, please allow 1 ~ 5 mm error,thank you.
2.Please leave us a message about your prefer Thread,or we will send by random.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.Please understand, thank you!
Package Included:
1 X |

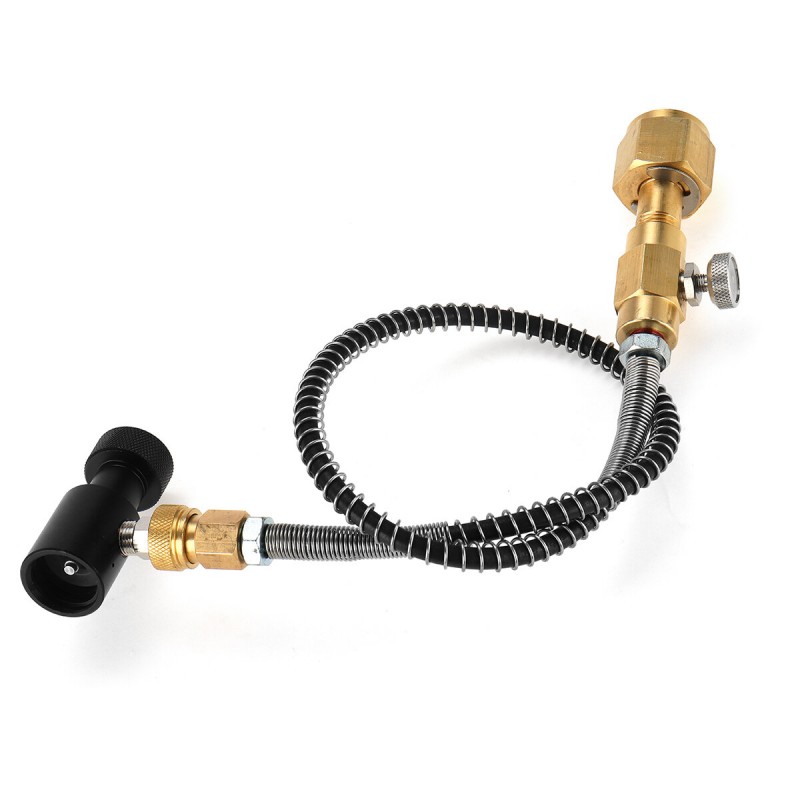

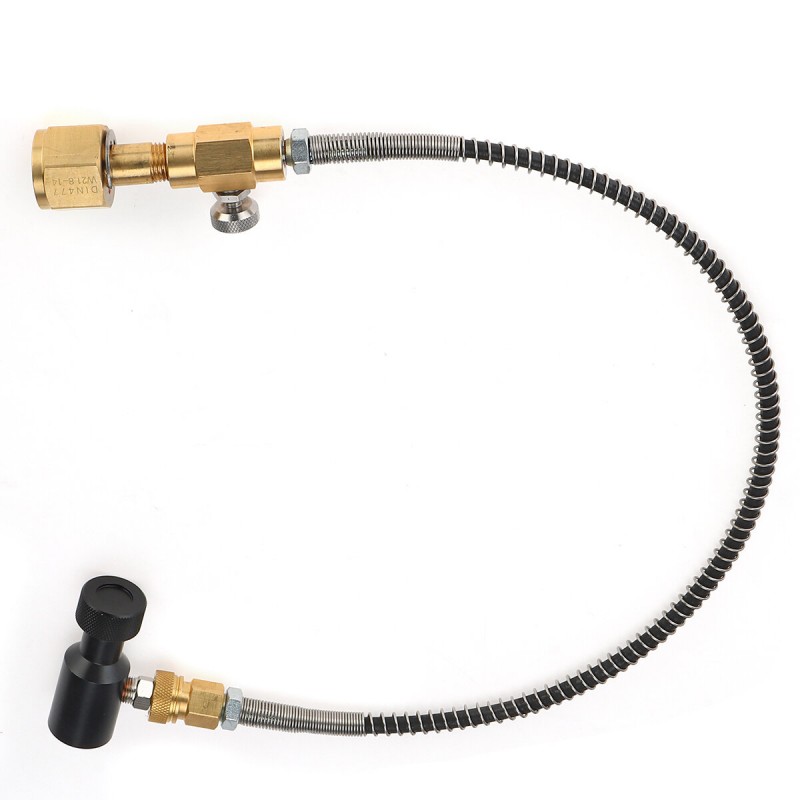

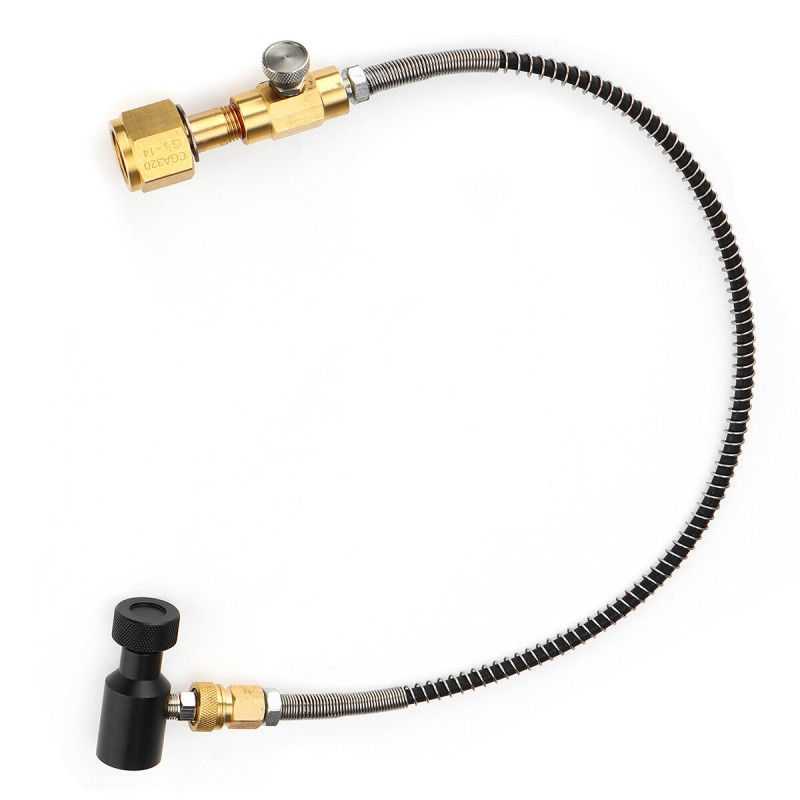

Refill Adapter Hose(Thread according to your choice) |
