Specification:
Fitment:
For BMW E38 E39 E46 E60 E61 E65 E66 E90 E91 E92
(The Compatibility Is Just For Reference. Please Compare With Your Original One Before Purchasing!)
Package Included:
Image Sensor | Light-sensitive color sensor |
Signal System | NTSC (NTSC is the standard signal system) |
Resolution | 560 TV lines |
Min. Illumination | 0.1 Lux/F1.2 |
Horizontal Sync.Frequency | 15.625 KHz |
Vertical Sync.Frequency | 50 Hz |
SNR | More than 48dB(AGC-OFF) |
Dynamic Range | ≥70dB |
Lens Angle | 170 degrees |
Video Output | RCA, 1.0Vp-p, 75 ohms |
Working Voltage | 12V DC |
Work Environment | -30 °C~ +60 °C, Rh 95% Max |
Power Consumption | 130mA |
Active Power | ≥1W |
Waterproof Grade | IP67 (Protected against ingress of dust and effect of immersion less than 1 meter depth.) |
View Angel | 170 degrees wide angle |
Fitment:
For BMW E38 E39 E46 E60 E61 E65 E66 E90 E91 E92
(The Compatibility Is Just For Reference. Please Compare With Your Original One Before Purchasing!)
Package Included:

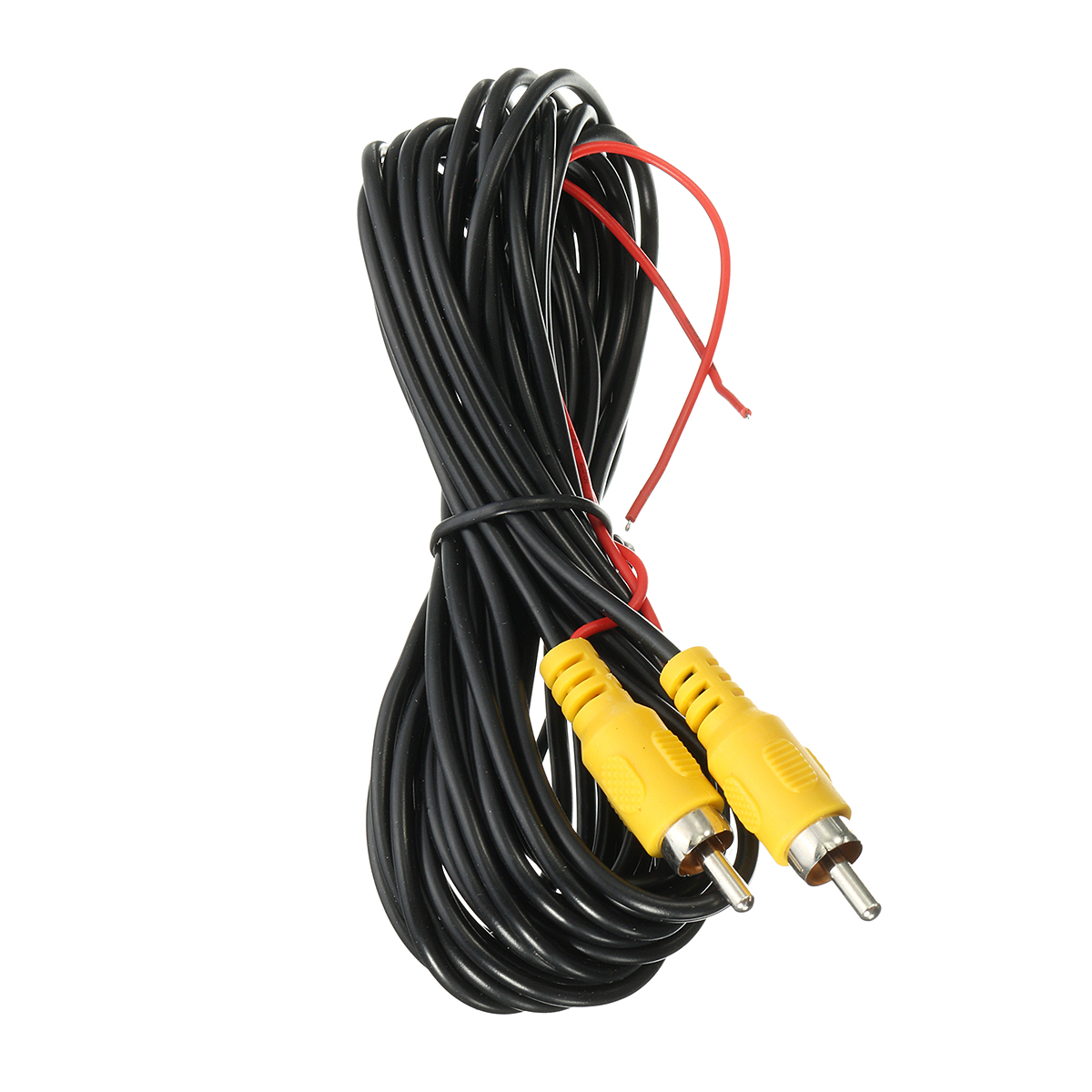

1 X Camera | 1 X 5 Meters Signal Line |

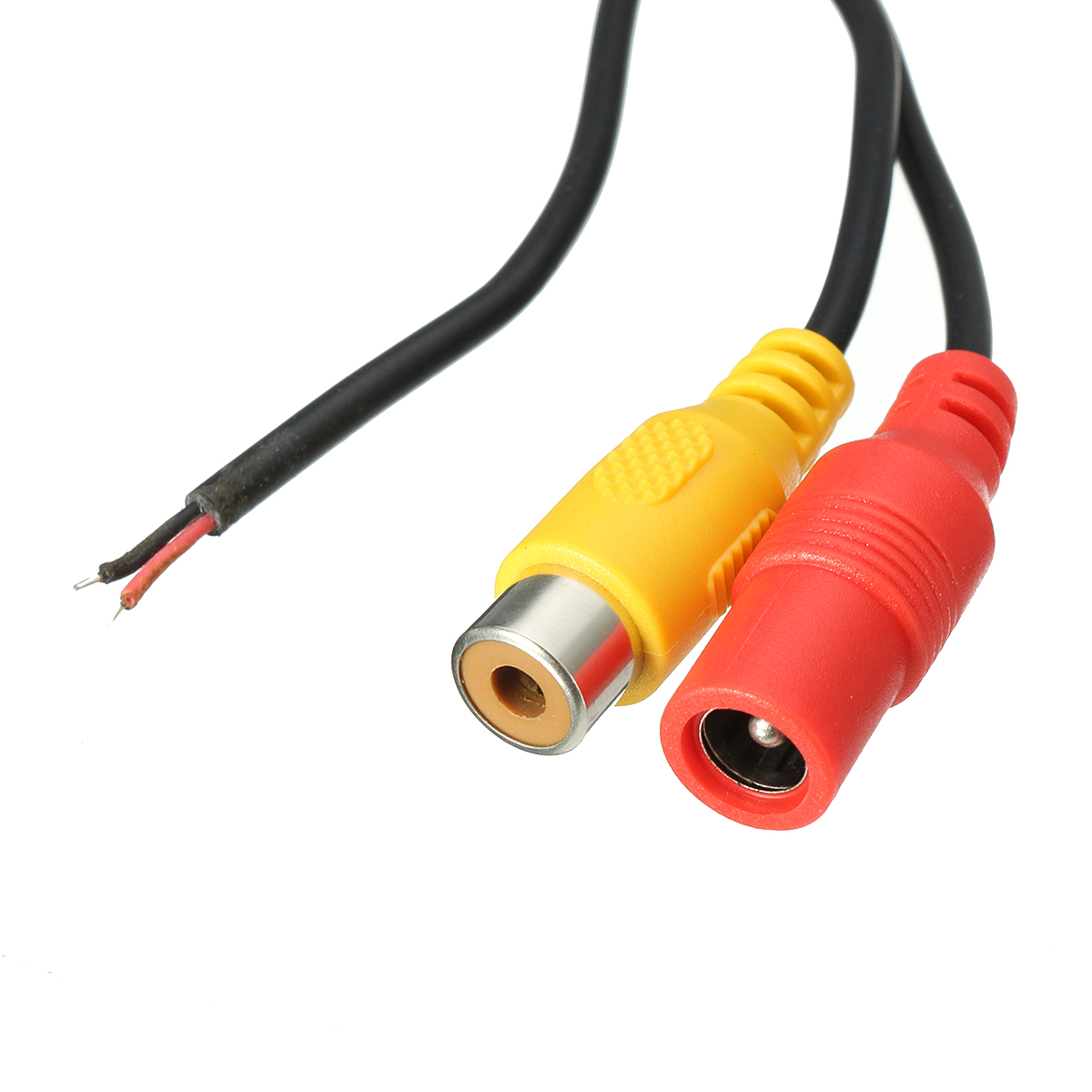

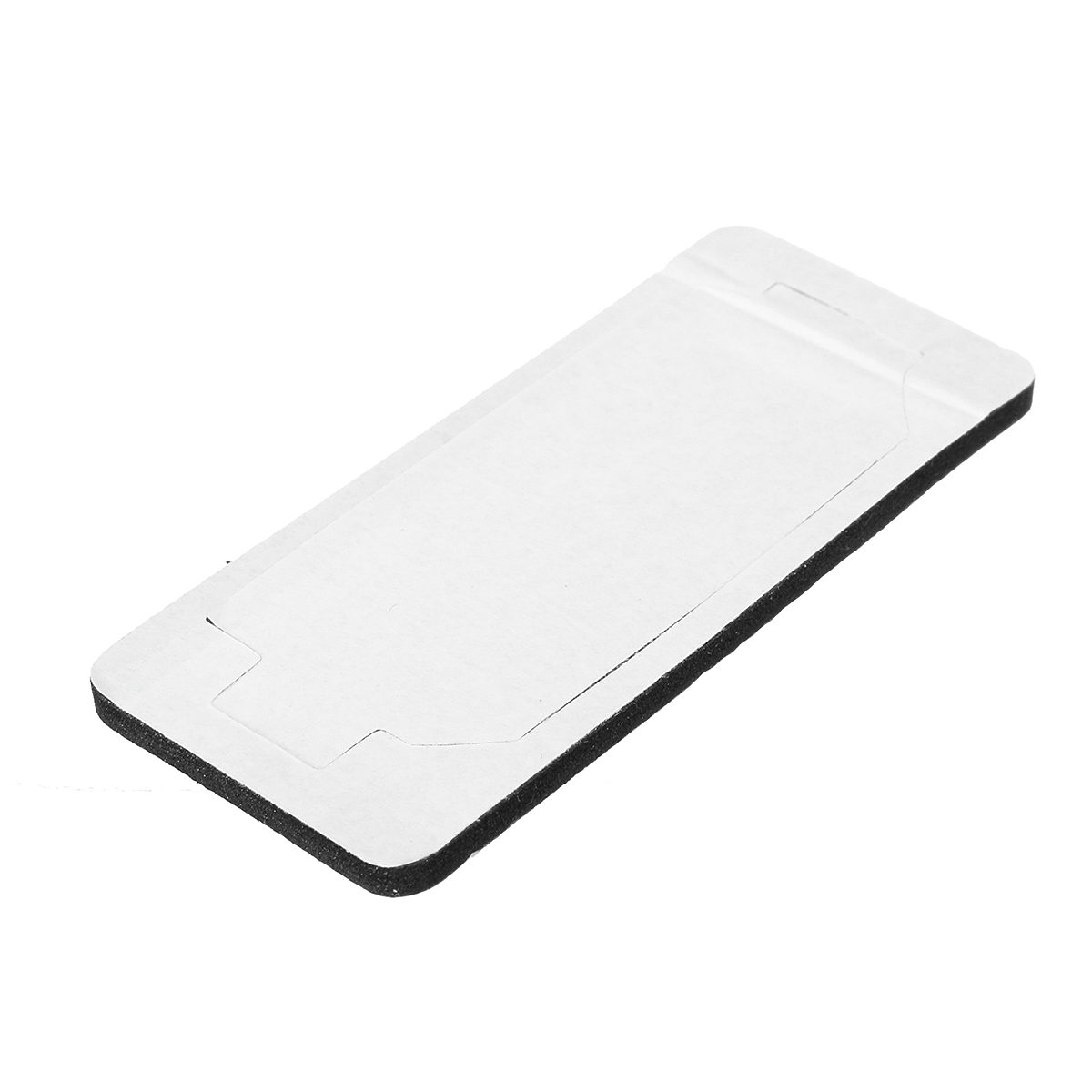

1 X Clipboard | 1 X Power Line |
1 X General Manual |
