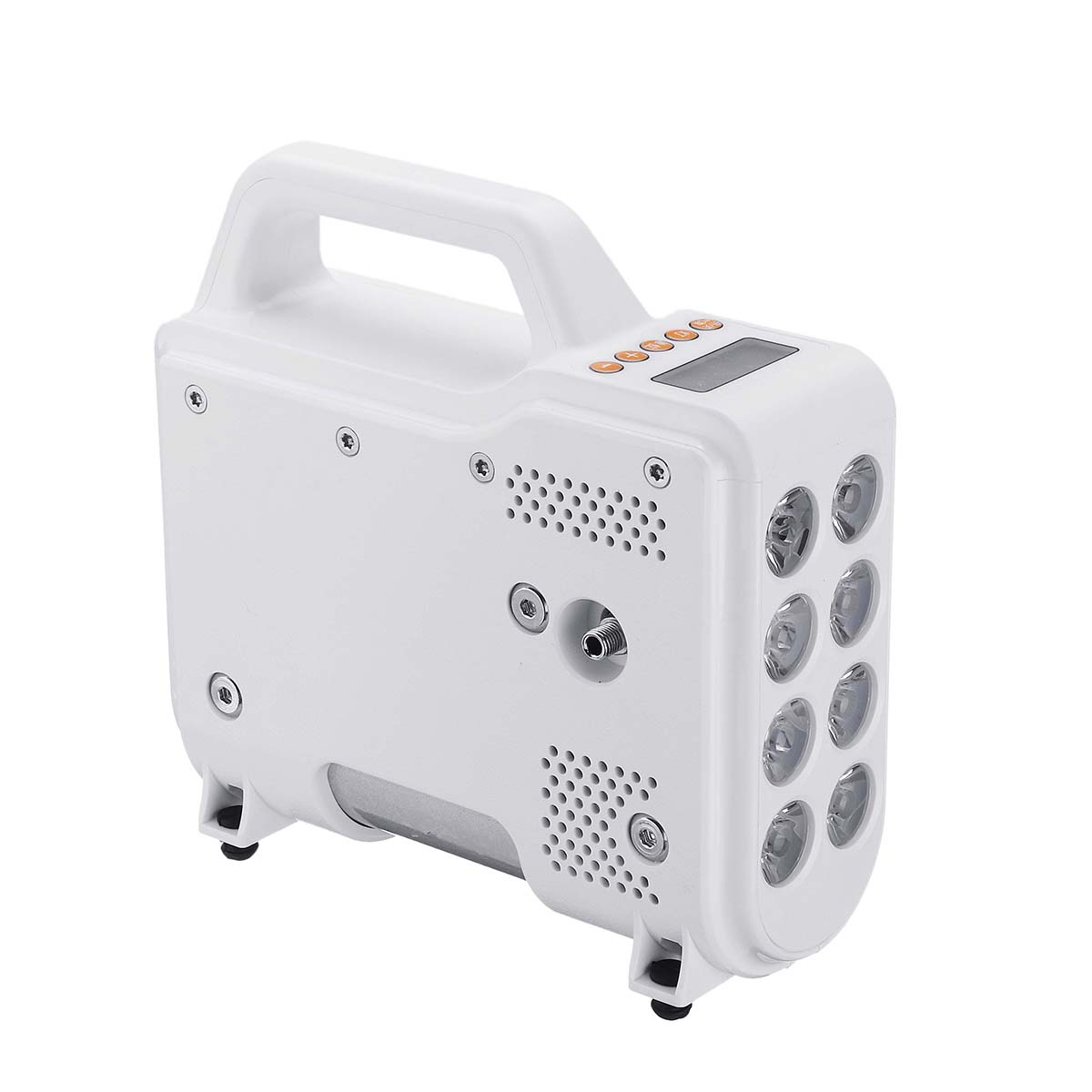

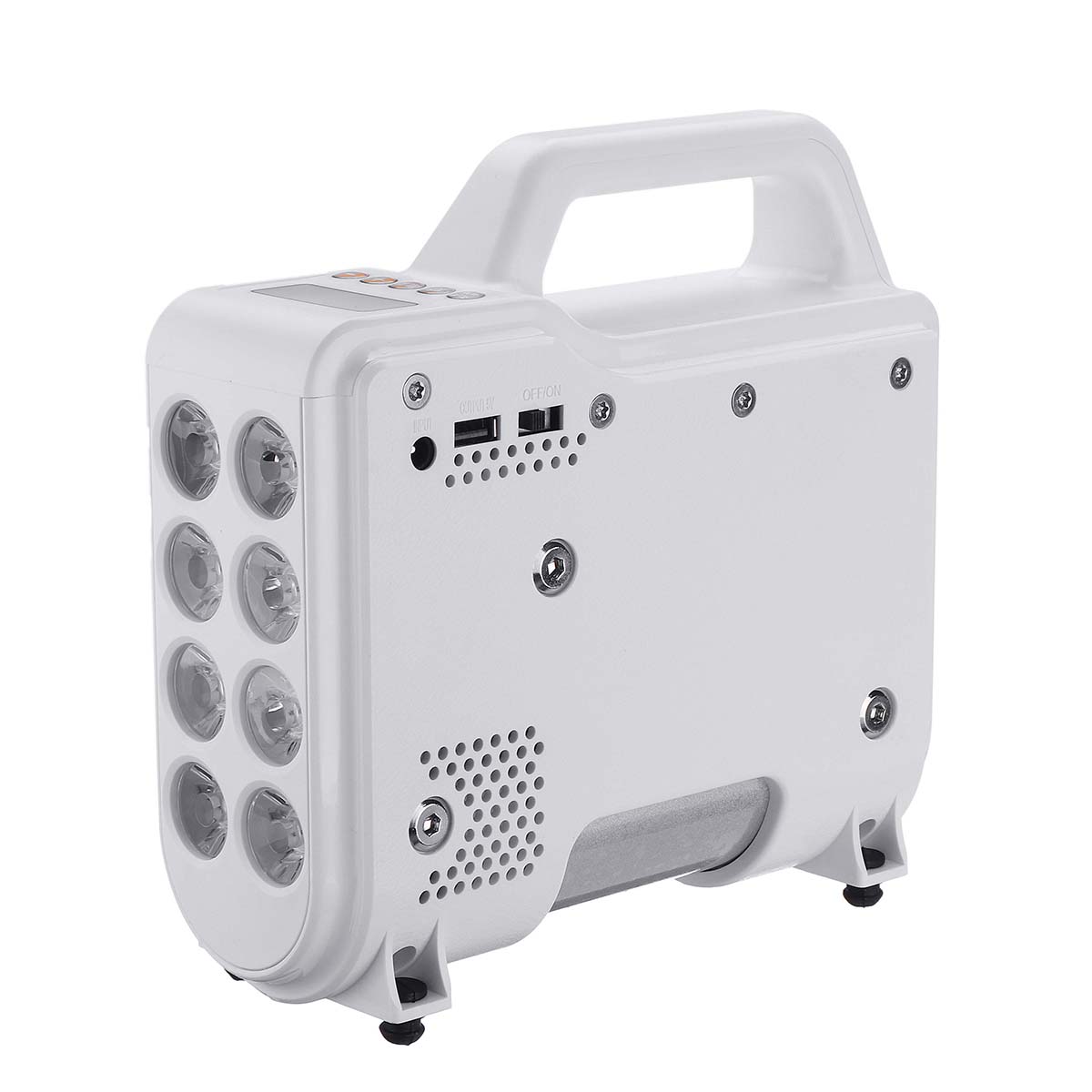

Car Multifunction Digital Pump Jump Starter 430A 16000mAh Emergency Battery Booster With Powerful Led Light Power Bank
$157.20
- Product Code: ED0001602
- Availability: In Stock
- Ex Tax: $157.20
Specification:
Package Included:
1 x Jump Starter
Charging Parameter. DC 14.6V(or12.6v) 1A
Charging Time: Less than 5hrs
USB Output: 5V 2.5A
Jump Start Peak Current: 400A(Min)
Jump Start working current: 200A(Max)
Digital Pump Output: 35L/min(Max)
Pump Pressure: 6.3kg/Cm2 (Max)
LED Light: 16W 8W 1.6W SOS
Size: 192mm*190mm*72mm
Features:
1. Jump Starter
-20℃ can jump start car
Power less than 20% can still jump start car
Can start more than 20 times continuously

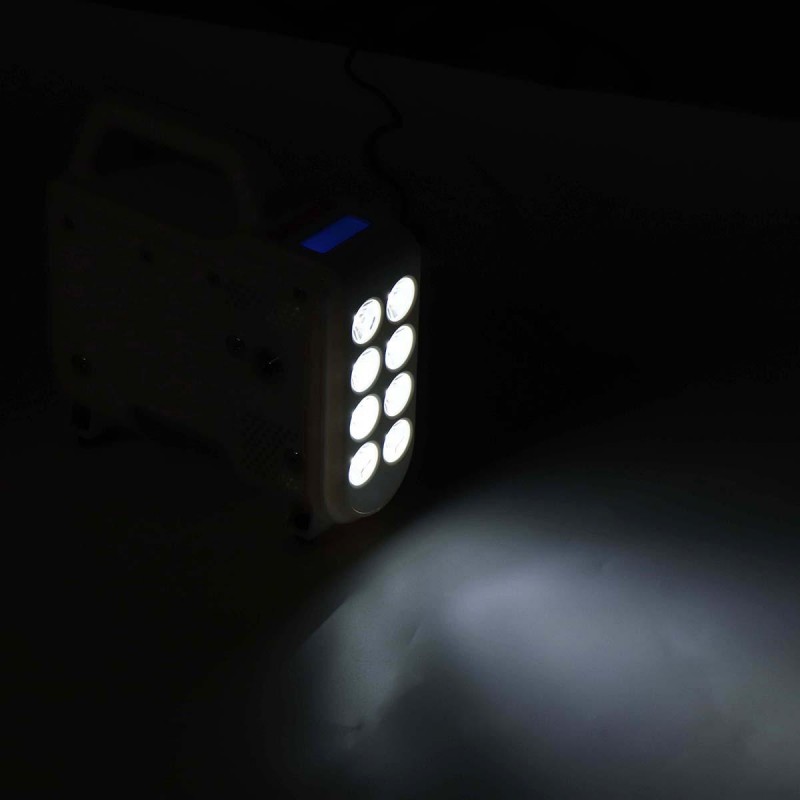

2. Powerful Led light
8 LED Lights, Can illuminate 200m
16W 8W 1.6W SOS 4 modes
3.Digital Pump
Built in pressure sensor, preset presure value
Stop automatically when reaches preset value
4.Power Bank
Standard USB port, output 5V 2.5A
Charge most of 5V digital products
Jump start car in low temperature weather
The solution: Open LED ights, place product into a plastic bag and sealed in
a tool box. the led lights heat the air, the fan forces hot air to circle inside the
product. 20 minutes later, the temperature will be over 20℃, can jump start car.

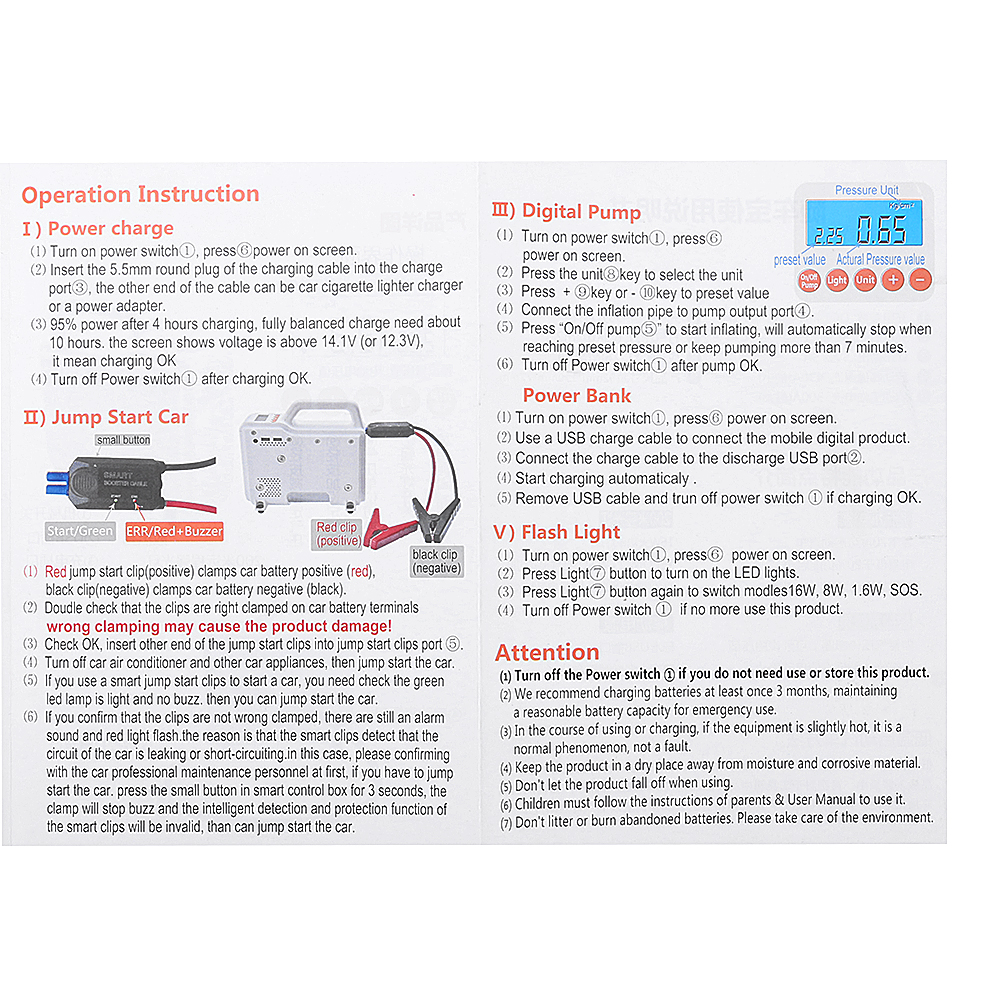

Operation Instruction:
I )Power charge

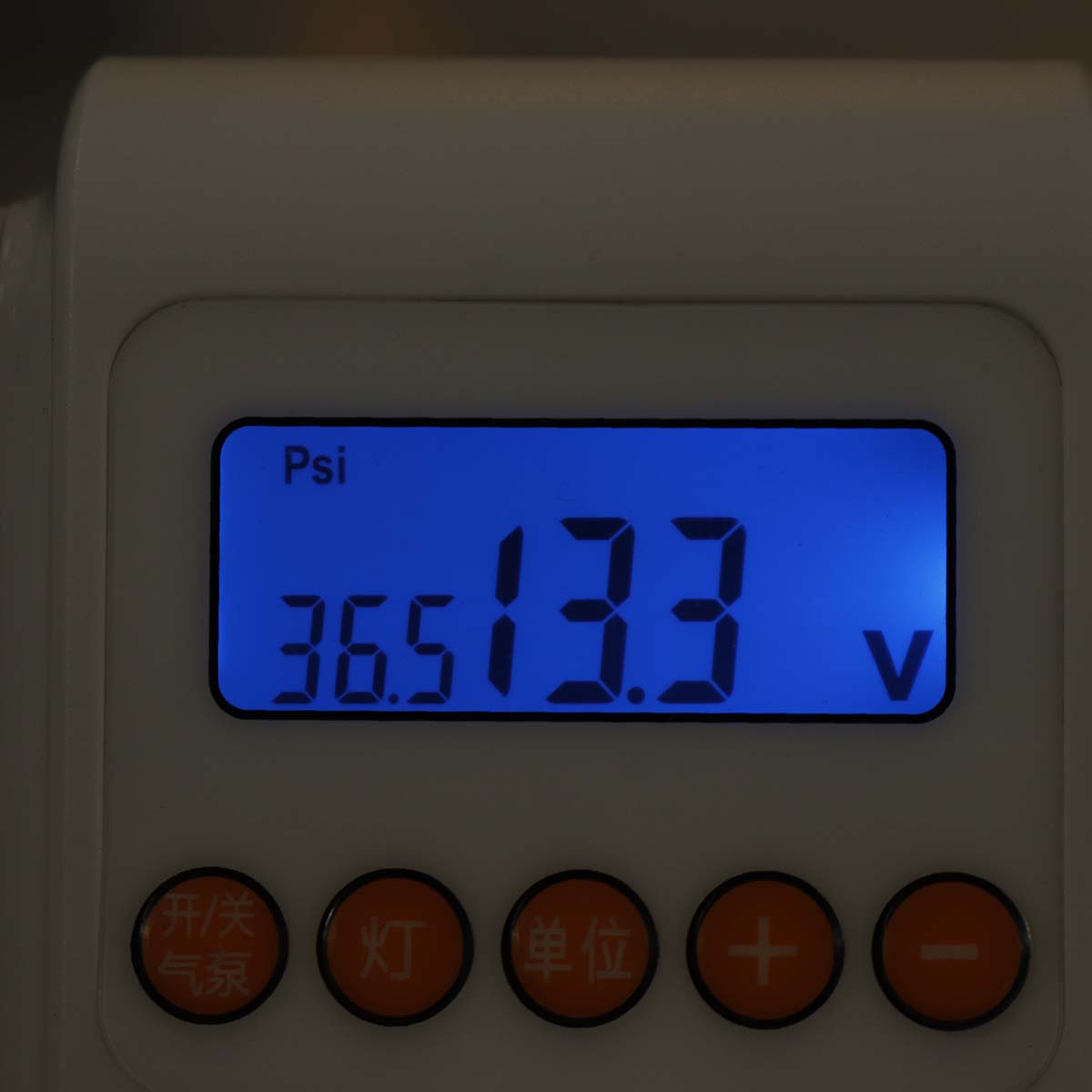

(1)Tum on power switch①, press⑥power on screen
(2)Insert the 5.5mm round plug of the charging cable into the charge port③,the other end of the cable can be car lighter charger or a power adapter.
(3)95% power after 4 hours charging,fully balanced charge need about 10 hours.the screen shows voltage is above 14.1V(or 12.3V)it mean charging OK
(4)Turn off Power switch ① after charging OK.
Ⅱ) Jump Start Car
(1)Red jump start clip(positive)clamps car battery positive(red),black clip(negative)clamps car battery negative(black)
(2)Doudle check that the clips are right clamped on car battery terminals
wrong clamping may cause the product damage!
(3)Check OK, insert other end of the jump start clips into jump start clips port⑤.
(4)Tum off car air conditioner and other car appliances,then jump start the car

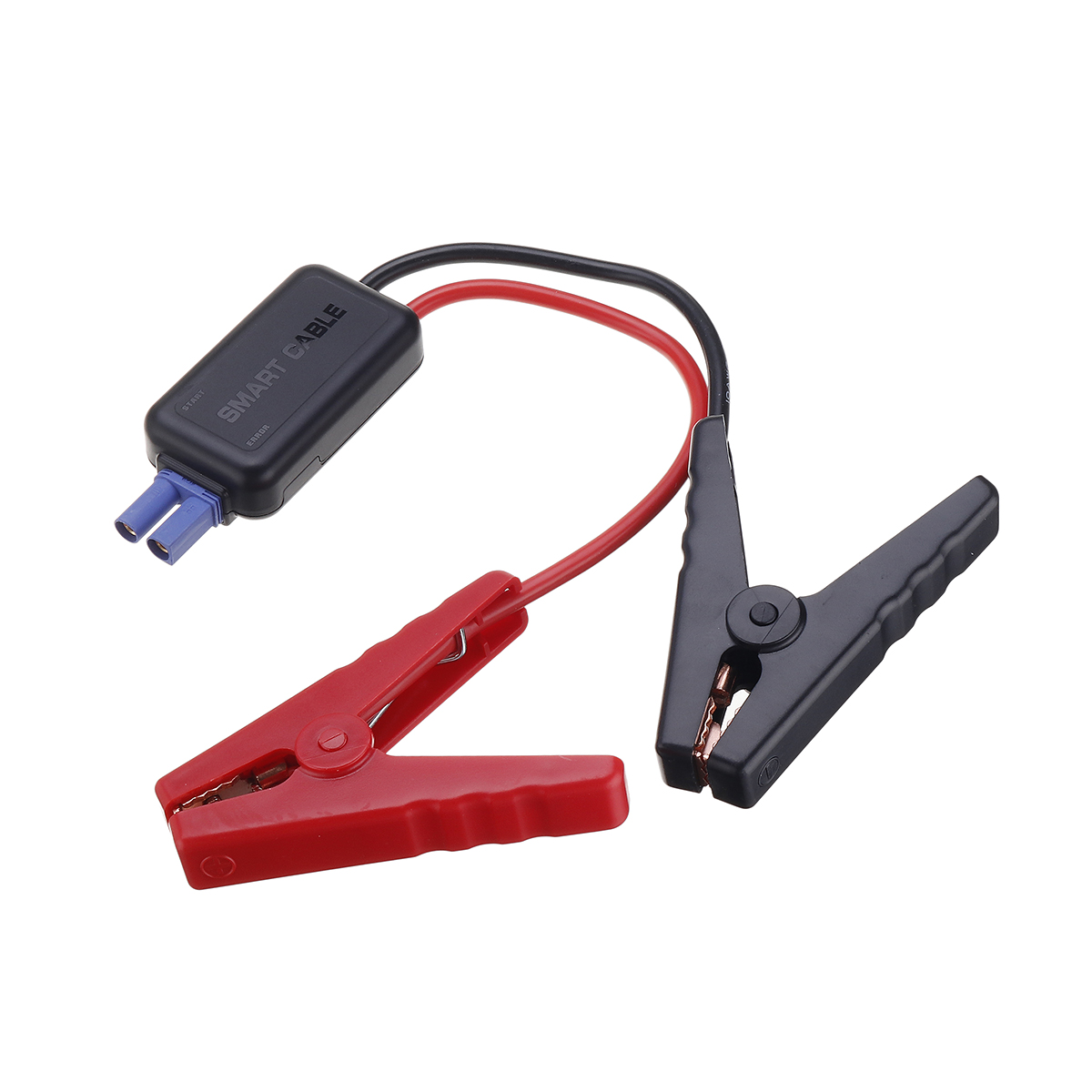

(5)If you use a smart jump start clips to start a car, you need check the green
led lamp is light and no buzz.then you can jump start the car.
(6)If you confirm that the clips are not wrong clamped,there are stil an alarm sound and red light flash.the reason is that the smart clips detect that the circuit of the car is leaking or short-circuiting.in this case,please confirming with the car professional maintenance personnel at first,if you have to jump start the car,press the small button in smart control box for 3 seconds.the clamp will stop buzz and the intelligent detection and protection function of the smart clips will be invalid,than can jump start the car.
Ⅲ)Digital Pump

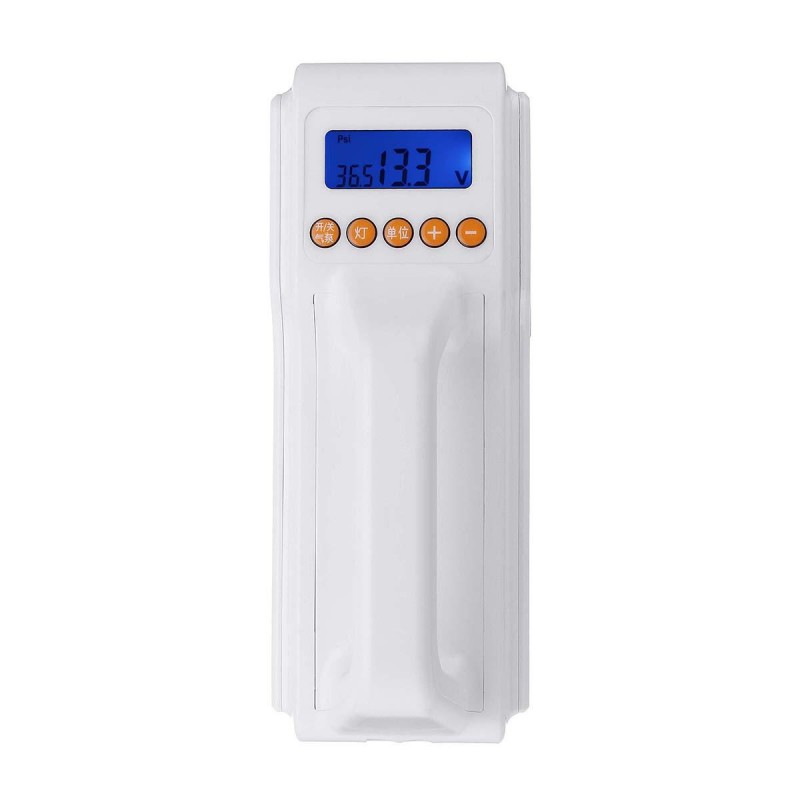

(1)Turn on power switch①,press⑥power on screen.
(2)Press the unit⑧key to select the unit
(3)Press +⑨key or -⑩key to preset value
(4)Connect the inflation pipe to pump output port ④
(5)Press"On/Off pump⑤"to start inflating,will automatically stop when reaching preset pressure or keep pumping more than 7 minutes
(6)Turn off Power switch①after pump OK.
Ⅳ)Power Bank
(1)Turn on power switch①,press⑥power on screen
(2)Use a USB charge cable to connect the mobile digital product
(3)Connect the charge cable to the discharge USB porte②
(4)Start charging automaticaly
(5)Remove USB cable and trun off power switch ① if charging OK
V)Flash Light
(1)Turn on power switch①,press⑥power on screen
(2)Press Light⑦ button to turn on the LED lights
(3)Press Light⑦ button again to switch modles 16w,8W,1.6W,S0S
(4)Turn off Power switch① if no more use this product
Attention:
(1)Turn off the Power switch① if you do not need use or store this product
(2)We recommend charging batteries at least once 3 months,maintaining a reasonable battery capacity for emergency use.
(3)In the course of using or charging,if the equipment is sliglghtly hot,it is a normal phenomenon,not a fault.
(4)Keep the product in a dry place away from moisture and corrosive materaial.
(5)Don't let the product fall off when using
(6)Children must follow the instructions of parents & User Manual to use it.
(7)Don't litter or burn abandoned batteries.Please take care of the environment

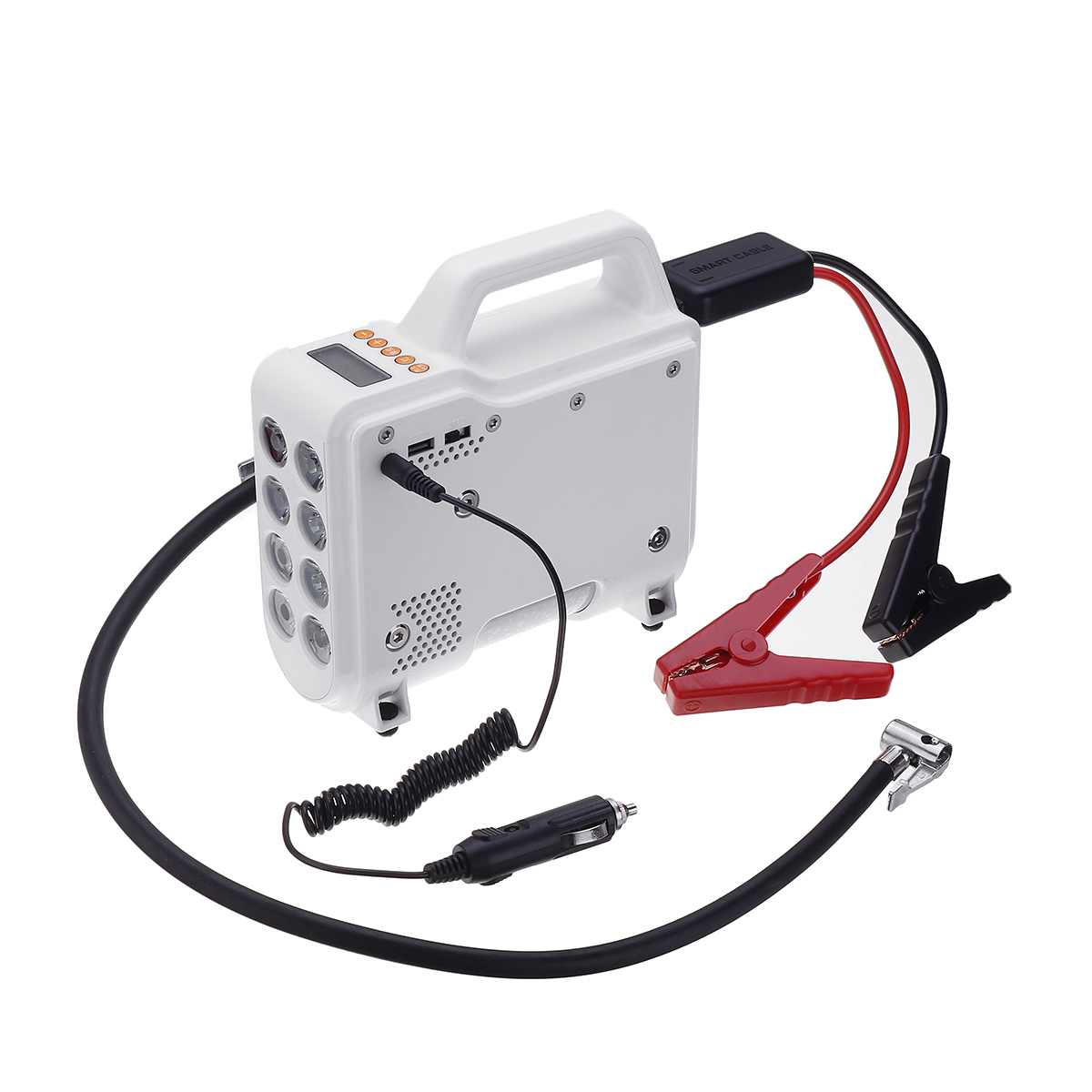

1 x Jump Starter

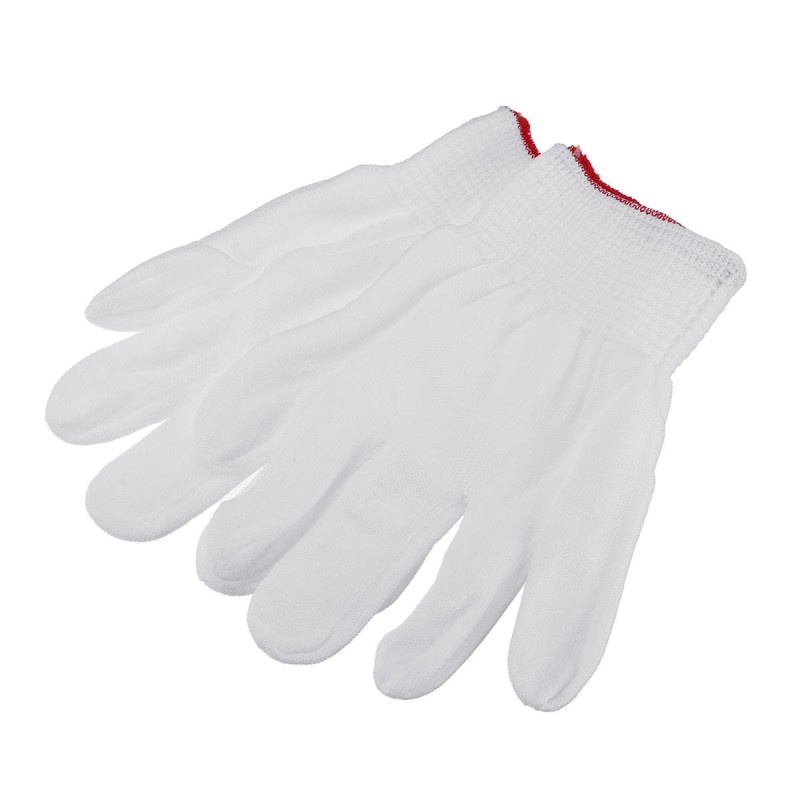

1 x Gloves

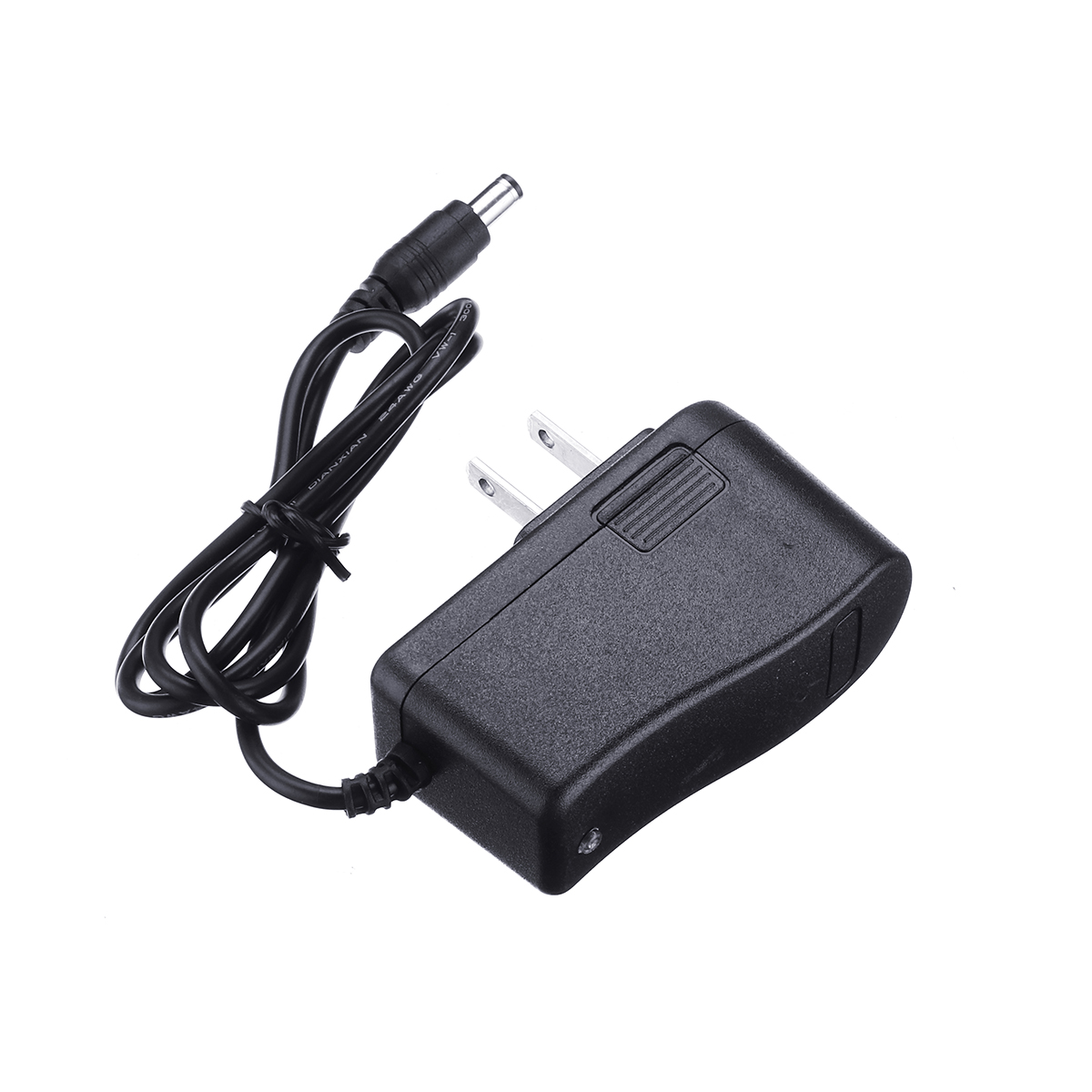

1 x Charging head

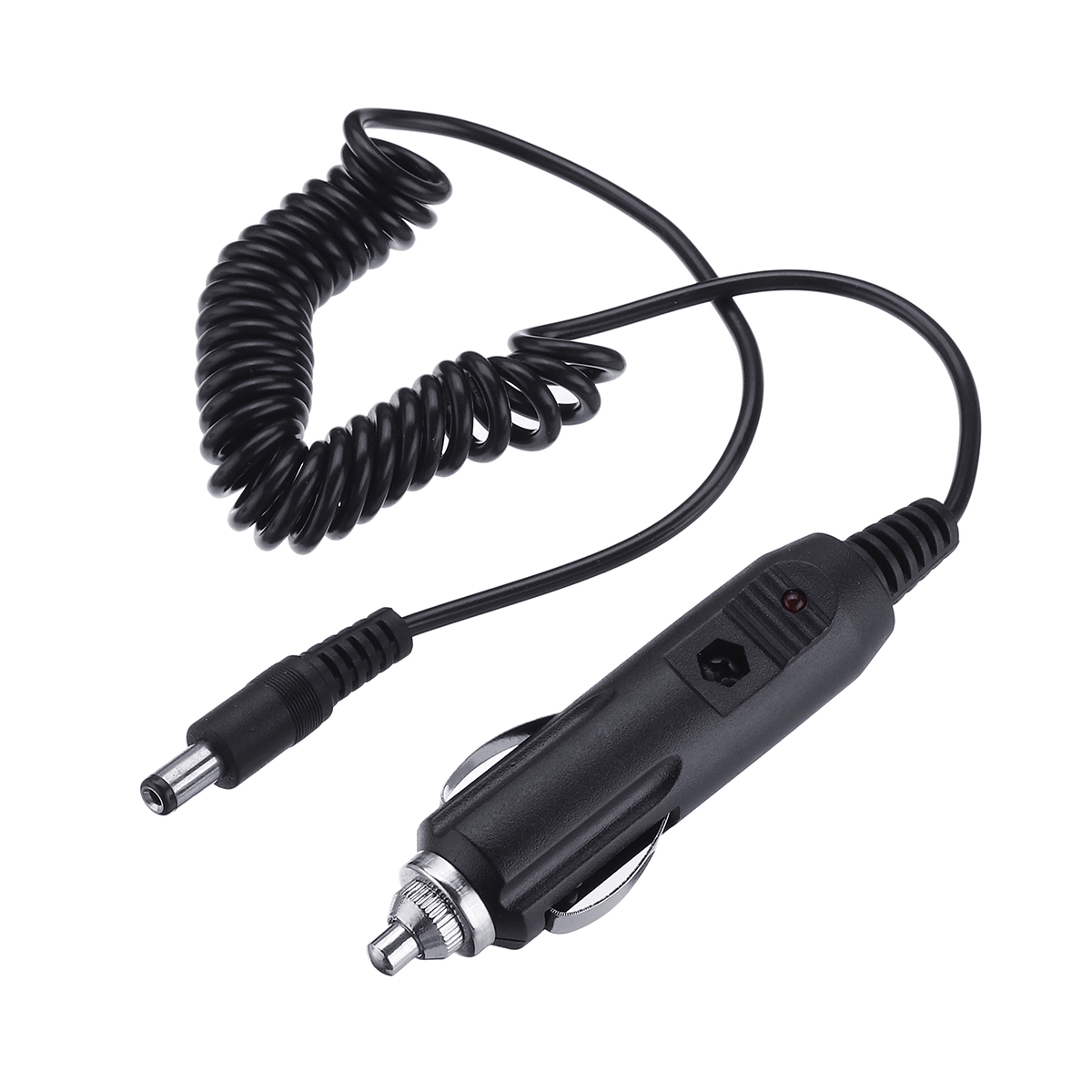

1 x On-board charging cable

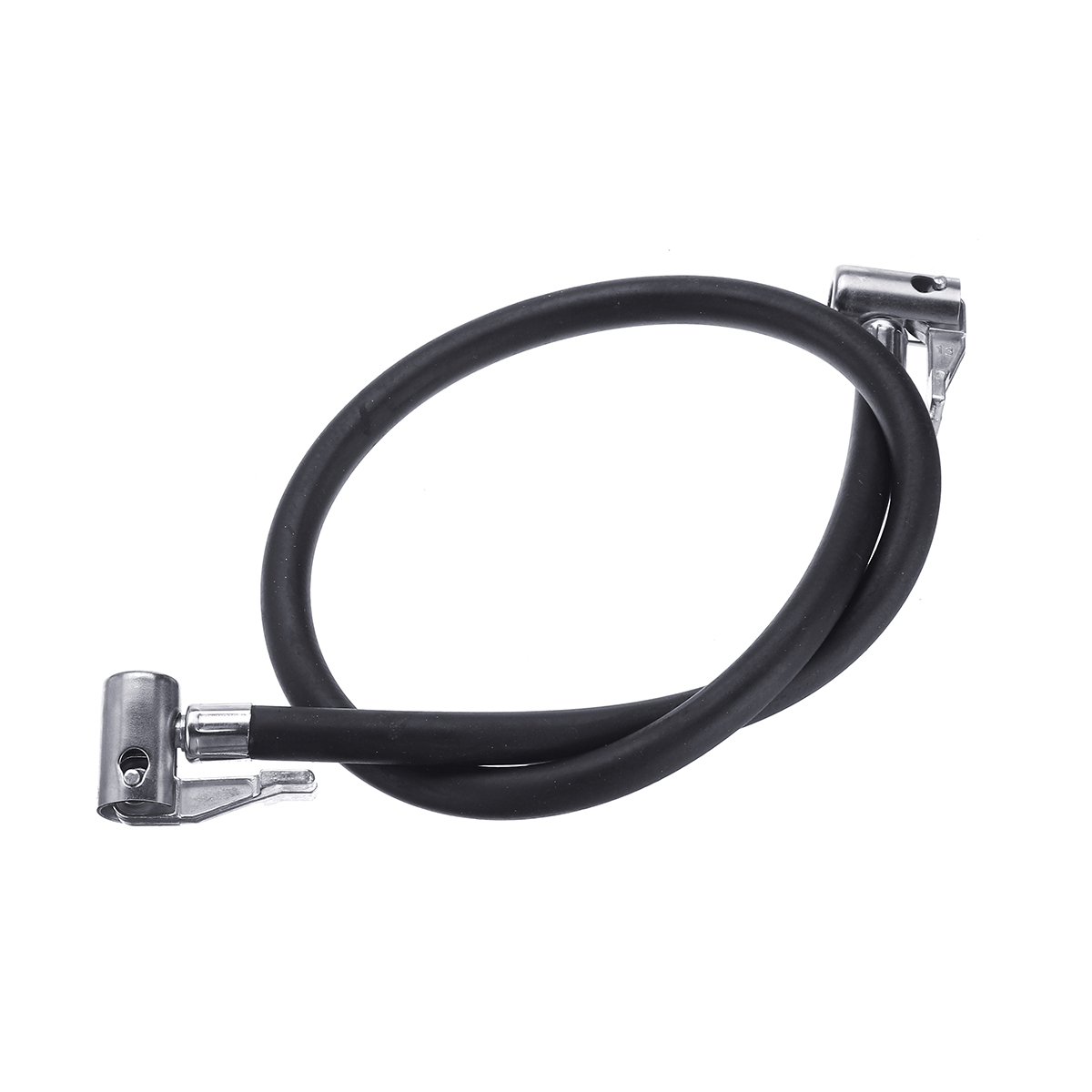

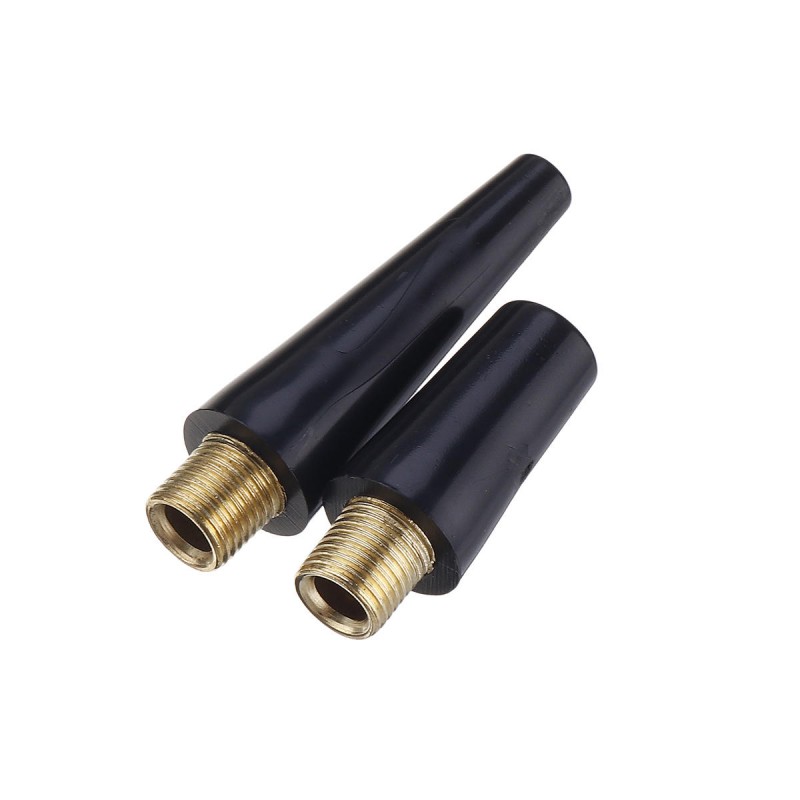

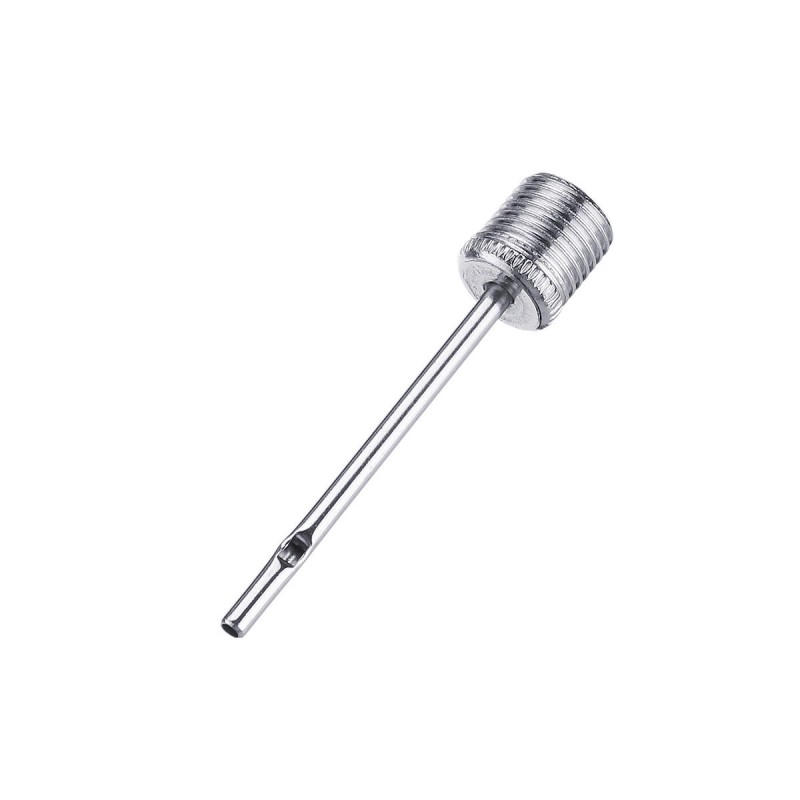

1 x Inflatable tube
1 x Jumper starter connector
1 x Instructions
