Car Rear View Camera HD Parking Backup Camera CCD For Mercedes E-class W211
$15.31
- Product Code: ED0001157
- Availability: In Stock
- Ex Tax: $15.31
Feature:
1.High-definition and 170 degree wide viewing angles.
2.With good waterproof function.
3.Solve the issue of bad car Rear view effect, can help parking and reduce incidents and accident.
4.Support NTSC TV system.
5.With its elegant and contemporary design, this camera is very popular.
6.Its simple and modest design and small size won't draw any attention.
Specification:
Fitment:
For Mercedes Benz E Class W211 2002~2008
For Mercedes Benz E200 E220 E240 E280 E300 E320 2002~2008
For Mercedes Benz E350 E420 E500 E550 E55 E63 AMG 2002~2008
Package Included:
1.High-definition and 170 degree wide viewing angles.
2.With good waterproof function.
3.Solve the issue of bad car Rear view effect, can help parking and reduce incidents and accident.
4.Support NTSC TV system.
5.With its elegant and contemporary design, this camera is very popular.
6.Its simple and modest design and small size won't draw any attention.
Specification:
| Product Name | Rear View Camera |
| Color | Black |

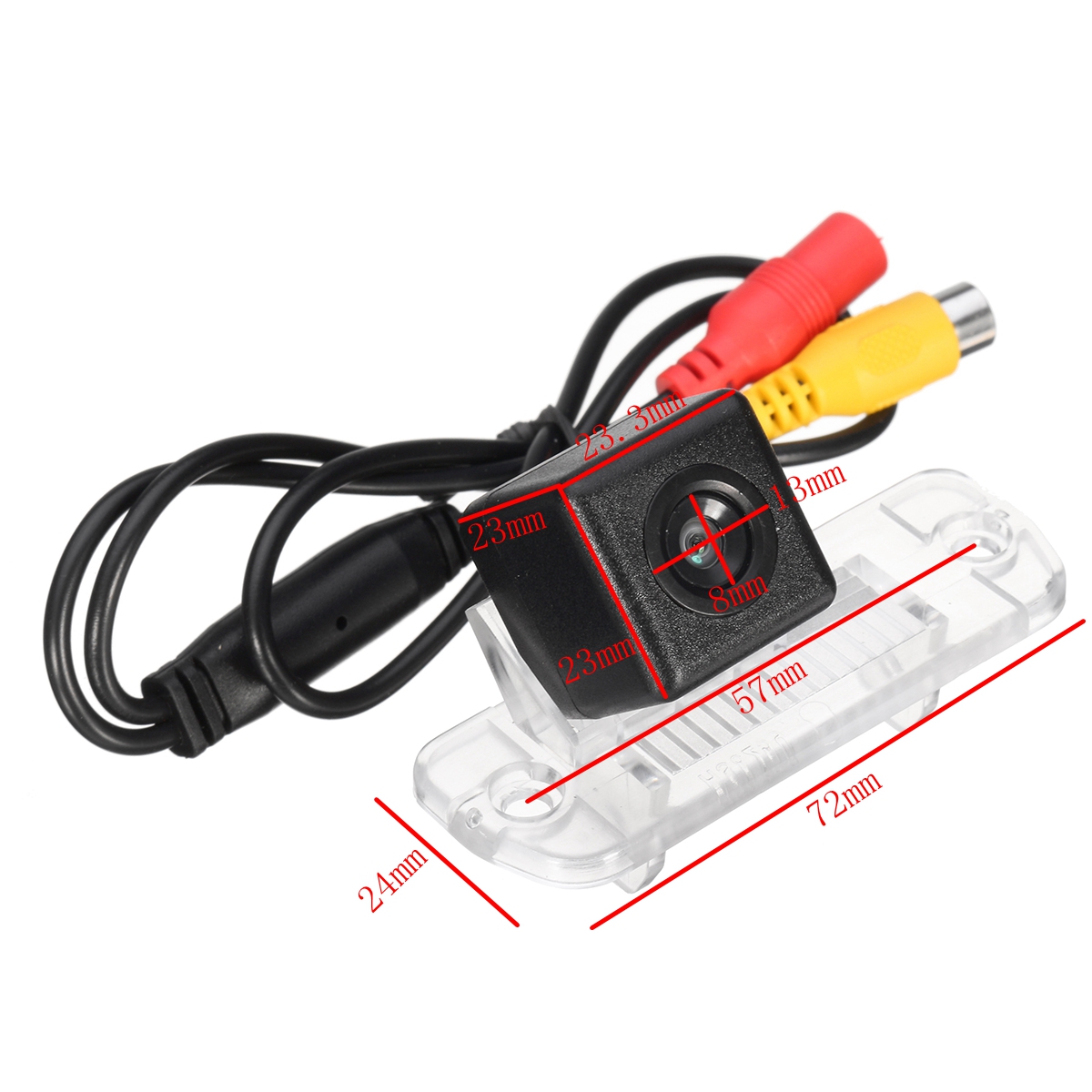

| Size | 72x24mm |
| Video Cable Length | 6m |
| Power Cable Length | 1m |
| Images Sensors | CCD 1/3 color |
| Signal System | NTSC/PAL |
| Horizontal Resolution(TV lines) | 520 TV lines |
| Effective Pixels | 720x540 pixels |
| Lens Viewing Angle | 170 degrees |
| Horizontal Viewing Angle | 110 degrees |
| Ip Rating | IP67~68 |
| AGC & BLC | Auto |
| Current Consumption | No more 300mA |
| S/N Ratio | Better than 48dB(AGC-OFF) |
| Shutter Speed | 1/50(1/60)-1/100,000sec |
| Minimun Illumination | 0.2Lux/F1.2 |
| Power Supply(DC) | 12V |
| Scanning System | 2:1 interlace |
| Horizontal Sync Frequency | 15625KHZ |
| Operating Temperature(Deg.C) | -20~60(RH95% Max.) |
| Storage Temperature(Deg.C) | -30~60(RH95% Max.) |
Fitment:
For Mercedes Benz E Class W211 2002~2008
For Mercedes Benz E200 E220 E240 E280 E300 E320 2002~2008
For Mercedes Benz E350 E420 E500 E550 E55 E63 AMG 2002~2008
Package Included:

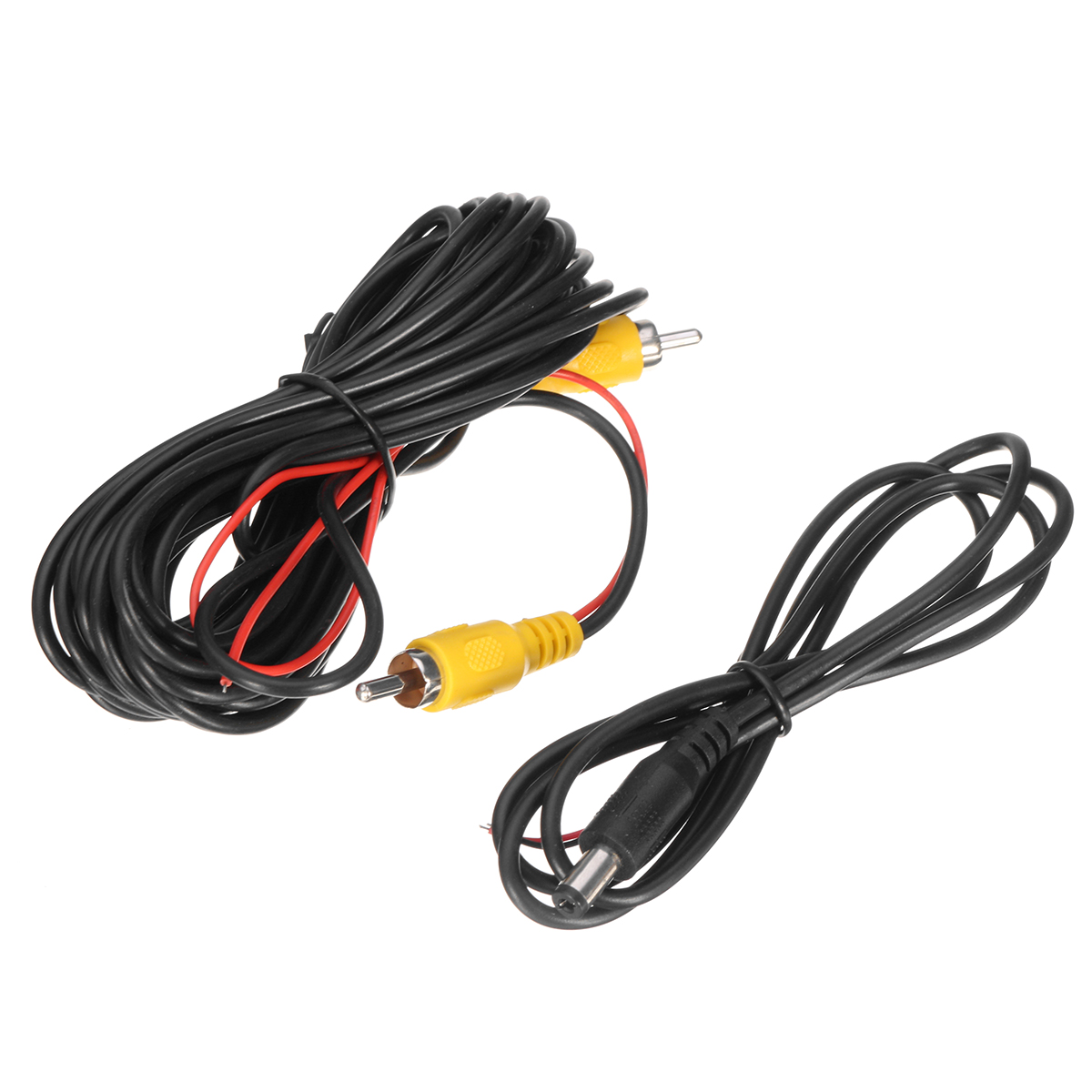

| 1 X Rear View Camera | 1 X 6M Video Cable |
| 1 X 1M Power Cable | 1 X Installation Instruction |
