Description:
- Often the rear lights (LED) burn out due to the construction of the driver LEDs. It overheats and breaks down. And this board is
not sold separately and manufacturers suggest to buy the entire taillight, which is very expensive. The used taillight can also burn
out at any time. Just a constructive marriage of F25.
not sold separately and manufacturers suggest to buy the entire taillight, which is very expensive. The used taillight can also burn
out at any time. Just a constructive marriage of F25.
- Our chips fixed a constructive error and have a protection circuit against transient voltages. It is based on a microcircuit, which has
minimal strapping and high efficiency, thus the board does not heat up. You will no longer convert energy into heat.
minimal strapping and high efficiency, thus the board does not heat up. You will no longer convert energy into heat.
Features:
- This Part Is Plug And Play (Does Not require any cutting and Soldering Like other Parts).
- This is an improved factory manufactured replacement LED driver.
- All 4 tail light drivers are the same.
- No errors, no interference.
- One driver fits either inner or outer light.
Fitment:

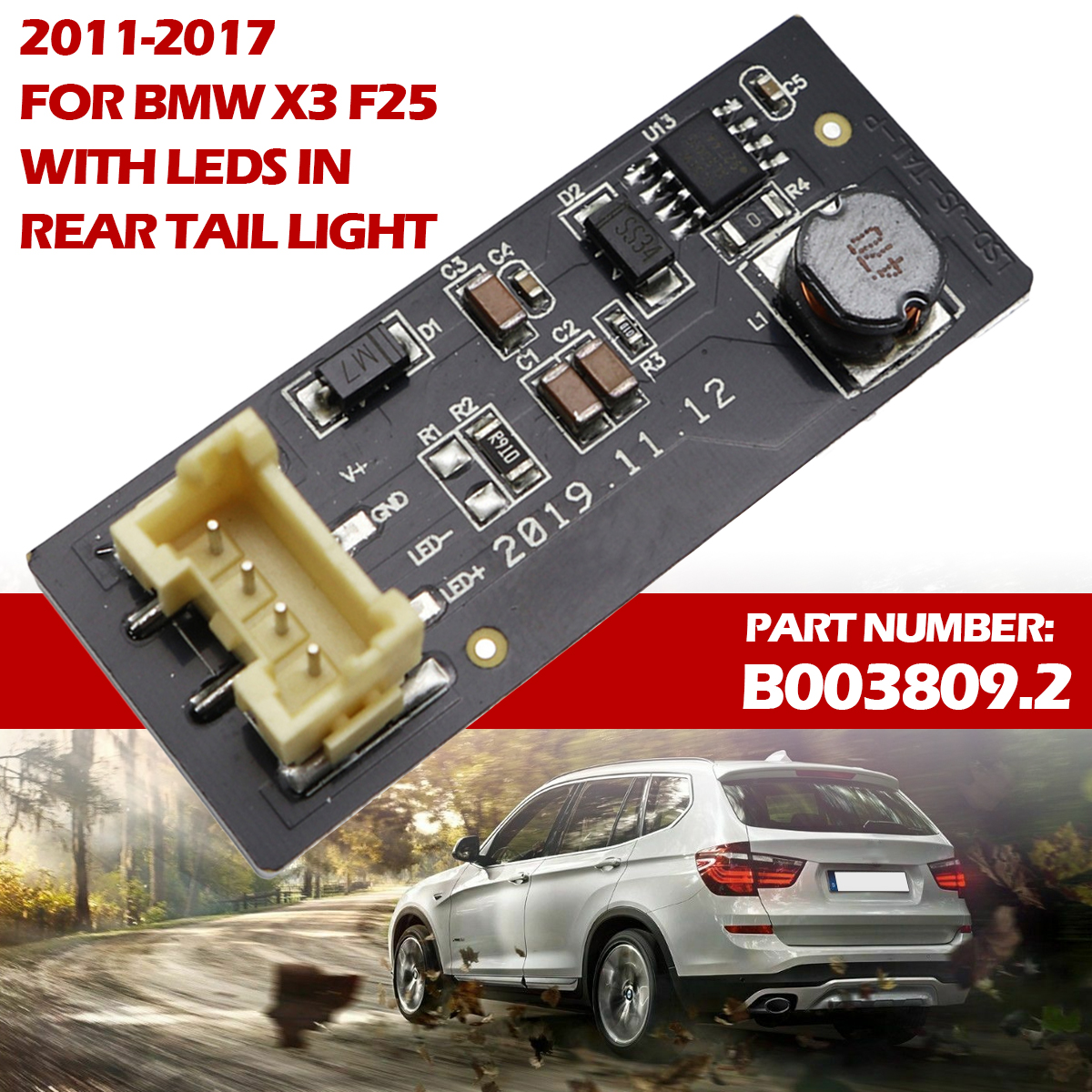

For BMW X3 F25 2011-2017
Specifications:
Part Number: B003809.2
Input Voltage: 9-16V
Max. Input Current: 6-8A
Transient Starting Voltage: ≥32KV
Output Voltage Waveform: Square Wave
Frequency: 25±10Hz
Output Open Circuit Protection: ≤1S
Output Short Circuit Protection: ≤1S
Input Voltage Reverse Connection Protection: ≤1S
Working Temperature: -40℃~105℃
Working Life: ≥3000H
Package Included:

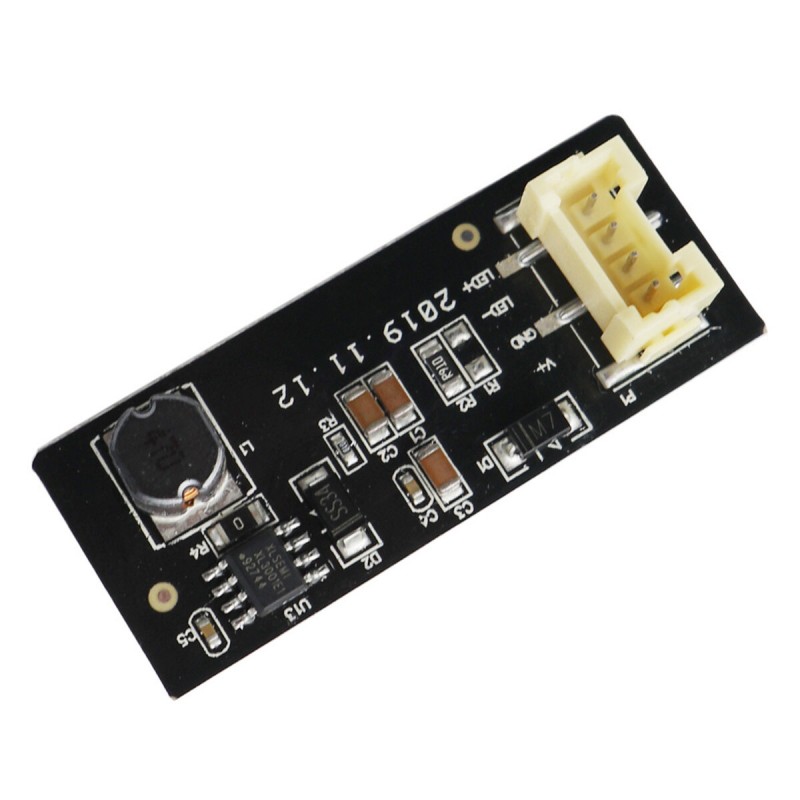

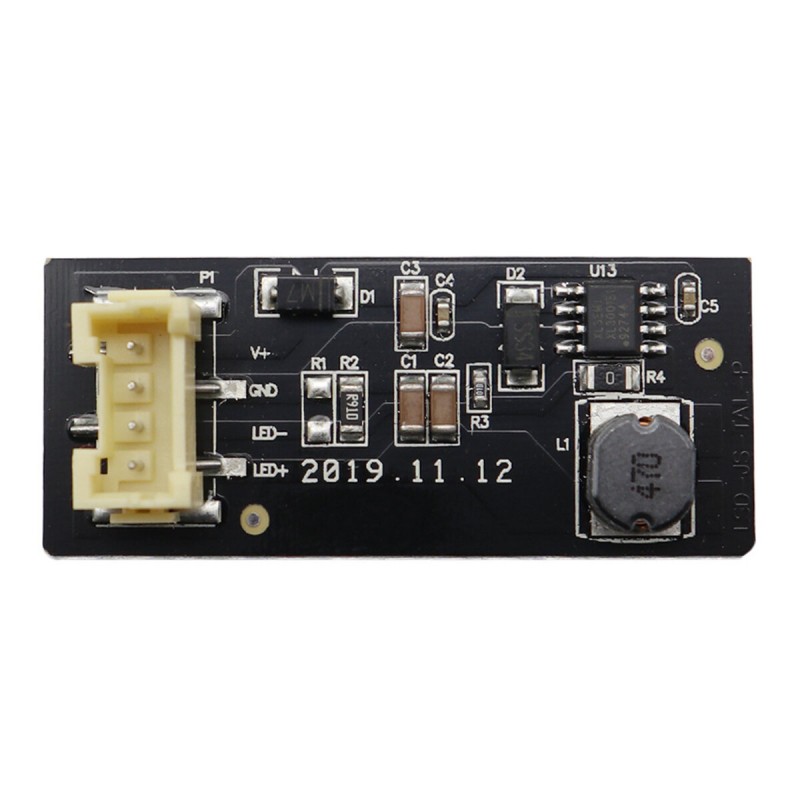

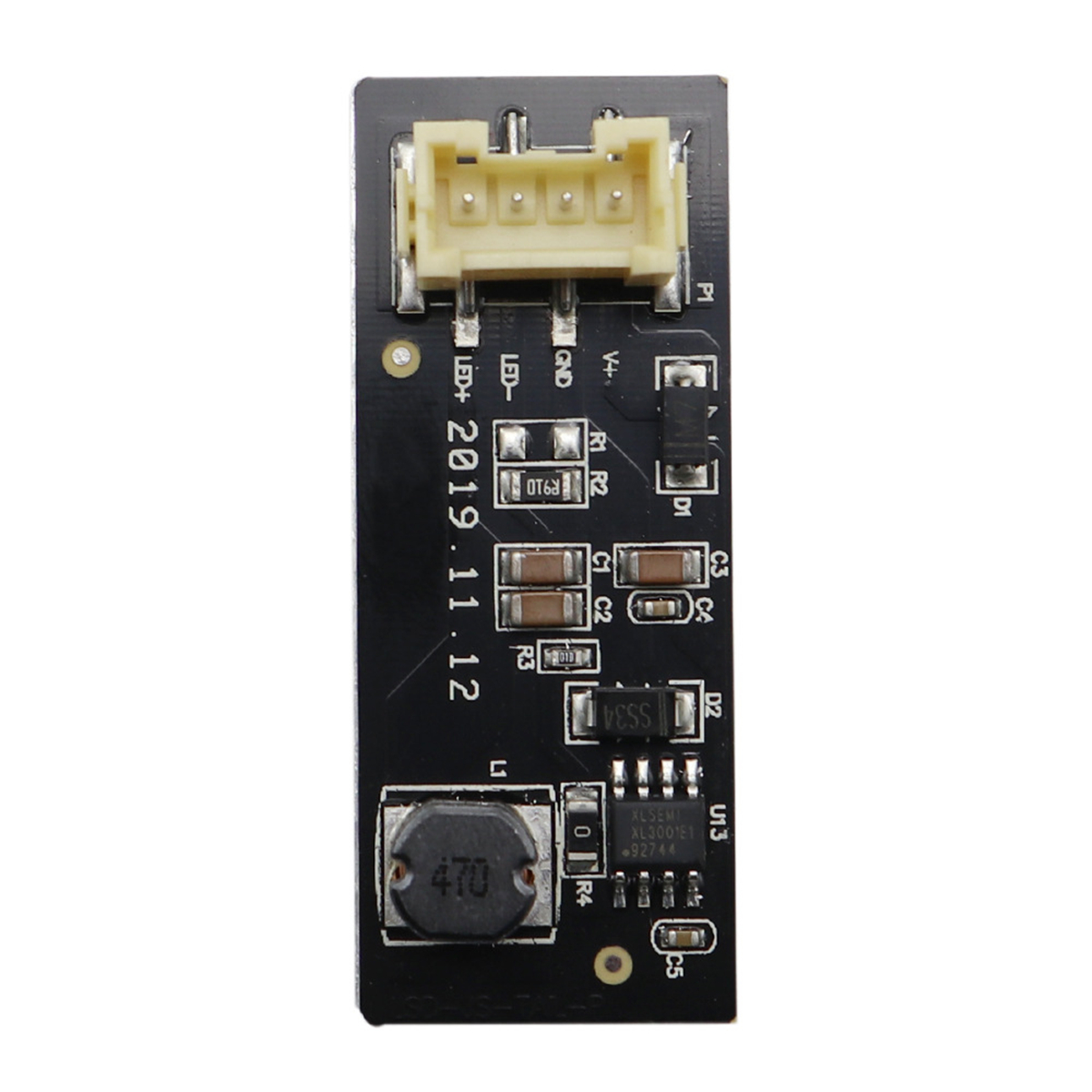

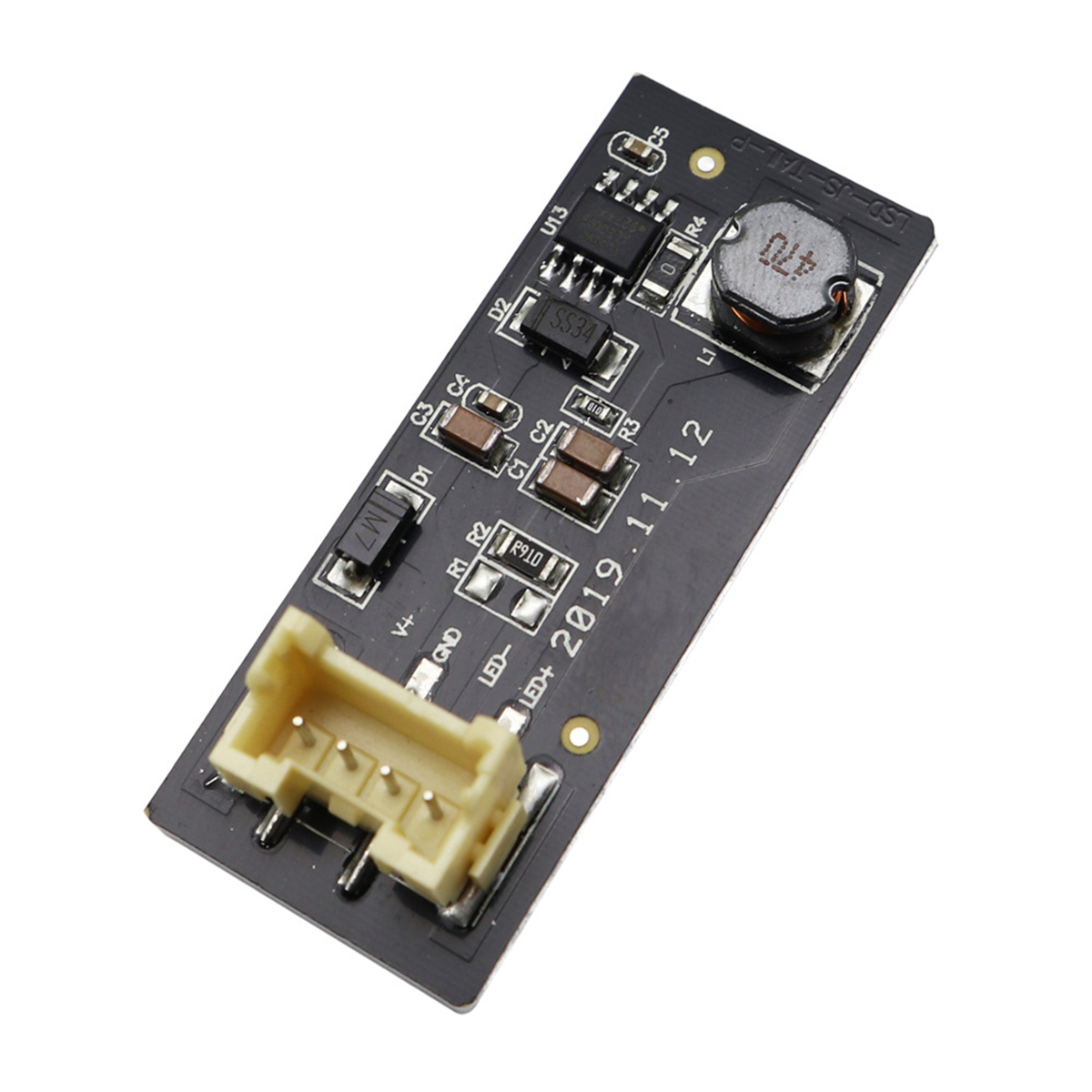

1 x Replacement Driver Chip Board
Note:
White (stock) board is for referce only. You will only get replacement board.
White (stock) board is for referce only. You will only get replacement board.
