Car bluetooth Music Digital Disc Box AUX Adapter Hands-Free Interface For Honda Accord Civic CRV
$47.58
- Product Code: ED0002620
- Availability: In Stock
- Ex Tax: $47.58
Car bluetooth Music Digital Disc Box AUX Adapter Hands-Free Interface USB For Honda Accord Civic CRV
Specifications:
Item Type: bluetooth Hands Free Car Kit
Voltage Input: 11V-14.6V
Standby Current: 3mA
Operational Current: 300mA
Operating Temp.: -20~70℃
Total Harmonic Distortion: <0.05%
Frequency Response: 20-20KHz
SN Ratio: 90dB
Features:
> Easy to install and use, directly plug and play.
> Support USB, AUX or AUX MIC input adapter ( USB support up to 8GB not included )
> bluetooth handfree function ( AD2P ) Answer or reject call phones by press track +/-
> Integrated bluetooth Car Interface adds Hands Free Calling and Wireless Audio to the original factory stereo of many cars.
> The system comes with built-in bluetooth and microphone.
> Use your phone in the car hands free (HFP), stream your music from your phone to the factory stereo
via bluetooth Audio playback (A2DP).
via bluetooth Audio playback (A2DP).
Compatibility:
> Compatible with all radios with single and 6 disc.
> Only one AUX input in the adapter you Choose AUX or AUX MIC which one you needed.
Fit For Honda:
Accord (2003 ? 2011)
Civic (2006-2011)
CRV (2005-2011)
Fit/Jazz (2003-2011)
Odyssey (2005-2011)
Pilot (2005-2011)
S2000 (2004-2011)
Ridgeline (2006-2011)
Fit For Acura:
CSX (2006 ? 2011)
MDX (2006-2011)
RDX (2007-2011)
TSX (2004-2011) (all except type S)
TL (2004-2010)
Installation Guide:
1. Power off the car, remove the radio
2. plug the device into the CDC port ( at the back of radio )
3. Connect your Ipod or Iphone by include ipod cable.
4. For bluetooth, plug the included MIC phone into the device and fix the microphone on a good position. then open the BT
in your mobile, search for the name " KINGNOB " and pair them(No password required).
in your mobile, search for the name " KINGNOB " and pair them(No password required).
5. After connecting, turn on your radio and press CD/AUX to switch to the ipod aux adapter, Then you could listen the music
from the ipod, Control the music from the audio button by pressing DISC +/-, TRACK +/-
from the ipod, Control the music from the audio button by pressing DISC +/-, TRACK +/-
6. For BT, when the call is coming the device will switch form IPOD mode to BT mode, Press TRACK +/- to answer or end call,
when you hang up the call, it will continue to play the ipod music automatically.
when you hang up the call, it will continue to play the ipod music automatically.
Note:
1. NOT compatible with Navigator or XM radio.
2. External CD changer, you need a Y cable splitter.
3. The USB slot is NOT for charging your phone or using your phone to play music, you have to use USB stick or USB Flash
drive with MP3 file on it so you can use it to play.
drive with MP3 file on it so you can use it to play.

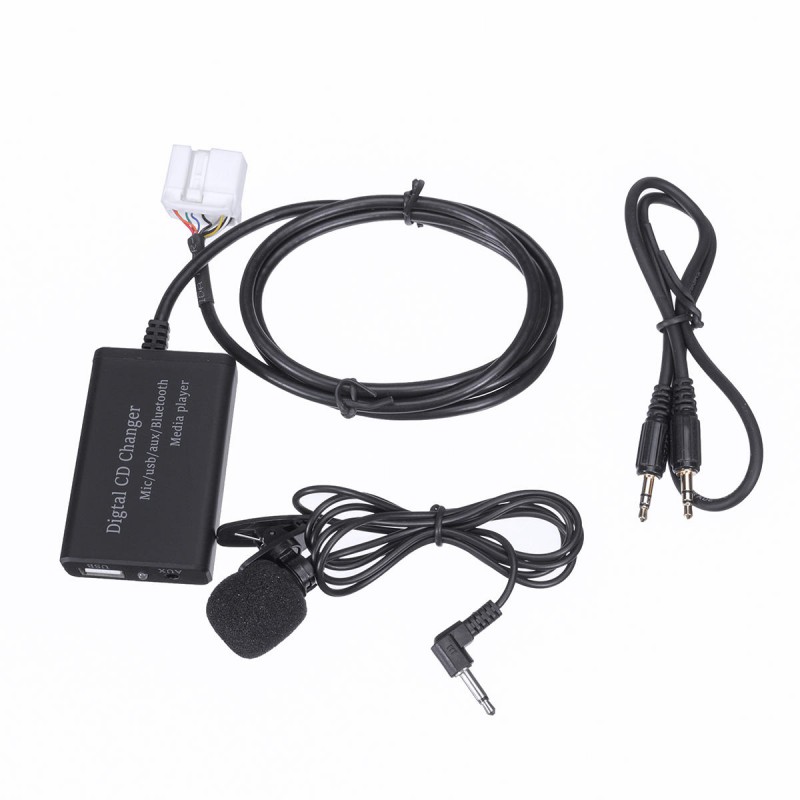

Package included:
1 x Module Unit
1 x Wire Harness
1 x Mic Cable
1 x User Manual
