Description:
Easy to install

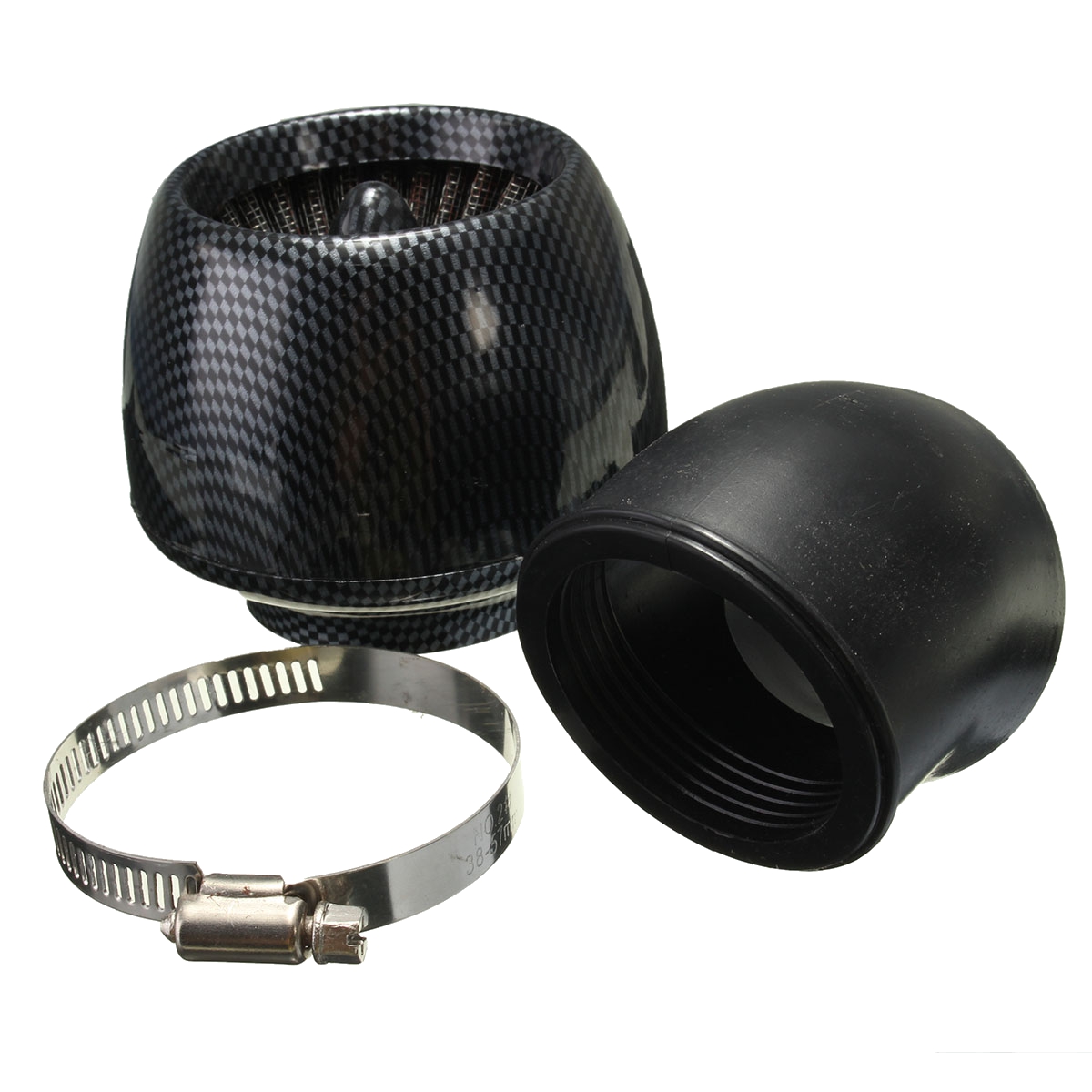

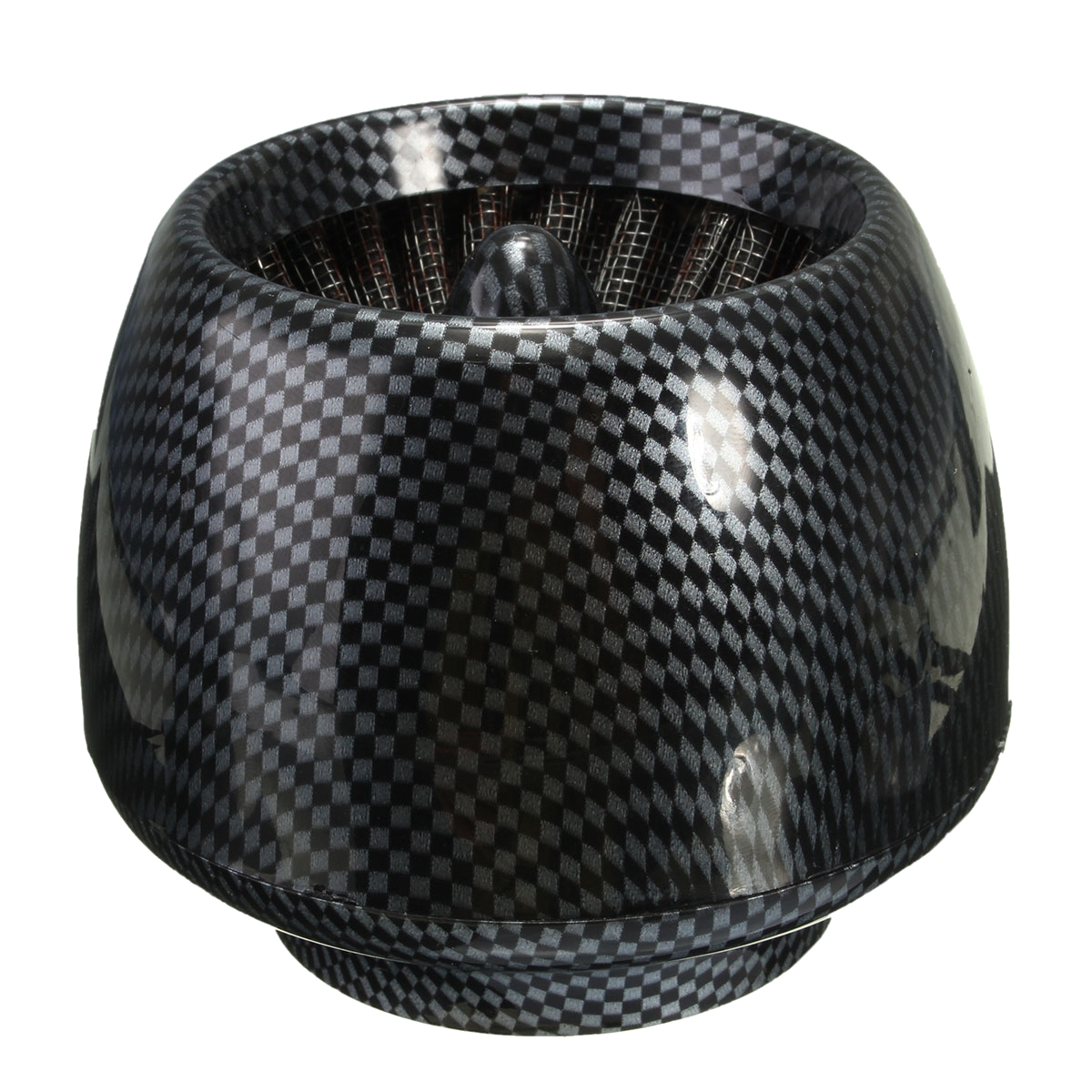

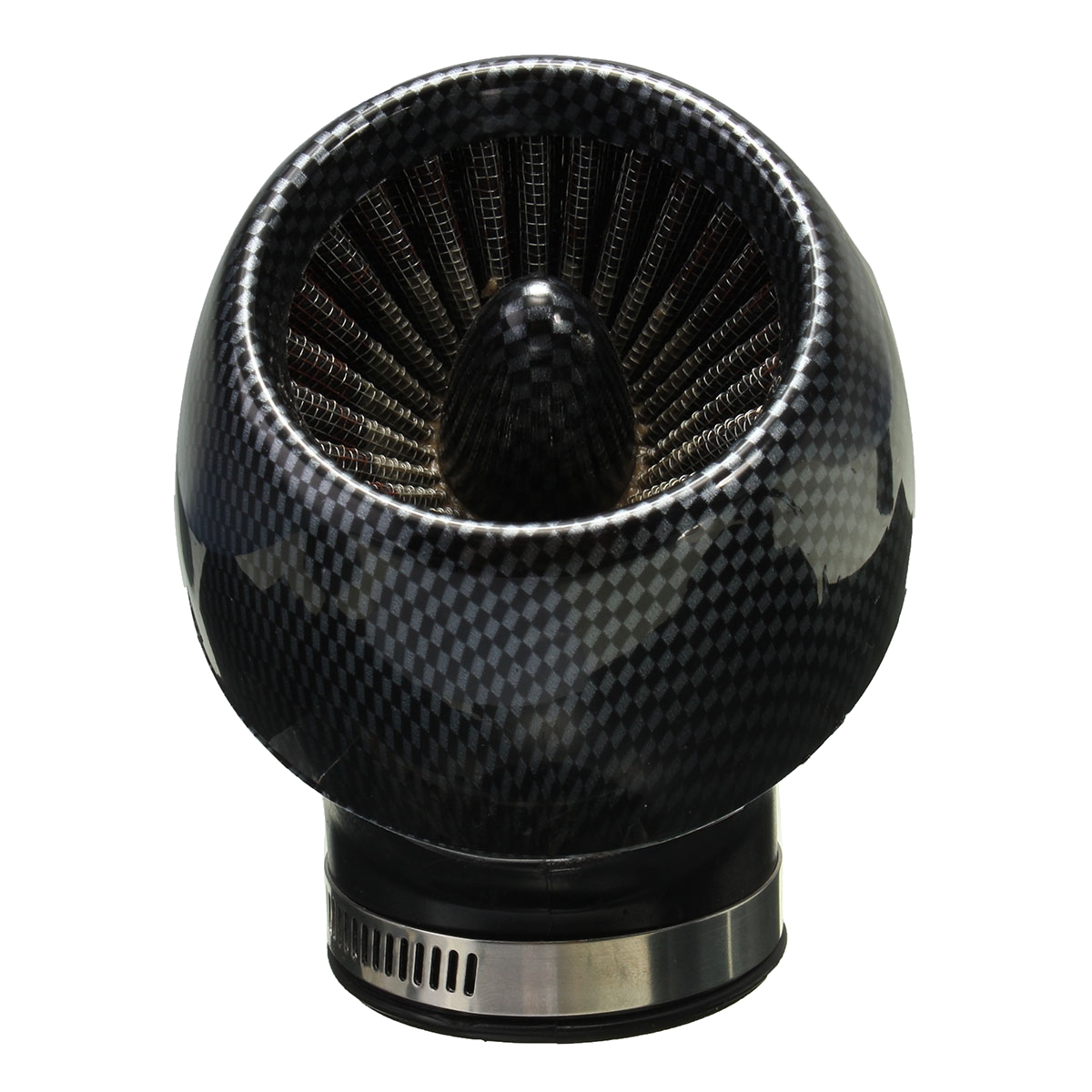

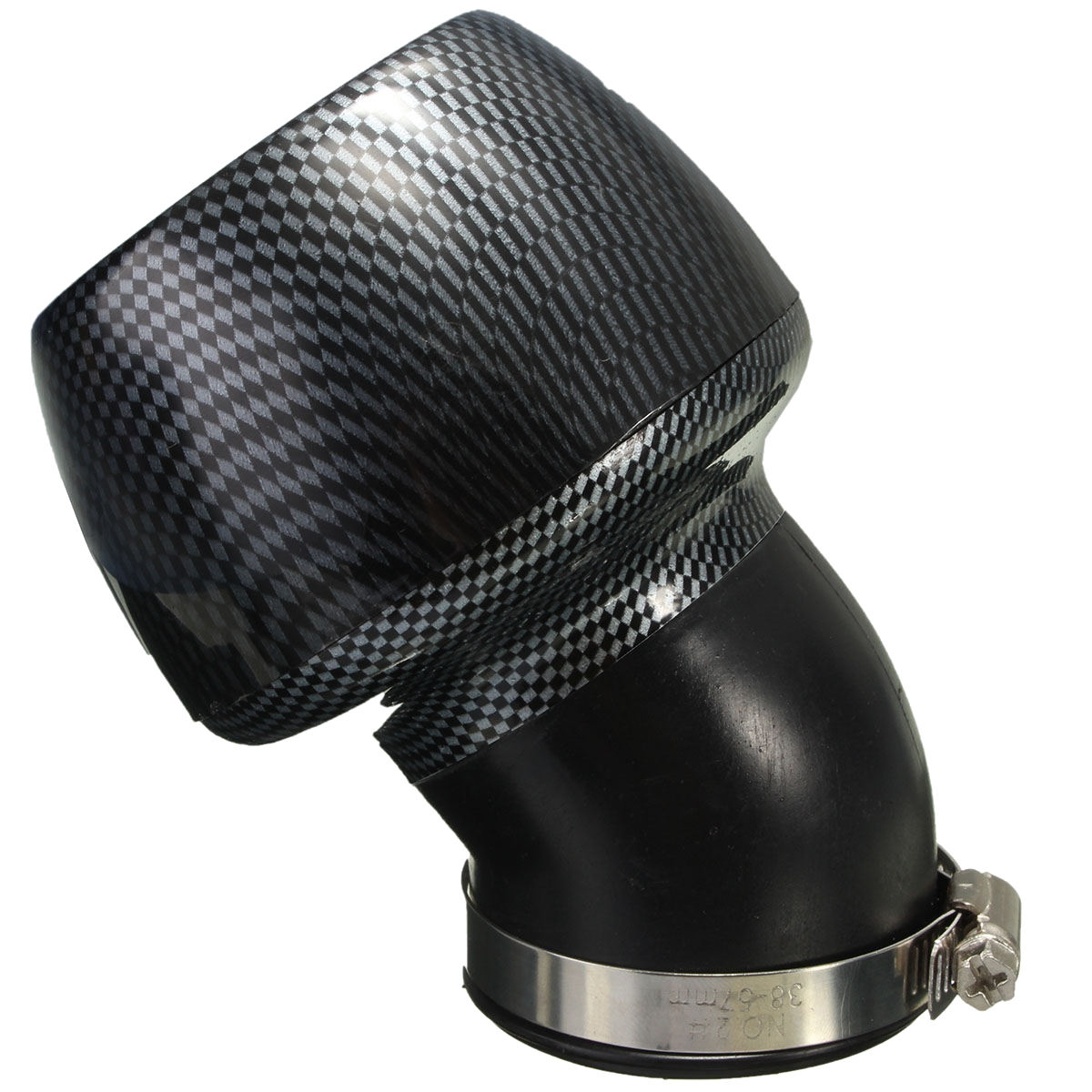

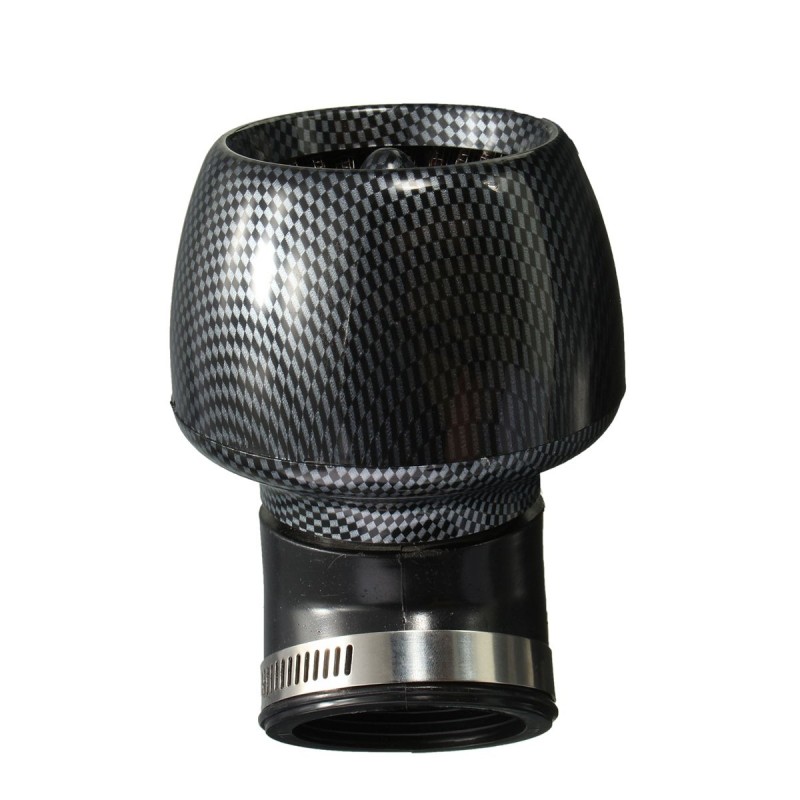

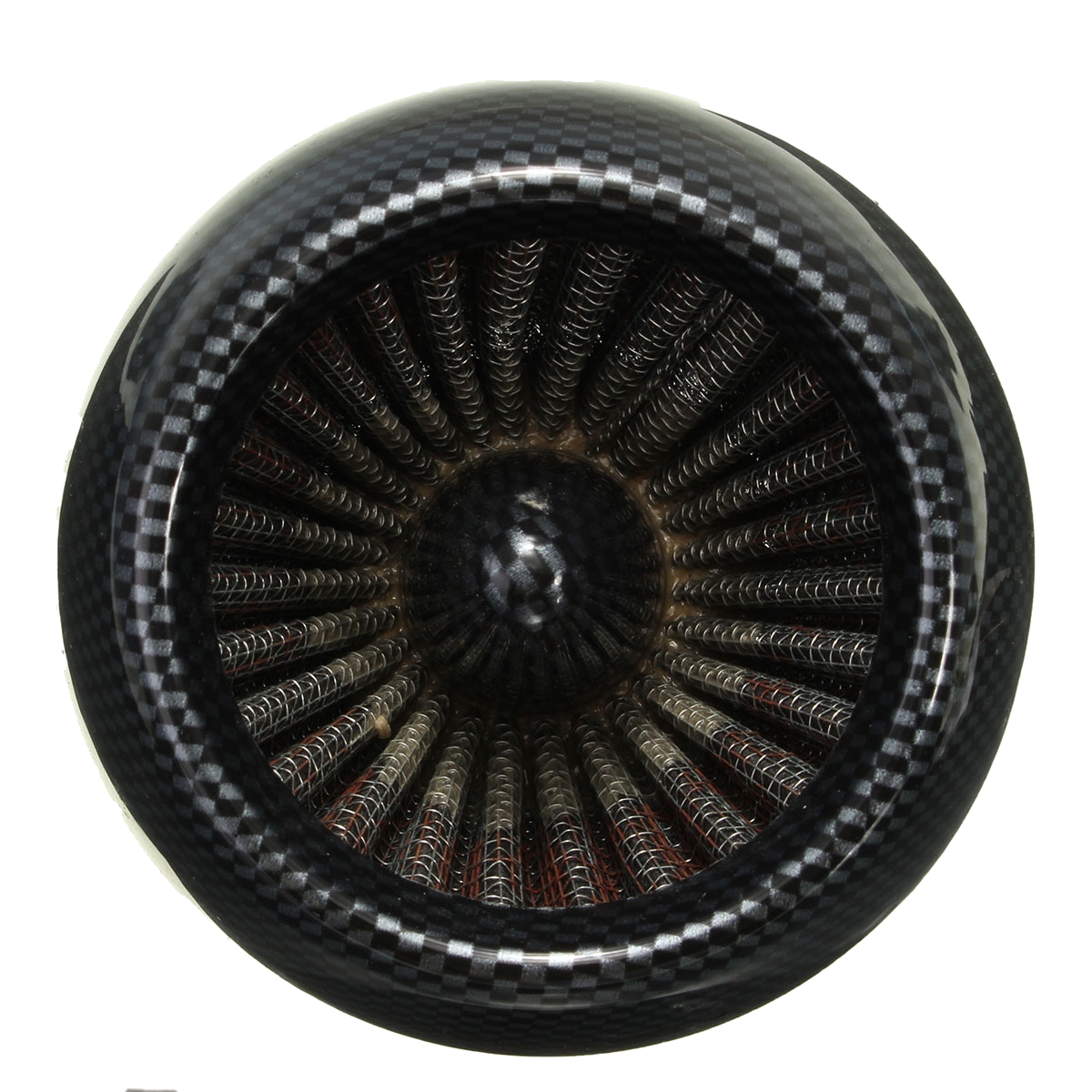

K+N style performance jetcone high flow air filter with 45 degree angled neck for pit bikes and motorbikes.
Fits upgraded pit bike carburettors fitted to larger engines above 160cc.
The flexible rubber neck can be fitted to larger or smaller carburettors as the neck will flex up and down by 1-2mm to maximise fitment options and increase air flow.
The 48mm dimension refers to the internal diameter of the air filters neck, where the jubilee clip is located,
and where it will connect to the carburettor.
This quality gauze filter improves air flow and assists even running.
Manufactured from steel gauze bonded onto a rubber collar.
Specification:
Color: Carbon Fibre
Includes Jubilee Clip: Yes
Includes Cover Fixing Hole in Top: No
Includes Covers: Yes
Filter Element: Gauze K&N Style
Neck: Bent

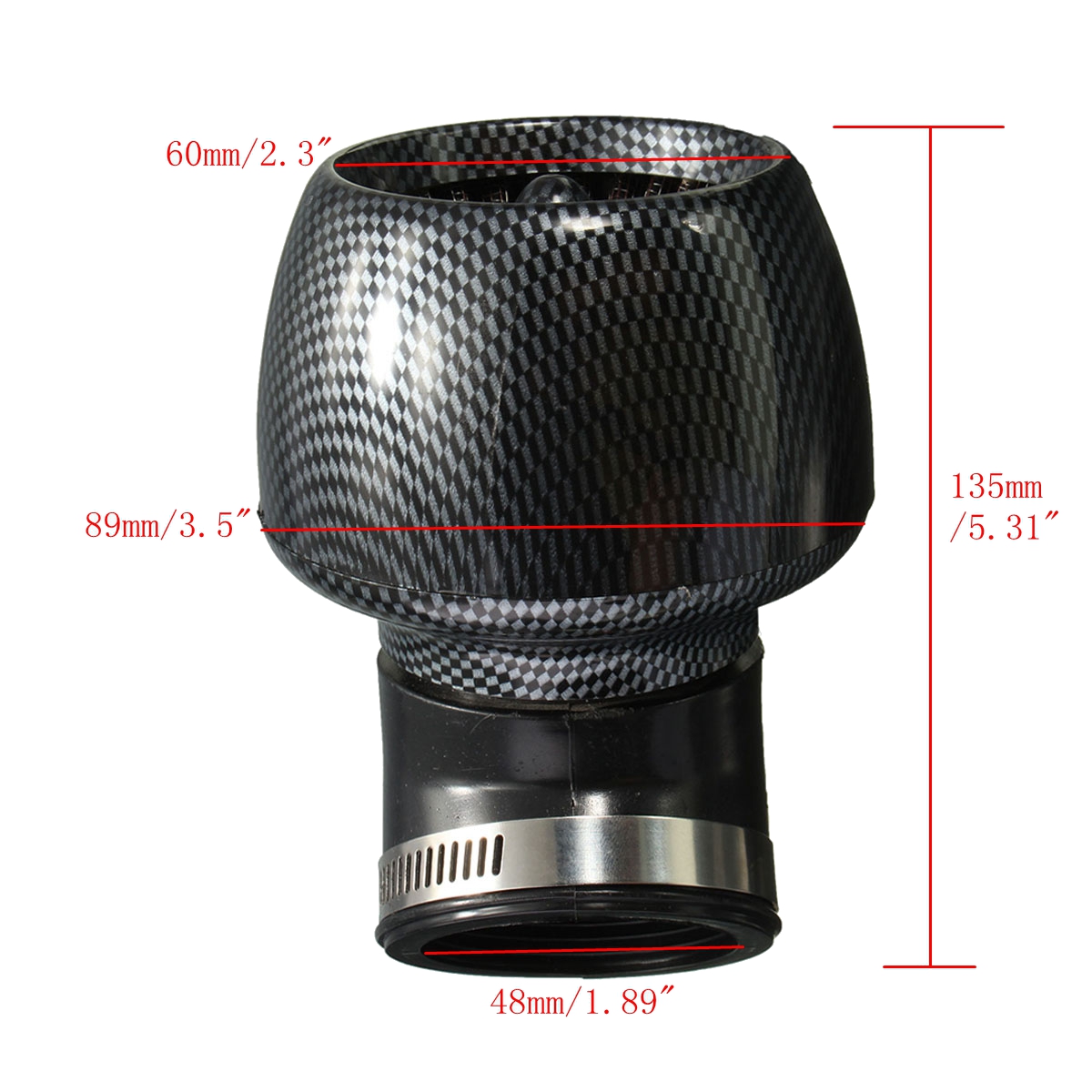

Inner Diameter of Neck 48mm/1.89"
Overall Height,including Neck: 135mm/5.31"
Width at Widest Point: 89mm/3.5"
Package size: 88 x 88 x 125mm
Fitment:
Models that this size air filter may fit include:
Some Honda CB 250 / 400 models / Superdream 79-85
Some Kawasaki models / GPZ305 models / GPZ600R
Some Suzuki GS models
Some Suzuki GSX 250 models
Some Yamaha models / XS400 SOHC 78-81 / XS250
Some Sym models
Some Triumph models / T120 Bonneville
Some larger pit bike engines above 160cc with upgrade carburettors such as Mikuni and Molke
Some Kazuma Cougar 250 quad bikes
Some Kazuma 250cc quads with choke levers
This item has been known to fit:
Mini Motos > Other Brands / Generic > Mini Moto Quad Type 2
Mini Motos > Other Brands / Generic > Mini Moto Dirtbike Original
Mini Motos > Other Brands / Generic > Racing Bike (Air Cooled)
Mini Motos > Other Brands / Generic > Mini Moto Dirtbike Coyote
Mini Motos > Other Brands / Generic > Mini Moto Dirtbike Extreme
Note:
We always suggest buyers check the connection size of their existing air filter and the available space around it
to ensure there is adequate space for any of our upgrades products within this size.
Instruction is not included.
Package Included:
1 X Air Filter
