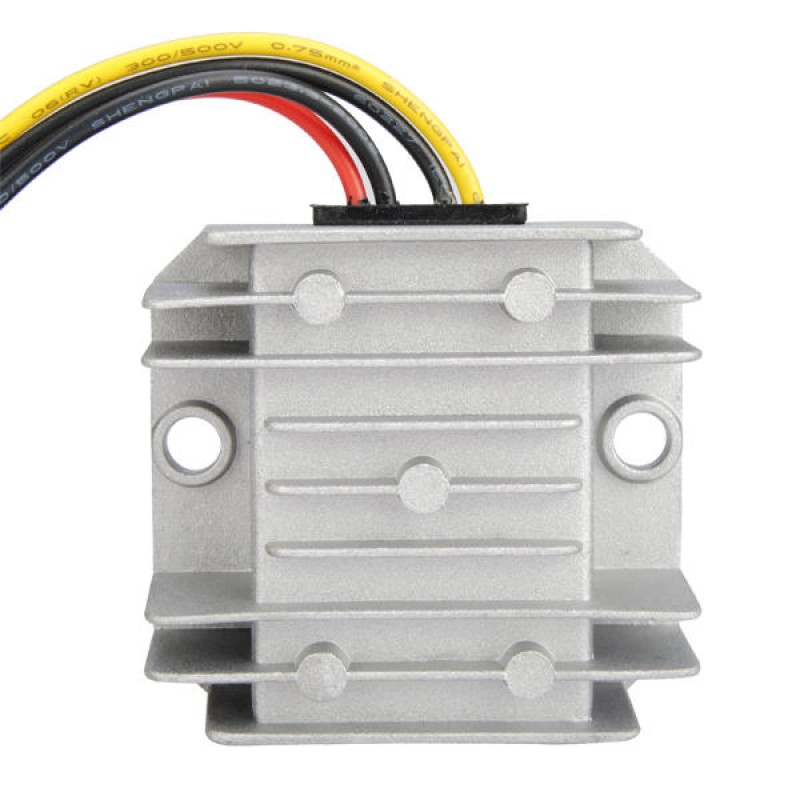

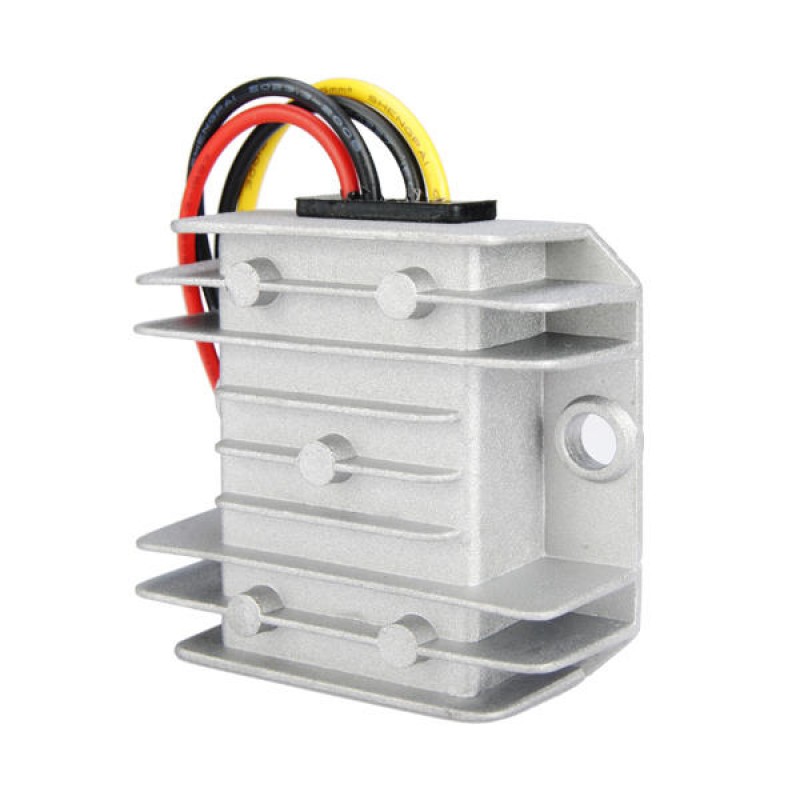

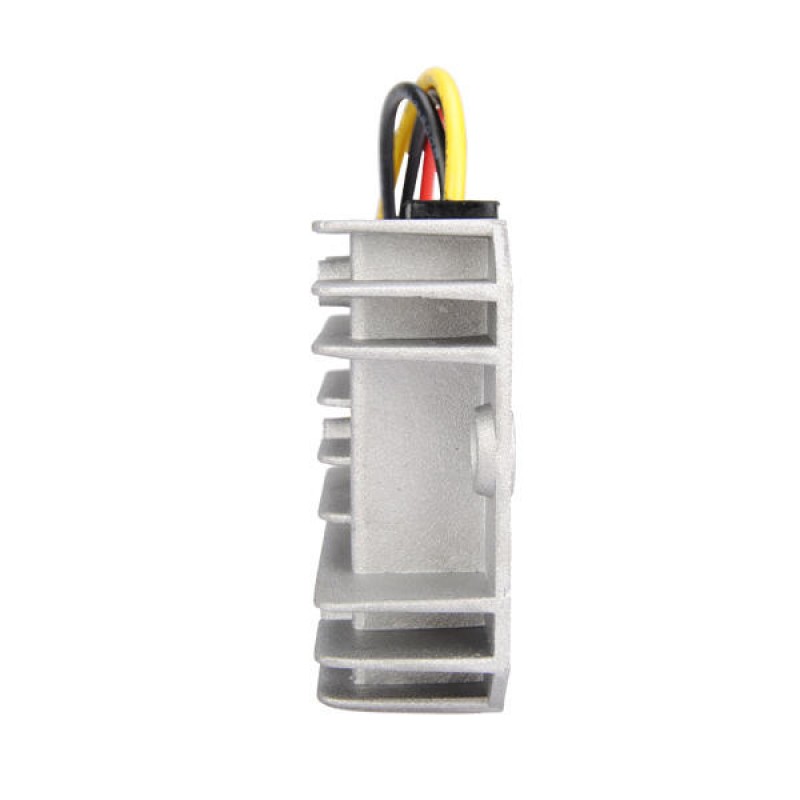

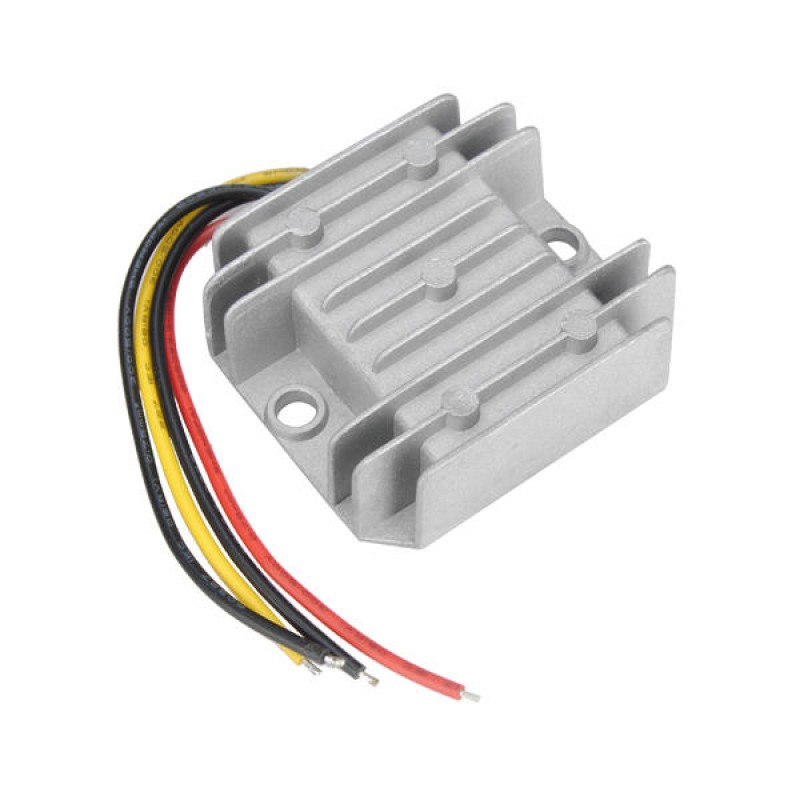

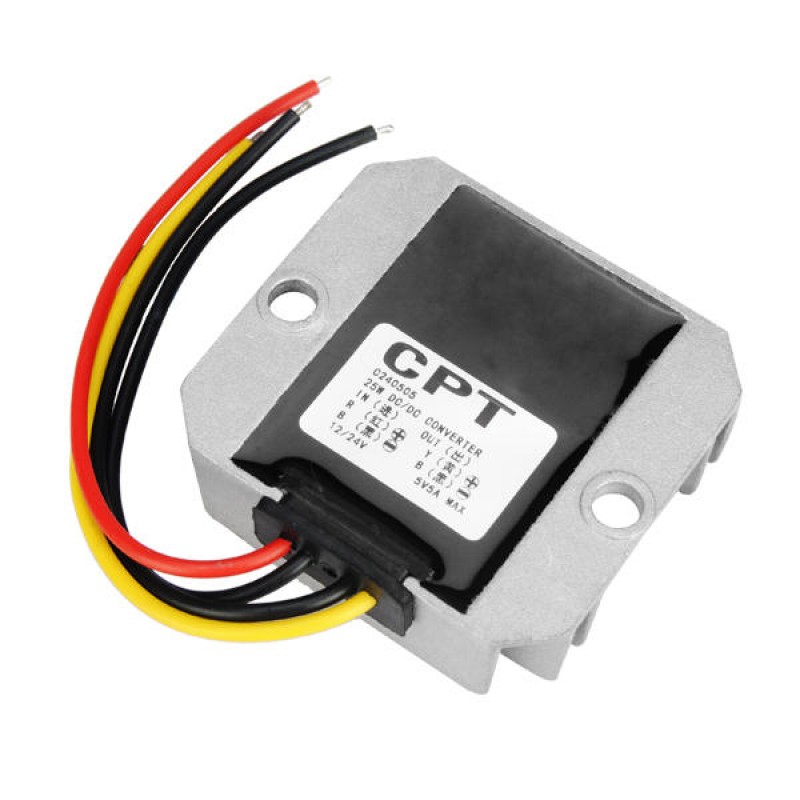

DC-DC 12V 24V To 5V 5A 25W Voltage Converter Step Down Buck Car Power Vehicle Power Supply
$12.33
- Product Code: ED0001586
- Availability: In Stock
- Ex Tax: $12.33
DC-DC 12V 24V To 5V 5A 25W Voltage Converter Step Down Buck Car Power Vehicle Power Supply
Description:
Specification:
1 X Voltage Converter
Product Details:
Description:
Product components are stable and reliable, the maximum conversion rate of 96%, heat is very low, synchronous rectification technology (5A long-term work without any additional cooling measures);
The product is epoxy potting, waterproof, shock, moisture, suitable for all kind of harsh environment;
This product has a short circuit protection, over-current, automatic recovery after overtemperature protection, barriers exclude.
The product is epoxy potting, waterproof, shock, moisture, suitable for all kind of harsh environment;
This product has a short circuit protection, over-current, automatic recovery after overtemperature protection, barriers exclude.
Specification:
Input Voltage: DC12 / 24V (8-35V)
Output Voltage: 5V
Output Power: 25W
Volume: 66 * 60 * 22MM
Module Properties: Non-isolated Buck Module (BUCK)
Rectification Methods: Synchronous Rectification
Conversion Efficiency: Up to 96%
Soft-start Time: 500MS
Output Ripple: 50mV (MAX) 20M-bandwidth
Operating Temperature: Industrial Grade (-40 ℃ to + 85 ℃) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
Full Load Temperature rise: 50 ℃
Load Regulation: ± 1%
Voltage Regulation: ± 2%
Dynamic Response Speed: 5% 200uS
Package Included:
Note:
1. Please wiring in strict accordance with the character, the need to fuse the input - positive and negative polarity voltage can not be reversed, it may damage the power module, the output voltage of negative polarity is reversed may damage electrical equipment.
2. To ensure that the module can output enough voltage and power, be sure to enter the power supply has enough voltage and power.
3. The need to pay attention to the maximum output current value of thermal power module (best left to give the module a certain current margin, which last longer, do not use the maximum extent possible)
