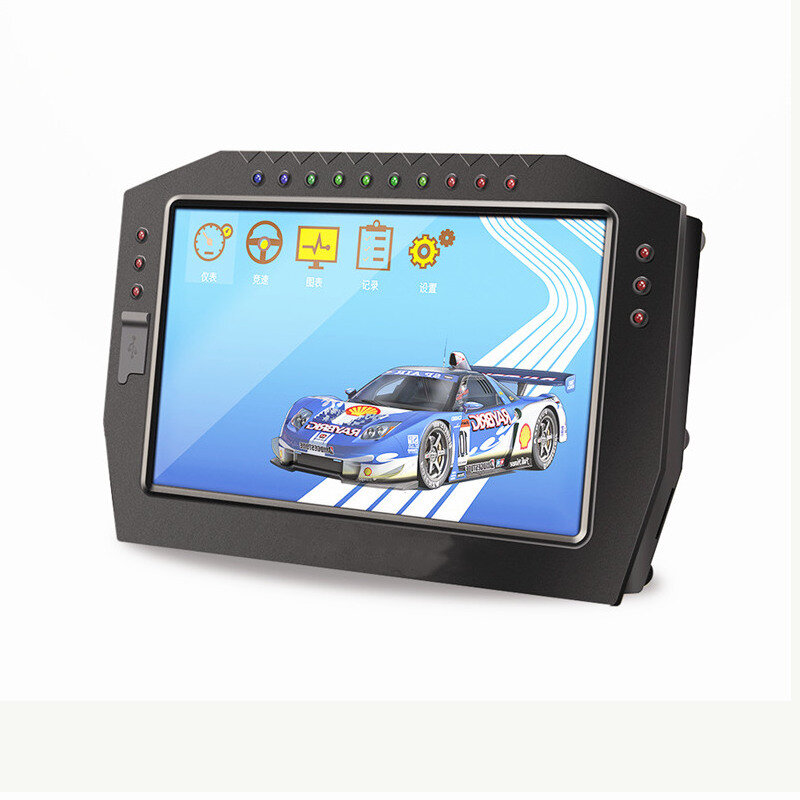

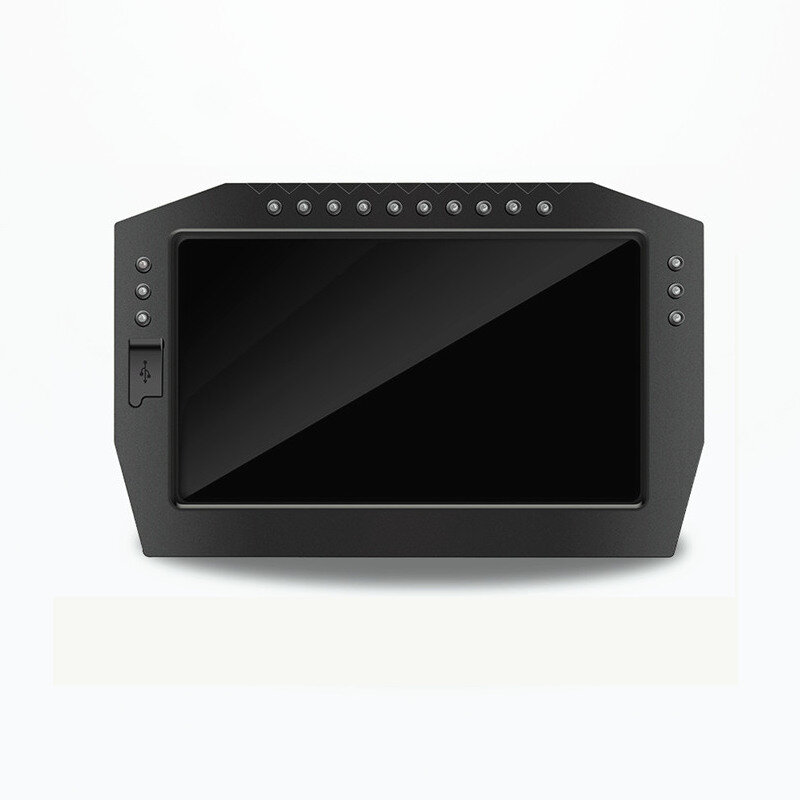

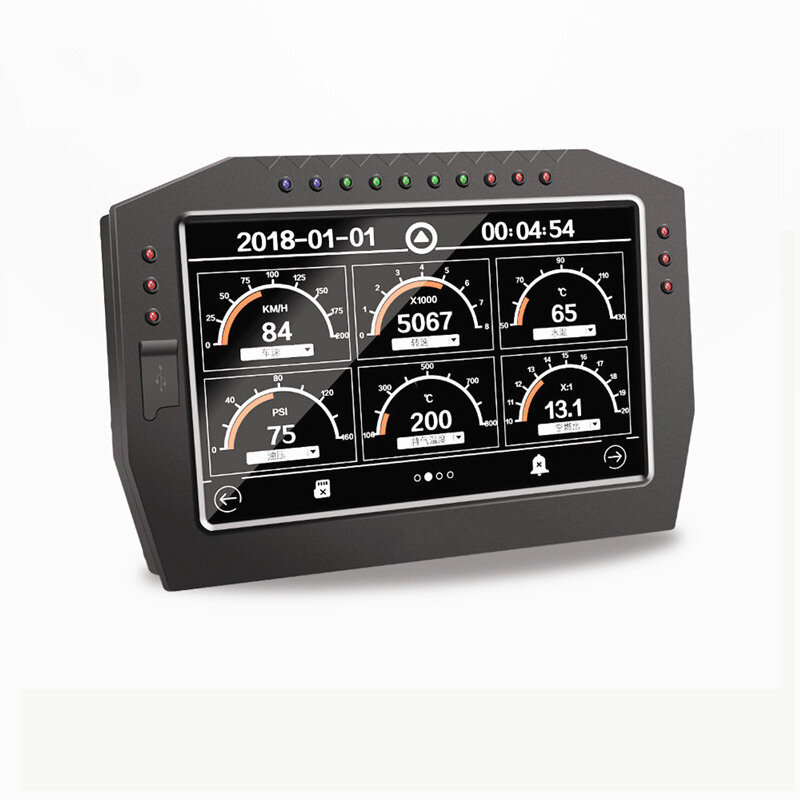

DO909 Car Multi-function Dash Race Dashboard Display Gauge Sensor LCD Screen Digital Gauge Kit Universal

$568.13

  • Product Code: ED0006098
  • Availability: In Stock
  • Ex Tax: $568.13

Tags: LCD

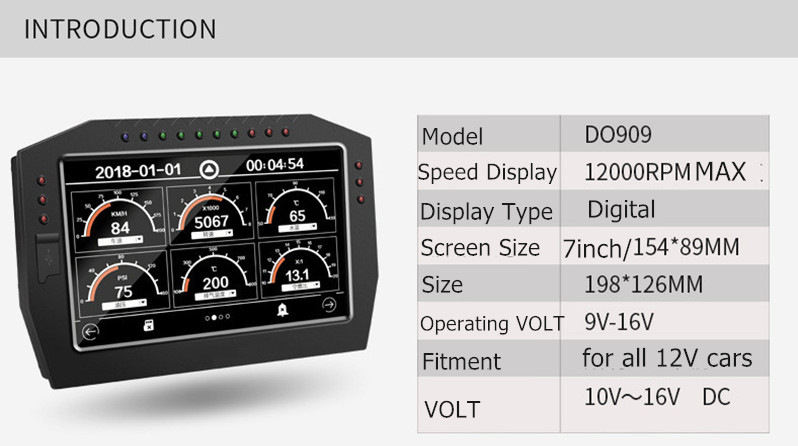

Descriptions:
Color:Back
Model: DO909
Screen Display :Digital

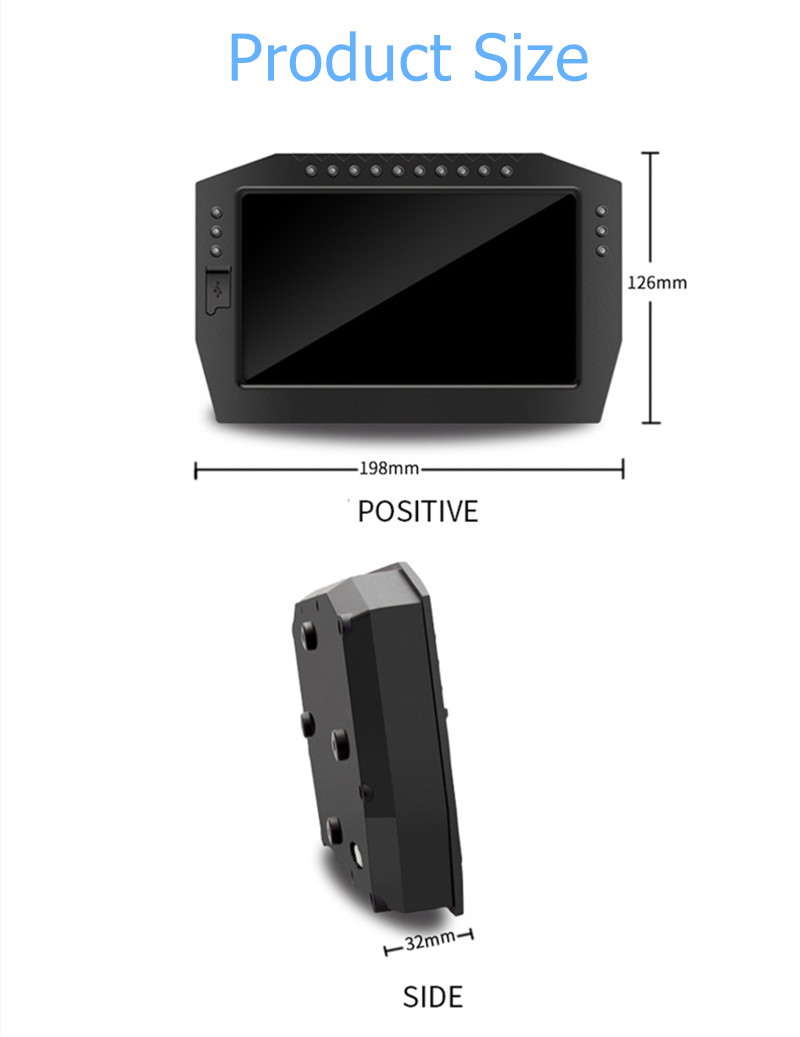

Screen Size:154x89mm
Product Size:198x126mm
Operationg VOLT: 9V-16V
Fitment: for 12V vechile
Weight:Approx 2kg

Features:

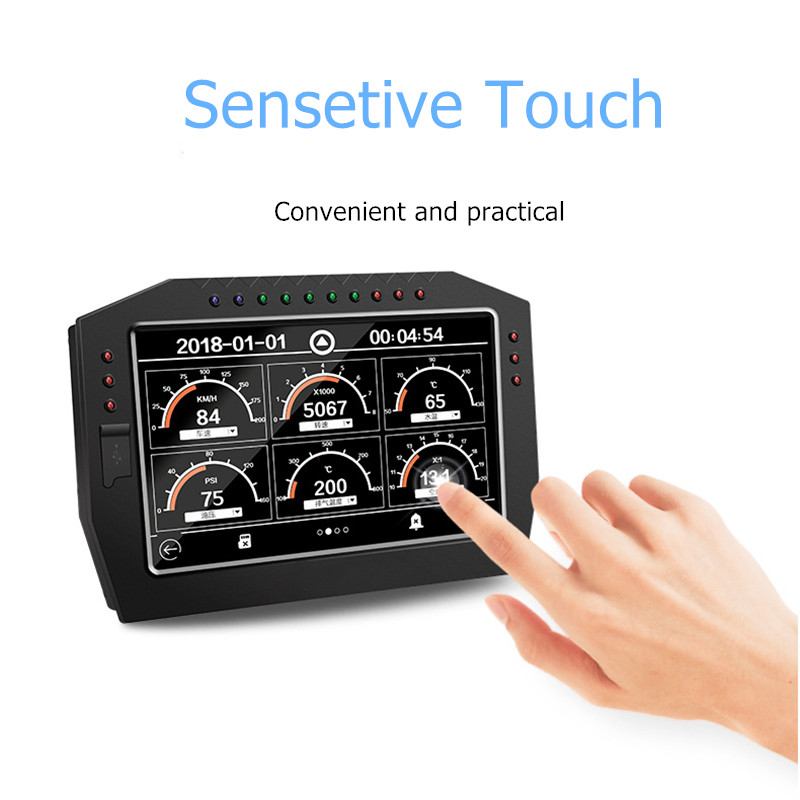

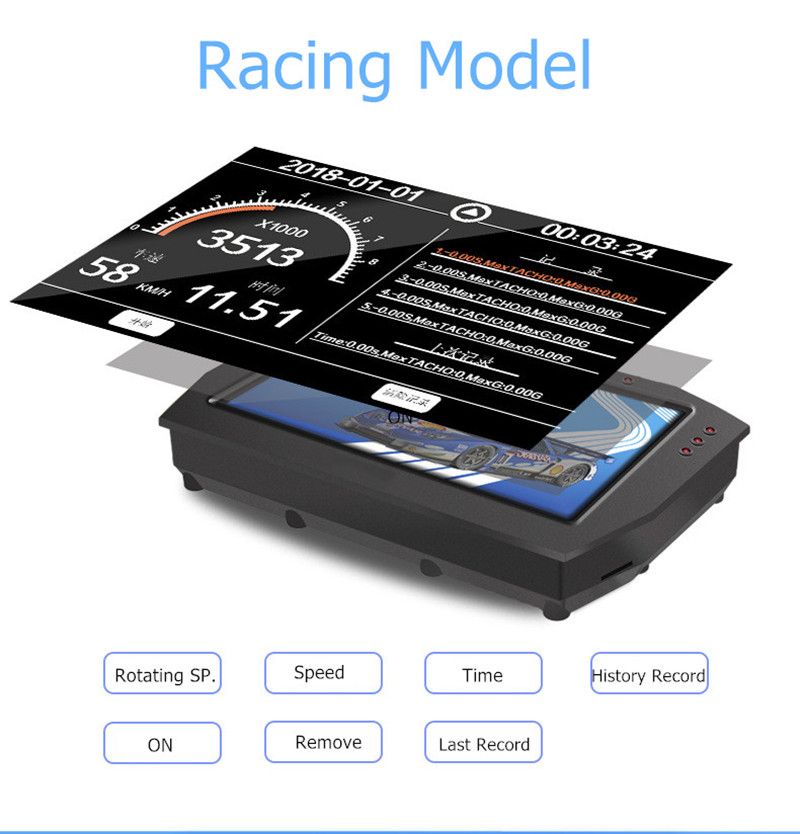

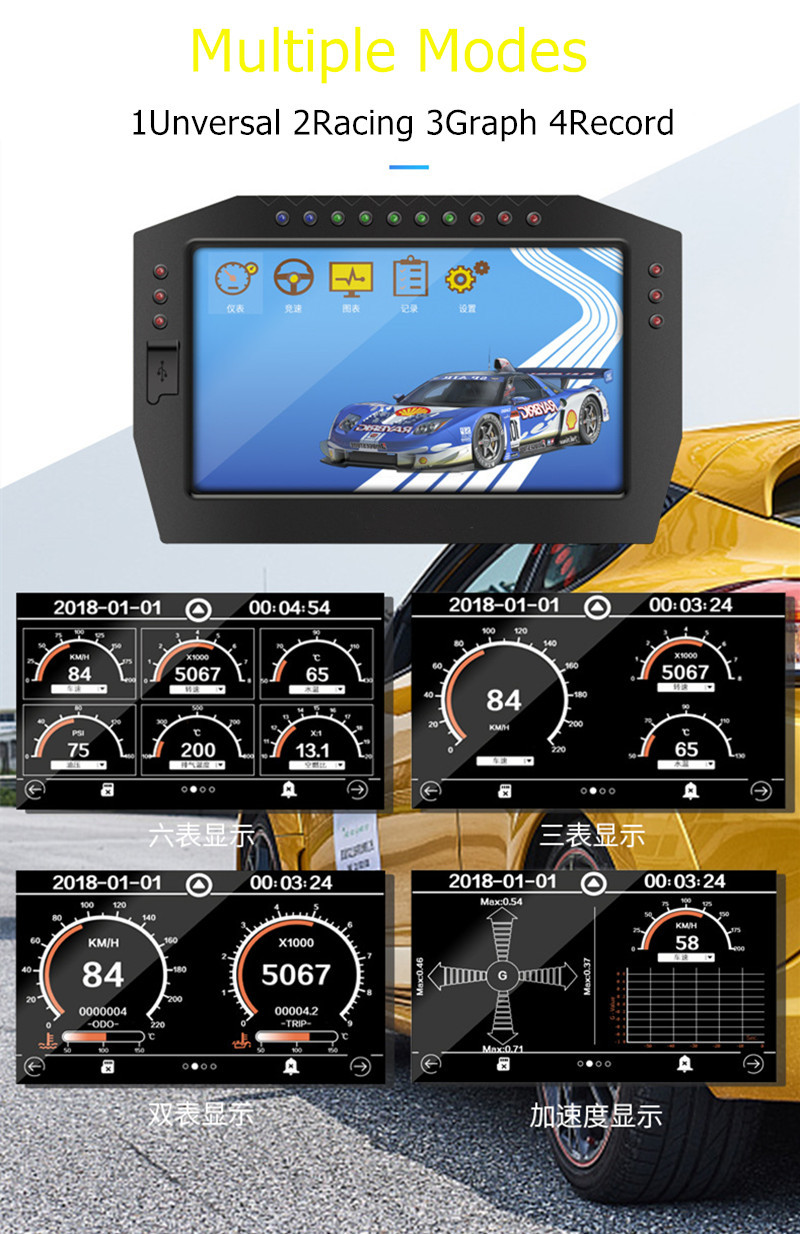

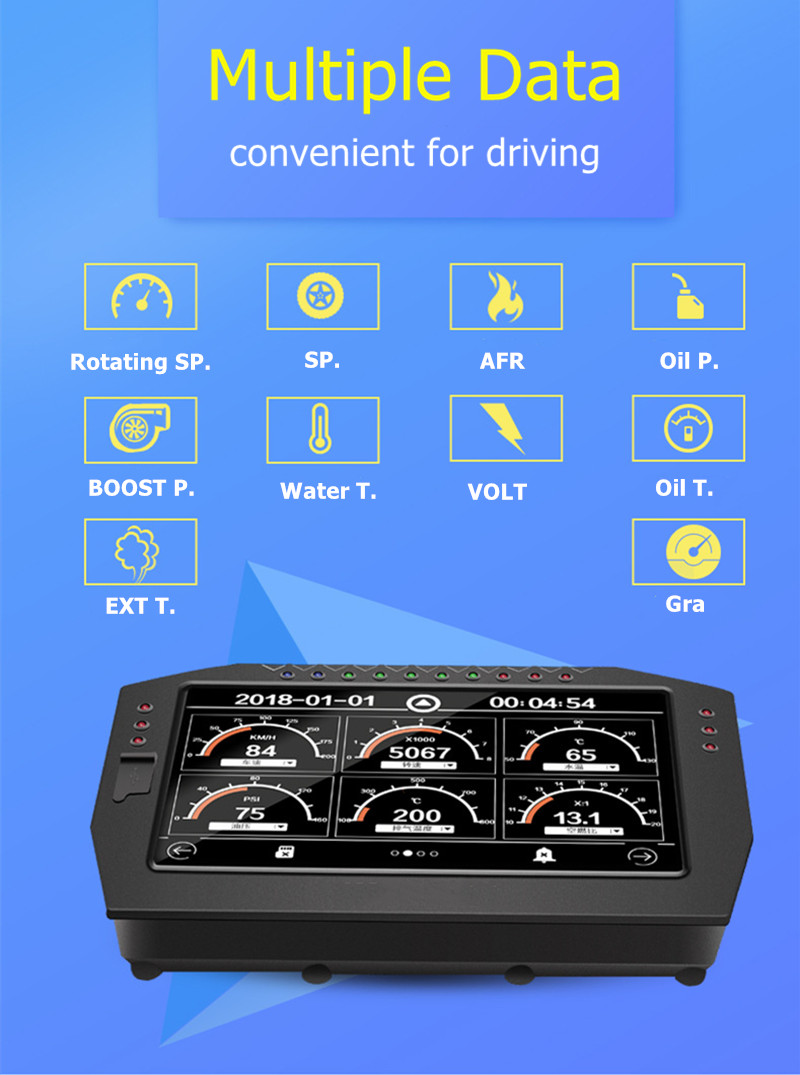

-4 models,10 kinds of data,LCD screen ,sensetive touch.
-Can be uploaded to a computer via TF.

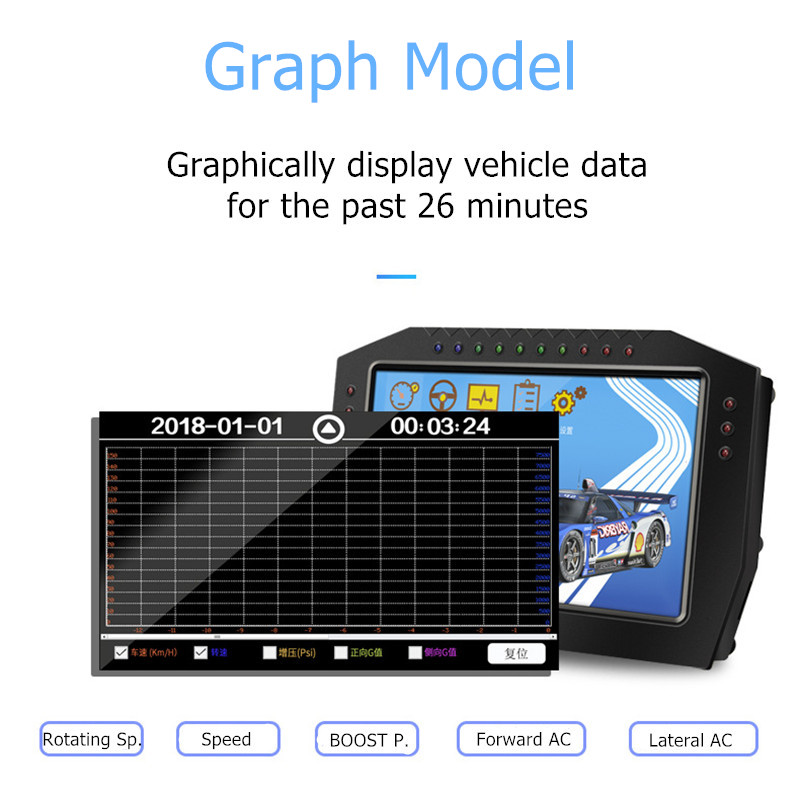

-Graphically display vehicle data for the past 26 minutes.

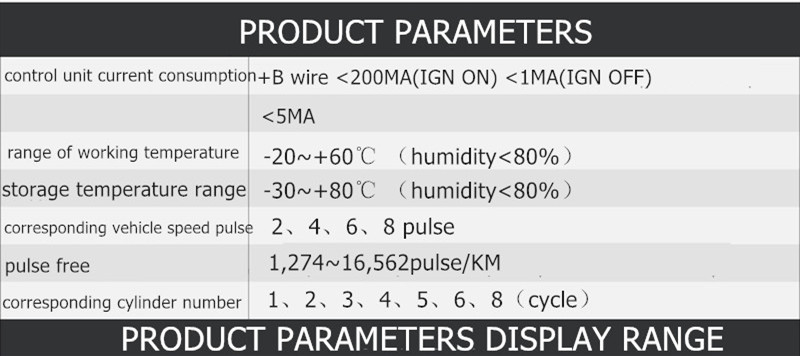

Parameters:
Control unit current consumption: +B wire <200MA(IGN ON) <1MA(IGN OFF)
Range of working temperature: -20~+60℃ (humidity<80%)
Corresponding vehicle speed pulse:2 / 4 / 6 / 8 pulse
Pulse free:1,274~16,562pulse/KM
Corresponding cylinder number
: 1 / 2 / 3 / 4 / 5 / 6 / 8(cycle)

Wiring instructions:
power in (Red~+12V Black~Ground White~ACC Yellow~Headlight+12V)
Boost P.sensor(Red~Sensor+ Green~Signal Black~Sensor-)
Oil P. sensor(Red~Sensor+ Green~Signal Black~Sensor-)
AFR sensor(Red~Sensor+ Green~Signal Black~Sensor-)
Oil .T sensor(Green~Signal Black~Ground)
Water .T sensor(Green~Signal Black~Ground)
EXT .T sensor(Green~Sensor+ Orange~Sensor-)
Rotating Signal(Green wire) Speed Sensor(Orange wire)
Interface (VAG)

Package Included:
1.Host display
2.Sensor converter
3.Booster pipe
4.Exhaust sensor
5.Data line
6.Sensor connection line
7.Oil.P Sensor
8.Fixing plate
9.Booster air filter
10.Booster Tee
11.Boost sensor
12.Exhaust sensor adapter
13.Oil / Water / Temp sensor

14.screws
