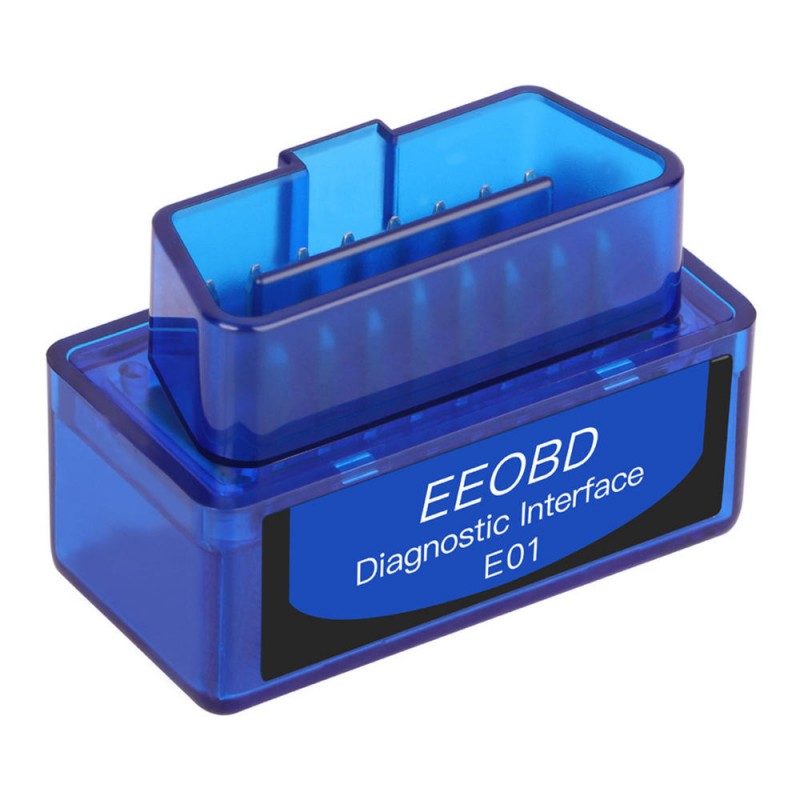

E01 ELM327 BT3.0 bluetooth Diagnostic Interface Tool OBD2 Scanner Fault Code Reader for 12V Car
$8.07
- Product Code: ED0007251
- Availability: In Stock
- Ex Tax: $8.07
Product Specification:
Brand: Elecdeer
Model: E01
Product Name: bluetooth Car Auto Diagnostic Interface Scanner
Communication method: Bluetooth
bluetooth version: BT3.0
bluetooth connection password: 1234
bluetooth effective distance: within 10 meters of obstacles; within 30 meters of obstacles
Output protocol: RS232
Baud rate: 38400
Product material: ABS
Product net weight: 20g
Product gross weight: 30g

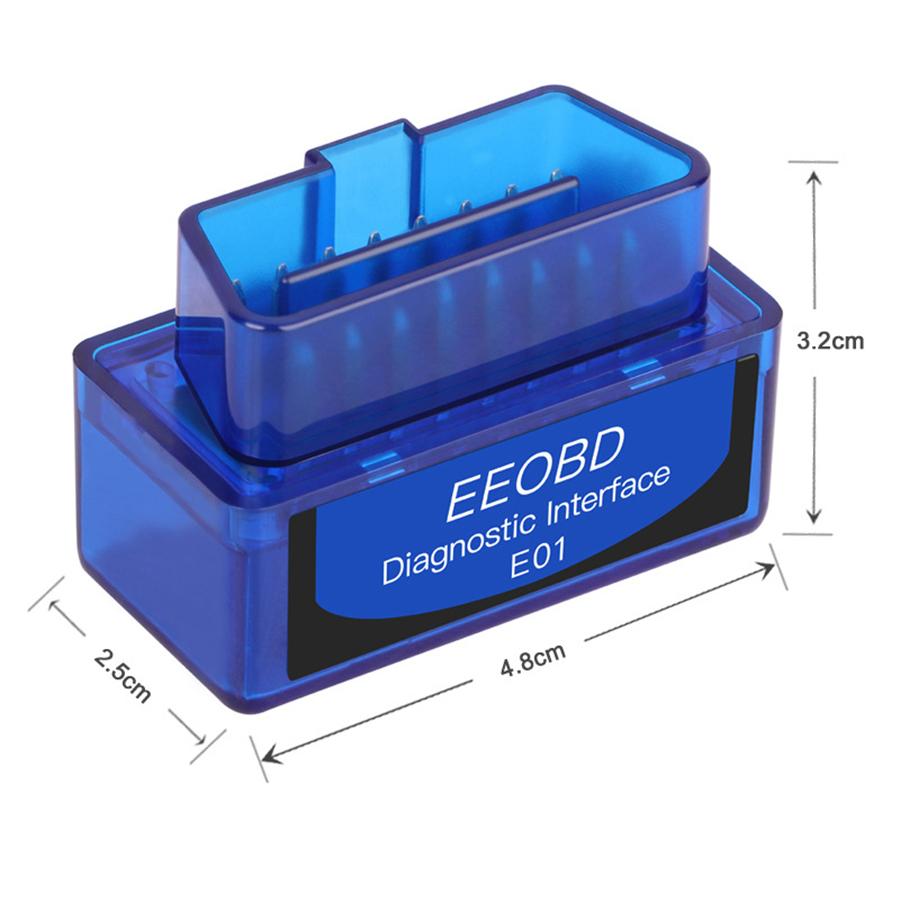

Product size: 4.8*2.5*3.2cm
Packing size 11*6.5*2.5 cm
Working voltage: DC 9-16V
Working current: 45 mA
Working temperature: -40 ° C to 80 ° C
Supported Vehicle Agreements:
1) ISO9141-2 (5 baud initialization, 10.4K baud)
2) ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
3) ISO14230-4 KWP (Quick Initialization, 10.4 Kbaud)
4) ISO15765-4 CAN (11-bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29-bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11-digit ID, 250 Kbaud)
7) ISO15765-4 CAN (29-bit ID, 250 Kbaud)
-SAE J1939 CAN (29-bit ID, 250 * Kbaud)
-USER1 CAN (11 * bit ID, 125 * Kbaud)
-USER2 CAN (11 * bit ID, 50 * kbaud)
Compatible Devices and Software:
for Android phone: TORQUE software
for Symbian phone: OBDscope software
for Windows 7 / XP system computer: ScanMaster-ELM software
EEOBD-E01 Features:
1. bluetooth 3.0, the connection is faster and more stable
2. Plug and play, quick installation
3. Mini size, easy to carry, does not affect driving after installation
EEOBD-E01 Function:
The E01 is a new high quality automotive fault detector in 2020 with the following features:
1. Read the fault code and display the code definition
2. Clear the general fault code and turn off the fault indicator (some important fault codes need to be repaired
before they can be completely cleared)
3. Read real-time speed
4. Engine speed
5. Coolant temperature
6. Battery voltage
7. Vehicle agreement type
8. Vehicle identification code
9. Display sensor data
10. Calculate the load value
11. Fuel system status
12. Short-term fuel adjustment
13. Long-term fuel adjustment
14. Absolute throttle position
15. Oxygen sensor voltage
16. Short-term fuel adjustment
17. Fuel system status
18. Fuel pressure
19. Throttle pressure
20. Timing in advance
21. Intake air temperature
22. Air flow and more.
EEOBD-E01 Vehicles Are Not Supported:
E01 products do not support trucks, trucks, carts, and 24V powered vehicles.

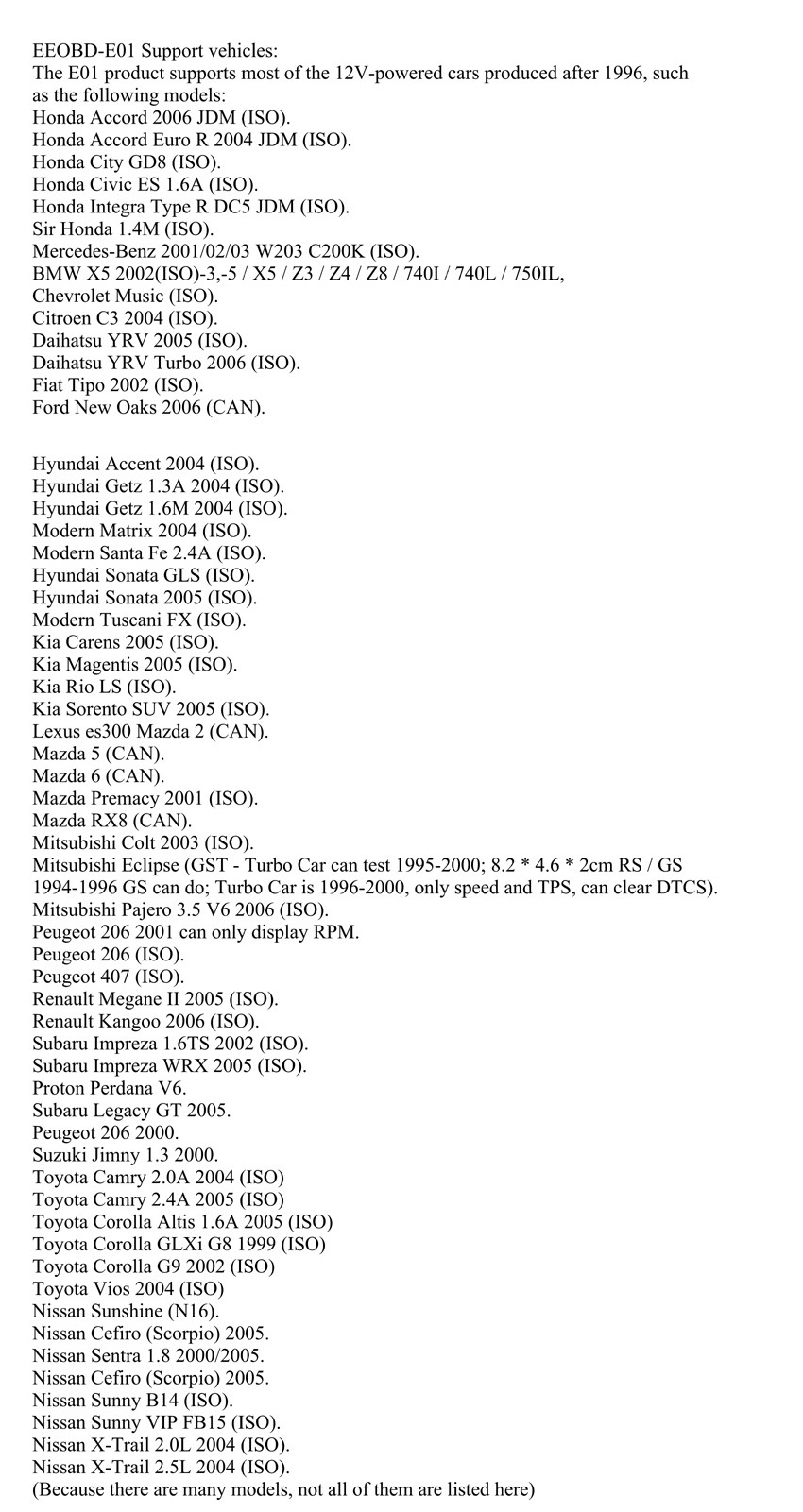

EEOBD-E01 Support Vehicles:
The E01 product supports most of the 12V-powered cars produced after 1996, such as the following models:

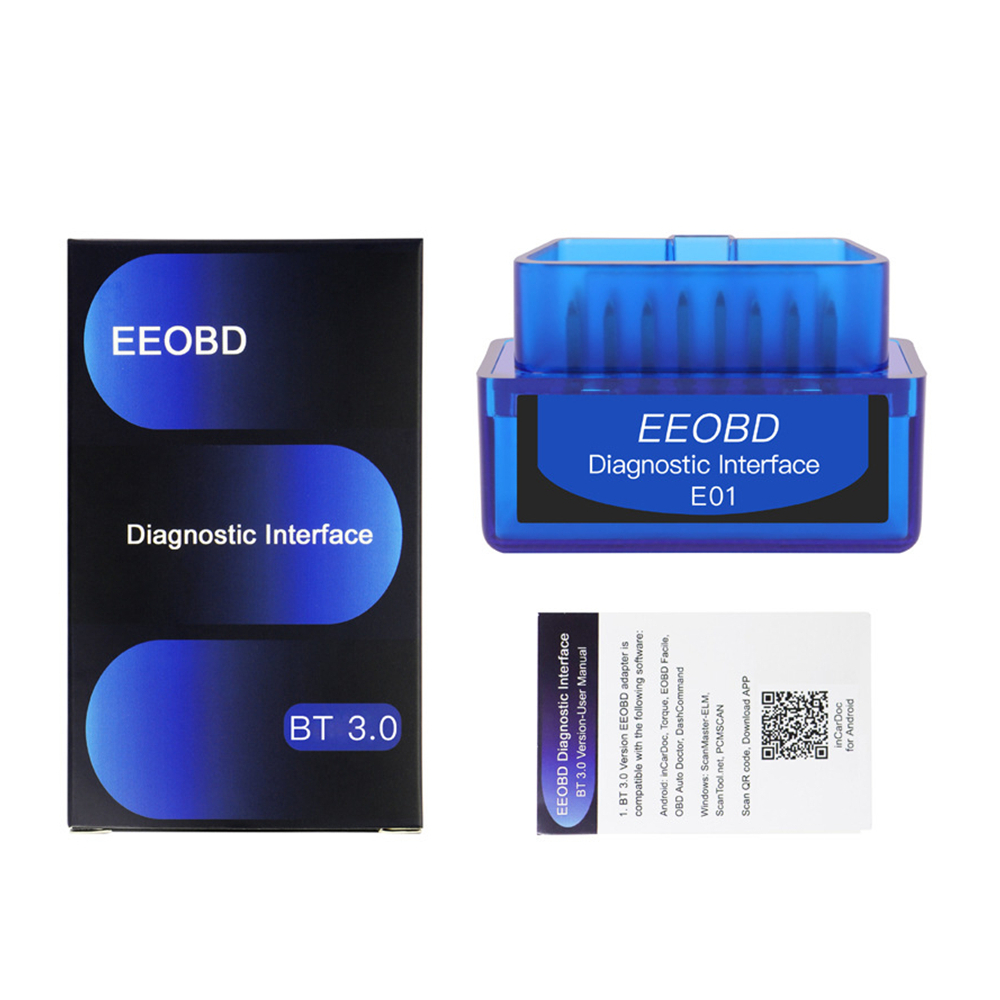

Packages Included:
1 x E01 bluetooth Car Diagnostic Interface Scanner
1 x English operating instructions
1 x Package Box
Brand: Elecdeer
Model: E01
Product Name: bluetooth Car Auto Diagnostic Interface Scanner
Communication method: Bluetooth
bluetooth version: BT3.0
bluetooth connection password: 1234
bluetooth effective distance: within 10 meters of obstacles; within 30 meters of obstacles
Output protocol: RS232
Baud rate: 38400
Product material: ABS
Product net weight: 20g
Product gross weight: 30g
Product size: 4.8*2.5*3.2cm
Packing size 11*6.5*2.5 cm
Working voltage: DC 9-16V
Working current: 45 mA
Working temperature: -40 ° C to 80 ° C
Supported Vehicle Agreements:
1) ISO9141-2 (5 baud initialization, 10.4K baud)
2) ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
3) ISO14230-4 KWP (Quick Initialization, 10.4 Kbaud)
4) ISO15765-4 CAN (11-bit ID, 500 Kbaud)
5) ISO15765-4 CAN (29-bit ID, 500 Kbaud)
6) ISO15765-4 CAN (11-digit ID, 250 Kbaud)
7) ISO15765-4 CAN (29-bit ID, 250 Kbaud)
-SAE J1939 CAN (29-bit ID, 250 * Kbaud)
-USER1 CAN (11 * bit ID, 125 * Kbaud)
-USER2 CAN (11 * bit ID, 50 * kbaud)
Compatible Devices and Software:
for Android phone: TORQUE software
for Symbian phone: OBDscope software
for Windows 7 / XP system computer: ScanMaster-ELM software
EEOBD-E01 Features:
1. bluetooth 3.0, the connection is faster and more stable
2. Plug and play, quick installation
3. Mini size, easy to carry, does not affect driving after installation
EEOBD-E01 Function:
The E01 is a new high quality automotive fault detector in 2020 with the following features:
1. Read the fault code and display the code definition
2. Clear the general fault code and turn off the fault indicator (some important fault codes need to be repaired
before they can be completely cleared)
3. Read real-time speed
4. Engine speed
5. Coolant temperature
6. Battery voltage
7. Vehicle agreement type
8. Vehicle identification code
9. Display sensor data
10. Calculate the load value
11. Fuel system status
12. Short-term fuel adjustment
13. Long-term fuel adjustment
14. Absolute throttle position
15. Oxygen sensor voltage
16. Short-term fuel adjustment
17. Fuel system status
18. Fuel pressure
19. Throttle pressure
20. Timing in advance
21. Intake air temperature
22. Air flow and more.
EEOBD-E01 Vehicles Are Not Supported:
E01 products do not support trucks, trucks, carts, and 24V powered vehicles.
EEOBD-E01 Support Vehicles:
The E01 product supports most of the 12V-powered cars produced after 1996, such as the following models:
https://www.elecdeer.com/image/catalog/download/pdf/20191125203502E01BT3.0productspecification.pdf
(Because there are many models, not all of them are listed here)Packages Included:
1 x E01 bluetooth Car Diagnostic Interface Scanner
1 x English operating instructions
1 x Package Box
