EL-50448 GM Tire Pressure Reset Meter 2-in-1 Universal Auto Tire Pressure Monitor Sensor for Ford
$30.56
- Product Code: ED0006994
- Availability: In Stock
- Ex Tax: $30.56
- 2 in 1 TPMS Tool: Super EL50448 works as both EL-50448 GM series and EL-50449 for Ford Series TPMS19 tire sensor reset tool.
- Wide Vehicle Coverage: tps relearn tool work on most General Motors /for Ford/Buick/Cadillac/Chevrolet/GMC/Lincoln/Mercury equipped tpms tire pressure monitor system can be reset.
- Easy to Use: Super EL-50448 TPMS activation tool with ease, faster operation, activates the in dividual TPMS sensors by pressing one button;

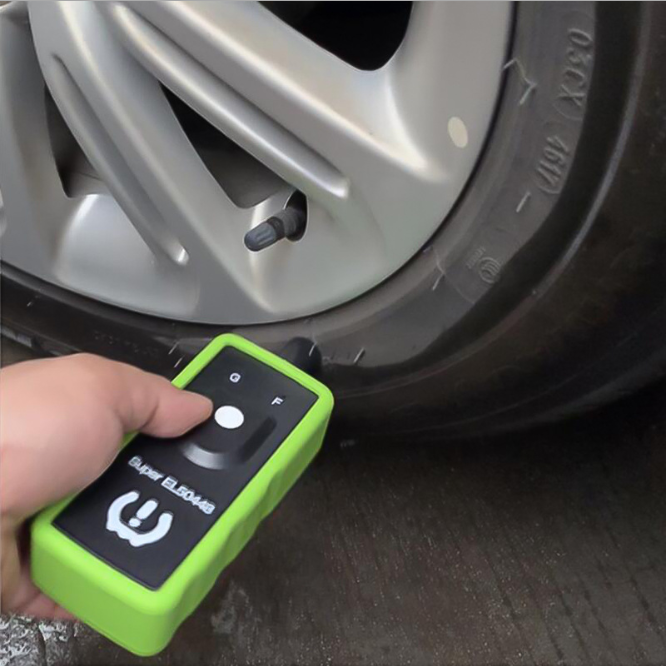

- How to Use:Ensure that the vehicle is in the relearn mode, and following the service procedure. Hold tool against the sidewall of the tire, near the valve stem. Depress press button while holding the tool against the tire sidewall.

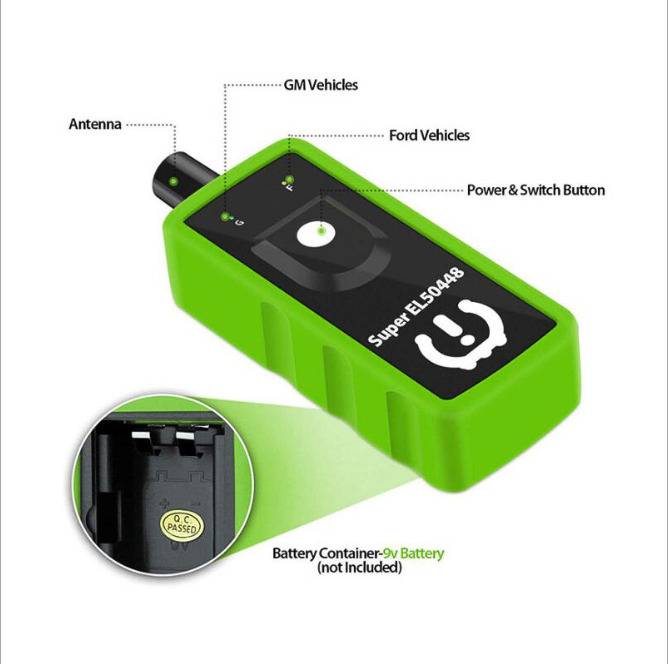

- Notice: 1. When using tpms relearn tool GM for Ford, please make sure antenna in correct position . 2. And 9V battery should be in good condition.
Applicable Models:
2006-2019 For almost all GM Series vehilces: Buick, Cadillac, Chevy, GMC,Opel
2006-2010 For Saab, Pontiac,Hummer, Saturn
2007-2014 for Ford F-150,Edge; 2008-2015 F-250 F-350 F-450 F-550 Super Duty
2006-2015 Mustang; 2006-2015 Escape; Explorer
2008-2015 Expedition,Flex,Taurus,E-150 E-250 E-350 E-450 Econoline Vans,Fiesta,Focus,Fusion; Lincoln MKZ, MKS,Navigator
2008-2011 for Ford Crown Victoria,Lincoln Town Car
2011-2015 for Ford Transit Connect
2006-2011 for Ford Ranger;Mercury Mariner,Grand Marquis,Milan
2007-2015 Lincoln MKX,MKT;2007-2008 Lincoln Mark LT
2006-2010 Mercury Mountaineer,Monterey
(Equipped with 315/433 MHz, It won't work if you've purchased aftermarket sensors with wrong frequency.)
When you need this tire relearn tool?
1. New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.
2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
3. When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
5. Exchanging the winter tires or Summer tires.
How to set my car in TPMS re-learn mode?
***For GM series vehicles***
1. Make the gear in P position.
2. Use cruise to choose TPMS re-learn mode in the dashboard settings.
3. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.
***For Ford series vehicles***
1. Make the gear in P position.
2. Ignition switch to OFF, press and release the brake pedal.
3. Turn ignition switch from OFF position to RUN position 3 times and end at RUN position.
4. Depress and release the brake pedal.
5. Ignition to OFF position.
6. Ignition goes from OFF position to RUN position 3 times and ends at RUN position.
7. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.
