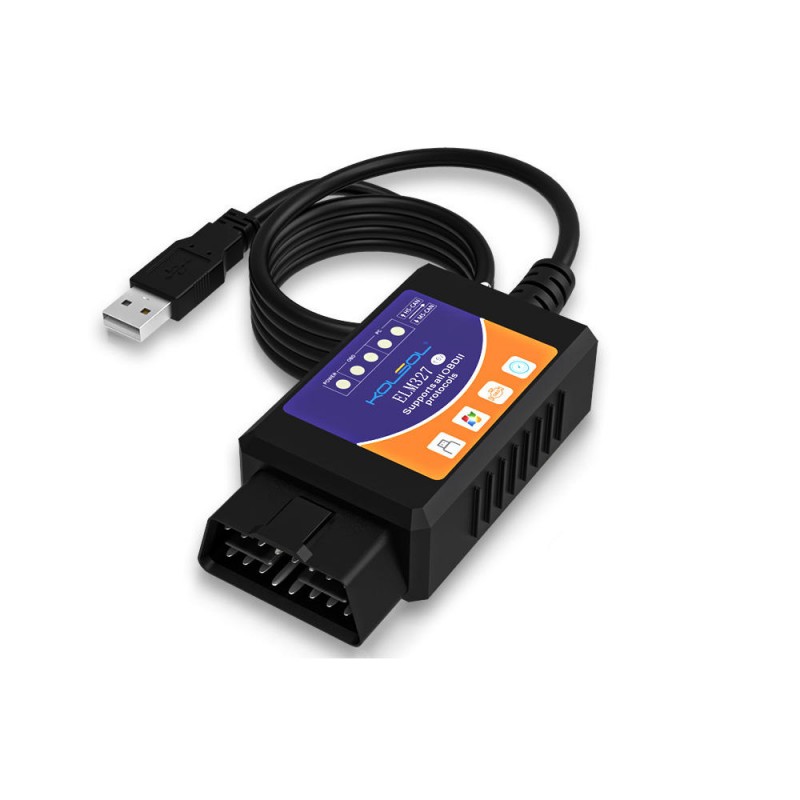

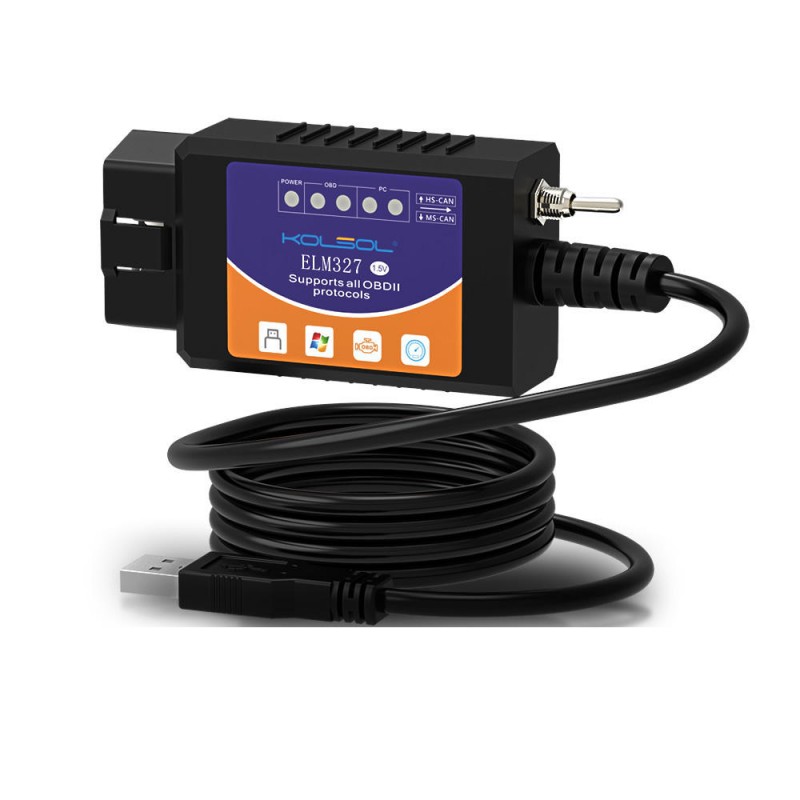

ELM327 V1.5 USB Car OBD2 Automobile Diagnostic Scanner Tool With Switch Modified 12V For Ford
$14.59
- Product Code: ED0006740
- Availability: In Stock
- Ex Tax: $14.59
KOLSOL ELM327 V1.5 USB OBD2 Automobile Diagnostic Scanner Tool With Switch Modified 12V For Ford
Specifications:
SSID: USB OBD2
Ranging: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Highlights:
1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.
2.Support FORD models open hidden function.
3.It supports all OBD-II protocols.
4. ELM327 Will work with 12 V gasoline and diesel vehicles.Requires OBD II protocols.
5.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.
6.Supported System:Windows XP, Windows 7
Functions:
1.Read/erase fault codes from all modules, including OBD2/EOBD
2.Access modules on both HS-CAN and MS-CAN mode
3.Read vehicle configuration
4.Actuator tests
5.Live Data
6.Injector coding
7.Software update
8.Service program
9.Force DPF regeneration
10.Programming
11.Coding
12.Adaptation
Vehicle Coverage:
Other mainstream models that comply with the international standard obd2 agreement.
Supported Software:
ELMconfig
Forscan
FOCCCUS
FF2
Supported protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
User Manual:
Package includes:

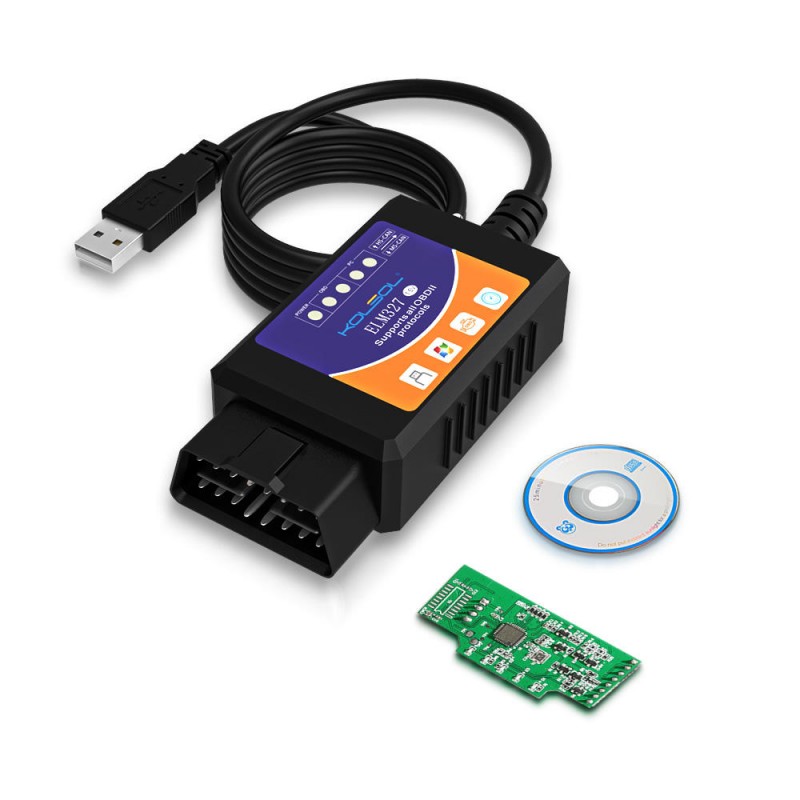

1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
1PC x CD-ROM
Specifications:
SSID: USB OBD2
Ranging: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Highlights:
1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.
2.Support FORD models open hidden function.
3.It supports all OBD-II protocols.
4. ELM327 Will work with 12 V gasoline and diesel vehicles.Requires OBD II protocols.
5.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.
6.Supported System:Windows XP, Windows 7
Functions:
1.Read/erase fault codes from all modules, including OBD2/EOBD
2.Access modules on both HS-CAN and MS-CAN mode
3.Read vehicle configuration
4.Actuator tests
5.Live Data
6.Injector coding
7.Software update
8.Service program
9.Force DPF regeneration
10.Programming
11.Coding
12.Adaptation
Vehicle Coverage:
| America | for Chrysler, for Dodge, for Jeep,for Ford, for Chevrolet, for Cadillac, for Lincoln, for Buick, for Hummer, etc. |
| Asia | for Honda, for Nissan, for Lexus, for Toyota, for Mazda, for Mitsubishi, for Hyundai, for Kia, for Isuzu, for Suzuki, for Land Rover, for Daewoo, for Chery, for BYD F3/F0, for Infiniti, for Subaru, etc. |
| Europe | for Audi, for BMW, for Citroen, for Fiat, for Mercedes, for Opel, for Peugeot, for Renault, for SEAT, for Skoda, for Volvo, for Volkswagen, for Jaguar, for Lamborghini, for Maserati, for Bentley, for Rolls Royce, for Porsche,for Opel, for Lancia, for Mclaren , for Ferrari, etc. |
Supported Software:
ELMconfig
Forscan
FOCCCUS
FF2
Supported protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
User Manual:
Package includes:
1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
1PC x CD-ROM
