GPS Active Marine Navigation Antenna 10 Meters With BNC Male Plug Connector New
$23.58
- Product Code: ED0009994
- Availability: In Stock
- Ex Tax: $23.58
Specification:
-Basic Color:White
-Cable Length:10M
-Connector:BNC plug default
-Cable:SYV-50-3
-Center frequency:1575mhz+/-5 MHZ
-V. S. W. R:<1.5
-Band width:CF±5MHz
-Impendence:50 ohm
-Gain:≥28DB
-Polarization:RHCP
-Lna gain(without cable):42±2dB
-Filter Insertion Loss:<3dB
-Noise figure: <1.3
-Current Consumption: 18~35mA
-DC Voltage: 3~5V DC

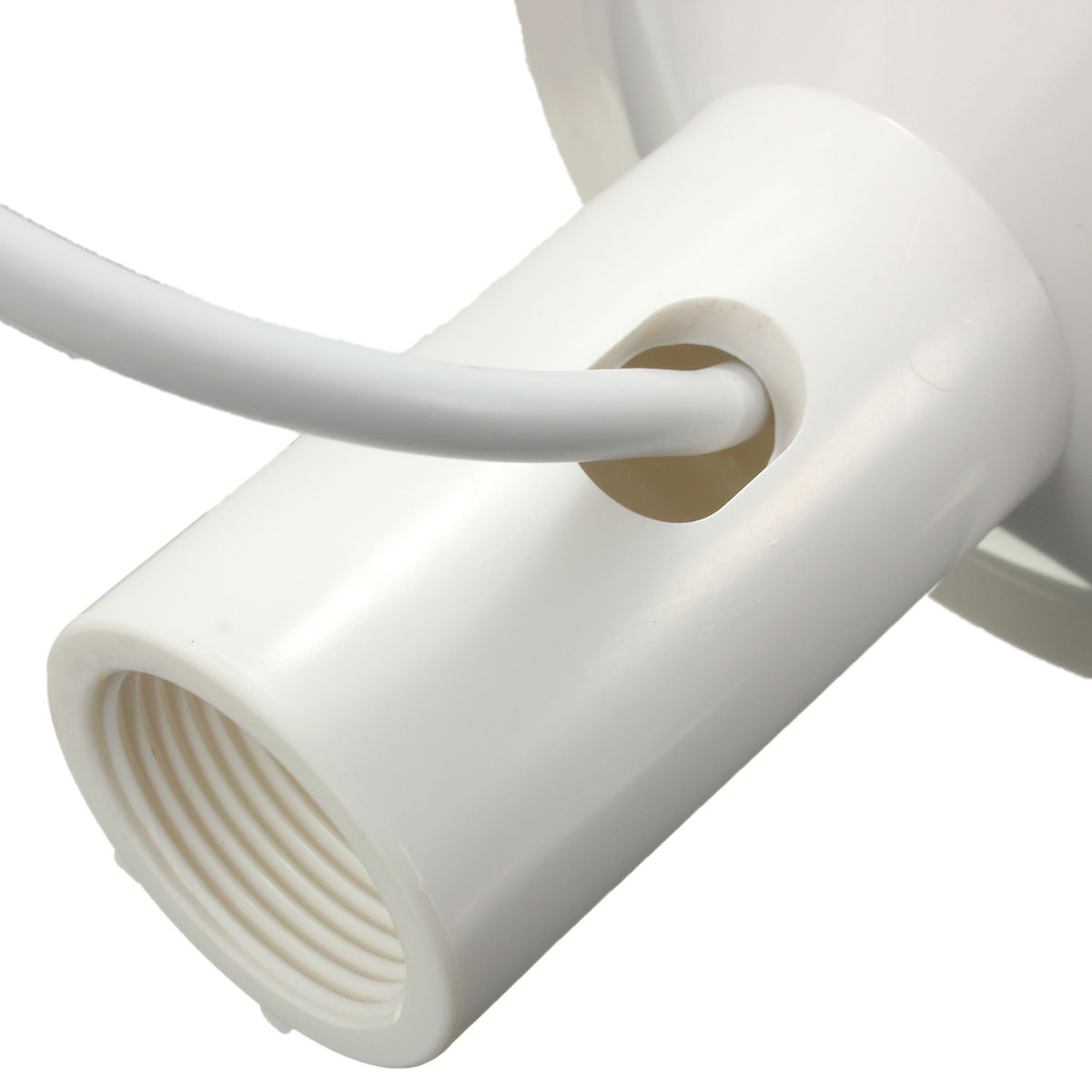

-Mounting base:screw thread connection ( G3/4 )
-Working temp:-40~+60
-Storage temp:-50~+85
-Vibration sine sweep:1g(0-p)10~50~10hz each axis
-Humidity:95%~100%rh
-Weatherproof:100%
Features:
-Durable
-High quality Material
-Good performance
Package Included:
1 x 10M GPS Marine Navigation Antenna
,,,,,
