Description:

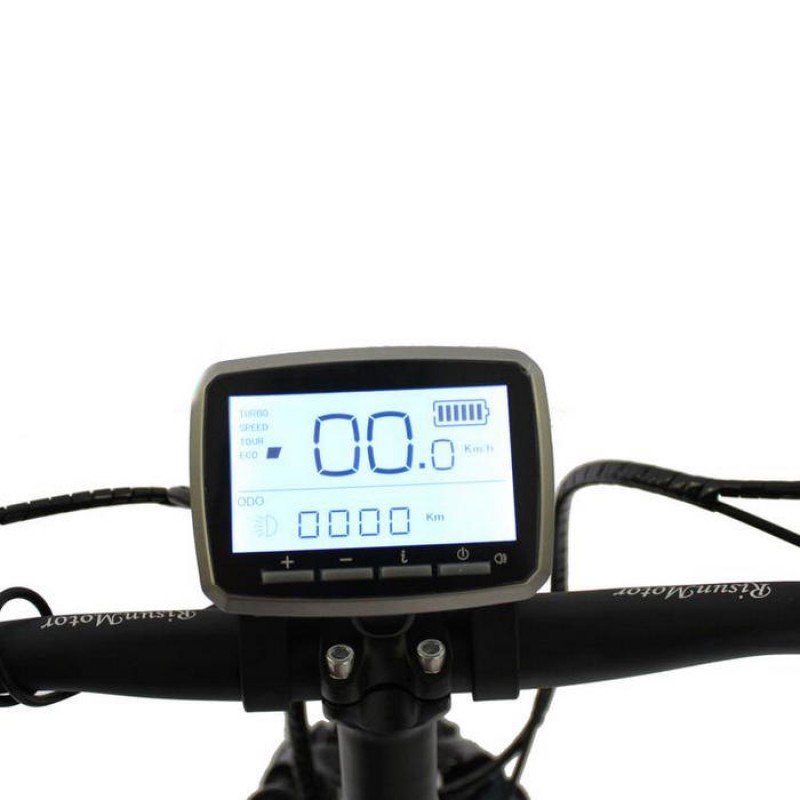

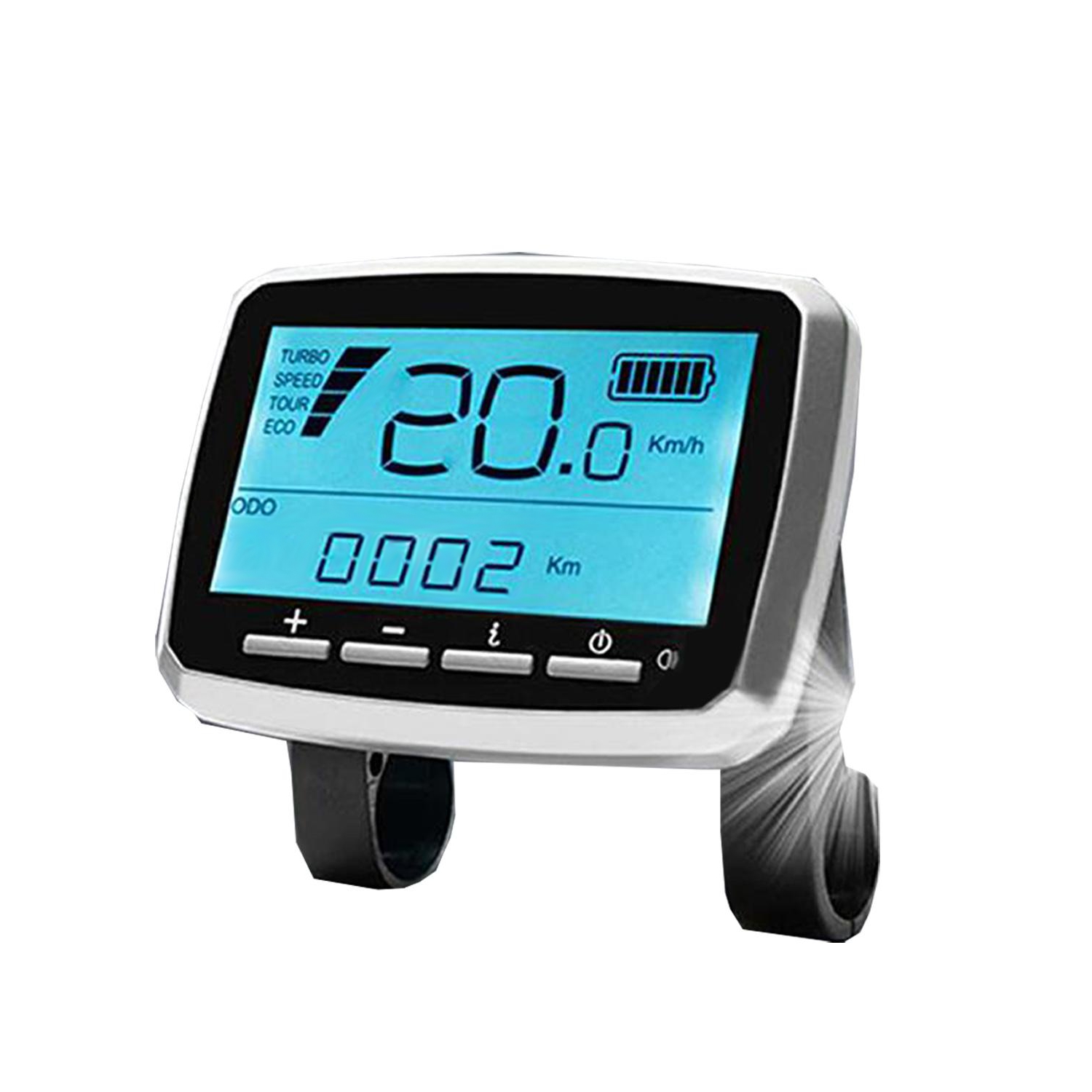

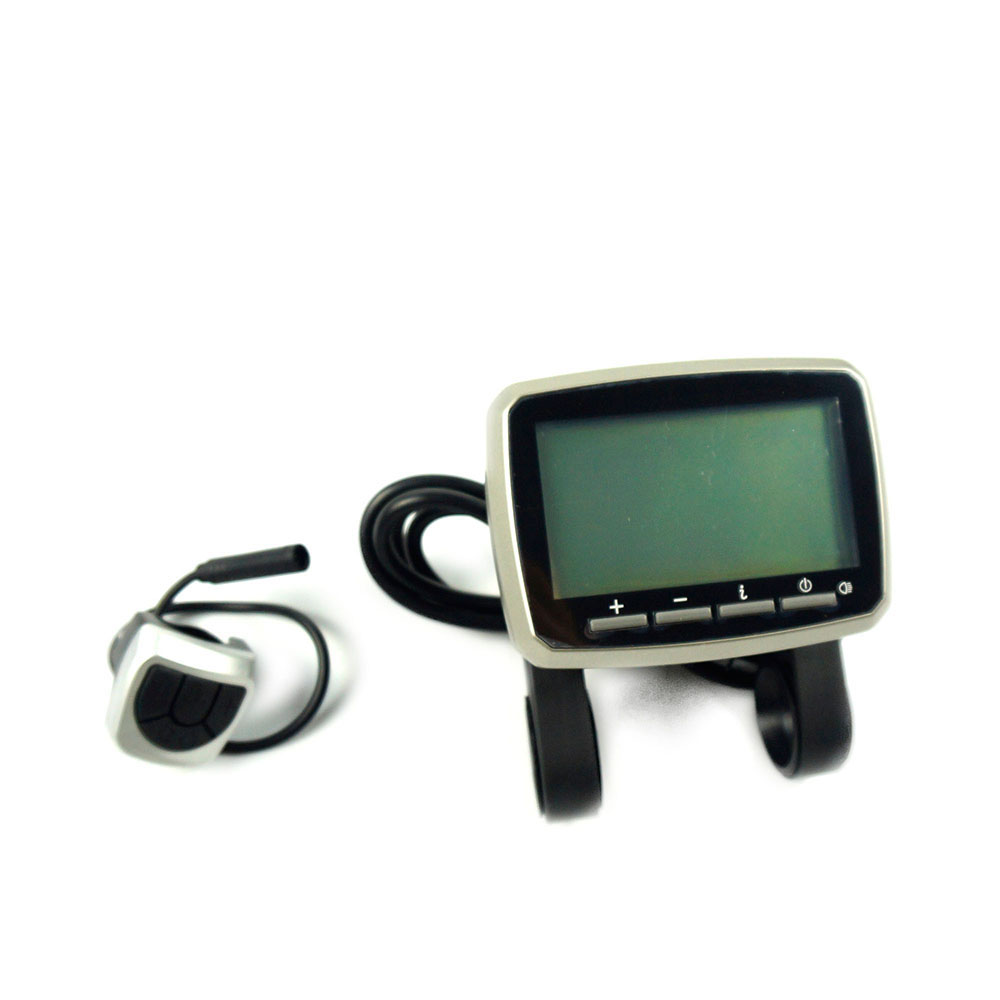

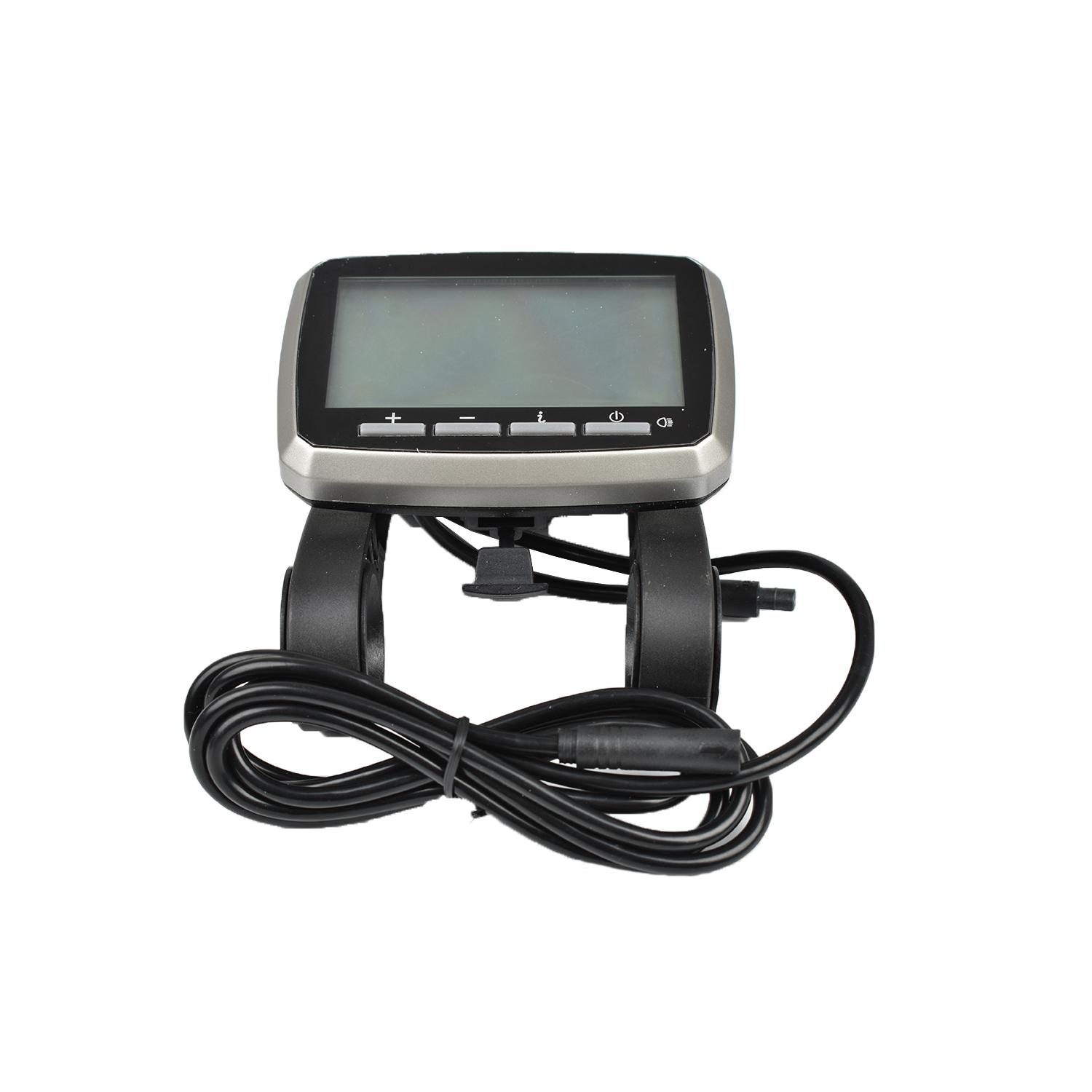

Intelligent VLCD-5 instrument is especially designed for electric bicycle.
It’s mainly used to control the power assist, also can show the consumption of battery, measure the speed of electric bicycle and record the trip distance.
Sealed waterproof(IPX6)
Easy installation
Specification:
Working Voltage: DC 11V-60V
Material: ABS+PC with special particles
Max working current: 70mA(11V) 32mA(50V)
Display Type:21*4 segment LCD
Measuring the speed:1-12 pulses each round of wheel
Working temperature: -200℃—+700℃
Backlight: White LED mode, brightness:200cd/m2

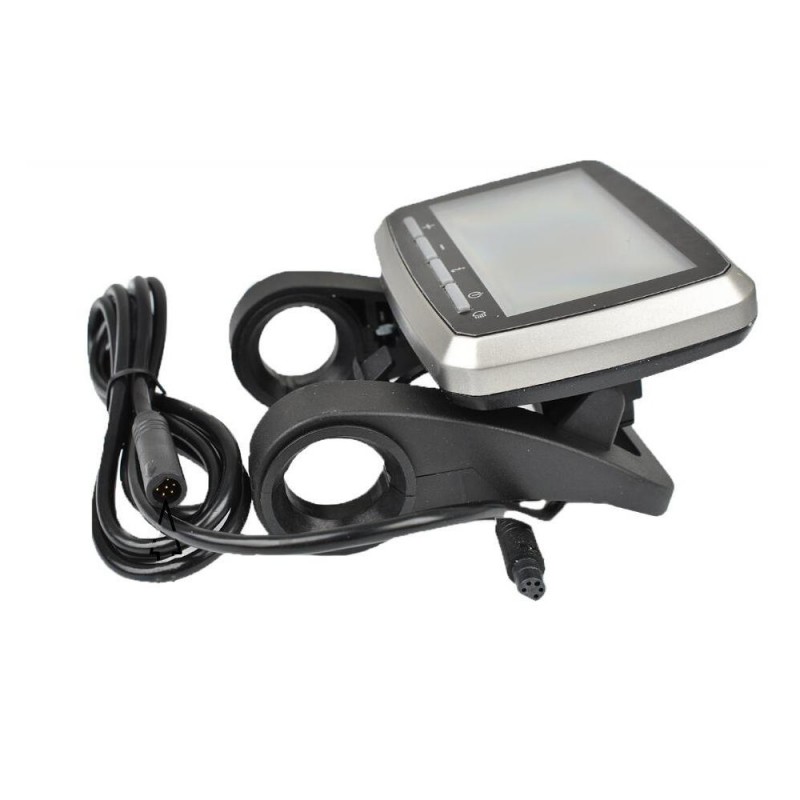

Handlebar size for Holding: φ22.2mm handle bar
Dimension: 102.5mm×75.5mm×28mm (Exclude the Thickness of Pedestal)
USB charging port: 5V/500mA
Function:PAS Level/Speed/TRIP/Background light/Battery Indicator/diagnostic code
Note:
1.This VLCD5 display for TSDZ2 electric bicycle central mid motor

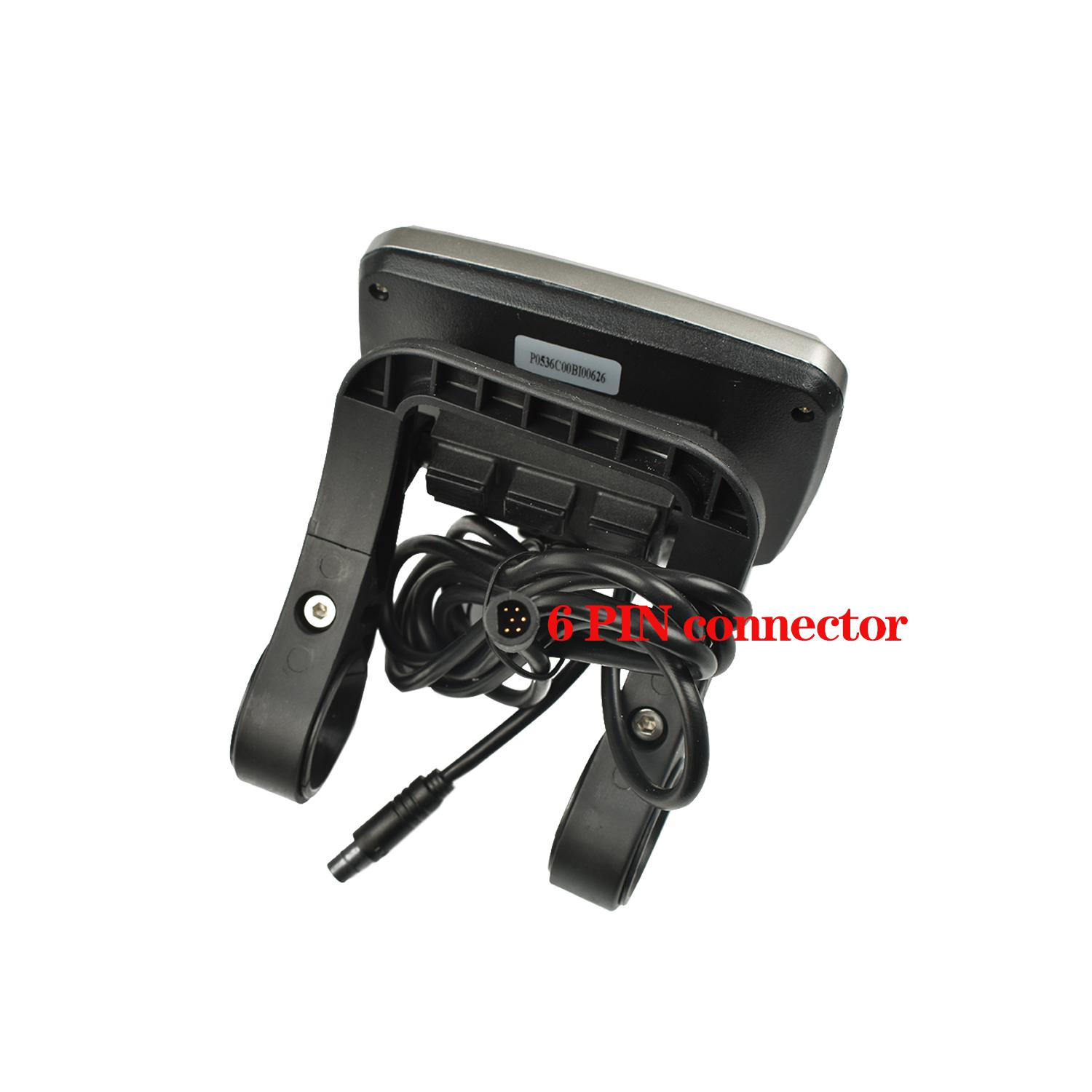

2.This is of 6 pin version.(means no throttle and ebrake function)
This display just for 6 pin motor Please check first
3.This display is only work with TONGSHENG TSDZ2 TSDZ3 Mid-Drive Motor.

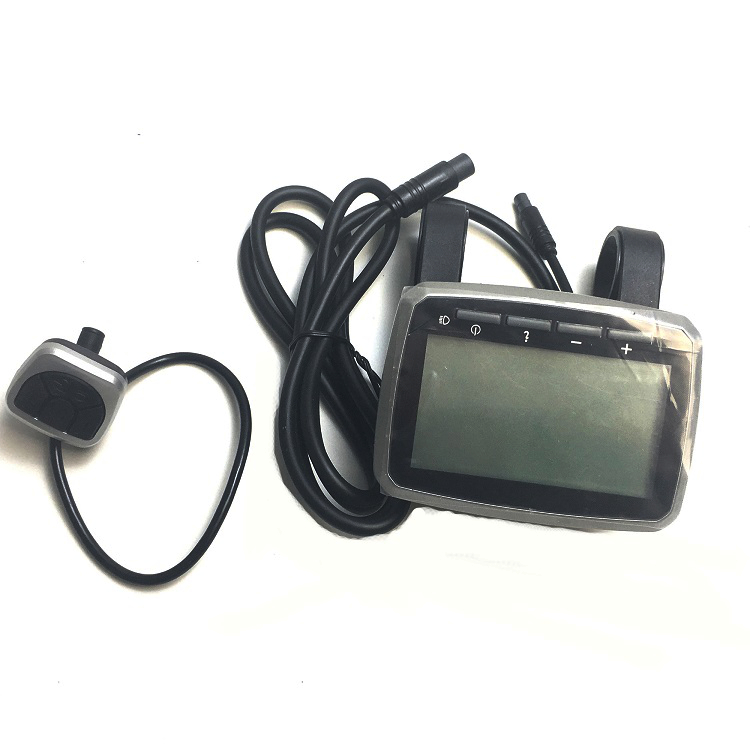

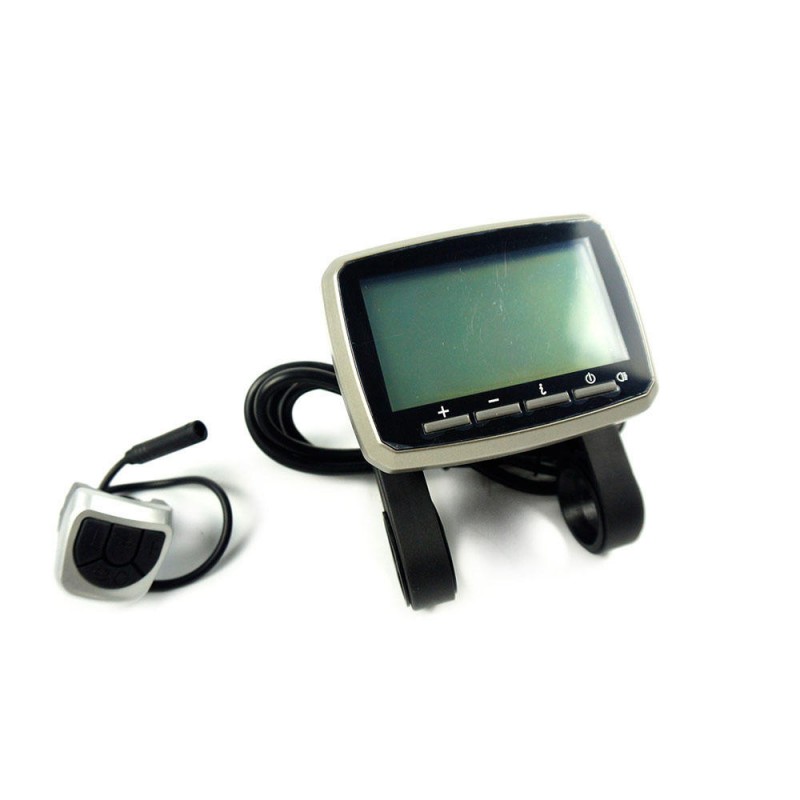

Package Included:
1 X Display
1 X Controller
