JD908B OBD2 Scan Tool 12V Professional 2 in 1 Code Reading Analyzer jd908b Scanner Tool
$79.34
- Product Code: ED0006815
- Availability: In Stock
- Ex Tax: $79.34
Description:
ØThe JD906/JD9XX series of diagnostic tools are specially designed to be used with all OBD2-compliant vehicles, including (CAN) communication protocol. The U.S. Environmental Protection Agency requires that all vehicles (cars and light trucks) sold in the United States in 1996 and newer must meet the requirements of OBD2, including all vehicles in the United States, Asia and Europe.
ØA small number of gasoline vehicles in 1994 and 1995 meet the OBD2 standard. To verify whether the 1994 or 1995 vehicles meet the OBD2 standard, please check the Vehicle Emission Control Information (VECI) label under the hood or next to the radiator of most cars. If the vehicle meets the OBD2 standard, the OBD2 certification will be indicated on the label. In addition, government regulations require that all vehicles that comply with the OBD2 standard must have a universal 16-pin data connector-DLC. And the vehicle emission control information label must state that the vehicle complies with OBD2.
specification:
Display: 3.2 inch TFT color screen 320 * 240
Working temperature: -20 to 60°C (-4 to 140°F)
Storage temperature: -20 to 70°C (-4 to 158°F)
External power supply: 8V- 30V DC
Support languages: English, Chinese, Portuguese, Italian, French, German, Spanish.

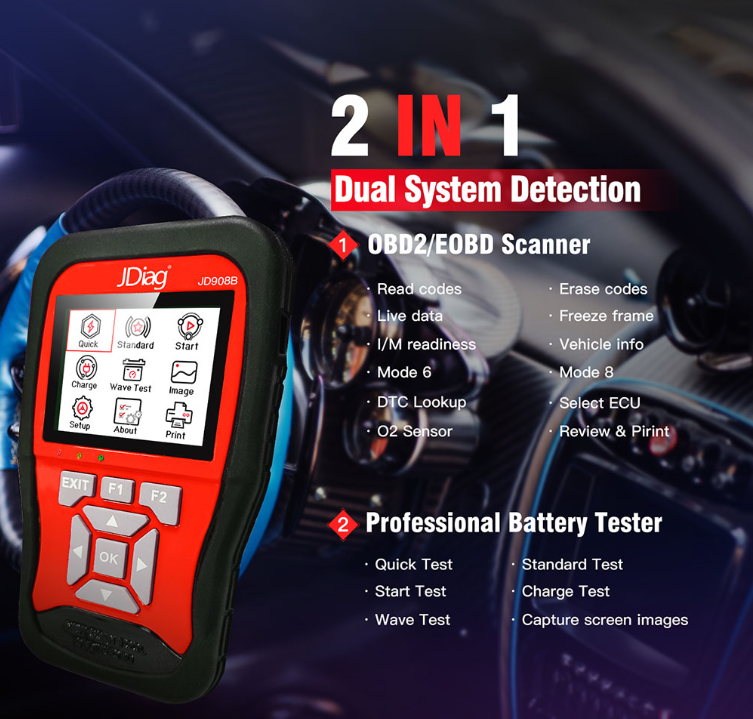

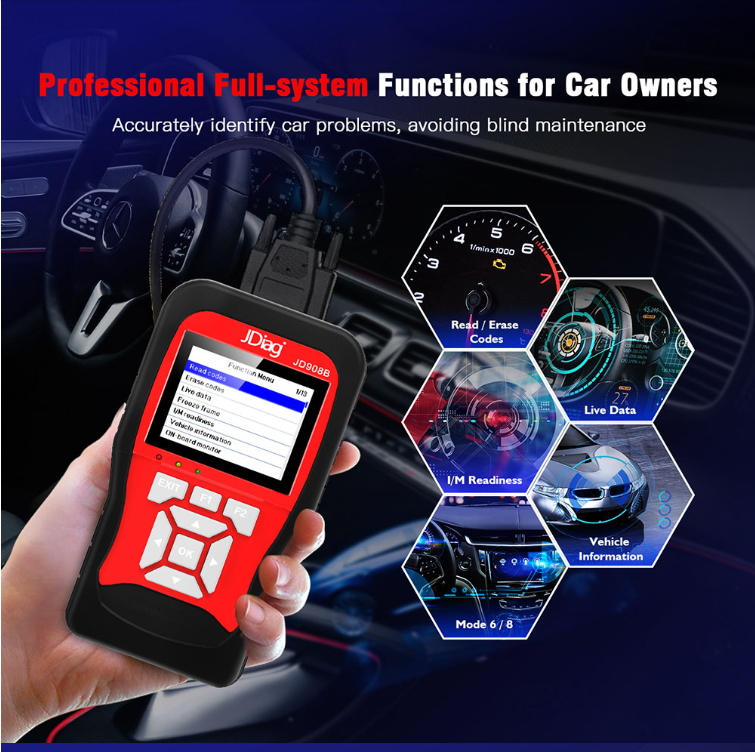

OBD2/EOBD function:
-Support the diagnosis of all 10 engine modes
-Suitable for most 1996 and newer vehicles (OBD II and CAN)-domestic and imported.
-Built-in one-button I/M preparation function, which can quickly perform state emission preparation inspection and driving cycle verification.
-Read/clear pending code, storage code and freeze code.
-Retrieve vehicle information (VIN, CIN and CVN). .
-Enhanced functions Mode6, mode8, real-time data playback
Battery detection function:
1. Battery test-quick test and standard test
2. Start the test
3. Charging test
4. Battery waveform analysis
Note: JD908B OBDII / EOBD car diagnostic instrument is dedicated to support OBDII/EOBD engine emission related diagnosis

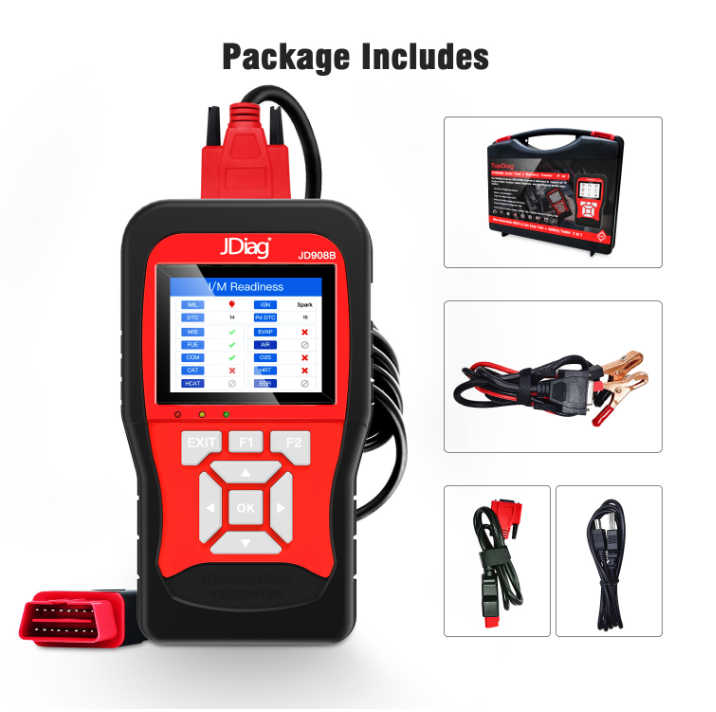

Package Included:
1. The main body of the diagnostic tool
2. Alligator leather test line + OBD line
3. USB cable
4. User manual
5. Protective ABS toolbox
