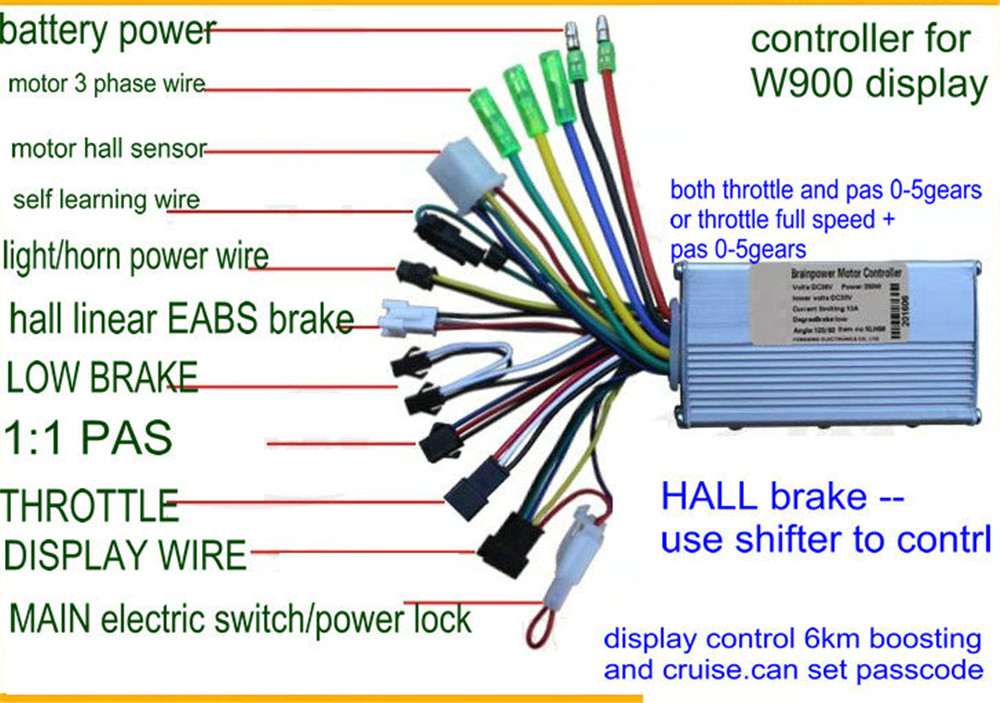

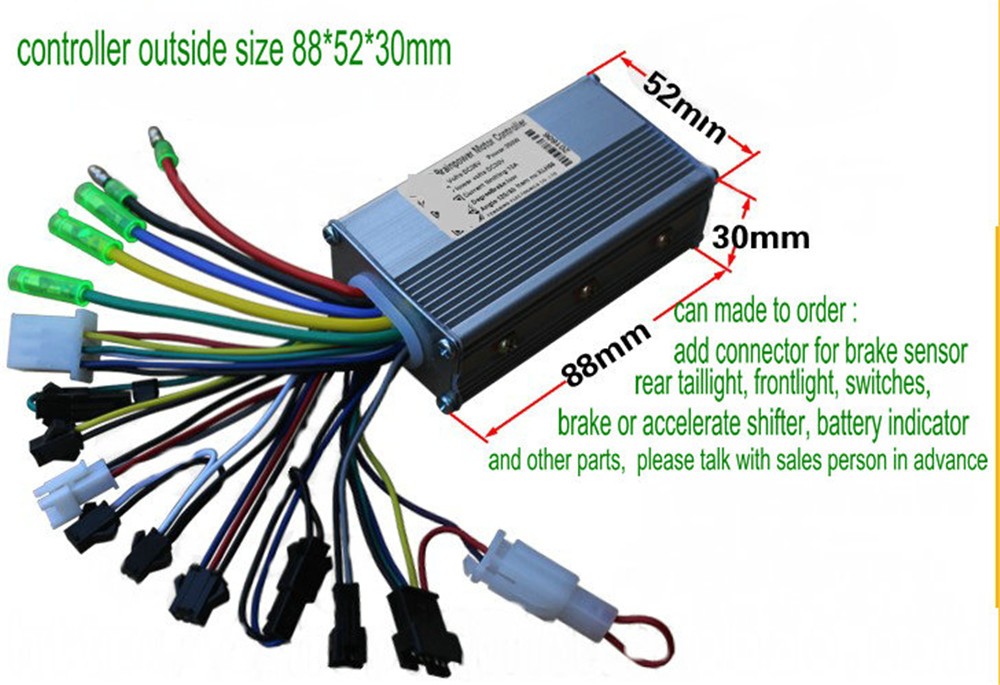

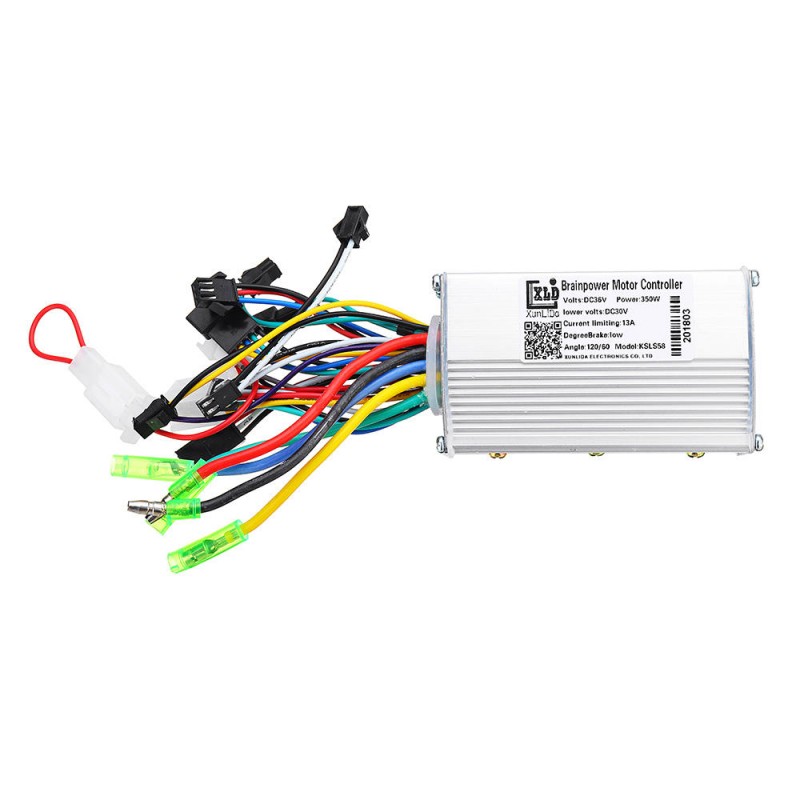

Controller Function:
1,1:1 pas power
2. brake and cut off power

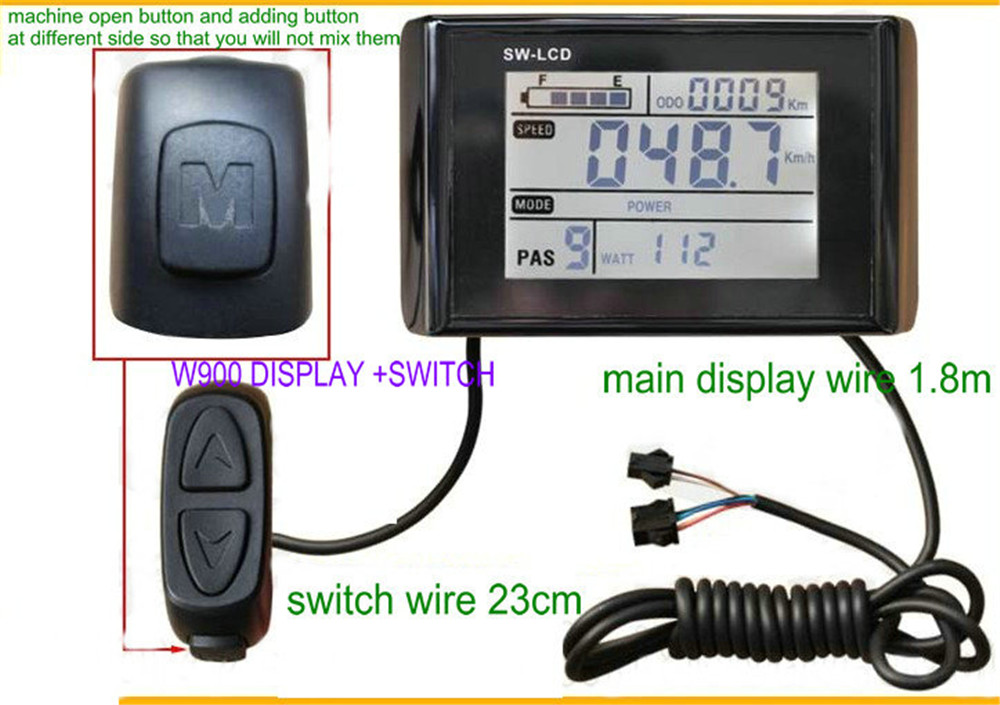

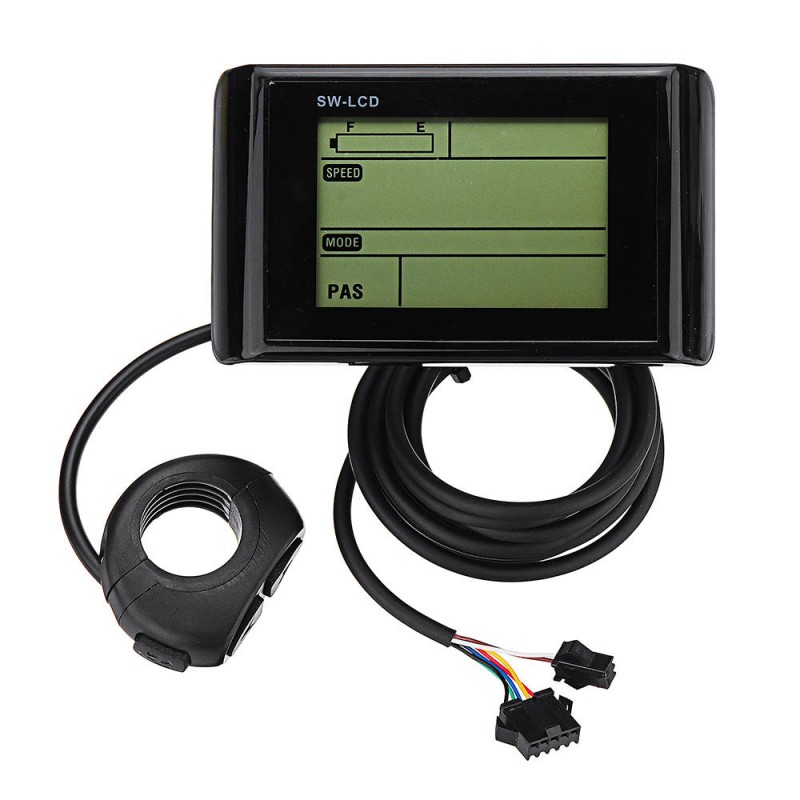

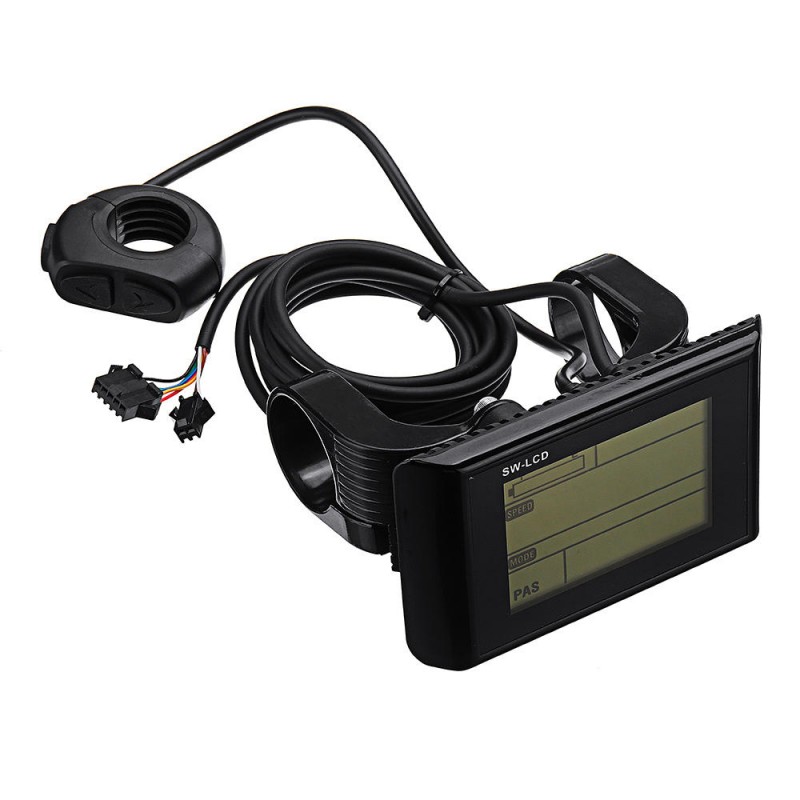

3. lcd display

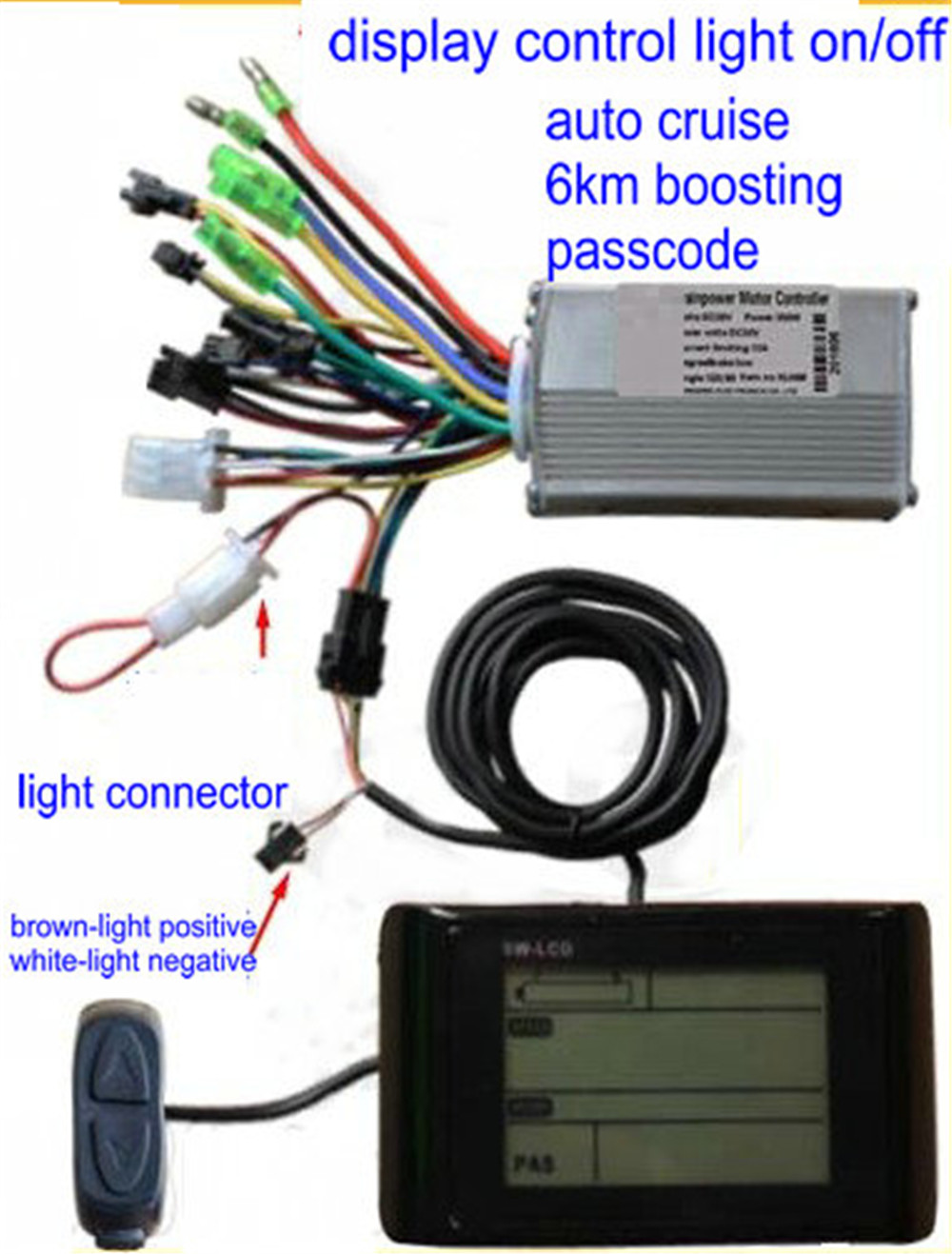

4, throttle
5, horn and light power connector
6. self learning
7, voltage type linear ebs brake
8. cruise
9, 6km/h cruise
Optional Function :
ebs brake
adjustable speed limit
reverse
Display Error Code:
002 brake error
003 pas sensor error
004 boosting , 6km.h cruise mode
005 timely cruise mode
006 battery level low
007 motor error
008 throttle error
009 controller error
010 communication receive error
011 communication sending error
012 DMS communication error
013 front light error
Specification:
Rated Working Voltage: 24v/36v/48v/60v
Power Available :150w-350w
Max Current Available: 10A-20A (default setting 13a)
Battery Voltage Undervoltage Protection Point : 19v/30v/41v/52v
fit for motor phase angle: 60degree/120 degree (automatic learn )

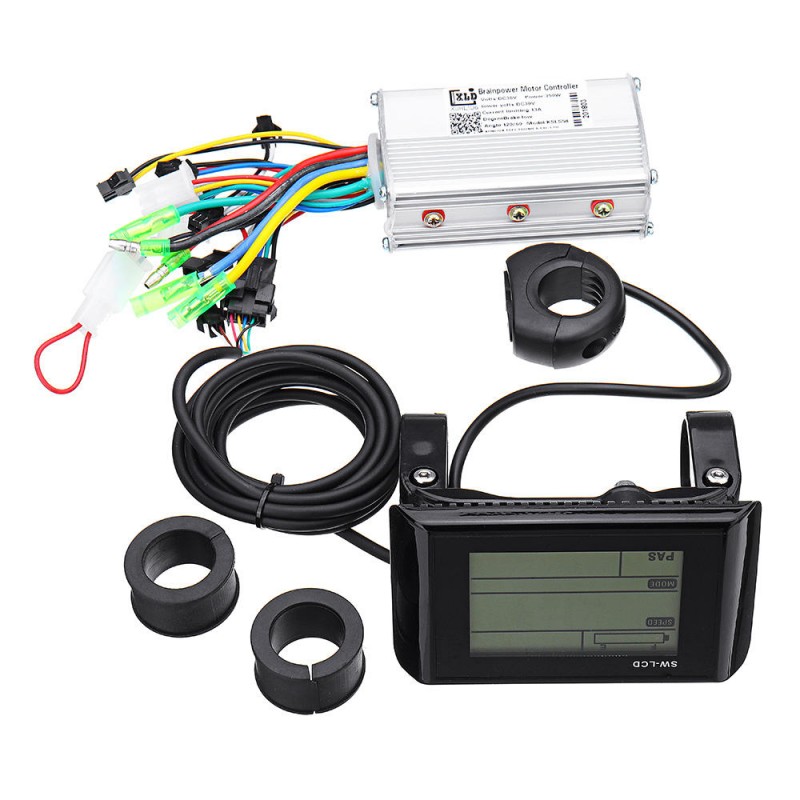

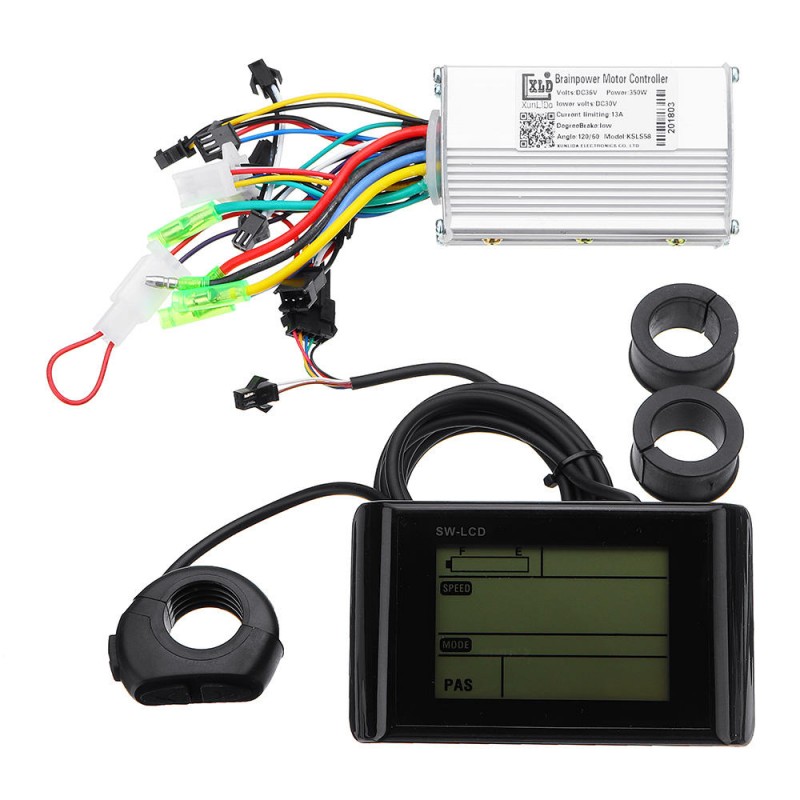

Package Included:

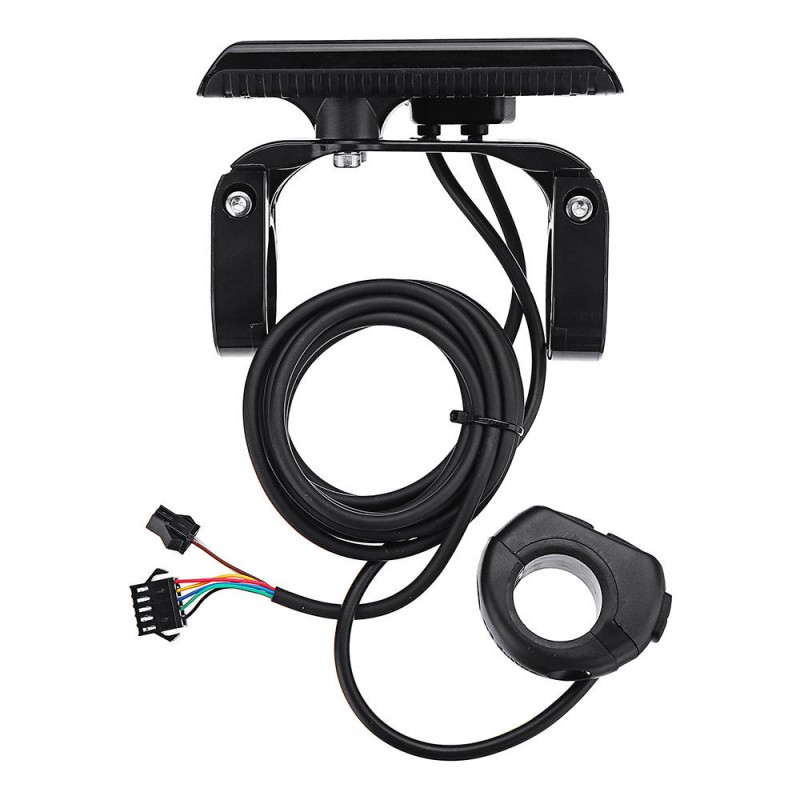

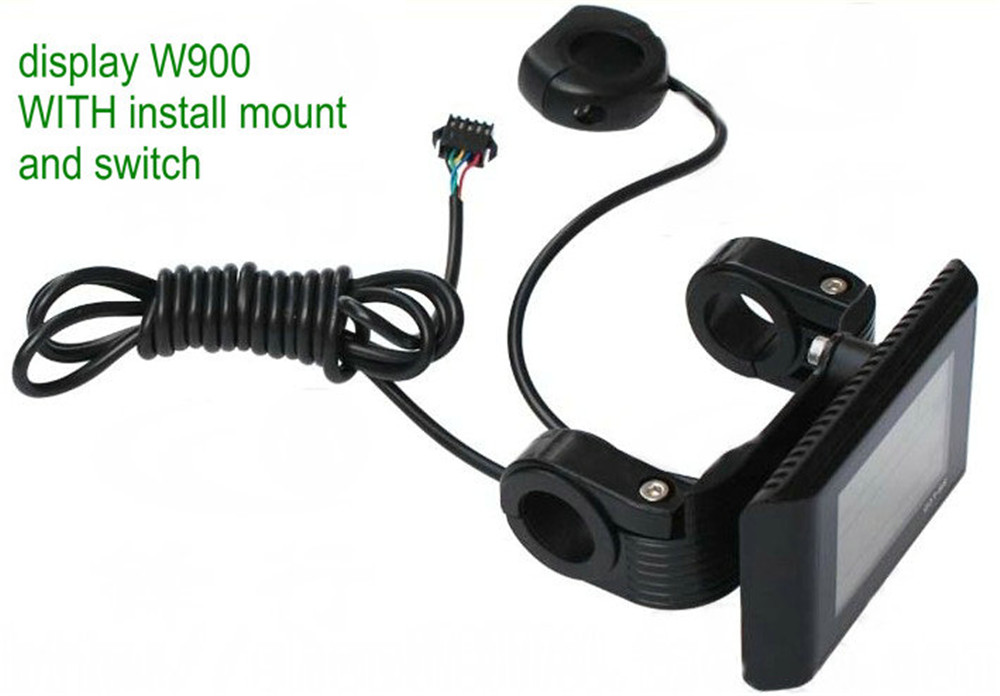

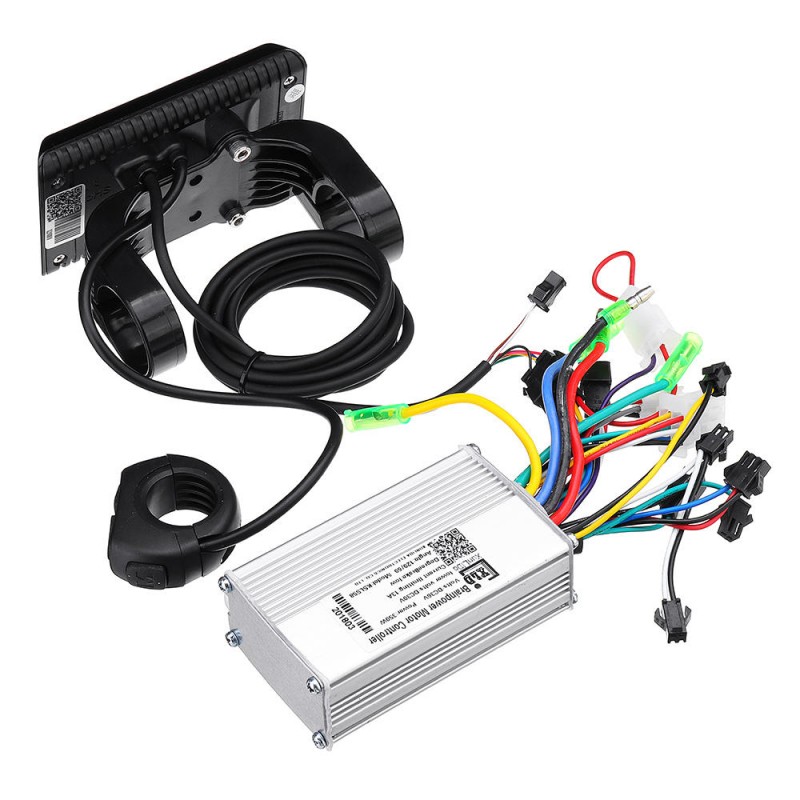

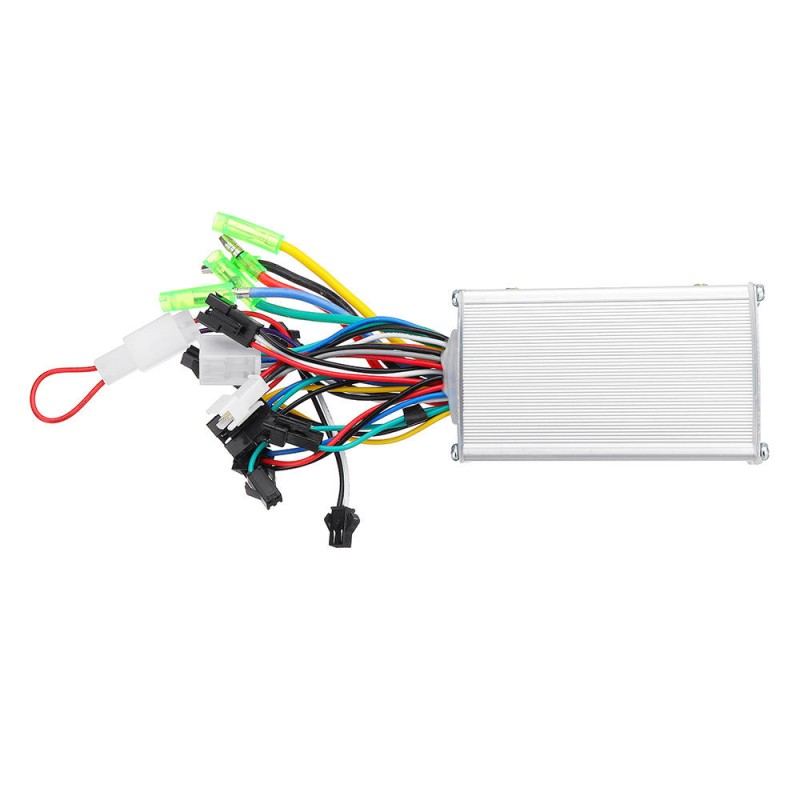

1 X Controller+Display
