MAX 50V DC 50A CONT 75A INT Car Mini Battery Selector Switch
$12.90
- Product Code: ED0008068
- Availability: In Stock
- Ex Tax: $12.90
Description:
Durable and high quality.
Easy Installation, Excellent Quality, ON-OFF-OUT (Removing the cap).
Features: Power Switch /Leakage Switch /Protection Switch /Car Modification Battery Switch /
Comes without connection cable.
universal for cars, off-road vehicle, truck,boat,marine etc.
Feature:
Feature:
Product Name: Car Battery Power Switch

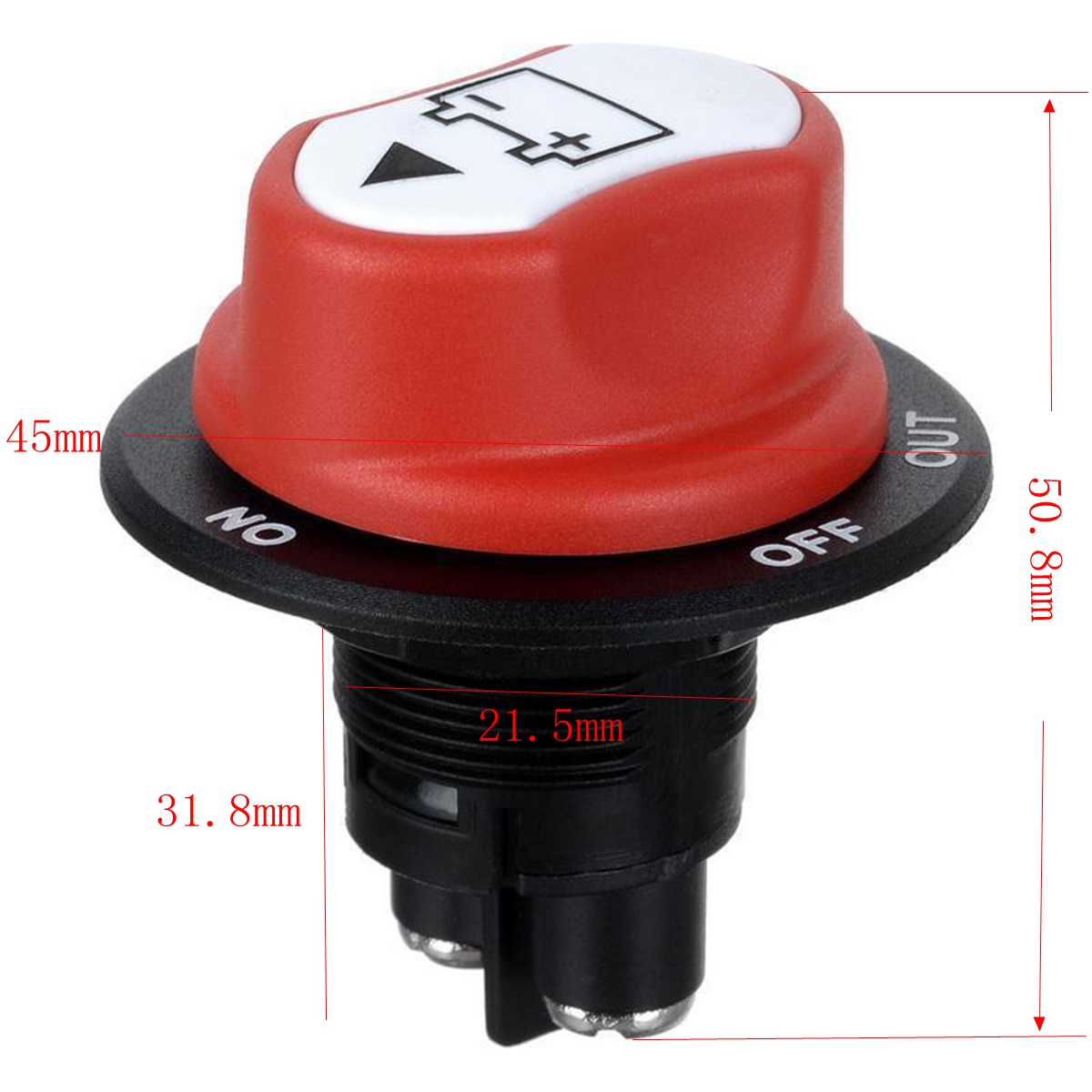

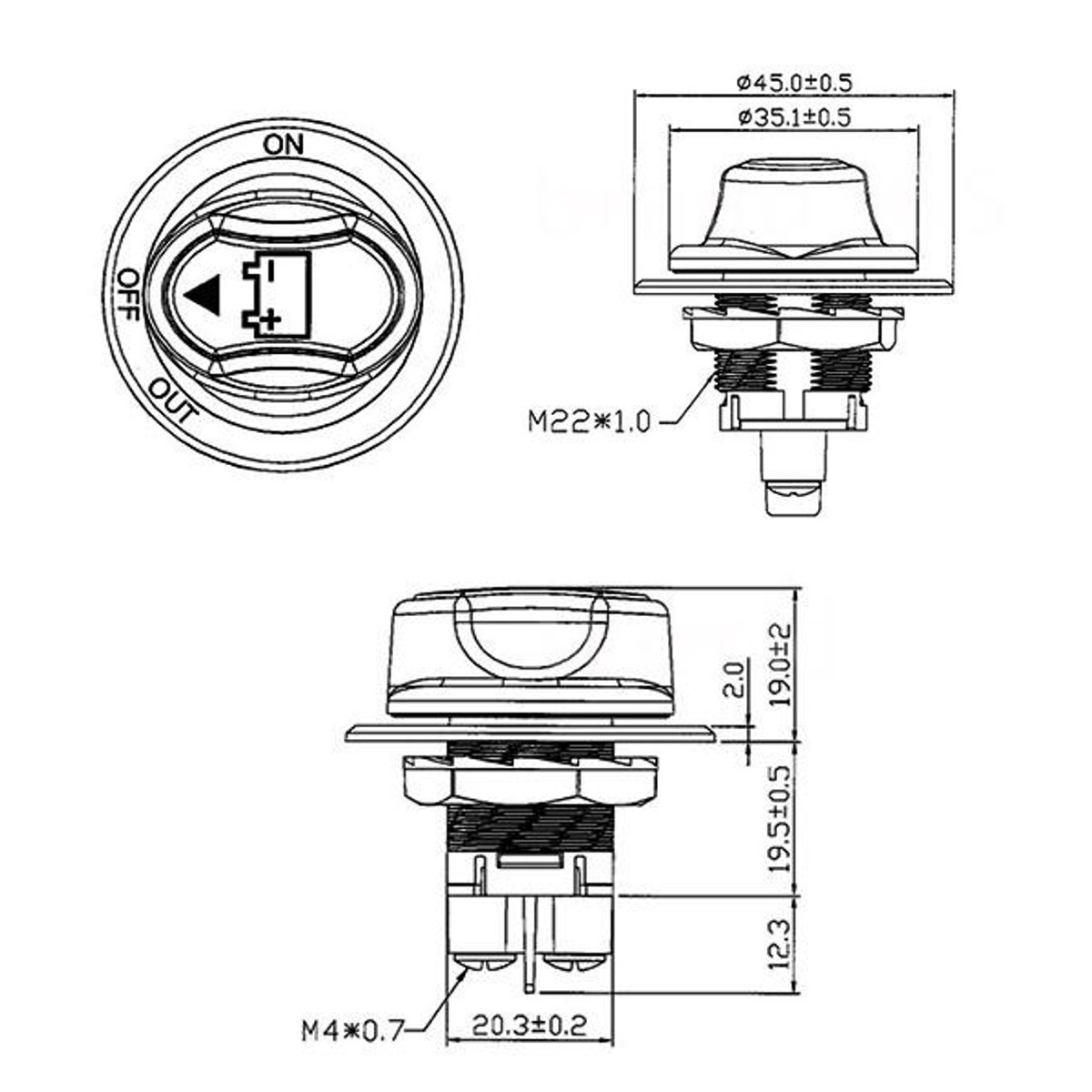

Size: 50.8mmx45mm (Length x Width)
Color: Red and Black
Material: ABS
Color: Housing-Black ,Actuator-Red
Screw: Ni-plated,Brass
Poles: SPST

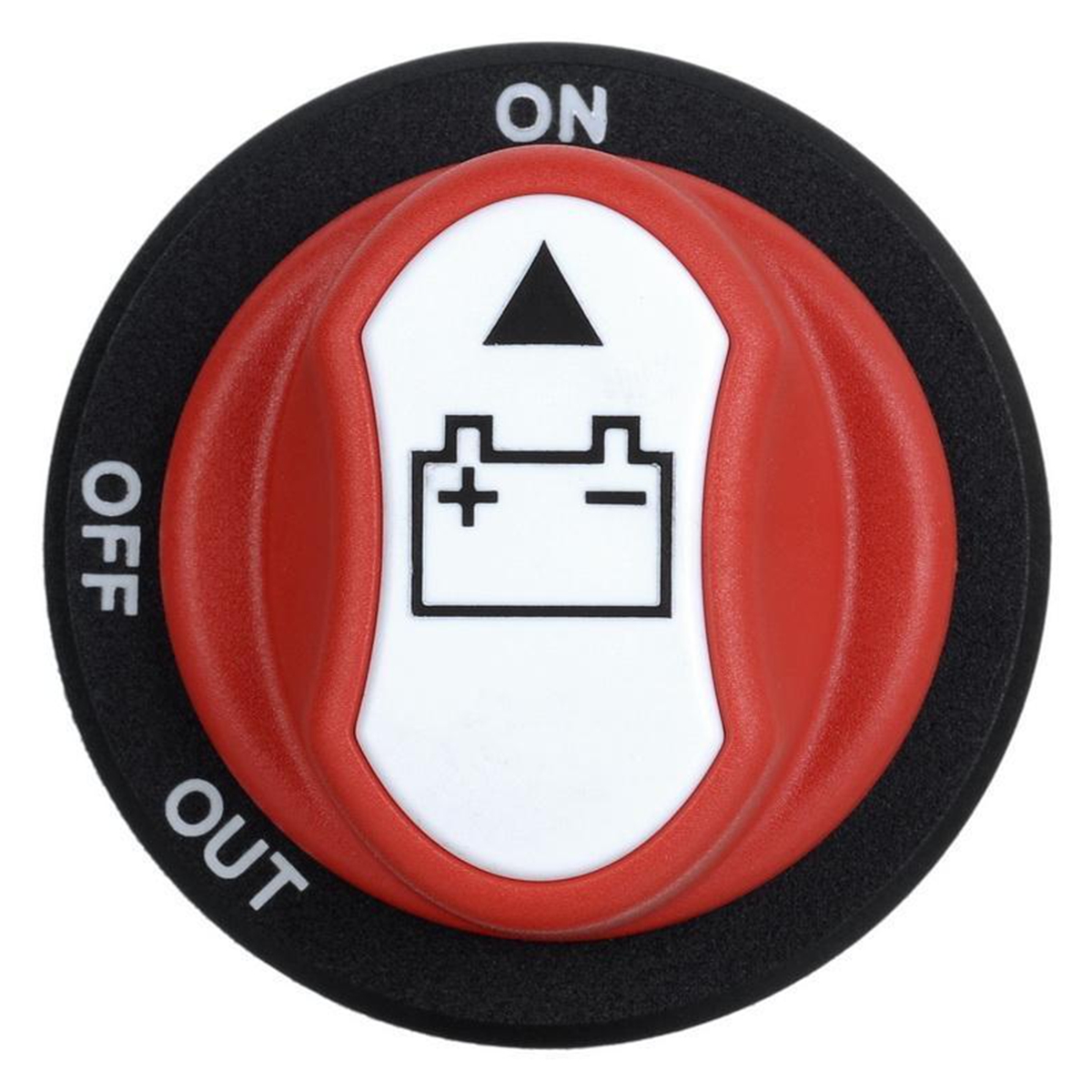

Position: ON-OFF-OUT
Switch Rated: DC 50V Max.
Continuous Rating: 50 Amps
Intermittent Rating: 75 Amps
Cranking Rating: 300 Amps 5 sec.
Contact Resistance: 50m ohm Max
Insulation Resistance: DC 500V 100M ohm Min
Direct Strength: AC 1000V 1 minute ,DC 2000V 1 minute
Operation Temperature: -30℃~+60℃
Package Included:
1 X Mini Battery Selector Switch
