MDQ 100A Amp 1600V Volt Silicon Single Phase Diode Metal Case Bridge Rectifier
$14.99
- Product Code: ED0017584
- Availability: In Stock
- Ex Tax: $14.99
Description:

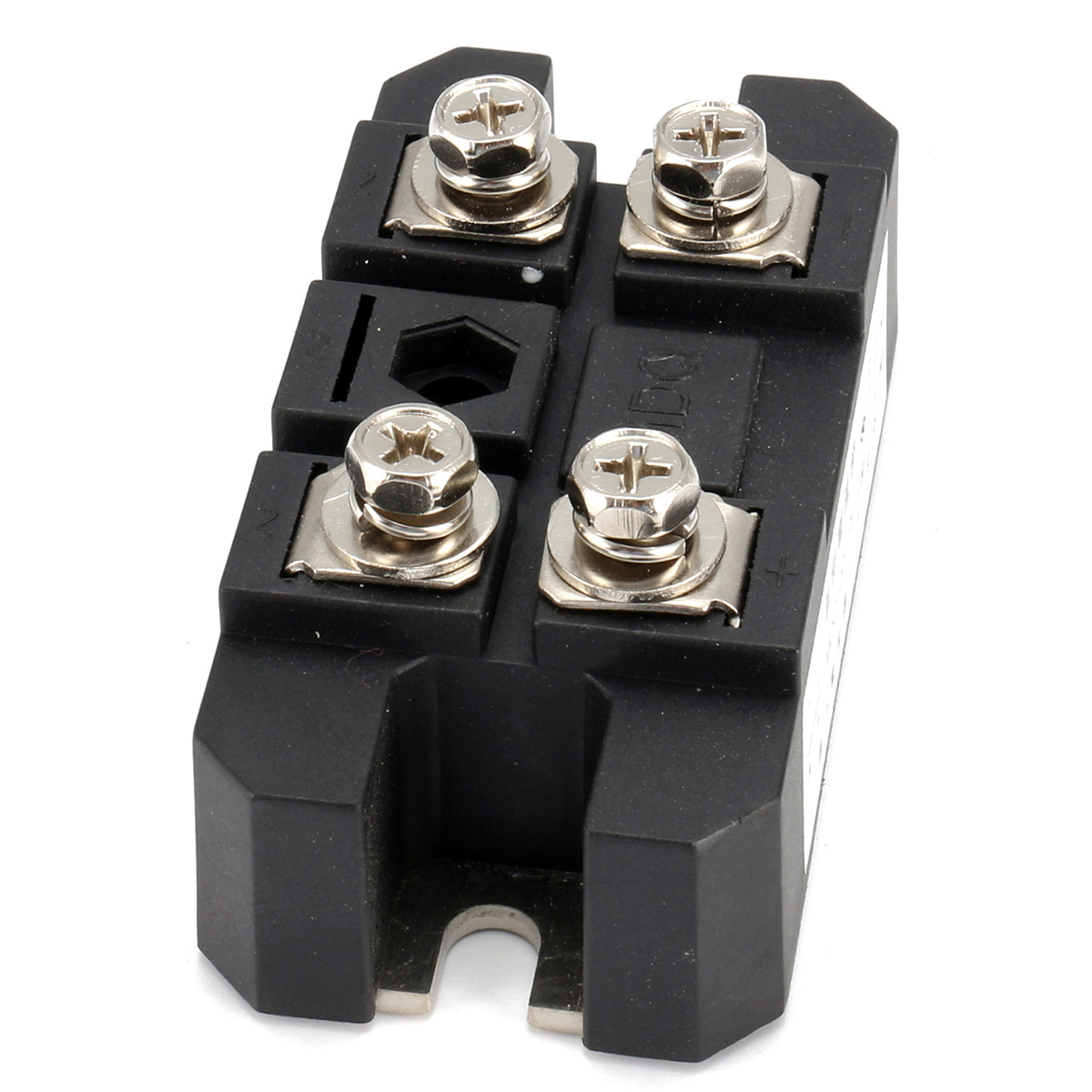

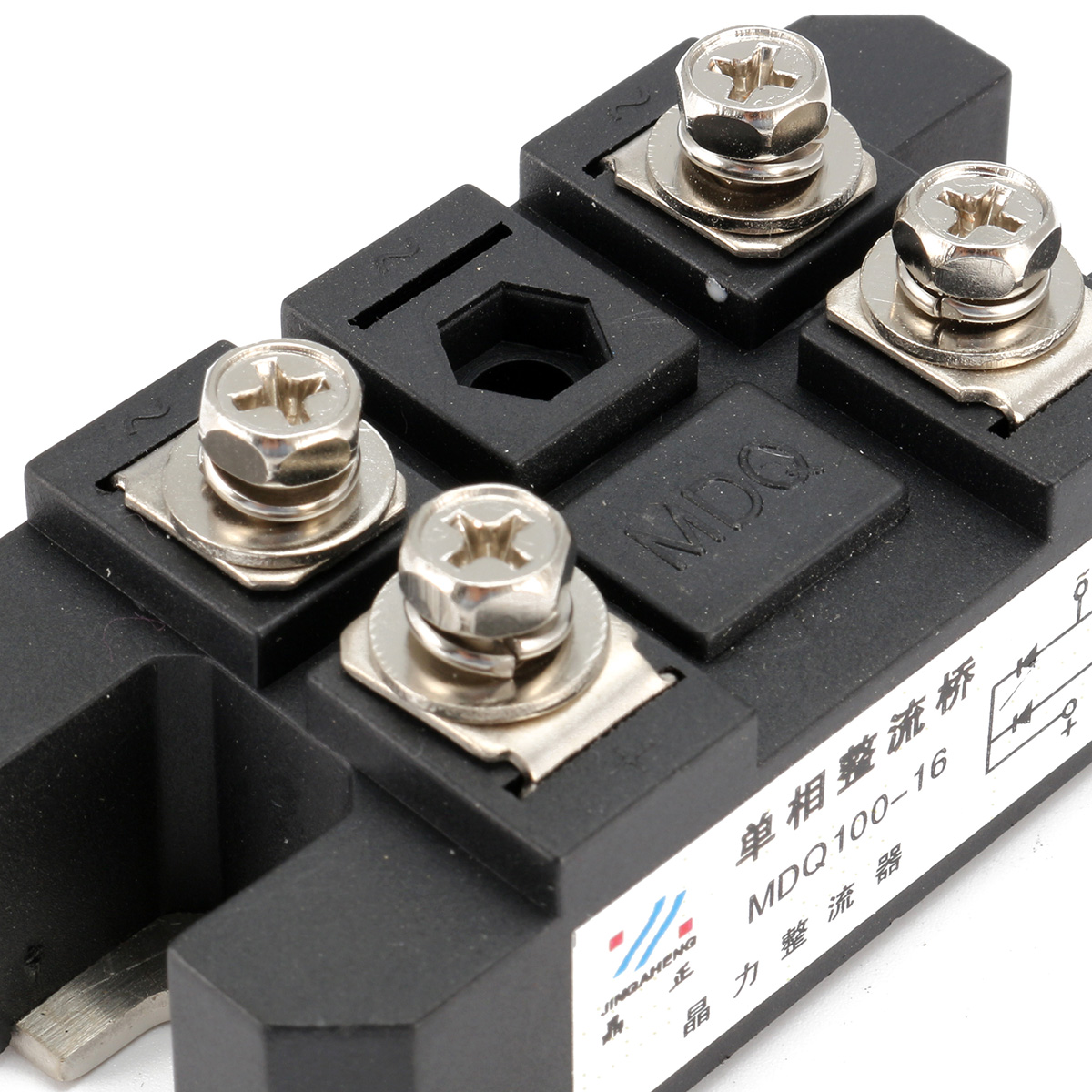

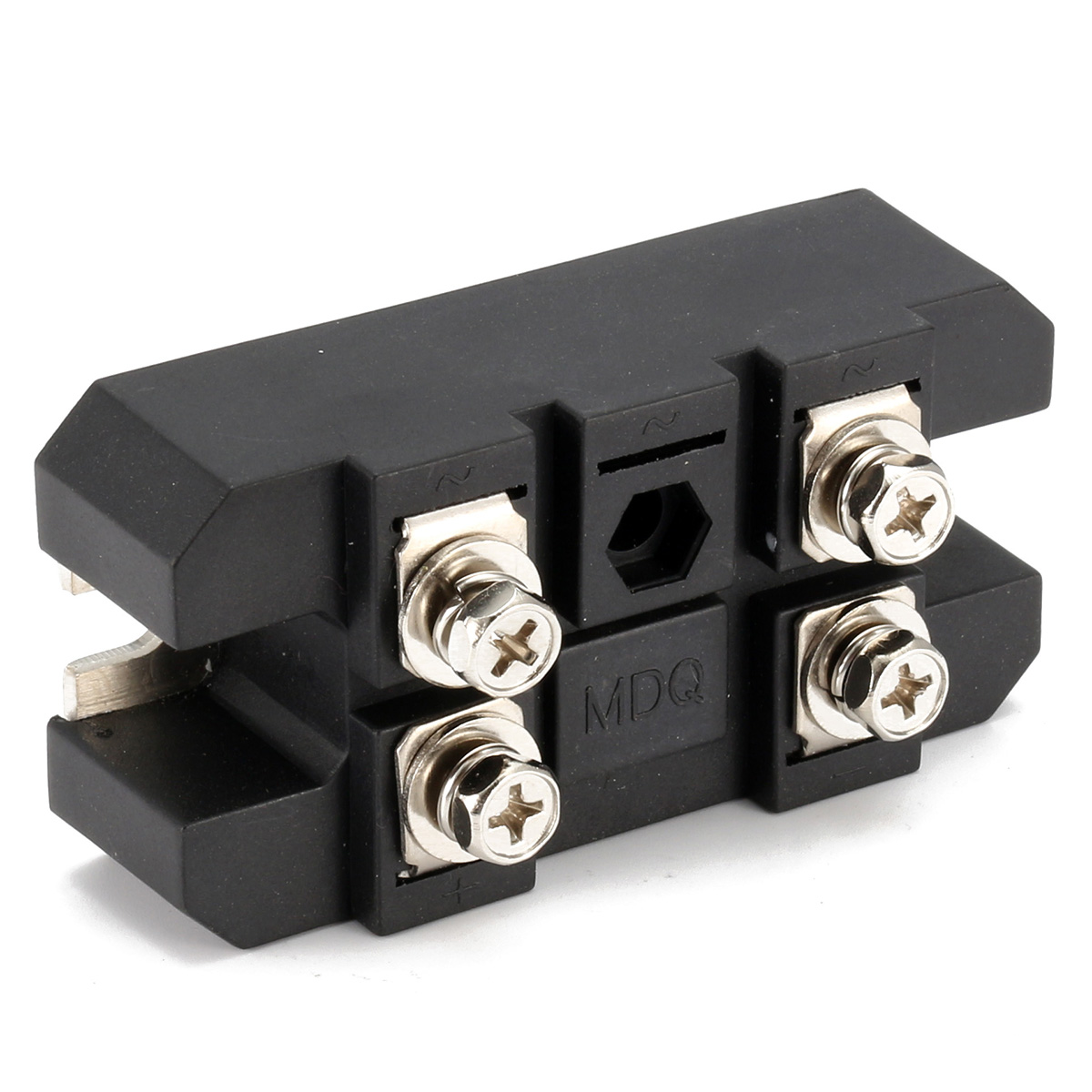

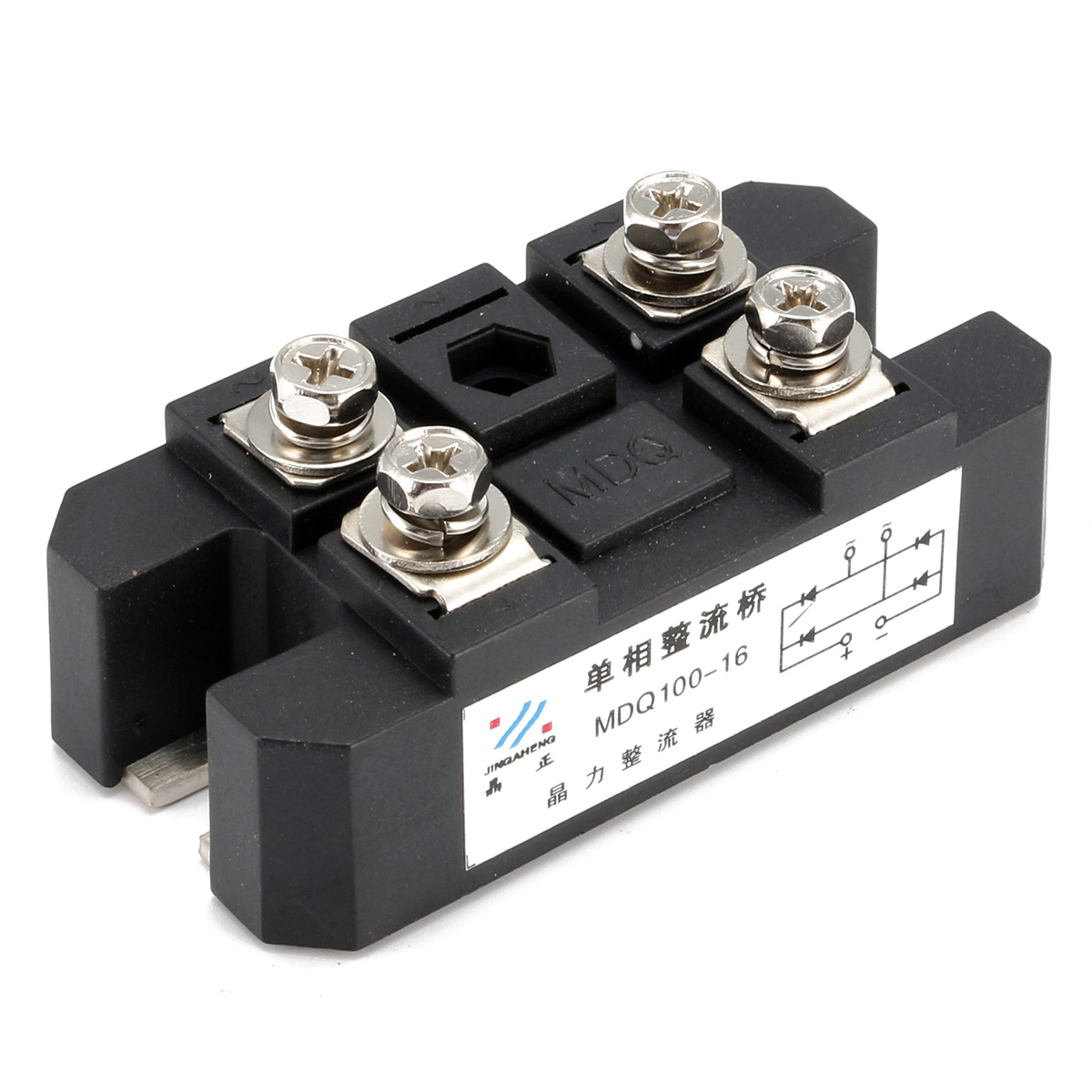

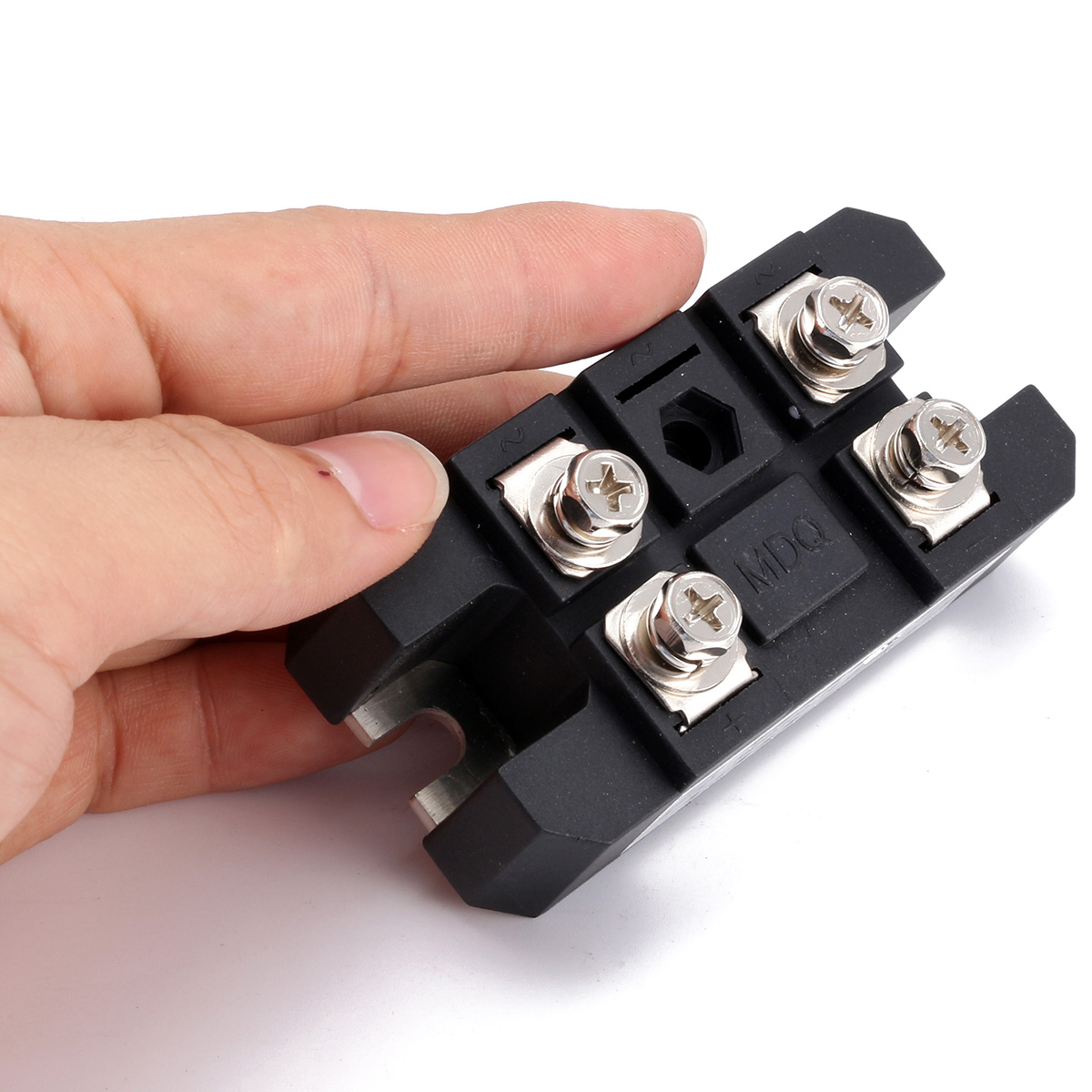

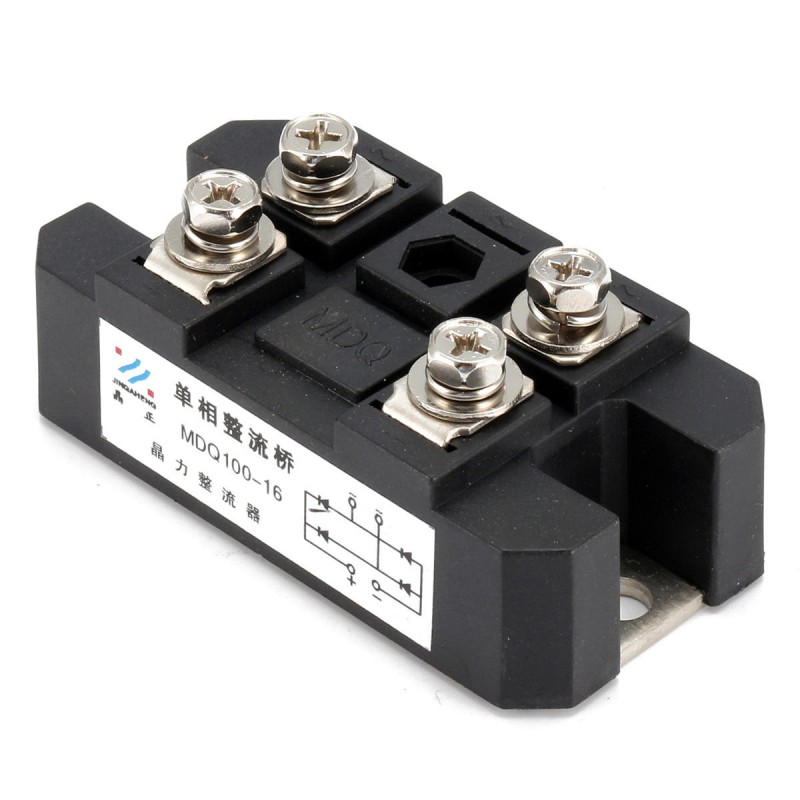

MDQ 100A Single Phase Diode Metal Case Bridge Rectifier
Convert your three phase current input into DC with this Bridge Rectifier
This bridge rectifier can be used in a wide variety of applications
Chip and floor electrical insulation, 2500V AC voltage;
Vacuum + hydrogen protection welding technology;
Welding structure, excellent temperature characteristics and power cycle capacity;
Easy to install, easy to use and maintenance;
Small size, light weight;
The maximum working temperature of 150 ℃;
Forward pressure drop is small
Specification:
Type: Rectifier bridge, high pressure silicon
material: Silicon
Color: Black
Number of pins: 4
Modle: MDQ100A
The main parameters: 100A

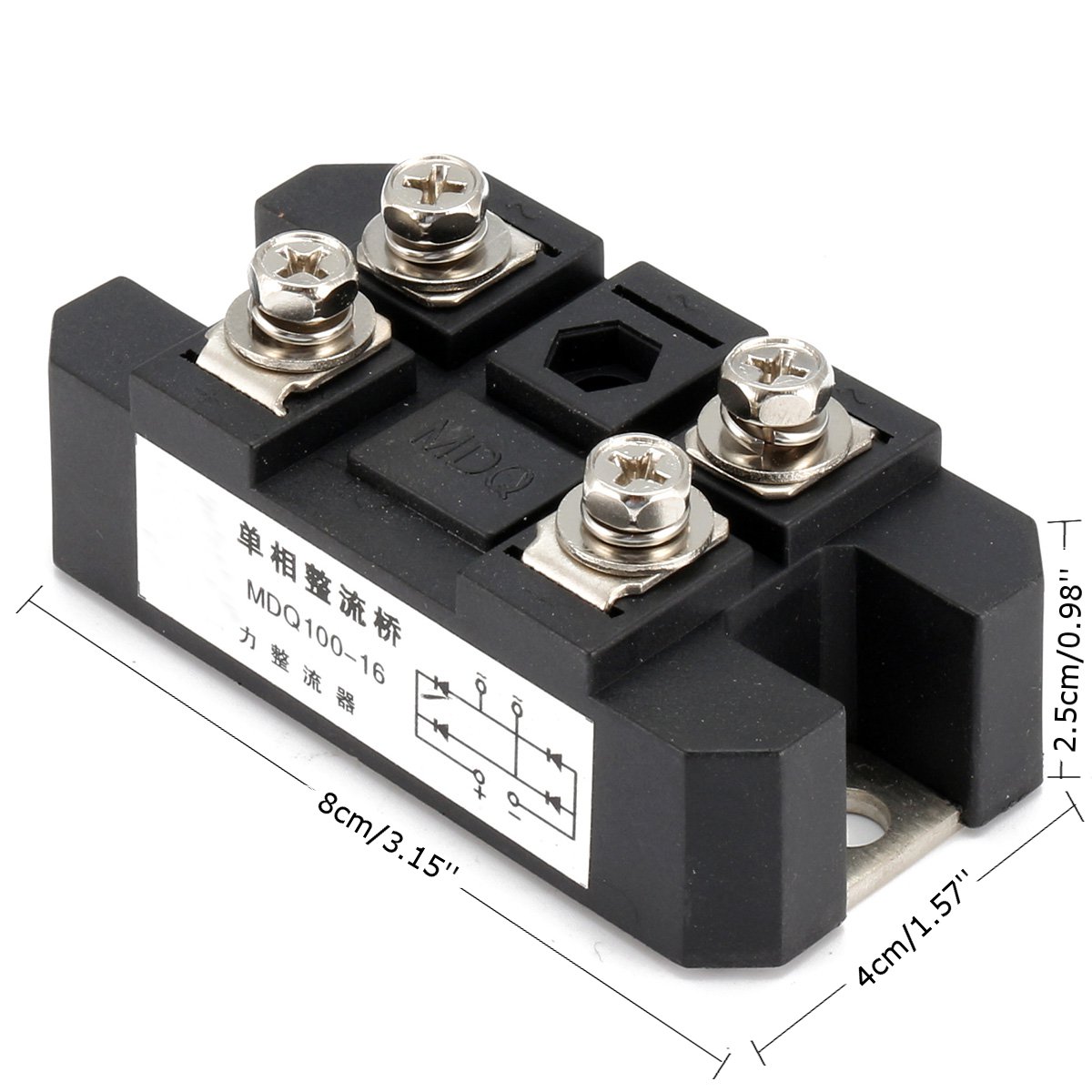

Size:
Length: 8cm/3.15''
Width: 4cm/1.57''
Height: 2.5cm/0.98''
Side hold diameter: 0.5cm/0.20''
Fitment:
1, the equipment of the DC current;
2, P W M inverter input rectifier power supply;
3, DC motor excitation power;
4, switching power supply input rectifier;
5, soft start capacitor charging;
6, electrical drag and auxiliary current;
7, inverter welding machine;
8, current charging DC power supply.
Note:
1.Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display, pls understand.
Package Included:
1X MDQ 100A Amp 1600V Single Phase Bridge Rectifier
