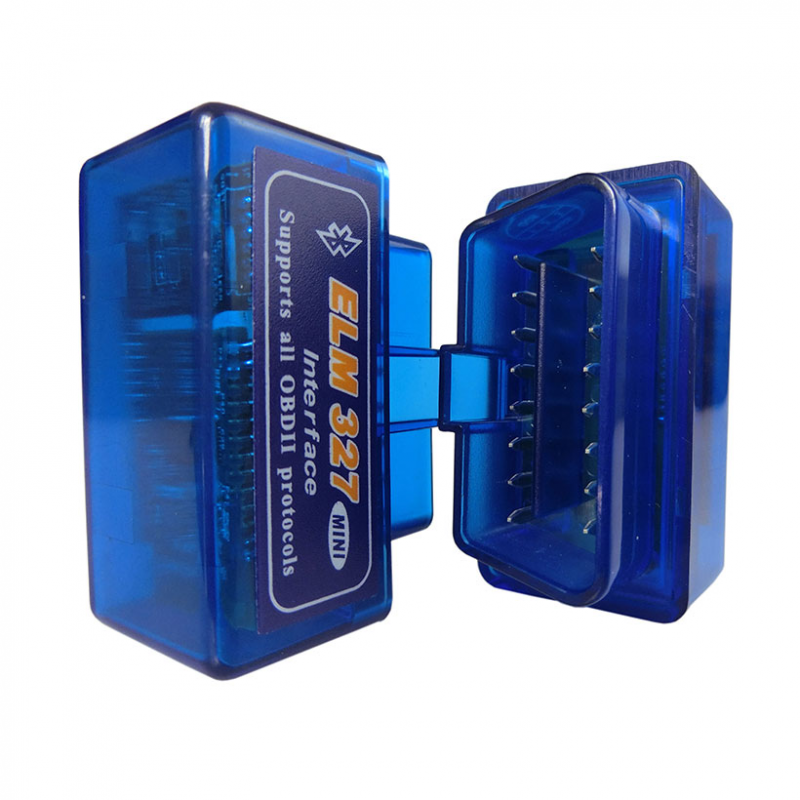

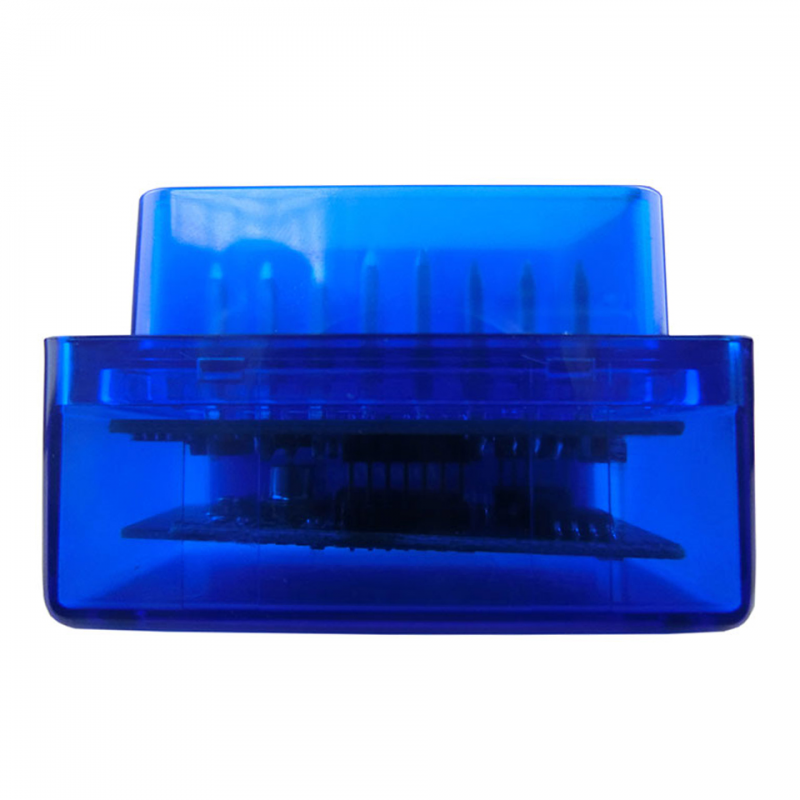

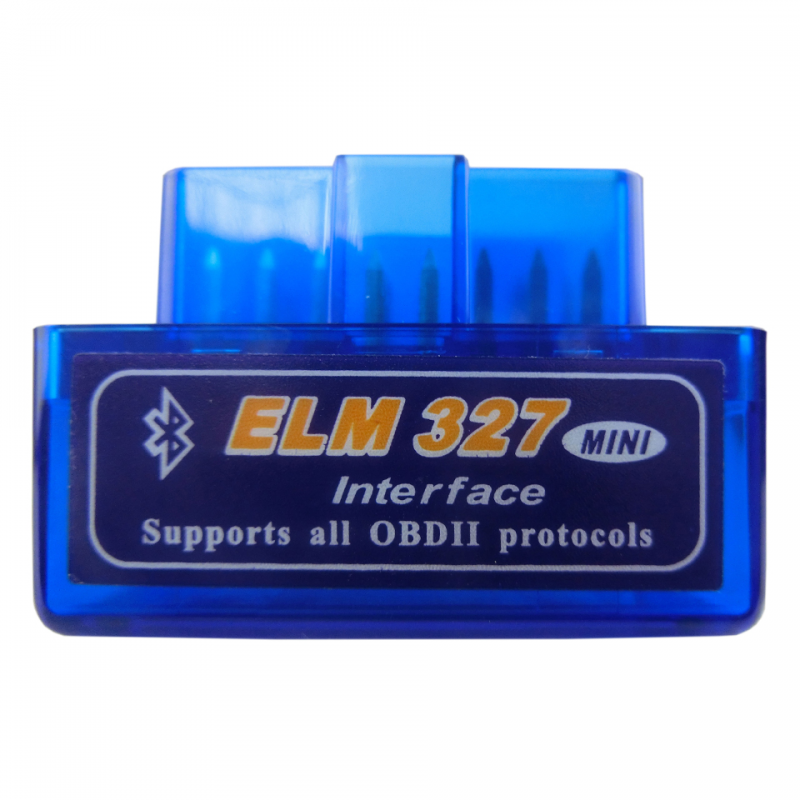

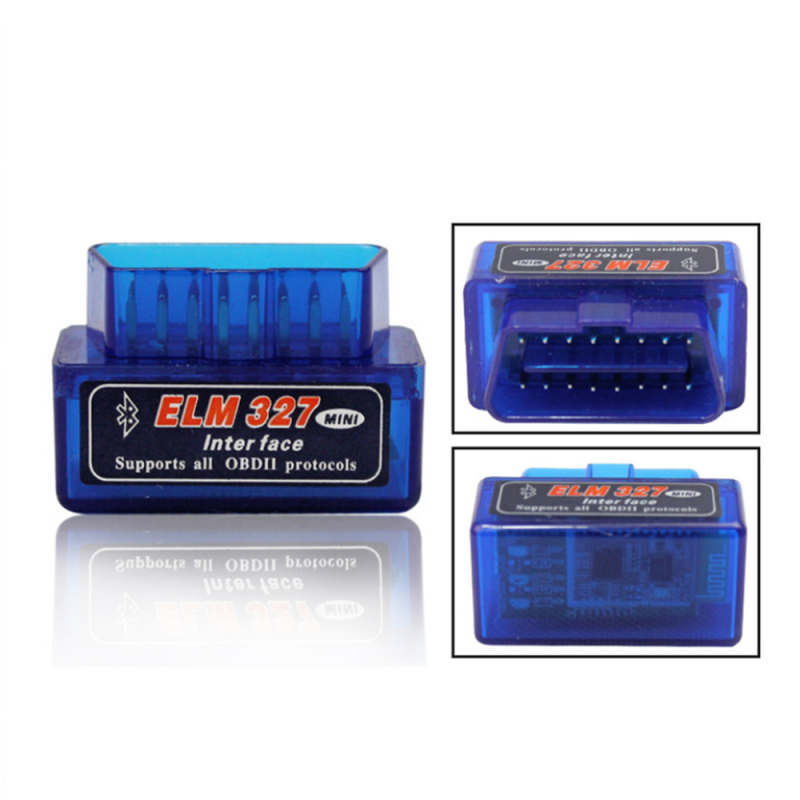

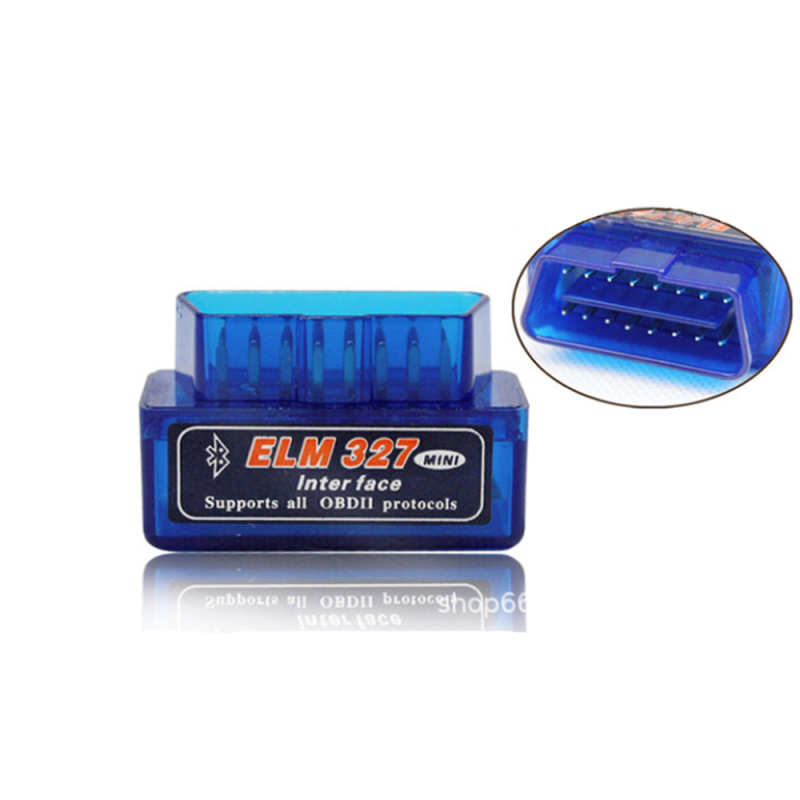

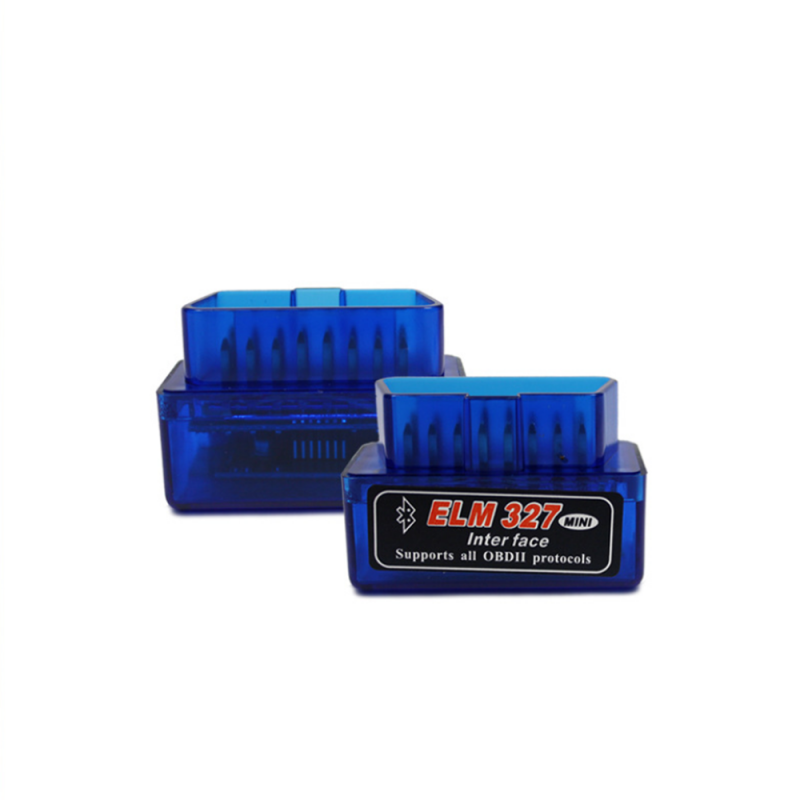

Mini ELM327 V1.5 OBD2 bluetooth Car Diagnostic Interface Scanner Code Reader OBDII Adapter Auto Diagnostic Tool
$11.99
- Product Code: ED0007438
- Availability: In Stock
- Ex Tax: $11.99
Available Options
This ELM327 suport TORQUE software for Android system cell phone,OBDscope software for Symbian system cell phone,PPC(Windows Mobile) system cell phone,ScanMaster-ELM for PC etc.
Feature:
1.Brand new and high quality.
2.Super Mini ELM327 OBD2 OBDII bluetooth Auto Car Diagnostic
3.Interface Scanner, Easy to take.
4.Works with all OBD-II compliant vehicles.
5.Wireless (bluetooth) 5~10meters.

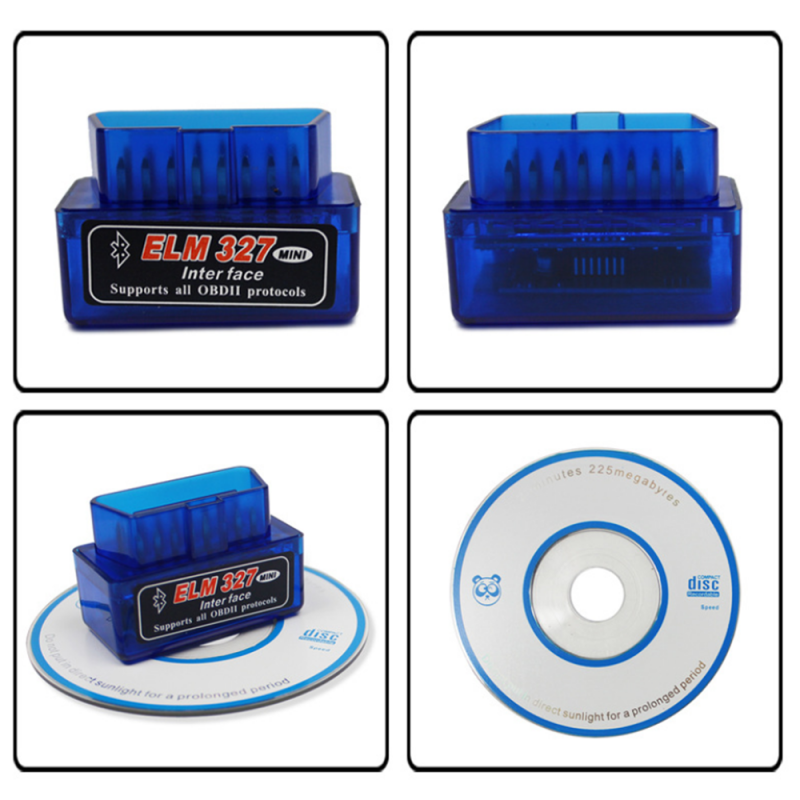

6.Software included for Palm, PDA, Mobile, Windows PC, Smartphone.
7.Support OBD-II protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM.
8.Support the reading of vehicle sensor parameters, which are used for vehicle annual inspection, exhaust gas detection, and exhaustive index testing.
9.Support vehicle DTC fault code reading and clearing for vehicle self-inspection and maintenance.
10.Support the reading of various states of the vehicle (for example: engine speed, water temperature, speed, etc., up to nearly 100 states), for use with head-up displays, car networking related systems, smart garage systems, etc.
11.It supports the reading of VIN (also called vehicle identification number or frame number), CID, CVN and other parameters, and is widely used in various auto repair and auto parts fields.
Specification:
Type: |
Mini ELM327 V1.5 OBD2 II bluetooth Car Auto Diagnostic Interface Scanner Tool |
Weight: |
36g |
Color: |
Blue |
Interface: |

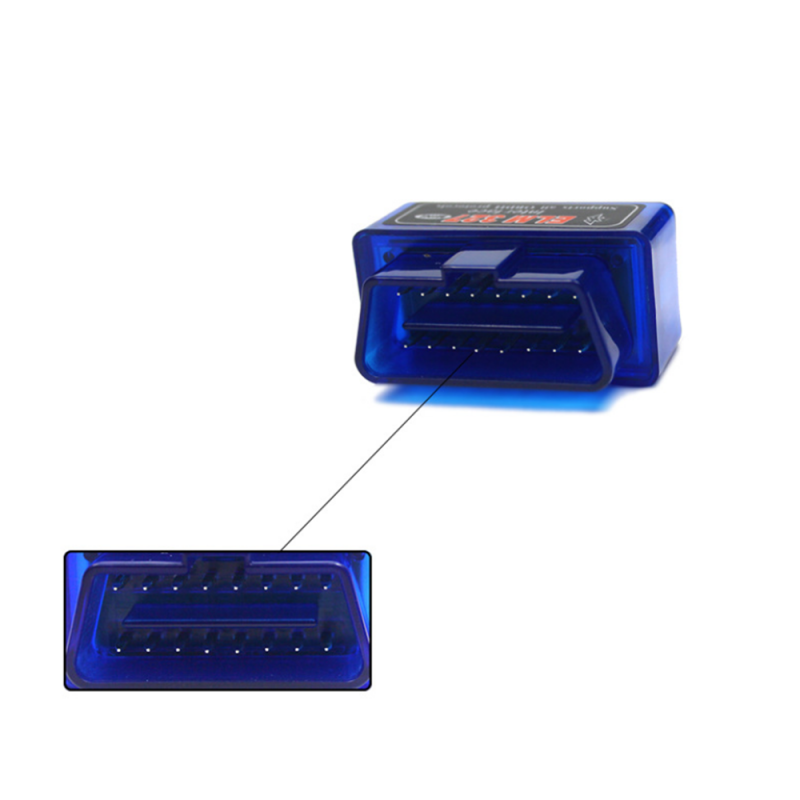

OBD2 16pin |
Software Version: |
V2.1 |
Hardware Version: |
V1.5 |
elm 327 v1.5 bluetooth Baud rate: |
38400 |
Operating Voltage: |
12V |
bluetooth Working Current: |
15A |
Project bluetooth password: |
1234 |
Super MINI ELM327 Bluetooth V1.5 obd2 Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light).
3.Display current sensor data, including:
Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure.
Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.
Supported Protocols
1. SAE J1850 PWM (41.6 kbaud) (Note: only 9 protocol version supports)
2. SAE J1850 VPW (10.4 kbaud) (Note: only 9 protocol version supports)
3. ISO 9141-2 (5 baud init, 10.4 kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
5. ISO 14230-4 KWP (fast init, 10.4 kbaud)
6. ISO 15765-4 CAN (11 bit ID, 500 kbaud)
7. ISO 15765-4 CAN (29 bit ID, 500 kbaud)
8. ISO 15765-4 CAN (11 bit ID, 250 kbaud)
9. ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Compatible vehicles:
For Benz 2001/02/03 W203 C200K (ISO).
For BMW X5 2002 (ISO) -3, -5/X5/Z3/Z4/Z8/740I/740L/750IL, (ISO1941) Chevrolet Aveo (ISO).
For Citroen C3 2004(ISO).
For Daihatsu YRV 2005 (ISO).
For Daihatsu YRV Turbo 2006 (ISO).
For Fiat Tipo 2002(ISO).
For Ford New ocus 2006(CAN).
For Honda Accord 2006 JDM(ISO).
For Honda Accord Euro R 2004 JDM(ISO).
For Honda City GD8(ISO).
For Honda Civic ES 1.6A(ISO).
For Honda Integra Type R DC5 JDM(ISO).
For Honda Jazz 1.4M(ISO).
For Hyundai Accent 2004(ISO).
For Hyundai Getz 1.3A 2004(ISO).
For Hyundai Getz 1.6M 2004(ISO).
For Hyundai Matrix 2004(ISO).
For Hyundai Santa Fe 2.4A(ISO).
For Hyundai Sonata GLS(ISO).
For Hyundai Sonata 2005(ISO).
