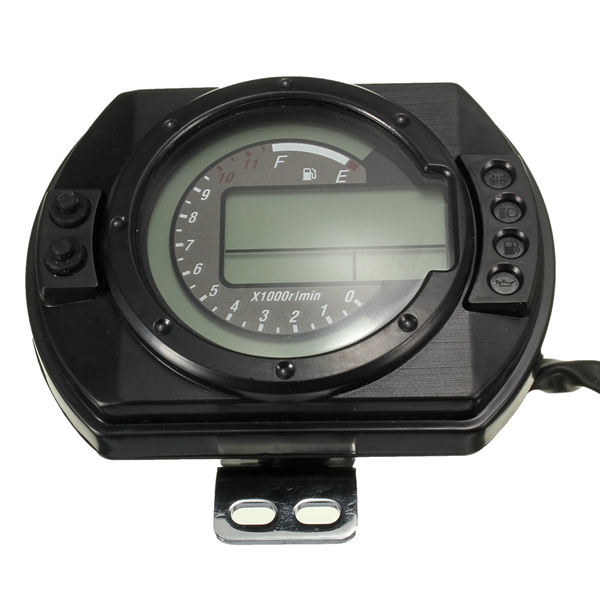

Motorcycle KMH LCD Digital Odometer Speedometer Tachometer With 7 Colors Background
$45.99
- Product Code: ED0016766
- Availability: In Stock
- Ex Tax: $45.99
Description:
1.7 Colors Backlight
2.LCD screen is Clear display, no phantom and sun-proof.

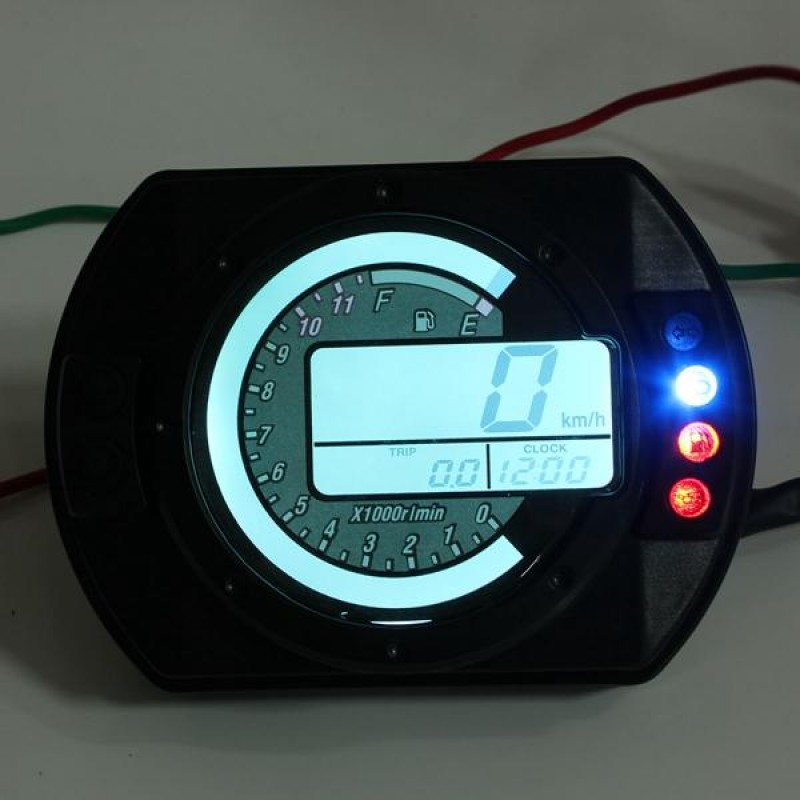

3.Switch ODO (cumulative number of kilometers) and TRIP (km total) through short press MODE key.
4.Tire size adjustment:
Short press MODO switch to ODO mode. Under the ODO mode, press ADJ key first, and then press the MODO button immediately,
two keys hold together to keep 3 seconds, then release buttons, long press MODO immediately and Enter the tire size adjustment state.
5.Clock adjustment:
Press the mode key switch to ODO mode, long press the mode key on the ODO mode and enter the clock adjustment mode,
short press MODE key to realize the switch of adjust the hours and minutes. After entering the clock mode,
short press ADJ can realize plus one hour or minute adjustment and long press ADJ can achieve rapid adjustment.
6.All the button operation time is 5 seconds, more than 5 seconds automatically jump out of the current mode
7.Oil indicator light for each of the 1000KM lights up. Long press ADJ key in the ODO mode, the oil indicator will be extinguished.
Specification:
Power voltage: 12V

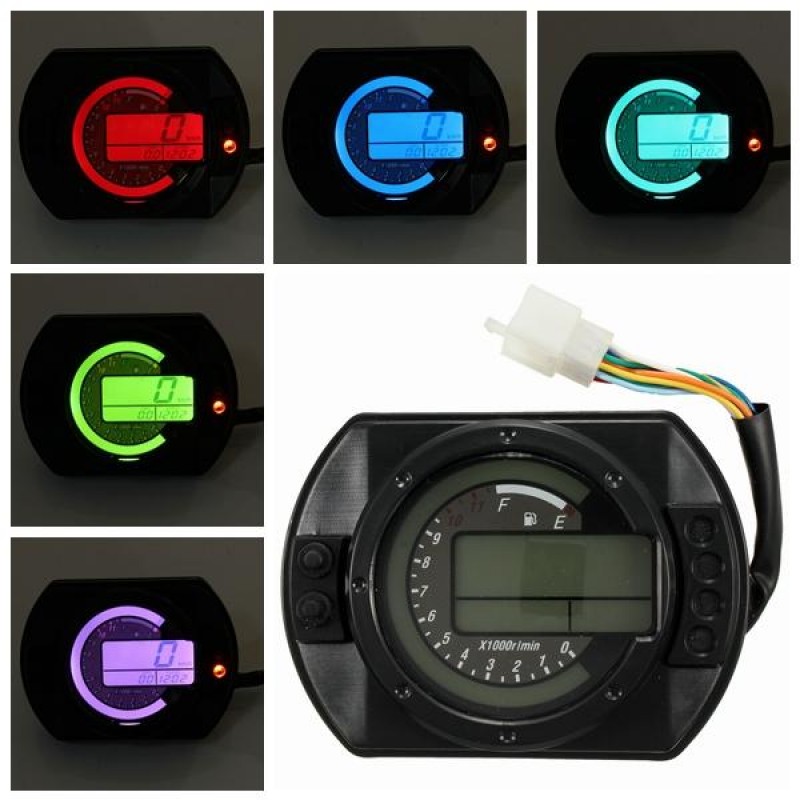

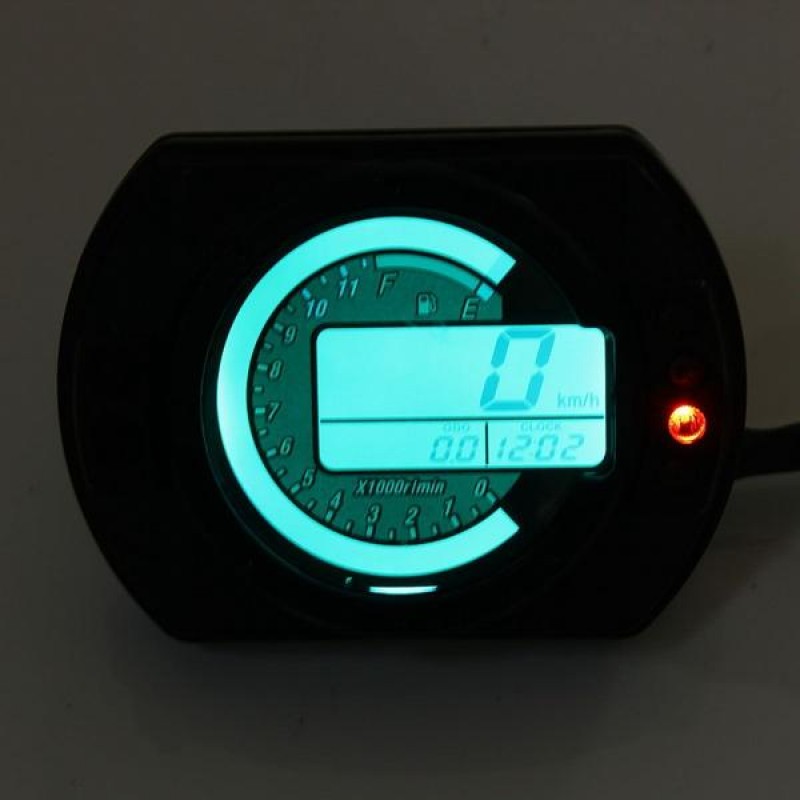

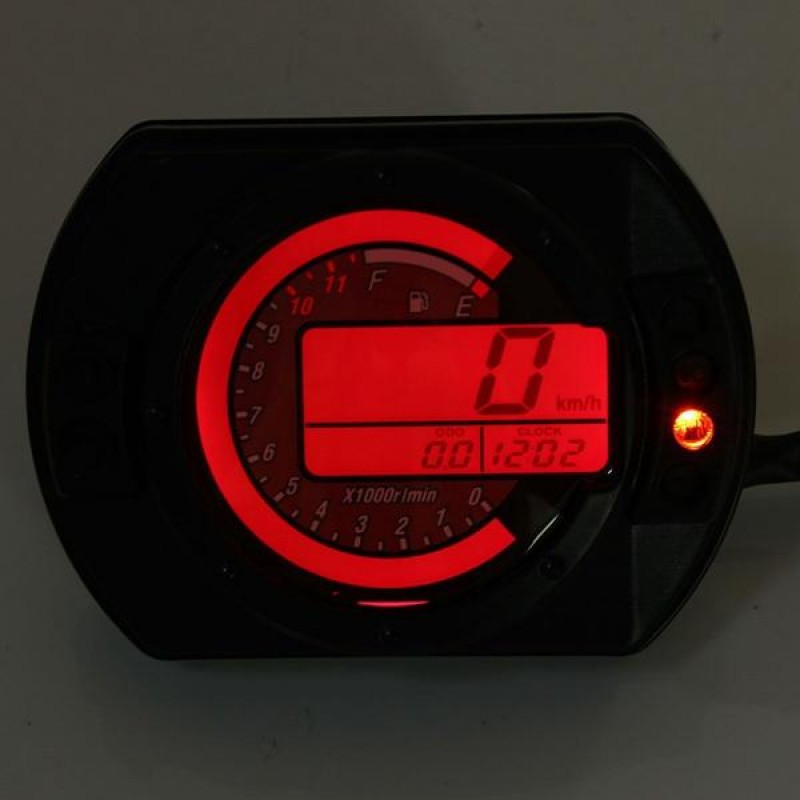

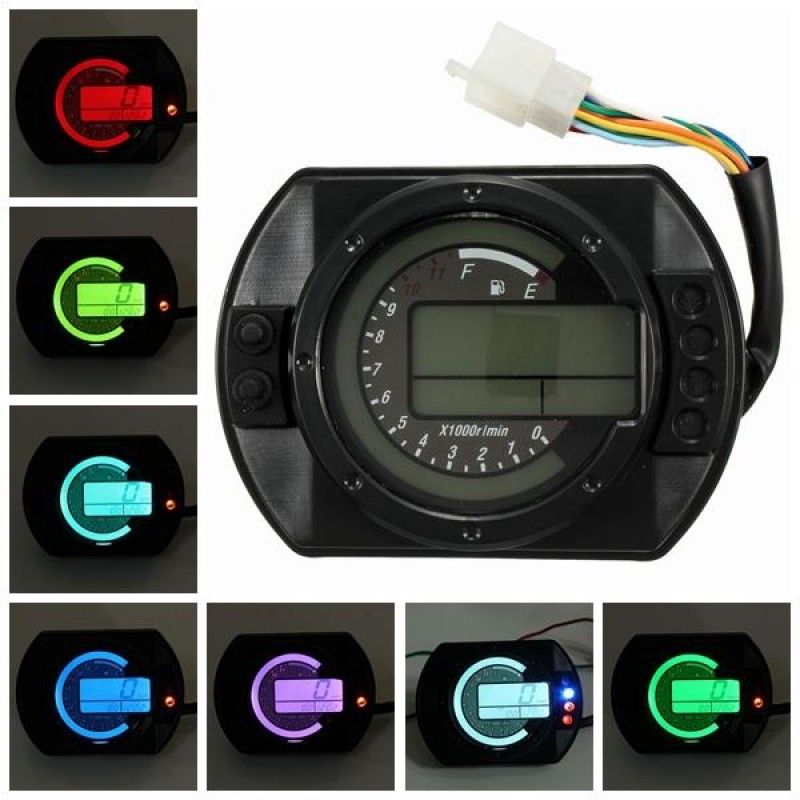

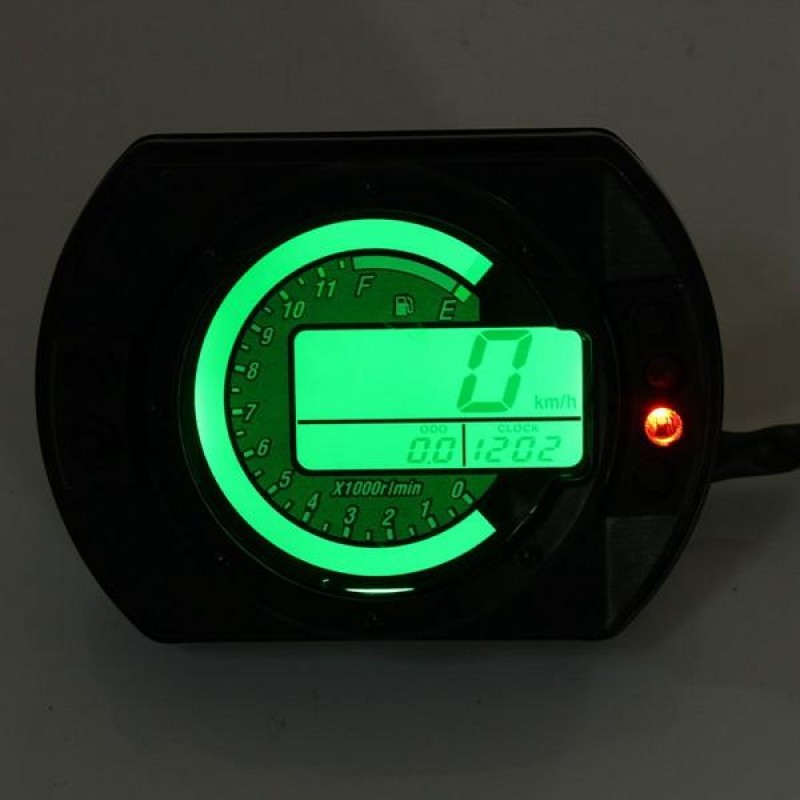

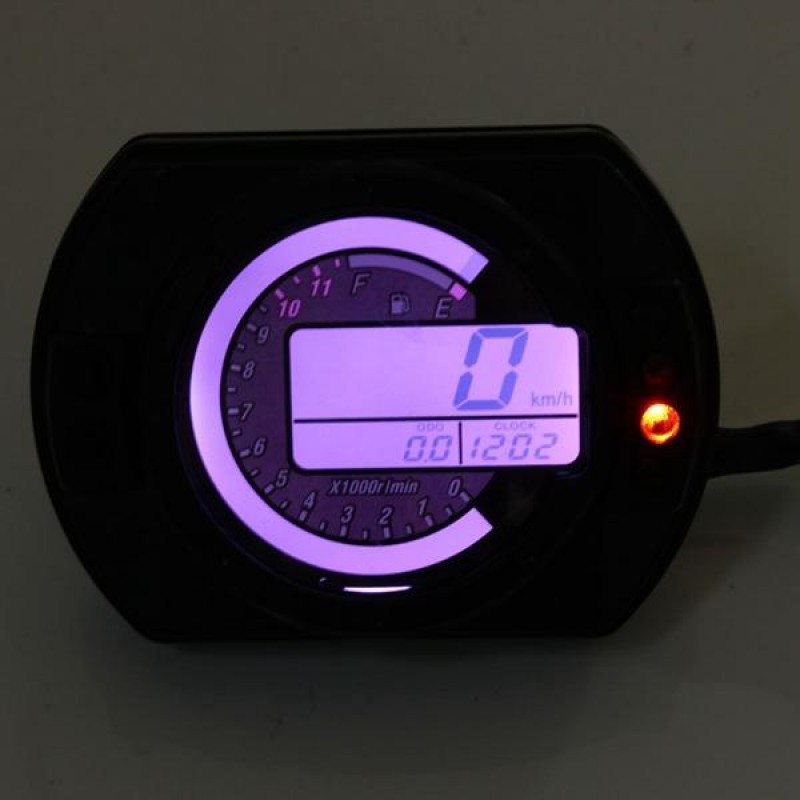

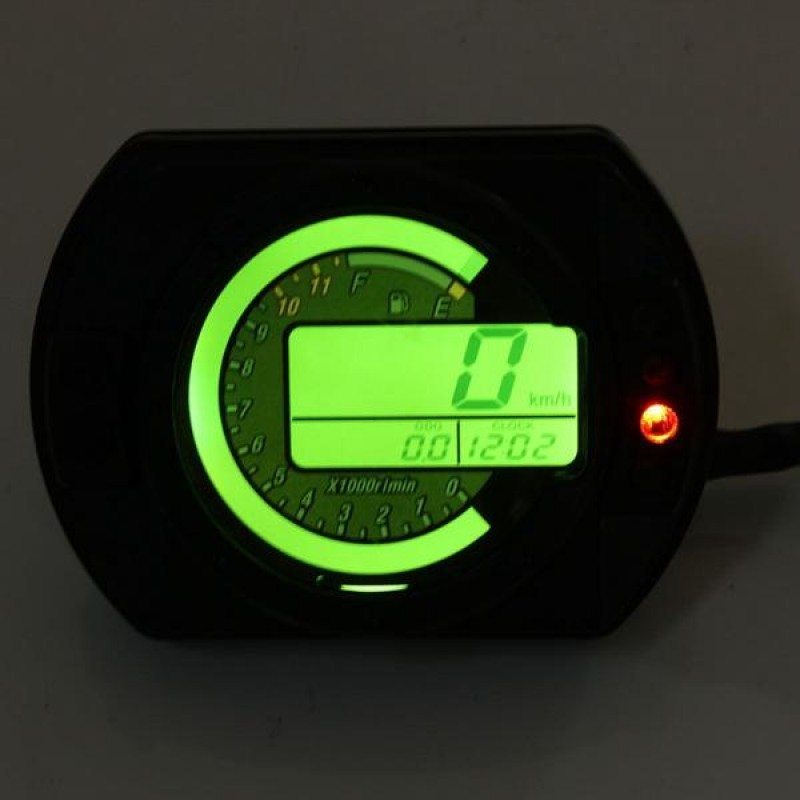

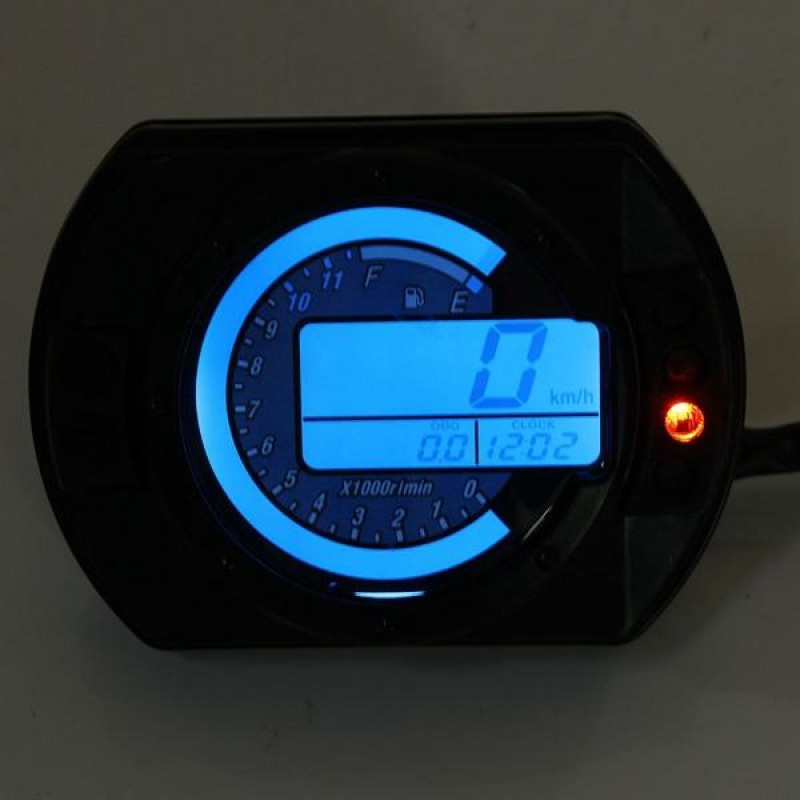

Backlight: 7 Colors (As shown in the picture)

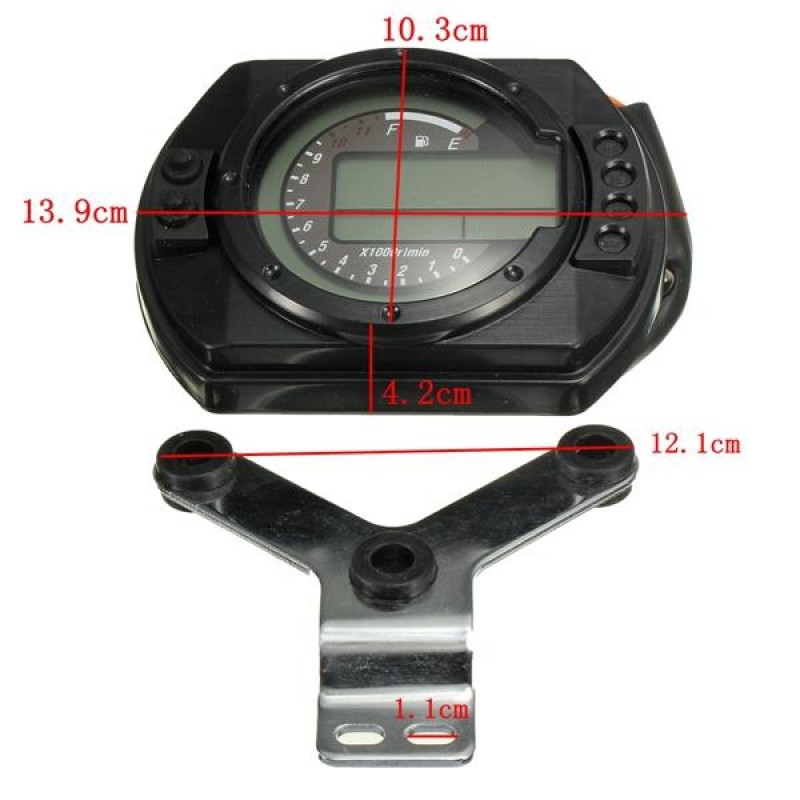

Size: Approx 13.9 x 10.3 x 4.2cm
Quantity: 1 pc
Fitment:Fits for all style motorcycle.

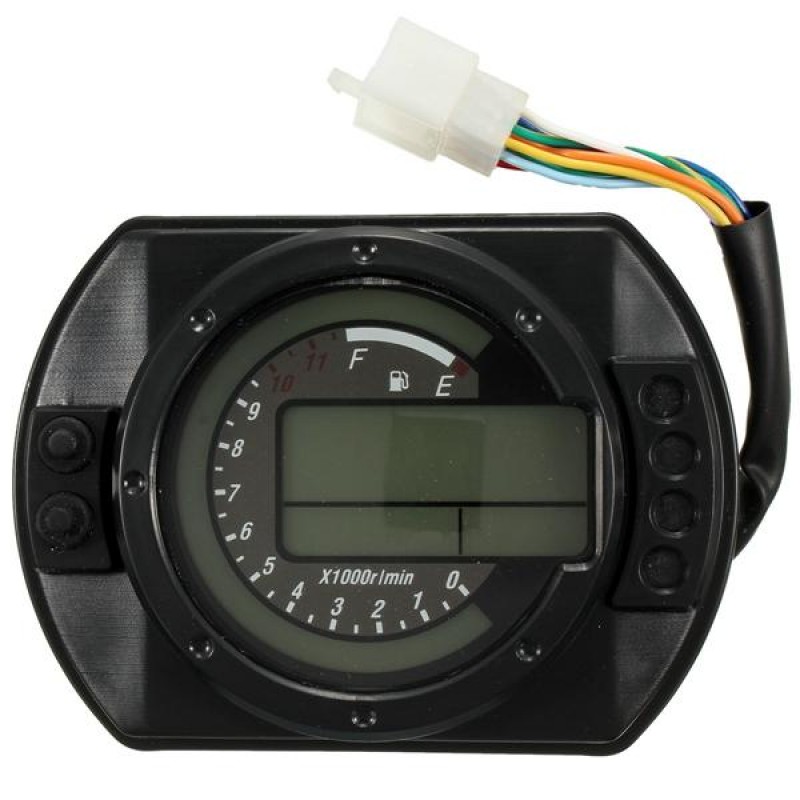

Line function:
Red: battery positive electrode is connected to the door to come in here (keep always have electricity)
Brown / Black: Electric door lock control closed the anode (controlled by the switch of the anode)
Green: negative
Yellow / White: oil quantity indicator (3 wires)
Yellow / Green: oil quantity indicator (2 wires)
Light Blue: right turn indicator
Orange: left turn indicator
Blue: high beam indicator
Red / White: engine speed engine trigger coil (also called pulse coil)
Package Included:
1 X LCD odometer

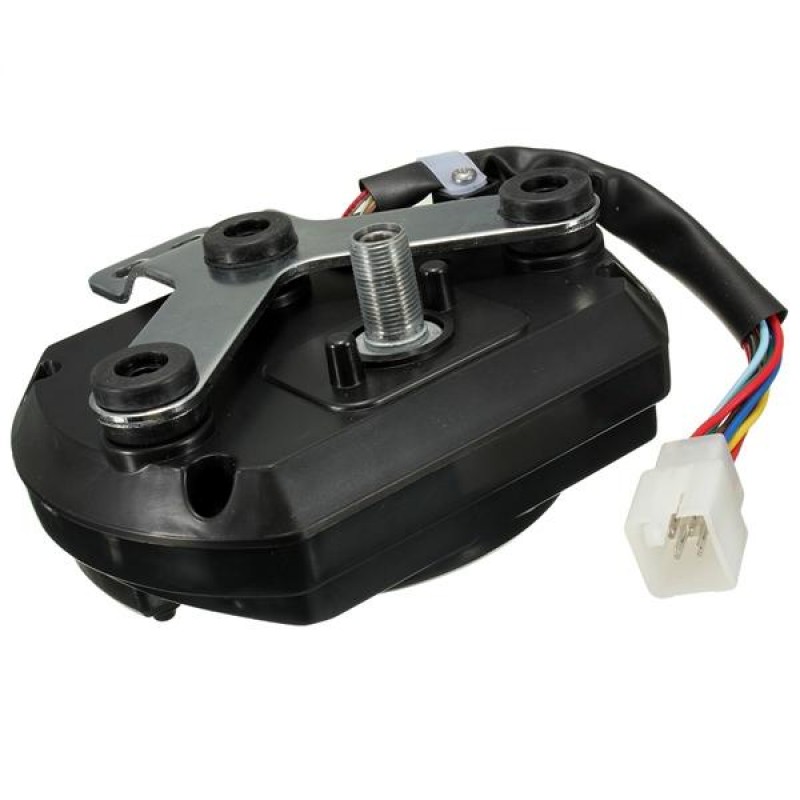

1 X Mounting rack
,
,
,
