Motorcycle Modified Tachometer LCD Seven Color Backlight Adjustable Speedometer For Yamaha

$54.24

  • Product Code: ED0017036
  • Availability: In Stock
  • Ex Tax: $54.24

Tags: Speedometer, Tachometer, Motorcycle

Specification:
Scale Display range: 0~360 km/h
Display unit: 1 km / h
Display interval <0.5 seconds
Total mileage Display range: 0~99999 km, then return to zero
Display unit: 1 km
Distance Table A.B Display range: 0~999.9 km, then return to zero, can be manually reset to zero.
Display unit: 0.1 km
Oil maintenance mileage Setting range: 300~5,000km
Setting unit: 100 km
Maximum speed record (Max.) Display range: 0~360 km/h
Tire outer diameter value setting range: 50~210%
Setting unit: 1 %
Gear table Display range: 1, N, 2, 3, 4, 5
Tachometer Display range: 0~15,000 RPM
Digital tachometer Display range: 0~20,000RPM
Overturn warning light Setting range: 3,000~15,000 RPM
Setting unit: 100 RPM
Pre-super-warning warning Setting range: -500~-3,000 RPM
Setting unit: -100 RPM
Maximum speed record (MAX) Display range: 0~15,000 RPM
Waveform setting Setting range: Hi (high waveform) and Lo (low waveform).
Thermometer Display range: 0~120°C
Display unit: 0.1 °C
Display interval <0.5 seconds
Maximum temperature record (MAX) Display range: 0~120°C
Air-fuel ratio Display range: 12.1~16.8
Display unit: 0.1
Oil gauge Display range: 10 stages
Display unit: 10% per stage
The oil quantity warning will start to flash in the remaining three stages.
Clock 24 hours
Voltmeter Display range: DC 8.0~18.0 V
Display unit: DC 0.1 V
Backlight brightness adjustment Setting range: 1-5 (darkest) ~5-5 (brightest), five-stage display
Setting unit: about 20% brightness per stage

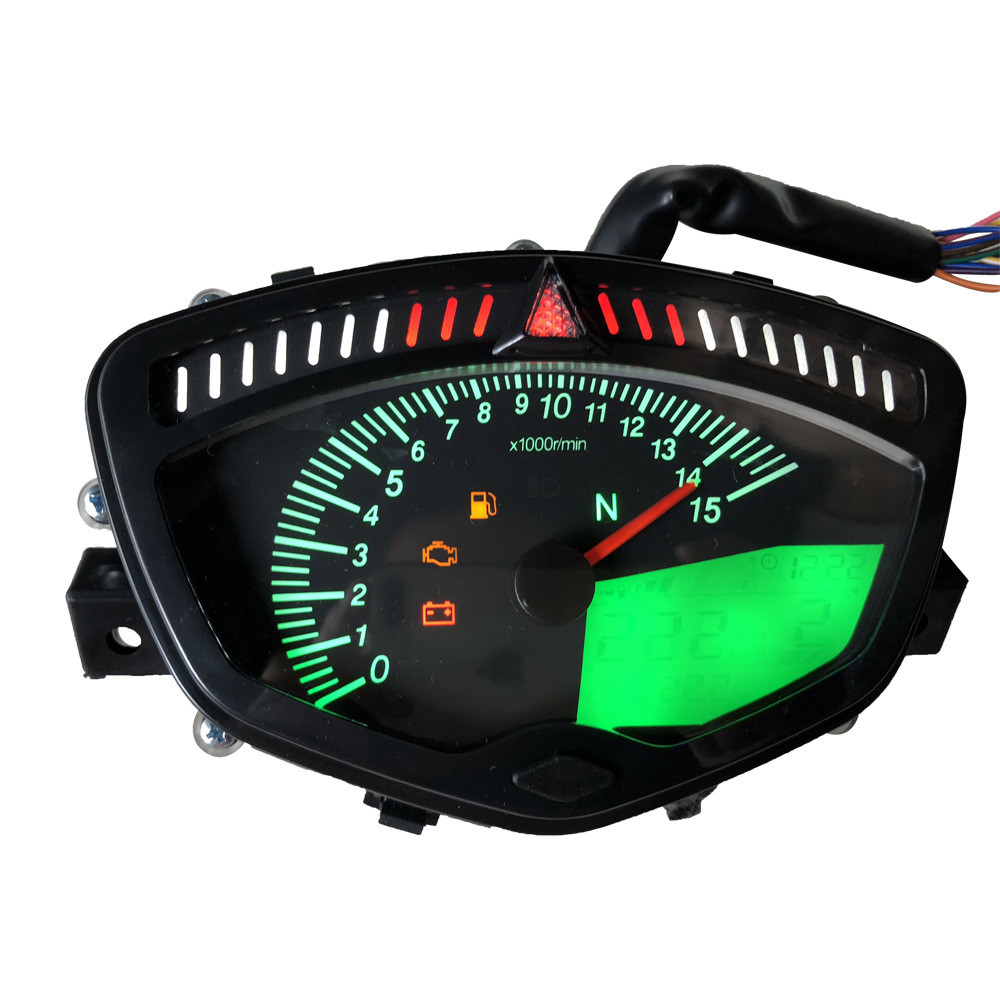

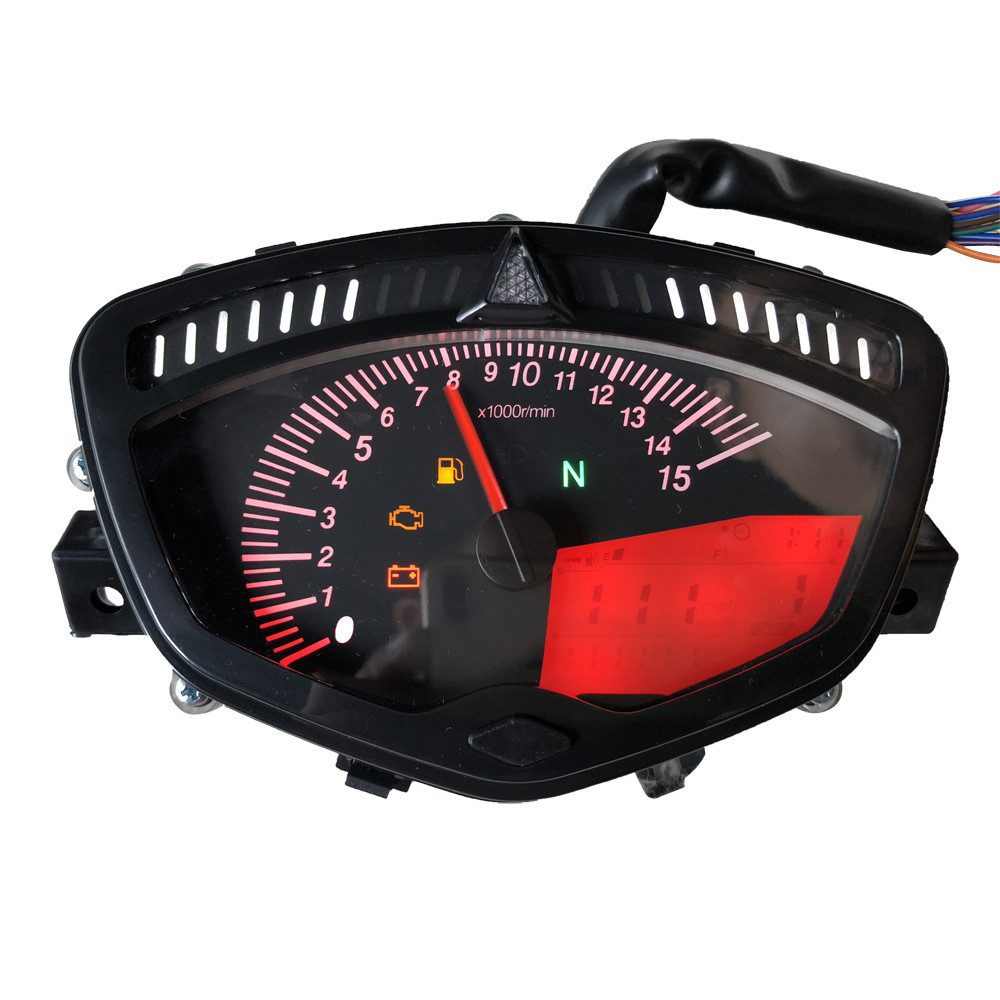

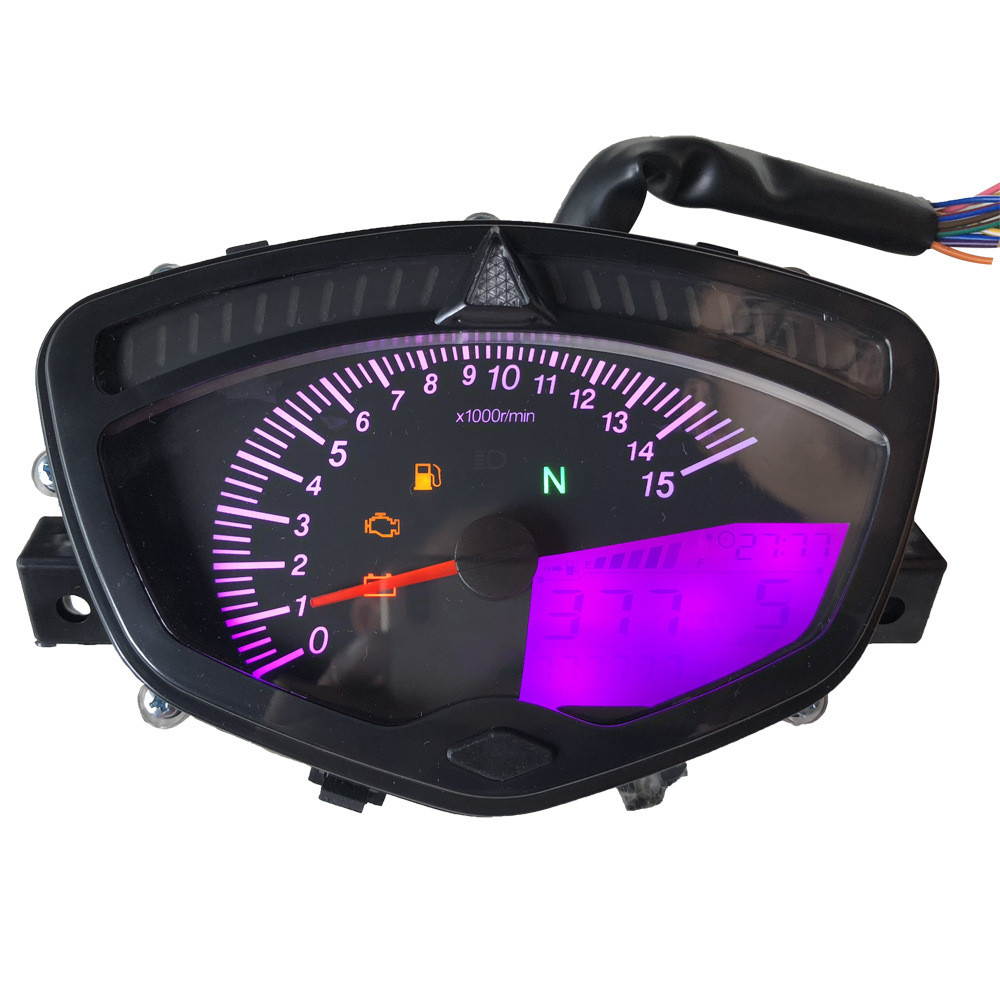

Backlight color adjustment Setting range: red light, orange light, yellow light, green light, blue light, light blue light, purple light, white light cycle switching
Operating voltage DC 12 V
Body temperature range -10~+60°C
Main body specifications JIS D 0203 S2
Body size (W X L X H) 176 X 122.7 X 71.7 mm
Body weight approx. 447 grams

Package Included:
1 X Motorcycle Speedometer
