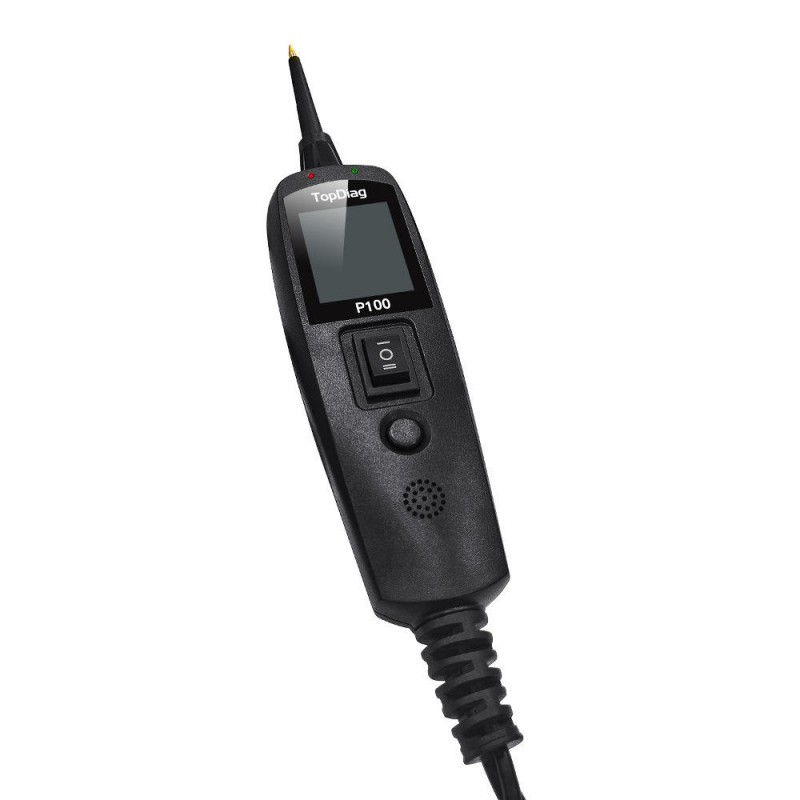

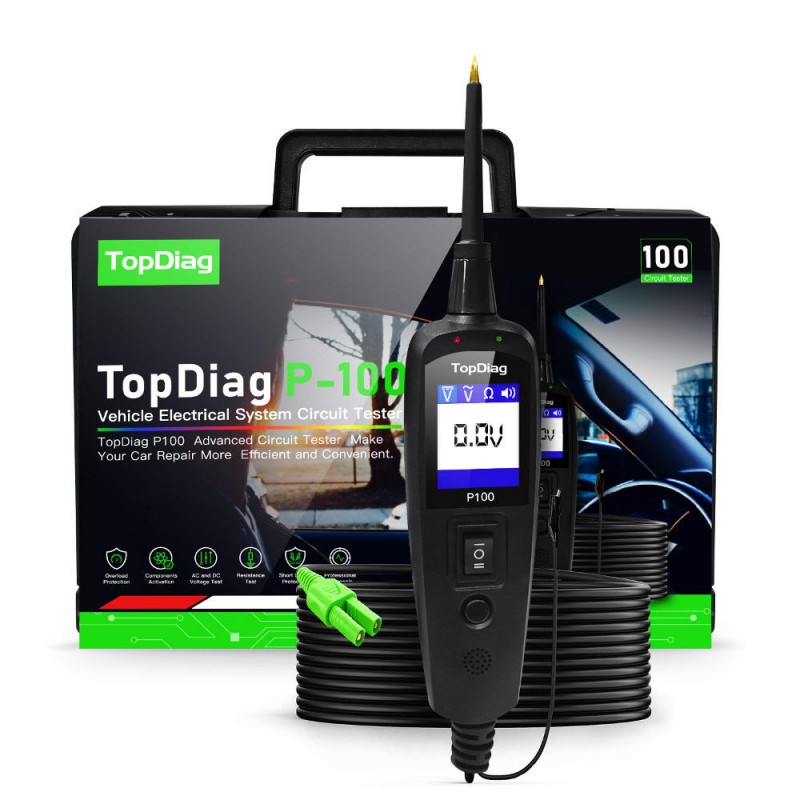

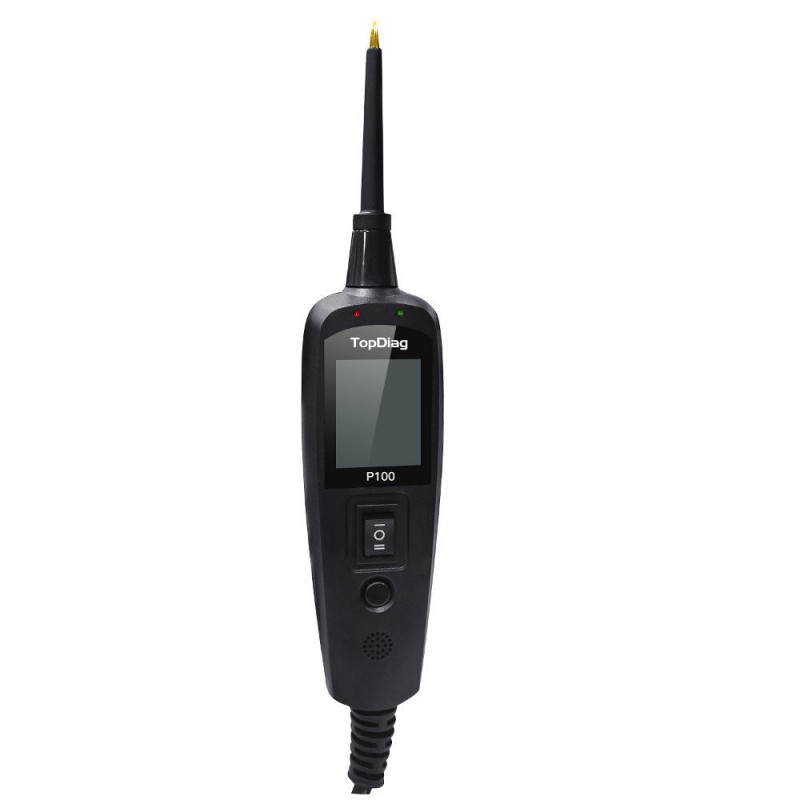

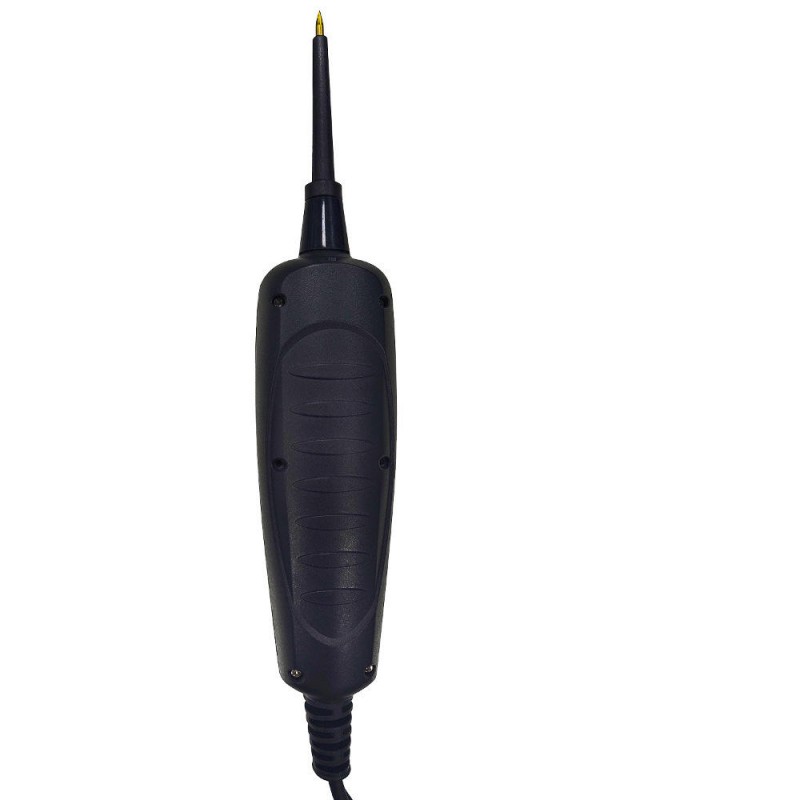

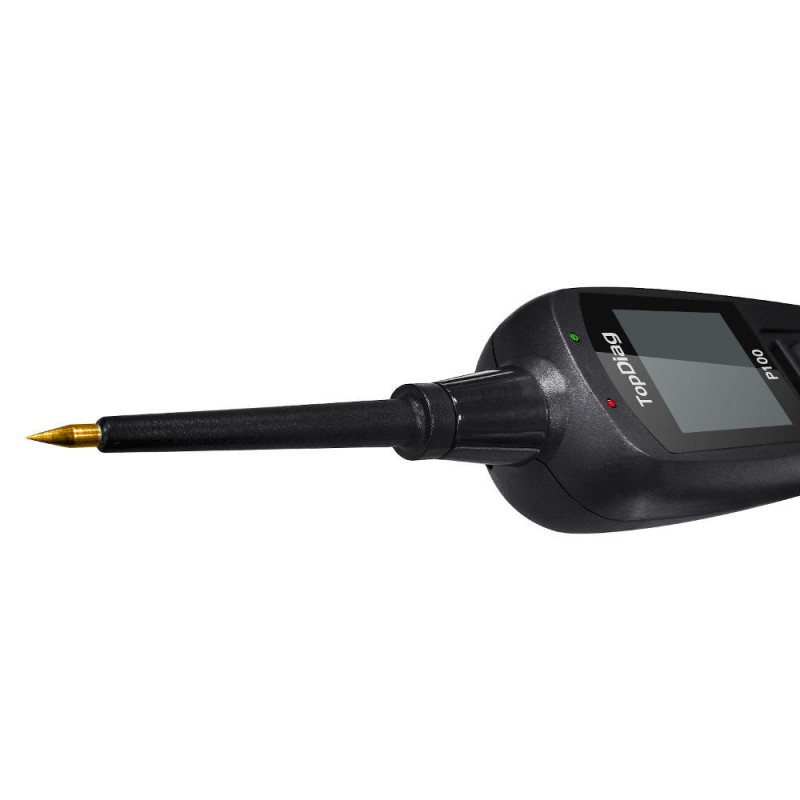

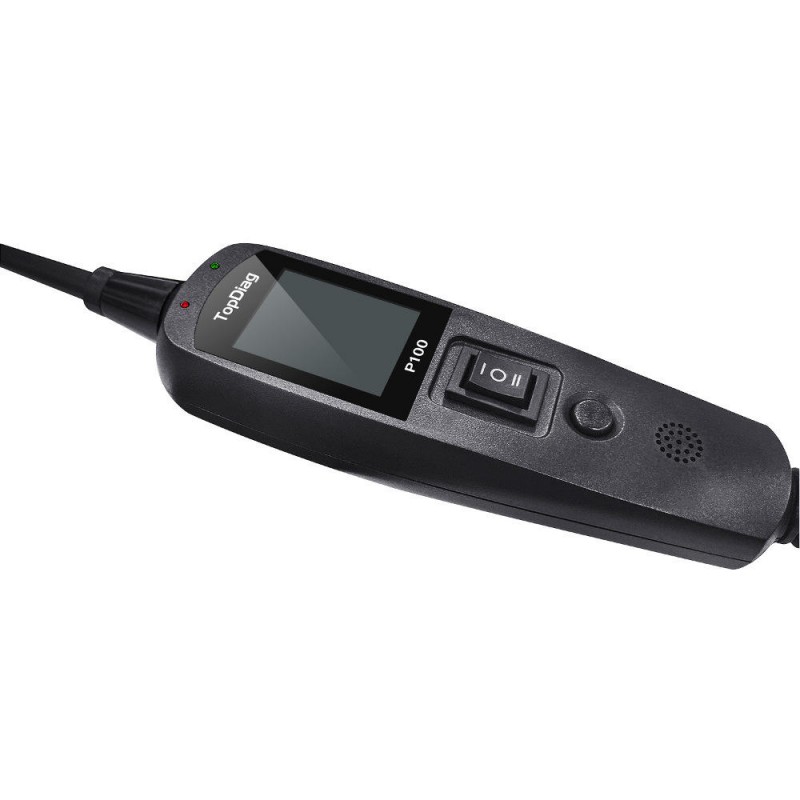

P100 Power Probe Circuit Tester Electrical System Automotive Car Diagnostic Tool Scanner
$66.83
- Product Code: ED0007475
- Availability: In Stock
- Ex Tax: $66.83
Description:
JDiag Original Automotive Electrical Circuit System Tester for Cars & Trucks 0V - 70V
1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
2.Resistance Continuity Testing- LCD Screen display the value of resistance.
3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4.Components Activation in your hand, in the vehicle or W/Ground.
5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
6.Checking for Bad Ground Contacts and Locating Short Circuits .
Specifications:
Brand Name: Elecdeer
Model Name: p100 Circuit Tester
Electronic: No
Hardware Version: P100 Circuit Tester
Material Type: HQ Plastic&metal
Item Type: Electrical Testers & Test Leads
Software Version: p100 Circuit Tester
Product name: P100 Circuit Tester
Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -40 to 70°C (-40 to 185 F°)
External Power: 12.0 or 24.0 V power provided via vehicle battery
Dimensions: Length 165 mm * Width 40 mm * Height 27 mm
Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp
Testing Standard:
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.
Perfect replacement of VSP200

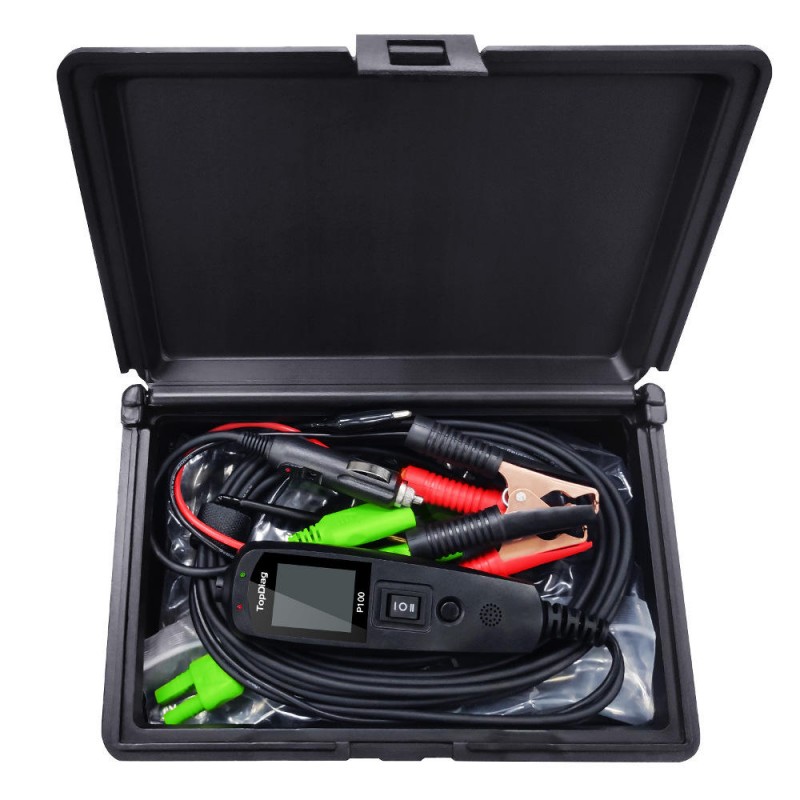

Package Included:
1 X P100 Power Probe
Package Included:
1 X P100 Power Probe
1 X 10M Extension Cable
Other Accessories
