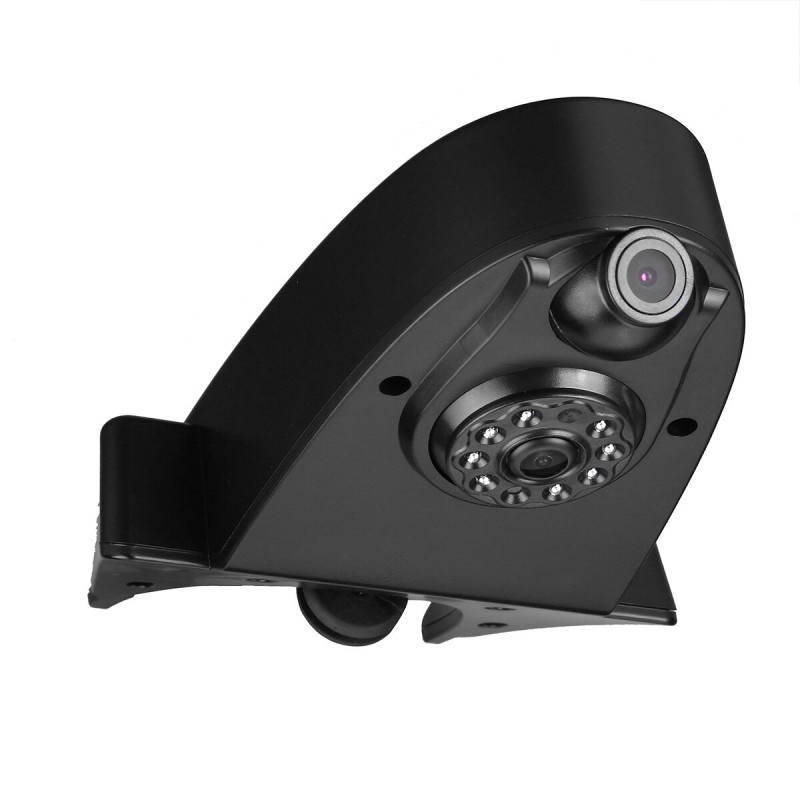

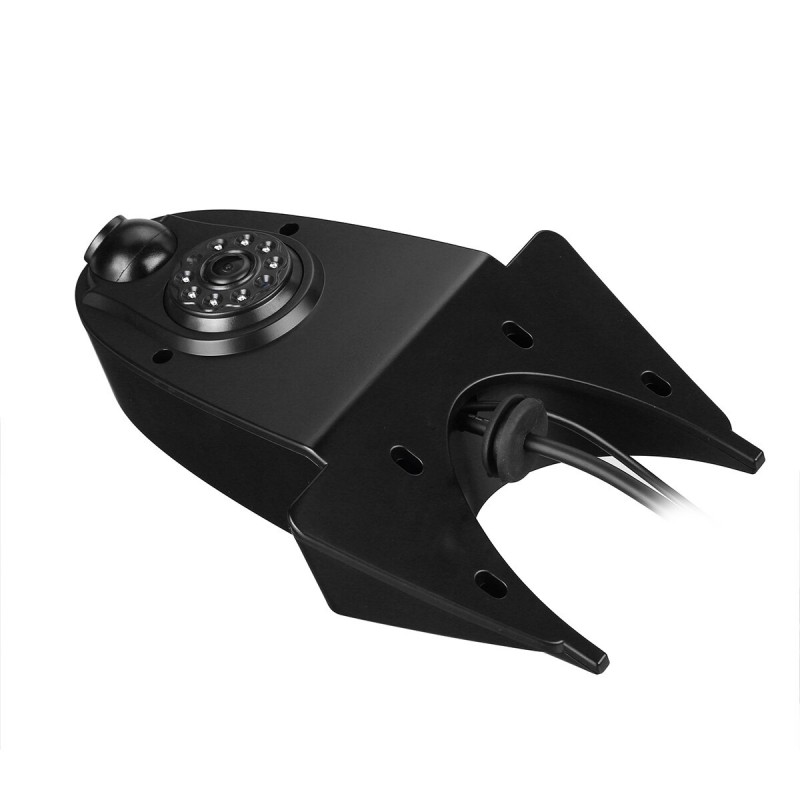

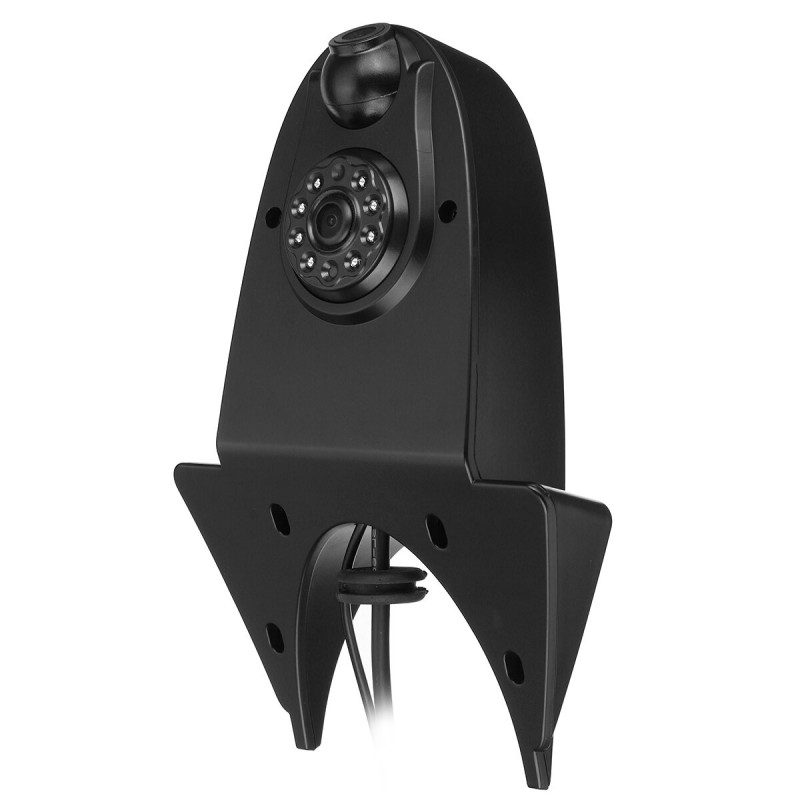

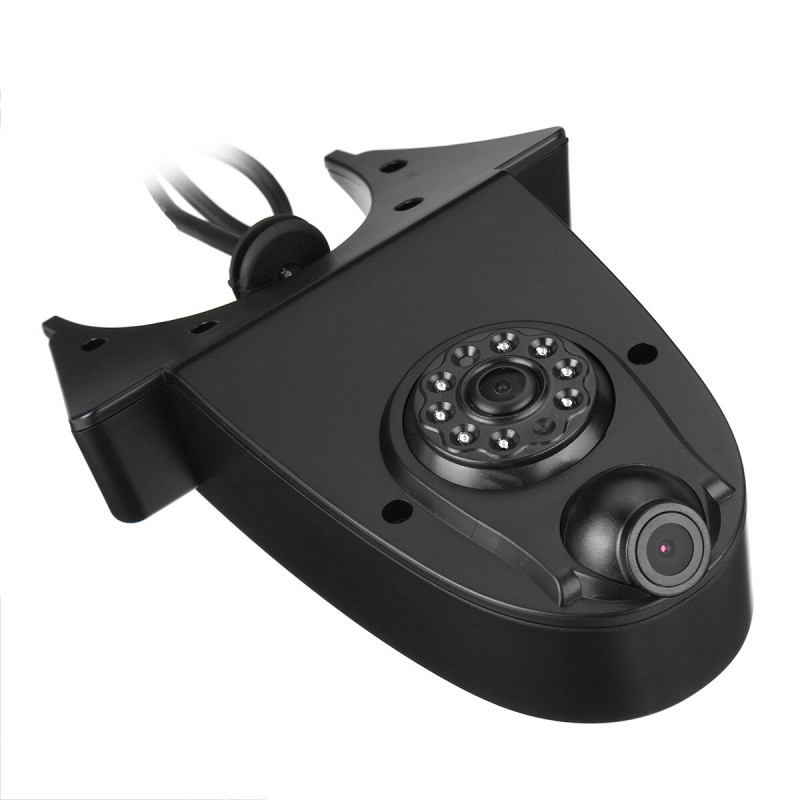

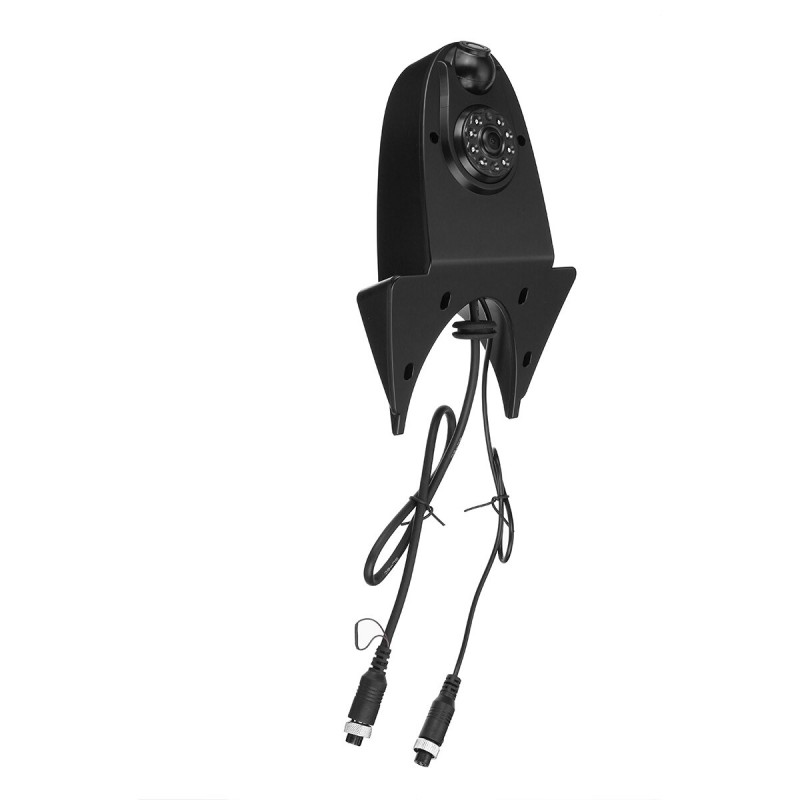

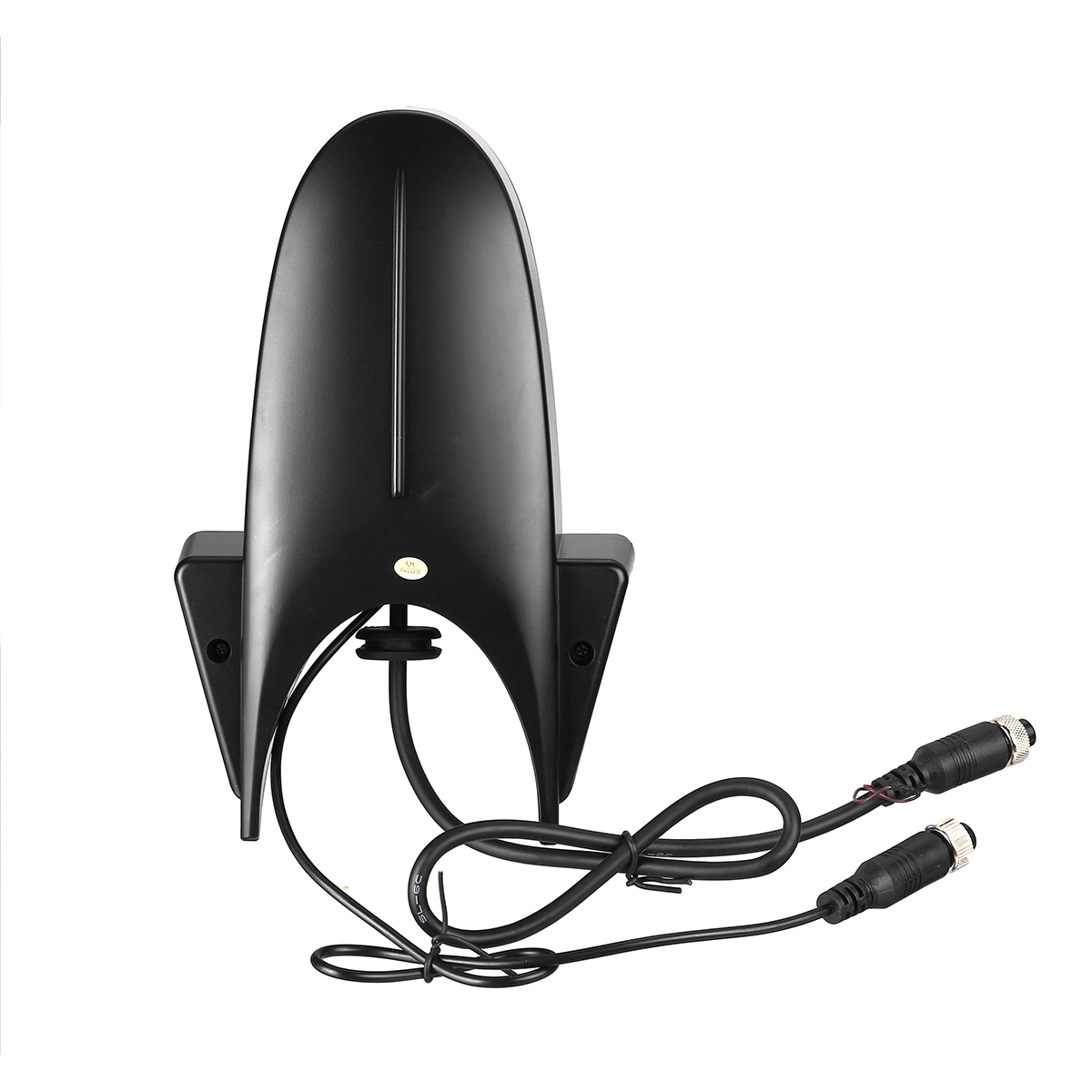

Rear Reverse Parking Running Time Dual Camera Lens High Level For Benz Sprinter
$98.99
- Product Code: ED0001128
- Availability: In Stock
- Ex Tax: $98.99
Feature:

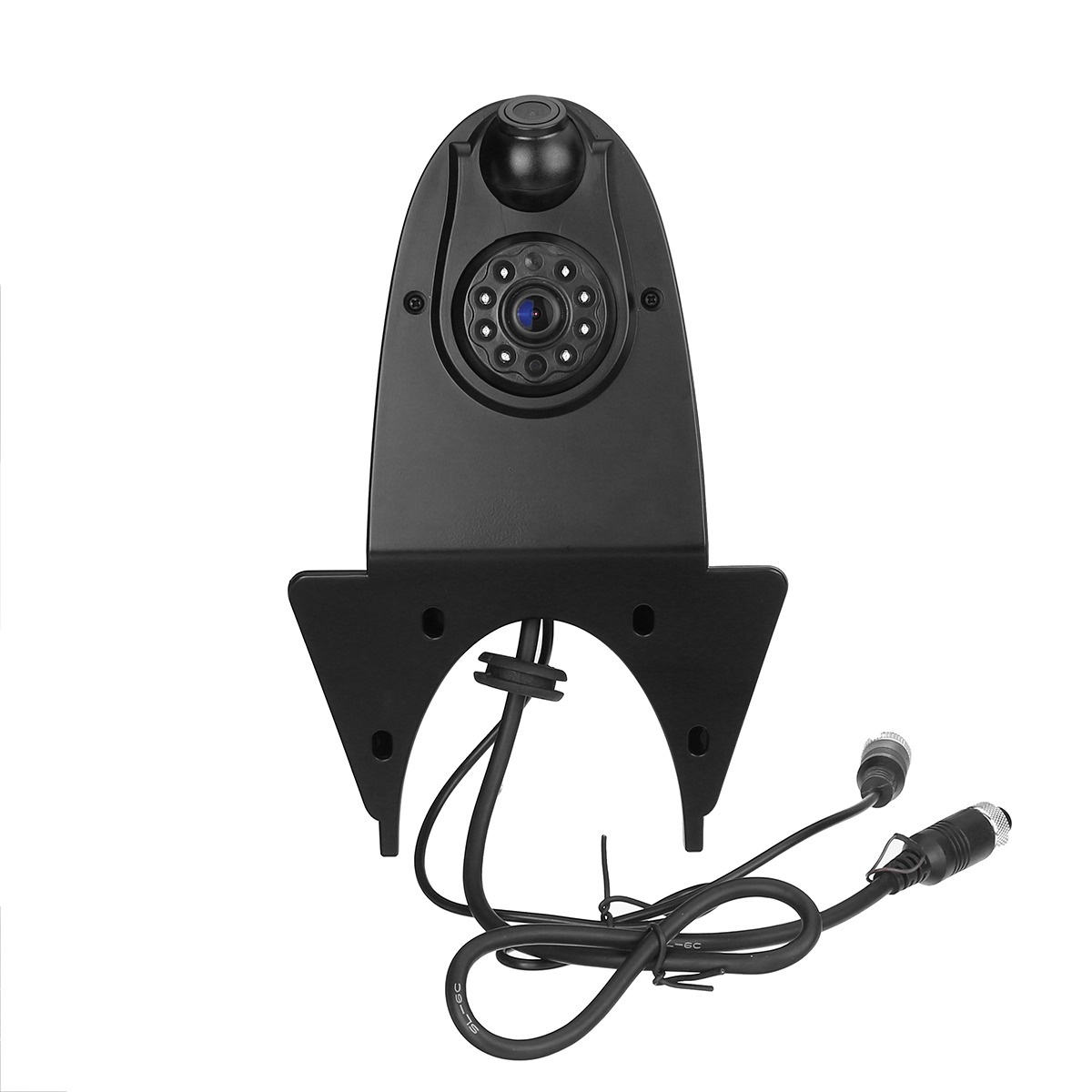

1.Dual camera:

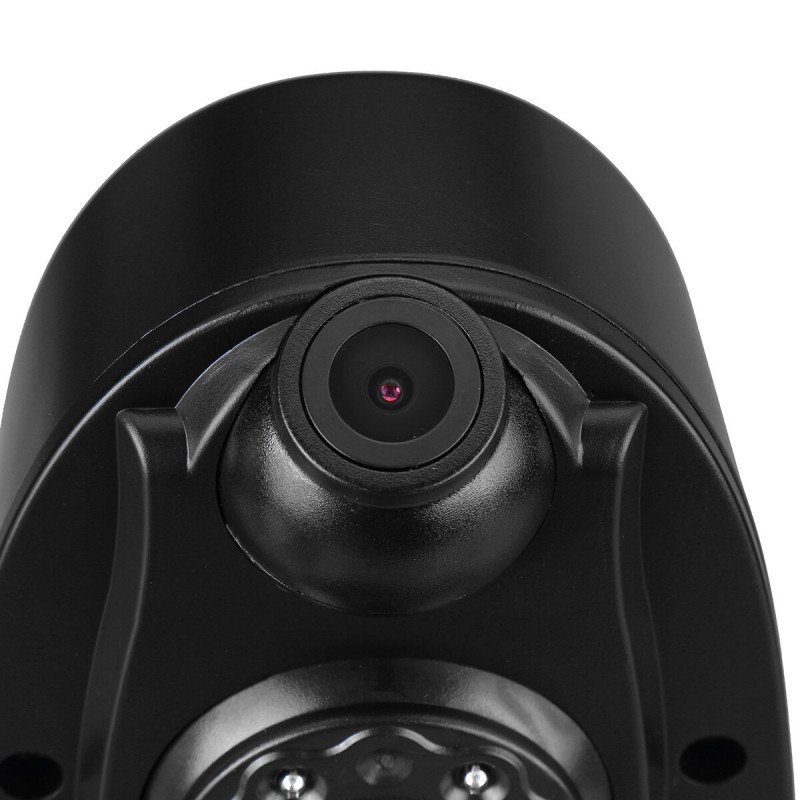

2.The Front camera will be turned on during the normal driving process.
3.The second camera will be turned on during the parking time.

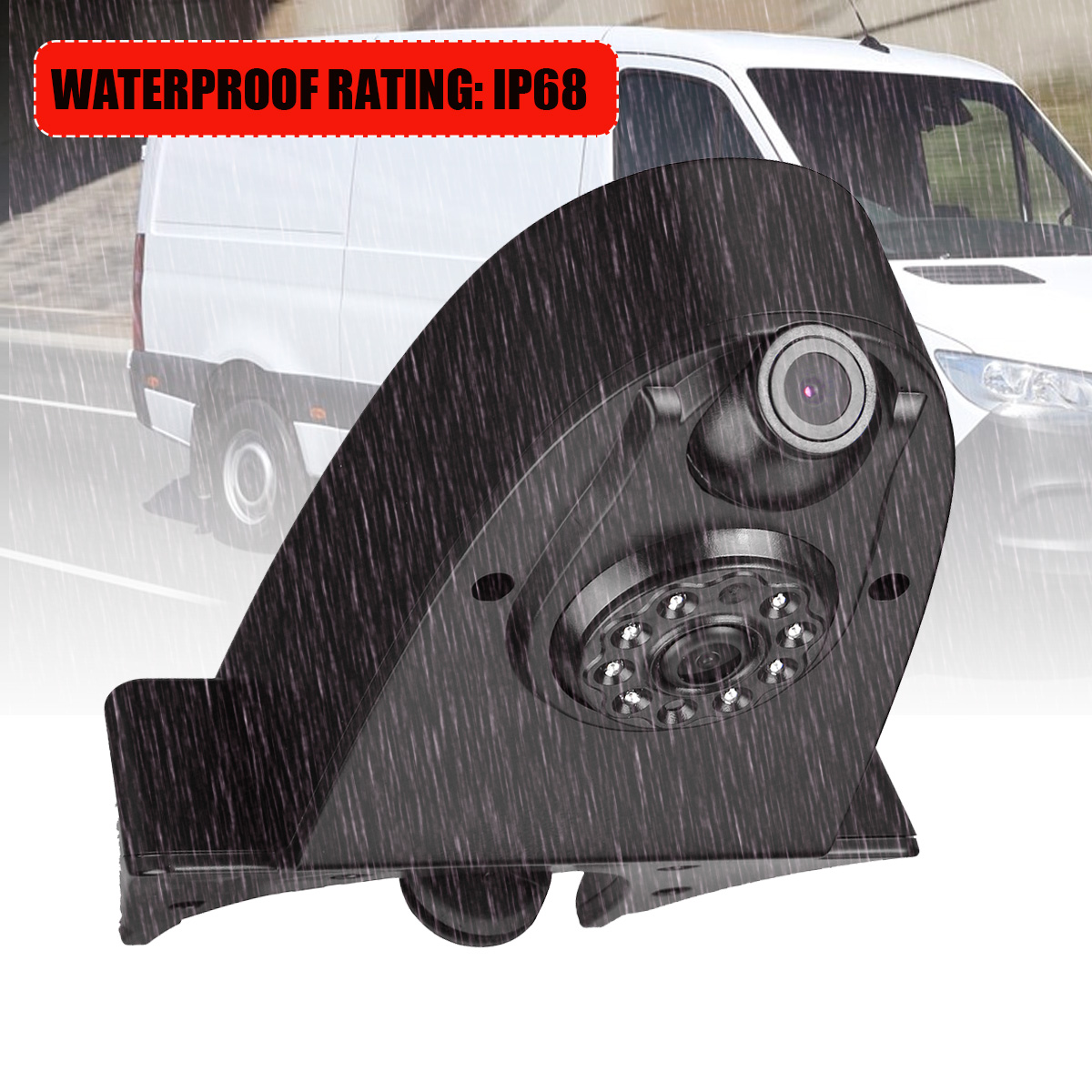

4.Waterproof，The camera is completely weather proof with a IP68 rating.

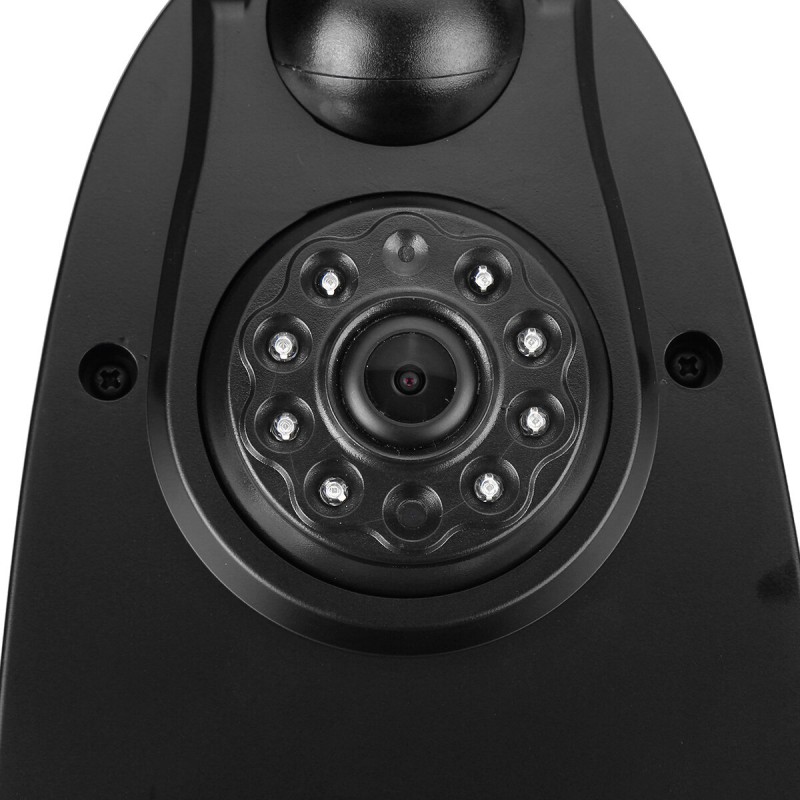

5.Great night vision. The camera has 9 infrared lights, which can provide vision even in dark night.
6.The resolution is 600TV lines, which means you can get very good video images.
Specification:
Name |
Rear Reverse Parking Camera |
Color |
Black |
Size |

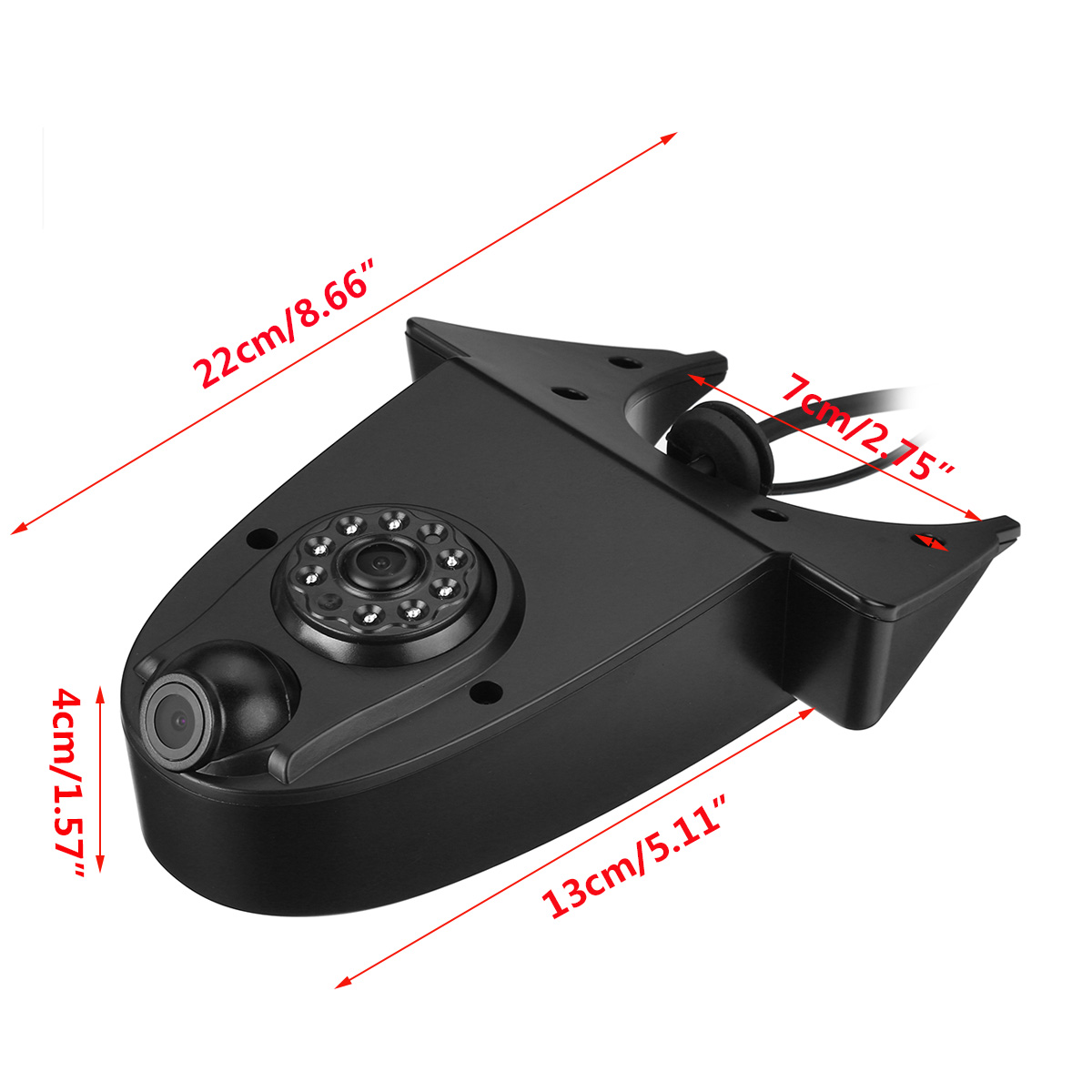

22cm/8.66inx4cm/1.57in (LxH) |
Type |
Auto Rear View Camera |
Placement on Vehicle |
Rear,Roof |
Shell material |
PC |
System standard |
PAL |
Total image pixels |
PAL: 720 (H) × 480 (V) |
Scanning system |
625 lines, 50 fields/sec |
Minimum illumination |
0.1 LUX/F1.2 |
Horizontal resolution |
600TVL |
Automatic gain control |
automatic/manual |
White balance method |
automatic tracking |
Backlight compensation |
automatic/manual |
Exposure mode |
electronic exposure |
Gamma correction |
0.45 |
Synchronization method |
internal synchronization |
Electronic shutter speed |
1/50～1/100000s |
Signal to noise ratio |
>48dB |
Waterproof rating |
IP68 |
Lens |
Driving- 3.6mm / Reversing- 1.9mm |
Field of view |
LED/irradiation distance: driving: no infrared / reversing: 8 infrared lights, irradiation distance 5-10M |
Video output |
composite video signal 1.0V p-p/75Ω |
Operating temperature |
-30℃ to +70℃ |
Storage temperature |
-40℃ to +80℃ |
Working humidity |
relative humidity is lower than 90% |
Input power |
9V-16V |
Working current |
(driving + reversing) 250mA |
Interface definition |
Reversing: 1-+ 2G 3-V; Driving: 4-+ 5G 6-V |
Fitment:
(Please Compare With Your Original One Before Purchasing!)
For Mercedes For Benz Sprinter
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.

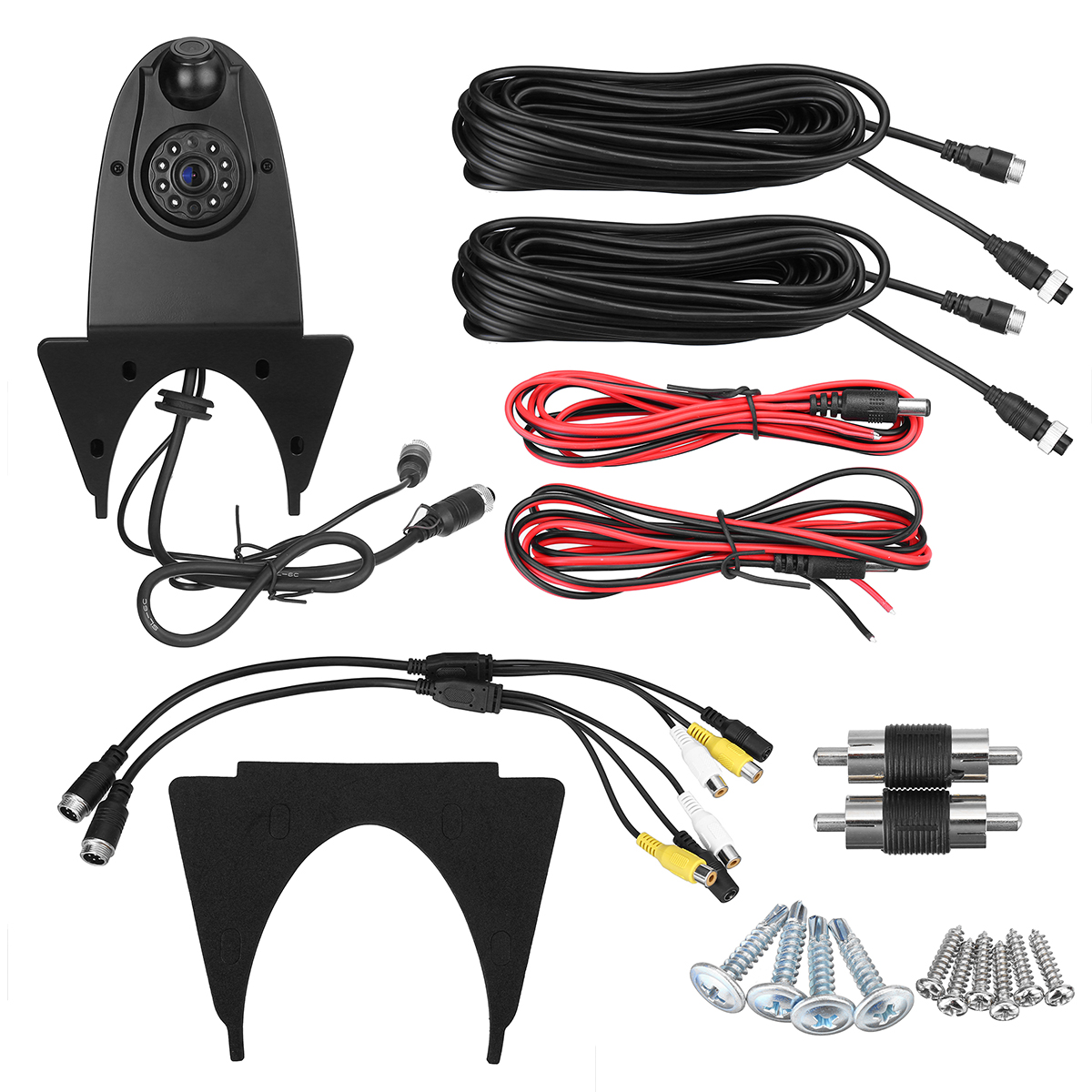

Package Included:
1 X |
Parking Camera |

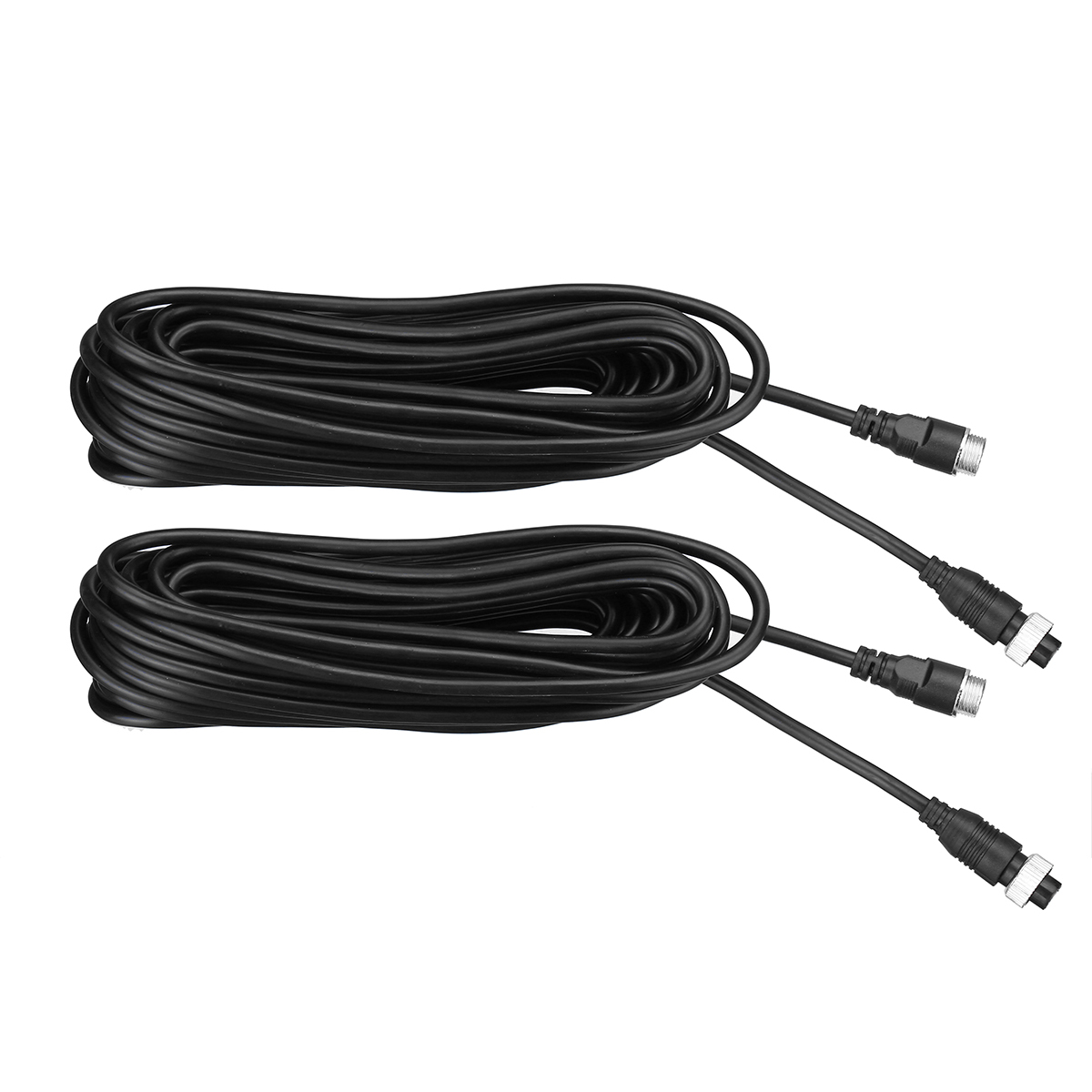

6 X |

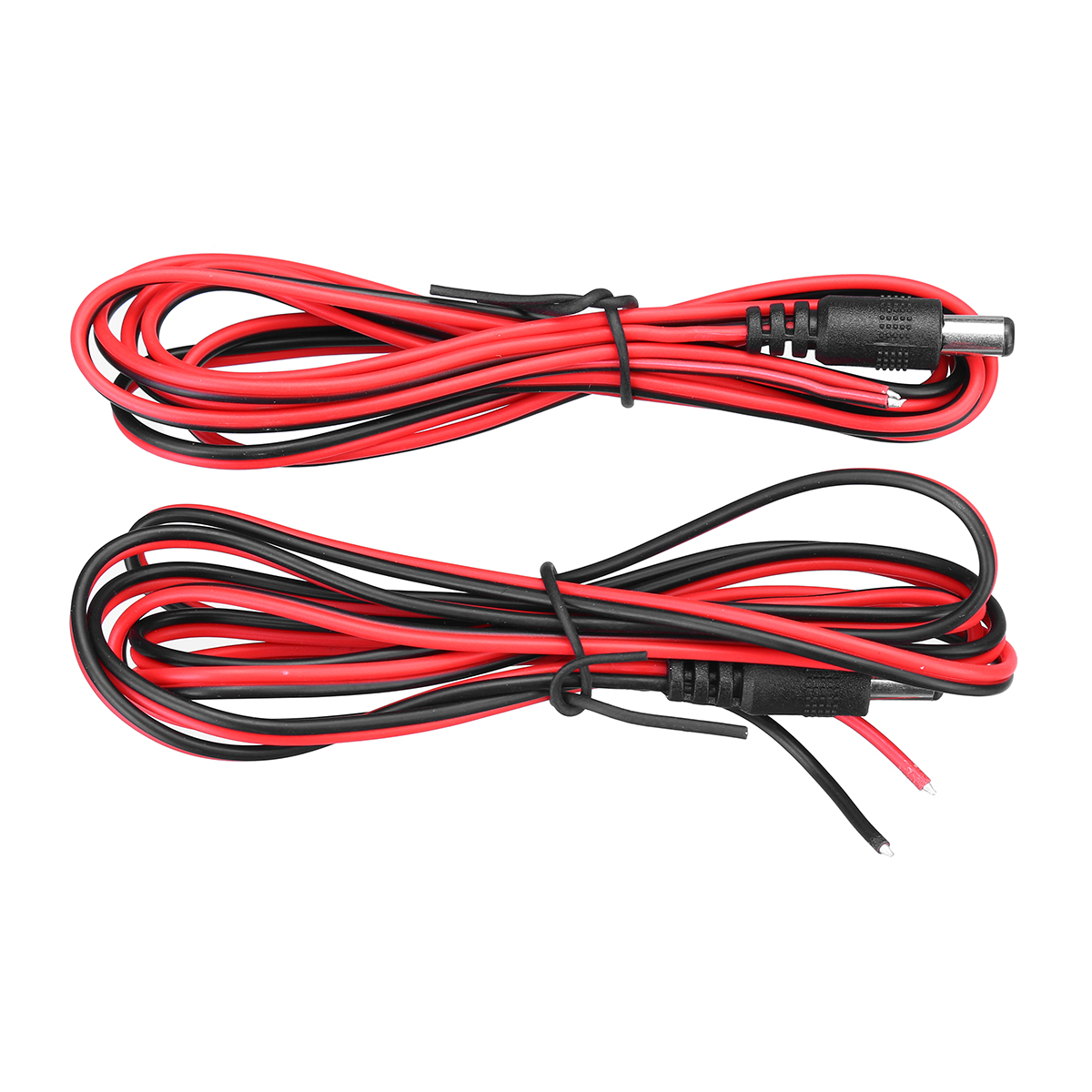

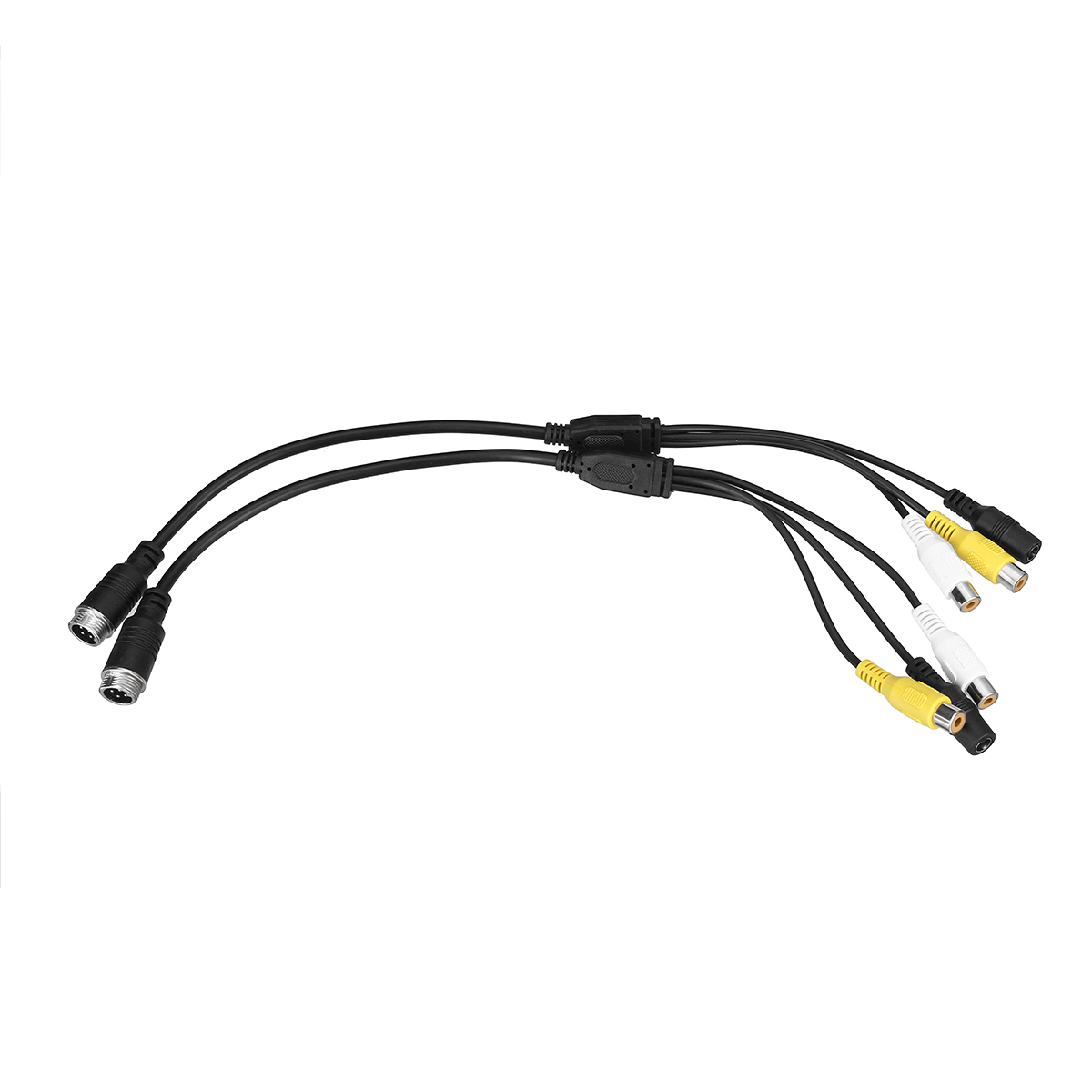

Cables |
1 X |

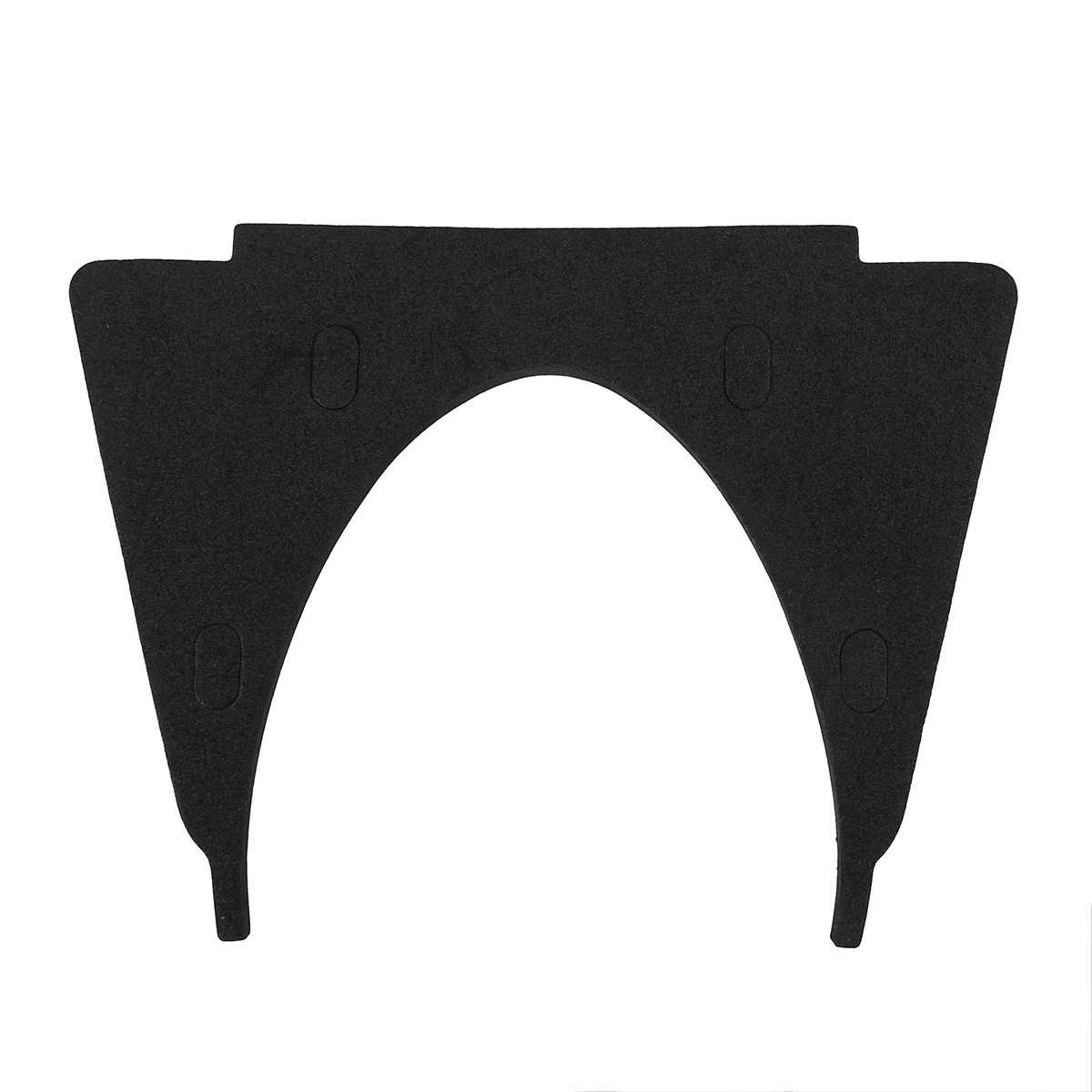

Gasket |
6 X |
Screws (Small) |
4 X |
Screws (Big) |
2 X |
Install Parts |
