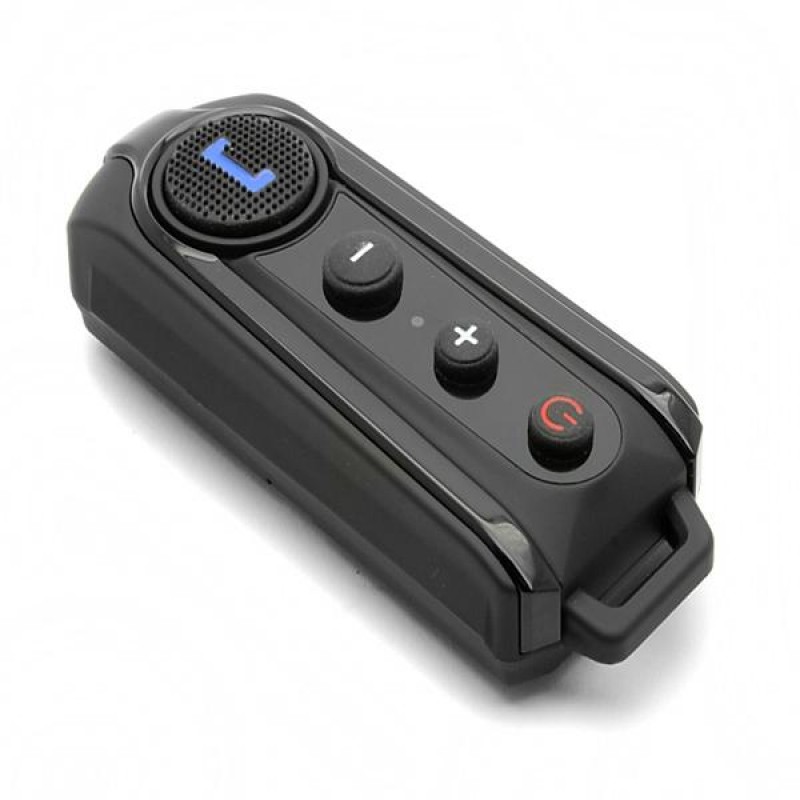

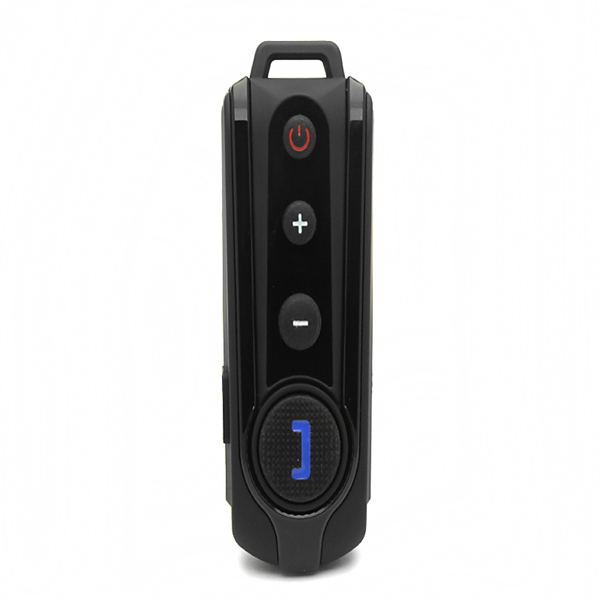

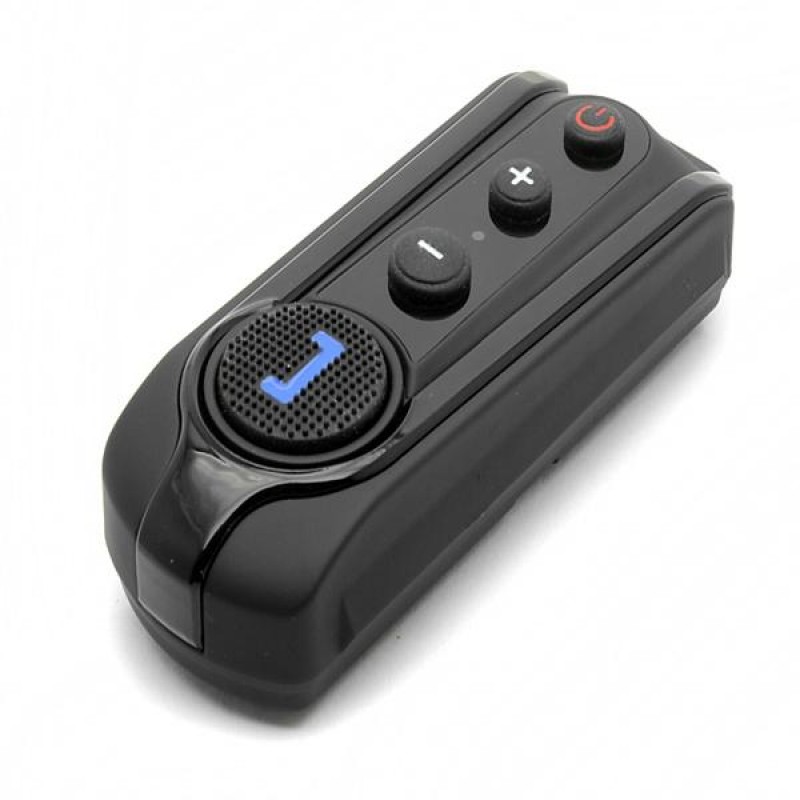

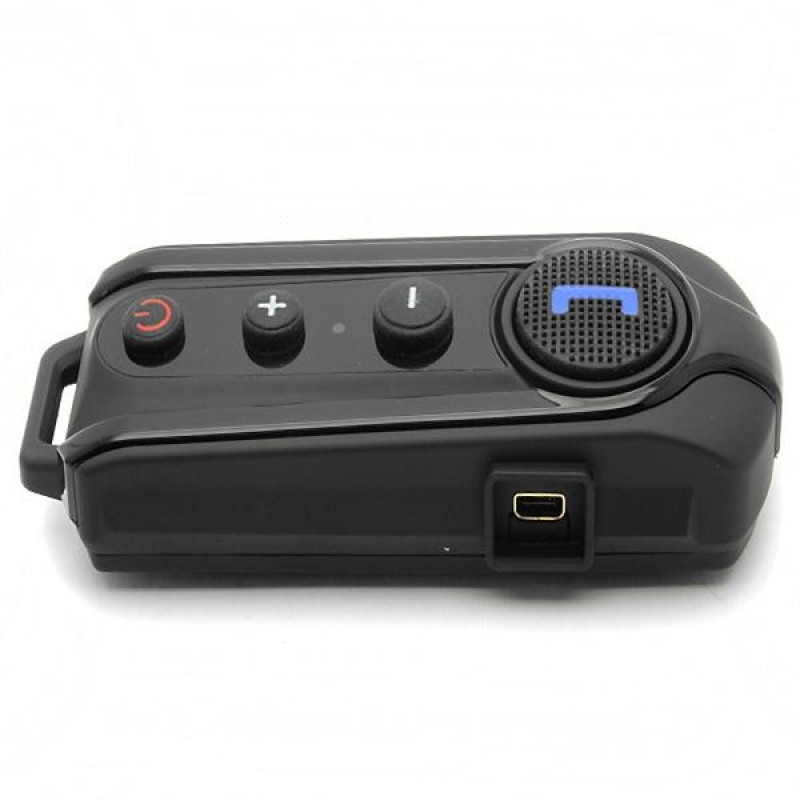

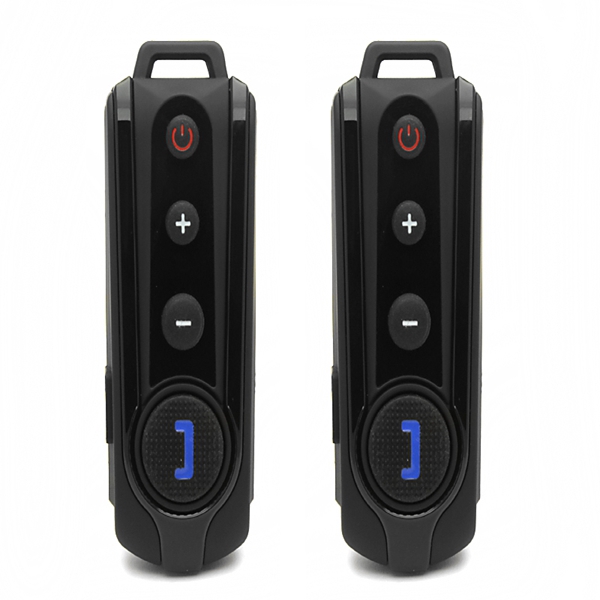

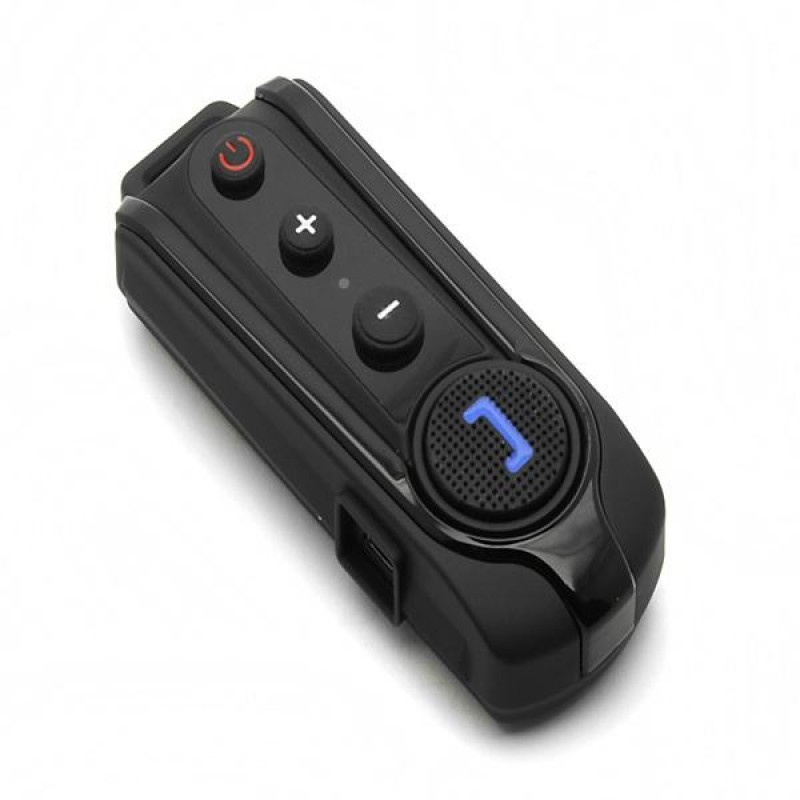

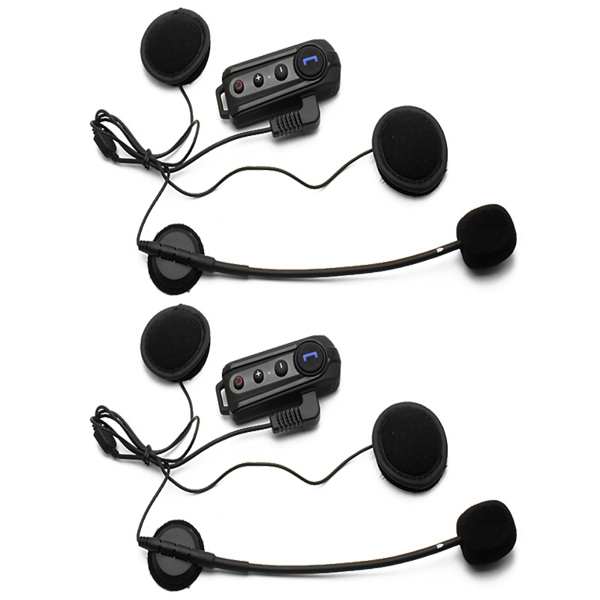

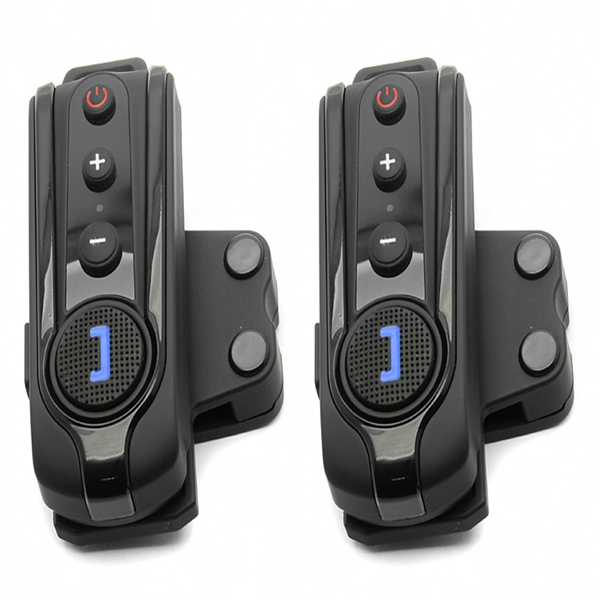

Riding Sports Helmet Interphone Headset Intercom With FM bluetooth Function For BT-S1
$39.99
- Product Code: ED0013273
- Availability: In Stock
- Ex Tax: $39.99
(1) Wireless headset for bluetooth enable cell phone at a range of up to 10 meters.
Bike-to-bike intercom for rider& passenger or two separate bikes up to 800-1000 meters.
Up to 10 hours talk time when connected to cell phone.
Up to 6 hours talk time when using the intercom feature.
Up to 300 hours standby
(2) Call out, call answer, call reject, call hang up.
(3) Receive a cell phone call automatically
(4) Support audio transfer.
(5) FM Radio function
(6) Enjoy the cell phone music through A2DP or connect GPS
(7) Control cell phone music through AVRCP: forward, backward, play, pause
(8) Automatic switching among bluetooth cell phone, intercom, stereo music.
(9) With DSP echo cancellation and noise suppression technology, crystal clear voice quality is guaranteed in a high speed.
(10)Button panel is water-proof and sun-proof, while the design is durable.
Specification:
Material: ABS
Brand: Elecdeer
Color: Black
The link to download the use mannual:
https://www.elecdeer.com/image/catalog/download/doc/BT-S1.doc

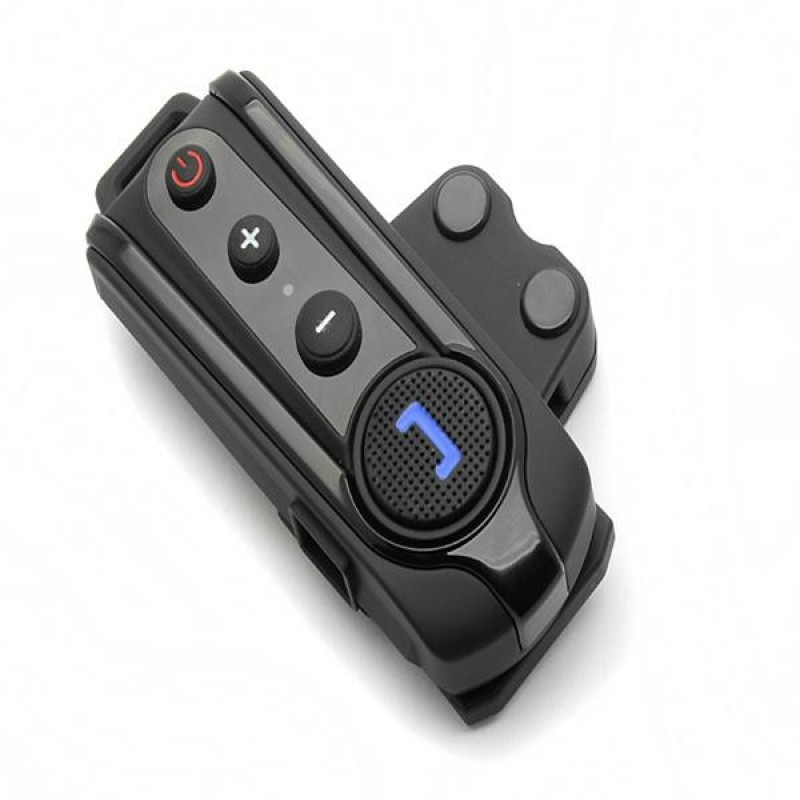

Turning the unit on into standby mode:
Press and hold the power/intercom button at the end of the unit.
After 3 sec you will hear a “Di” and the blue LED will begin to flash.
Let go of the button and the unit is now in standby mode.
Turning off the unit:
Press the power /intercom button for 5 seconds or until you hear 2 “Di” tones and the lights extinguish.
To pair to your bluetooth enabled mobile phone:
When the unit is off, press and hold the power/intercom button at the end of the unit.
Hold the button until you see a RED AND BLUE light flashing.
It normally takes around 5-8 seconds from off. Do not let go when you see the blue light.
You will also hear a “DuDu” tone when the unit enters pairing mode.
On your phone, search and attempt to pair to the device, when the device is flashing red and blue.
If requested the pairing code will be 0000 and you should set the phone to auto pair to the device.
Phone Controls:
To answer a call – Short press the Phone button once
Auto receive call – Dependant on the phone the unit will automatically answer the call after 8-16 seconds of ringing.
To reject a call – Press the MFB and hold until you hear a “Du” (around 2 seconds)
To end a call – Whilst call is active short press the Phone button once
To go to a phone call during an intercom call – Press and hold the Phone button for 2 seconds until you hear a “Du”
NOTE: Depending on the phone some or all of these functions may not work, or operate differently.
Music Controls:
Play / Pause – Short press power/intercom once
Next Track – Turn the “+ “ button and let go
Previous Track – Turn the “-” button and let go
To Adjust The Volume:
Long press”+”button to increase and long pess”-“ button to decrease.
This function is also fit for intercom/music/FM radion function..
NOTE: Depending on the phone some or all of these functions may not work, or operate differently.
To Start FM Radion:
After turn the unit on, Long press Phone button about for 1 second (till hear “du” tone),
let go of the button, FM radion will start.
Short press:”+” or “-“ button you can adjust the channel.
To Reset The Pairing Memory:
If you have problems pairing, then it is best to reset the pairing memory
Turn on the relevant unit into standby mode. Press the power/intercom button for 3-5 seconds till a “dudu” can be heard.
Let go of the button when the tone is heard.(The unit will turn off)
Restart, the memory will be erased. (Repair again)

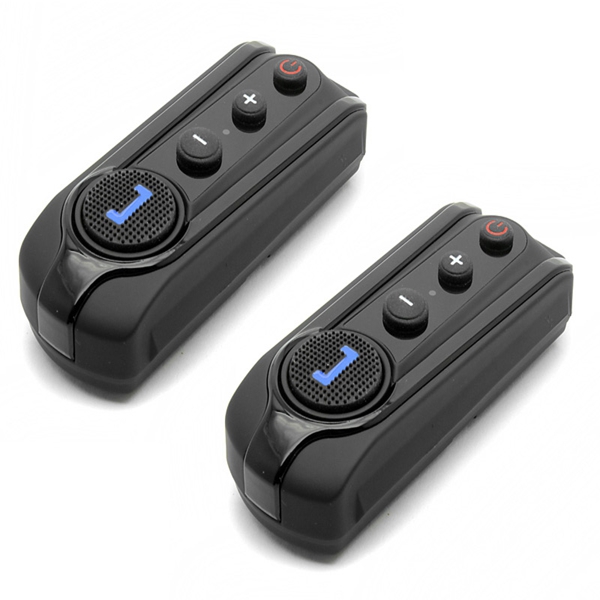

To Pair 2 Devices In Intercom Mode:
When both devices are turned off, press and hold the power /intercom button on both devices until both units flash red/blue repeatedly.
You need to hold the button for more than 6 seconds and dont let go when you see the blue light.
Short press the power /intercom button on ONE of the two devices and this device will search and auto-pair to the other in intercom mode. A live call will be initiated.(Intercom will start)
If this fails retry it ensuring both red/blue light sequences are initiated simultaneously and are close together.
Also ensure any other bluetooth devices are turned off.
When paired, you do not need to go into pairing mode again.
In future you only need to go into standby mode (blue light flashing) on both units and press the button on one of the devices.
To Pair 3 Devices In Intercom Mode:
Follow the above procedure for each combination of the three units. (A-B, B-C, A-C).
Ensure the third unit is switched off when pairing the other two devices.
Only 1 connection can be live at a time. When successfully paired the connections
can be switched by ending any live call and returning to standby.
From Standby press the power/intercom button 1 time for one of the pairings to be called,
or long press(about 2 seconds) for the other pairing to be called.
The pairing for 1 or 2 presses will depend on the sequence in which you paired the 3 helmets,
but once paired the relevant pairings will maintain the number.
i.e. A will press the power/intercom button 1 time to call B
and long press(about 2seconds)to call C. B will press the button 1 time to call C and long press(about 2seconds)
to call A. C will press the button 1 time to call A and long pesee(about 2seconds) call C.

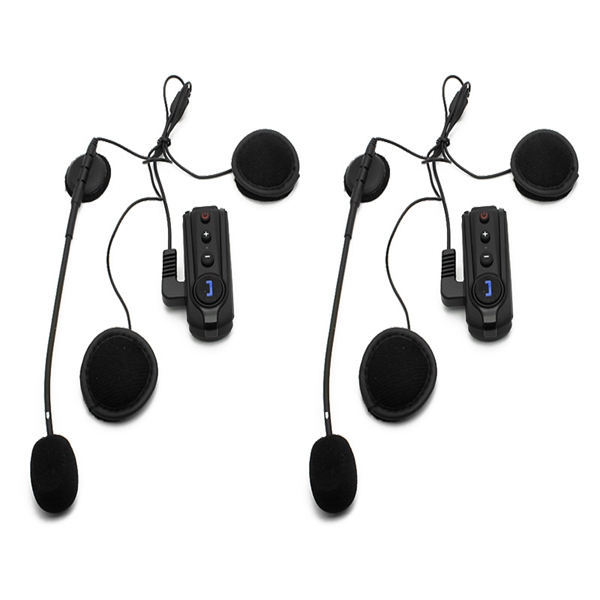

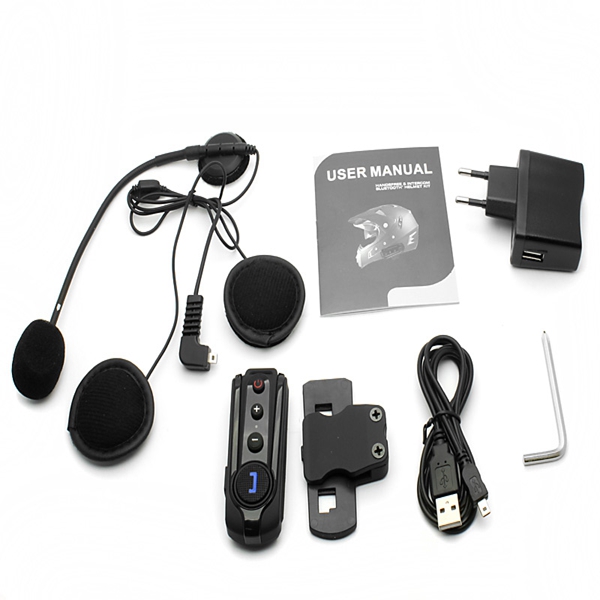

Package Included:

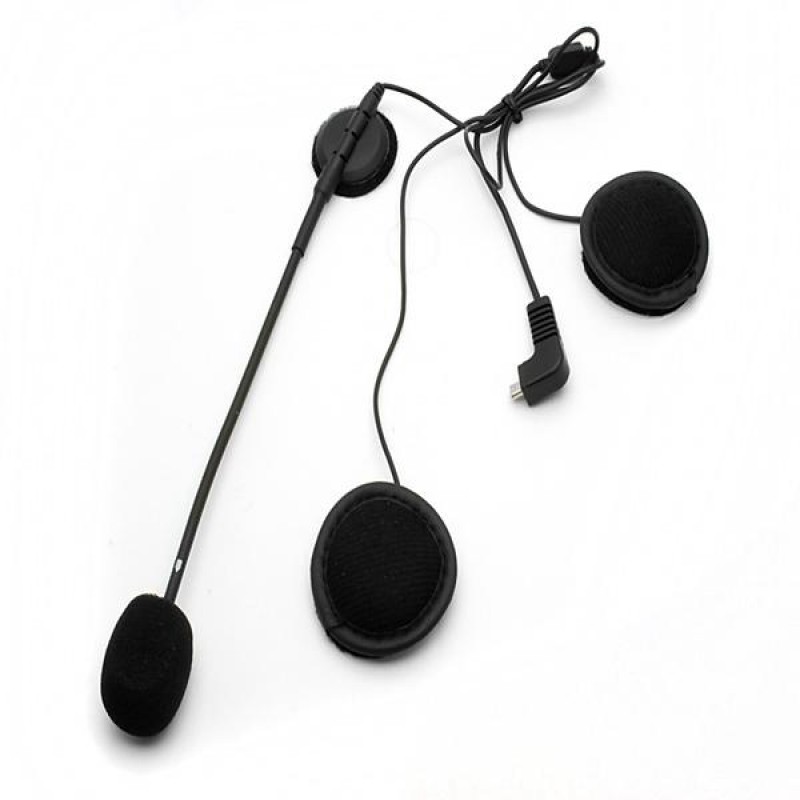

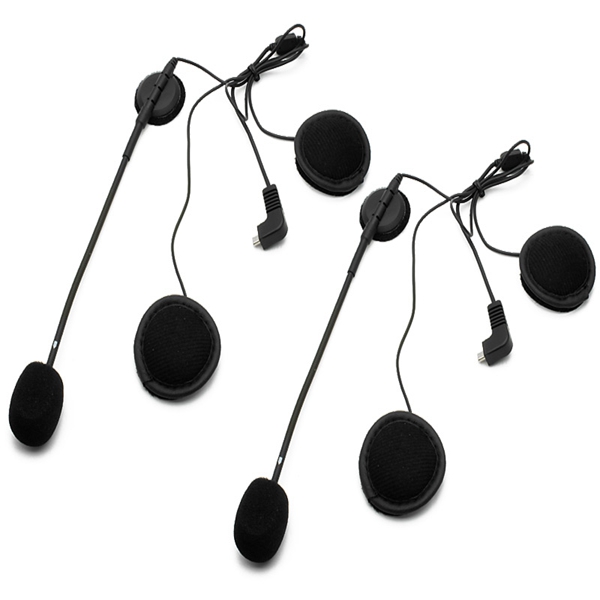

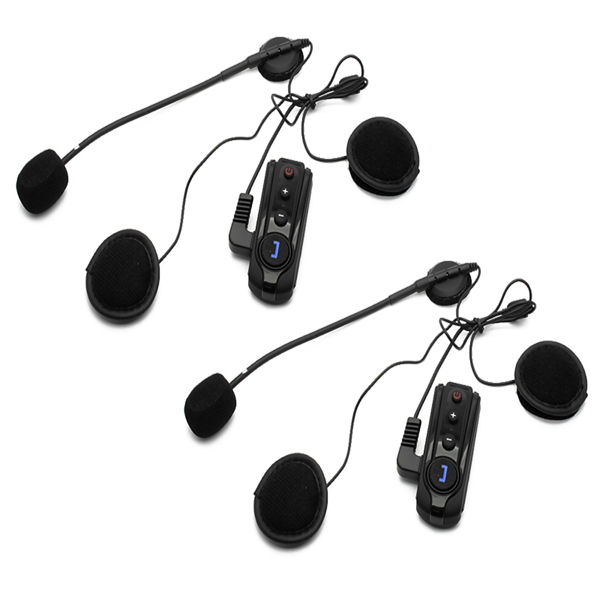

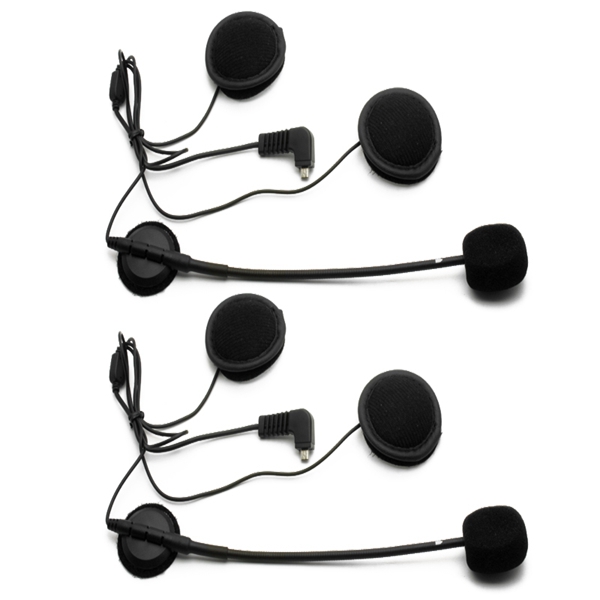

| 1X bluetooth Helmet Interphone | 1XHeadset |

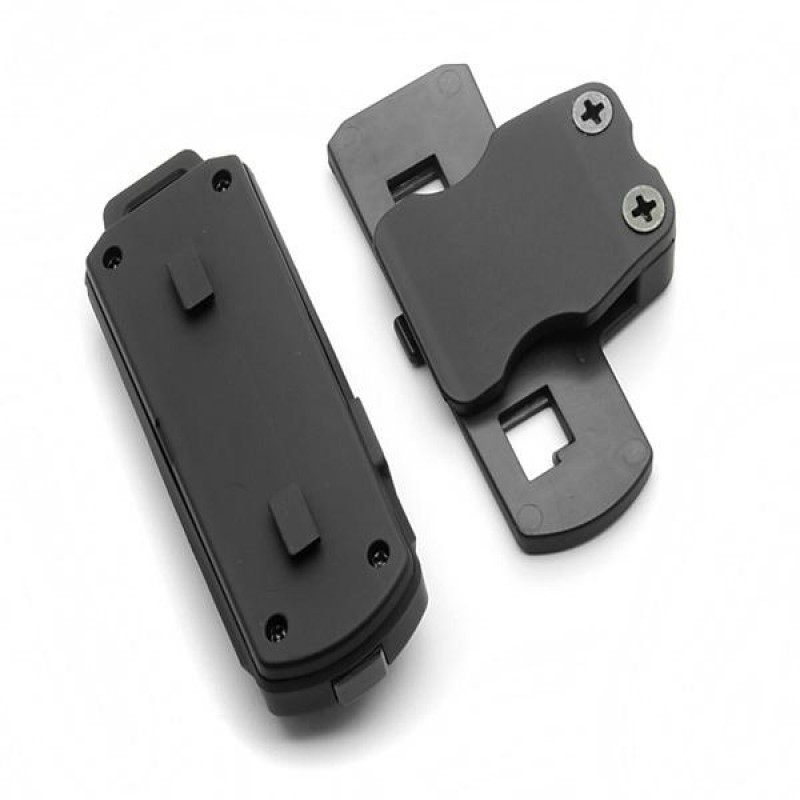

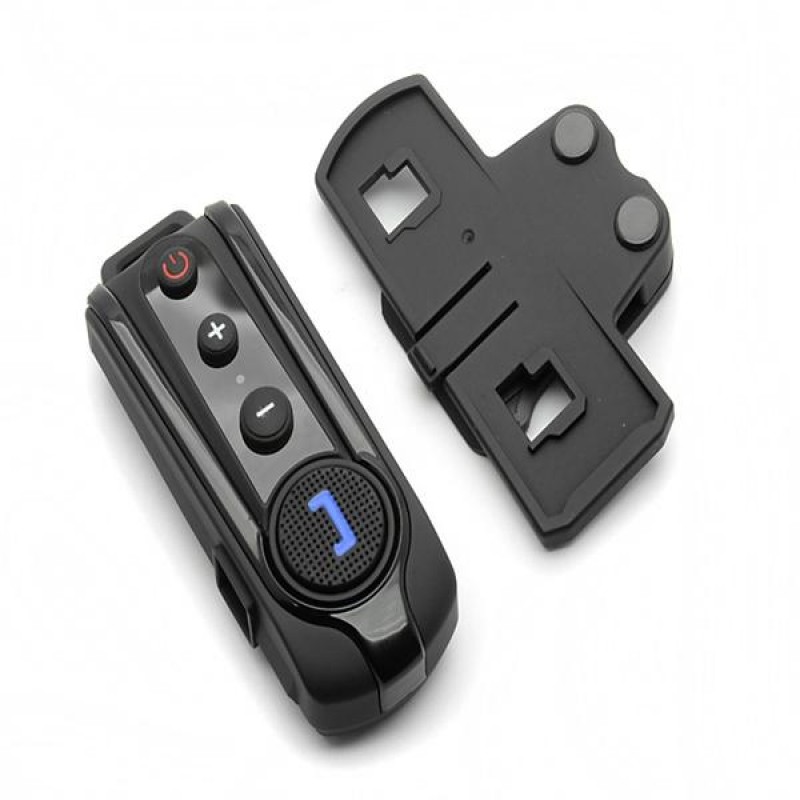

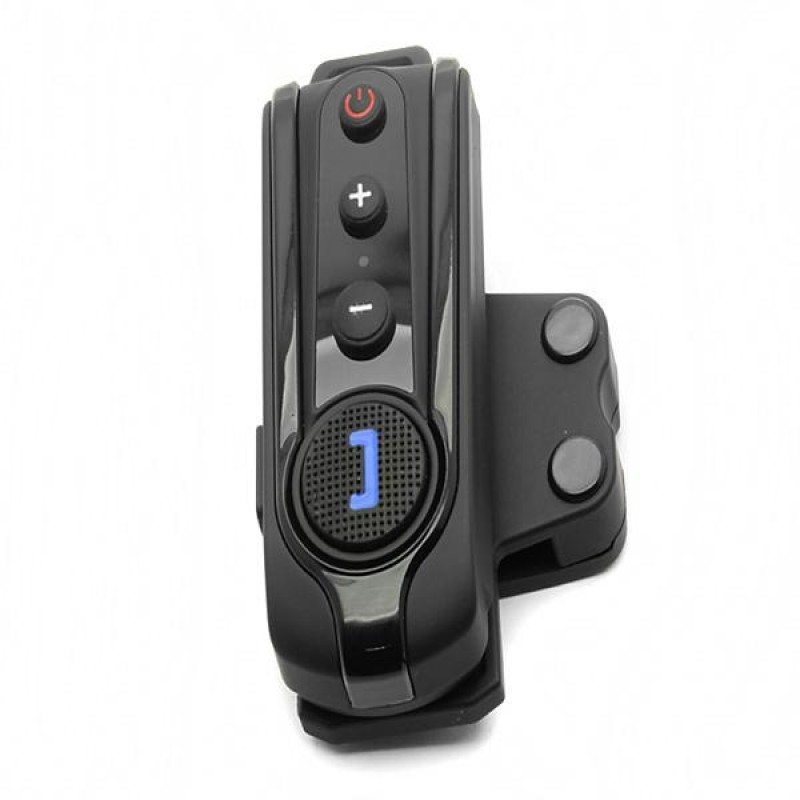

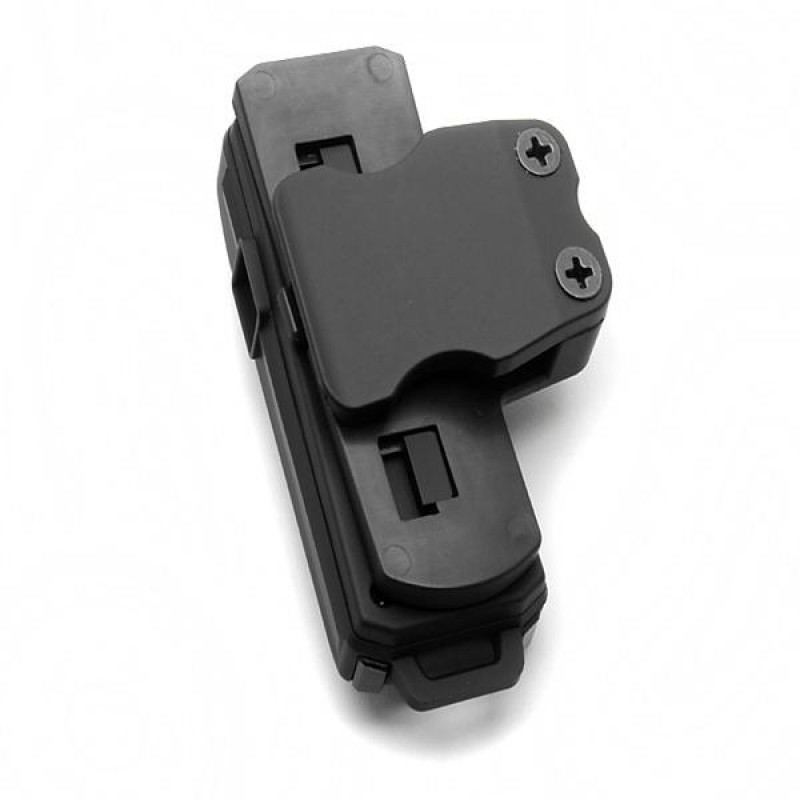

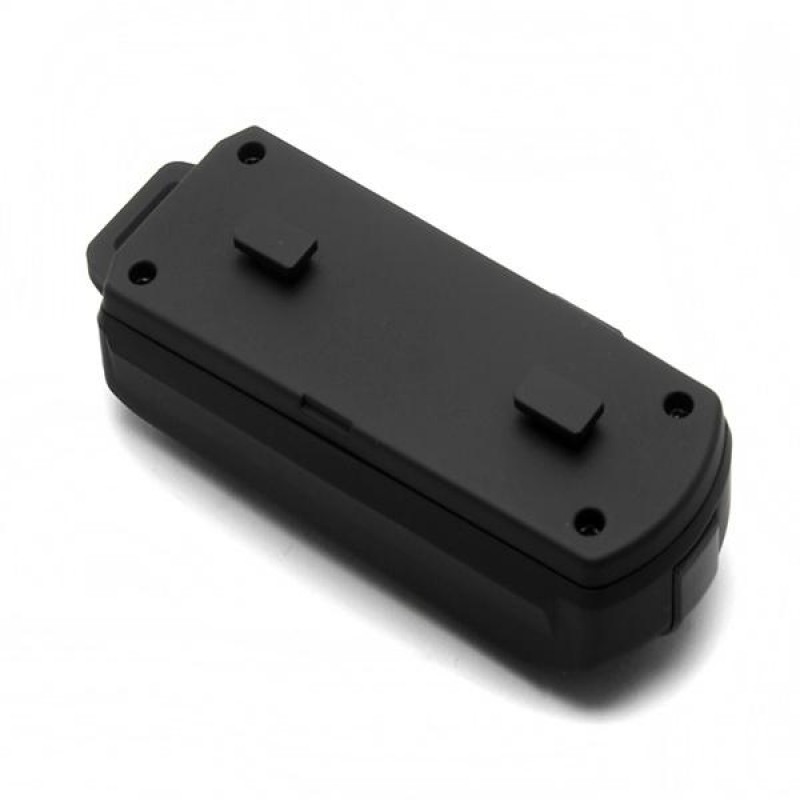

| 1X Clamp | 1XChager |
| 1XUSB Cable |
,
,
,
,
,
,
,
,
,
