SW 0001A SD Remote Control HD 4CH DVR Realtime Video Recorder for Car Bus Truck RV Mobile SD MDVR 128GB
$60.67
- Product Code: ED0003052
- Availability: In Stock
- Ex Tax: $60.67
Description:
1. The power supply is wide voltage 9v-36v input, suitable for bus, minibus and car installation.
2. The power cable is directly connected to the car battery. The car key control cable can automatically start and shut down the DVR machine to ensure uninterrupted video recording. When the vehicle is stopped and the car key is removed, the machine will stop recording and automatically switch off, which is easy to operate.
3. HI3520DV200 professional industrial grade chip, high performance A9 processor, four-way CVBS or AHD 720P video signal simultaneously single independent HD recording, independent playback view. Can support four audio signals
4. Supports four-segmentation, three-segmentation, two-segmentation, single-segmentation and other segmentation modes for convenient and quick viewing of surveillance scenes.
5. Video output can be connected to the monitor with AV output or VGA output channel, VGA output resolution is 1920*1080 Pixels
6. Video output can be connected to the monitor with AV OUT port output or VGA output channel, VGA output resolution is 1920*1080 Pixels
7. Three-way reversing ACC control line can quickly respond to reversing, turning left, turning right and other vehicle actions in microseconds, and switch to the corresponding channel to monitor the vehicle running scene.
8. With high-speed SD card holder, it can support 32GB, 64GB, 128GBSD high speed card with universal capacity on the market.
9. H.264 protocol video codec, file format is AVI, efficient compression. 4-channel AHD simultaneous recording, 256GB SD card can record about 120 hours.

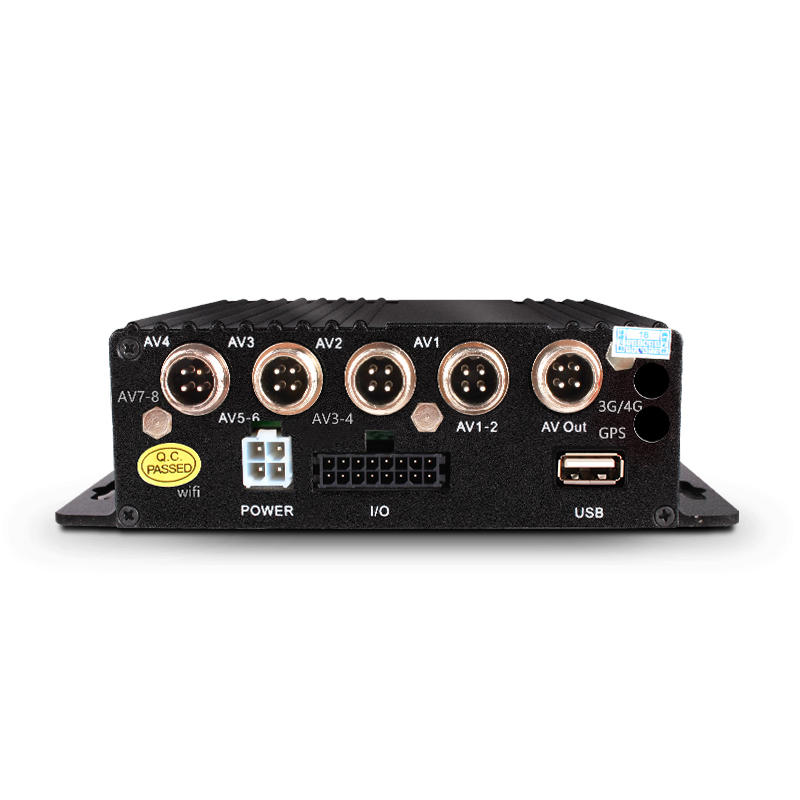

10. 4 Universal AHD aviation plug for easy connecting of 12V AHD cameras on the market. The CH1-CH4 aviation plug can be connected with an AHD camera with audio.
11. The machine is equipped with super-large internal heat dissipation treatment.Long working hours, the machine surface temperature does not exceed 50 degrees.
Feature:
| Item | Description |
| Operating system | Linux system |
| Voltage | 9V-36V |
| Car key signal | 9V on less than 2V off |
| Video format | H.264 compressed AVI format |
| Image format | CIF/DI /720P optional |
| Video streaming | ISO14496-10 |
| Audio input | Support |
| Video input | CH1-CH4 plug also support AHD or CVBS signal |
| Audio streaming | 8KB/S |
| Data storage | SD card storage,support 32GB, 64GB, 128GB |
| Operating environment temperature | The machine can work steadily for a long time in the environment of -40 ~80 degrees |
| Operating temperature | Working for a long time,the machine surface temperature does not exceed 50 degrees |

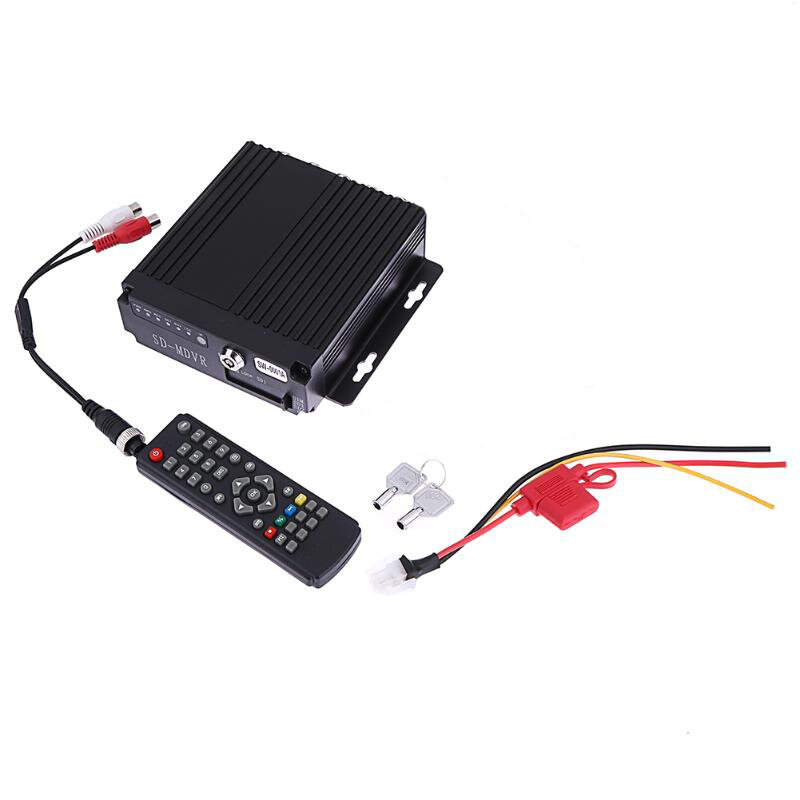

Pacakge Included:
1 X Video / Audio Recorder
1 X Remote Controller
1 X Power Input Cable
2 X Keys

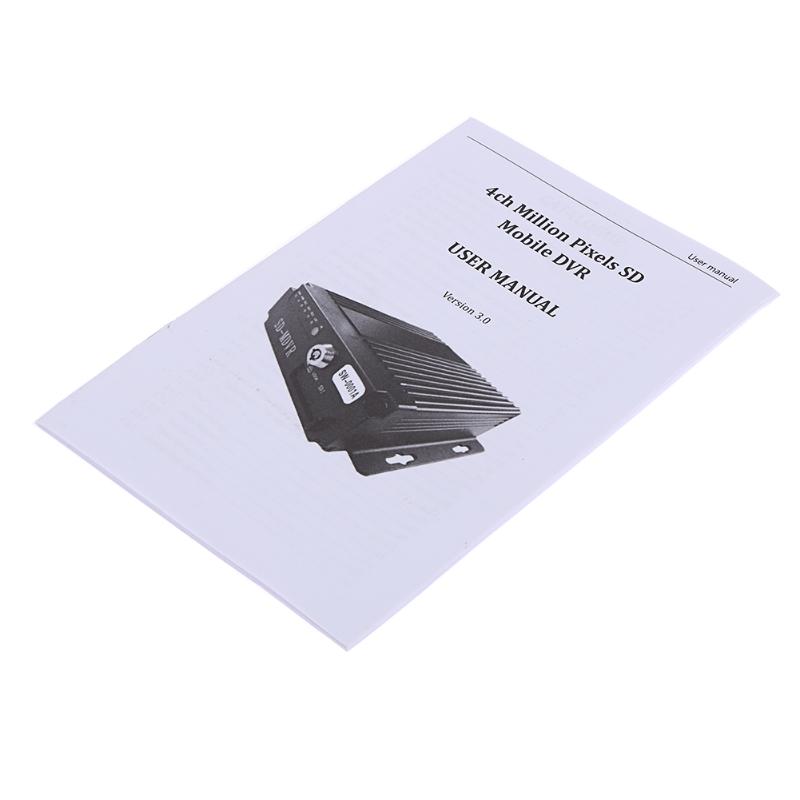

1 X User Manual
FAQ and Solution:
① Q:
A:
② Q:
A: a. If the voltage does not reach the starting voltage of the device, it will restart.
b. The SD card is faulty and can cause a restart. Please remove the SD card and restart the machine.
③ Q: Video files are missing or not available for a period of time?
A: a. During playback, the selected time period is incorrect. Please change the time period condition to select the video file.
b. Please format the SD card before using it. To ensure that the file format of the SD is consistent with the machine.
c. Make sure the wiring is OK, the machine can start recording normally.
d. Whether delay recording has been set in the menu.
④ Q:
A:
⑤ Q:
A:
⑥ Q:
A:
⑦ Q:
A:
⑧ Q: Forget password, cannot enter corresponding user channel how to do this ?

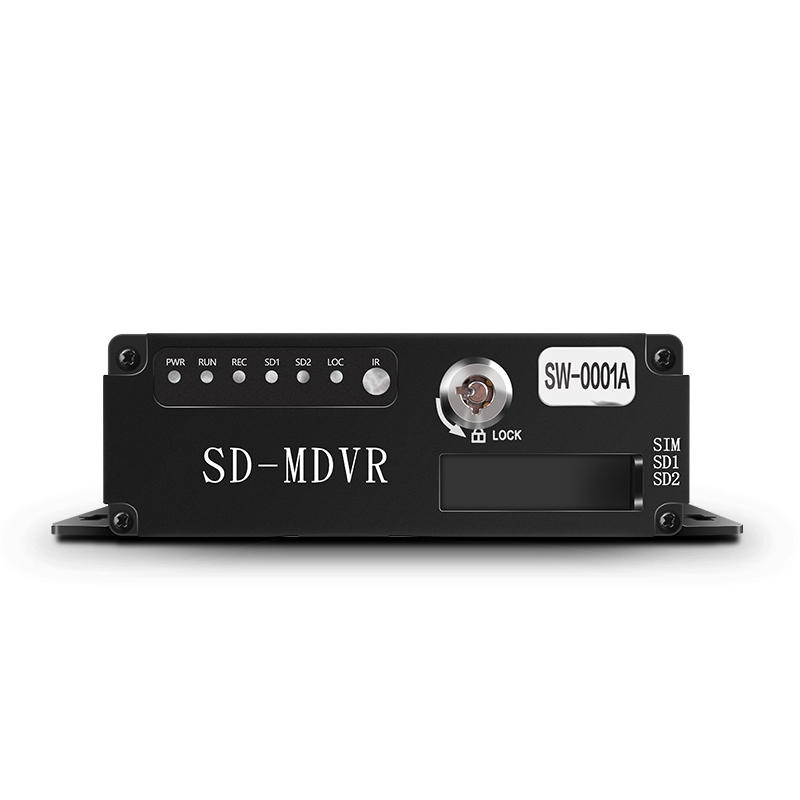

A:There is a RESET switch hole between the SD1 card bezel and LOCK indicator,press for 5s to restore the factory settings.
