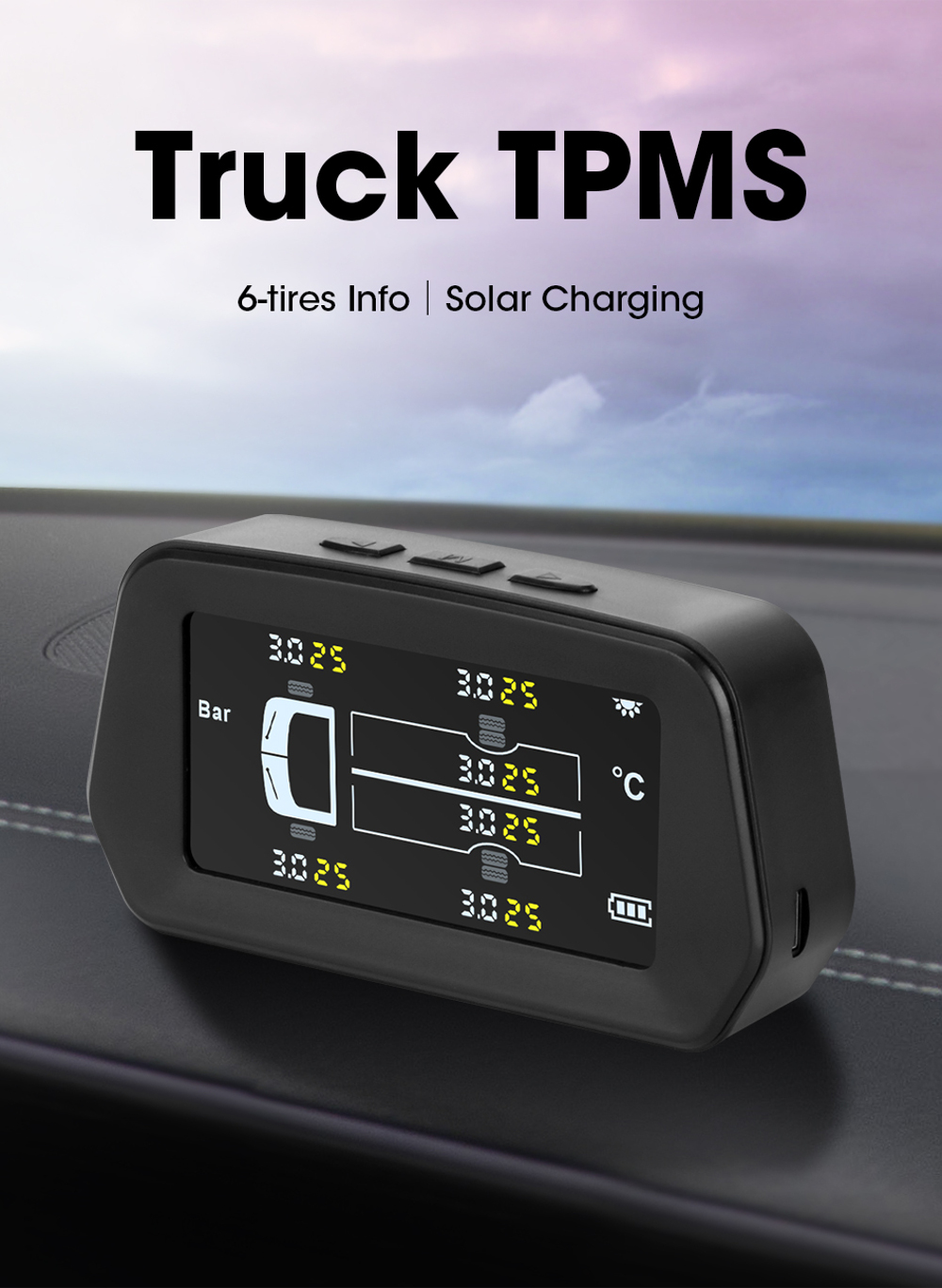

Solar Tire Pressure Monitor System Auto Power On Off with 6 External Sensors for Truck RV 6 Wheel Light Truck
$64.99
- Product Code: ED0006266
- Availability: In Stock
- Ex Tax: $64.99
Available Options
Feature:

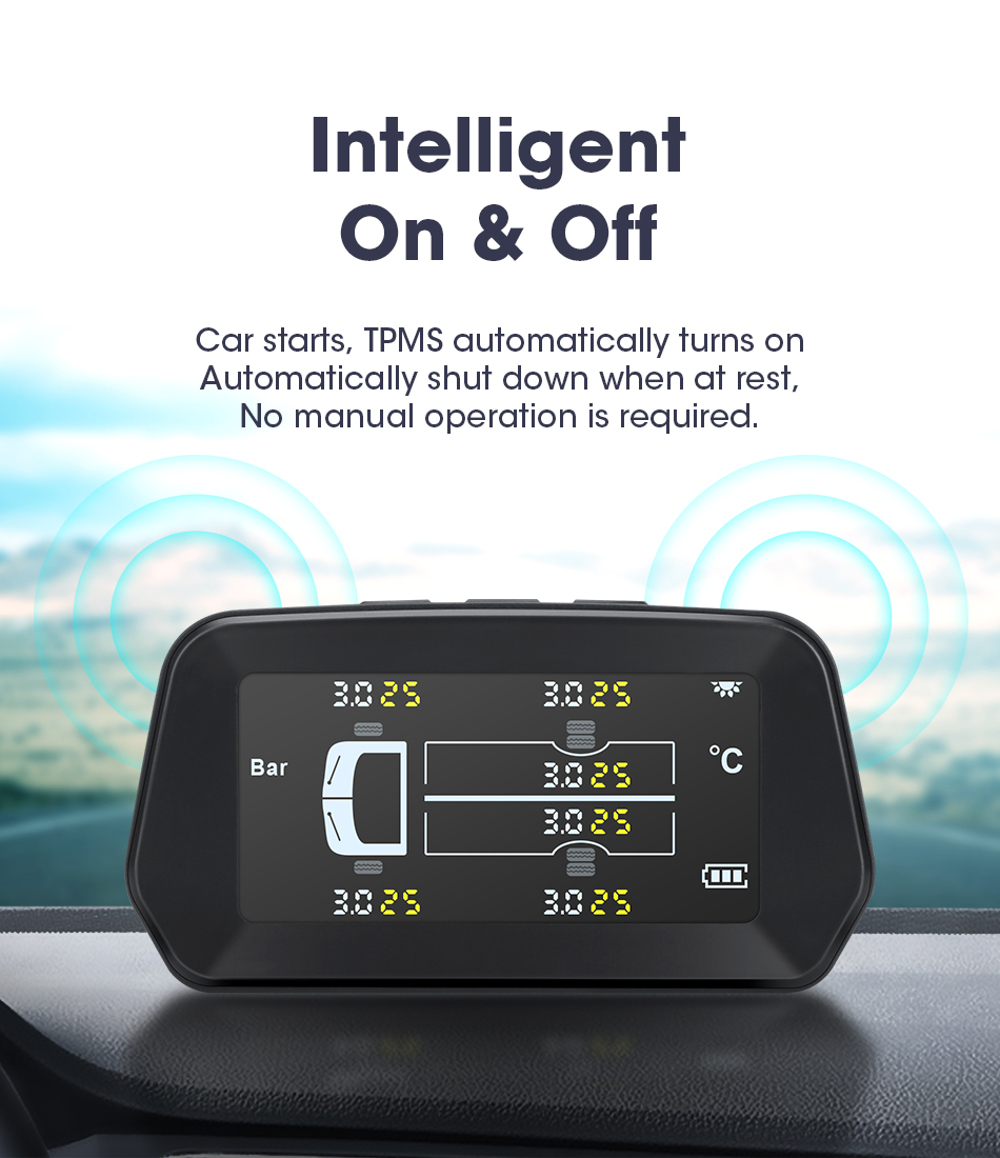

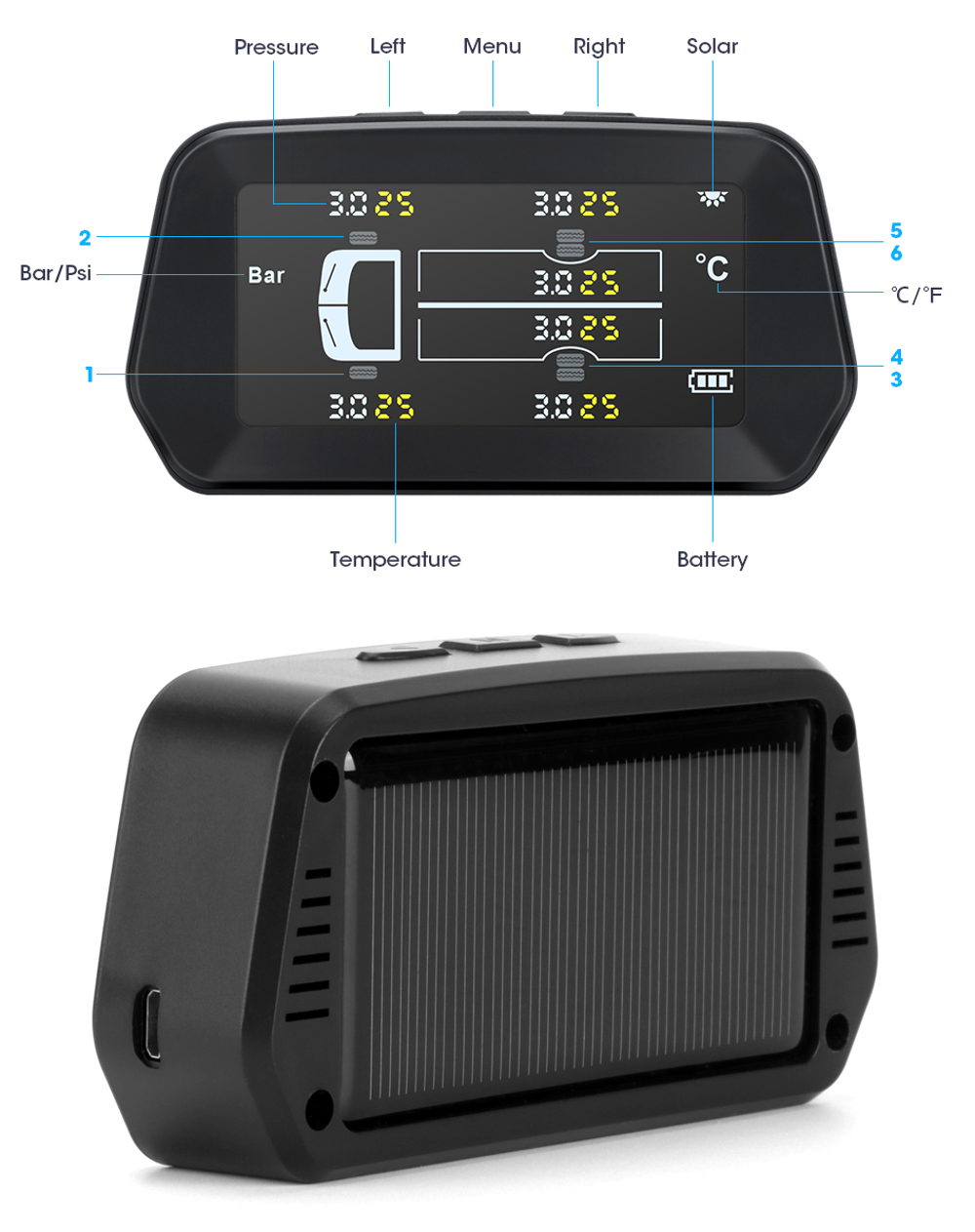

1. Intelligent On & Off. Car starts, TPMS automatically turns on. Automatically shut down when at rest,No manual operation is required.

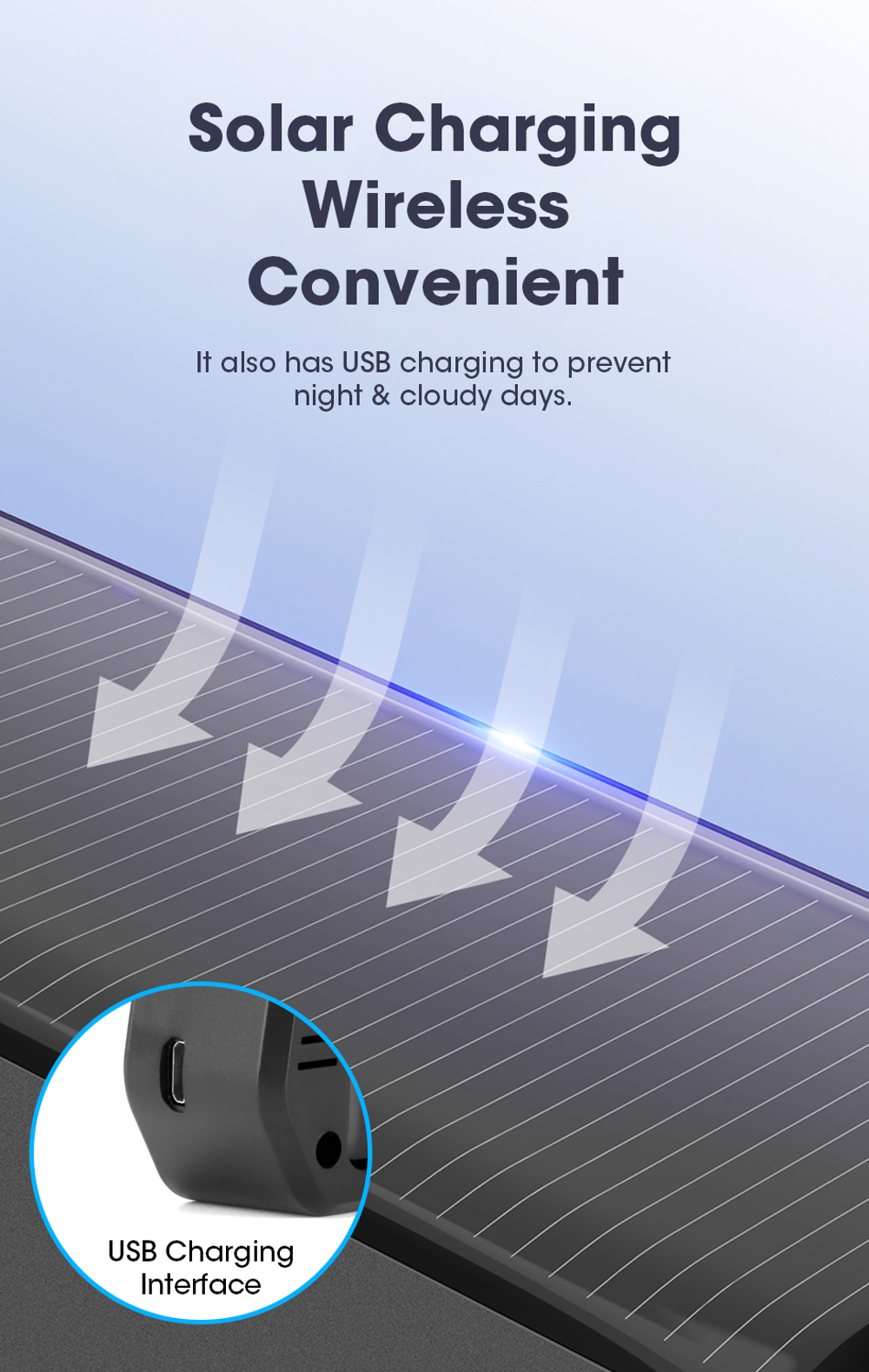

2. Solar Charging. Wireless ConvenientIt. It also has USB charging to prevent night & cloudy days.
3. Suitable For 6-tires Models. Tire Pressure 8 Bar (MAX)
4. IPX7 Waterproof Sensors. Waterproof / Dustproof/ Not easy to fall off/ Not afraid water flushing/ Not afraid rain/ Not afraid stagnant water.
Specification:
| Material | PVC |
| Detection pressure range | 0.1~12BRA |
| Applicable models | six-wheeled truck |
| Display mode | digital |
| Tire pressure gauge type | Pressure monitoring system |
| Specifications (optional) | 0~8Bar, 0~12Bar, one external sensor |
| Wireless Receiver | |
| High frequency demodulation | FSK |
| Working temperature | -20℃-85℃ |
| Storage temperature range | -30-85℃C storage at room temperature |
| Working voltage | 4.5-6.0V USB/solar |
| Endurance time | Normal use Solar use |
| Sleep current | <25uA |
| Wireless External Sensor | |
| Battery life | 24 months |
| Working temperature | -20° C-85°C |
| Storage temperature | -30-85℃ |
| Working voltage | 2.1V-3.6V |
| Pressure range | 0-12Bar |
| Waterproof grade | IP67 |
| Transmit power | <10dBm |
| Transmit frequency | 433.92MHz |

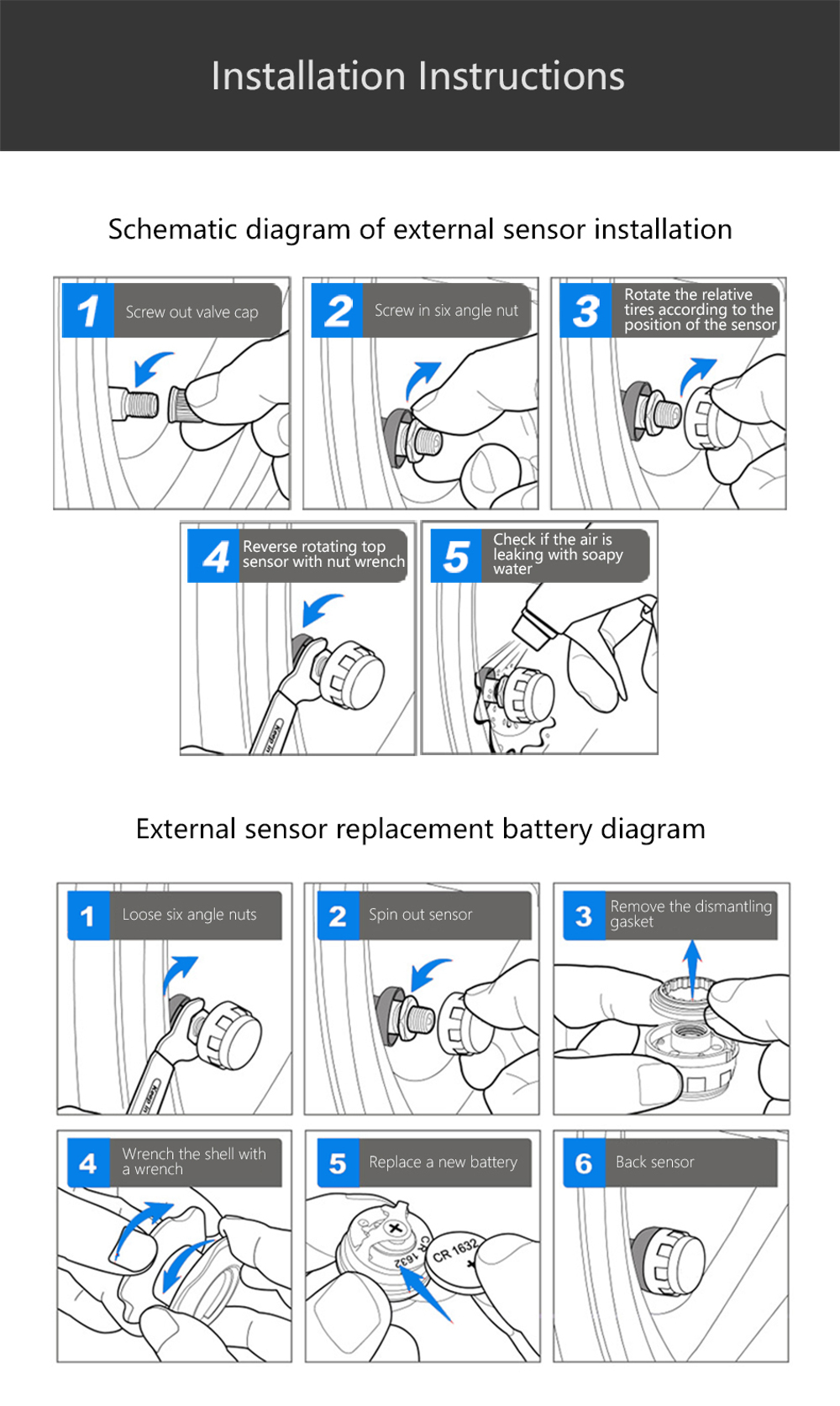

Installation Instructions:
Schematic diagram of external sensor installation
1. Screw out valve cap
2. Screw in six ange nut
3. Rotate the relative ties according to the position of the sensor
4. Reverse rotating top sensor with nut wrench
5. Check if the air is leaking with soapy water
External sensor replacement battery diagram
1. Loose six angle nuts
2. Spin out sensor
3. Remove the dismantling gasket
4. Wrench the shell with a wrench
5. Replace a new battery
6. Back sensor

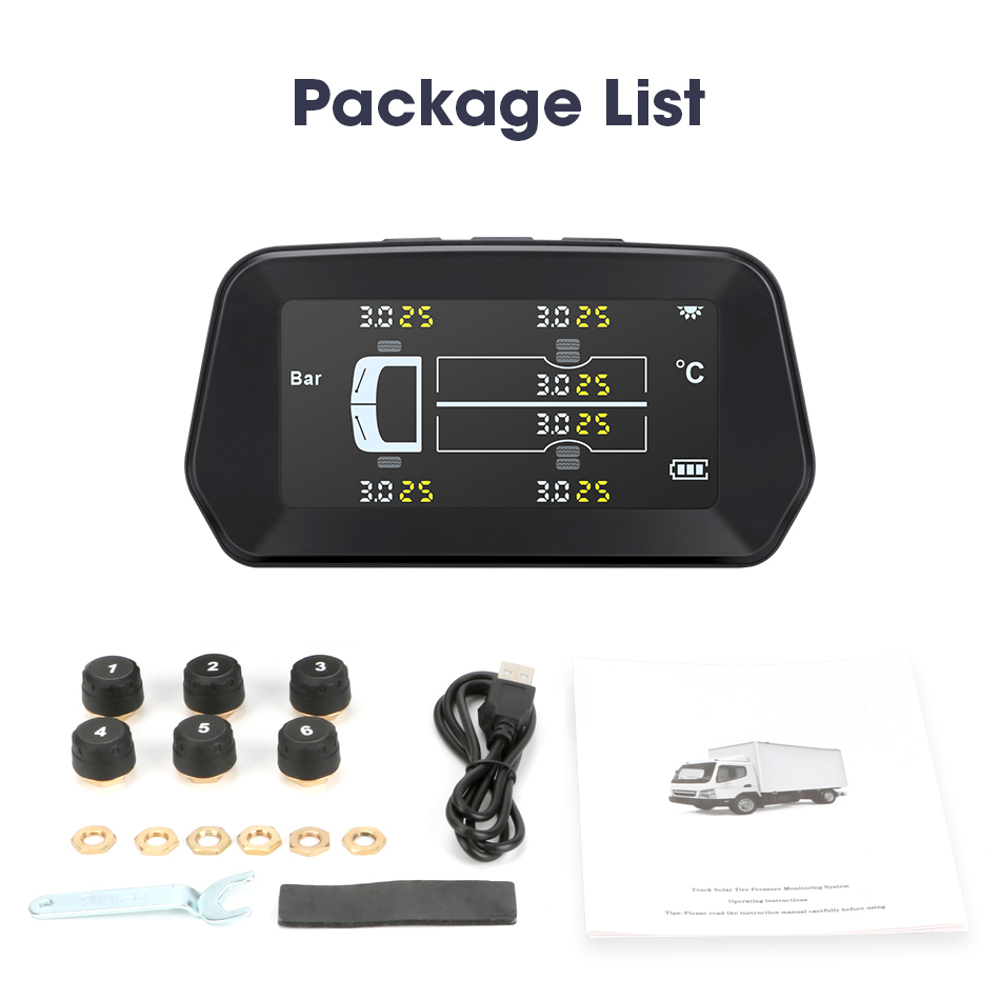

Package Included:
| 1 X | TPMS |
| 6 X | External Sensor |
| 6 X | Mounting Nut |
| 1 X | Wrench |
| 1 X | Non-slip Mat |
| 1 X | Cable |
| 1 X | English User Manual |
