Standard ATO ATC Mini Micro Lame Tap Porte-fusible Piggy Back Voiture
$3.45
- Product Code: ED0009514
- Availability: In Stock
- Ex Tax: $3.45
Available Options
Description:
With the ever increasing amount of vehicles manufactured with the CAN BUS wiring system it is becoming increasingly difficult to locate a quick power source without cutting,splicing and soldering.
This little component overcomes this issue and has the added advantage of a built in fuse holder.
Therefore is ideal for installing additional accessories,such as phone kits, alarms, central locking kits, games consoles, hard wired sat nav's, accessory sockets, auxiliary lights, driving recorders, trackers etc.
Features:
Allows easy installation of additional circuits without cutting, splicing or soldering.
Turns one fuse slot into two therefore providing individual protection for each circuit.
Easy installation.
Installation is easy:

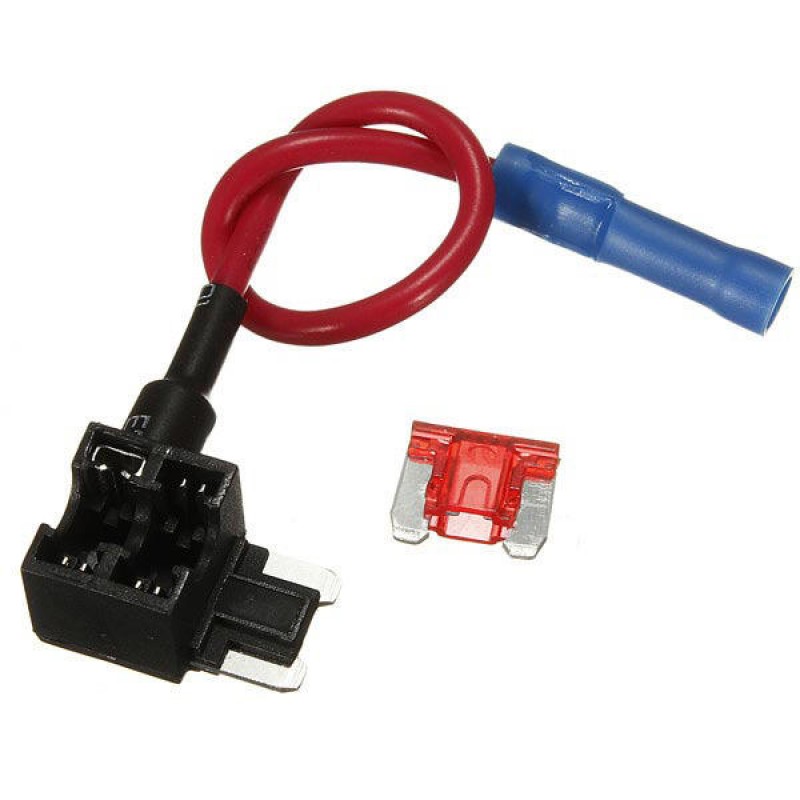

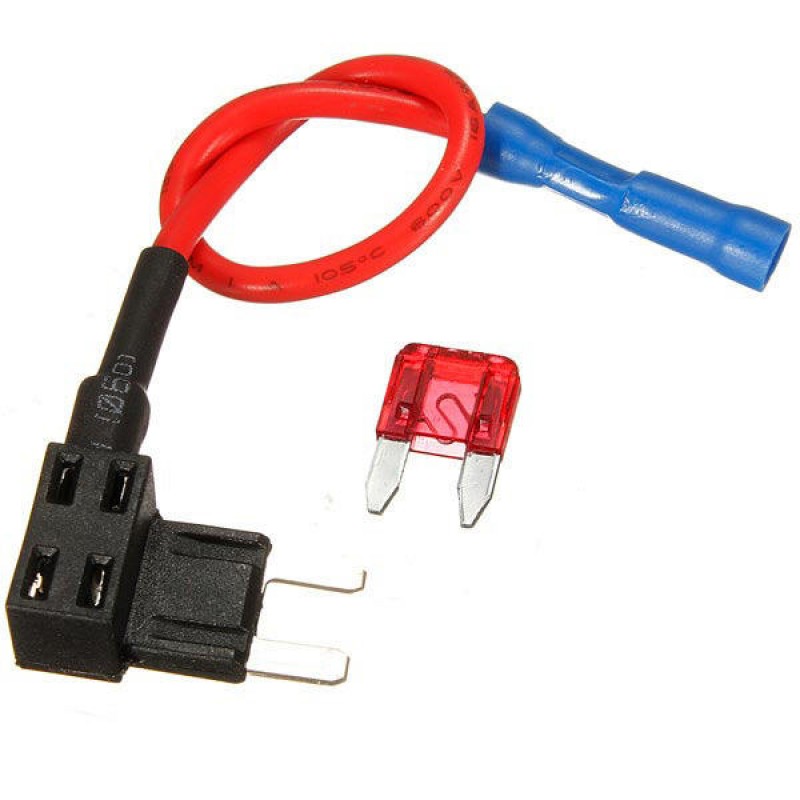

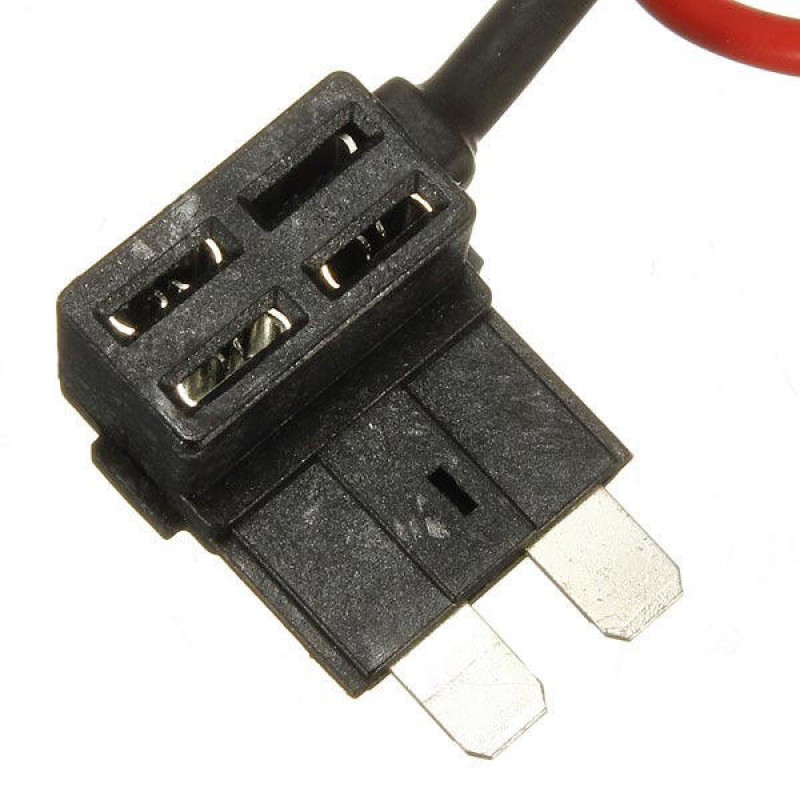

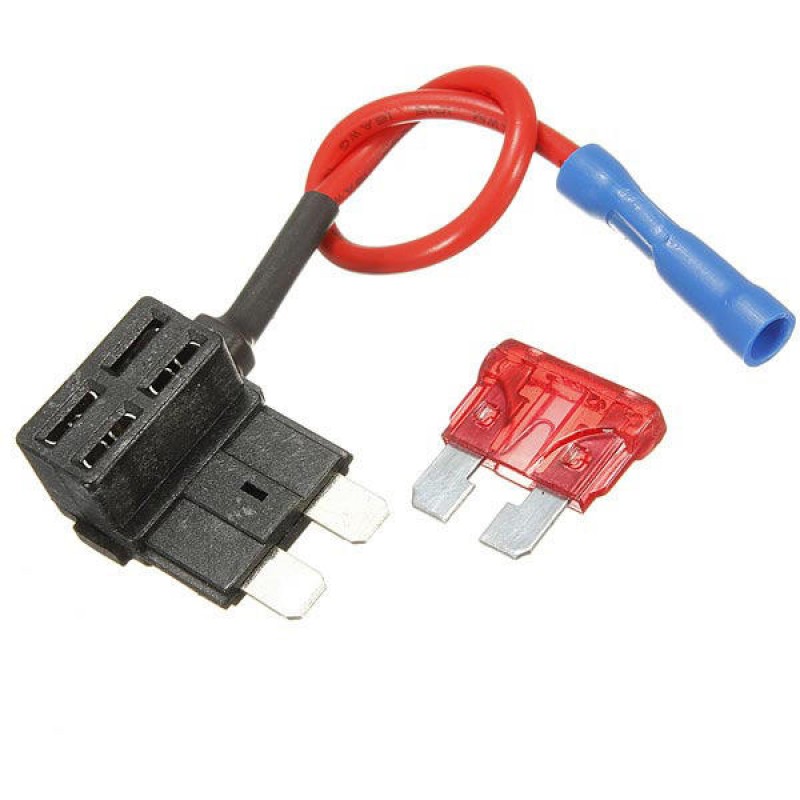

Simply remove an existing fuse from the fuse box, insert that fuse in to the bottom slot of the fuse tap.
Insert a suitable fuse for the new accessory in to the top slot.
Crimp your new live wire to the blue butt terminal on the fuse tap.
Insert the fuse tap into the fuse box slot where the fuse originally was.
Size: Standard / Mini / Micro
For use with standard (ATO, ATC) fuses up to 10 amps.
For use with Mini (ATM, APM) fuses up to 10 amps.
For use with Micro (LOW PROFILE mini, APS, ATT) fuses up to 10 amps.
Note: Fuses are NOT included and are for illustration purpose only.
Package includes:
1 x Fuse Holders & Boxes
1 x Blade
