Starlight Night Vision 3D 1080P 360 Degree Bird View System 4 Camera Panoramic Car DVR Recording Parking
$208.78
- Product Code: ED0003109
- Availability: In Stock
- Ex Tax: $208.78
Description:
This 360 degree view car camera system is a support technology that assists drivers to park more easily by better understanding the vehicle's surroundings through a virtual bird's-eye view from above the vehicle. It helps the driver visually confirm the vehicle's position relative to the lines around parking spaces and adjacent objects, allowing the driver to maneuver into parking spots with more ease. The system can display the bird's-eye, front and rear views, making it possible to check the vehicle's 360-degree surroundings simultaneously with either the front and back.
Camera Features:
3D & 360°Seamless Merging
360° Blind Spots Coverage
Dynamic & Intelligent View Angle Switching
Flexible Omni-directional Monitoring
Exclusive Fish-eye Distortion Correction
Guided Camera Calibration
Optional Function:
A. Driving Video Recording
B. 24 Hour Parking Monitoring
C. G-sensor Triggered Recording
D. Visual Radar Extension
Specification:

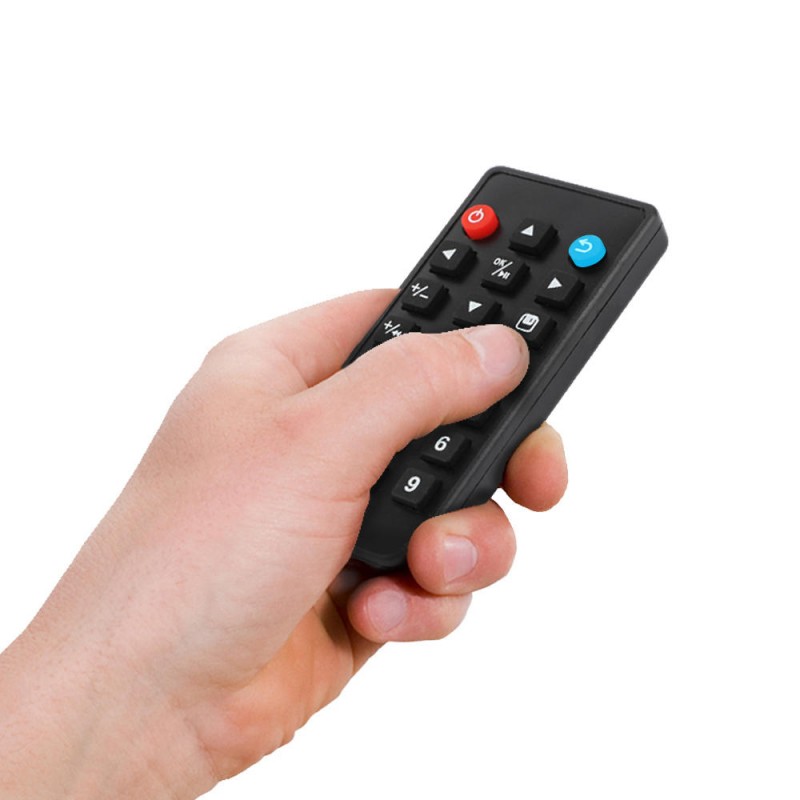

OSD menu for IR remote control
Video Input: 4-ch video input
Effective Pixels:1280(H)*960(V) Video
Video output:CVBS/VGA/HDMI
Vide Resolution: 720*480 1280*720
Display Mode: Single frame/three frame/four frame display and 3D Image .
Video Standard: NTSC/PAL
Recording Mode: Automatical recording/detect recording/manual recording
Recording Channel: 4 channels (1-4 channels optional)
Records Playback: Available
Data Storage: Support 4G~32GB SD card
Software Upgrade: Support SD upgrade
Working Voltage: 9-16V DC
Working Current: <=7mA
Working Temperature: -30—75°C
Product Feature:
- Four 180 degrees ultra wide fish-eye cameras, Newly upgraded metal camera, very solid, waterproof and dust-proof. Side camera can adjust the angle of multi-direction.
- Seamless video merging based on Quad-core CPU and hardware high efficiency acceleration engine.
- Arbitrary and dynamic 3D mode view angle switching for better surrounding environment observation
- Independent Fish-eye calibration parameter and algorithm for each camera.
- Pixel statistic engine for brightness balance among four channels real-time outside cameras.
- 3D video de-interlacing and noise reduction technology for CVBS signal decoding.
- Support alternative recording media for TF card.
- The simplest calibration steps with calibration cloth,and system applicable for almost all types of vehicle which including Buses, Trucks, Lorries, Limousines, Tank and even Jumbo Jets. Typical length of the vehicle is 5.5m, 6.5m.
- High video recording resolution up to 1080p
- OE quality for main chip-set with well protected circuit and devices in order to achieve the best system performance and stability.
Notes:
- First, the car must have a display screen
- Second, the original car screen as long as has the rear view image, 90 percent are to be decoders, whether it is a domestic car or joint venture car, before loading to confirm whether the customer has a decoder, if not, then the car can't install this 360 degree view car camera system
- Third, if the customer's car navigation is added later, this 360 degree view car camera system can be installed
How to get 360 degree,it need to connect the following cables:
1. yellow cable is connected to 12V constant electric,
2. red cable is connected to ACC,
3. black cable is connected to grounding wire,
4. blue cable is connected to reversing detection wire,
5. yellow RCA is connected to video wire,
6. the white trigger wire of left view, right view and rear view extension wire----
white trigger wire on left view extension wire is connected to the positive pole of left turn light, white trigger wire on right view extension wire is connected to the positive pole of right turn light, the white trigger wire of rear view extension wire is connected to the positive pole of back-up light.
All cables are connected correctly and it will be OK to use 360 degree.

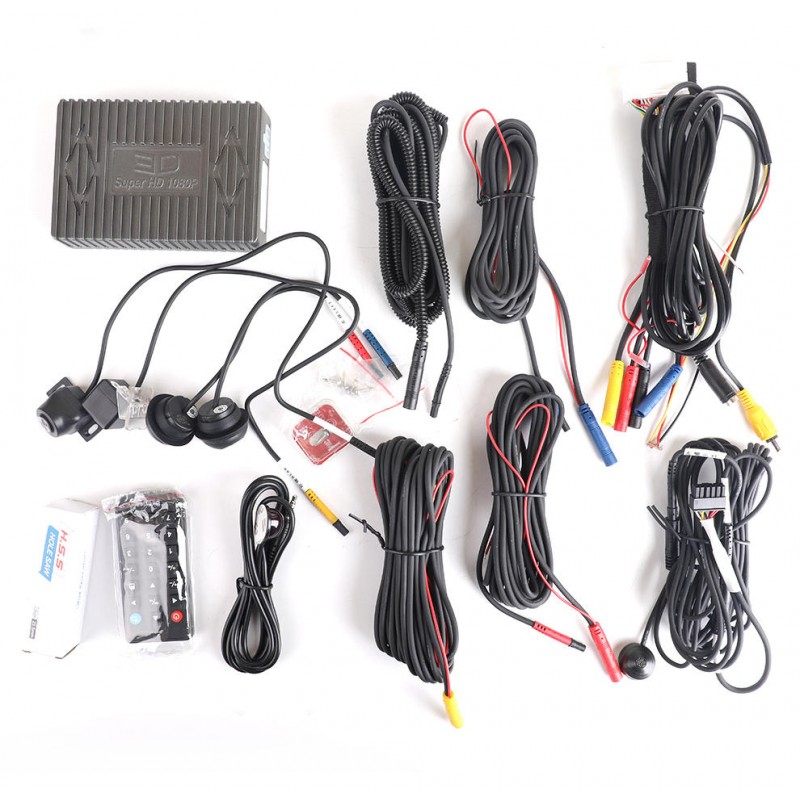

Package Included:

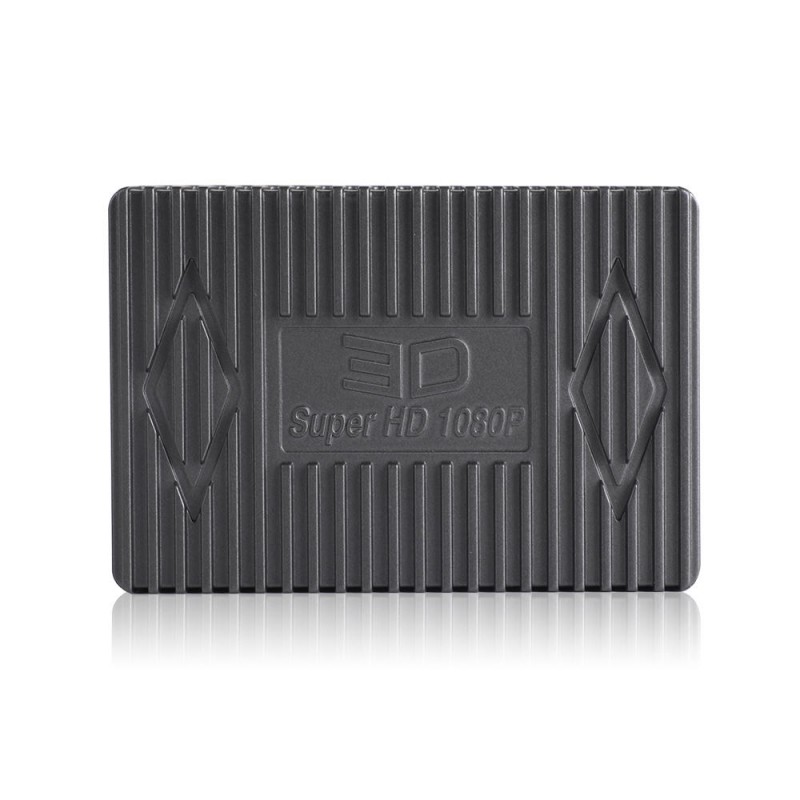

1 X Starlight Night Vision Car DVR(with accessories)
