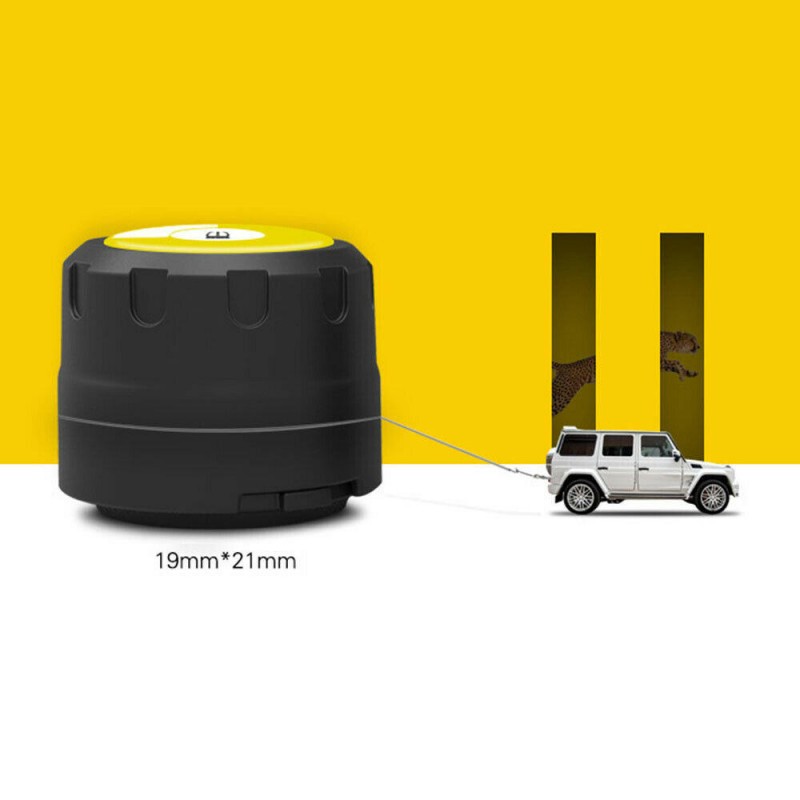

Wireless bluetooth 4.0 Car Tire Pressure Monitor 4 Outer Sensor
$60.99
- Product Code: ED0017737
- Availability: In Stock
- Ex Tax: $60.99
Specifications:
Processor: ARM M0
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 2.2μA
bluetooth Working Frequency: 2.4GHz
bluetooth Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s

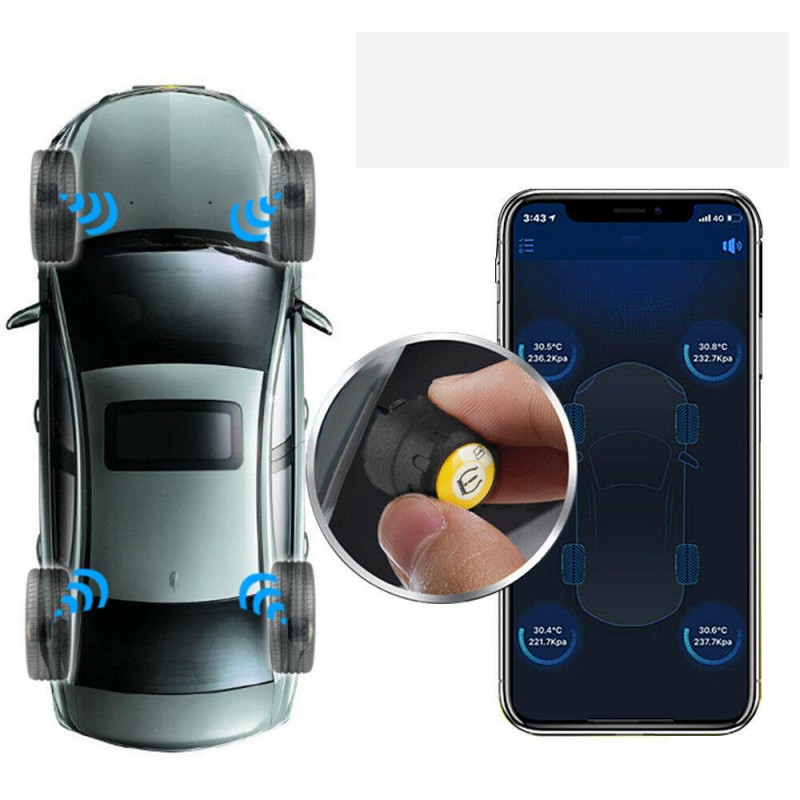

Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃
Storage Temperature: -30℃ ~ +85℃
Battery Capacity: 140mAh
Battery Life: 3~5 Years
Warm Tips:
1. Support cellphone with bluetooth 4.0 or above.
Do NOT support Cellphone with bluetooth lower than 4.0. Product displays by cellphone.
Do NOT support Cellphone with bluetooth lower than 4.0. Product displays by cellphone.
2. During driving, please be careful when viewing tire pressure and temperature on cellphone.
If tire pressure accelerates down or up continuously, please stop car and check if there's any problem with the tire.
If tire pressure accelerates down or up continuously, please stop car and check if there's any problem with the tire.
3. This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire.
It's important to use tire with high quality. Slightly tire leakage makes tire pressure decrease over time is normal.
It has nothing to do with this product installation.
It's important to use tire with high quality. Slightly tire leakage makes tire pressure decrease over time is normal.
It has nothing to do with this product installation.
4. DO NOT CONNECT TO YOUR PHONE BEFORE YOU INSTALLED THE SENSORS
(THE SENSOR WILL ONLY BE ACTIVATED WITH HIGH PRESSURE),
OTHERWISE IT WILL CONNECT FAILED OR SHOW ERRORS.
(THE SENSOR WILL ONLY BE ACTIVATED WITH HIGH PRESSURE),
OTHERWISE IT WILL CONNECT FAILED OR SHOW ERRORS.

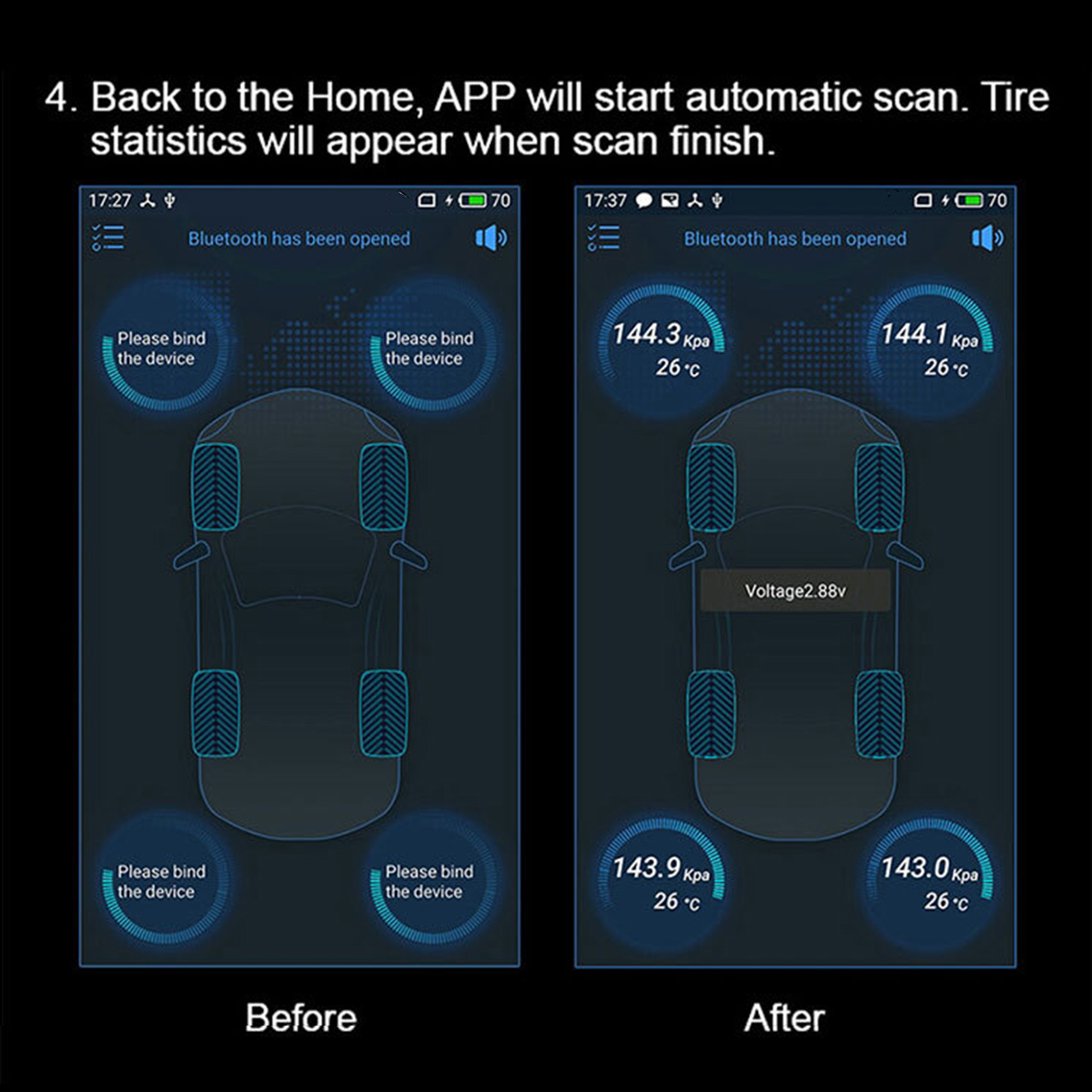

APP Description:

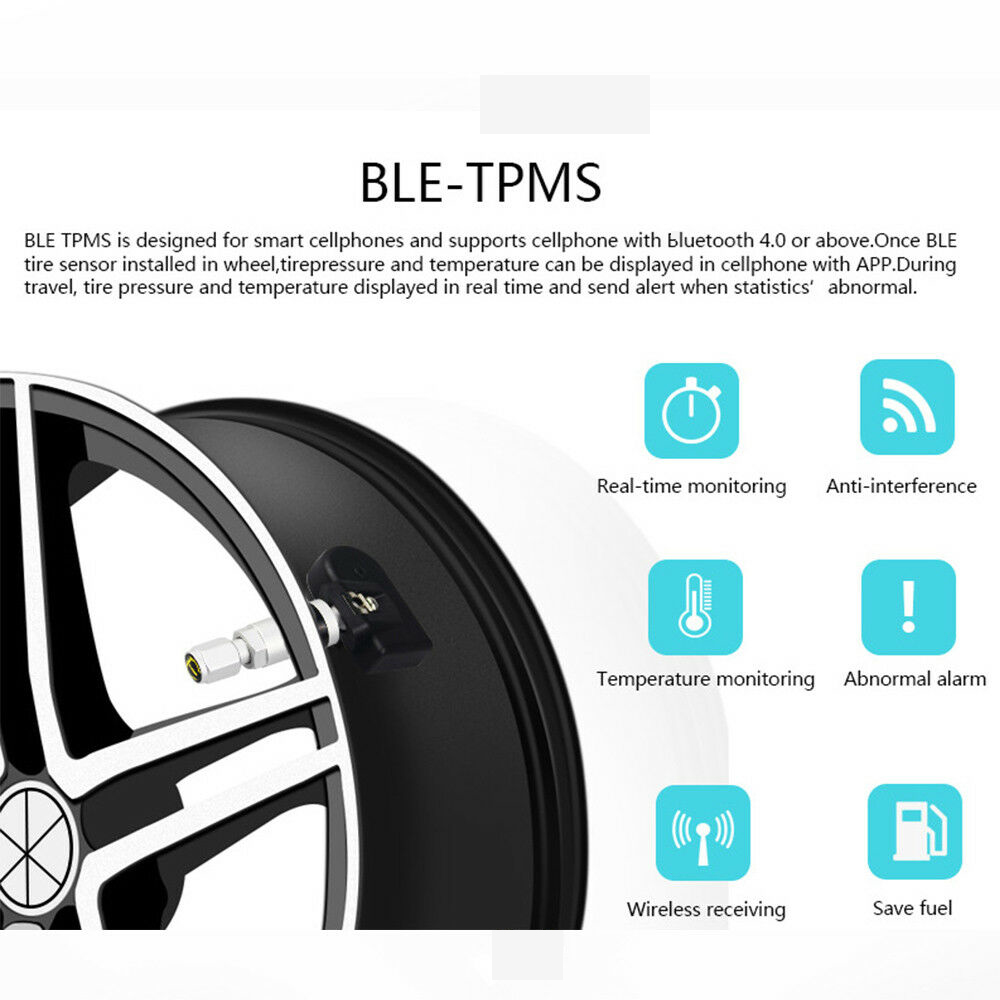

TPMS supports both for Android and for iOS, requires bluetooth 4.0 or above.
Installation:
Option 1: Scan QR code on card, then download and install;
Option 2: Search "BEL TPMS" in APP or for Google play Store, then download and install.
Note:

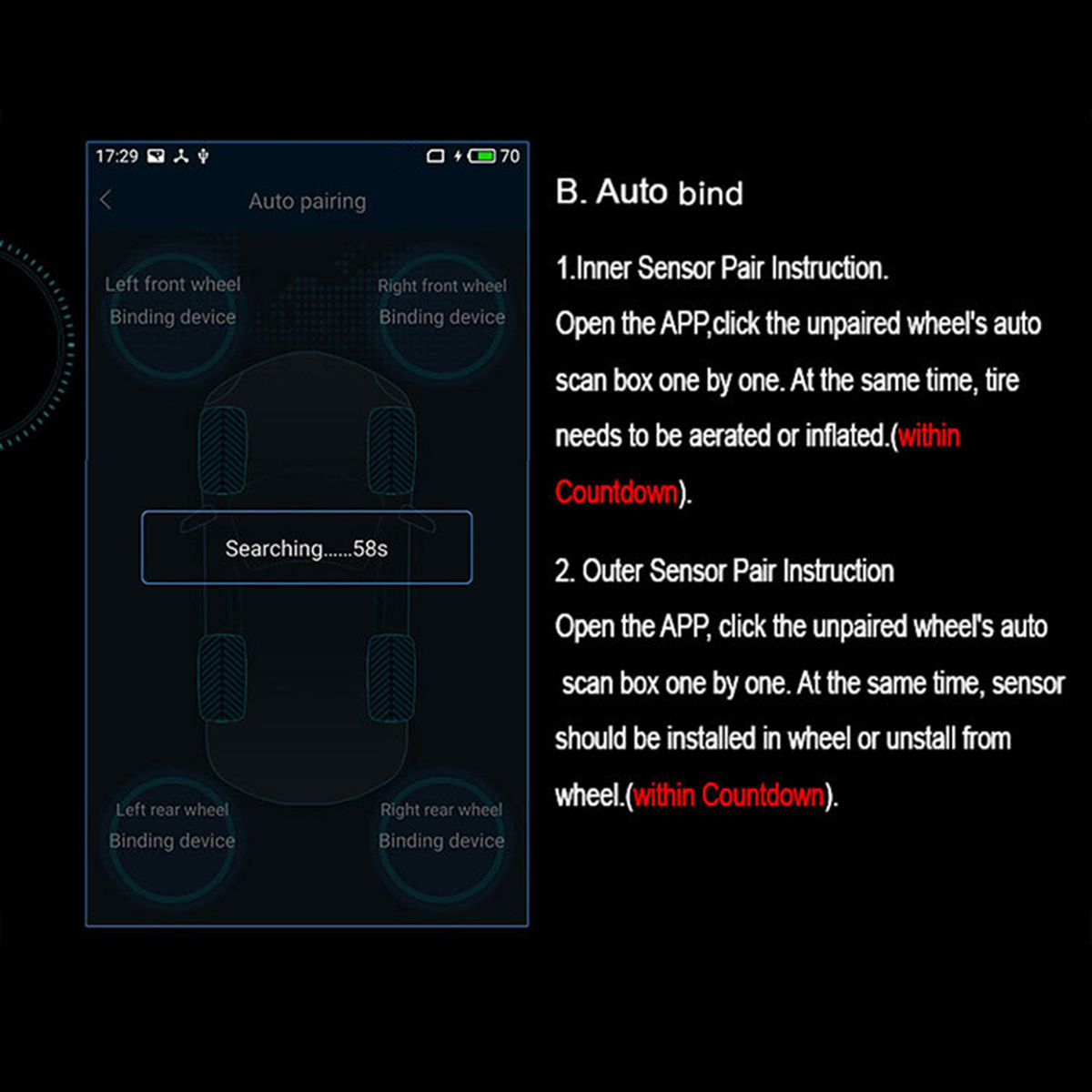

When spin the sensor to tight, please open the APP in cellphone (Choose Auto Pair) and Press "Search" button at the same time to finish sensor bind shortly.
When spin the sensor to tight, please open the APP in cellphone (Choose Auto Pair) and Press "Search" button at the same time to finish sensor bind shortly.

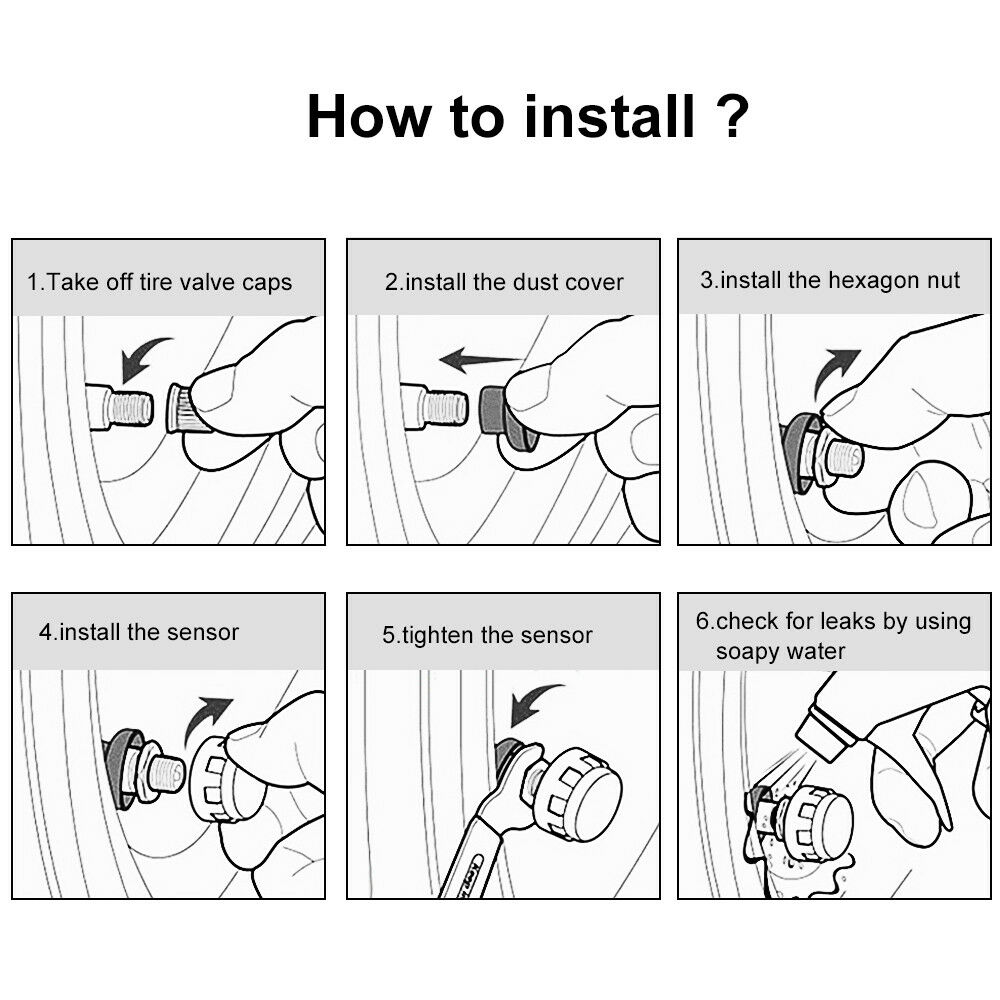

Outer Sensor Installation Steps:
Each sensor has a unique ID code. Please make sure sensor installed on corresponding tire valve.

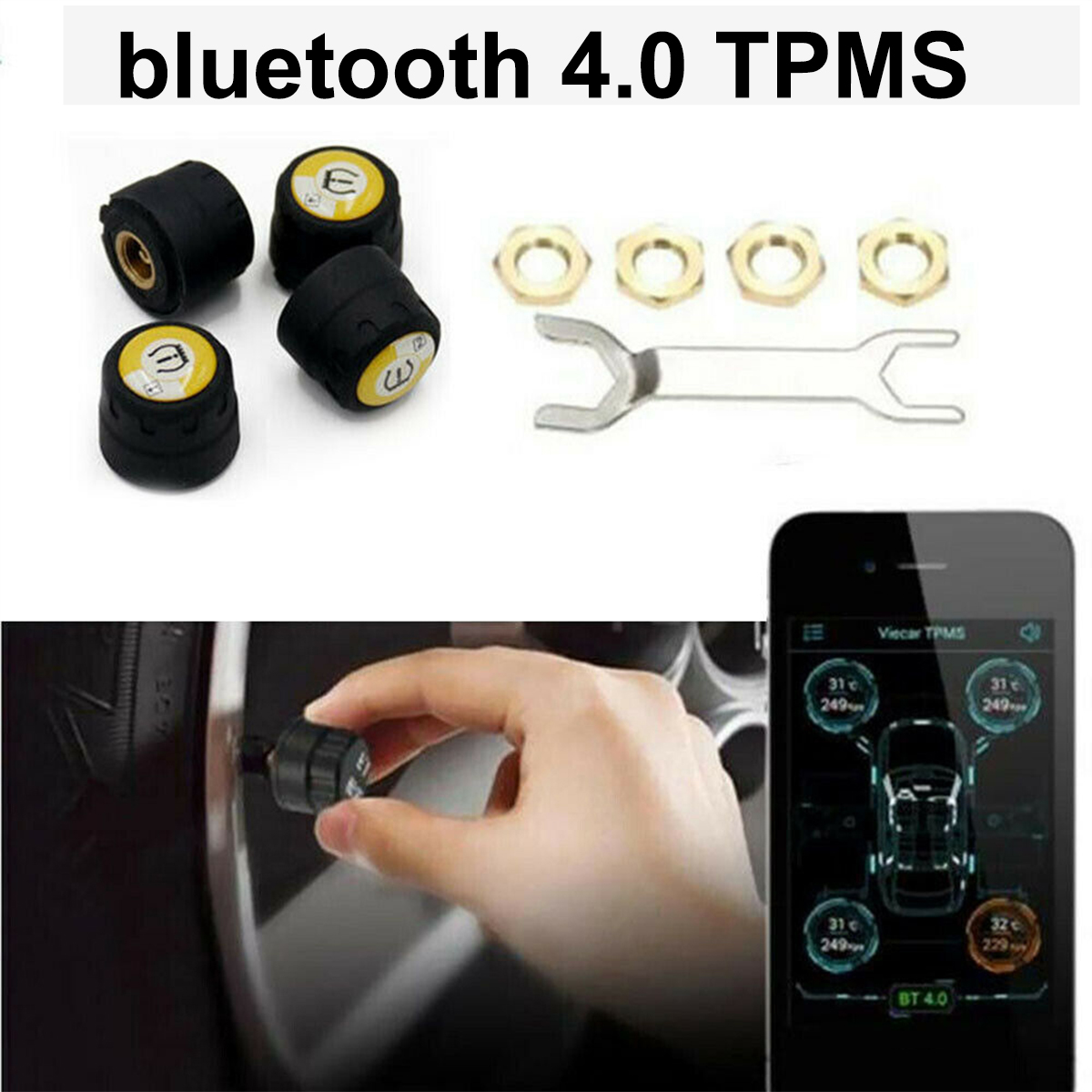

1. Remove tire valve cap, put in Anti-theft screws.
2. Install outer sensor on tire valve in order.
3. Hold the sensor, tighten Anti-theft screw.
Attention:
1) Please follow the mark and install sensor on corresponding tire;
2) Please save the installation tools (screws and wench) in car, for installing or un-stalling sensor;
3) After sensor installation, please check if there's tire leakage.

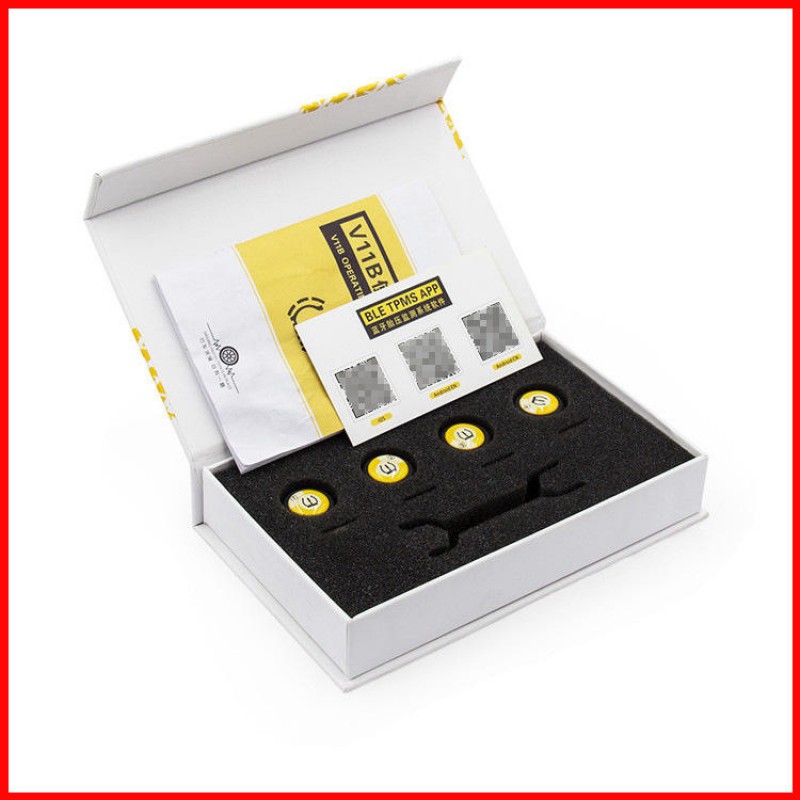

Package Included:

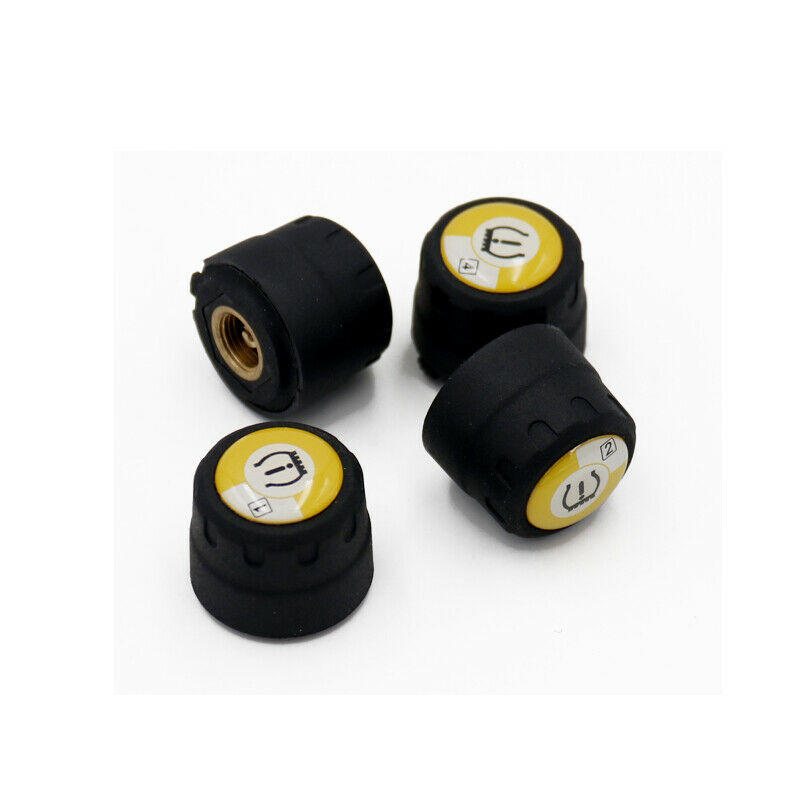

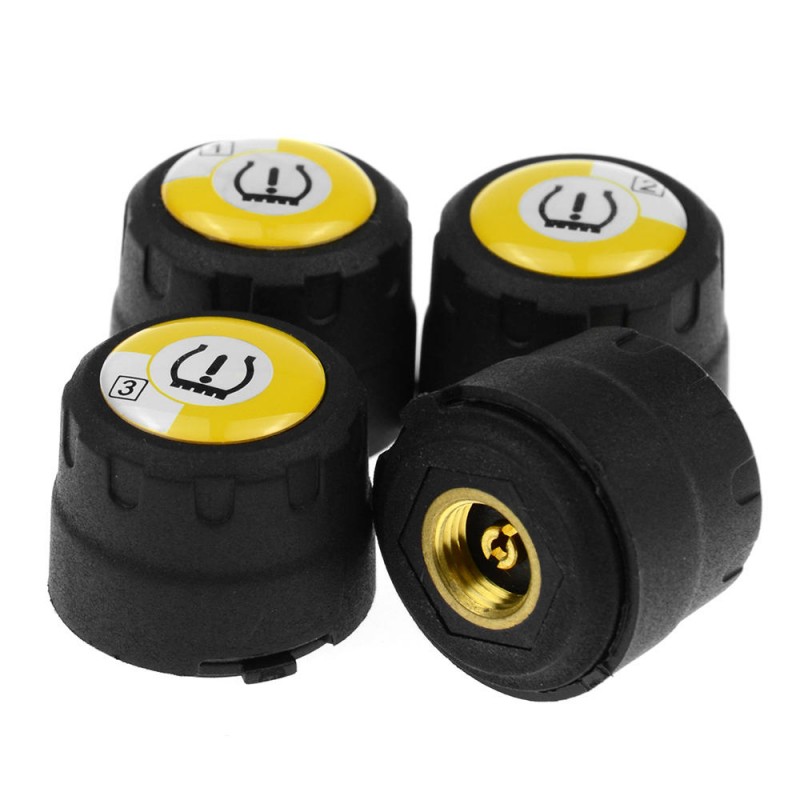

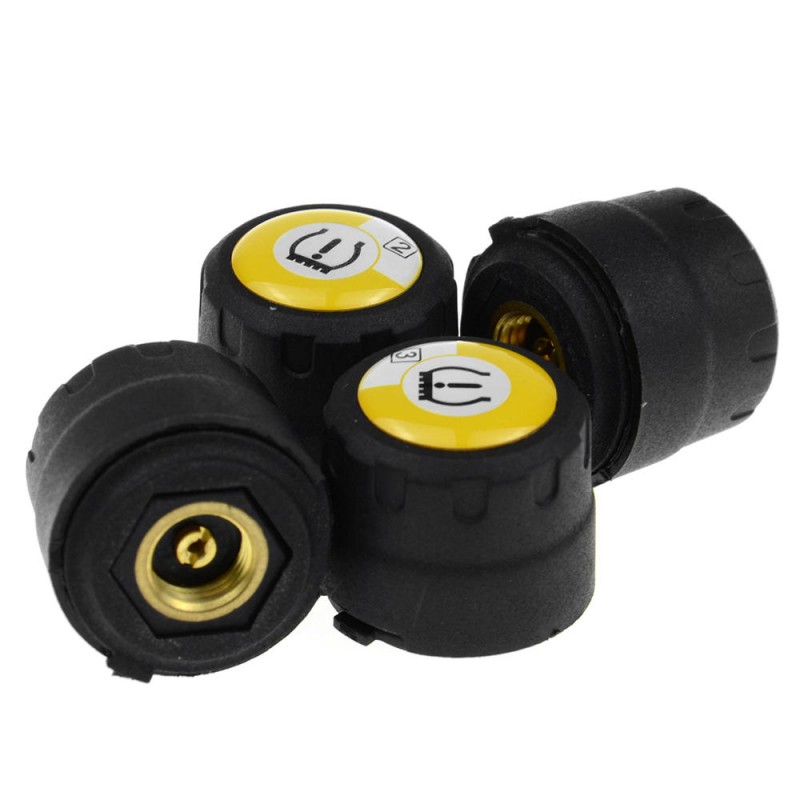

4 x Sensors
1 x Card with App QR Code

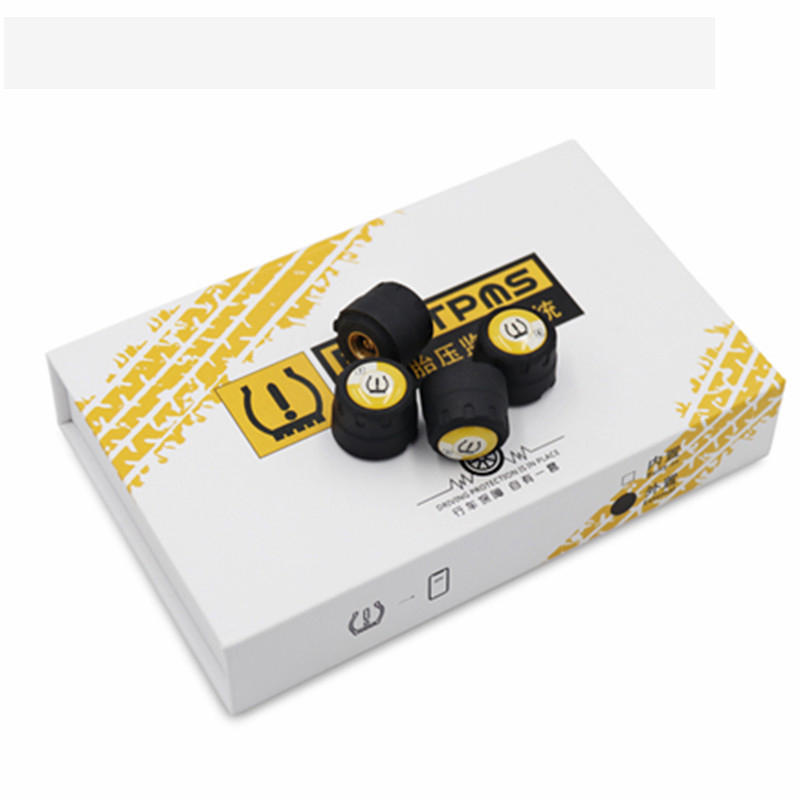

1 x Packing box
