Description:

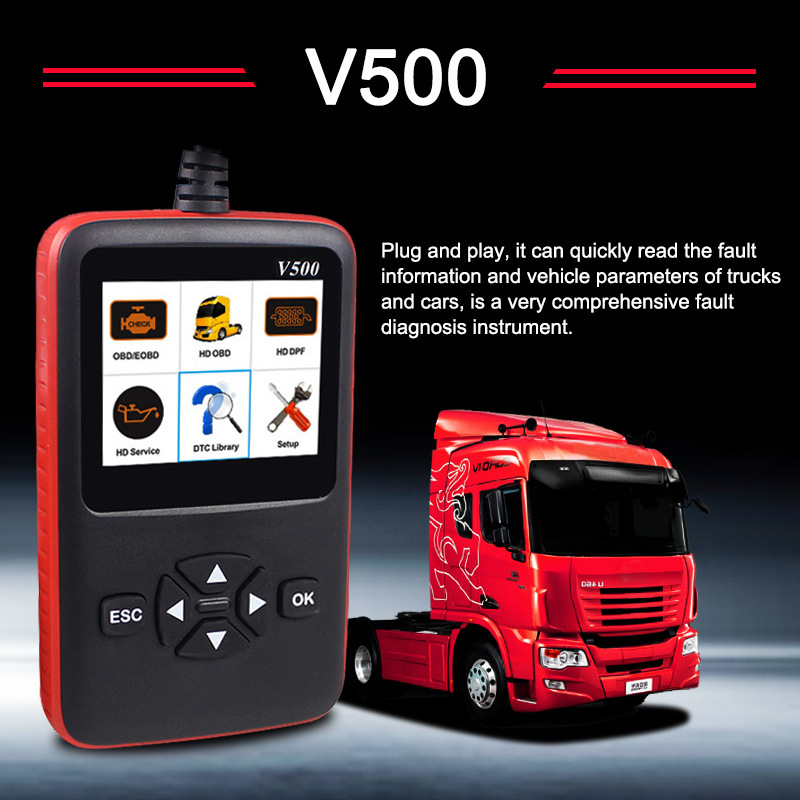

First of all, thank you very much for choosing our products, this product is a kind of fault diagnosis instrument for trucks. It supports several common truck protocols, such as SAE J1939/ISO 1708 and is also compatible with several standard protocols commonly used in cars. Plug and play, it can quickly read the fault information and vehicle
First of all, thank you very much for choosing our products, this product is a kind of fault diagnosis instrument for trucks. It supports several common truck protocols, such as SAE J1939/ISO 1708 and is also compatible with several standard protocols commonly used in cars. Plug and play, it can quickly read the fault information and vehicle
parameters of trucks and cars, is a very comprehensive fault diagnosis instrument. Please read the instructions carefully before using this product, thank you.
2. Matters need attention
1) Do not use depurative with abrasiveness to clean this product
2)Do not let this product be heated or near the fire source
3) Do not let this product be exposed to direct sunlight for a long time
4) Do not try to disassemble this product for any modification, as it does not contain any maintenance components.
5)Do not use this product in the rain
6)If you do not intend to use this product for a long time, please store it in a dry environment to avoid extreme temperature and dust.

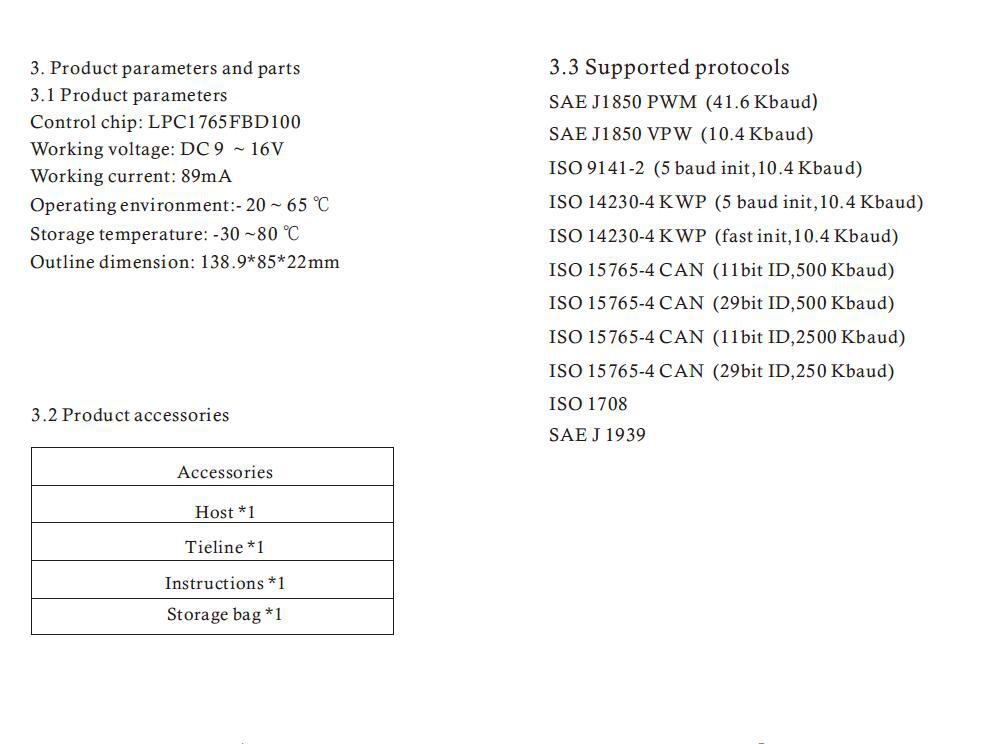

3. Product parameters and parts
1)Product parametersControl chip: LPC1765FBD100
Working voltage: DC 9 ~ 16V
Working current: 89mA
Operating environment:- 20 ~ 65 ℃Storage temperature: -30 ~80 ℃Outline dimension: 138.9*85*22

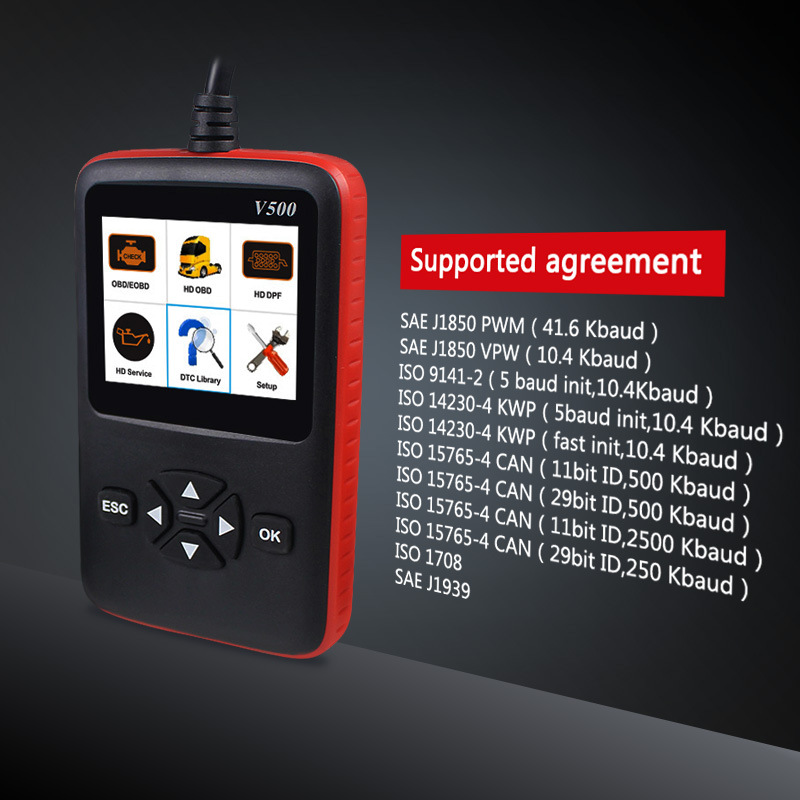

2) Supported protocolsSAE J1850 PWM (41.6 Kbaud)SAE J1850 VPW (10.4 Kbaud)ISO 9141-2 (5 baud init,10.4 Kbaud)ISO 14230-4 KWP (5 baud init,10.4 Kbaud) ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,2500 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)
SAE J 1939ISO 17

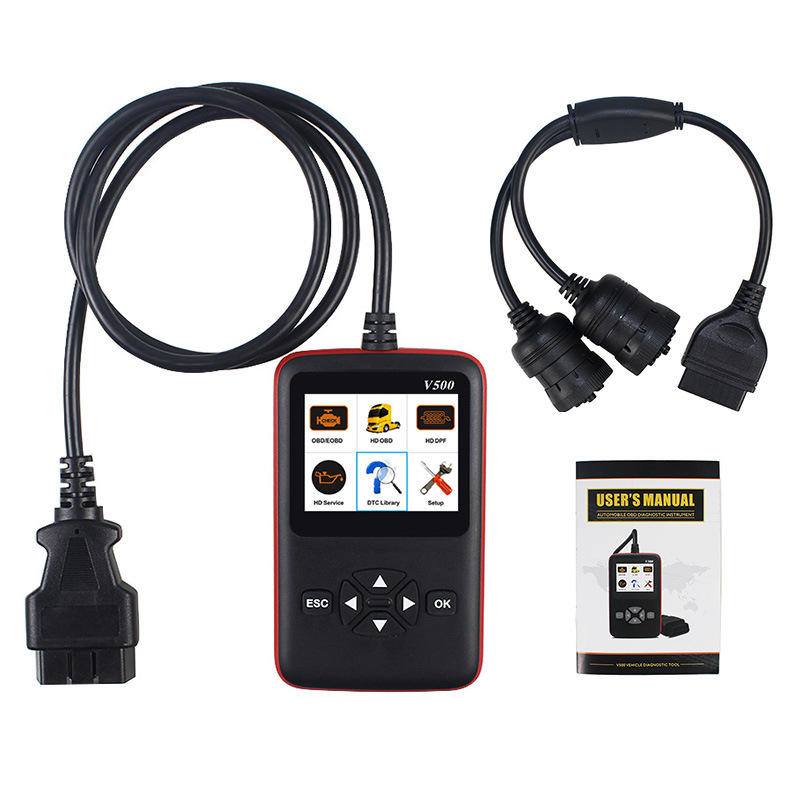

Package Included:

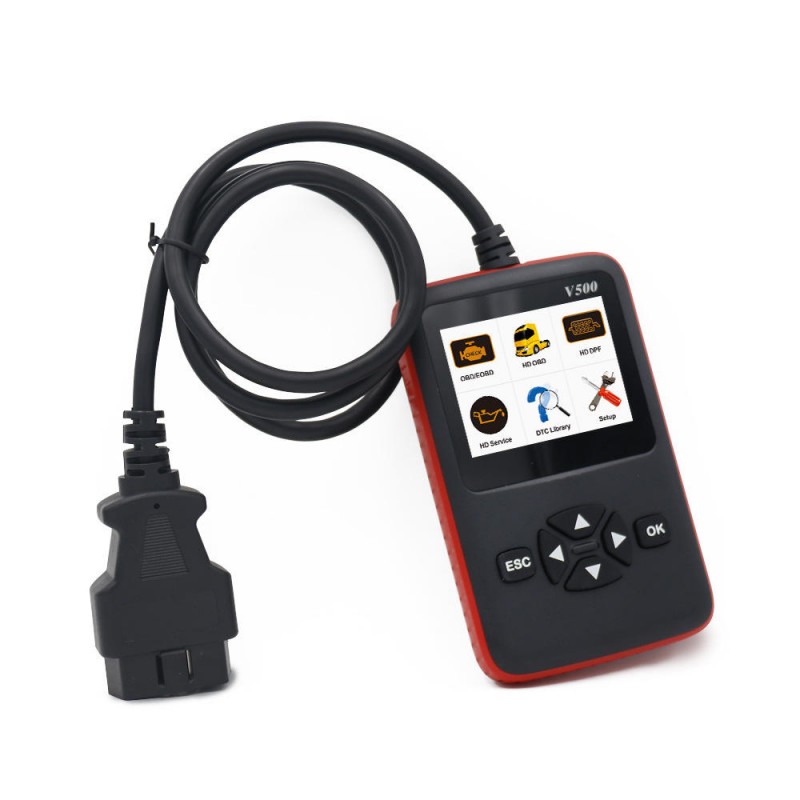

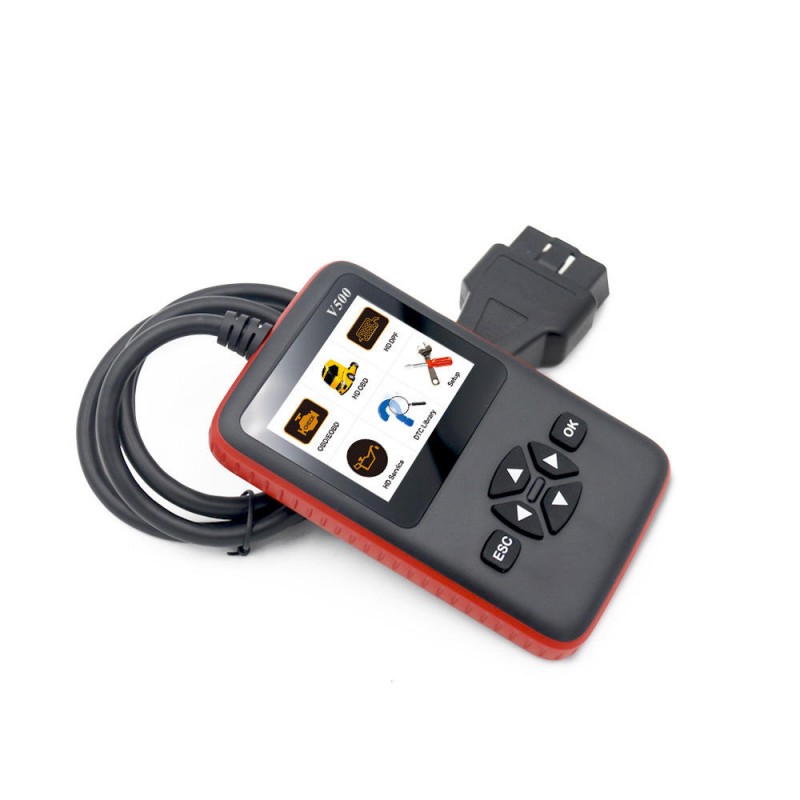

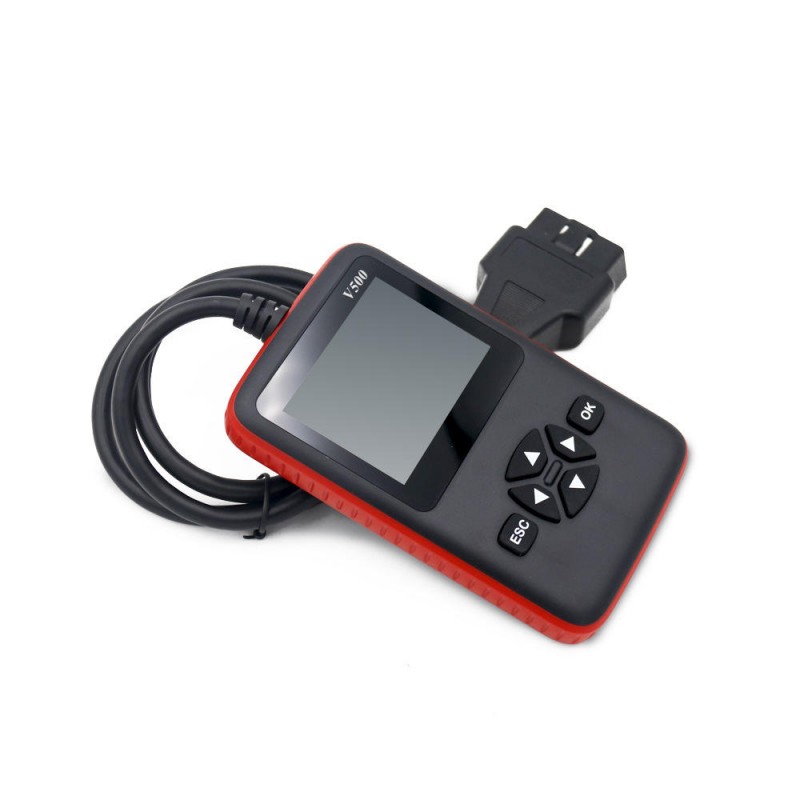

1 X V500 Car Diagnostic Scanner
1 X Cable
1 X Manual
Package Included:
1 X V500 Car Diagnostic Scanner
1 X Cable
1 X Manual
