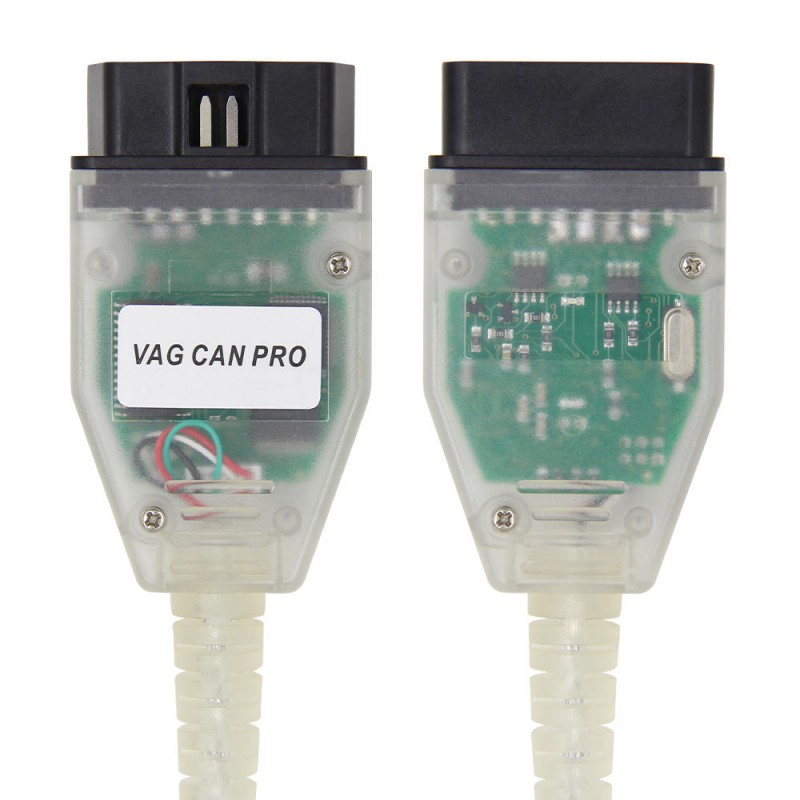

VAG CAN PRO V5.5.1 Car OBD2 Diagnostic Scanner Tool Interface USB Cable
$22.99
- Product Code: ED0006766
- Availability: In Stock
- Ex Tax: $22.99
Available Options

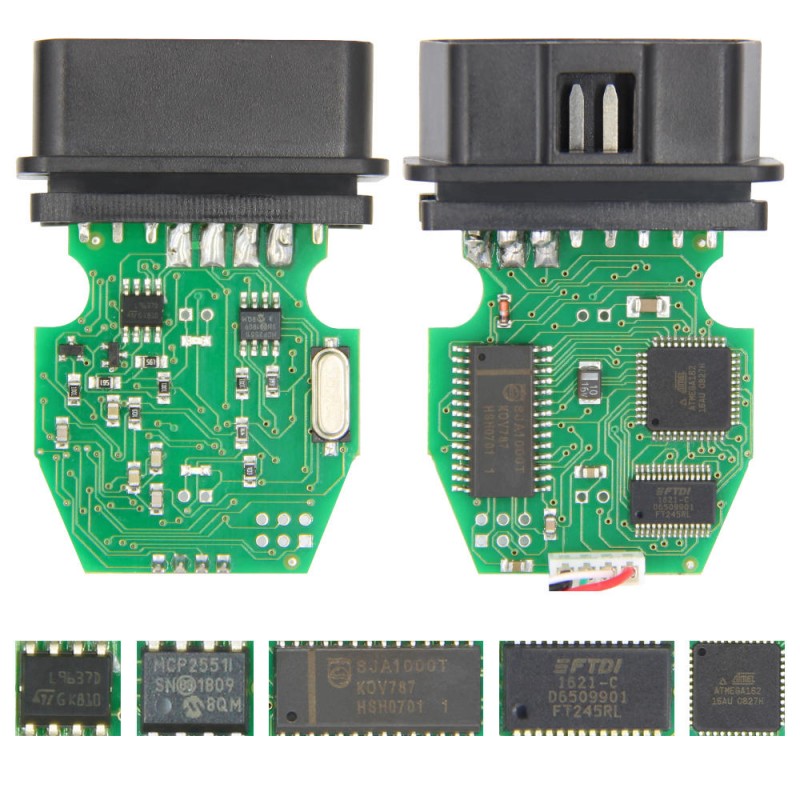

VAG CAN PRO V5.5.1 with FTDI FT245RL Chip VCP Car OBD2 Diagnostic Tool Interface USB Cable Support Can Bus UDS K Line Works for AUDI VW Skoda Seat
Description:
1.VAG PRO support CAN BUS + UDS + K-Line for diagnostics and programming of electronic components used in vehicles for
Volkswagen, for Audi, for Seat, for Skoda, made from 1990 to 2015.

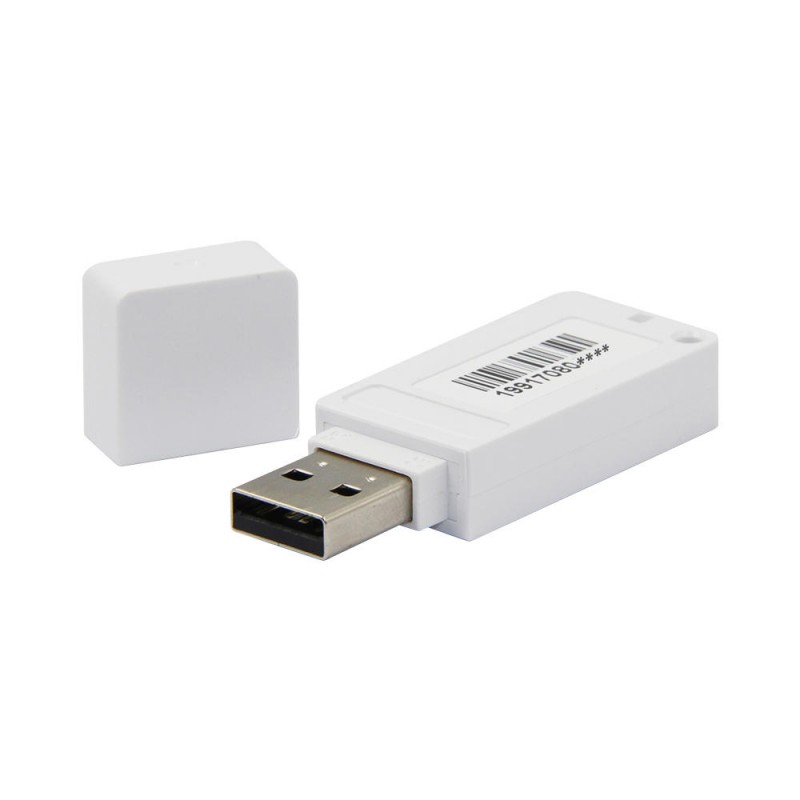

2.The USB dongle is necessary to ensure software installed successfully!
3.Tip: you should firstly plug USB dongle to computer, then plug cable into computer.

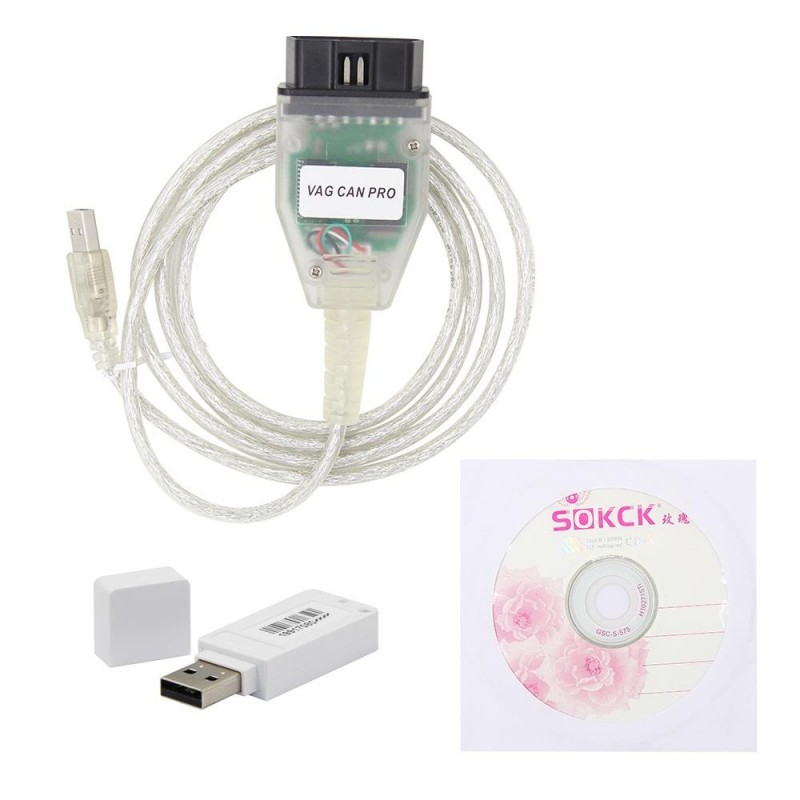

Type1:With USB dongle
Type2: Without USB dongle
Specification:
Language |
English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish, Chinese |
Main Features of VAG PRO |
|
* Unique features OCLF service procedures (One-Click-Function); * inexpensive flasher for VAG; * inexpensive flasher with support UDS controllers; * ESP MK60EC1 decision coding blocks; * a tool for a complete diagnosis MQB platform (for Golf VII, for Octavia III) Support to 01.2013; * ZDC-loading containers in the electronic components; * Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB); * Coding controllers for PR-codes; * "Login finder" - allows you to scan and logins in the CAN controllers UDS; * Support for the new for Polo in 2014 Facelift; * Support for the new for Passat B8; * Full support for Audi TT-3 on the platform of the IBC; * Full support for Skoda Fabia III |
New in Version 5.5.1: |
|
-Support for new addresses entered in the MLB-Evo platform -Update database-ODX (support for all models 2015) |
Major Changes in the PR encoder: |
|
* Now it is possible to keep PR-codes of a file * PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU * You can compare the data stored in the ECU against the calculated data, choose what you want to download. * OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks * The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a * Enhanced TXT-coding, coding calculation is now faster APDUs. * Updated data base DTC- Fixed problems with parameterization 7N0 cameras * Fixed problems with parameterization 5M0 ...... F AFS modules * OCF new section called "Apps", which is: Download the parameter data, coding for PR-code, BCM, and so forth programmer.. * The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (* .SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, * so that if a Flash file kriptovat and compressed, the binary file will be the same. * Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway. * Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform) * New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform * Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform * Reduced time delays during the loading of large data blocks in the non-flash modes.
This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG |
|
Supported Cars:
1. For Audi |
|
A2 2009- A3 8P 2003- A3 - platform MQB- A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005- A4 model 8K wariant B8 (UDS + TP2.0) 2008- A5 model 8K (UDS) 2007- A6 model 4F 2004- A8 model 4E 2003- Q3 (UDS) 2010- Q5 (UDS) 2008- Q7 (TP2.0 + UDS) 2006- S5 model 8K (R)S6 model 4F R8 (UDS) TT model 8J 2007- |
2. For Mercedes |
For Sprinter (VW Crafter) - - Only the engine and immobilizer |
