Description:
7 infrared night vision LED.
Weatherproof/Waterproof,can be used both in car and home.
Specification:
Model:518T
Image Device:PC1030D
TV System:PAL/NTSC
Effective Pixels:648 x 488 pixels
Sensing Area:5.55um x 5.55um
Scanning System:2:1Interlace
Sync. System:Internal
Resolution:420TV lines
Horizontal Sync. Frequency:15.625KHz/15.734KHz
Vertical Sync. Frequency:50Hz/60Hz
Minimum Illumination:1.5Lux/F1.2
Video Output:1.0vp-p,75Ohm
Gamma Consumption:0.45
AGC:Auto
S/N Ratio:Better than 48dB
White Balance:Auto
Electronic Shutter:1/60~1/15,000 Seconds
Balance:Auto
Current Consumption:100mA
Power Supply:DC12V
Operating Temperature:- 10°C~46°C , RH95% MAX
Storage Temperature:- 30°C~60°C, RH95% MAX
Length:13.5cm
Width:8.5cm
Height:8cm
Package Included:

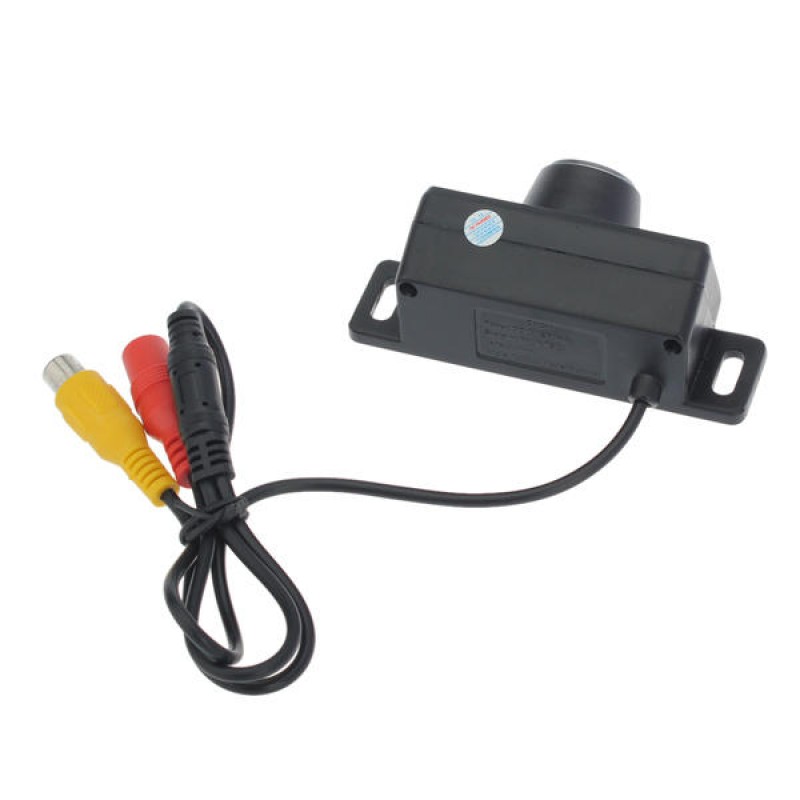

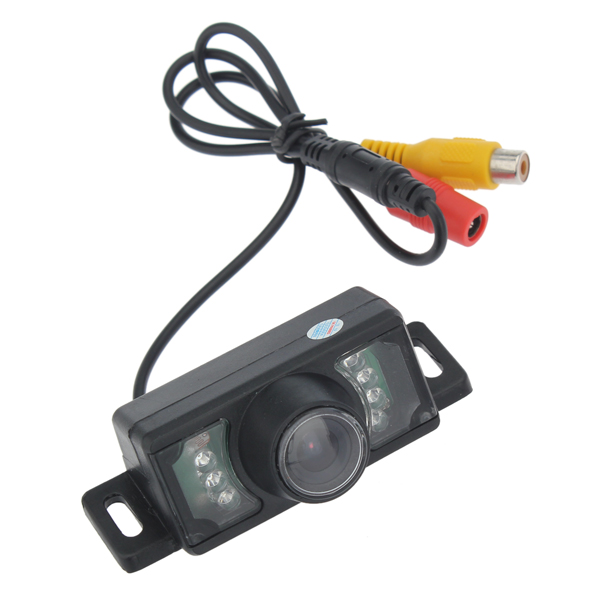

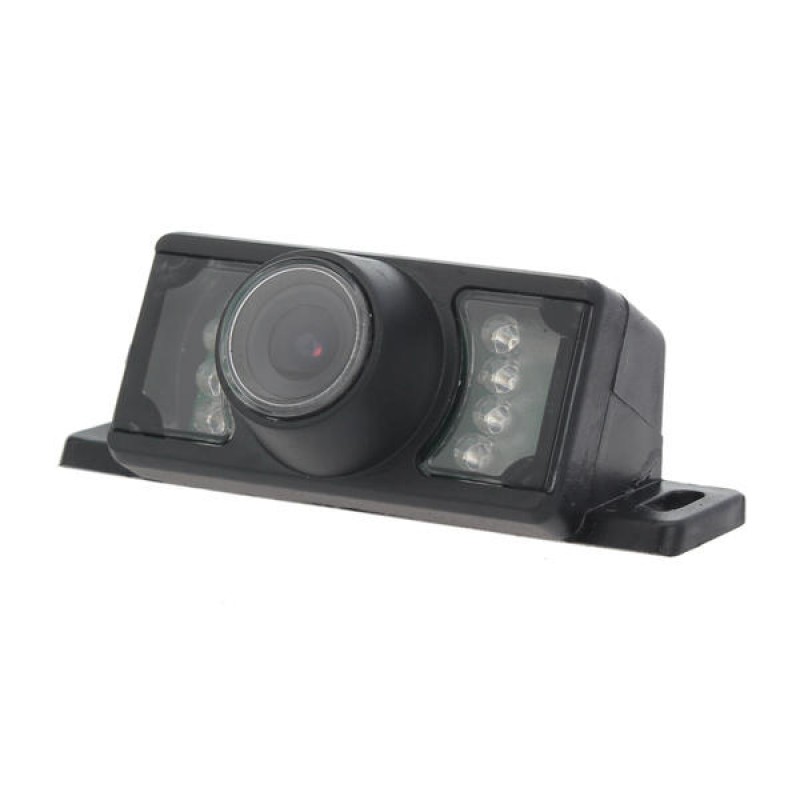

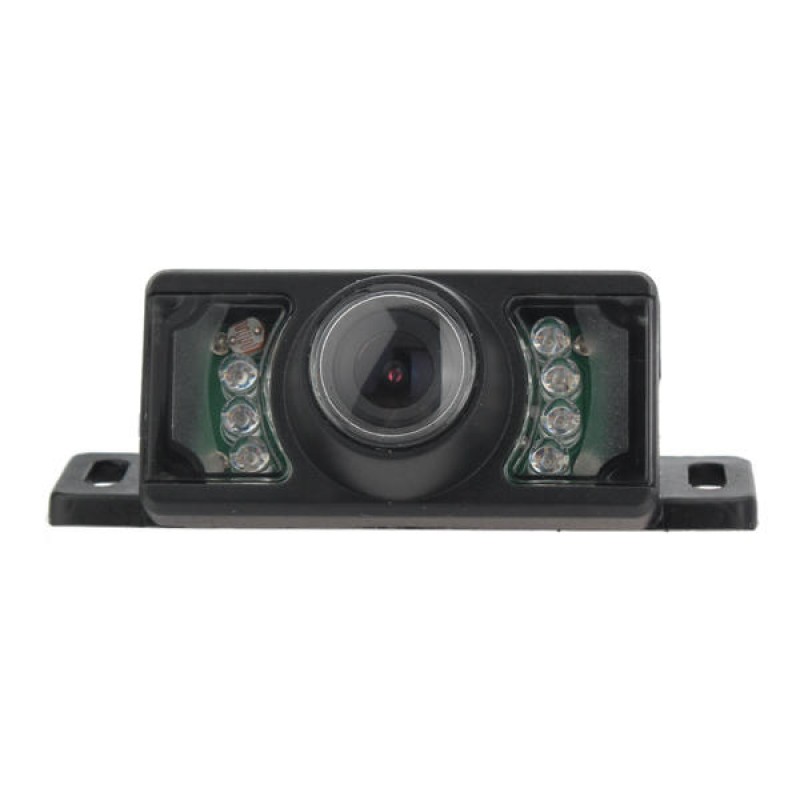

1 X Car Rear View Camera

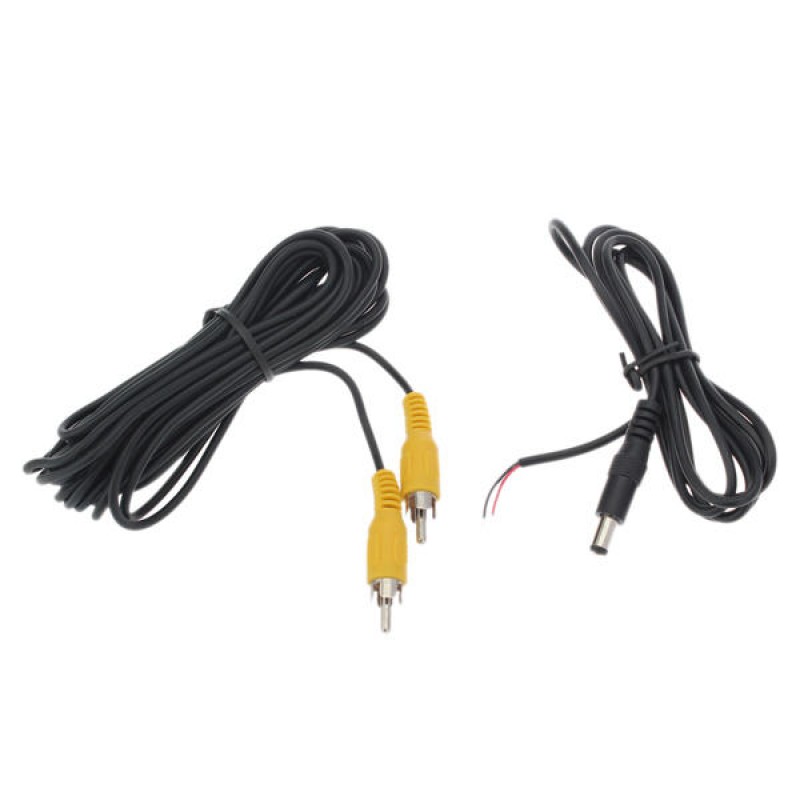

1 X Power Supply Cable
1 X Video Cable
2 X Screw
