Wifi or bluetooth Version J1850 Protocol OBD2 Car Diagnostic Scanner Support All OBDII Protocols For Android IOS PC
$16.84
- Product Code: ED0007448
- Availability: In Stock
- Ex Tax: $16.84
Available Options

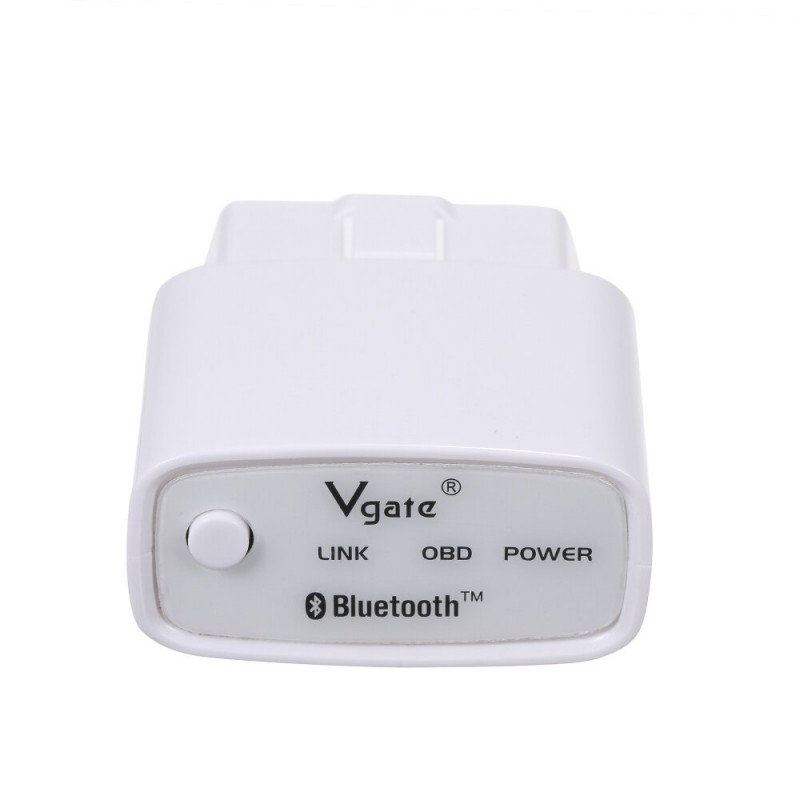

Vgate iCar1 OBD2 Diagnostic Scanner Support J1850 Protocol BT / Wifi Connection Optional Diagnostic Scan Tool

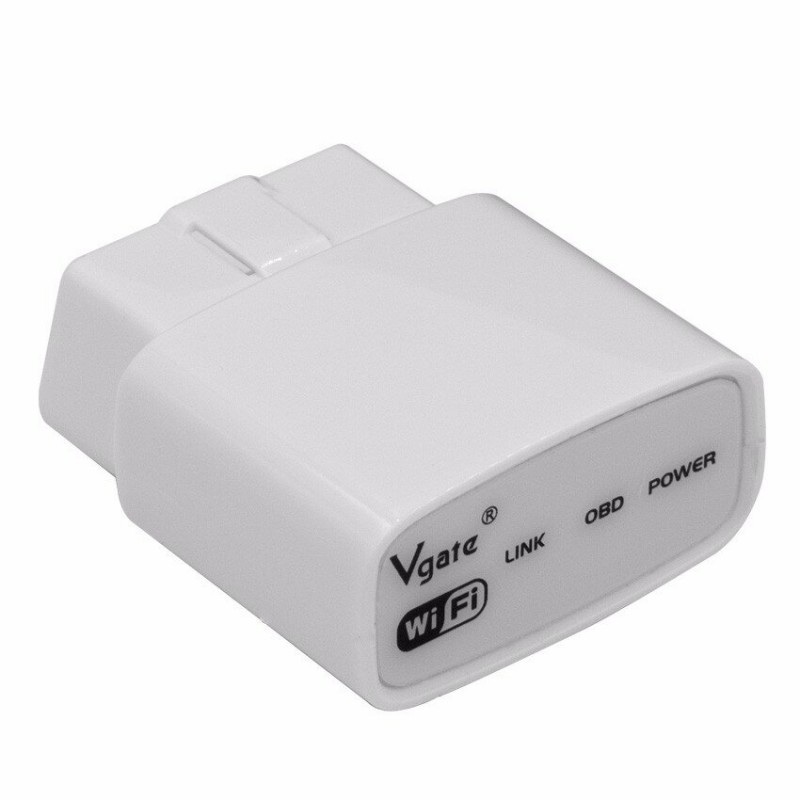

Vgate iCar 1 WIFI Version V2.1 supports IOS , Android and Windows
Top 10 Reasons to Get VGATE Wifi ELM327:
1. Software Version: V2.1
Hardware version: V2.1
2. Support for Android PC for iPhone and for iPad
3. Fully compatible with ELM327 V1.4b.
4. AlI ELM327 supported software are available to use.
5. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)
6. Low standby power consumption sleep mode.
7. Lower power consumption than ELM327
8. LED indicator is in the front side toward user for easier check of linking status.
9. Support J1939 protocol more than ELM327.
10. WiFi 802.11 b/ g and encrypted for better security
Support OBDlI /EOBD2 Protocols:
ISO 15765-4 (CAN-B 125Kbps, started since 2003 in USA)
ISO 15765-4 (CAN-C 500Kbs, 11bit ID, 29bit ID, started since 2003 in USA)
ISO 14230-4 (KWP2OOO)
ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 142304 gradually, stopped in USA in 2008)
SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1939 the Data link connector standard
Function:
1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes)
and its meaning.
2. Clear DTC, turn off dashboard MlL "Check Engine" Light
3. Display sensor data, including:
Engine RPM,Load,Coolant Temperature,Fuel Status,Vehicle speed,Intake Manifold pressure (MAF 1 MAP),Timing Advance,Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,Oxygen sensor voltage / short term fuel trim,Fuel Pressure
Product Specification:
| OBDlI decode chip: |
ARM 16bit MCU |
| Firmware: |
ELM327 Version 1.4b compatible |
| Transfer baud rate: |
4800/9600/10400/38400 / 5O0K |
| Input interface: |
OBDlI male 16pin |
| Output interface: |
Wifi 802.11b/g |
| LED Indicator: |
Power (red) / OBD (green) / Link (blue) (PC or smart phone) |
| Operating Voltage: |
12V, including over voltage / shortage protection |
| Nominal Idle current: |
45mA |
| Net Weight: |
31g |
| Gross Weight: |
60g |
| Wire Length: |
0 cm |
| SSID: |
BUYOBD |
| Password: |
See item label |
| IP: |
192.1 68.0.10 |
| HTTP local port: |
35000 |
| Encryption: |
WEP128 |
| Power: |
supplied by car OBD socket |

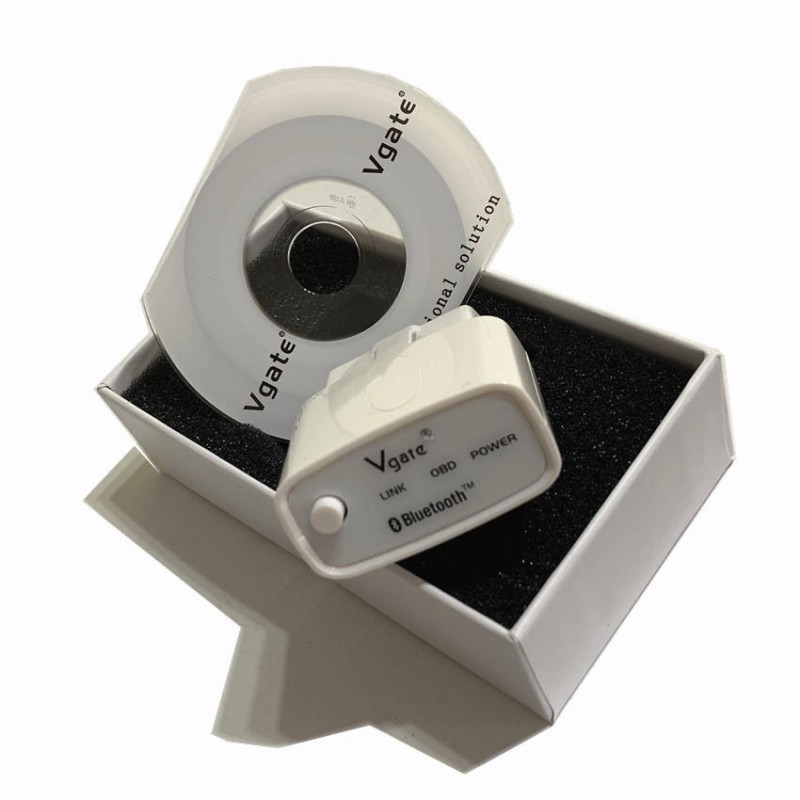

Package Included:
1 X Vgate iCar 1
1 X CD
