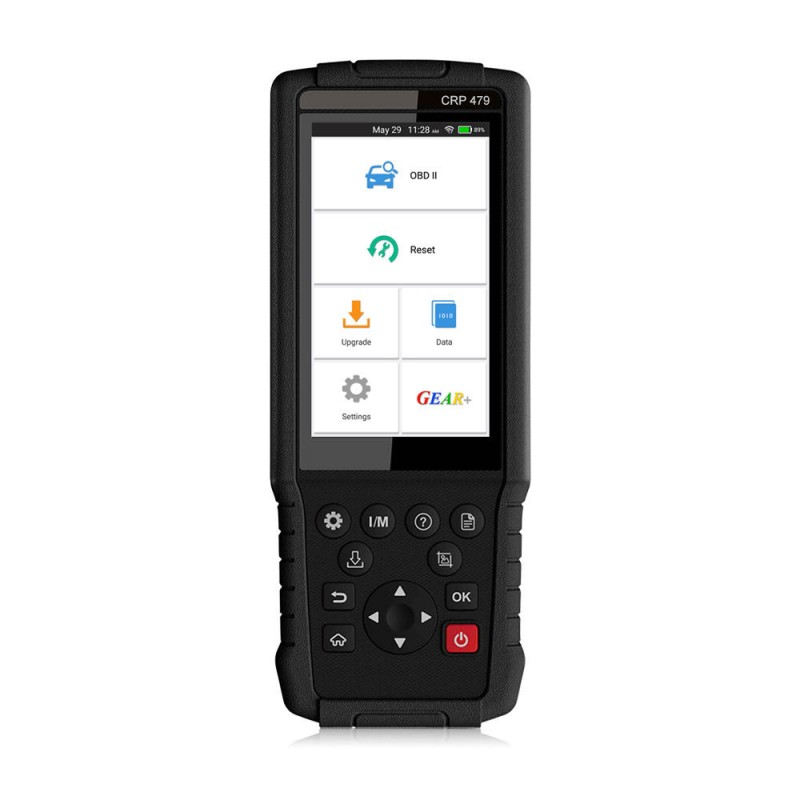

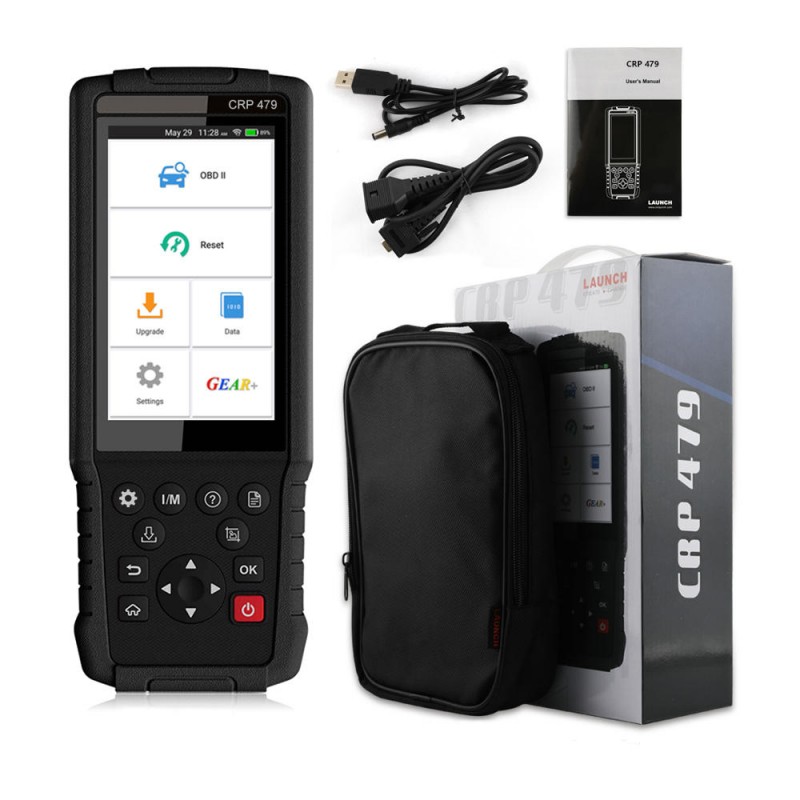

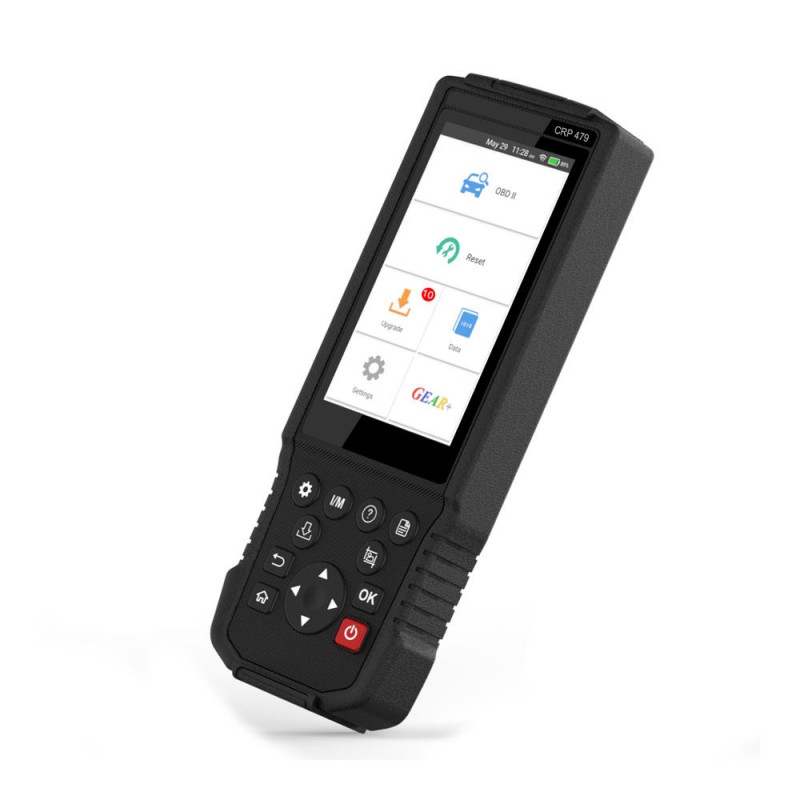

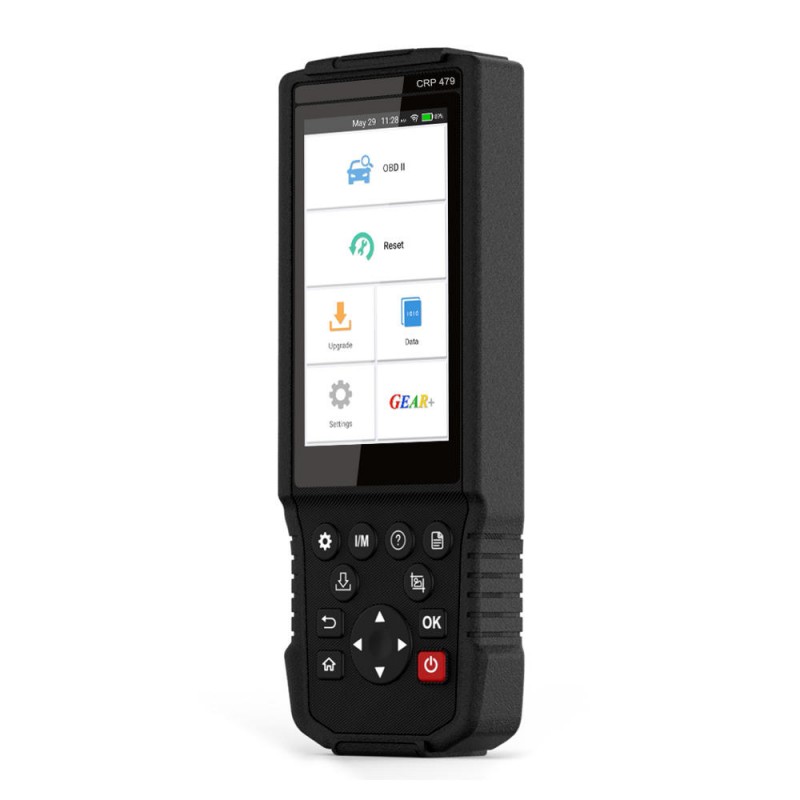

X431 CRP479 OBD2 Automotive Scanner Code Reader ABS EPB DPF Oil Injector Coding OBD II Car Diagnostic Tool
$269.99
- Product Code: ED0007041
- Availability: In Stock
- Ex Tax: $269.99
Support 15 Functions:
1.Oil Lamp Reset Service:
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2. EPB service:
it is important in the maintenance of electronic braking system’s safety and efficiency
3. BAT battery service:
allows the scan tool to evaluate the battery charge state,monitor the close-circuit current,register the battery replacement,and activate
the rest state of the vehicle.
4. DPF service:
specially works for Diesel Particulate Filter system with DPF regeneration,DPF component replacement teach-in and DPF teach-in after
replacing the engine control unit.
5. SAS service:
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6. TPMS service:
makes sense in displaying sensor IDs from the vehicle's ECU,inputting TPMS sensor replacement IDs and testing sensors.
7. IMMO Key Programming:
the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new
replacement key fob.
8. ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
9. Sunroof Reset:
The sunroof memory generally needs to be reset when the vehicle’s batteryis replaced or the car dies
10. Suspension Reset:
Try reset electronic suspension air ride with the massage system close all doors koeo flip through measagesystem go to suspension
reset oron off.
11. Gearbox Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control
Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After
you follow this programing method of the TCU / ECU drive the car.
12. AFS Headlamp Reset:
AFS means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means
they stay pointing straight ahead and don't turn when you turn the steering wheel
13. Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system
and mechanical components also may not show an rpm loss when aninjector is turned off
14. Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In
an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the
corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
15. Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure
for Engine running
How to update Launch CRP479?
1. Input mailbox activate machine and connect with wifi network before update work
2. If some new software or APK can be updated,a numeric indicator will display on the 'Upgrade' module on the Job menu.In this case, you
may use this option to keep it synchronized with the latest version.
3. Tap "Upgrade" on the Job menu to enter the update center. By default, all diagnostic software is selected.
4. To deselect certain software, tap Unselect,and then check the box next to vehicle model.
5. Tap Update to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap Stop
to resume it, tap Continue. If network connection failure occurs, tap Retry to try again.
6. Once download is finished, the software packages will be installed automatically.
The Top Reasons to Choose OBD2 Automotive Scanner Launch X431 CRP479:
1. Supports all 10 models of standard OBDII/EOBD test
2. Support 15 Reset Function: including Oil Lamp Reset, Brake Pad Reset, TPMS Reset, Battery Matching, Injector Coding,
Throttle Adaptation, DPF Reset, Gear Learning, Steering Angle Reset,ABS Bleeding,Sunroof Reset,Suspension Reset, Gearbox
Reset,AFS Headlamp Reset and Anti-Theft Matching.
3. 5.0" IPS touch screen and button dual operation model, for Android 7.0 System Support.
4. Basic diagnostic functions: Version Information, Read DTCs , Clear DTCs and Read Data Stream (supports 3 dispiay modes: Value,
Graph and Merged).
5. Support multi-language : English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean. meet the needs of
customers in various countries.
6. Update: One-Click update online via Wi-fi , One years free update
7. Print : Support print out diagnostic data report via email
8. Multiple car models (covering over 50 prevailing models from Asia, America and Europe) support.
Specifications:
Brand |
Elecdeer |
Model |
X431 CRP479 |
Operating System |
for Android 7.0 |
Processor |
Cortex-A5 processor (1.5 GHz) |
RAM |
1GB |
ROM |
8GB |
Display |
5 inch IPS touch screen |
Connectivity |
Mini USB 2.0, Wi-Fi |
Power and Battery |
4000 mAh lithium-polymer battery |
Built-in Lithium Battery |
4000mAh |
