YG602020 50MHz to 4GHz Signal Gain Block MMIC Amplifier Suitable for GPS WLAN CATV ISM and So On A Set with 1000pcs
$184.18
- Product Code: ED0003517
- Availability: In Stock
- Ex Tax: $184.18
Product Description:
The YG602020 is a high performance InGaP HBT MMIC gain block amplifier utilizing a Darlington pair configuration with an active bias network. The active bias network provides stable current over temperature and process variations. The YG602020 is internally matched to 50Ω, its typical bias condition is a single 5V, and does not require a dropping resistor as compared to typical Darlington amplifiers. The YG602020 is assembled in an industry standard SOT-89 package. It is internally integrated with ESD protection unit
Features:
■ Operating Frequency 50MHz to 4GHz
■ 18dB Gain at 2.0GHz
■ 22dBm P1dB at 2.0GHz
■ 32dBm OIP3 at 2.0GHz
■ Single Power Supply
■ Integrated Active Bias Circuit
■ Industry Standard SOT-89 Package
■ ESD protection all ports above 1000V HBM
Pin Description:
Applications:
■ WLAN / WiMAX / WiBro
■ GSM / CDMA / PCS
■ WCDMA / LTE
■ GPS / COMPASS
■ CMMB
■ RFID
■ CATV
■ ISM
| Pin No | Symbol | Description |
| 1 | IN | RF input |
| 3 | OUT | RF output and bias |
| 2,4 | GND | Ground connected |
Absolute Maximum Ratings:
| Parameter | Rating | Unit |
| Input RF Power | +25 | dBm |
| Supply Voltage | -0.5 to +6.0 | V |
| Device Current | 200 | mA |
| Operating Ambient Temperature | -40 to +85 | °C |
| Storage Temperature | -40 to +150 | °C |
Caution:
Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability
More information please read the English Manual, click here

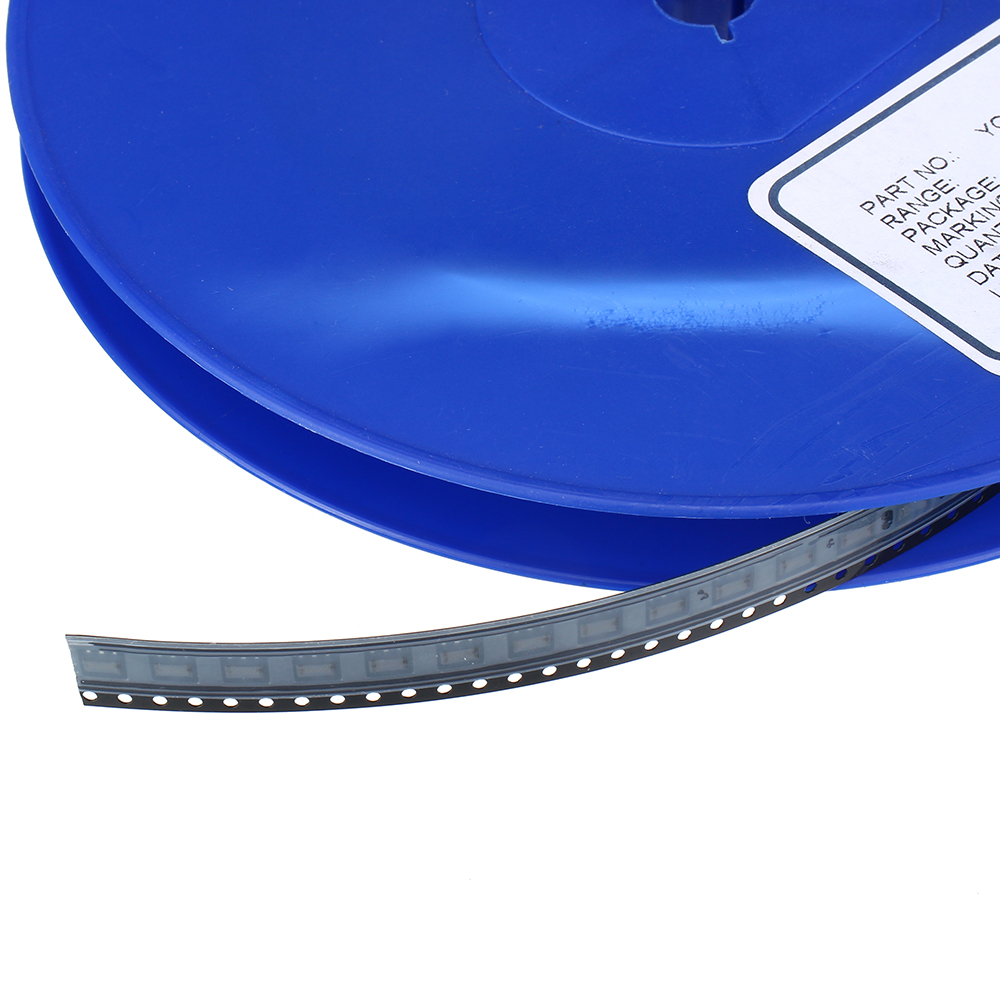

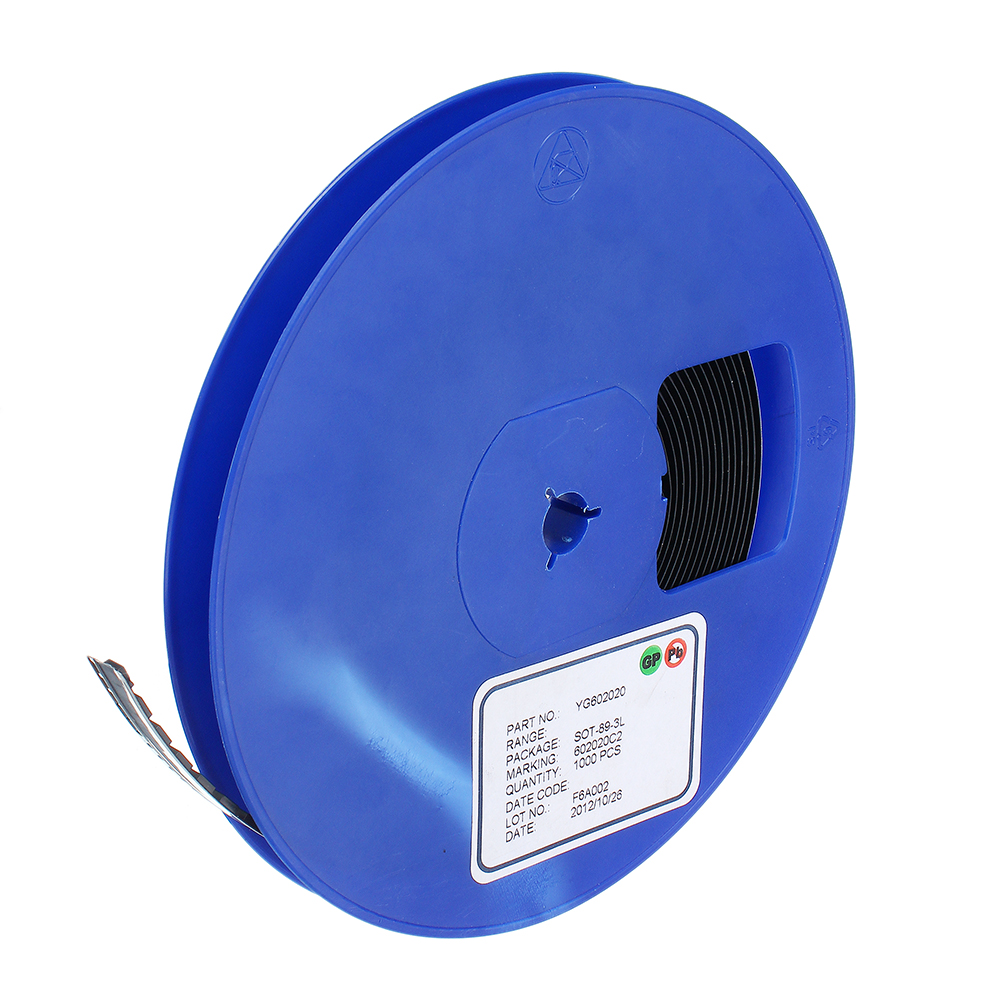

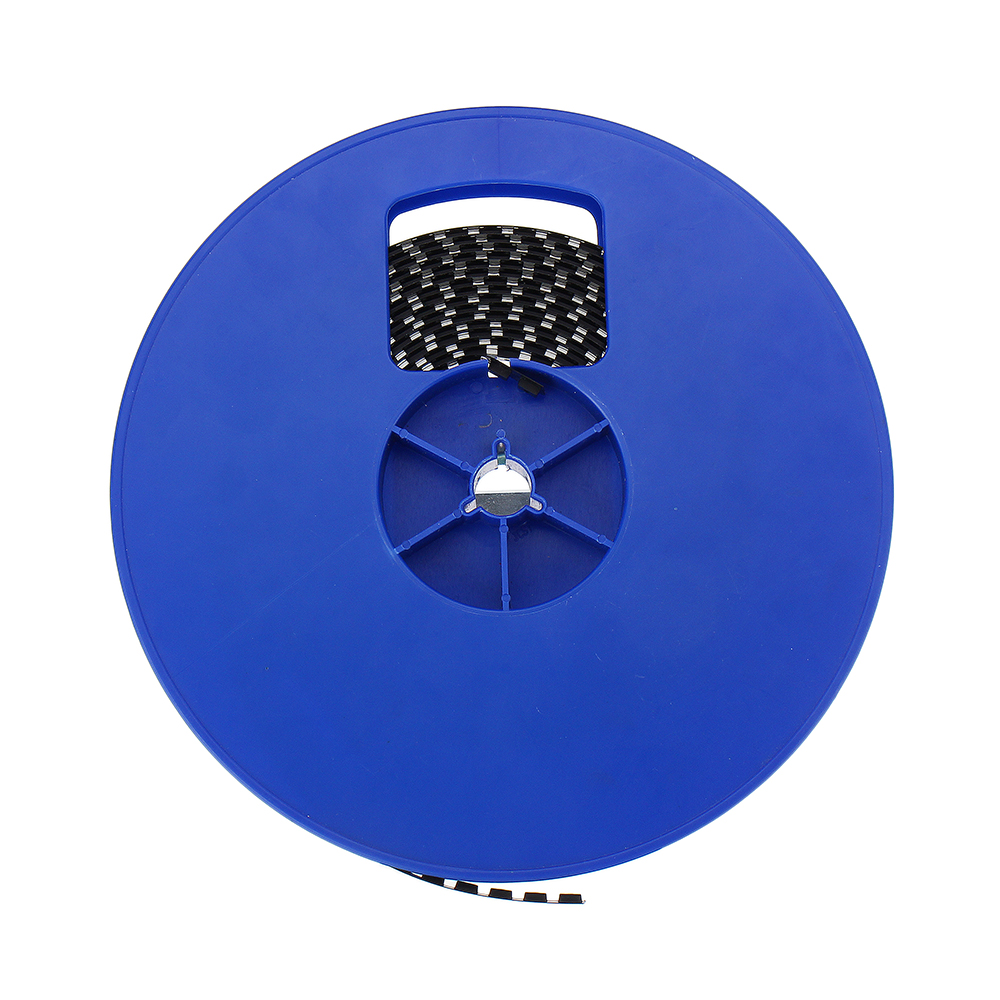

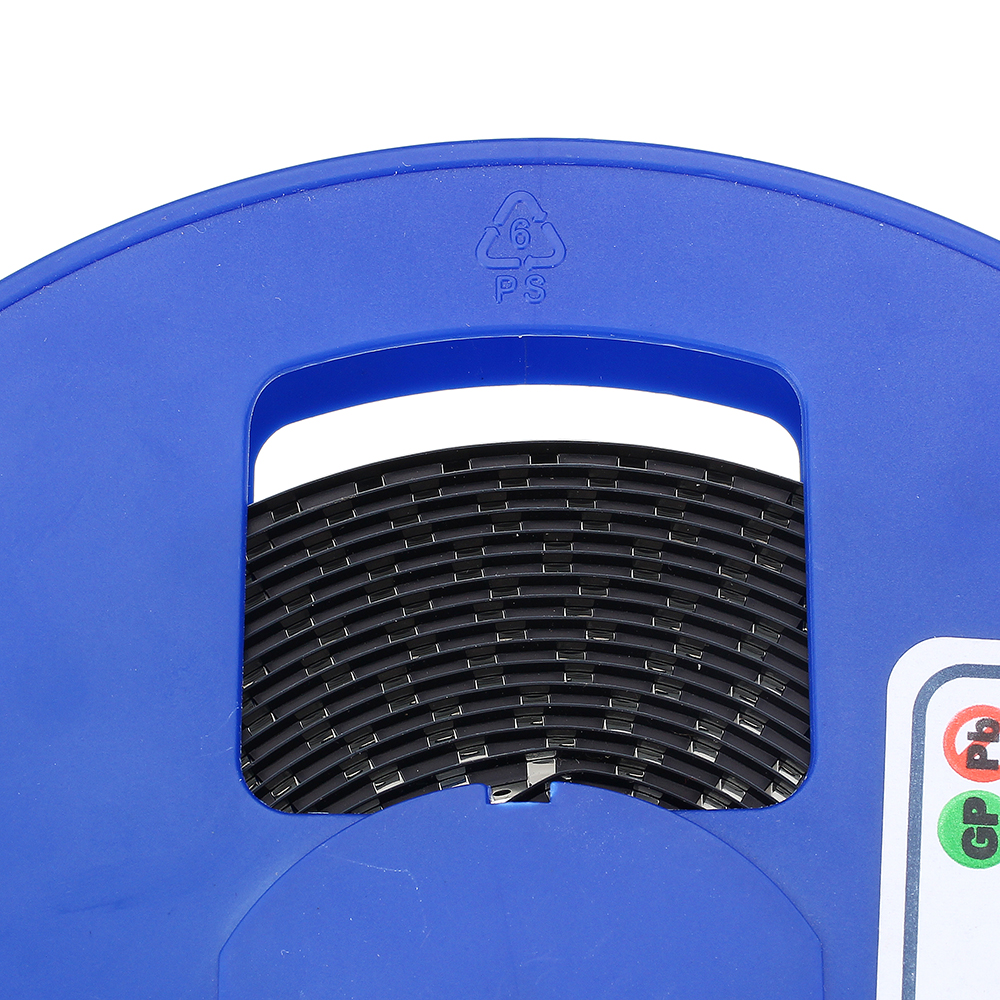

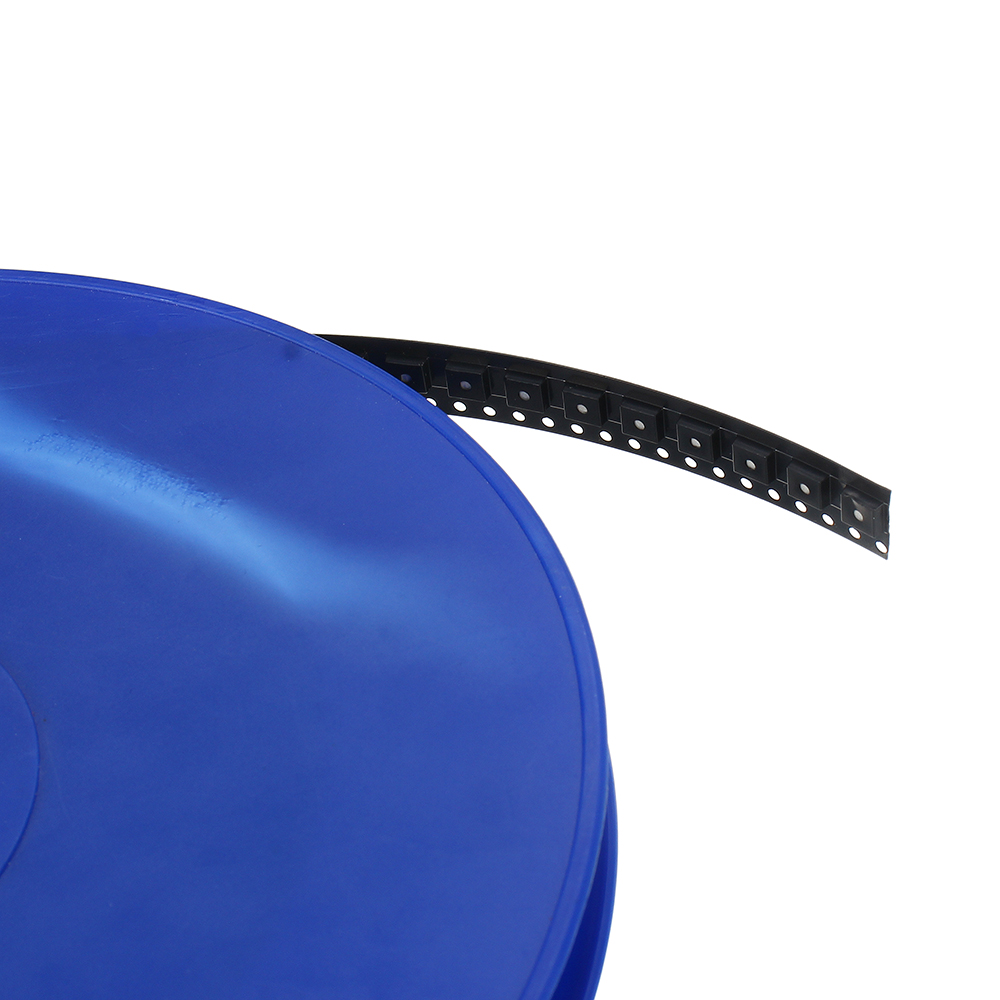

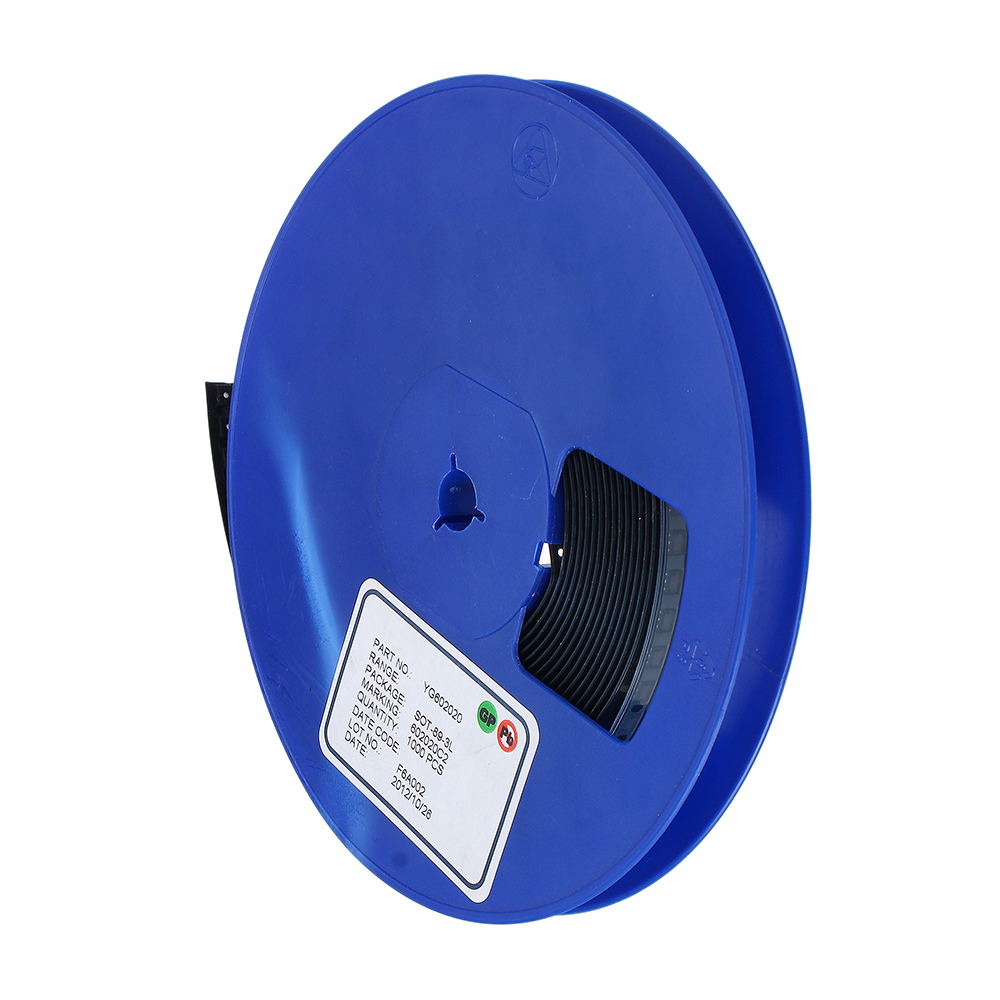

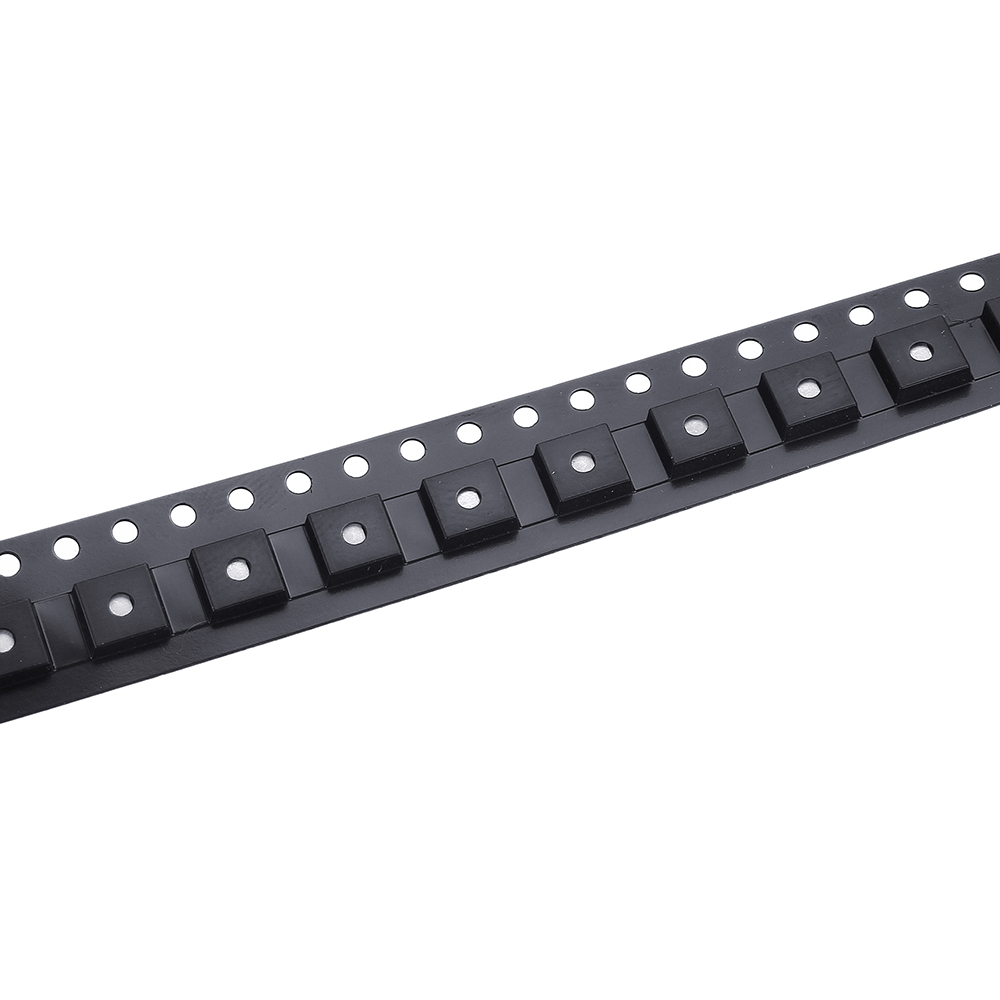

Package Included:
1000pcs A Set
